MAXIMUS MVXHD
High-spec ex-proof HD camera in a compact design

EN
English - Instruction manual
ENGLISH
MAXIMUS MVXHD
High-spec ex-proof HD camera in a compact design

Instruction manual - English - EN
3MNVCMVXHDCAM_1630_EN
Contents
ENGLISH 1
1 About this manual ......................................................................................................... 5
1.1 Typographical conventions.................................................................................................................................. 5
2 Notes on copyright and information on trademarks.................................................. 5
3 Identification.................................................................................................................. 5
3.1 Product marking ...................................................................................................................................................... 5
4 Installation ..................................................................................................................... 6
4.1 Range of use.............................................................................................................................................................. 6
4.2 Connection of the power supply line............................................................................................................... 6
4.3 Connection of the Ethernet cable ..................................................................................................................... 7
4.4 Signal cable connection........................................................................................................................................ 7
4.4.1 Alarm and relay connections............................................................................................................................................... 7
4.4.1.1 Connecting an alarm with dry contact ................................................................................................................................................. 8
4.4.1.2 Relays connection......................................................................................................................................................................................... 8
4.5 Washing system connection................................................................................................................................ 8
5 Switching on .................................................................................................................. 8
5.1 First start-up............................................................................................................................................................... 8
5.2 Software interface................................................................................................................................................... 9
5.2.1 Minimum system requirements......................................................................................................................................... 9
5.2.2 Configuration procedure through software.................................................................................................................. 9
5.2.3 Installing the software........................................................................................................................................................... 9
5.3 Web interface ..........................................................................................................................................................11
5.3.1 Home Page...............................................................................................................................................................................11
5.3.2 User Controls page................................................................................................................................................................12
5.3.3 Device Parameters Page......................................................................................................................................................13
5.3.4 Device Statistics page..........................................................................................................................................................13
5.3.5 Network Configuration page ............................................................................................................................................13
5.3.6 User Configuration page.....................................................................................................................................................14
5.3.7 Digital I/O Page.......................................................................................................................................................................14
5.3.8 Wiper..........................................................................................................................................................................................14
5.3.9 Washer page............................................................................................................................................................................14
5.3.10 Encoder Parameters page................................................................................................................................................15
5.3.11 Camera Settings page.......................................................................................................................................................15
5.3.12 Tools Page ..............................................................................................................................................................................17
6 Accessories................................................................................................................... 18
7 Instructions for normal operation.............................................................................. 18
7.1 Enabling the wiper (Wiper)................................................................................................................................18
7.3 Special controls ......................................................................................................................................................18
7.2 Enabling the washer (Washer)..........................................................................................................................18
8 Maintenance ................................................................................................................ 19
8.1 Firmware updating................................................................................................................................................19
8.1.1 Factory Default .......................................................................................................................................................................19
9 Disposal of waste materials........................................................................................ 19

EN - English - Instruction manual
4 MNVCMVXHDCAM_1630_EN
10 Troubleshooting ........................................................................................................ 20
11 Technical data ............................................................................................................ 21
11.1 Camera....................................................................................................................................................................21

Instruction manual - English - EN
5MNVCMVXHDCAM_1630_EN
1 About this manual
Read all the documentation supplied carefully before
installing and using this unit. Keep the manual in a
convenient place for future reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
DANGER!
Hot surface.
Avoid contact. Surfaces are hot and may
cause personal injury if touched.
DANGER!
Emission of visible light or infrared.
Can be harmful for eyes. Pay attention to
the provided indications.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The quoted names of products or companies are
trademarks or registered trademarks.
3 Identification
3.1 Product marking
See the label attached to the product.

EN - English - Instruction manual
6 MNVCMVXHDCAM_1630_EN
4 Installation
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
The external multi-polar cable shield
(armature) must be earthed.
All disconnected wires must be electrically
isolated.
Two variations of the product are available,
analogue or IP version. Pay attention to the
distinction between the different versions
in the chapters below.
The product comes with a multi-polar cable
or a cable tail for coupling purposes. When
installing the device with the multi-polar
cable, keep at least 250mm free space from
the bottom of the housing to allow for the
minimum curvature radius of the multi-
polar cable.
4.1 Range of use
The installation temperature range is -60°C to +65°C
(-76°F/149°F).
The device operates within a temperature range of
from -40°C and +65°C (-40°F/149°F).
4.2 Connection of the power
supply line
Electrical connections must be performed
with the power supply disconnected and
the circuit-breaker open.
When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Check that the power supply is adequately
dimensioned.
The device can be provided with different power
supply voltages. The power supply voltage is
indicated on the product identification label. (3.1
Product marking, page 5).
The multicore cable has the power and earth cables
inside.
Perform the connections following the instructions
reported in the table .
CONNECTION OF THE POWER SUPPLY LINE
Colour Terminals
Power supply 24Vac/from 12Vdc up to 24Vdc
Black 1 (+) L (Phase)
Black 2 (-) N (Neutral)
Yellow/Green
Tab. 1

Instruction manual - English - EN
7MNVCMVXHDCAM_1630_EN
4.3 Connection of the Ethernet
cable
The Ethernet cable shield must always be
earthed via the connector. Always use a
shielded RJ45 connector.
The operations described in this chapter
can only be performed in the IP versions of
the product.
An Ethernet cable is included in the multi-polar cable
with the following characteristics: STP (shielded),
Category 5E.
Carry out the connections as described in the table
(according to the standard specifications: TIA/EIA-
568-B).
CONNECTION OF THE ETHERNET CABLE
Pin number Cable color
1 Orange-White
2 Orange
3 Green-White
4 Blue
5 Blue-White
6 Green
7 Brown-White
8 Brown
Tab. 2
The example below shows a typical installation.
Switch
Personal
Computer
Fig. 1
4.4 Signal cable connection
CAUTION! TNV-1 installation type. The
installation is type TNV-1, do not connect it
to SELV circuits.
SIGNAL CABLE CONNECTION
Colour Function
White RS-485 A (+)
Yellow RS-485 B (-)
Pink Relay 1, Terminal A
Violet (blue, cable
tail version)
Relay 1, Terminal B
Red (brown, cable
tail version)
Alarm/Digital input
Green GND/Common alarm
Grey Reset
Tab. 3
4.4.1 Alarm and relay connections
The external relay and alarm cable shield
must be earthed.
The unit is equipped with the alarms and relays
indicated in the table (Tab. 3, page 7).

EN - English - Instruction manual
8 MNVCMVXHDCAM_1630_EN
4.4.1.1 Connecting an alarm with dry contact
In case of free contact alarm make the connection as
shown in the figure.
AL1 COM
Dry contact
Fig. 2AL1: Alarm 1. COM: Common alarms.
The dry contact alarm can be NO (normally open) or
NC (normally closed).
For further information refer to the relative chapter (
5.3.7 Digital I/O Page, page 14).
4.4.1.2 Relays connection
The relays are usable with the specifications
described below. Working voltage: up
to 30Vac or 60Vdc. Current: 1A max. Use
suitable cable sections with the following
characteristics: from 0.25mm² (24AWG) up
to 1.5mm² (16AWG).
Due to the absence of polarity, both terminals of
the same relay can be used indifferently with either
alternating or continuous current.
For further information refer to the relative chapter (
5.3.7 Digital I/O Page, page 14).
4.5 Washing system connection
For further details on configuration and
use, refer to the relative manual.
5 Switching on
The automatic pre-heating (De-Ice) process
could be started whenever the device is
switched on and the air temperature is
below 0°C. This process is used to ensure
that the device works properly even at
low temperatures. The duration ranges
depending on environmental conditions
(from 30 minutes up to 90 minutes).
Complete functionality of the product is guaranteed
up to the following ambient temperature: -40°C.
To protect the product against possible failures or
malfunction of the internal components, do not use it
at ambient temperatures other than those indicated:
from -40°C up to -60°C.
Do not turn on the unit when the ambient
temperature is lower than indicated: -40°C.
The unit is switched on by connecting the power
supply.
To switch off the unit disconnect the power.
5.1 First start-up
Make sure that the unit and other
components of the installation are closed
so that it is impossible to come into contact
with live parts.
Make sure that all parts are fastened down
firmly and safely.

Instruction manual - English - EN
9MNVCMVXHDCAM_1630_EN

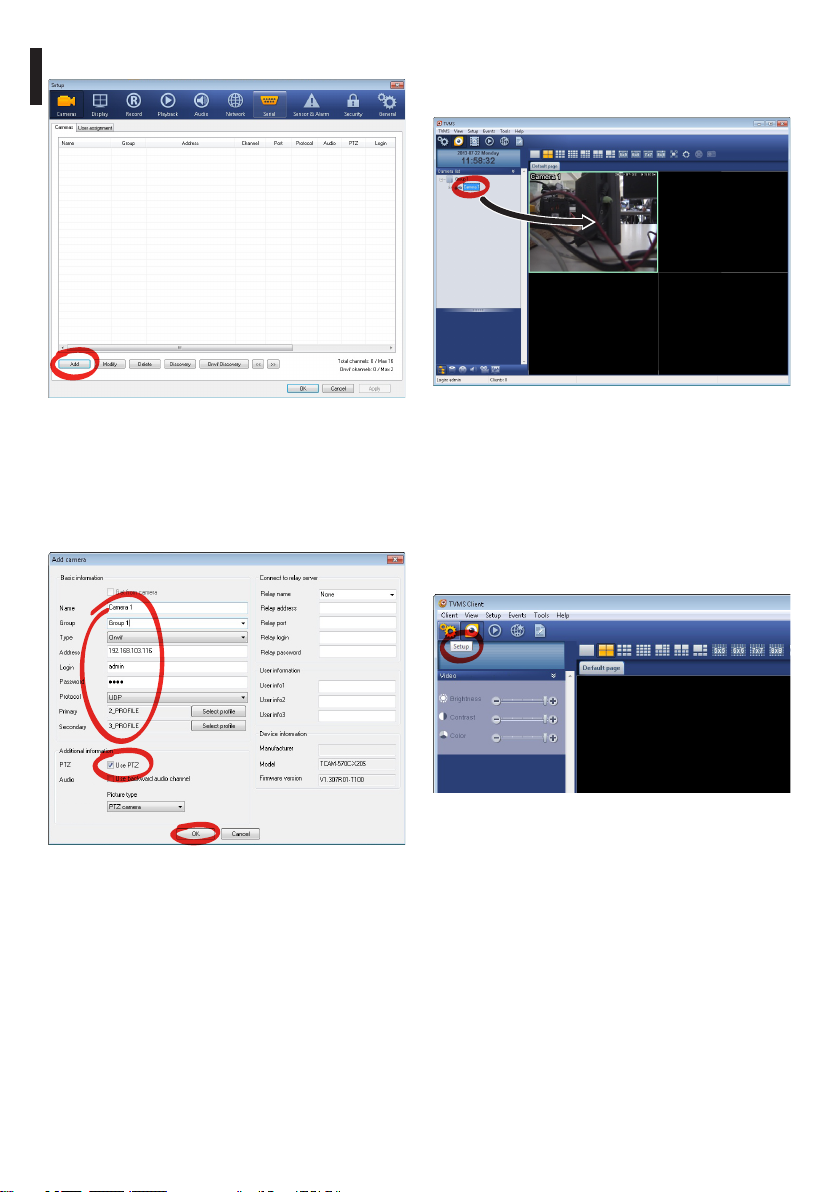

5.2 Software interface
5.2.1 Minimum system requirements
The supplied controlling software supports up to 16
channels. The software requires Windows XP Service
Pack 3 or higher and a PC with an Xeon processor at
2.3GHz or higher.
5.2.2 Configuration procedure through
software
After installing, powering and switching on the
product (4.3 Connection of the Ethernet cable, page
7), proceed to the IP parameters configuration.
The IP address of the various units should be
configured using a PC.
Connect the unit to the LAN network, provide power
supply and start a browser (Microsoft Internet
Explorer, Google Chrome, Mozilla Firefox).
To set the IP address of the various units,
power them, taking care to connect them
one at a time to the LAN (switch). Configure
the unit and insert the settings for at
least the IP address and host name. Once
configured, connect the Ethernet cable and
go on to configure the next unit.
Set the IP address of the PC: 192.168.10.1 (or
192.168.10.2, etc.).
Enter address: 192.168.10.100.
You will be asked login and password. When making
the settings for the first time insert the default login
and password.
• Login: admin
• Password: 1234
The product control interface is displayed if login is
successful.
Fig. 3
The product can work via ONVIF or TCAM
(VIDEOTEC) protocol. In the event the
ONVIF protocol is used, make sure to set the
time correctly in the device or to configure
an NTP server. (5.3.5 Network Configuration
page, page 13).
5.2.3 Installing the software
Insert the CD and start the autoplay or launch the
installer. A web page opens for the installation of the
TVMS server application (32 or 64 bit, based on the
computer's features).
You will be asked login and password. When making
the settings for the first time insert the default login
and password.
• Login: admin
• Password: 1234
Select Camera from the Setup menu to add the
device to the VMS.
Fig. 4

EN - English - Instruction manual
10 MNVCMVXHDCAM_1630_EN
Click Add.
Fig. 5
Assign a name to the camera and to the unit. Select
the ONVIF or TCAM protocol and set the device's
IP address and the access credentials. Select the
streaming profiles and make sure the entry Use PTZ is
enabled. Click Ok.
Fig. 6
The camera will be available in the device list (Camera
list) and can be displayed by dragging-and-dropping
the icon onto one of the squares not used.
Fig. 7
To display the cameras on different computers, install
the TVMS client and use it to connect to the TVMS
server in remote. Configure the client by accessing it
with the default credentials.
Login: admin
Password: 1234
Click Setup.
Fig. 8

Instruction manual - English - EN
11MNVCMVXHDCAM_1630_EN
A window appears to add the servers to which
connect to by pressing the Add button.
Fig. 9
Once the server has been added it must be recorded
to display it. Drag the server icon on the right column
as illustrated in the figure.
Fig. 10
Click Ok to go back to the display program. It will
be possible to see the cameras by dragging-and-
dropping as per the TVMS server.
5.3 Web interface
During the first connection assign an
address other than 192.168.10.100. (5.3.5
Network Configuration page, page 13).
Browsers supported: Microsoft Internet
Explorer, Google Chrome, Mozilla Firefox.
The first operation in configuring the device consists
in connecting to the web interface.
In the default settings the device is configured with
the address 192.168.10.100.
To access the device web interface, simply use a
browser to connect to the address http://ip_address
and log in to Pan & Tilt using the predefined
credentials:
• Login: admin
• Password: 1234
5.3.1 Home Page
The product control interface is displayed if login is
successful.
Fig. 11

EN - English - Instruction manual
12 MNVCMVXHDCAM_1630_EN
5.3.2 User Controls page
To control the device through the browser, select the
User Control entry. A new window will open with a
virtual keyboard to enter commands.
Fig. 12
The virtual keyboard contains the following controls:
• Zoom Wide/Zoom Tele
Fig. 13
• Focus near/Focus far
Fig. 14
• Iris close/Iris open
Fig. 15
• Wiper/Washer
Fig. 16
• Day: Activate the camera's IR filter.
Fig. 17
• Night: Deactivate the camera's IR filter.
Fig. 18

Instruction manual - English - EN
13MNVCMVXHDCAM_1630_EN
5.3.3 Device Parameters Page
It is possible to view the product code and other
additional information in the Device Settings menu.
Fig. 19
5.3.4 Device Statistics page
From menu entry Device Statistics all of the statistics
are gathered during device operation are provided in
read-only mode.
Fig. 20
5.3.5 Network Configuration page
From menu entry Network Configuration it is possible
to change the setting of the device. It is possible
to decide whether the device requires an address
assigned statically, dynamically with DHCP or self-
generated. The device supports the Internet Protocol
(IP) in version 4 and 6.
From the same page it is possible to configure 2 DNS
and decide which mechanisms must be enabled
to automatically identify the devices in the local
network.
During configuration it is only possible to select dual
IPv4/IPv6 and it compulsory to enter all the settings.
If the obtain DNS server address automatically is
disabled, it is still necessary to enter a value for the
primary and secondary DSN (e.g.: 8.8.8.8).
Fig. 21
NTP Server: It is also possible to specify if the device
needs to be synchronised with an external NTP
(Network Time Protocol) server.
• DISABLED: Select this option if you do not wish to
synchronise date and time of the device.
• STATIC: Select this option if you wish to
synchronise date and time of the device with those
of the NTP server specified by the static address.
In order for the device to operate correctly,
it is necessary to synchronise it with the
VMS software using a NTP server.
The device is not fitted with a buffer battery
to maintain the date and time. If the device
is switched off, the values must be entered
again.

EN - English - Instruction manual
14 MNVCMVXHDCAM_1630_EN
5.3.6 User Configuration page
From menu entry User Configuration it is possible
to manage all users that have access to the device.
Administrator type users can access the complete
configuration of the device. Users such as Operators,
Users and Anonymous have limited access to the
management pages.
Fig. 22
The device can be configured only by users
with administration privileges.
The Administrator user name cannot be
changed.
5.3.7 Digital I/O Page
From menu entry Digital I/O it is possible to configure
the digital channels available in the device. What
follows is a brief description of the configurable
parameters for each digital input.
• Alarm ID: Field used to select the desired digital
input.
• Type: It indicates the default state of the digital
input.
To check correct operation of the alarms, a dot will
appear on the web page. The dot will be green
in normal conditions and red when an alarm is
detected.
Fig. 23
5.3.8 Wiper
Do not use the wiper if the outside
temperature is below 0°C or in case of ice.
The integrated wiper does not interfere with the
viewing range of the installed camera.
5.3.9 Washer page
From the Washer menu, it is possible to configure the
device wash system functions.
• Enable: Enables the washer functions.
• Wiper-on Delay: Time interval that passes
between the moment the water is supplied and
the moment the wiper is enabled.
• Wash Cycle Duration: Duration of the water
supply by the pump.
• Wiper-off Delay: Duration of the brushing cycle
after water supply has been terminated.
Fig. 24

Instruction manual - English - EN
15MNVCMVXHDCAM_1630_EN
5.3.10 Encoder Parameters page
The first 2 video streams can be configured under
the Encoder Parameters menu. The first stream
is compulsorily compressed with the H.264/AVC
algorithm while the second can, alternatively, use the
MJPEG code. For both the flows, you can set the video
size, the frame rate, use of the rate controller and the
I-Frame Interval H264. The On Screen Display (OSD)
can also be configured in order to name the video
before compressing it.
Any additional video flows can only be
configured using the ONVIF protocol.
Fig. 25
5.3.11 Camera Settings page
The camera integrated in the device can be
configured under the Camera Parameters menu:
• Digital Zoom: It allows enabling or disabling the
digital zoom. (in addition to the optical).
• Focus: It allows setting the focus in automatic or
manual mode. The types of autofocus available in
automatic mode are:
• Normal: Standard autofocus mode
(recommended option for PTZ devices).
• Interval: Mode in which autofocus is activated
in certain time intervals settable by the
user (autofocus interval=every how many
seconds the autofocus is enabled, duration of
movements=for how long the autofocus is on).
• Zoom Trigger (recommended option for fixed
devices):Mode in which autofocus is activated
for 5s each time the zoom position is modified.
• In automatic mode, you can set the autofocus
sensitivity:
• High: Autofocus is activated on every
minimum change of scene the camera is
focused on (recommended option for PTZ
devices).
• Low: Autofocus has little sensitivity to
varying the scene the camera is focused on
(recommended option for fixed devices).

EN - English - Instruction manual
16 MNVCMVXHDCAM_1630_EN
• Exposure: It allows you to configure the exposure
(Mode) as Automatic, Manual, Speed priority
(Shutter), Opening priority (Iris) or Brightness
priority (Bright). You can configure the following
parameters:
• High sensitivity: The parameter improves
image definition.
• Backlight compensation: The parameter
activates the compensation mode for contre-
jour view.
• Auto Slowshutter: The parameter decreases the
exposure variation speed (option recommended
when there are hotspots on the scene for short
periods).
• Gain limit: The parameter improves visibility of
the subject in dark surroundings.
• Exposure compensation: The parameter
enables correction of the scene brightness value
(Compensation value).
• Infrared: It enables manual (Manual) or automatic
(Auto) control of the IR filter. In Auto mode, you
can set the activation and disabling value of the IR
filter (Day threshold=the lower the value the lesser
the quantity of light requested to pass from B/W to
colour mode.).
• White Balance: It enables configuration of white
balancing according to the following modes.
• Auto: The colour information is used by the
entire frame (from 2500K to 7500K).
• Indoor: Sets the colour temperature at 3200K.
• Outdoor: Sets the colour temperature at 5800K.
• ATW: As Auto but with a more extensive range
of colour temperature (from 2000K to 10000K).
• Manual: You can manually change red and blue
control.
• Outdoor Auto: White balance for outdoors,
specifically for morning and evening.
• Sodium Auto: Automatic white balance
compatible with sodium vapour lamps.
• Sodium: Specific fixed white balance for sodium
vapour lamps.
• Sodium lamp outdoor auto: Automatic white
balance specifically for outdoors compatible
with sodium vapour lamps.
• Wide Dynamic Range: This is to enable and
configure the function to improve the contrast
between the luminous zones and the shadow
zones. The Visibility Enhancer (VE) mode enables
optimisation of the view by reducing minimum
noise. Wide Dynamic Range ON, you can set the
following parameters:
• Light level: The parameter sets the average
threshold of scene brightness.
• Brightness compensation selection: The
parameter sets the area in which brightness
compensation is executed.
• Compensation level: The parameter specifies
the compensation level applied to the selected
zone.

Instruction manual - English - EN
17MNVCMVXHDCAM_1630_EN
• Other: It enables configuration of other
parameters.
• Image Mirror: The parameter reflects the image
based on the vertical axis of the frame.
• Noise reduction: The parameter enables and
specifies the noise reduction level.
• High resolution: The parameter activates
enhancement of the contours and produces
more defined images.
• Aperture Control: The parameter sets the level
of contour sharpening (option recommended
for texts).
• Defog Mode: The parameter enables the
function that enhances the view in the event
of fog.
• Highlight Correction: The parameter enables
the masking function of the overexposed areas.
• Masking level overexposure correction: The
parameter defines the brightness level beyond
which masking is applied.
• Ceiling Mount: The parameter rotates the
image 180°.
Fig. 26
5.3.12 Tools Page
From menu entry Tools it is possible to re-set the
predefined values for the entire configuration of
device or only for a number of specific sections.
This section:
• Update the firmware of the device.
• Restart the device.
Fig. 27

EN - English - Instruction manual
18 MNVCMVXHDCAM_1630_EN
6 Accessories
A series of accessories for the device in use
is available. Refer to the HANDBOOK for
relative descriptions.
7 Instructions for normal
operation
7.1 Enabling the wiper (Wiper)
Do not use the wiper if the outside
temperature is below 0°C or in case of ice.
To activate/deactivate this function, refer to the
manual of the control device used or to the relative
chapter (7.3 Special controls, page 18).
7.2 Enabling the washer (Washer)
To activate/deactivate this function, refer to the
manual of the control device used or to the relative
chapter (7.3 Special controls, page 18).
7.3 Special controls
SPECIAL CONTROLS
Action Control
Protocol
VIDEOTEC MACRO ONVIF (auxiliary com-
mand)
PANASONIC 850 PELCO D
Wiper Start Save Preset 85 tt:Wiper|On Save Preset 85 Save Preset 85
Aux 3 ON – Save Preset 54 Aux 3 ON
Wip+ – – –
Wiper Stop Save Preset 86 tt:Wiper|Off Save Preset 86 Save Preset 86
Aux 3 OFF – Save Preset 55 Aux 3 OFF
Wip- –––
Washer Save Preset 87 tt:Washing Procedure|On Save Preset 87 Save Preset 87
Aux 4 ON tt:Washing Procedure|On Save Preset 56 Aux 4 ON
Was+ – – –
Night Mode On Save Preset 88 tt:IRLamp|On Save Preset 88 Save Preset 88
– – Save Preset 57 –
Night Mode Off Save Preset 89 tt:IRLamp|Off Save Preset 89 Save Preset 89
– – Save Preset 58 –
Reboot the device Save Preset 94 – Save Preset 94 Save Preset 94
Ini+ – Save Preset 61 –
Enabling OSM Save Preset 95 tt:OSM|On Save Preset 95 Save Preset 95
Men+ – Save Preset 46 –
Tab. 4
