ENGLISH
MAXIMUS MPXHD DELUX
Explosion-proof PTZ FULL HD camera with new DELUX technology,
for day/night viewing with exceptional night brightness

EN
English - Instruction manual
ENGLISH
MAXIMUS MPXHD DELUX
Explosion-proof FULL HD PTZ camera with new DELUX technology,
for day/night viewing with exceptional night brightness

Instruction manual - English - EN
3MNVCMPXHDB_1822_EN
Contents
ENGLISH 1
1 About this manual .................................................................................................................. 7
1.1 Typographical conventions...............................................................................................................................................7
2 Notes on copyright and information on trademarks........................................................... 7
3 Note on data security ............................................................................................................. 7
3.1 Introduction ...........................................................................................................................................................................7
3.2 Security functionalities which can be enabled in the product............................................................................8
3.2.1 Authentication credentials.................................................................................................................................................................8
3.2.2 Encryption ................................................................................................................................................................................................8
4 Safety rules.............................................................................................................................. 9
5 Identification......................................................................................................................... 10
5.1 Product description and type designation...............................................................................................................10
5.2 Product marking.................................................................................................................................................................11
6 Preparing the product for use ............................................................................................. 12
6.1 Safety precautions before use .......................................................................................................................................12
6.2 Unpacking.............................................................................................................................................................................12
6.3 Contents ................................................................................................................................................................................12
6.4 Safely disposing of packaging material .....................................................................................................................12
6.5 Preparatory work before installation...........................................................................................................................13
6.5.1 Fixing to parapet or ceiling mount...............................................................................................................................................13
6.5.2 Bracket mounting............................................................................................................................................................................... 14
6.5.3 Fixing the unit to the pole mount adapter or corner mount adapter.............................................................................14
6.5.3.1 Fixing with pole mount........................................................................................................................................................................................... 14
6.5.3.2 Fixing with corner adapter..................................................................................................................................................................................... 15
6.5.4 Sunshield mounting ..........................................................................................................................................................................15
7 Installation ............................................................................................................................ 16
7.1 Range of use.........................................................................................................................................................................16
7.2 Methods of installation ....................................................................................................................................................16
7.3 Connection of the cables to the base .........................................................................................................................17
7.4 Connector board description.........................................................................................................................................18
7.5 Cable entry............................................................................................................................................................................18
7.6 Connection of the power supply line..........................................................................................................................19
7.7 Connection of the Ethernet cable ................................................................................................................................20
7.8 Alarm and relay connections .........................................................................................................................................20
7.8.1 Connecting an alarm with dry contact ....................................................................................................................................... 21
7.8.2 Relays connection............................................................................................................................................................................... 21
7.8.3 Washing system connection........................................................................................................................................................... 21
7.9 Ground connection ...........................................................................................................................................................21
7.10 Connection compartment closing ............................................................................................................................22
8 Instructions for safe operation............................................................................................ 23
8.1 Safe operation .....................................................................................................................................................................23
8.1.1 Commissioning....................................................................................................................................................................................23

EN - English - Instruction manual
4 MNVCMPXHDB_1822_EN
8.1.2 Safety rules............................................................................................................................................................................................ 23
8.1.3 Explosion prevention rules.............................................................................................................................................................. 23
9 Switching on ......................................................................................................................... 24
9.1 Before powering the product in an explosive atmosphere................................................................................24
10 Configuration...................................................................................................................... 25
10.1 Default IP address............................................................................................................................................................25
10.2 Web interface ....................................................................................................................................................................25
10.2.1 First access to the web pages.......................................................................................................................................................25
10.2.2 Home Page..........................................................................................................................................................................................25
10.2.2.1 Video Snapshot........................................................................................................................................................................................................ 25
10.2.2.2 Horizontal and vertical movement................................................................................................................................................................... 26
10.2.2.3 Lens control............................................................................................................................................................................................................... 26
10.2.2.4 Day/Night mode control ...................................................................................................................................................................................... 26
10.2.2.5 Wiper and wash system control......................................................................................................................................................................... 26
10.2.2.6 Home management............................................................................................................................................................................................... 27
10.2.2.7 Preset Management............................................................................................................................................................................................... 27
10.2.3 Device Parameters Page ................................................................................................................................................................27
10.2.4 Camera Settings Page.....................................................................................................................................................................28
10.2.5 Network Page.....................................................................................................................................................................................29
10.2.6 Users Page...........................................................................................................................................................................................30
10.2.7 Motions Recall Page ........................................................................................................................................................................30
10.2.8 Video Analysis Page......................................................................................................................................................................... 31
10.2.9 Wash System Page............................................................................................................................................................................31
10.2.10 Movement Parameters page .....................................................................................................................................................31
10.2.11 Preset Tour Page............................................................................................................................................................................. 32
10.2.12 Directional OSD Page...................................................................................................................................................................33
10.2.13 Encoder Parameters page........................................................................................................................................................... 33
10.2.14 Digital I/O Page...............................................................................................................................................................................34
10.2.15 Device Statistics page...................................................................................................................................................................34
10.2.16 Tools Page......................................................................................................................................................................................... 34
11 Instructions for normal operation .................................................................................... 35
11.1 Special controls.................................................................................................................................................................35
12 Maintenance ....................................................................................................................... 36
12.1 Routine maintenance (to be performed on a periodic basis)..........................................................................36
12.1.1 Inspecting the cables...................................................................................................................................................................... 36
12.2 Extraordinary maintenance (to be done only under particular circumstances).......................................36
12.2.1 Fuses replacement...........................................................................................................................................................................36
12.2.2 Factory Default..................................................................................................................................................................................37
13 Cleaning .............................................................................................................................. 37
13.1 Routine cleaning (to be performed on a periodic basis)...................................................................................37
13.1.1 Cleaning the window......................................................................................................................................................................37
13.1.2 Cleaning the product......................................................................................................................................................................37
14 Information on disposal and recycling............................................................................. 38
15 Troubleshooting ................................................................................................................. 38
16 Technical data ..................................................................................................................... 39
16.1 General.................................................................................................................................................................................39

Instruction manual - English - EN
5MNVCMPXHDB_1822_EN
16.2 Mechanical .........................................................................................................................................................................39
16.3 Electrical..............................................................................................................................................................................39
16.4 Network...............................................................................................................................................................................39
16.5 Video.....................................................................................................................................................................................39
16.6 I/O interface .......................................................................................................................................................................39
16.7 Cameras...............................................................................................................................................................................40
16.8 Environment ......................................................................................................................................................................40
16.9 Certifications......................................................................................................................................................................40
16.10 Electrical rating...............................................................................................................................................................41
17 Technical drawings ............................................................................................................. 41
A Appendix - Marking codes................................................................................................... 42
A.1 ATEX marking ......................................................................................................................................................................42
A.2 IECEx marking .....................................................................................................................................................................43
A.3 Gas group classification...................................................................................................................................................44
B Appendix - Flamepath.......................................................................................................... 45

EN - English - Instruction manual
6 MNVCMPXHDB_1822_EN

Instruction manual - English - EN
7MNVCMPXHDB_1822_EN
1 About this manual
Read all the documentation supplied carefully before
installing and using this unit. Keep the manual in a
convenient place for future reference.
1.1 Typographical conventions
DANGER!
Explosion hazard.
Read carefully to avoid danger of explosion.
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The mentioned names of products or companies are
trademarks or registered trademarks.
3 Note on data security
3.1 Introduction
VIDEOTEC S.p.A. manufactures video surveillance
products exclusively for professional use. VIDEOTEC
S.p.A. products can be used in technical contexts
and for wide-ranging purposes, from controlling the
security of citizens to monitoring product processes
in risk areas to application for environmental
monitoring and protection.
Some of these uses can involve processing of
personal data by those using a video surveillance
system within which VIDEOTEC S.p.A. products are
installed and integrated.
The wide-ranging application scenarios prevent
definition of standard IT safety measures set by
default on products compatible with any use scenario
and technical context. In particular, certain security
measures (including measures composing a sector
standard in devices intended for non-professional
use) may be incompatible or unnecessary in
particular technical contexts or, on the contrary,
insufficient.
It is therefore indispensable that risk analysis linked
to IT security aspects, also in relation to applicable
local standards on personal data protection, are
performed by specialist staff responsible for end use
of the product.

EN - English - Instruction manual
8 MNVCMPXHDB_1822_EN
The user of the product therefore, availing of
specialist staff in IT security, has to decide under his/
her exclusive responsibility whether to:
• Enable certain or all security functionalities offered
by the VIDEOTEC S.p.A. device;
• Implement different security measures at system
level;
• Combine the two options.
The aforementioned choice should be made based
on the specific technical and legislative context, as
well as the type of data processed using the video
surveillance system.
Given the type of technical contexts within which
VIDEOTEC S.p.A. devices are typically used, it is
not possible or would it ever be advisable that the
firmware for these devices automatically upgrades via
the Internet. Over time, VIDEOTEC S.p.A. could release
security upgrades for its devices, which should be
manually installed by the user, always by specialist
staff, if certain or all the security functionalities for
the device provided are enabled. The user is obliged
to be updated viaVIDEOTEC S.p.A. institutional
communication channels on the availability of
firmware security upgrades.
3.2 Security functionalities which
can be enabled in the product
3.2.1 Authentication credentials
The product is equipped with two operating
modes: FactoryDefaultState and OperationalState.
On first use, the device is in FactoryDefaultState
mode and without default credentials. The user
can access all the devices functionalities (including
video configuration and streaming) without any
authentication. This mode is intended for use on
private/protected networks which are only accessible
to reliable devices and staff, with the sole purpose
of allowing installation of the product also in
particular or difficult environmental conditions, or
using the product itself in limited and controlled
technical contexts without external or remote access
and/or without the processing of personal and/or
confidential data.
The FactoryDefaultState phase is terminated on
creation of the first user. At this point, the device
enters OperationalState and you can exclusively
access it by providing the access credentials.
The decision to use the device in FactoryDefaultState
or in OperationalState, as well as implementation of
all further security measures both at IT system level
and organisational level must be carried out under
the exclusive responsibility of the user on adequate
risk analysis by specialist staff.
3.2.2 Encryption
By default, the product implements the encryption
function via HTTPS with self-signed certificates for
configuration via web interface and for configuration
via ONVIF protocol. Video streaming via RTSP/RTP/
UDP, RTSP/RTP/TCP and RTSP/RTP/HTTP/TCP is not
protected by any encryption as outlined by ONVIF
specifications.

Instruction manual - English - EN
9MNVCMPXHDB_1822_EN
4 Safety rules
CAUTION! This device must be connected
to an earth conductor (protective earth).
This connection must only be performed
through the power line connector (J1,
7.4 Connector board description, page
18). External equipotential bonding
connections must also be performed
but only for supplementary bonding
connection to earth, and required by local
codes or authority.
Fig. 1
External hole for Equipotential bonding
required by authority. Not to be intended as
protective earth connections.
• The manufacturer declines all responsibility
for any damage caused by an improper use
of the appliances mentioned in this manual.
Furthermore, the manufacturer reserves the right
to modify its contents without any prior notice.
The documentation contained in this manual has
been collected and verified with great care. The
manufacturer, however, cannot take any liability
for its use. The same thing can be said for any
person or company involved in the creation and
production of this manual.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• To reduce the risk of ignition don’t open or
disconnect the device when a potentially explosive
atmosphere is present. Keep the product tightly
closed when in operation.
• The equipment is certified for use in ambient
temperatures from -40°C to +60°C (from -40°F to
+140°F).
• Installation of this equipment shall be carried
out by suitably trained technical personnel in
accordance with the applicable code of practice
IEC/EN60079-14.
• The temperature of the surfaces of the device
is increased by exposure to direct sunlight.
The surface temperature class of the device
was determined only with ambient ambient
temperature, without taking into consideration
direct sunlight.
• Choose an installation surface that is strong
enough to sustain the weight of the device, also
bearing in mind particular environmental aspects,
such as exposure to strong winds.
• Since the user is responsible for choosing the
surface to which the unit is to be anchored, we
do not supply the fixing devices for attaching the
unit firmly to the particular surface. The installer is
responsible for choosing fixing devices suitable for
the specific purpose on hand. Use methods and
materials capable of supporting at least 4 times the
weight of the device.

EN - English - Instruction manual
10 MNVCMPXHDB_1822_EN
• This device is remotely controlled and may change
position at any time. It should be installed so that
no one can be hit by moving parts. It should be
installed so that moving parts cannot hit other
objects and create hazardous situations.
• Make sure the appliance is securely anchored
before supplying power.
• A power disconnect device must be included
in the electrical installation, and it must be very
quickly recognizable and operated if needed.
• The connection compartment lid can be opened
only for cabling the device. The other lids must be
open from the manufacturer.
• Be careful not to use cables that seem worn or old.
• For technical services, consult only and exclusively
authorized technicians.
• Before proceeding with installation, check the
supplied material to make sure it corresponds
to the order specification by examining the
identification labels (5.2 Product marking, page
11).
• This is a Class A product. In a domestic
environment this product may cause radio
interference. In this case the user may be required
to take adequate measures.
• To comply with the main supply voltage dips and
short interruption requirements, use a suitable
Uninterruptable Power Supply (UPS) to power the
unit.
5 Identification
5.1 Product description and type
designation
MAXIMUS MPX DELUX is an explosion-proof FULL
HD PTZ camera which integrates new imaging and
encoding technology for outdoor video surveillance,
allowing recordings to be produced with incredibly
bright and vivid colours both by day and by night.
This camera is ideal for efficient video surveillance
and control of processes in critical environments
where the atmosphere is potentially explosive due to
the presence of inflammable gases or dust, typical of
the Oil&Gas, marine or industrial sectors.
Thanks to the superior light sensitivity of the sensor,
the DELUX technology means that it is possible to
make bright recordings with sharp, clearly defined
colours in the very low light conditions typically
found at night, working at as low as 0.006 lux (0.0006
lux in black and white).
MAXIMUS MPX DELUX is a Day/Night Full HD 1080p
camera with 30x optical zoom and a frame rate
of 60fps. It is capable of precisely identifying the
details in a scene, even in dynamic, rapidly changing
situations. DELUX technology for MAXIMUS MPX
DELUX has introduced new, advanced performance
in proportional zoom control and management of
privacy masking for sensitive areas.

Instruction manual - English - EN
11MNVCMPXHDB_1822_EN
5.2 Product marking
02
01
03
05
06 07 08 09
10
11
04
Fig. 2
1. CE symbol
2. Manufacturer’s name and address
3. Model identification code
4. Ambient temperature of use referring to model
identification code
5. Serial number (the serial number are 12 numeric
characters, the second and the third digits
define the last two numbers of the year of
manufacture)
6. Supply voltage (V)
7. Current consumption (A)
8. Frequency (Hz)
9. Consumption (W)
10. ATEX certification:
• ATEX certificate number
• Classification for zone type, protection method,
temperature class for which this product may be
used in compliance with the ATEX directive
11. IECEx certification:
• IECEx certificate number
• Classification for zone type, protection method
and temperature class for which this product
may be used in compliance with the IECEx
standard

EN - English - Instruction manual
12 MNVCMPXHDB_1822_EN
6 Preparing the product for
use
Any change that is not expressly approved
by the manufacturer will invalidate both
the guarantee and certification.
6.1 Safety precautions before use
Make sure that all the equipment are
certified for the application and for the
environment in which they will be installed.
CAUTION!The electrical system to which the
unit is connected must be equipped with a
15A max automatic bipolar circuit breaker.
The minimum distance between the circuit
breaker contacts must be 3mm (0.1in).
The circuit breaker must be provided
with protection against the fault current
towards the ground (differential) and the
overcurrent (magnetothermal).
A power disconnect device must be
included in the electrical installation, and
it must be very quickly recognizable and
operated if needed.
Before starting any operation, make sure
the power supply is disconnected.
The device can only be considered to be
switched off when the power supply has
been disconnected and the connection
cables to other devices have been removed.
Given the considerable weight of the
system, use an appropriate transport and
handling system. The staff must carry out
the handling of the product in compliance
with the common accident prevention
standards.
Make connections and tests in the
laboratory before carrying out installation
on site. Use appropriate tools for the
purpose.
Before proceeding with any operations,
make sure that the mains voltage is correct.
6.2 Unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
When returning a faulty product we recommend
using the original packaging for shipping.
Keep the packaging in case you need to send the
product for repairs.
6.3 Contents
Check the contents to make sure they correspond
with the list of materials as below:
• Explosion-proof P&T
• Sunshield
• Document: Important safety instructions
• Silicone sheath
• Cable ties (x2)
• Hexagon socket set screws (x4)
• Instruction manual
6.4 Safely disposing of packaging
material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.

Instruction manual - English - EN
13MNVCMPXHDB_1822_EN
6.5 Preparatory work before
installation
Use appropriate tools for the installation.
The particular nature of the site where the
device is to be installed may mean special
tools are required for installation.
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
Choose an installation surface that is
strong enough to sustain the weight of
the device, also bearing in mind particular
environmental aspects, such as exposure to
strong winds.
It should be installed so that no one can be
hit by moving parts. It should be installed
so that moving parts cannot hit other
objects and create hazardous situations.
Make sure the appliance is securely
anchored before supplying power.
For technical services, consult only and
exclusively authorized technicians.
Since the user is responsible for choosing
the surface to which the unit is to be
anchored, we do not supply the fixing
devices for attaching the unit firmly to
the particular surface. The installer is
responsible for choosing fixing devices
suitable for the specific purpose on hand. In
general use methods and materials capable
of supporting at least four times the weight
of the device.
It is possible to install the unit with several brackets.
We strongly recommend using only approved
brackets and accessories during installation.
6.5.1 Fixing to parapet or ceiling mount
Attach the adapter (01) to the bottom of the unit
using 4 stainless steel (A4 class 70) socket flat head
cap screw M10 x 20mm (02).
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270) into the threaded holes in
the base of the device.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.
01
02
Fig. 3
Use the external holes in the adapter to fix the
assembled unit to the parapet or to the ceiling. Use
screws that can bear at least 4 times the weight of
the unit.
Ø 11
8
Ø 238
Ø 200
35
35
35
35
Fig. 4

EN - English - Instruction manual
14 MNVCMPXHDB_1822_EN

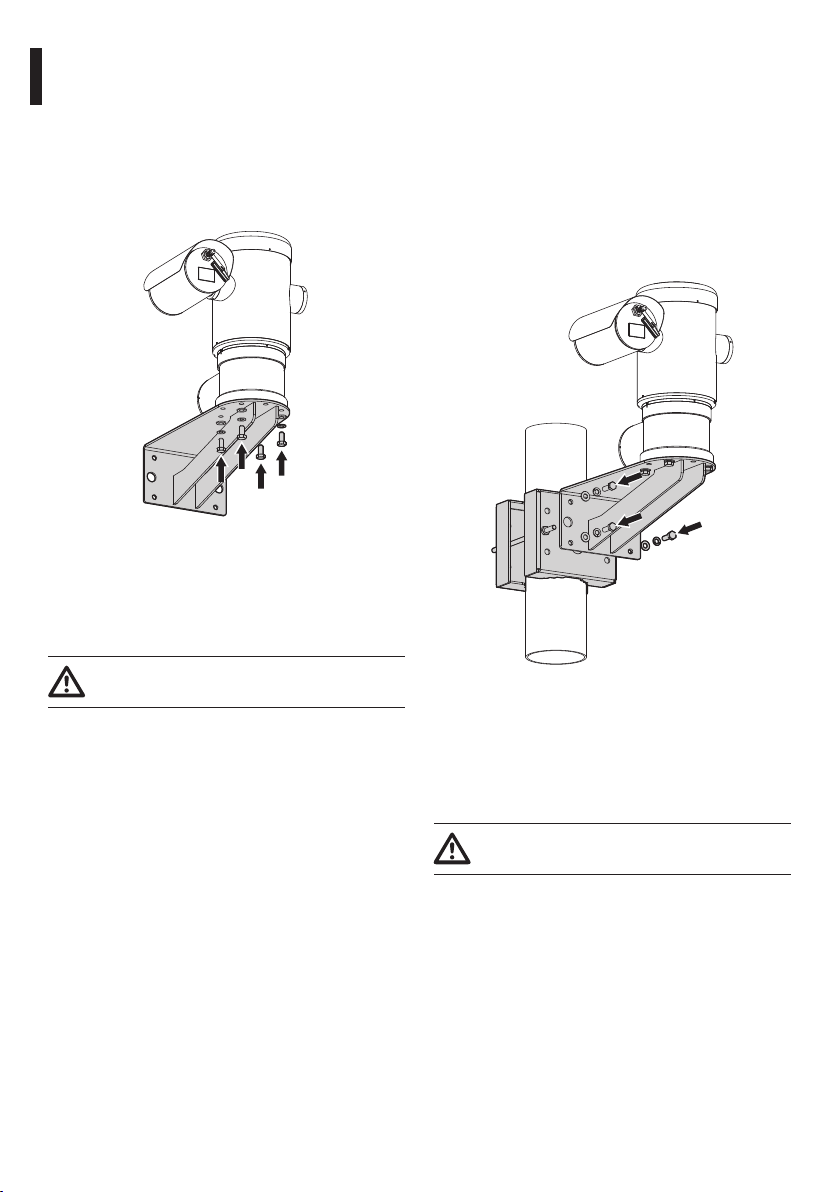

6.5.2 Bracket mounting
The bracket can be fixed to the vertical wall. Use
screws and wall fixing devices that can bear at least
four times the weight of the unit.
To fix the device to the bracket, use the 4 plane
washers, 4 stainless steel grower washers and 4
hexagonal head stainless steel screws provided
(M10x20mm).
Fig. 5
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking
compound (Loctite 270) on the 4 screws.
Tighten the screws.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.
6.5.3 Fixing the unit to the pole mount
adapter or corner mount adapter
To install the product on a pole or at a wall corner,
first of all fix the unit to the wall bracket (6.5.2 Bracket
mounting, page 14).
6.5.3.1 Fixing with pole mount
Fix the wall bracket to the pole mount adapter
using 4 washers, 4 stainless steel grower washer
and 4 hexagon stainless steel bolts (A4 class 70)
M10x30mm.
Fig. 6
Make sure the thread are free of dirt and debris.
Apply a generous amount of threadlocker (Loctite
270) on the 4 threaded holes on the pole mount
adapter.
Tighten the screws.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.

Instruction manual - English - EN
15MNVCMPXHDB_1822_EN
6.5.3.2 Fixing with corner adapter
Fix the wall bracket to the corner mount adapter
using 4 washers, 4 stainless steel grower washers
4 hexagon stainless steel bolts (A4 class 70)
M10x30mm.
Fig. 7
Make sure the thread are free of dirt and debris.
Apply a generous amount of threadlocker (Loctite
270) on the 4 threaded holes on the corner module.
Tighten the screws.
Pay attention to the fixing. Tightening
torque: 35Nm.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.
6.5.4 Sunshield mounting
Remove the protective film before the
sunshield installation.
Fix the sunshield to the housing using screws and
washers provided.
Apply a generous amount of thread locking
compound (Loctite 270) into the threaded holes in
the base of the device.
The thread compound must cure for one hour, allow
for this period prior to completing the installation.
Fig. 8
Pay attention to the fixing. Tightening
torque: 2Nm.

EN - English - Instruction manual
16 MNVCMPXHDB_1822_EN
7 Installation
Make sure that all the equipment are
certified for the application and for the
environment in which they will be installed.
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
Electrical connections must be performed
with the power supply disconnected and
the circuit-breaker open.
At start up the system makes some
automatic calibration movements: do not
stand near the device when it is powered.
Make sure that the installation complies
with local regulations and specifications.
VIDEOTEC strongly recommend to test the device
configuration and performance before putting it in
the final installation site (7.3 Connection of the cables
to the base, page 17).

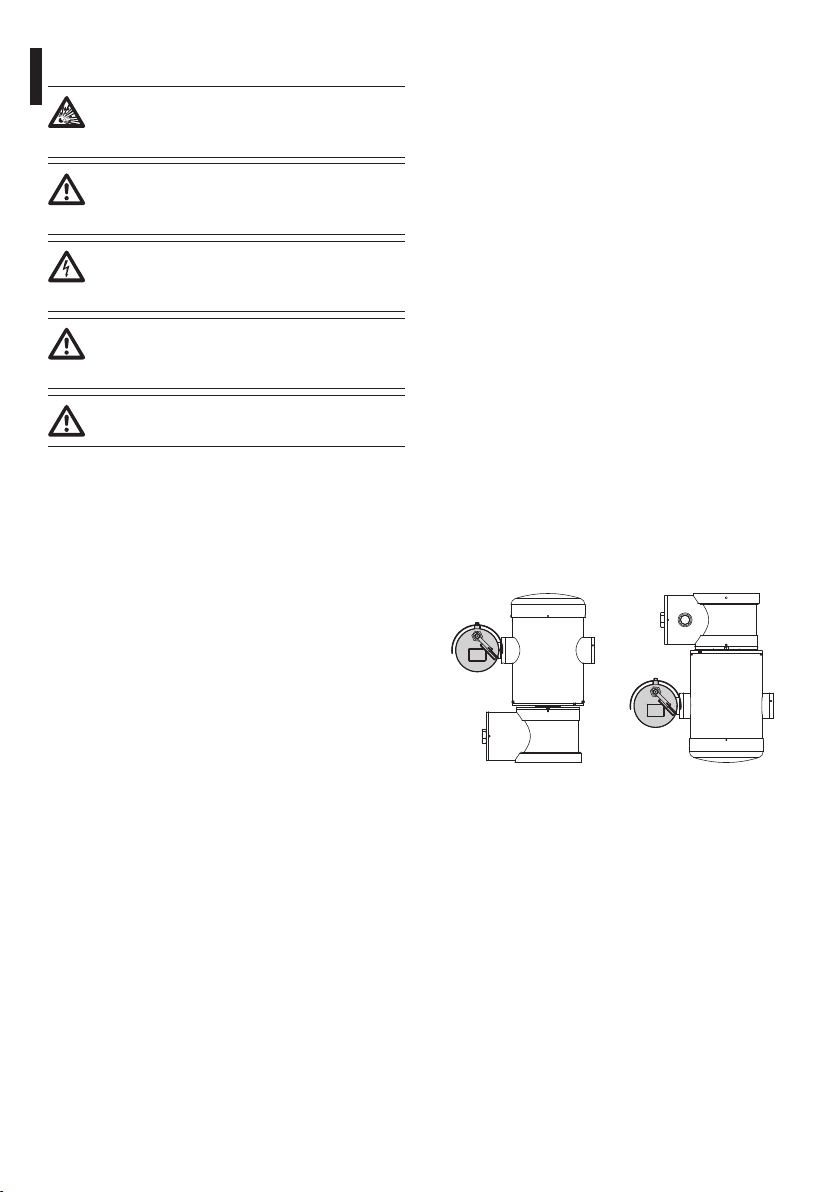

7.1 Range of use
The unit is designed for use in a fixed location, for
surveillance of areas classified as zone 1-21 and zone
2-22 potentially explosive atmospheres, using its
embedded cameras.
The installation temperature range is: from -40°C
(-40°F) up to +60°C (140°F).
The device operates within a temperature range of:
from -40°C (-40°F) up to +60°C (140°F).
The unit has been built and certified in compliance
with directive 2014/34/UE and with the international
standards IECEX, which define its range of application
and minimum safety requirements.
The equipment has not been assessed as a safety
related device (as referred to by Directive 2014/34/UE
Annex II, clause 1.5).
7.2 Methods of installation
The system can be installed only in a standard or
inverted position (ceiling mount). When installed
for inverted operation, the camera orientation and
controller functions are reconfigured for normal
operation through the system’s software.
Hardware adjustment is not required for inverted
operation.
Fig. 9

Instruction manual - English - EN
17MNVCMPXHDB_1822_EN
7.3 Connection of the cables to
the base
CAUTION!The electrical system to which the
unit is connected must be equipped with a
15A max automatic bipolar circuit breaker.
The minimum distance between the circuit
breaker contacts must be 3mm (0.1in).
The circuit breaker must be provided
with protection against the fault current
towards the ground (differential) and the
overcurrent (magnetothermal).
A power disconnect device must be
included in the electrical installation, and
it must be very quickly recognizable and
operated if needed.
Before doing any technical work on the
device make sure that the power supply is
disconnected.
The device can only be considered to be
switched off when the power supply has
been disconnected and the connection
cables to other devices have been removed.
Be careful not to use cables that seem worn
or old.
Use suitable cables that can withstand the
operating temperatures.
The connection compartment lid can
be opened only for cabling the device.
The other lids must be opened by the
manufacturer only.

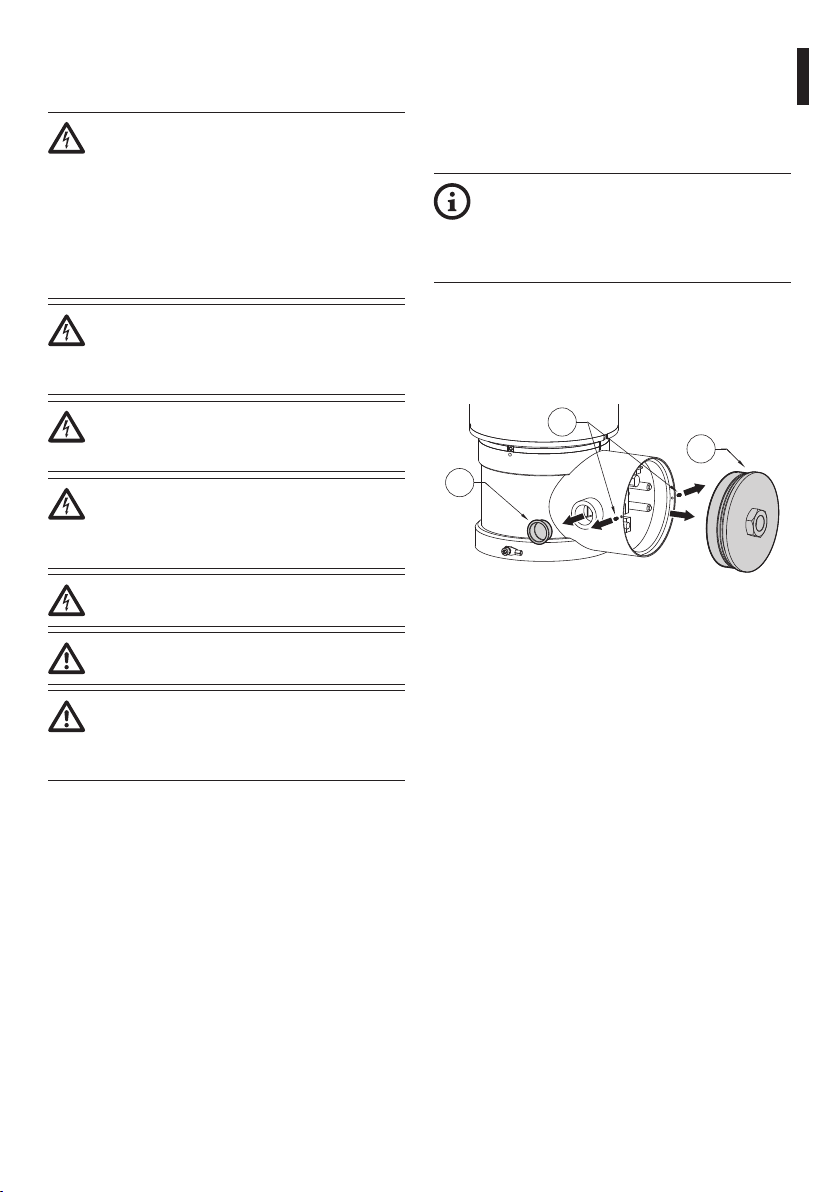

A connection compartment for cable entry with a
3/4”NPT threaded hole is located on the base of the
unit.
A threaded cap gives access to a connection board
with removable connectors that help the installer to
connect the cables.
The safety grub screws are used to prevent
the unscrewing of the threaded lid from the
connection compartment. Remove both
safety grub screws before unscrewing the
threaded lid.
Carry out the connections removing the safety grub
screws (01), the threaded lid (02) and the plastic cap
(03).
The plastic cap is only used during transportation and
cannot be used when operating the device.
02
01
03
Fig. 10
A board is housed in the connection compartment
equipped with removable connectors that simplify
the cabling procedure.

EN - English - Instruction manual
18 MNVCMPXHDB_1822_EN

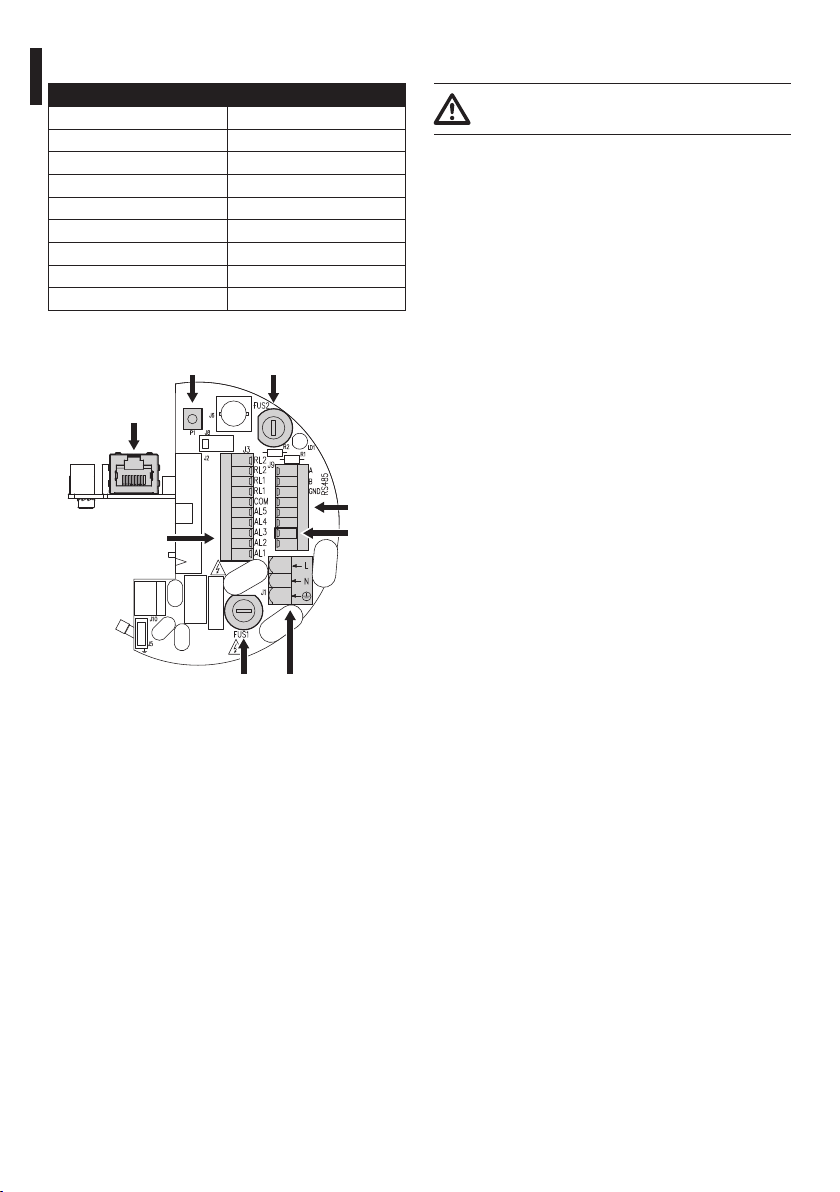

7.4 Connector board description
BOARD DESCRIPTION
Connector/Terminal Function
J1 Power supply line
J3 Relay, alarms
J9 Serial line
FUS1 Fuse
FUS2 Fuse
P1 Reset push-button
RJ45 Ethernet
RST (Connector J9) Reset terminal
Tab. 1
P1
RJ45
FUS2
FUS1 J1
J3
J9
RST
Fig. 11
7.5 Cable entry
The telemetry line is not required for
normal functioning of the device.
To prevent the spread of flames or explosions from
the unit to the conduit system or cable gland to the
external environment, use connection in conformity
with IEC/EN60079-14.
All cable glands shall be ATEX/IECEx certified, as
appropriate, in type of explosion protection "db" and/
or "tb", rated IP66, suitable for the conditions of use
and correctly installed.
When conduit is used, a suitable ATEX/IECEx certified
stopping box shall be used, as appropriate, in type
of explosion protection "db" and/or "tb", rated IP66,
suitable for the conditions of use and correctly
installed. The stopping box must be fitted within
50mm (1.97in) from the enclosure wall.
To carry out the cabling process, disconnect the
removable connectors from the board (J1, J3, J9,
7.4 Connector board description, page 18). Connect
all the electrical cables and insert the Ethernet
connector (RJ45).
