VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
Art.2220VX2200 IP interface
215
120
69
Art.2220
Fig. 1
RS-232 RS-485
Not Used
JTag
prog.
RJ-14
Ethernet
Micro
SD
Boot
Button
Reset
Button
Digital Video Input
NOT
USED
NOT
USED
12Vdc + 12Vdc -
RS-485
Art.2220
Micro
USB A
Door Station
-
L
-
L
Art.2220
Video IN
- VV2V1
AH
B
C
E
D
F
G
Fig. 2
DESCRIPTION
The Art.2220 is a device that enables the VX2200 digital system to con-
nect to one or more concierge stations connected via a LAN or WAN.
It includes one BUS line input (from door panels), one BUS line
output (towards apartments or blocks) and one Ethernet inter-
face through which the unit is connected to the LAN.
A concierge station may either be an Ms-Windows®PC running
the “VX2200 IP Concierge Software 1.0” (Art. CSW2220) or a
“VX2200 IP Concierge Station” (Art.CST2220).
Systems can include one or more Art.2220 interfaces and one
or more concierge stations.
A server is also required which can be in the form of either a sepa-
rate device (Art.SRU2220) or in the case of the PC concierge it could
run on the same PC as the concierge client (Art.CSW2220) and in
the case of the Art.CST2220 desk concierge it can run as a server ap-
plication on that concierge. Only one server is required per system.
The server software can be installed on the same PC that also
runs the VX2200 IP Concierge Software 1.0 (Art. BSW2220) or
can be a separate Server Unit (Art.SRU2220).
LEGEND
AVX2200 BUS line connection from door panels.
BVX2200 BUS line to the riser.
CEthernet connection to the LAN.
DSerial RS-232 9DB female connector for programming and
debugging purposes.
E12Vdc - 0.7A power supply input.
FReboot button.
GReset button.
HVideo input (only for Art.2220V).
INITIAL SETUP
The Art. 2220 is prepro-
grammed with factory default
settings but it will normally be
necessary to change these fol-
lowing these steps:
• Using a MS-Windows®PC
equipped with a network
card, set up the IP address to
the value 192.168.0.2 (if any
problem occurs with this
setting, please contact your
system administrator) then
link directly the PC’s Ether-
net interface to the Ethernet
interface of the Art. 2220.
Start the “Videx 2220 Utility
program” (Fig. 3).
• Switch the Art.2220 on and
keep pressed together the
Reset button and the reboot
button. Release the Reset
button rst and then the re-
boot button. Now the Art.2220 is in Boot Mode. When the software nds the Art.2220 the buttons on the utility program page will
become enabled (Fig. 4).
• By pressing the button“CHANGE SETTINGS”, you are allowed to edit the device parameters.
• To properly alter the IP addresses, “Device IP” and “Server IP”, please contact your system administrator. If you need to alter the
communication ports, please contact Videx technical support at ([email protected]) (Fig. 5).
• Select the correct Video input type using the video settings button (Fig. 5).
Fig. 3
Fig. 4 Fig. 5
Rev.0.1 - 0.2 - 0.3 - 0.4

66251440 - V 4.0 - 19/06/19
- 2 -
VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
Art.2220 VX2200 Audio IP Interface
SPECIFICATION
Housing/Mounting: 20 Module A type DIN box / DIN Bar or directly to the wall
Programming: by software
Minimum Bandwidth: 100 Kbits
Controls: N/A
Power consumption: 0.7A
Power Supply: 12Vdc
Working Temperature: -10 +50°Cexamples of systems layout & description
On the following pages there are some examples of possible systems using the Art.2220.
BASIC INSTALLATION IN A VX2200 AUDIO/VIDEO SYSTEM PAGE 3
This diagram shows the basic installation:
• A VX2200 audio/video door entry system;
• One IP interface Art.2220 connected to a LAN;
• One concierge station that can be a PC or laptop with the Art.BSW2220 software installed. The software includes the VX2200 IP Con-
cierge software and the VX2200 IP Server software (Both running on the same PC). A USB dongle is required to unlock the software.
In addition to its standard functions as traditional concierge unit (as Art.2210), the concierge station benets from the advantages
of the Ethernet LAN connection, so it can be installed on a laptop computer connected to the LAN through a Wi-Fi connection.
While the operator is conversating with one apartment, an incoming call from the door panel noties the operator that the call will
be diverted to the calling panel within 5 seconds.
INSTALLATION IN A VX2200 AUDIO/VIDEO SYSTEMS USING MULTIPLE CONCIERGE STATIONS PAGE 4
The diagram shows the same system as page 3 with the addition of the Art.SRU2220 and the connection of multiple concierge
stations (PC plus concierge software or Art.CST2220).
Any concierge station can handle a call from the door panel or a call from the apartments.
TWO VX2200 AUDIO/VIDEO SYSTEMS WITH CENTRALISED CONCIERGE STATIONS PAGE 5
The diagram shows two systems that are connected together to the same LAN through the relevant Art.2220.
With this system layout:
• Any concierge station connected to the system can manage an internal or external call coming from apartment or doors in “Sys-
tem A” or “System B”;
• Concierge stations can work simultaneously: when one is conversating with one apartment or entrance in “System A” , another
can handle a call coming from a door panel or apartment in “System B”;
• Any concierge can instigate an intercommunication call between apartments in the same system or between both systems.
VX2200 AUDIO/VIDEO SYSTEM MANAGED BY REMOTE CONCIERGE STATIONS PAGE 6
This system is similar to the system shown on page 4 but with the concierge remotely connected to the system. The features are
exactly the same. For a correct system operation a minimum bandwidth of 100Kb is required.
VIDEX SERVICE REGISTRATION LINK
Go to the url http://www.videx-service.it to create your account and dowload “Videx 2220 Utility program” to setup
the Art.2220.
The website is constantly updated and allows to download the latest conguration software, the latest 2220’s
rmware and allows to submit support tickets.
CONNECTIONS TERMINALS
VIDEOPHONES BUS OUT
Videophones BUS line ground reference
LVideophones BUS line
POWER SUPPLY
12VDC Power supply ground reference
12VDC+ Power supply
VIDEO IN
V1
Balanced video signal V1
sync. (balanced video sig-
nal mode).
Connect these signals only
when Balanced video in-
put mode is selected (see
“INITIAL SETUP” - Fig. 5
on page 1)
V2 Balanced video signal V2
sync.
VComposite video signal
(coax video signal mode)
Connect these signals
only when Coax video in-
put mode is selected (see
“INITIAL SETUP” - Fig. 5
on page 1)
Composite video signal
ground reference
DOOR STATION
Doors BUS line ground reference
LDoors BUS line

66251440 - V 4.0 - 19/06/19
- 3 -
VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
Art.2220 VX2200 Audio IP Interface
BASIC INSTALLATION IN A VX2200 AUDIO/VIDEO SYSTEM
Art.2220
Art.521B
Art.893N1
LAN
Wi-Fi
Switch/Router
Ms Windows® Notebook with the
Art. BSW2220 “VX2200 IP Starter Bundle
Software”installed
Ms Windows® PC with the Art. BSW2220
“VX2200 IP Starter Bundle Software”
installed

66251440 - V 4.0 - 19/06/19
- 4 -
VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
Art.2220 VX2200 Audio IP Interface
INSTALLATION IN A VX2200 AUDIO/VIDEO SYSTEM USING MORE CONCIERGE STATIONS
Art.2220
Art.521B
Art.893N1
LAN
Server
Wi-Fi
Switch/Router
Ms Windows® Notebook running the
Art. CSW2220 “VX2200 IP Concierge
Software 1.0”
MsWindows® PC running the Art.CSW2220
“VX2200 IP Concierge Software 1.0”
Art.CST2220“VX2200 IP Concierge Station”
Art. SRU2220 “VX2200 IP Server Unit”
running the VX2200 IP Server 1.0

66251440 - V 4.0 - 19/06/19
- 5 -
VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
Art.2220 VX2200 Audio IP Interface

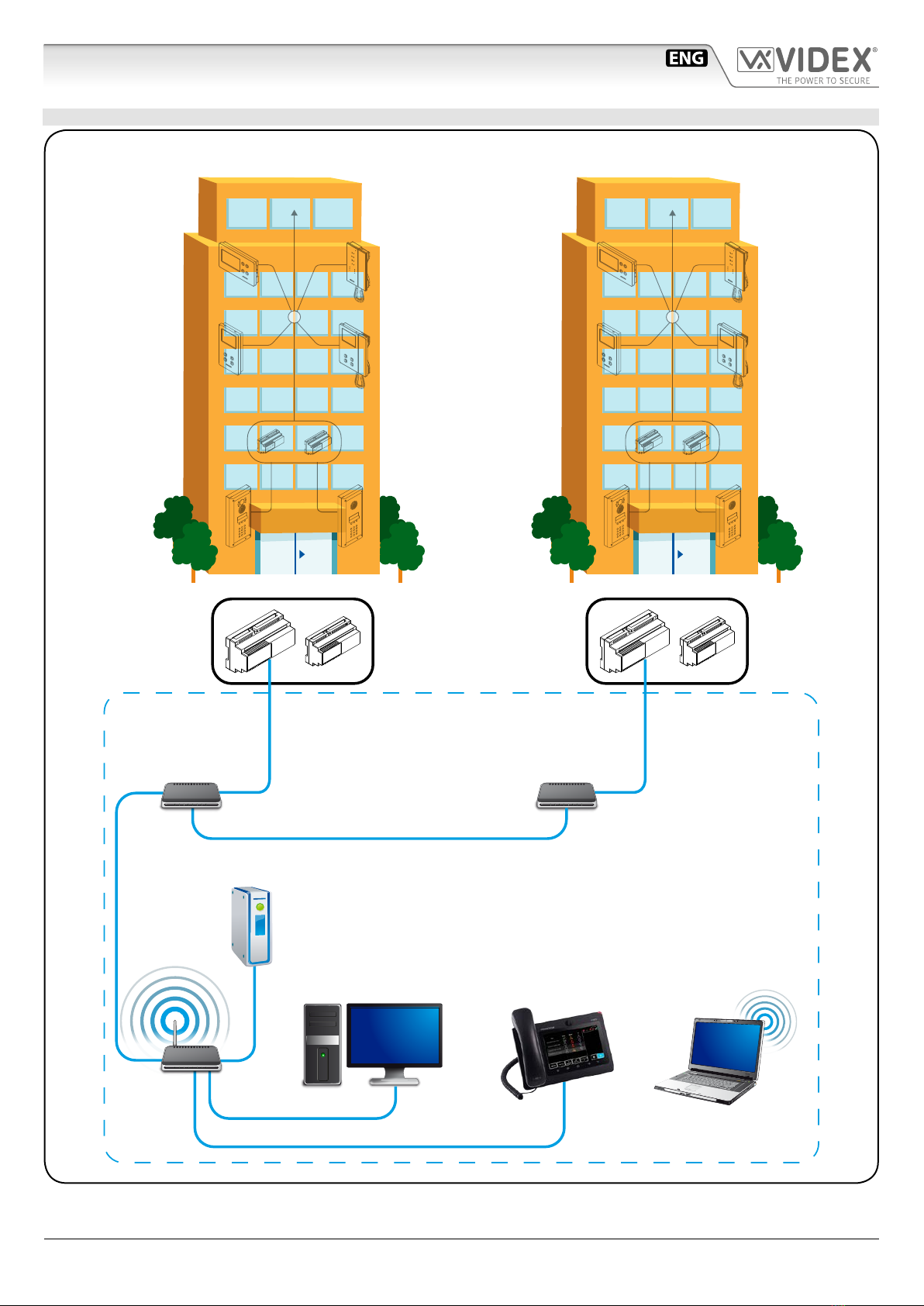

TWO VX2200 AUDIO/VIDEO SYSTEM WITH CENTRALIZED CONCIERGE STATIONS
Art.2220
Art.521B
Art.2220
Art.521B
Switch/Router
LAN
Art.521B
Art.893N1
Art.521B
Art.893N1
Server
Switch/Router
System A System B
Wi-Fi
Switch/Router
Art.SRU2220
“VX2200 IP Server Unit”
running the
VX2200 IP Server 1.0 Ms Windows® PC running
the Art. CSW2220 “VX2200 IP
Concierge Software 1.0”
Art.CST2220
“VX2200 IP Concierge Station”
Ms Windows® Laptop running the
Art. CSW2220 “VX2200 IP
Concierge Software 1.0”

66251440 - V 4.0 - 19/06/19
- 6 -
VX2200 Digital System “2 Wire” BUS Audio - “6 Wire” BUS Video Accessories
Art.2220 - Installation instructions
VX2200 AUDIO/VIDEO SYSTEM MANAGED BY REMOTE CONCIERGE STATIONS
Art.2220
Art.521B
World Wide Web
VPN tunnel
LAN - WAN
Art.521B
Art.893N1
Server
Switch/Router
Wi-Fi
Switch/Router
Remote System
Art. SRU2220 “VX2200 IP Server Unit”
running the VX2200 IP Server 1.0
Ms Windows® PC running
the Art. CSW2220 “VX2200 IP
Concierge Software 1.0”
Art.CST2220
“VX2200 IP Concierge Station”
Ms Windows® Laptop running
the Art. CSW2220 “VX2200 IP
Concierge Software 1.0”
Art.2220 VX2200 Audio IP Interface

66251440 - V 4.0 - 19/06/19
- 7 -
DISPOSAL
In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on
waste electrical and electronic equipment (WEEE)”.
The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end
of its lifetime, it must be collected separately from mixed municipal waste. The user must, therefore, dispose of the
equipment at the end of its lifetime in the suitable waste collection centres or bring it to the retailer during the pur-
chase of a new equipment of equivalent type at the ratio of one-to-one. Furthermore, the user is allowed to dispose
of the WEEEs of very small size (domestic appliances without any external dimension exceeding 25 cm (9.84 inches)
for free to the retailers, without any purchase obligation. The correct waste disposal of the WEEEs contributes to their
reuse, recycling and recovery and avoids potential negative eects on the environment and human health due to the
possible presence of dangerous substances within them.
SMALTIMENTO
Ai sensi del Decreto Legislativo 14 marzo 2014, n° 49 “Attuazione della direttiva 2012/19/UE sui riuti di apparecchia-
ture elettriche ed elettroniche (RAEE)”.
Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla ne
della propria vita utile deve essere raccolto separatamente dagli altri riuti urbani misti. L’utente dovrà, pertanto, con-
ferire l’apparecchiatura giunta a ne vita presso gli idonei centri di raccolta dierenziata oppure riconsegnarla al riven-
ditore al momento dell’acquisto di una nuova apparecchiatura di tipo equivalente, in ragione di uno a uno. L’utente ha,
inoltre, la possibilità di conferire gratuitamente presso i distributori, senza alcun obbligo di acquisto, per i RAEE di pic-
colissime dimensioni (per le apparecchiature di tipo domestico con nessuna dimensione esterna superiore a 25 cm).
L’adeguata raccolta dierenziata dei RAEE contribuisce al loro riutilizzo, riciclaggio e recupero ed evita potenziali ef-
fetti negativi sull’ambiente e sulla salute umana dovuti alla eventuale presenza di sostanze pericolose al loro interno.
ÉLIMINATION
Conformément au décret législatif n ° 49 du 14 mars 2014 relatif à l’«Application de la directive 2012/19 / UE relative
aux déchets d’équipements électriques et électroniques (DEEE)».
Lesymbole delapoubellebarréesur l’équipementou surson emballageindiquequeleproduiten n de vieutiledoitêtre
collecté séparément des autres déchets municipaux en mélange. L’utilisateur doit donc remettre l’équipement en n de
vieauxcentresdecollecteappropriésoulerestitueraurevendeurlorsdel’achatd’unnouveautyped’équipementéquiva-
lent,danslerapportdeunàun.Deplus,l’utilisateuralapossibilitédeconférergratuitementauxdistributeurs,sansaucune
obligation d’achat, de très petits DEEE (pour les appareils ménagers sans dimensions extérieures supérieures à 25 cm).
La collecte séparée adéquate des DEEE contribue à leur réutilisation, leur recyclage et leur valorisation et évite les
éventuels eets négatifs sur l’environnement et la santé humaine en raison de la présence possible de substances
dangereuses dans ceux-ci.
ELIMINACIÓN
De conformidad con el Decreto legislativo n. 49 de 14 de marzo 2014 “Aplicación de la Directiva 2012/19/UE relativa a
residuos de aparatos eléctricos y electrónicos (RAEE)”.
El símbolo del contenedor tachado indicado sobre los aparatos o sobre los embalajes señala que el producto al -
nal de su vida útil debe ser recogido separadamente de otros residuos municipales mezclados. Por tanto, el usuario
deberà conferir los aparatos al nal de su vida útil en los apropriados centros de recogida selectiva o devolverlos al
revendedor al momento de la compra de nuevos aparatos equivalentes, en una relación de uno a uno. Además, el
usuario tiene la posibilidad de entregar sin cargo a los distribuidores, sin ninguna obligación de compra, los RAEEs
muy pequeños (para electrodomésticos sin dimensiones externas superiores a 25 cm).
La recogida selectiva apropriada de los RAEEs contribuye a su reutilización, reciclaje y valorización y evita potenciales
impactos negativos sobre el medio ambiente y la salud humana debidos a la possible presencia de substancias peli-
grosas dentro de ellos.
VERWIJDERING
In overeenstemming met het Wetsbesluit nr. 49 van 14 maart 2015“Implementatie van de Richtlijn 2012/19/EU inzake
afgedankte elektrische en elektronische apparaten (AEEA)”.
Het doorgekruiste vuilnisbaksymbool op het apparaat of de verpakking geeft aan dat het product aan het einde van
zijn levensduur niet samen met het gewone huisvuil weggegooid mag worden. De gebruiker moet het apparaat aan
het einde van zijn levensduur inleveren bij een gepast inzamelpunt of de winkel waar hij een nieuw apparaat van een
gelijksoortig type zal kopen. De gebruiker kan tevens AEEA’s van een zeer klein formaat (huishoudapparaten met een
buitenafmeting kleiner dan 25 cm (9,84 inch)) gratis en zonder enige aankoopverplichting bij handelaars inleveren.
Een juiste verwijdering van AEEA’s draagt bij tot hergebruik, recycling en terugwinning, en voorkomt potentiële ne-
gatieve eecten op het milieu en de menselijke gezondheid door de mogelijke aanwezigheid van gevaarlijke stoen.

MANUFACTURER
FABBRICANTE
FABRICANT
FABRICANTE
FABRIKANT
ةعنصملا ةكرشلا
VIDEX ELECTRONICS S.P.A.
Via del Lavoro, 1
63846 Monte Giberto (FM) Italy
Tel [phone]
Fax [phone]
www.videx.it - inf[email protected]
CUSTOMER SUPPORT
SUPPORTO CLIENTI
SUPPORTS CLIENTS
ATENCIÓN AL CLIENTE
KLANTENDIENST
ءمعلا ةمدخ
VIDEX ELECTRONICS S.P.A.
www.videx.it - [e-mail]
Tel: [phone]
Fax: [phone]
UK Customers only:
VIDEX SECURITY LTD
www.videxuk.com
Tech Line: 0191 224 3174
Fax: [phone]
Main UK oce:
VIDEX SECURITY LTD
1 Osprey Trinity Park
Trinity Way
LONDON E4 8TD
Phone: [phone]
Fax: [phone]
www.videxuk.com
[email protected]
Northern UK oce:
VIDEX SECURITY LTD
Unit 4-7
Chillingham Industrial Estate
Chapman Street
NEWCASTLE UPON TYNE - NE6 2XX
Tech Line: ([phone]
Phone: [phone]
Fax: [phone]
Greece oce:
VIDEX HELLAS Electronics
48 Filolaou Str.
11633 ATHENS
Phone: [phone]
([phone]
Fax: [phone]
www.videx.gr
[email protected]
Danish oce:
VIDEX DANMARK
Hammershusgade 15
DK-2100 COPENHAGEN
Phone: [phone]
Fax: [phone]
www.videx.dk
[email protected]
Benelux oce:
NESTOR COMPANY NV
E3 laan, 93
B-9800 Deinze
Phone: [phone]
Fax: [phone]
www.videx.be
[email protected]
Dutch oce:
NESTOR COMPANY BV
Business Center Twente (BCT)
Grotestraat, 64
NL-7622 GM Borne
www.videxintercom.nl
[e-mail]
El producto lleva la marca CE que demuestra su conformidad y puede ser
distribuido en todos los estados miembros de la unión europea UE.
Este producto cumple con las Directivas Europeas 2014/30/EU (EMC);
2014/35/EU (LVD); 2011/65/EU (RoHS): marca CE 93/68/EEC.
Het product heeft de CE-markering om de conformiteit ervan aan te tonen en
is bestemd voor distributie binnen de lidstaten van de EU zonder beperkin-
gen. Dit product volgt de bepalingen van de Europese Richtlijnen 2014/30/EU
(EMC); 2014/35/EU (LVD); 2011/65/EU (RoHS): CE-markering 93/68/EEG.
Le produit est marqué CE à preuve de sa conformité et peut être distribué
librement à l’intérieur des pays membres de l’union européenne EU.
Ce produit est conforme aux directives européennes 2014/30/EU (EMC) ;
2014/35/EU (LVD) ; 2011/65/EU (RoHS): marquage CE 93/68/EEC.
The product is CE marked demonstrating its conformity and is for distribution
within all member states of the EU with no restrictions. This product follows
the provisions of the European Directives 2014/30/EU (EMC); 2014/35/EU
(LVD); 2011/65/EU (RoHS): CE marking 93/68/EEC.
Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere
distribuito liberamente all’interno dei paesi membri dell’Unione Europea UE.
Questo prodotto è conforme alle direttive Europee: 2014/30/UE (EMC);
2014/35/UE (LVD); 2011/65/UE (RoHS): marcatura CE 93/68/EEC.
CE
  
EU/2014/30
:(RoHS(EMC); 2014/35/EU (LVD); 2011/65/EU
.CE 93/68/EEC
