Viega Programmable Heat/Cool Thermostat Instruction sheet

1 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Viega®Programmable Heat/Cool Thermostat
The Viega programmable heat/cool thermostat is easy
to install, easy to wire and easy to program. It can be
used for single stage heating and cooling applications,
making it ideal for many different applications. Installation
instructions can be found below.
Part Number 15117
Caution: Electrical Hazard
Failure to disconnect the power before beginning
to install this product can cause electrical shock or
equipment damage.
Mercury Notice:
All of our products are mercury free. However, if the
product you are replacing contains mercury, dispose of it
properly. Your local waste management authority can give
you instructions on recycling and proper disposal.
A trained, experienced technician must install this
product. Carefully read these instructions. You could
damage this product or cause a hazardous condition if
you fail to follow these instructions.
W

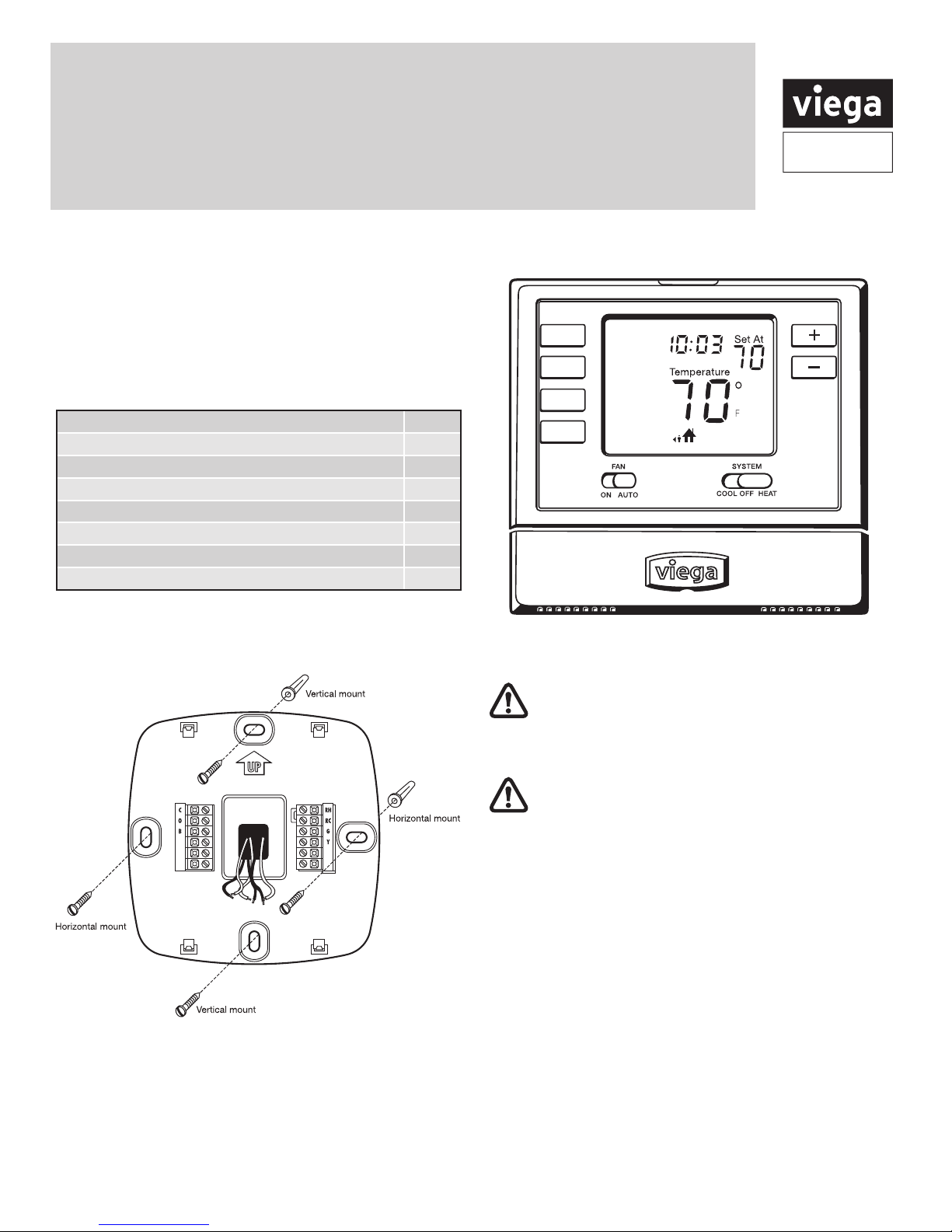

For vertical mount put one screw top and one screw bottom.
For horizontal mount put one screw left and one screw right.
The thermostat can be mounted directly to the wall or it can
be mounted to a wall box. Use the vertical mounting screw
location to attach to a wall box.
Menu
Mon
AM
LEAVE
Mounting the subbase
Thermostat applications guide
Description
Gas or Oil Heat Yes
Electric Furnace Yes
Heat Pump (No Aux. or Emergency Heat) Yes
Heat Pump (with Aux. or Emergency Heat) No
Multi-stage Systems No
Heat Only Systems Yes
Cool Only Systems Ye s

2 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Installation tips
Wall locations
The thermostat should be installed approximately 4 to 5 feet above the
oor. Select an area with average temperature and good air circulation.
NOTE: Pick an installation location that is easy for the
user to access. The temperature of the location should be
representative of the building

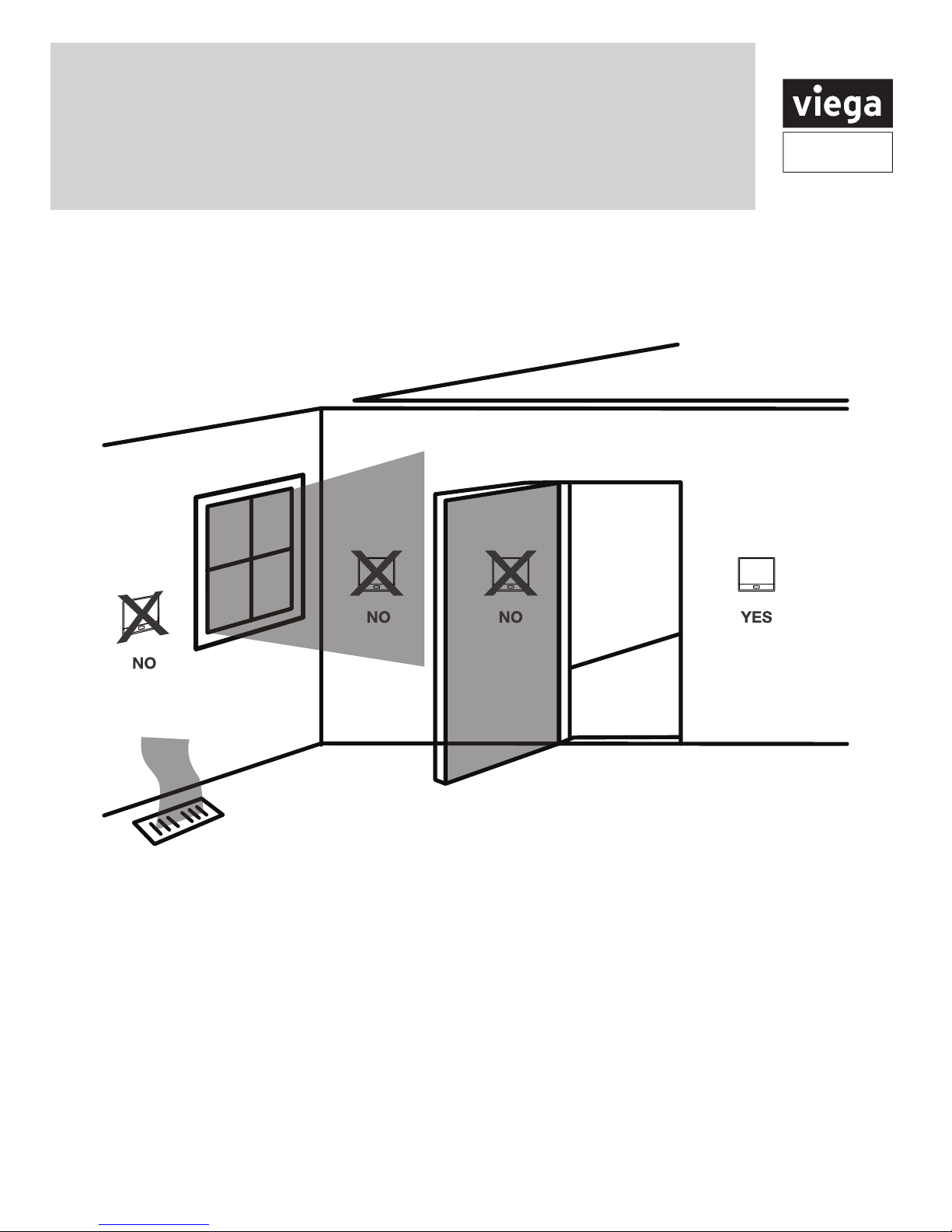

Do not install thermostat in locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or
behind doors
• Where there might be concealed chimneys or pipes

3 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Thermostat wiring
1. If you are replacing a thermostat, make note of the
terminal connections on the thermostat that is being
replaced. In some cases the wiring connections will
not be color coded. For example, the green wire
may not be connected to the G terminal.
2. Loosen the terminal block screws. Insert wires then
retighten terminal block screws.
Viega thermostat terminal conversion
Power type
• 3 wire
• 3 wire with battery backup
• 2 wire with battery
Terminal designations
W - Heat relay
Y - Compressor relay
G - Fan relay
O - Heat pump changeover valve energized in cooling
RC - Transformer power for cooling
RH - Transformer power for heating
B - Heat pump changeover valve energized in heating
C - Common wire from secondary side of cooling
system transformer
Wiring tips:
RH & RC terminals
For single transformer systems, leave the jumper wire in
place between RH and RC. Remove jumper wire for two
transformer systems.
Heat pump systems
If wiring to a heat pump, use a small piece of wire (not
supplied) to connect terminals W and Y.
C terminal
The C (common wire) terminal does not have to be
connected when the thermostat is powered by batteries.
Wire specifications
Use shielded or non-shielded 18-22 gauge thermostat wire.
Caution: Electrical hazard
Failure to disconnect the power before beginning
to install this product can cause electrical shock or
equipment damage.
Warning:
All components of the control system and the
thermostat installation must conform to Class II circuits
per the NEC Code.
RH
C
W
RH
C
W/E
L
N
R
C
W
Thermostats
15116
15117
Thermostat
15118
Zone Control
18060
18062
18050
Zone Control
18032
Thermostat
18029

4 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Typical industry wiring diagrams
. See page 8.

5 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Viega wiring diagrams
ZONE CONTROL (18060, 18062)
WITH OPTIONAL PRIORITY
OFF
ON
ZONE 4 PRIORITY
ZONE 1 ZONE 2 ZONE 3 ZONE 4
ZONE 4 RELAY
N/O N/CCOM
PUMP
END
SWITCH
ISOLATED
END
SWITCH
ZONE 1 ZONE 2 ZONE 3 ZONE 4
FUSE
(5 AMP MAX)
POWER IN
W C
R W CR W CR WCR
1234
120 V AC
Power Supply
L
N
R
C
CC RW NTC A/B
Thermostat -18050
1 2 34 1234
C
O
B
W
RH
RC
G
Y
Thermostat -15116
C
O
B
W
RH
RC
G
Y
Thermostat -15117
C
O
B
W/E
RH
G
Y
Thermostat -15118
W2 Y2
RC
Viega Yellow
Yellow
Red
Red
Viega
Yellow
Yellow
Red
Red
Viega Yellow
Yellow
Red
Red
Viega
Yellow
Yellow
Red
Red
Line Voltage
Low Voltage
LEGEND: Zone Controls
Part Numbers:
15116, 15117 and 15118
1. Connect the "RH" terminal
from the thermostat to "R"
terminal on the zone control
2. Connect the "W" terminal
from the thermostat to "W"
terminal on the zone control,
for part number 15118
connect "W/E" terminal from
the thermostat to "W" terminal
on the zone control
3. Connect the "C" terminal from
the thermostat to the "C"
terminal on the zone control
Connecting Viega thermostats and zone valves to the Viega zone control

6 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Class II
Transformer
C
R
120 V AC
Power Supply
N
L
C
O
B
W
RH
RC
G
Y
Thermostat -15116
ViegaViega
Line Voltage
Low Voltage
LEGEND: Zone Controls
Sensors
ELECTRICAL SCHEMATIC
NOTES: Wiring
1. This drawing shows system wiring concept only Installer is responsible for all equipment & detailing required by local codes
2. All wiring shall be in conformance with the latest edition of the National Electrical Code
3. Maximum current rating of Basic and Advance Heating Control Relay is 10 Amps, Basic and Advance Snow Meltng Control
Relay is 5 Amps, Maximum current rating of Zone Control Relays is 5 Amps, if circulator draw exceeds this use pilot relay with
120 VAC coil operated by Viega Control.
4. Consult with control / boiler manufacturer for limitations and installation instructions
5. Do not run the wires parallel to telephone or power cables. If the sensor wires are located in an area with strong sources of
electromagnetic interference (EMI), shielded cable or twisted pair should be used or the wires can be run in a grounded metal
conduit. If using shielded cable, the shield wire should be connected to the Com or Com Sen terminal on the control and not to
earth ground. Use 18 AWG copper wiring for all sensor wiring. Sensors should be located 12" down stream of mixing point.
6. DHW priority relay must be rated to handle full amperage load of zone circulator relay center
7. Other configurations are possible, but all space heating zone circulators must turn off when DHW mode is on or heat source
needs to be sized for multiple loads.
Thermostat &
2 Wire
Powerhead
Class II
Transformer
C
R
120 V AC
Power Supply
N
L
Viega
Red
Red Yellow
Yellow
TO T-T BOILER CONTACT, PUMP
RELAY OR OTHER AUXILIARY
DEVICE REQUIRING CONTACT
CLOSURE. SEE NOTE 2.
C
O
B
W
RH
RC
G
Y
Thermostat -15116
Line Voltage
Low Voltage
LEGEND: Zone Controls
Sensors
ELECTRICAL SCHEMATIC
NOTES: Wiring
1. This drawing shows system wiring concept only Installer is responsible for all equipment & detailing required by local codes
2. All wiring shall be in conformance with the latest edition of the National Electrical Code
3. Maximum current rating of Basic and Advance Heating Control Relay is 10 Amps, Basic and Advance Snow Meltng Control
Relay is 5 Amps, Maximum current rating of Zone Control Relays is 5 Amps, if circulator draw exceeds this use pilot relay with
120 VAC coil operated by Viega Control.
4. Consult with control / boiler manufacturer for limitations and installation instructions
5. Do not run the wires parallel to telephone or power cables. If the sensor wires are located in an area with strong sources of
electromagnetic interference (EMI), shielded cable or twisted pair should be used or the wires can be run in a grounded metal
conduit. If using shielded cable, the shield wire should be connected to the Com or Com Sen terminal on the control and not to
earth ground. Use 18 AWG copper wiring for all sensor wiring. Sensors should be located 12" down stream of mixing point.
6. DHW priority relay must be rated to handle full amperage load of zone circulator relay center
7. Other configurations are possible, but all space heating zone circulators must turn off when DHW mode is on or heat source
needs to be sized for multiple loads.
Thermostat &
4 Wire
Powerhead
Connecting
Viega
thermostats
to 2 wire
powerheads
Connecting Viega thermostats
to 4 wire powerheads
4 powerheads may
be connected to
each thermostat
4
powerheads
may be
connected
to each
thermostat
ZONE CONTROL (18060, 18062)
WITH OPTIONAL PRIORITY
OFF
ON
ZONE 4 PRIORITY
ZONE 1 ZONE 2 ZONE 3 ZONE 4
ZONE 4 RELAY
N/O N/CCOM
PUMP
END
SWITCH
ISOLATED
END
SWITCH
ZONE 1 ZONE 2 ZONE 3 ZONE 4
FUSE
(5 AMP MAX)
POWER IN
W CR W CR W CR W CR
1 2 3 4
120 V AC
Power Supply
L
N
Viega
Viega
Viega
Yellow
Yellow
Red
Red
Yellow
Yellow
Red
Red
Viega
Yellow
Yellow
Red
Red
R
C
C C R W NTC A/B
Thermostat -18050
POWERHEAD (15061)
FOR USE WITH
STAINLESS MANIFOLD
2 WIRE, 24 V,
POWERHEAD (15064)
FOR USE WITH
STAINLESS MANIFOLD
4 WIRE, 24 V,
JUMPER
3&4 JUMPER
3&4
IF PRIORITY
IS USED
1 2 3 4 1 2 3 4
C
O
B
W
RH
RC
G
Y
Thermostat -15116
C
O
B
W
RH
RC
G
Y
Thermostat -15117
C
O
B
W/E
RH
G
Y
Thermostat -15118
W2 Y2
RC
Line Voltage
Low Voltage
LEGEND: Zone Controls
Sensors
ELECTRICAL SCHEMATIC
NOTES: Wiring
1. This drawing shows system wiring concept only Installer is responsible for all equipment & detailing required by local codes
2. All wiring shall be in conformance with the latest edition of the National Electrical Code
3. Maximum current rating of Basic and Advance Heating Control Relay is 10 Amps, Basic and Advance Snow Meltng Control
Relay is 5 Amps, Maximum current rating of Zone Control Relays is 5 Amps, if circulator draw exceeds this use pilot relay with
120 VAC coil operated by Viega Control.
4. Consult with control / boiler manufacturer for limitations and installation instructions
5. Do not run the wires parallel to telephone or power cables. If the sensor wires are located in an area with strong sources of
electromagnetic interference (EMI), shielded cable or twisted pair should be used or the wires can be run in a grounded metal
conduit. If using shielded cable, the shield wire should be connected to the Com or Com Sen terminal on the control and not to
earth ground. Use 18 AWG copper wiring for all sensor wiring. Sensors should be located 12" down stream of mixing point.
6. DHW priority relay must be rated to handle full amperage load of zone circulator relay center
7. Other configurations are possible, but all space heating zone circulators must turn off when DHW mode is on or heat source
needs to be sized for multiple loads.
Thermostat &
Powerhead
to
Zone Control
Connecting Viega thermostats to
the Viega zone control
Part Numbers:
15116, 15117 and 15118
1. Connect the "RH" terminal
from the thermostat to "R"
terminal on the zone control
2. Connect the "W" terminal
from the thermostat to "W"
terminal on the zone control,
for part number 15118
connect "W/E" terminal from
the thermostat to "W" terminal
on the zone control
3. Connect the "C" terminal from
the thermostat to the "C"
terminal on the zone control
Line Voltage
Low Voltage
LEGEND: Zone Controls
Line Voltage
Low Voltage
LEGEND: Zone Controls
Line Voltage
Low Voltage
LEGEND: Zone Controls

7 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Thermostat display
1LCD
2Glow in the dark light button
• Push the glow in the dark button and the screen will
illuminate.
3Fan switch
• Set to AUTO to run the fan anytime heating or
cooling is running.
• Set to ON to run the fan at all times.
4System switch
• Set to heating/cooling or off.
5Easy change battery door
• 2- AA batteries included.
6Temperature setpoint buttons
• Use the +or –buttons to adjust the room
temperature.
7User Buttons
• Menu
• Tech Setup
• Set Time
• Set Sched
Important:
The low battery indicator is displayed when the AA
battery power is low. If the user fails to replace the
battery within 21 days, the screen will only show the low
battery indicator but maintain all functionality. If the user
fails to replace the batteries after an additional 21 days
(days 22-42 since rst “low battery” display) the set points
will change to 55°F (Heating) and 85°F (Cooling). If the
user adjusts these setpoints away from these it will hold
for 4 hours then return to either 55°F or 85°F. After day
42 the batteries must be replaced immediately to avoid
freezing or overheating because the thermostat will shut
the unit off until the battery is changed.

8 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Thermostat settings Gas or electric setup
Gas: For systems that control the fan during a call for
heat, put the fan operation switch to the GAS position.
Electric: The fan operation switch should be put in the
ELEC position. This setting allows the thermostat to
operate the fan when the fan relay is connected to the G
terminal.
Fahrenheit/Celsius display

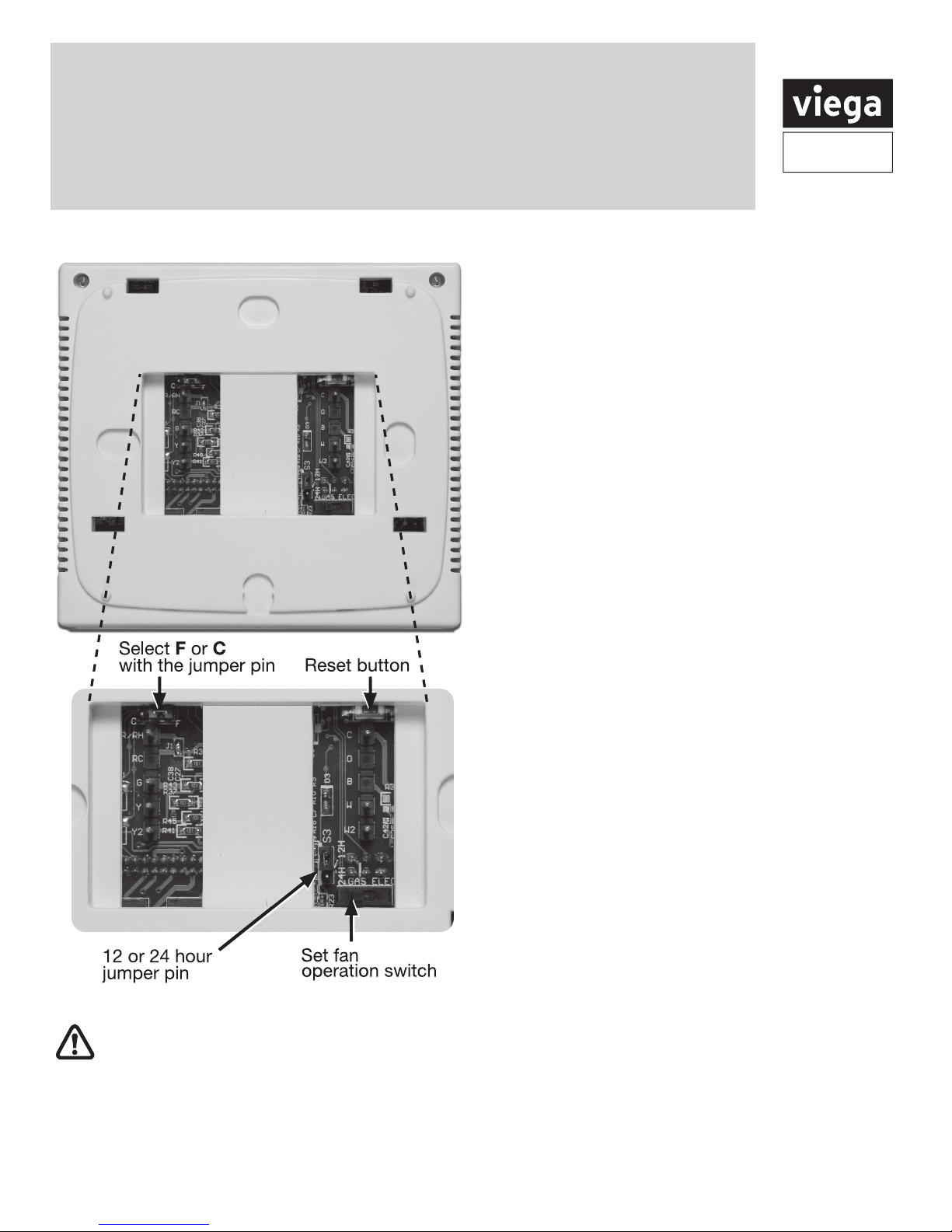

Select For Cwith the jumper pin on the back of the
thermostat. For Fahrenheit install the jumper pin on the
top two pins. For Celsius install the jumper pin on the
bottom two pins.
12 or 24 hour time
12 or 24 hour (military time) can be selected with the
jumper pin. For 12 hour time install the jumper pin on the
top two pins. For 24 hour (military time) install the jumper
pin on the bottom two pins.
Important:
The RESET button must be pressed after changing
any switch or jumper pin setting. Batteries must be
installed for this operation.

9 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Attaching the thermostat to the subbase
Align the 4 tabs on the subbase with corresponding slots
on the back of the thermostat, then push gently until the
thermostat snaps in place.
Battery installation
Battery installation is recommended even if thermostat
is hardwired (C terminal connected). When thermostat
is hardwired and batteries are installed, the thermostat
will activate a compressor delay of 5 minutes when the
thermostat detects a power outage from the hardwired
power supply (batteries included).
Important:
High quality alkaline batteries are recommended.
Rechargeable batteries or low quality batteries do not
guarantee a 1-year life span.
Insert 2 AA Alkaline
batteries (included). High
quality alkaline batteries
are recommended.
Simple operating
instructions are found
on the back of the
battery door.

10 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Programming the thermostat
Adjusting the room temperature
The current room temperature is displayed in large text in
the center of the thermostat under the “room temperature”
heading. The set point or desired room temperature is in
the upper right corner of the display under “set at”. To
raise or lower the desired “set at” temperature use the red
and blue +and –buttons on the top right of the
thermostat.
Swing setting tip
Temperature swing, sometimes called differential or cycle
rate, can be customized for this individual application. For
most applications choose a swing setting that is as long
as possible without making the occupants uncomfortable.
This thermostat has a technician setup menu for easy
installer conguration. To setup the thermostat for your
particular application:
1. Press MENU button.
2. Press and hold TECH SET button for 3 seconds. This
3 second delay is designed so that homeowners do
not accidentally access the installer settings.

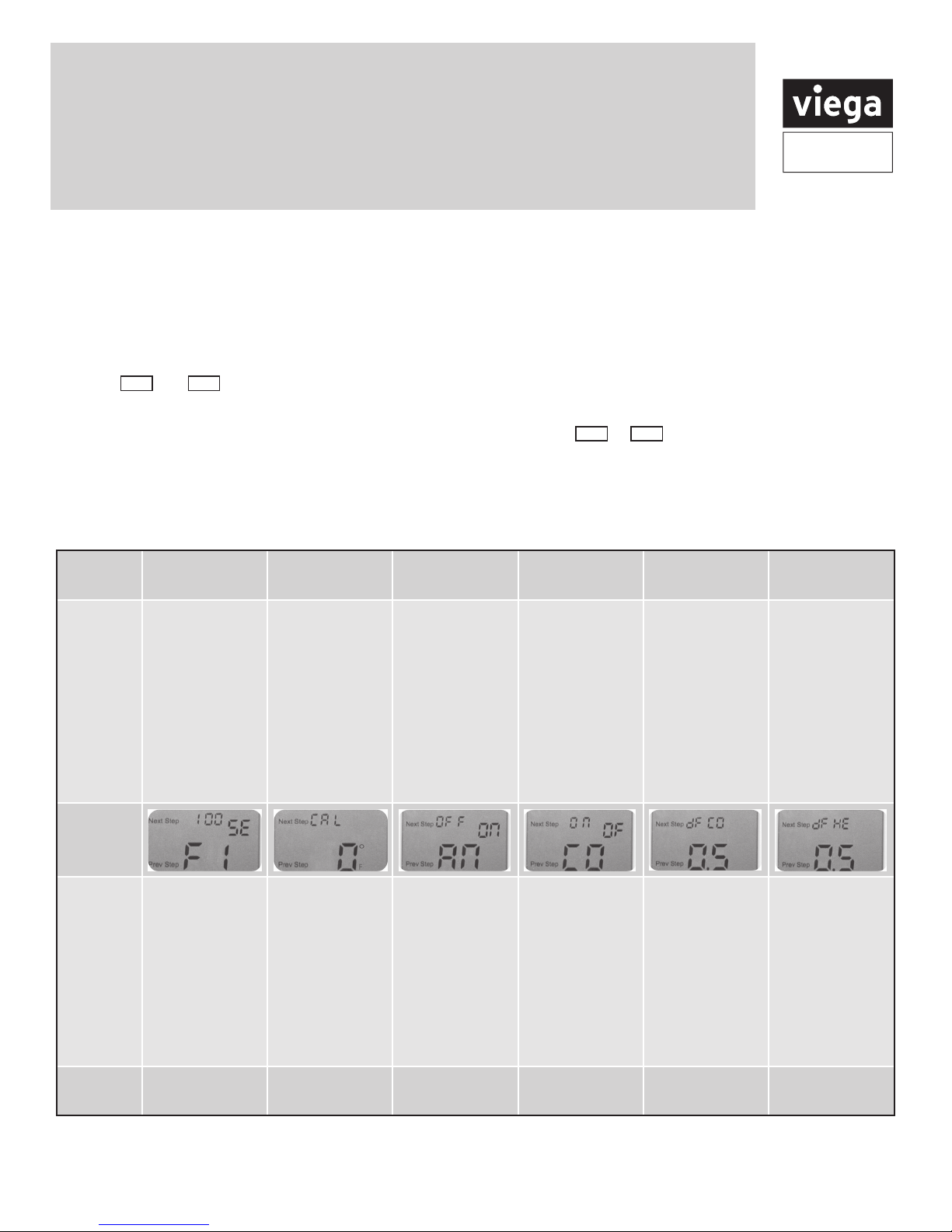

3. Congure the installer options as desired using the
table below.
Use the +or –keys to change settings and the
NEXT STEP or PREV STEP key to move from one
option to another. Note: Only press DONE key when
you want to exit the Technician Setup options.
Feature
Filter Change
Reminder
Room Temperature
Calibration
Minimum
Compressor On
Time
Compressor Short
Cycle Delay Cooling Swing Heating Swing
Feature
Description
This feature will
ash "FILT" in the
display after the
elapsed run time to
remind the user to
change the lter. A
setting of "off" will
disable this feature
This feature
allows the installer
to change the
calibration of the
room temperature
display. For
example, if the
thermostat reads
70° and you would
like it to read 72°
then select +2.
This feature allows
the installer to
select the minimum
run time for the
compressor. For
example: A setting
of 4 will force the
compressor to
run for at least 4
minutes every time
the compressor
turns on, regardless
of the room
temperature
The compressor
short cycle delay
protects the
compressor from
"short cycling". This
feature will not allow
the compressor to
be turned on for 5
minutes after it was
last turned off.
The swing setting,
often called "cycle
rate", "differential"
or "anticipation"
is adjustable. A
smaller swing
setting will cause
more frequent
cycles and a larger
swing setting will
cause fewer cycles.
The swing setting,
often called "cycle
rate", "differential"
or "anticipation"
is adjustable. A
smaller swing
setting will cause
more frequent
cycles and a larger
swing setting will
cause fewer cycles.
LCD will
Show
Adjustment
Options
You can adjust
the lter change
reminder from "off"
to 2000 hours of
runtime in 50 hour
increments.
Tap the second
button from the
top left side of
the thermostat to
display the current
lter.
You can adjust the
room temperature
display to read -4°F
to +4°F above or
below the factory
calibrated reading.
You can select
the minimum
compressor run
time from "off",
"3", "4", or "5"
minutes. If 3, 4,
or 5 is selected,
the compressor
will run for at least
the selected time
before turning off.
Selecting "on"
will not allow the
compressor to
be turned on for
5 minutes after
the last time the
compressor was
on. Select "off" to
remove this delay.
The cooling swing
setting is adjustable
from ±0.2°F to
±2°F. For example:
A swing setting
of 0.5°F will turn
the cooling on at
approximately 0.5°F
above the setpoint
and turn the cooling
off at approximately
0.5°F Below the
setpoint.
The heating swing
setting is adjustable
from ±0.2°F to
±2°F. For example:
A swing setting
of 0.5°F will turn
the heating on at
approximately 0.5°F
below the setpoint
and turn the heating
off at approximately
0.5°F above the
setpoint.
Factory
Default
Settings
Off 0°F Off On 0.5°F 0.4°F

11 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
Programming the thermostat
Set time
Follow the steps below to set the day of the week and
current time:
1. Press MENU.
2. Press SET TIME.
3. Day of the week will be flashing. Use the +or
–key to select the current day of the week.
4. Press NEXT STEP.
5. The current hour is flashing. Use the +or –
key to select the current hour. When using 12-hour
time, make sure the correct a.m. or p.m. choice is
selected.
6. Press NEXT STEP.
7. Minutes are now flashing. Use the +or –key
to select current minutes.
8. Press DONE when completed.
Factory Default Program
Day of
the Week Events Time
Setpoint
Temperature
(Heat)
Setpoint
Temperature
(Cool)
Weekday Wake 6 a.m. 70°F (21°C) 75°F (24°C)
Leave 8 a.m. 62°F (17°C) 83°F (28°C)
Return 6 p.m. 70°F (21°C) 75°F (24°C)
Sleep 10 p.m. 62°F (17°C) 78°F (26°C)
Saturday Wake 8 a.m. 70°F (21°C) 75°F (24°C)
Leave 10 a.m. 62°F (17°C) 83°F (28°C)
Return 6 p.m. 70°F (21°C) 75°F (24°C)
Sleep 11 p.m. 62°F (17°C) 78°F (26°C)
Sunday Wake 8 a.m. 70°F (21°C) 75°F (24°C)
Leave 10 a.m. 62°F (17°C) 83°F (28°C)
Return 6 p.m. 70°F (21°C) 75°F (24°C)
Sleep 11 p.m. 62°F (17°C) 78°F (26°C)
All our programmable thermostats are shipped with an
energy saving pre-program. You can customize this
default program by following the steps below.
Your thermostat can be programmed to have all the
weekdays the same, a separate program for Saturday,
and a separate program for Sunday. There are four time
periods for each program for each program (WAKE,
LEAVE, RETURN, SLEEP).

12 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]

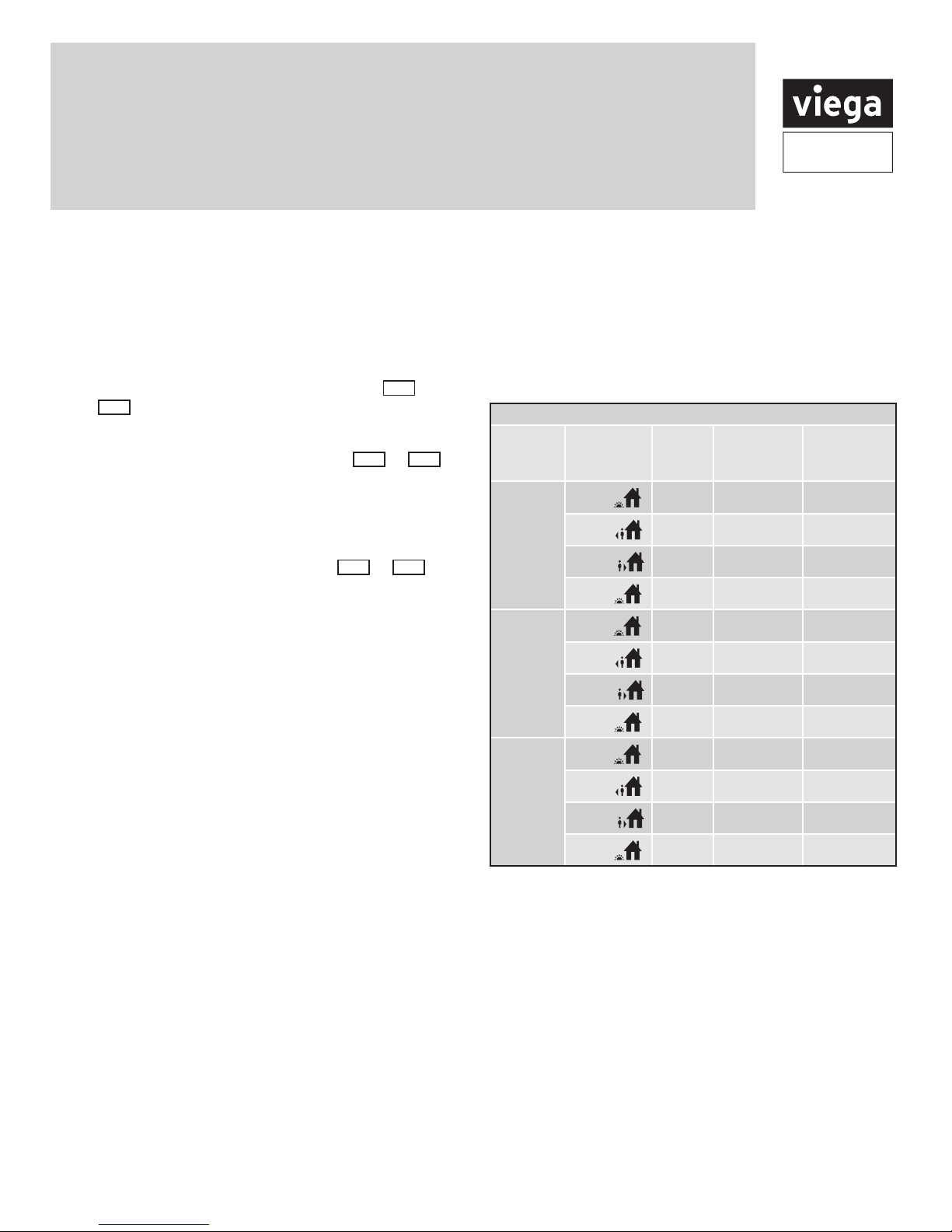

You can use the table below to plan your customized
program schedule.
Factory Default Program
Day of
the Week Events Time
Setpoint
Temperature
(Heat)
Setpoint
Temperature
(Cool)
Weekday Wake
Leave
Return
Sleep
Saturday Wake
Leave
Return
Sleep
Sunday Wake
Leave
Return
Sleep
Set program schedule
To customize your program schedule, follow these steps:
Weekday:
1. Select HEAT or COOL from the system switch.
NOTE: You have to program heat and cool each
separately.
2. Press MENU.
3. Press SET SCHED. NOTE: Monday-Friday is
displayed and the WAKE icon is shown. You are
now programming the wake time period for the
weekday setting.
4. Time is flashing. Use the +or –key to make
your time selection for the weekday WAKE time
period.
5. Press NEXT STEP.
6. The setpoint temperature is flashing. Use the +
or –key to make your setpoint selection for the
weekday wake period.
7. Press NEXT STEP.
8. Repeat steps 4 through 7 for weekday LEAVE time
period, for weekday RETURN time period, and for
weekday SLEEP time period.
Saturday:
9. Repeat steps 4 through 7 for Saturday WAKE
time period, for Saturday LEAVE time period, for
Saturday RETURN time period, and for Saturday
SLEEP time period.
Sunday:
10. Repeat steps 4 through 7 for Sunday WAKE time
period, for Sunday LEAVE time period, for Sunday
RETURN time period, and for Sunday SLEEP time
period.

13 of 13
Product
Instructions
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: [phone]
This document subject to updates. For the most current Viega technical literature please visit www.viega.us.
Click Services -> Click Electronic Literature Downloads -> Select Product Line -> Select Desired Document
Technical data
The display range of temperature . . . 41°F to 95°F
(5°C to 35°C)
The control range of temperature . . . 44°F to 90°F
(7°C to 32°C)
Loading Rate . . . . . . . . . . . . . . . . 1 amp per terminal,
1.5 amp maximum all
terminals combined
Display accuracy . . . . . . . . . . . . . ±1°F
Swing (cycle rate or differential) . . . . Heating is adjustable
from 0.2°F to 2.0°F
Cooling is adjustable
from 0.2°F to 2.0°F
Power source . . . . . . . . . . . . . . . 18 to 30 VAC, NEC
Class II, 50/60 Hz for
hardwire (common wire)
Battery power from 2 AA
alkaline batteries
Operating ambient. . . . . . . . . . . . 32°F to +105°F
(0°C to +41°C)
Operating humidity . . . . . . . . . . . 90% non-condensing
maximum
Dimensions of thermostat . . . . . . 4.7"W x 4.4"H x 0.8"D
Thermostat applications guide
Description
Gas or Oil Heat Yes
Electric Furnace Yes
Heat Pump (No Aux. or Emergency Heat) Yes
Heat Pump (with Aux. or Emergency Heat) No
Multi-stage Systems No
Heat Only Systems Yes
Cool Only Systems Ye s
