Operating instructions
for system users
Heating systems with Vitotronic 100 control unit
for constant temperature operation
VITODENS
VITOPEND
VITOPLUS
5592 452 GB 12/2004 Please keep safe

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Important information
This symbol warns against the
risk of material losses and
environmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These operating instructions are
designed for heating system users.
Danger
Incorrect work on the heating
system can lead to life-threa-
tening accidents.
&Work on gas equipment must
only be carried out by a
registered gas fitter.
&Electrical work must only be
carried out by a qualified
electrician.
If you notice a smell of gas
Danger
Escaping gas can cause explo-
sionswhichmayleadtoser-
ious injury.
&Do not smoke. Prevent
naked flames and sparks.
Never switch electrical lights
or equipment.
&Open windows and doors.
&Close the gas shut-off valve.
&Remove all personnel from
the danger zone.
&Observe the safety regula-
tions of your local gas sup-
plier which can be found on
the gas meter.
&Notify your heating contrac-
tor from outside the building.
If you smell flue gas
Danger
Flue gas may lead to life-threa-
tening poisoning.
&Shut down the heating sys-
tem.
&Ventilate the boiler room.
&Closealldoorsleadingtothe
living space.
For your safety
2
Safety instructions
5592 452 GB

If you notice fire
Danger
Fire causes a risk of burns and
explosion.
&Shut down the heating sys-
tem.
&Close the fuel line shut-off
valves.
&Use a tested fire extin-
guisher, class ABC.
Installation area conditions
!Important information
Incorrect ambient conditions
canleadtodamagetothe
heating system and put safe
operation at risk.
&Ensure ambient tempera-
tures higher than 0 ºC and
lower than 35 ºC.
&Prevent the air becoming
contaminated by haloge-
nated hydrocarbons (e.g. as
contained in paints, solvents
or cleaning fluids) and exces-
sive dust (e.g. through grind-
ing/polishing work).
&Avoid continuously high
humidity levels (e.g. through
frequent drying of washing).
&Never close existing ventila-
tion apertures.
Ancillary components, spare and
wearing parts
!Important information
Components which are not
tested with the heating system
mayleadtodamagetothe
heating system, or may affect
their various functions.
Installation or replacement
must only be carried out by
qualified personnel.
For your safety (cont.)
3
Safety instructions
5592 452 GB

Introduction
Initial start-up ............................................................................................. 6
Your heating system is pre-set at the factory ............................................... 6
Multi-boiler system ..................................................................................... 6
Where to find the controls
Summary of controls and indicators ............................................................ 7
&Opening the control unit ........................................................................... 7
&Functions ................................................................................................ 8
&Symbols in the display ............................................................................. 9
Start-up and shutdown
Heating system start-up .............................................................................. 10
Heating system shutdown ........................................................................... 11
Starting a heating circuit and DHW heating/loading ..................................... 12
Starting DHW only ...................................................................................... 12
Shutting down a heating circuit and DHW heating/loading ........................... 12
Switching the comfort function ON and OFF ................................................ 13
Adjusting temperatures
Adjusting the room temperature .................................................................. 14
Adjusting the boiler water temperature ........................................................ 14
Adjusting the DHW temperature .................................................................. 15
Scanning options
Scanning information .................................................................................. 16
Special displays
Maintenance display................................................................................... 18
What to do
When rooms are too cold ............................................................................ 19
When rooms are too hot .............................................................................. 20
When there is no hot water.......................................................................... 20
When the hot water is too hot ...................................................................... 21
Scanning fault display................................................................................. 21
Vitoplus 300 –ordering fuel oil
&Fuel oil quality ......................................................................................... 22
&Fuel oil additives...................................................................................... 22
&Combustion improvers ............................................................................. 22
&Bio-fuels .................................................................................................. 22
Index
4
Index
5592 452 GB

Repairs
Cleaning..................................................................................................... 23
Inspection and maintenance ....................................................................... 23
Energy saving tips .................................................................................... 25
Keyword index .......................................................................................... 26
Index (cont.)
5
Index
5592 452 GB

The initial start-up and matching of
the control unit to local conditions and
the structural characteristics of the
building must be carried out by your
heating contractor.
As the user of new combustion equip-
ment, you are obliged to notify your
local flue gas inspector of the installa-
tion [check local regulations]. Your
local flue gas inspector will also
inform you (where appropriate) about
work he may be required to perform
on your combustion equipment (e.g.
regular checks, cleaning).
Your heating system is pre-set at the factory
"Heating and DHW" are already set
up at the factory, i.e. the system deli-
vers central heating and DHW heat-
ing/loading (subject to a DHW
cylinder being installed).
Your heating system is therefore
ready for use.
You may change the factory settings
in accordance with personal require-
ments.
Note
All data is saved in case of power fail-
ure.
Multi-boiler system
You only require the Vitotronic 333
operating instructions if the boiler is
used in a multi-boiler system in con-
junction with a Vitotronic 333 control
unit. These instructions also include
the operating steps for boiler control.
Initial start-up
6
Introduction
5592 452 GB

You can change all settings for your heating system, centrally, at the control
unit.
You can change the room temperature and time program settings for central
heating at the remote control (see separate operating instructions), provided
your system is equipped with a remote control unit.
Opening the control unit
ACover
BControl unit flap (open to make
adjustments)
CFlap with abridged operating
instructions
Lift up cover A, and pivot control unit
flap Bdown. All boiler controls are
located behind the control unit flap.
On the inside of control unit flap B,
an abridged version of these operating
instructions can be found behind a
further flap C. You may remove the
abridged operating instructions with
the flap.
Summary of controls and indicators
7
Wheretofindthecontrols
5592 452 GB

Functions
AStandby mode (page 12)
BDHW only (page 12)
CHeating and DHW (page 12)
DComfort function (page 13)
EHelp (page 16)
FBasic settings
GConfirmation/acknowledgement
HSetting values
KDHW temperature (page 15)
LEmissions test switch (only for
qualified personnel)
MBoiler water temperature
(page 14)
Basic settings
All modified values are reset to their
factorysettingsbypressinge.
Summary of controls and indicators (cont.)
8
Wheretofindthecontrols
5592 452 GB

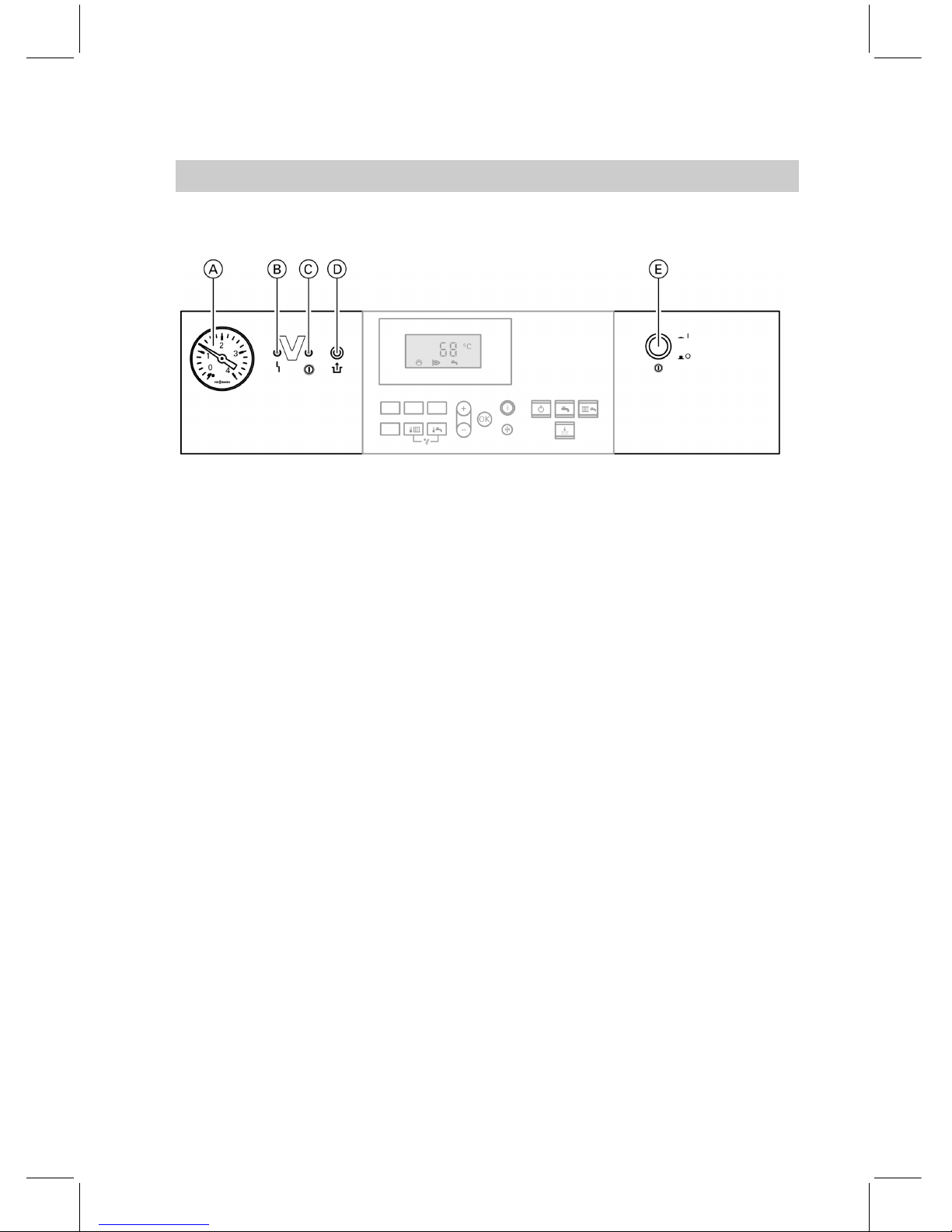

Further controls and indicators
APressure gauge
BFault indicator (red)
CON/OFF indicator (green)
DBurner fault reset
EON/OFF switch

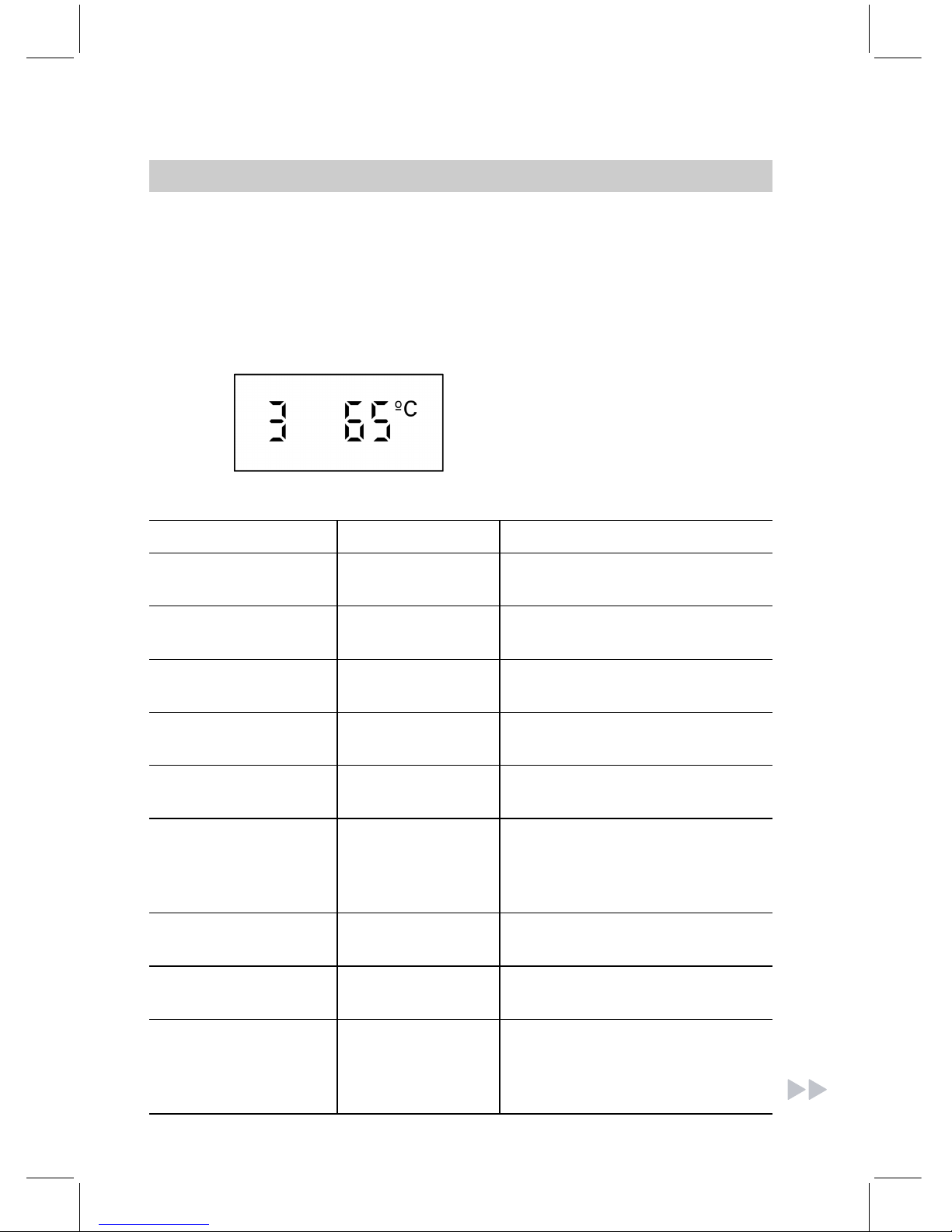

Symbols in the display
These symbols are not permanently displayed, but appear subject to the system
version and the operating state. Flashing displays indicate that modifications
canbemade.
rCentral heating or "Boiler
enable" in a multi-boiler system
wDHW loading enabled
pHeating circuit pump running
Êp DHW loading through a solar
heating system
ABurner ON
SEmissions test ON
EBurner fault
UFault message
Summary of controls and indicators (cont.)
9
Wheretofindthecontrols
5592 452 GB

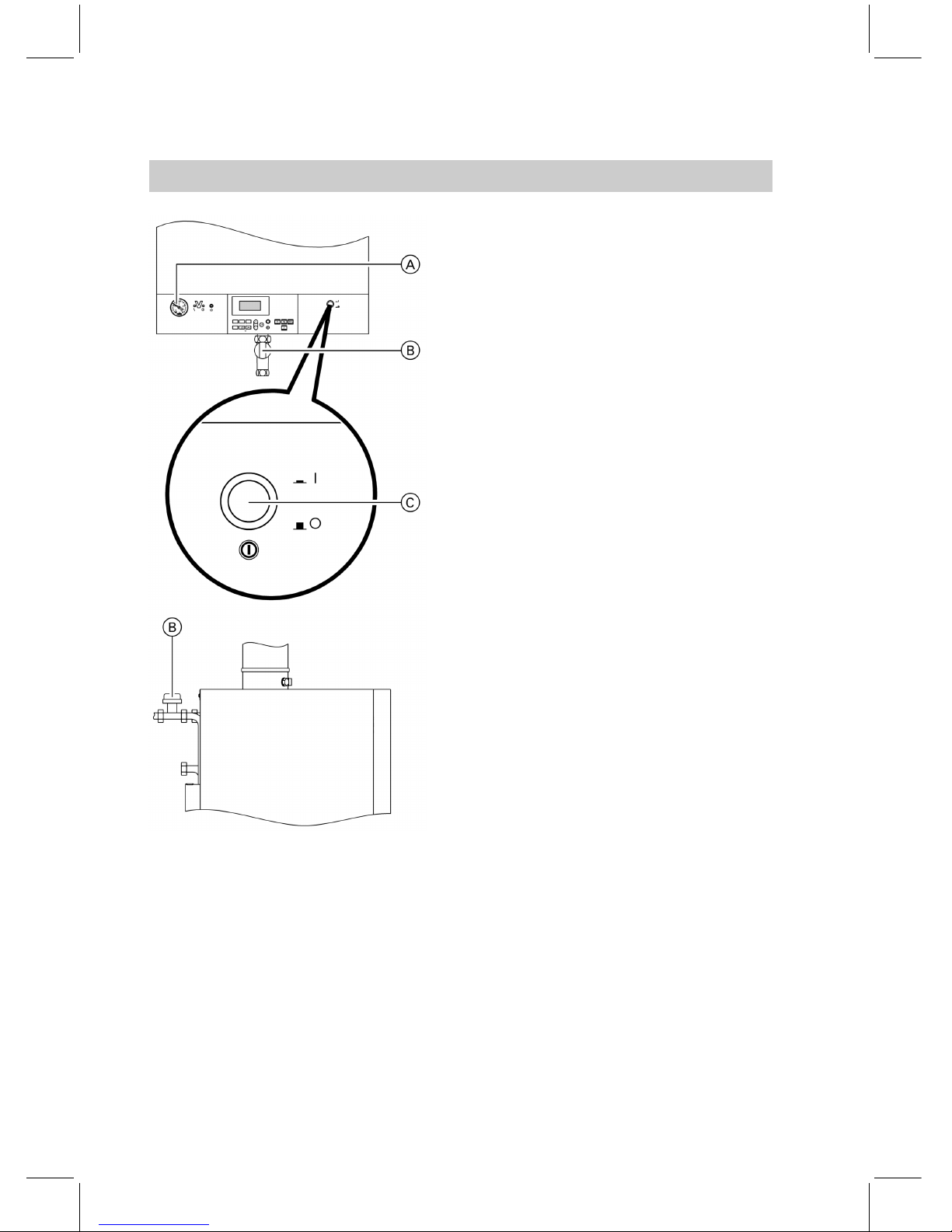

Position of the gas shut-off valve for
Vitodens 333
1. Check the heating system pressure
on pressure gauge A: The system
pressure is too low if the needle
indicates below 0.8 bar. In that
case, top up with water or contact
your local heating contractor.
2. For open flue operation: The com-
bustion air is drawn from the boiler
room.
Check whether the ventilation/
exhaust apertures in the boiler
room are open and unobstructed.
3. On Vitodens and Vitopend:
Open gas shut-off valve B.
On Vitoplus:
Open the shut-off valves in the oil
supply lines (at the oil tank and the
filter).
4. Switch ON the mains power supply;
e.g. at a separate fuse or a mains
electrical isolator.
5. Switch ON main ON/OFF switch 8
C;
standby mode is then indicated by
the green indicator (ON indicator);
after a short time the boiler tem-
perature will be displayed. Your
heating system and, if installed,
your remote control unit are now
ready for use.
Heating system start-up
10
Start-up and shutdown
5592 452 GB

If, temporarily, you have no need of your heating system, e.g. during a summer
holiday, switch the system to "Standby mode"K(see page 12).
Note
The circulation pumps are briefly started every 24 hours to prevent them from
seizing up.
Shut down your heating system if you do not want to use it.
Before you shut down your heating system for short or long periods, it would be
advisable to contact your local heating contractor.
Your heating contractor can then take any necessary measures, subject to
requirements, e.g. for frost protection of the system or to preserve the heating
surfaces.

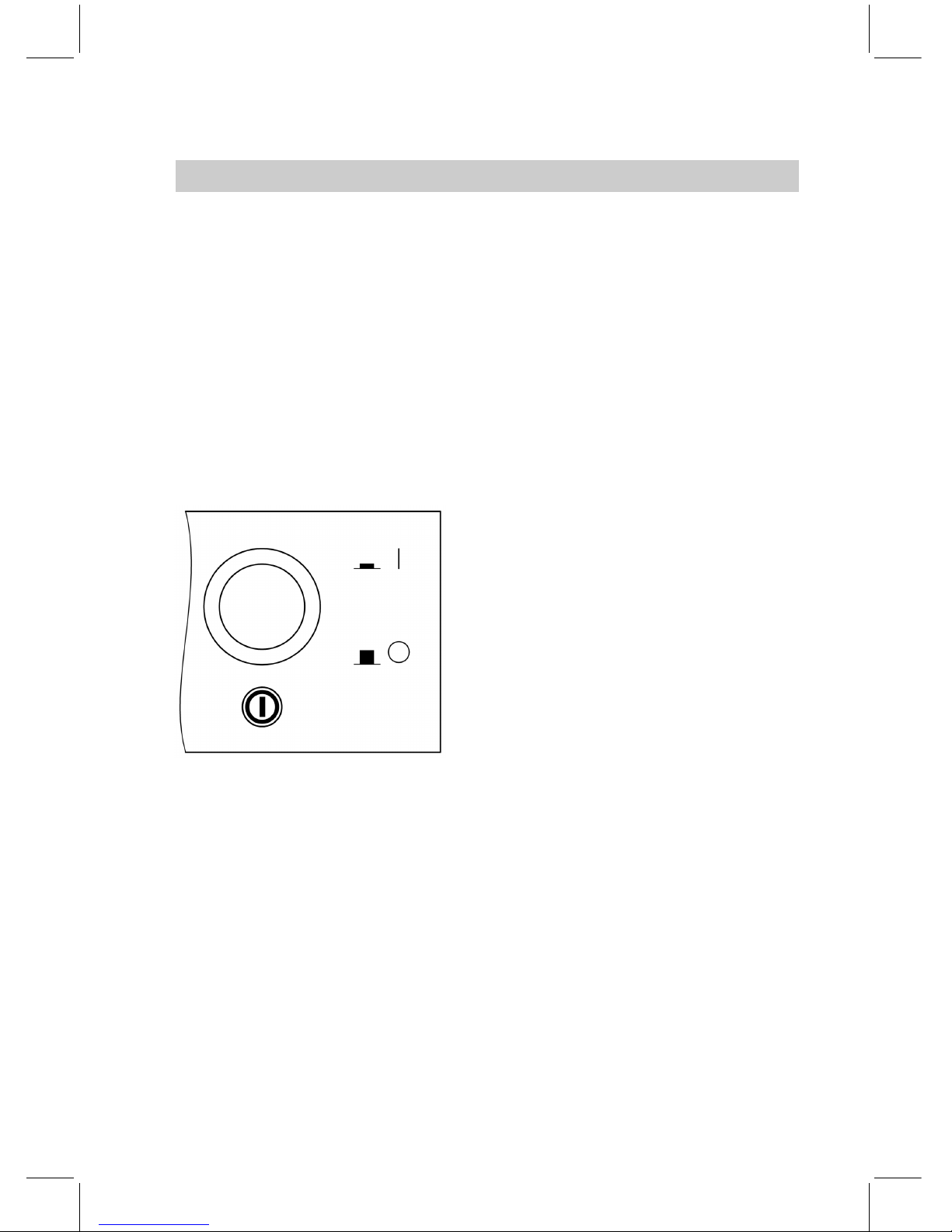

1. Switch OFF main ON/OFF
switch 8;
the green indicator (ON/OFF indi-
cator) goes out.
2. Close the shut-off valves in the oil
supply lines (at the oil tank and fil-
ter) or the gas shut-off valve.
3. Switch OFF the mains power sup-
ply; e.g. at a separate fuse or a
mains electrical isolator.
As the system is now at zero volts;
the heating system has no frost
protection.
Note
All control settings remain intact.
Heating system shutdown
11
Start-up and shutdown
5592 452 GB

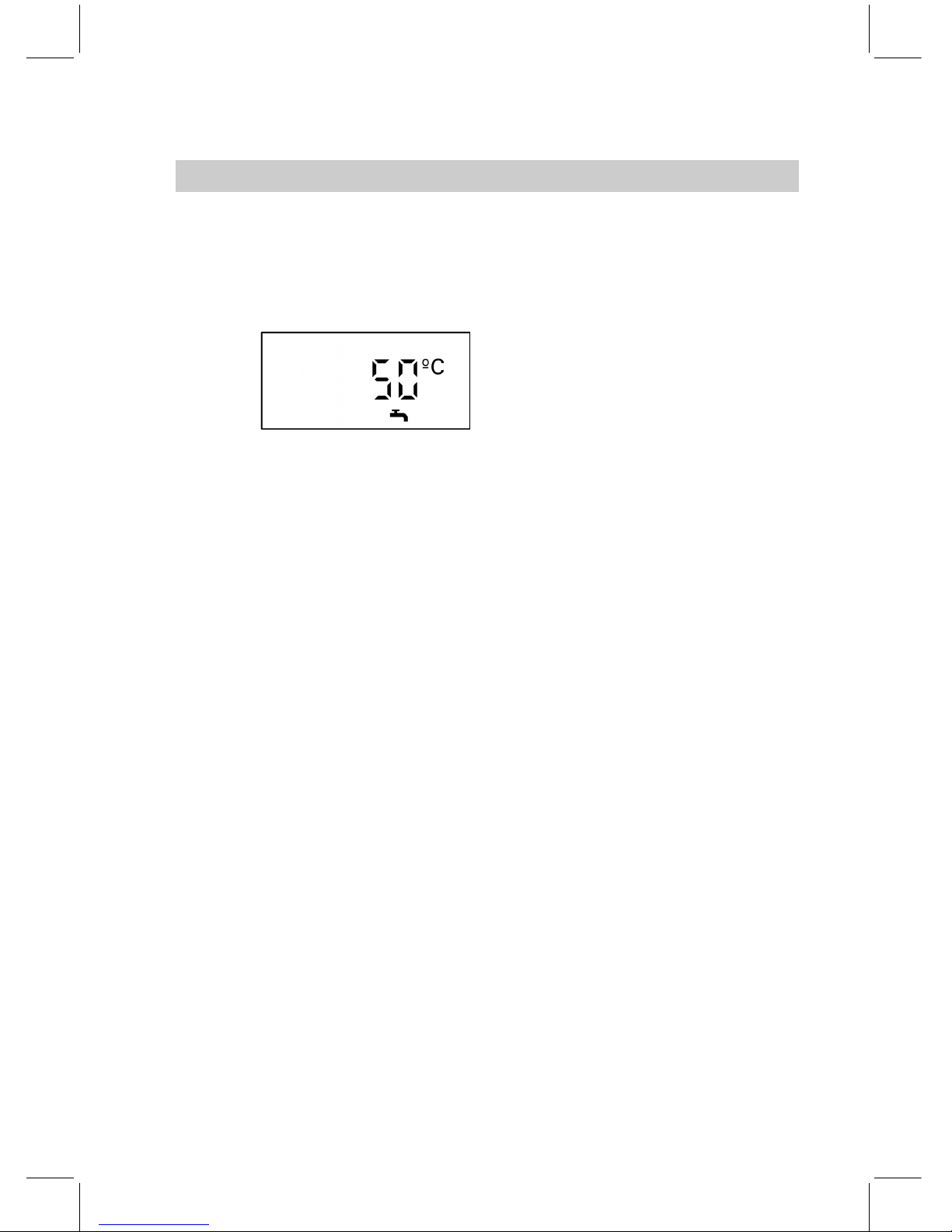

Press G.
Heating and DHW:
&Central heating active.
&DHW will be loaded (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Frost protection for the boiler and
DHW cylinder is active.
Starting DHW only
Press L.
DHW only:
&No central heating.
&DHW will be loaded (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Frost protection for the boiler and
DHW cylinder is active.
Shutting down a heating circuit and DHW heating/loading
Press K.
Standby mode:
&No central heating.
&No DHW heating.
&Frost protection for the boiler and
DHW cylinder is active.
Note
The circulation pump will be started
for short periods at regular intervals to
prevent it from seizing up. These
intervals can be modified by your
heating contractor.
Starting a heating circuit and DHW heating/loading
12
Start-up and shutdown
5592 452 GB

Only for Vitodens 300 with integral instantaneous water heater.
The instantaneous water heater is held at temperature (standby), as long as the
comfort function is switched ON. Hot water will then be available instantly.
The comfort function can be switched
OFF with /,topreventtheboiler
starting up, thereby saving the energy
required to maintain standby mode
when no hot water is drawn, e.g. at
night.
Switching the comfort function ON and OFF
13
Start-up and shutdown
5592 452 GB

In addition to the boiler control unit, a separate room temperature controller (e.
g. Vitotrol 100 remote control unit) must be installed in one of the living rooms, if
the heating system is to be regulated in accordance with the required room tem-
perature.
Make adjustments using the appropri-
ate operating instructions.
Please also note:
&"Heating and DHW " Gmust be
selected.
&Set the boiler water temperature
high enough.
&All thermostatic radiator valves in
the room where the controller is
installed must be fully open.
Adjusting the boiler water temperature
If a remote control unit is connected:
Set the room temperature on the remote control unit.
Set the boiler water temperature high enough to be able to achieve the required
room temperature.
Press the following keys:
1. Ofor "Set boiler water tem-
perature"; the current tem-
perature will flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
now saved.
Adjusting the room temperature
14
Adjusting temperatures
5592 452 GB

Press the following keys:
1. Ffor "Set DHW tempera-
ture"; the current tempera-
ture will flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
now saved.
Adjusting the DHW temperature
15
Adjusting temperatures
5592 452 GB

Subject to connected components, you can scan current temperatures and
operating conditions.
Press the following keys:
1. cfor boiler water tempera-
ture.
2. a/bfor additional scans.
3. dto end scanning.
Display indication Description Notes
1 20 ºC Outside tempera-
ture
Displayonlyifanoutsidetem-
perature sensor is connected.
3 65 ºC Boiler water tem-
perature
–
5 50 ºC DHW temperature Display only if a DHW cylinder
has been installed.
5□45 ºC DHW temperature
for solar operation
Display only if a solar heating sys-
tem is connected.
6 70 ºC Collector tempera-
ture
Display only if a solar heating sys-
tem is connected.
|003572 h Burner hours run The hours run can be reset to "0"
by pressing e. The hours run
displayed are only approximate
values.
||| 030417 Burner starts The number of burner starts can
be reset to "0" by pressing e.
||||
030417
Fuel consumption The fuel consumption can be
reset to "0" by pressing e.
|||||
000850 h
Hours run –solar
circuit pump
The hours run can be reset to "0"
on the Vitosolic solar control unit.
The hours run displayed are only
approximate values.
Scanning information
16
Scanning options
5592 452 GB

Display indication Description Notes
||||||
002850
Solar energy in
kWh
The solar energy display can be
reset to "0" on the Vitosolic solar
control unit.
Scanning information (cont.)
17
Scanning options
5592 452 GB

If your heating contractor has entered a maintenance interval into the control
unit, a message will appear on the display after expiry of that period.
Maintenance display after a given
number of hours run (flashing dis-
play):
Maintenance display according to a
time interval (flashing display), e.g.
maintenance after 12 months:
Maintenance display
18
Special displays
5592 452 GB

Cause Remedy
Heating system is switched OFF
ON/OFF indicator 8(green) is OFF
&Switch ON system ON/OFF switch 8
(see page 10)
&Switch ON mains electrical isolator, if
installed (outside boiler room)
&Check the circuit breaker inside
power distribution (main domestic
fuse) and reset it, if required
Control unit or remote control unit is in-
correctly adjusted
Setup"HeatingandDHW"G(see
page 12)
Only when operating with DHW load-
ing:
DHW priority (wp in the display)
Wait until the DHW cylinder has been
heated up or, if an instantaneous water
heater is installed, until no more DHW
is being drawn (pis extinguished in
the display)
No fuel Oil/LPG:
Check fuel level and, if necessary, re-
order fuel.
Natural gas:
Open the gas shut-off valve and check
with your gas supplier, if required.
Control unit fault: Uis displayed and
the red fault indicator flashes
Check the fault code on the display
(see page 21) and notify your local
heating contractor
Burner fault: Eis displayed and the
red fault indicator on the control unit
flashes
Press burner fault reset E–if that at-
tempt to start also fails, notify your
heating contractor
Heating water temperature or required
room temperature too low
Raise the heating water temperature or
the required room temperature (see re-
mote control operating instructions)
Remote control fault Notify your local heating contractor
When rooms are too cold
19
What to do
5592 452 GB

Cause Remedy
The control unit or the remote control
unit is incorrectly adjusted
Check the room temperature setting
and correct, if required
Control unit fault: Uis displayed and
the red fault indicator flashes
Check the type of fault (see page 21)
and notify your heating contractor
When there is no hot water
Cause Remedy
Heating system is switched OFF
ON/OFF indicator 8(green) is OFF
&Switch ON system ON/OFF switch 8
(see page 10)
&Switch ON mains electrical isolator, if
installed (outside boiler room)
&Check the circuit breaker inside
power distribution (main domestic
fuse) and reset it, if required
Control unit incorrectly adjusted Check settings and correct if required:
&DHW heating must be switched ON
(see page 12)
&DHW temperature (see page 15)
No fuel Oil/LPG:
Check fuel level and re-order fuel, if re-
quired.
Natural gas:
Open the gas shut-off valve and check
with your gas supplier, if required.
Control unit fault: Uis displayed and
the red fault indicator flashes
Check the type of fault (see page 21)
and notify your heating contractor
Burner fault: The red fault indicator of
the control unit flashes and "E"isdis-
played
Press burner fault reset "E"–if that
attempt to start also fails, notify your
heating contractor.
When rooms are too hot
20
What to do
5592 452 GB
