VITOROND 200
Triple-pass hot water heating boiler
490 to 1096 MBH / 144 to 321 kW
Vitorond 200
Oil-/Gas-fired boiler
sectional cast iron design
with Eutectoplex heat transfer surface, in triple-pass design
for operation with modulating water temperatures
Heating input: 490 to 1096 MBH
144 to 321 kW
5285 661 v1.4 01/2008

Product Information
2VITOROND 200, VD2
VITOROND 200
The modular sectional cast iron design of
the Vitorond 200, VD2 allows for
problem-free transport into
difficult-to-access boiler rooms and permits
easy assembly.
The triple-pass design ensures clean,
low-emission combustion, while the
Eutectoplex heat exchanger surface
guarantees economical energy consumption,
high operational reliability and a long service
life.
The benefits at a glance:
HEfficient and environmentally friendly
operation due to modulated boiler water
temperatures.
Combustion efficiency:
- oil 88%.
.......................................................
- gas 85%......................................................
HEutectoplex heat exchanger surface for high
operational reliability and a long service life.
The homogeneous structure of the
Eutectoplex special gray cast iron ensures
uniform heat transfer, minimizing stress
fractures and counteracting the formation of
condensate.
Shape and geometry of the cast iron
sections, excellent water flow characteristics
and uniform temperature distribution further
increase the level of operational reliability.
HLow-emission combustion through
triple-pass design.
HProblem-free transport into
difficult-to-access boiler rooms due to
sectional construction and low weight of
individual sections.
HSimple, quick assembly of the individual
cast iron sections is achieved with a
double-groove seal fit system for the flue
gas passageways. The gasket seal is
secured in place by the double groove,
and therefore not subject to mechanical
stresses.
HEasy cleaning access facilitated by a
hinged (left or right) swing-open
combustion chamber door, allowing easy
access to all three heat exchanger passes
from boiler front, reducing side clearance.
HEfficient and safe operation of the heating
system with Vitotronic or Dekamatik
digital boiler and heating system control.
Tailored to suit every requirement, these
controls cover all known control strategies
and applications.
HEconomical and hygienic domestic hot
water production with indirect-fired
Vitocell 100 steel or Vitocell 300 stainless
steel tanks.
Tanks may be combined into multiple-tank
batteries for applications requiring larger
quantities of hot water.
5285 661 v1.4

Product Information
Cut-Away Section
Product may not be exactly as illustrated.
VITOROND 200, VD2 3
Extremely effective Third Vitotronic 300 control - Burner door
4” / 100 mm thick pass intelligent and easy to install, insulation
insulation operate and service.
Second Combustion Eutectoplex heat exchanger Low-emission
pass chamber surface constructed from burner
homogeneous special
gray cast iron
5285 661 v1.4

Technical Data
4VITOROND 200, VD2
Technical data*1
Boiler model VD2- 125 160 195 230 270
Input (oil) MBH 490 628 765 902 1059
kW 144 184 224 264 310
Input (gas) MBH 508 650 792 934 1096
kW 149 190 232 274 321
Output (oil/gas) MBH 432 553 673 794 932
kW 127 162 197 233 273
Combustion efficiency (oil) %88 88 88 88 88
Combustion efficiency (gas) %85 85 85 85 85
Number of cast iron sections 5 6 7 8 9
Cast iron block dimensions
Length
Width
Height
inches
mm
inches
mm
inches
mm
35¼
893
29¼
743
40
1015
40¼
1024
29¼
743
40
1015
45½
1155
29¼
743
40
1015
49½
1256
29¼
743
40
1015
55¾
1417
29¼
743
40
1015
Cast iron section dimensions
Front section (with combustion
chamber door)
Intermediate section
Rear section (with flue gas
collar)
inches
mm
inches
mm
inches
mm
32 x 29¼ x 10¼
810 x 743 x 261
32 x 24¾ x 5
810 x 628 x 130
32 x 24¾ x 9¼
810 x 628 x 238
Dimensions (with insul. jacket)
Total length
Total width with NR2 control
(side-mounted)
Total width with Dekamatik
(side-mounted)
Total width with KR control
(side-mounted)
inches
mm
inches
mm
inches
mm
inches
mm
41½
1056
39
990
42¾
1090
44¾
1140
46¾
1187
39
990
42¾
1090
44¾
1140
52
1318
39
990
42¾
1090
44¾
1140
57
1449
39
990
42¾
1090
44¾
1140
62¼
1580
39
990
42¾
1090
44¾
1140
Weight
Front section (with combustion
chamber door)
Intermediate section
Rear section (with flue gas
collar)
Cast iron heat exchanger block
Overall weight
complete with insulation
lbs
kg
lbs
kg
lbs
kg
lbs
kg
lbs
kg
309
140
203
92
256
116
1347
611
1424
646
309
140
203
92
256
116
1556
706
1624
745
309
140
203
92
256
116
1750
794
1845
837
309
140
203
92
256
116
1940
880
2044
927
309
140
203
92
256
116
2052
931
2196
996
Boiler water content USG
ltr
20.6
78
24.0
91
27.5
104
30.9
117
34.3
130
Max. boiler temperature*2
(= fixed high limit)
°F
°C
248
120
248
120
248
120
248
120
248
120
5285 661 v1.4

Technical Data
VITOROND 200, VD2 5
Technical data
Boiler model VD2- 125 160 195 230 270
Max. allow. operating
pressure*3 psig 75 75 75 75 75
Boiler connections
Boiler supply and return
Safety supply*4
Safety return*4
Drain valve
inches
inches
inches
inches
2½
1½
1½
¾
2½
1½
1½
¾
2½
1½
1½
¾
2½
1½
1½
¾
2½
1½
1½
¾
Heating surface area
Flue gas side ft.2
m240
3.7
49.5
4.6
60
5.6
70
6.5
79.5
7.4
Water side ft.2
m232
3.0
37.5
3.5
43
4.0
49.5
4.6
55
5.1
Flue gas*5
– Temperature (gross)*6
– Flue gas mass flow rate
With minimum heating input
and a 2-stage burner
(operation of stage 1)
– Temperature
– Flue gas mass flow rate at
minimum input rate
°F
°C
lbs/h
kg/h
°F
°C
lbs/h
kg/h
374
190
470
213
266
130
282
128
374
190
602
273
266
130
362
164
374
190
732
332
266
130
439
199
374
190
864
390
266
130
516
234
374
190
1014
457
266
130
604
274
Boiler standby loss based on
max. heating input and hot
water supply and return
temperatures of 167 / 140°F
75 / 60 °C
%0.300.27 0.24 0.20 0.18
Vent pipe collar outer ∅*7 in
mm
8
200
8
200
8
200
8
200
8
200
Flue gas resistance “w.c. 0.20 0.35 0.51 0.67 0.75
- at upper end of rated input mbar 0.5 0.9 1.3 1.7 1.9
*1 Inch dimensions are rounded to the nearest ¼”.
*2 The maximum supply operating temperature (= max. adjustable high limit) lies approx. 27°F / 15°C below the fixed high limit setting.
*3 May be less in some Canadian provinces.
*4 Connections for boiler connection kit (standard equipment).
*5 Combustion results are based on 13.0% CO2with fuel oil #2 and 10% CO2with natural gas, as well as
a system supply temperature of 167 °F / 75 °C, and a system return temperature of 140 °F / 60 °C.
*6 Measured flue gas temperature with a combustion air temperature of 68 °F / 20 °C and a boiler water temperature of 176 °F / 80 °C.
*7 Vent pipe collar diameter does not automatically indicate vent/chimney size. See page 13 for details.
"The combustion burner head material must be suitable for temperatures of at least 932 °F / 500 °C.
"For information regarding other Viessmann System Technology componentry, please reference documentation of respective product.
5285 661 v1.4

Technical Data
6VITOROND 200, VD2
Legend
BD Boiler drain ¾”
BWR Boiler water return
BWS Boiler water supply
CO Clean-out opening
FGC Flue gas collar
SG Sight glass
a 10½” / 270 mm
b 5” / 125 mm
c 11½” / 290 mm
d 5½” / 140 mm
e 4” / 100 mm
Burner Installation
The burner must be fitted to the burner
plate; installations direct to the boiler
door are not feasible.
Viessmann supplies a pre-drilled end
burner plate in accordance with the
supplied burner dimensions.
Note
For mounting burners with blast tube
diameters of 150 mm / 6” to
240 mm / 9½”, the door insulation
(refractory material) can be cut to the
required size.
The blast tube must protrude from the
thermal insulation on the boiler door.
5285 661 v1.4
Length
Total length
Total width
Width
Height
Total height
SG
BD
BWR
BWS
CO
FGC
CO
8”
205 mm
600 mm
33½” / 850 mm
23½”
42¼” / 1075 mm
28¾” / 730 mm
20½”
520 mm
abc
Viessmann North America offers the
side-mounted control option only. Refer to
the side-mounted control dimension on
page 4.
Attention
520 mm / 20 1/2”
730 mm / 28 3/4”
320 mm / 12 5/8”
110 mm / 4 3/8”
150 mm / 6”

Technical Data
Legend
TCP Additional temperature control port ½”
AQW Aquastat well tapping ½”
BWR Boiler water return
BWS Boiler water supply
ACP Additional control port ½” (pressure gage)
SEN 1 Return temperature sensor port
SEN 2 Boiler pump temperature sensor ½”
RWE Return water elevation 1½”
SR Safety return - connection to precharged
membrane expansion tank
SS Safety supply - connection to pressure relief valve
Boiler return header
BWS
ACP TCP
AQW
SS/RWE
BWS
SS/RWE
29½” / 750 mm 12¾” / 325 mm
21” / 535 mm
Air vent
SR/RWE
BWR
SEN 1
SR/RWE
SEN 2
BWR
7½”
190 mm
20¼” / 515 mm
14¾” / 375 mm
29½” / 750 mm
53/16”/
132 mm
VITOROND 200, VD2 7
Boiler Connection Kit (Standard Equipment)
consisting of boiler supply and return header
Boiler supply header
Low Temperature Protection
Boiler model VD2- 125 160 195 230 270
30% Boiler Flow Package Ø” 1¼ 1½ 1½
100% Boiler Flow Package Ø” 22½ 2½ 3 3
Low temperature protection packages from
Viessmann are required for Rondomat
boilers. A 30% Boiler Flow Package is
typically utilized in single-boiler installations.
100% Boiler Flow Packages are utilized in
single- and multiple-boiler installations.
Selection of the correct package depends on
the characteristics of the heating system,
and the degree of control necessary to
protect the boiler. Contact Viessmann for
assistance.
30% Boiler Flow Package:
H1 Boiler pump, 2 ball valves,
1 flow check valve
100% Boiler Flow Package:
H1 3-Way return water mixing valve,
1 actuator, 1 circulating pump
5285 661 v1.4

Technical Data
Boiler supply header
Boiler return header
Boiler
supply
connection
Boiler
return
connection
Boiler supply header
Boiler return header
Boiler
supply
connection
Boiler
return
connection
8VITOROND 200, VD2
30% Boiler Flow Package
The 30% boiler flow package consists of:
H1 Boiler pump, 2 ball valves,
1 flow check valve
Low water cut-off
(standard equipment)
Boiler shunt pump for return water
temperature elevation or bypass pump
Flow check valve
Location of Honeywell aquastat
(to control boiler pump)
Location of sensor
(installed in stainless steel well)
All boiler piping field supplied.
100% Boiler Flow Package
The 100% boiler flow package consists of:
H1 3-Way return water mixing valve,
1 actuator, 1 circulating pump
Boiler pump
3-Way return water mixing valve
Low water cut-off
(standard equipment)
Location of sensor
(installed in stainless steel well)
All boiler piping field supplied.
It is essential that the designer review the
sizing of all pumps including the boiler pump
normally supplied with the 100% Boiler
Flow Package to verify that all pumps in the
system operate correctly. The responsibility
for the distribution system design, including
all circulation pumps, remains with the
system designer.
5285 661 v1.4
IMPORTANT

Technical Data
39½” / 19¾” /
500 mm
19¾” /
500 mm
8” / 200 mm
d
c
1000 mm
VITOROND 200, VD2 9
Recommended Minimum Service Clearances
The combustion chamber door is factory assembled to hinge on the left-hand
side. A right-hand hinge is feasible by rebuilding the door hinge hardware.
Boiler model VD2-125 VD2-160 VD2-195 VD2-230 VD2-270
c inches
mm
47¼
1200
53
1350
59
1500
65
1650
71
1800
d inches
mm
Dependent on burner model
Inch dimensions rounded to the nearest ¼”.
Front clearances (dimension “c” above) will allow for easy removal of flue gas
turbulator inserts, as well as for full insertion of bristle brush for heat exchanger
cleaning.
Minimum side clearance of 19¾” / 500 mm
must be maintained for side-mounted KR or
Dekamatik controls.
Recommended Clearances to Combustibles
Boiler model VD2- 125 160 195 230 270
Top 6” / 150 mm
Sides 6” / 150 mm
Flue (oil) 9” / 229 mm
Flue (gas) 6” / 150 mm
Front 6” / 150 mm
Floor non-combustible
Maintain 1” air clearance from uninsulated
hot water pipes to combustible material.
Boiler must not be installed on carpet.
5285 661 v1.4
IMPORTANT
IMPORTANT
IMPORTANT

Technical Data
10 VITOROND 200, VD2
Waterside Flow
The Vitorond 200 boiler is designed for closed loop, forced
circulation, hot water heating systems only.
The recommended water flow rate through the Vitorond 200
is based on a temperature difference of between 20°F and
40°F / 11°C and 22°C (see table below). When a balancing
valve is used for proper balancing and water flow through the
boiler, the valve should be installed 5 pipe diameters from any
fittings and 10 pipe diameters from circulation pumps to allow
for laminar flow.
The consulting engineer or contractor should review the
system design if more balancing valves are required to
properly balance the system.
Viessmann can supply TA (Victaulic) balancing valves upon
request. The balancing should be carried out by a certified
balancing firm prior to boiler start-up. Please contact
Viessmann for your closest certified balancing firm.
VD2-125 and VD2-160
VD2-195
VD2-230 and VD2-270
Recommended Flow Rates
Boiler model VD2- 125 160 195 230 270
20°F ∆t*1
40°F ∆t
11°C ∆t
22°C ∆t
GPM
GPM
ltrs/s
ltrs/s
43
21
2.7
1.3
55
27
3.4
1.7
67
33
4.2
2.1
79
39
5.0
2.5
92
46
5.8
2.9
*1 ∆t= temperature difference
5285 661 v1.4
345 810 15 20 25 30
35
18 2213 110886644 132
5
8
10
15
20
25
30
35
50
40
80
100
150
800
1000
500
400
350
300
250
200
4
6
2
3.2
60
80
32
40
20
16
14
12
10
8
100
120
140
160
200
320
400
600240
700
280
60
24
70
28

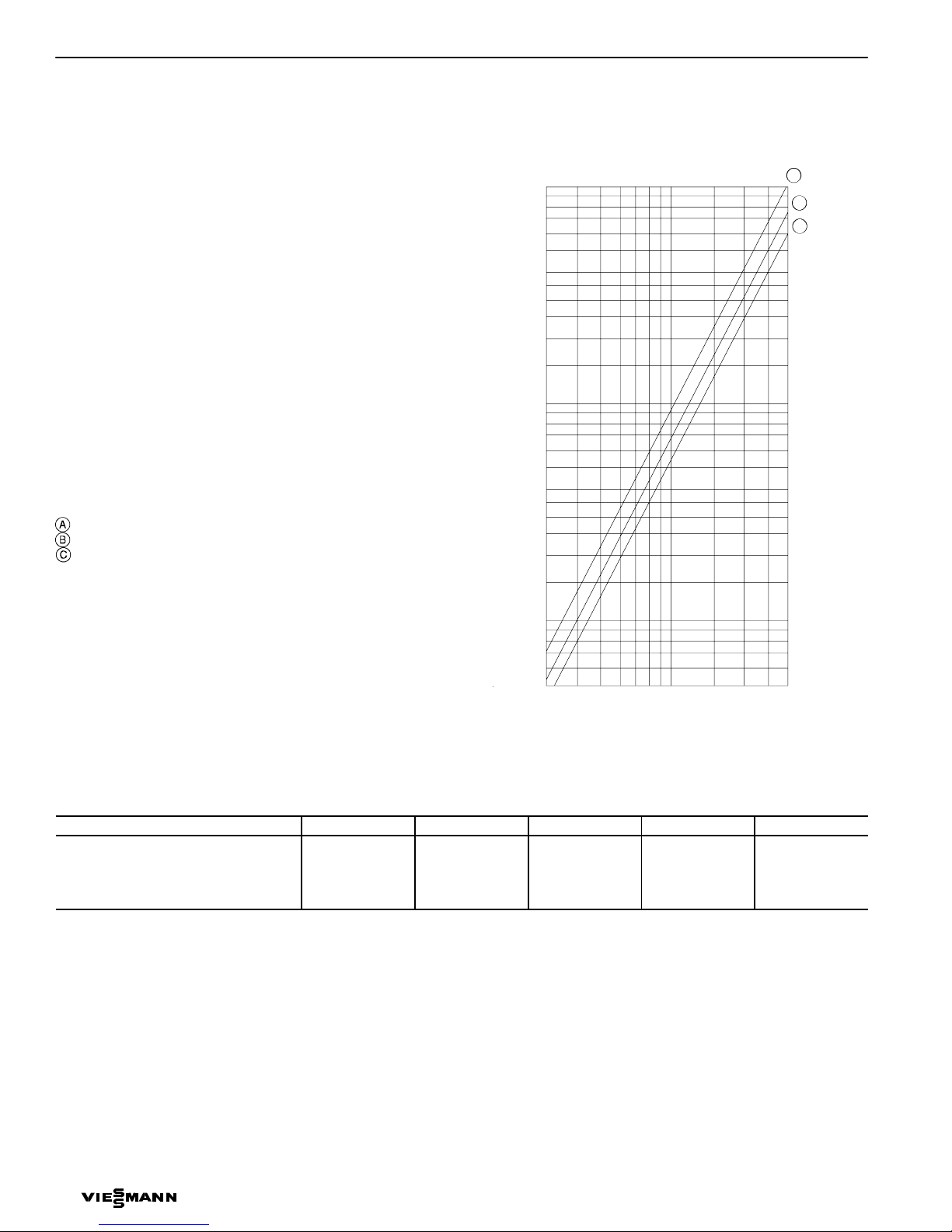

mbar
”W.C.
m3/h
USG/min
Flow rate
Pressure drop
A
B
C

Operational Details
VITOROND 200, VD2 11
Operational Details
Requirements are fulfilled via...
Heating water volume flow 30% at heating output a bypass pump / shunt pump or
boiler circulation pump
Boiler return water temperature
(minimum)
For operation with modulating boiler water temperatures:
- Oil-fired 104°F / 40°C
- Gas-fired 127°F / 53°C
For operation with elevated boiler water temperatures:
- Oil-fired 127°F / 53°C
- Gas-fired 127°F / 53°C
an effective system of return tempera-
ture elevation
Minimum boiler water
temperature
For operation with modulating boiler water temperatures:
- Oil-fired 122°F / 50°C
- Gas-fired 140°F / 60°C
For operation with elevated boiler water temperatures:
- Oil-fired 140°F / 60°C
- Gas-fired 149°F / 65°C
The Viessmann Dekamatik or Vitotronic
control system
2-Stage burner operation For operation with modulating boiler water temperatures:
first stage 60% of heating output
For operation with elevated boiler water temperatures:
No minimum heating input applies
Burner calibration (site)
Modulating burner operation For elevated boiler water temperatures only:
- Oil-fired 140°F / 60°C
- Gas-fired 149°F / 65°C
- min. return water temperature 127°F / 53°C
The Viessmann Dekamatik or Vitotronic
control system
Setback operation Minimum boiler water temperature:
- Oil-fired 122°F / 50°C
- Gas-fired 140°F / 60°C
For multiple-boiler installations:
- Lead boiler as above
- Lag boiler(s) is/are deactivated
The Viessmann control included in the
standard equipment
Weekend setback See Setback operation See Setback operation
5285 661 v1.4

Standard Equipment
Boiler Control Alternatives
12 VITOROND 200, VD2
Standard Equipment
Note:
Boiler controls and burners are purchased
separately. Please see Price List for details.
HThe cast iron sections are delivered as
individual units on skids.
HThe combustion chamber door is mounted
on the front section.
HThe flue gas collector, with two
inspection opening covers (fastened with
screws), is mounted on the rear section.
1 skid containing supply and return headers
1 carton containing insulation panels
1 carton containing the boiler control
Standard equipment includes:
– Boiler base with leveling bolts
– Connection piping with counter flanges and
seals
– Supply piping, sight glass, turbulators and
cleaning brush are packed in a carton and
placed inside the combustion chamber
When cast iron sections are delivered as
individual units:
– Push nipples, sight glass, glass fiber rope
seals, adhesive and oil graphite are packed
in a carton and placed inside the combustion
chamber
Ensure specific regional, provincial, or
state requirements, such as fuel train and
additional safety control requirements
etc., are known before the product order
is placed, to determine proper burner
selection and pricing.
Boiler Control Alternatives
For single-boiler installations:
Dekamatik-D1,-E
Vitotronic 100, GC1*1
Vitotronic 300, GW2*1
Digital boiler control systems for modulating
boiler water temperature or boiler setpoint
control.
For multiple-boiler installations:
Dekamatik-D1,-D2
Vitotronic 100, GC1*1
Digital boiler control systems for modulating
boiler and common supply temperature
control.
Vitocontrol*1
Master control for up to four boilers in
conjunction with Vitotronic 100, GC1.
For single- or multiple-boiler installations:
Custom control panels
Custom control panels for residential or
commercial applications are designed and
manufactured by Viessmann to suit any
customer’s specific requirements. Custom
control panels can have features such as
pool heating, hot tub heating, snow melting,
telephone tie-in, integration with Building
Management Systems, as well as several
other functions. Please inquire.
1*Limited application only. Please inquire.
The control of the Vitorond 200, VD2 boiler can be mounted either on the left- or right-hand side of the boiler.
Please specify control location at the time of order.
5285 661 v1.4
IMPORTANT

System Design Considerations
VITOROND 200, VD2 13
System Design Considerations
Burner calibration
With 2-stage and fully modulating burners,
ensure that the chimney is compatible with
the lower flue gas temperatures associated
with partial load conditions set on the
burner.
2-Stage burner
When used with the Dekamatik or Vitotronic
control, the following minimum heating
outputs are applicable to protect the boiler:
- 60% of outputs stated in the Technical
Data table on page 4.
Fully modulating burner
The minimum boiler water temperature is:
– 140°F / 60°C with oil,
– 149°F / 65°C with natural gas.
Set the return temperature elevation system
to maintain a minimum value of 127°F /
53°C.
Venting
The Vitorond 200, VD2 boiler is approved
as a Category I appliance and must be
vented accordingly.
Chimney
For proper operation of the Vitorond 200,
VD2 boiler, all products of combustion must
be safely vented to the outdoors, while
ensuring that flue gases do not cool
prematurely.
It is critical that the chimney system be
properly designed to handle the relatively
cool flue gas temperatures produced by the
Vitorond 200, VD2 boiler.
If the chimney system lacks sufficient
insulation and/or the chimney diameter is
too large, corrosive and damaging
condensation will result due to flue gases
cooling too quickly. If a calculated chimney
diameter lies between two values, the larger
diameter should be selected.
Chimney (continued)
The chimney connection length between the
boiler vent pipe collar and the chimney must
be installed with insulation.
Vent pipe collar diameter does not
automatically indicate vent/chimney size.
We recommend consulting a reputable
chimney installer for advice in
project-specific circumstances.
When installing the Vitorond 200, VD2
boiler, it is necessary to install a barometric
draft regulator in the chimney/vent for
proper operation of the boiler.
Install the barometric draft regulator within
5 to 7 ft. / 1½ to 2 m from the breeching
outlet located at the rear of the boiler.
Barometric draft regulator type
For natural gas or propane applications, use
a double-acting type.
For #2 fuel oil applications, use a
single-acting type.
Barometric draft regulator diameter
The barometric draft regulator must be the
same diameter opening as the chimney for
which the vent is sized.
For example, a 14” chimney would require a
14” barometric draft regulator. Do not size
the barometric draft regulator to the
breeching outlet of the boiler, unless the
chimney is also intended to be of that
diameter.
The size of the flue gas outlet on the boiler
does not automatically determine the
horizontal breeching, or the actual chimney
diameter. The chimney size must be
designed for the actual boiler model and its
input.
Combustion air supply
The boiler must not be located in areas or
rooms where chemicals containing chlorine,
bromine, fluorine, or other corrosive
chemicals are stored. Examples include
refrigerants, bleach, paint, paint thinner, hair
spray, cleaning solvents, water softener
salt, etc. The combustion air must not be
contaminated with any amount of the above
mentioned chemicals.
Boiler should never be installed in areas
where excessive dust, high humidity, or risk
of frost exist. Ensure adequate ventilation
and supply of fresh combustion air.
Consult Viessmann with uncertainties in
regard to a suitable boiler installation
location.
This boiler/burner unit needs clean fresh air
for safe operation. Provisions for
combustion and ventilation air must be
made at time of installation. For oil-fired
boilers, use the “Installation Code for Oil
Burning Equipment CAN/CSA-B139”
(Canada), or NFPA 31 (USA). For gas or
propane installations, use the “Natural Gas
Installation Code CAN/CSA-B149.1 or
B149.2” (Canada), or “National Fuel Gas
Code ANSI Z223.1” (USA), and/or
provisions of local codes.
The sizing methods outlined in the above
codes should be used when installing a
round duct to supply combustion air from
the outside.
Warranty
Our warranty does not cover damages
resulting from the following:
–Corrosion caused by flue gas condensation
due to low boiler water and/or return
water temperatures.
–Operation with contaminated fill and
supplementary feed water.
System layout
The boiler water temperature limit is factory
set to 167°F / 75°C.
The boiler water temperature limit can be
increased by altering the adjustable high
limit to increase the supply water
temperature.
To minimize piping losses of the system,
however, Viessmann recommends that the
radiation and domestic hot water production
in the system be designed for a 158°F /
70°C boiler supply water temperature.
5285 661 v1.4
The Vitorond 200, VD2 boiler is not
approved for side wall venting.
CAUTION
IMPORTANT
Barometric draft regulator

System Design Considerations/Burner Alternatives
14 VITOROND 200, VD2
System Design Considerations (continued)/Burner Alternatives
Water quality
Treatment for boiler feed water should be
considered in areas of known problems,
such as where a high mineral content and
hardness exist. In areas where freezing
might occur, an antifreeze may be added to
the system water to protect the system.
Please adhere to the specifications given by
the antifreeze manufacturer. Do not use
automotive silicate-based antifreeze. Please
observe that an antifreeze/water mixture
may require a backflow preventer within the
automatic water feed and influence
components such as diaphragm expansion
tanks, radiation, etc. A 40% antifreeze
content will provide freeze-up protection to
-10°F / -23°C. Do not use antifreeze other
than specifically made for hot water heating
systems. System also may contain
components which might be negatively
affected by antifreeze. Check total system
frequently when filled with antifreeze.
Follow the instructions of antifreeze
manufacturer.
Oxygen diffusion barrier
underfloor tubing
The boiler warranty does not cover leaks
resulting from corrosion caused by the use
of underfloor plastic tubing without an
oxygen diffusion barrier. Such systems must
have the tubing without oxygen diffusion
barrier separated from the boiler with a heat
exchanger. Viessmann recommends the use
of underfloor plastic tubing with an oxygen
diffusion barrier.
Burner manufacturer
Weishaupt or Riello
Burner/Gas train approval
Standard approvals are CSA (for Canada)
and UL (for U.S.). IRI and FM approved
equipment is also available - please inquire.
Electrical requirements
Weishaupt W Series burners are available in
120 VAC, single-phase, in a 60 Hz
configuration. L, G, and GL Series burners
listed below are available in 120 VAC single
phase, 208 VAC three-phase, 460 VAC
three-phase, or 575 VAC three-phase, all in
60 Hz configuration. It is generally
acceptable to use voltages within ten
percent of the supply voltage. Available
voltage inside boiler room must be provided
at time of order. Ensure appropriate
disconnect means and overcurrent
protection.
Natural gas pressure
Natural gas pressures and heating values as
provided by the gas utilities vary greatly
across North America. Select the
appropriate gas train accordingly. Low
pressure gas trains have a maximum input
of 14 ”w.c.; high pressure gas trains have a
maximum pressure of 5 psig. Minimum gas
pressures apply - please inquire. Gas
pressures and heating values at site must be
provided at time of order.
Factory prewired components
Custom factory prewiring by Viessmann
ensures optimal functionality, compliance
with regional requirements, and ease of
installation in the field. Pricing provided by
Viessmann includes all necessary hardware
items such as junction panel, burner power
supply, boiler door safety switch (where
necessary), and all essential pressure
switches, as well as interconnection with
conduit between control and burner.
Electrical drawings provided upon product
delivery.
Boiler/Burner start-up
Vitorond 200, VD2 boilers with Weishaupt
burners require start-up by Viessmann.
Please inquire to obtain details regarding the
necessary prerequisites of boiler/burner
start-up procedures.
To minimize delivery lead times, please
ensure that critical technical information is
provided at time of order. Viessmann will
not process an order without site-specific
information regarding available voltage and
gas pressure. In addition Viessmann
recommends that gas pressure information
be provided in writing by the local gas
utility.
5285 661 v1.4
IMPORTANT

System Design Considerations/Burner Alternatives
VITOROND 200, VD2 15
Weishaupt Burners
Boiler model VD2- 125 160 195 230 270
No. 2 oil-fired
2-stage
Model WL30 L1Z
Natural gas-fired
2-stage
Model WG30 G1 G3
Natural gas-fired
fully modulating
Model WG30 G1 G3
Propane gas-fired
2-stage
Model WG30 G1 G3
Propane gas-fired
fully modulating
Model WG30 G1 G3
Combination
fully modulating NG,
2-stage oil
Model WGL30 GL1
Riello Burners
Boiler model VD2- 125 160 195 230 270
No. 2 oil-fired
1-stage
Model F15 F20 n.a.
No. 2 oil-fired
2-stage
Model n.a. RL28/2
Natural gas-fired
1-stage
with assembled gas train
Model G750 n.a.
Propane gas-fired
1-stage
with assembled gas train
Model G750 n.a.
Natural gas-fired
2-stage
with assembled gas train
Model n.a. G900 n.a.
Propane gas-fired
2-stage
with assembled gas train
Model n.a. G900 n.a.
Natural gas-fired
fully modulating
Model n.a. RS28/M
Propane gas-fired
fully modulating
Model n.a. RS28/M
Combination
2-stage NG,
2-stage oil
Model n.a. RLS28/M
Natural gas-fired
fully modulating
low NOx
Model n.a. RS45/M LN
5285 661 v1.4

Viessmann Manufacturing Company Inc.
750 McMurray Road
Waterloo, Ontario •N2V 2G5 •Canada
Tel. [phone] •Fax [phone]
www.viessmann.ca •[e-mail]
Viessmann Manufacturing Company (U.S.) Inc.
45 Access Road
Warwick, Rhode Island •02886 •USA
Tel. [phone] •Fax [phone]
www.viessmann-us.com •[e-mail]
16 VITOROND 200, VD2
Printed on environmentally friendly
(recycled and recyclable) paper.
Printed on environmentally friendly
(recycled and recyclable) paper.
5285 661 v1.4 Technical information subject to change without notice.
