Viessmann VITOCELL 300 EVI Series User manual

VITOCELL 300
Installation Instructions
for use by heating contractor
Vitocell 300
EVI Series
Indirect-fired domestic hot water storage tank
53 to 120 USG / 200 to 450 ltr capacity
This tank version is not suitable
for steam heating applications.
Read and save these instructions
for future reference.
IMPORTANT
THE HEAT TRANSFER
MEDIUM MUST BE WATER
OR OTHER NON-TOXIC
FLUID HAVING A TOXICITY
RATING OR CLASS OF 1,
AS LISTED IN CLINICAL
TOXICOLOGY OF
COMMERCIAL PRODUCTS,
5TH EDITION.
THE PRESSURE OF THE
HEAT TRANSFER MEDIUM
MUST BE LIMITED TO A
MAXIMUM OF 30 PSIG BY
AN APPROVED SAFETY
OR RELIEF VALVE (SEE
PAGE 2).
CAUTION
Please file in Service Binder
5285 545 v1.1 10/2007

Safety, Installation and Warranty Requirements
2
Safety, Installation and Warranty Requirements
Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below
and details printed in this manual can cause product/property damage,severe personal injury, and/or loss of life. Ensure all
requirements below are understood and fulfilled (including detailed information found in manual subsections).
HLicensed professional heating
contractor
The installation, adjustment, service,
and maintenance of this equipment
must be performed by a licensed
professional heating contractor.
"Please see section
entitled “Important
Regulatory and
Installation
Requirements”.
HProduct documentation
Read all applicable documentation
before commencing installation. Store
documentation near product in a
readily accessible location for
reference in the future by service
personnel.
"For a listing of
applicable literature,
please see section
entitled “Important
Regulatory and
Installation Requirements”.
HAdvice to owner
Once the installation work is
complete, the heating contractor must
familiarize the system
operator/ultimate owner with all
equipment, as well as safety
precautions/requirements, shut-down
procedure, and the need for
professional service annually before
the heating season begins.
HWarranty
Information contained in
this and related product
documentation must be
read and followed. Failure
to do so renders warranty
null and void.
5285 545 v1.1
THE HEAT TRANSFER
MEDIUM MUST BE EITHER
POTABLE WATER OR
CONTAIN ONLY
SUBSTANCES WHICH ARE
RECOGNIZED AS SAFE BY
THE U.S. FOOD AND DRUG
ADMINISTRATION.
THE PRESSURE OF THE
HEAT TRANSFER MEDIUM
MUST BE MAINTAINED
LESS THAN THE NORMAL
MINIMUM OPERATING
PRESSURE OF THE
POTABLE WATER SYSTEM.
CAUTION

Contents
3
Page
Safety Important Regulatory and Installation Requirements 4....
General Information About these Instructions 5............................................................
Product Information 5......................................................................
Set-up Tank Set-up
General information for all sizes 6
..............................................
Installation of DHW tank with 120 USG / 450 liter
capacity 7
Recommended service clearances 8
.........................................
Minimum clearances to combustibles 8..................................

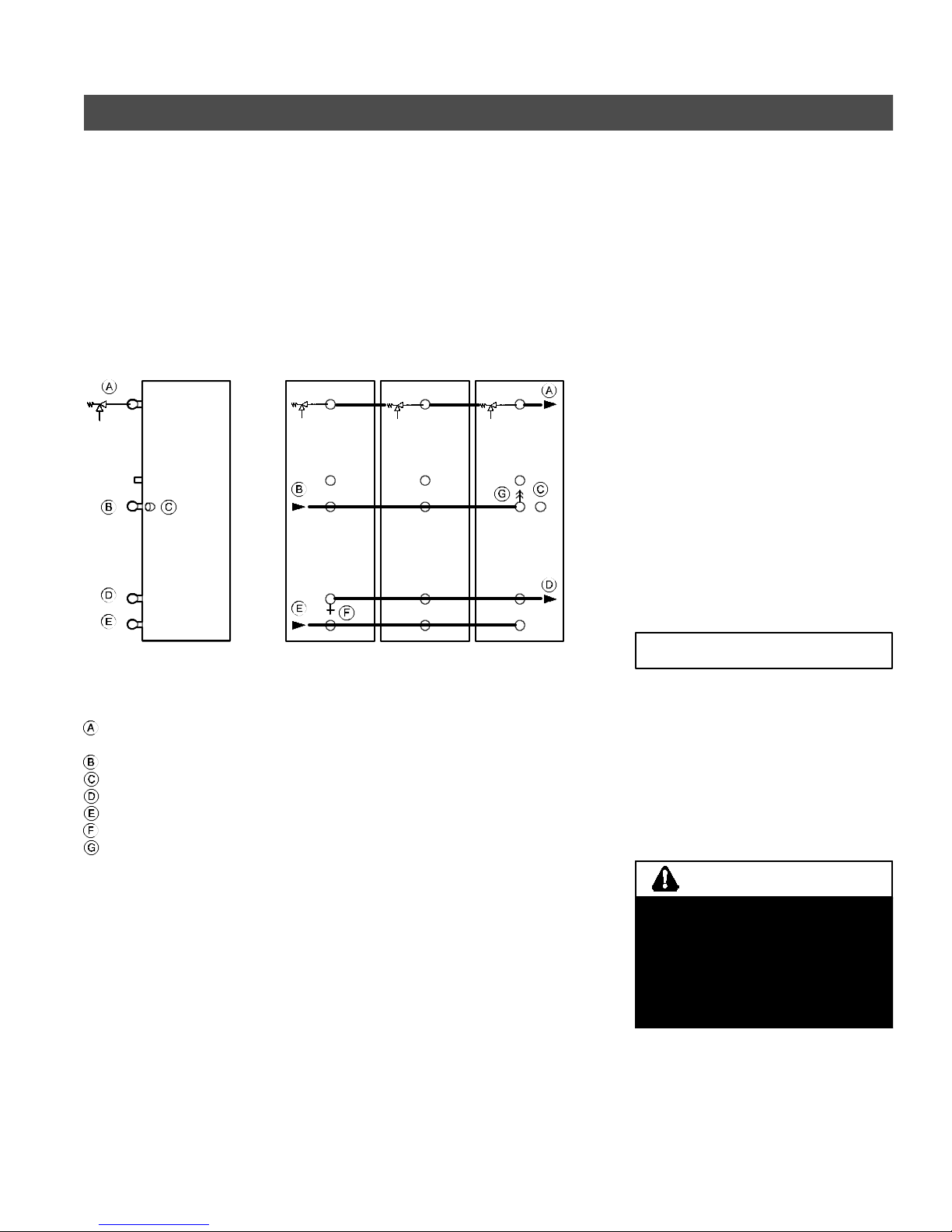

Multiple Tank Set-up 9....................................................................
Connections Orientation and Dimensions 10......................................................
Control Connections

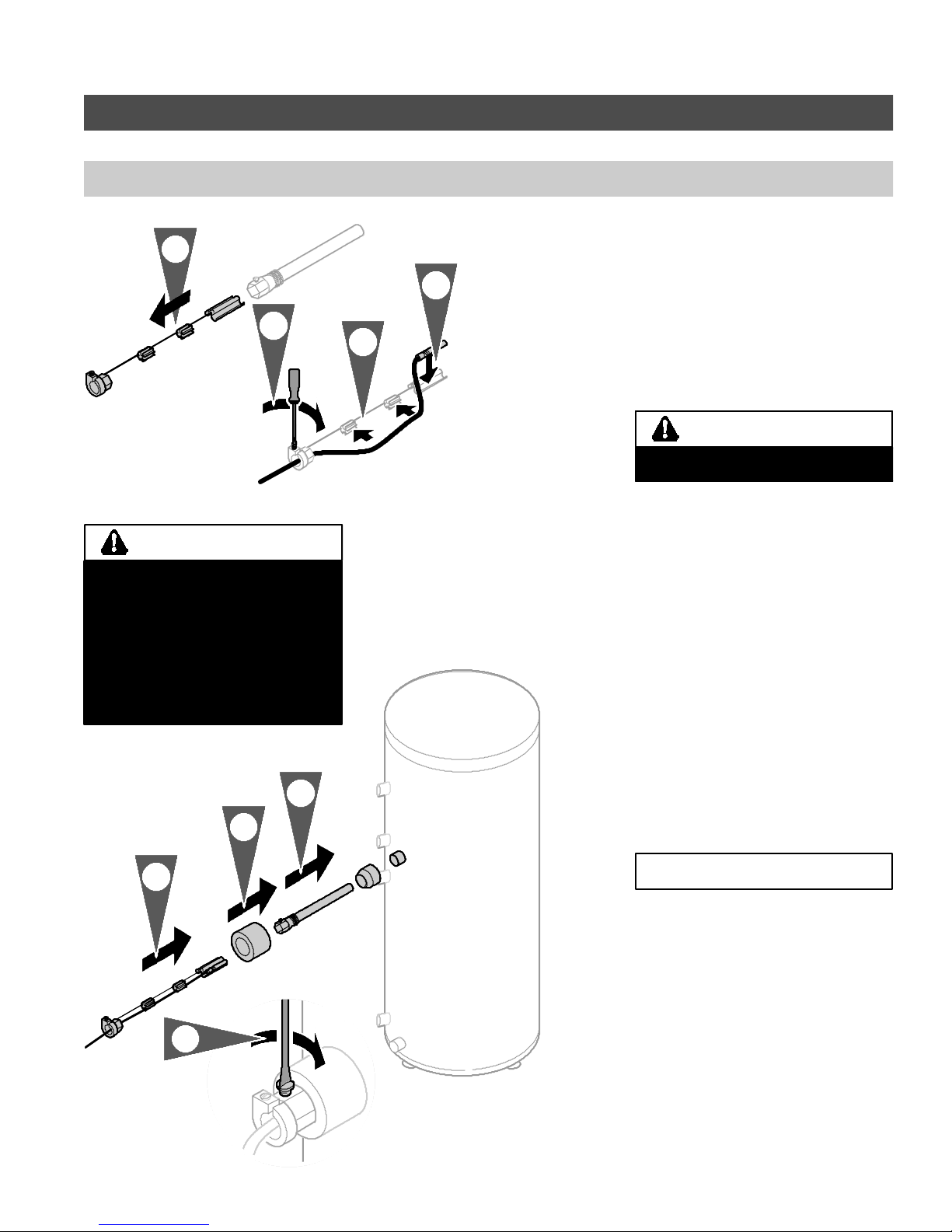

Installation of a DHW tank temperature sensor
or aquastat 11
.......................................................................................
Boiler Water Connections (heat exchanger connection) 13
Individual DHW tank 13
....................................................................

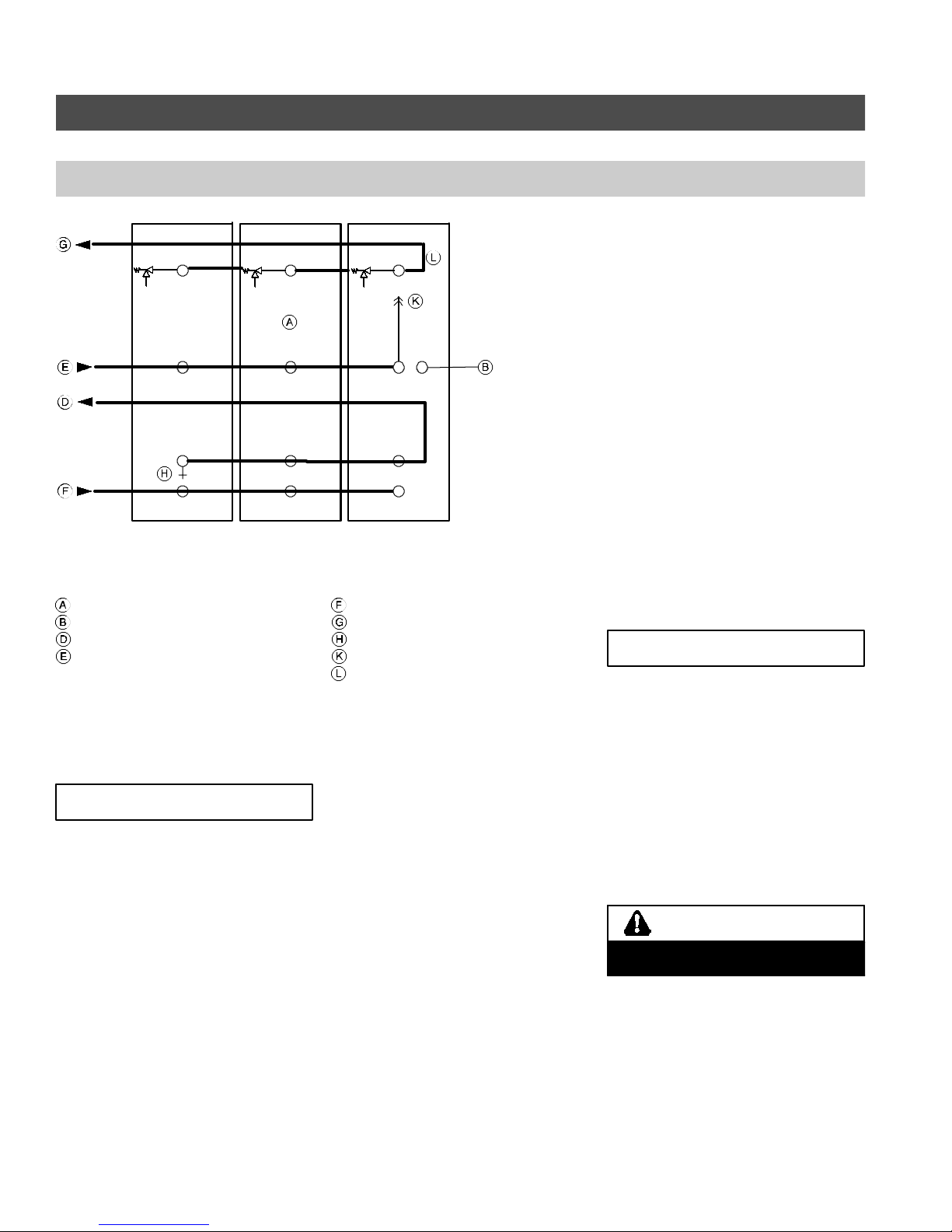

Multiple DHW tanks 14.....................................................................
Domestic Water Connections 15..................................................
Recirculation Connections 17.........................................................
Installation of Inspection Opening 18.........................................
Appendix Pressure Drop Information 19.........................................................
Post Installation ...
Start-up Information 20
.....................................................................
Service Binder 20.................................................................................
5285 545 v1.1

Safety
4
Important Regulatory and Installation Requirements
Codes
The installation of indirect-fired hot
water storage tanks might be governed
by individual local rules and regulations
for this type of product, which must be
observed. Always use latest editions of
codes.
In the Commonwealth of
Massachusetts, all plumbing work must
be done by a licensed plumber or
gas-fitter and for gas installations, all
gas piping must be done by a licensed
gas-fitter.”
Mechanical room
Ensure the mechanical room complies
with the requirements of the system
design guideline and/or technical data
manual.
Thetankmustbeinstalledina
mechanical room which is never subject
to freezing temperatures.
If not in use and danger of freezing
exists in the mechanical room, ensure
water in tank is drained.
Please carefully read this manual prior
to attempting installation. Any
warranty is null and void if these
instructions are not followed.
This product must be installed
observing not only the information
and instructions provided in the
pertinent product literature (see list),
but also all local, provincial/state
plumbing and building codes, as they
apply to this product and all periphery
equipment.
For information regarding other
Viessmann System Technology
componentry, please reference
documentation of the respective
product.
We offer frequent installation and
service seminars to familiarize our
partners with our products. Please
inquire.
Working on the equipment
The installation, adjustment, service,
and maintenance of this equipment
must be done by a licensed professional
heating contractor who is qualified and
experienced in the installation, service,
and maintenance of hot water heating
systems. There are no user serviceable
parts on this equipment.
Ensure main power supply to
equipment, the heating system, and all
external controls has been deactivated.
Close main oil or gas supply valve. Take
precautions in all instances to avoid
accidental activation of power during
service work.
The completeness and functionality of
field supplied electrical controls and
components must be verified by the
heating contractor. These include low
water cut-offs, flow switches (if used),
staging controls, pumps, motorized
valves, air vents, thermostats,
temperature controls, etc.
5285 545 v1.1
If the heating system itself is to be
filled with Glycol or any other
antifreeze, the system fill must be of
non-toxic or food grade antifreeze. In
any circumstance, a non-toxic fluid
must be used. Ensure a copy of the
Material Safety Data Sheet (MSDS) is
supplied to the operator/ultimate
owner of the system.
WARNING

Safety/General Information
5
Important Regulatory and Installation Requirements (continued)
Technical literature
Literature applicable to all aspects of
the Vitocell:
- Technical Data Manual
- Installation Instructions
- Start-up/Service Instructions
- Operating Instructions
and User’s Information Manual
- Installation instructions, installation
fittings
Leave all literature at the installation
site and advise the system
operator/ultimate owner where the
literature can be found. Contact
Viessmann for additional copies.
About These Instructions
Take note of all symbols and notations intended to draw attention to potential hazards or important product information.
These include ”WARNING”, ”CAUTION”, and ”IMPORTANT”. See below.
Warnings draw your attention to the
presence of potential hazards or
important product information.
Cautions draw your attention to the
presence of potential hazards or
important product information.
Helpful hints for installation, operation
or maintenance which pertain to the
product.
This symbol indicates that additional,
pertinent information is to be found in
column three.
This symbol indicates that other
instructions must be referenced.
Product Information
53 to 120 USG / 200 to 450 ltr capacity
Indirect-fired domestic hot water storage tank with one heat exchanger coil for use
with hot water heating boilers, commercial heating plants, and low-temperature
heating systems. These tanks are not suitable for steam heating applications.
5285 545 v1.1
Indicates an imminently hazardous
situation which, if not avoided, could
result in death, serious injury or
substantial product/property damage.
WARNING
Indicates an imminently hazardous
situation which, if not avoided, may
result in minor injury or
product/property damage.
CAUTION
IMPORTANT
5285 545 v1.1

Set-up
6
Tank Set-up
General information for all sizes
HFor narrow passageways, remove
upper and lower portion of crating and
carry DHW tank to its installation
location by means of crating boards
mounted on the tank.
HPosition tank carefully and remove
wood crating.
HLeave adequate clearance to the wall
or other objects enabling easy access
to the aquastat (where applicable).
HLocate tank(s) on flooring or
foundation capable of supporting the
weight of the tank(s) filled with
water.
HThe tank does not require a special
foundation and can be placed directly
on the floor. If, for cleanliness
purposes, the tank is to be kept off
the floor, a foundation can be used for
each tank or tank battery.
HLevel tank using leveling bolts on tank
frame.
5285 545 v1.1
Fig 1.
Leveling bolt
min. ¾” / 20 mm
max. 1½” / 35 mm
Install the DHW tank in a
frost-protected and draft-free room.
Drain tank when not in use to avoid
damages caused by freezing. The
thermal insulation must not come into
contact with open flames. Exercise
caution when welding and soldering.
WARNING
Do not extend the leveling bolts
beyond an overall length of 1.4”/
35 mm.
WARNING

Set-up
7
Tank Set-up (continued)
Installation of DHW tank with 120 USG / 450 liter capacity
All required components are included in the insulation jacket carton.
1. If not already installed, fit the thermal
insulation blanket below the tank
prior to the installation of the tank
itself.
2. Position and level the DHW tank with
its leveling bolts.
3. Push the thermal insulation jacket at
the front onto the flange.
4. Hook in the locking bars.
5. Guide the thermometer sensor cable
through the provided opening and
push in the thermometer.
6. Insert the thermometer sensor until it
bottoms out inside the sensor well,
and secure with the spring-clip.
7. Position the insulation jacket on the
DHW tank, then fit the top panel.
8. Press the logo (from the accessory
pack) into the lid.
9. Cover the hole beneath the
thermometer with the cap included
in the pack.
5285 545 v1.1
Fig 2.
Installing 120 USG / 450 ltr DHW tank
1.
2.
Fig 3.
Installing 120 USG / 450 ltr DHW tank
2.
6.
1. 4.
8.
7.
3.
5.
2.
6.
1. 4.
8.
7.
3.
5.
4.
6.
3. 6.
9.
8.
5.
7.

Set-up
8
Tank Set-up (continued)
Recommended service clearances
Storage capacity USG
ltr
53
200
79
300
120
450
Rear inches
mm
18
460
18
460
18
460
Sides May be reduced if rear pipe
connections can be reached with
less clearance
inches
mm
12
300
12
300
12
300
Top inches
mm
12
300
12
300
12
300
Front inches
mm
24
600
24
600
24
600
Minimum clearances to combustibles
Storage capacity USG
ltr
53
200
79
300
120
450
All sides inches
mm
0
0
0
0
0
0
5285 545 v1.1

Set-up
9
Multiple Tank Set-up only for 79 and 120 USG / 300 and 450 ltr capacities
Two tanks, each with 79 USG / 300 ltr content, or up to four tanks, each with 120
USG / 450 ltr content, may be installed side-by-side.
The tank battery is controlled via one DHW tank aquastat. Individual control of
tanks within the tank battery is therefore not possible.
If control of individual tanks within a battery is necessary, two alternatives exist.
Either a 4-tank battery can be separated into smaller batteries, i.e. two batteries
each consisting of two tanks (one DHW tank aquastat controls each battery), or all
tanks should be installed individually, i.e. individual tank set-up (one DHW tank
aquastat controls each tank).
Domestic hot water supply
and T&P valve connection
Boiler water supply
Operating aquastat
Boiler water return
Domestic cold water
Drain
Air vent
1. Install aquastat in the boiler water
supply of the last tank receiving the
boiler water of the tank battery (see
illustration).
2. Install domestic cold and hot water
header lines (see illustration).
3. Install boiler water supply and return
header lines (see illustration).
4. Make final cold and hot water
connections.
Both the boiler supply/return header and
the domestic hot/cold water header must
be installed in a reverse return method.
This ensures uniform heating of all tanks
in the battery. Header sizes for batteries
up to four 79 to 120 USG / 300 to
450 ltr tanks are printed on
the following page.
5. Insulate header piping lines.
5285 545 v1.1
Fig 4.
Installing multiple tanks in a battery
YYYY
IMPORTANT
In commercial installations, we
recommend the installation of an
additional high limit aquastat in the
main discharge pipe of domestic hot
water from the tank battery into the
system, and to wire this additional
high limit aquastat in series with the
operating aquastat.
CAUTION

Connections
10
Orientation and Dimensions
Storage capacity USG
ltr
53
200
79
300
120
450
Number of tanks 1 1 2 1 2 3 4
Layout
Connections (individual tank)
Heating water supply/return
(common header size)
Domestic cold/hot water
(common header size)
Recirculation tapping
∅’’
∅’’
∅’’
1
1
1
1
1
1
2
11/4
11/4
11/4
11/4
11/4
2
11/4
11/4
2
11/2
11/4
21/2
2
11/4
Domestic hot water supply
and T&P valve connection
Recirculation tapping
Aquastat well
Boiler water supply
Boiler water return
Domestic cold water supply
5285 545 v1.1

Connections
11
Control Connections
Installation of a DHW tank temperature sensor or aquastat
1. Carefully pull sensor mounting
hardware out from tank sensor well.
2. Mount sensor on the outside of the
sensor spring-clip (not in the center
groove) so that it is flush with the
front of the sensor spring-clip.
3. Push sensor cabling into groove of
mounting hardware.
4. Carefully tighten plastic screw to
secure sensor cabling in place.
5. Install sensor well and reducing
coupling (included in Connection
Fitting Package). Use approved pipe
sealant.
6. Mount insulation on sensor well.
Where Vitotronic 200 or 300 is utilized
to control DHW production (for
Vitotronic 100, see the following page):
7. Insert DHW tank temperature sensor
(supplied with Vitotronic 200 or 300)
fully and completely into sensor well.
Due to the length of the stainless steel
well (15” / 380 mm), care must be taken
to ensure that the sensing bulb of the
limit is inserted and pushed to the end of
the stainless steel well.
8. Carefully tighten screw on sensor
well to secure sensor in place.
5285 545 v1.1
Fig 5.
Installing sensor in sensor well
Fig 6.
Installing sensor well
6.
7.
5.
8.
To ensure optimum, safe operation,
the supplied stainless steel well must
be installed. The well diameter is
large enough to accommodate a wide
variety of sensing bulbs.
Always use spring-clip to ensure
proper contact of capillary bulb
against the stainless steel well for
proper sensing/heat transfer!
WARNING
1.
4.
3.
2.
Never wrap sensor with any type of
tape or insulation.
CAUTION
IMPORTANT

Connections
12
Control Connections (continued)
Installation of a DHW tank temperature sensor or aquastat (continued)
Where a Vitotronic 100 and a
Viessmann Power/Pump Control Module
(accessory) are utilized to control DHW
production:
1. Insert the extended capillary of the
aquastat (supplied with Viessmann
Power/Pump Control Module, not
illustrated) fully and completely into
sensor well. Mount aquastat
inconspicuously on tank panelling.
Follow instructions below with
regard to sensor and spring-clip
installation.
... if aquastat is to be mounted remote
fromthetankwell,
2. Align sensor bulb with spring-clip.
3. Slide assembly into well.
4. The retention spring-clip must press
the bulb properly to ensure surface
contact with the well.
... if aquastat is to be mounted directly
onthetankwell,
5. Mount aquastat with holding clip
supplied directly onto well. Bend
capillary tube into groove opening to
allow for mounting of aquastat.
5285 545 v1.1
Fig 7.
Installing aquastat
To ensure optimum, safe operation,
the supplied stainless steel well must
be installed. The well diameter is
large enough to accommodate a wide
variety of sensing bulbs.
Always use spring-clip to ensure
proper contact of capillary bulb
against the stainless steel well for
proper sensing/heat transfer!
WARNING

Connections
Fig 8.
Recommended piping of an individual tank
Y
13
Boiler Water Connections (heat exchanger connection)
Individual DHW tank
Max. boiler supply temperature 250°F 120°C
Max. operating pressure
Hheat exchanger
Htank
375 psig
150 psig
Max. testing pressure
Hheat exchanger
Htank
480 psig
300 psig
Max. domestic hot water temperature 210°F 99°C
Individual DHW tank
Boiler
Circulation pump
Spring-loaded flow check valve
Boiler water supply
Use hemp and pipe dope on all threaded
stainless steel nipples on tank.
Sensor/Aquastat well
Vitocell 300
Boiler water return
1. Pipe together boiler and tank as
illustrated. Connections must be
accessible for service (use factory
supplied adaptors). Viessmann
flexible piping of stainless steel
(accessory) may be used.
2. For:
- boiler water supply temperatures
over 203°F / 95°C and
- 79 and 120 USG / 300 and 450 ltr tanks:
Remove plastic supply and return
grommets (grommets are
left-threaded).
3. Pipe supply line with an incline and
install componentry as follows:
Hflow check valve, to stop gravity
circulation of hot water back to the
boiler when the boiler temperature is
lower than the actual tank temp.
Hautomatic air vent, at the high point
from the boiler supply to the tank heat
exchanger
Hdrain valve, on the boiler return piping
from the tank heat exchanger coil
Hisolation valve, on the boiler supply
and boiler return piping to the tank
coil.
4. Install DHW tank temperature sensor
in sensor well (see pages 11 and 12).
5. Insulate piping.
5285 545 v1.1
The operating aquastat and any
secondary high limit aquastat of the
tank must be set such that the DHW
temperature inside the tank never
exceeds 210°F / 99°C.
WARNING
Domestic hot water temperatures
over 125°F / 52°C can cause severe
burns instantly or death from scalds.
Children, disabled and elderly are at
highest risk of being scalded.
Feel water before bathing or
showering.
Temperature limiting valves are
available and must be used where
domestic hot water storage tank
temperatures exceed 140°F / 60°C.
DANGER
IMPORTANT
Install tempering valve(s) to protect
against scalding.
WARNING

Connections
14
Boiler Water Connections (continued)
Multiple DHW tanks only for 79 and 120 USG / 300 and 450 ltr capacity
Battery of DHW tanks
Sensor/Operating aquastat well
Boiler water return
Boiler water supply
Use hemp and pipe dope on all threaded
stainless steel nipples on tank.
Domestic cold water supply
Domestic hot water
Drain
Air vent
Secondary high limit aquastat
location
All piping reverse return or use
balancing valves.
1. Pipe together boiler and tanks as
illustrated. Connections must be
accessible for service (use factory
supplied adaptors).
2. For boiler water supply temperatures
over 203°F / 95°C:
Remove plastic supply and return
grommets (grommets are
left-threaded).
3. Pipe supply line with an incline and
install an automatic air vent at the
highest point.
4. Install boiler sensor in sensor well
(see pages 11 and 12).
5. Insulate piping.
The circulation pump is activated by the
operating aquastat or by the control
system installed. The operating aquastat
should be mounted on the tank which
receives the boiler water supply last.
Viessmann recommends the installation of
an additional high limit aquastat in the
main discharge pipe of the DHW system.
This aquastat should be wired in series
with the operating aquastat and should be
set approximately 9°F / 5°C higher than
the operating aquastat.
5285 545 v1.1
Fig 9.
Recommended piping of multiple tanks
YY Y
IMPORTANT
IMPORTANT
Install tempering valve(s) to protect
against scalding.
WARNING

Connections
Fig 10.
Y
15
Domestic Water Connections
This is a simplified conceptual drawing
only! Piping and necessary componentry
must be field verified. Proper installation
and functionality in the field are the
responsibility of the heating contractor.
Domestic hot water supply
and T&P valve
DHW recirculation line
DHW recirculation pump
Spring loaded check valve
Discharge pipe
Shut-off valve
Drain
Domestic cold water supply lines
backflow preventer
Domestic cold water inlet
Precharged expansion tank
(required where backflow preventer is
installed; check local plumbing codes
and requirements)
1. Pipe together boiler and tank as
illustrated. Connections must be
accessible for service (use factory
supplied adaptors).
2. Insulate domestic hot water supply
piping.
Use hemp and pipe dope on all threaded
stainless steel nipples on tank.
5285 545 v1.1
IMPORTANT
IMPORTANT

Connections
16
Domestic Water Connections (continued)
Always ensure the use of type approved devices. Safety devices include the following components:
Use hemp and pipe dope on all threaded
stainless steel nipples on tank.
HIsolation valves
HDrain valve
HPressure reducing valve
where required by local jurisdiction
HDrinking water filter
where required by local jurisdiction
HBackflow preventer
Where backflow preventers are
required, a domestic water expansion
tank installation is required in the cold
water inlet piping before the cold
water enters the tank. The backflow
device must be installed according to
the manufacturer’s installation
instructions. Observe local codes and
regulations.
HTempering valve
A tempering valve must be field
installed where storage tank
(domestic hot water temperature)
exceeds local restricted temperatures
or 140°F / 60°C. Check code
requirements.
In situations where a booster pump is
used to maintain DHW pressure,
Viessmann strongly recommends the
installation of an oversized large
expansion tank to ensure longer, less
frequent pump cycles with less severe
pressure gradients. If possible, use
flexible piping before and after booster
pump to isolate system piping from
vibration and shocks.
HTemperature and pressure
relief valve
A temperature and pressure relief
valve (T&P valve) is supplied with the
tank. The heating contractor must
install the valve on each tank in a
method meeting code requirements. If
local codes require a different relief
valve, substitute the manufacturer’s
supplied valve. The tank is approved
for 100 psig where a CRN is required.
Maximum operating pressure is 150
psig.
The valve supplied with the tank is
manufactured by Watts Industries
(Model 40XL-8) set to 100 psig for
Canadian installations and set to 150
psig for US installations (where
applicable). The valve is ASME
pressure steam rated for 998 MBH
and CSA temperature steam rated for
200 MBH. It is tested under ANSI
Z21.22 code for Relief Valves and
Automatic Gas Shut-off Devices for
Hot Water Supply Systems. The relief
temperature is set at 210°F / 99°C.
The valve has a male threaded inlet
and female threaded outlet, both ¾”
sizes.
Proper installation of the T&P valve
shall include all of the following:
- The T&P valve shall be installed in the
pipe connection point marked TPV in
the tank instruction manual.
- The discharge line from the T&P valve
shall be ¾” / 1.9 cm ∅and run to a
safe place of discharge approximately
1 ft / 30 cm above the floor, close to
a floor drain.
- The discharge line must be as short
as possible and pitch downward from
the T&P valve and terminate plain.
-Donot route discharge line to the
outdoors.
-Donot install any type of valve or an
obstruction of any kind between the
tank and the T&P valve, or between
the T&P valve and the discharge line
outlet.
5285 545 v1.1
IMPORTANT
IMPORTANT
The discharge line for the T&P valve
must be oriented to prevent scalding
of attendants.
WARNING
The valve test lever must be operated
at least once per year by the owner
to ensure that waterways are clear. A
licensed professional heating
contractor shall reinspect the T&P
valve at least once every three years.
Failure to inspect can result in unsafe
temperature or pressure build-up,
which can result in death, serious
injury or substantial product/property
damage.
WARNING

Connections
Fig 11.
YYY
Fig 12.
YYY
17
Recirculation Connections
HPipe domestic hot water supply piping
with tank as illustrated. Connections
must be accessible for service (use
factory supplied adaptors).
Connection sizes are provided in
section entitled Orientation and
Dimensions on page 10.
HInstall recirculation pump, flow check
valve and recirculation timer (for
shut-down during off-hours where
feasible) on the recirculation piping
side.
HGravity circulation of the recirculation
system is restricted due to the
upward-curved domestic hot water
discharge piping inside the tank.
HConnect tank battery to existing
recirculation piping. Cap off unused
recirculation connections of individual
tanks.
HSaving Energy
A timer on the recirculation pump
reduces the heat loss significantly in
commercial applications during times
when no or reduced demand for
domestic hot water occurs.
Connection of a recirculation system in a multiple tank installation
for systems utilizing boilers or remote heating plants without low temperature boiler return water
Drawpoints
Recirculation piping
Circulation pump
Spring-loaded flow check valve
Domestic cold water supply
Domestic hot water supply
Secondary high limit aquastat
location
Connection of a recirculation system in a multiple tank installation
for remote heating plants with low temperature boiler return water limit
and/or for multiple recirculation lines
Drawpoints
Recirculation piping
Circulation pump
Spring-loaded flow check valve
Domestic cold water supply
Domestic hot water supply
Secondary high limit aquastat
location
5285 545 v1.1

Connections
18
Installation of Inspection Opening
5285 545 v1.1
Fig 13.
Installation of inspection opening cover for 53 and 79 USG / 200 and
300 liter tanks
Fig 14.
Installation of inspection opening cover for 120 USG / 450 liter tanks

Appendix
19
Pressure Drop Information
Pressure drop on domestic hot water side Pressure drop on heating water side
(secondary circuit) (primary circuit)
79 USG / 300 ltr and 120 USG / 450 ltr storage capacities
53 USG / 200 ltr storage capacity
5285 545 v1.1
Pressure drop
Waterflow
ltr/min
GPM
820
“w.c. mbar
67
18
0.8 2
1.2 3
1.6 4
25
2.4 6
3.2 8
410
0.4 1
8
2.2
13
3.5
17
4.4
33
8.8
10
2.6
50
13
100
26
83
22
40 100
32 80
24 60
20 50
16 40
12 30
Pressure drop
Waterflow
ltr/h
GPM
“w.c. mbar
16 40
20 50
24 60
32 80
40 100
80 200
120 300
160 400
200 500
1.6 4
25
2.4 6
3.2 8
410
820
12 30
2.2 500 2.6 600 3.5 800 4.4 1 000
9 2 000
13 3 000 18 4 000 22 5 000 26 6 000 31 7 000

Viessmann Manufacturing Company Inc.
750 McMurray Road
Waterloo, Ontario •N2V 2G5 •Canada
Tel. [phone] •Fax [phone]
www.viessmann.ca •[e-mail]
Viessmann Manufacturing Company (U.S.) Inc.
45 Access Road
Warwick, Rhode Island •02886 •USA
Tel. [phone] •Fax [phone]
www.viessmann-us.com •[e-mail]
20
Post Installation ...
Start-up Information
Start-up/Service Instructions
DHW Tank
Service Binder
1. File all Parts Lists, Operating and
Service Instructions in the Service
Binder.
2. Install a protective hanging case near
the boiler and store the Service
Binder in this location.
For a listing of applicable Viessmann
literature, please see Important
Regulatory and Installation
Requirements on page 4.
5285 545 v1.1 Printed on environmentally friendly
(recycled and recyclable) paper.
Technical information sub
j
ect to chan
g
e without notice.
