Operating instructions
for the system user
Heating system with Vitotronic 100 control unit
for constant temperature mode
VITODENS
VITOPEND
5592 547 GB 4/2007 Please keep safe.

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and
environmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These operating instructions are for
the heating system user.
Danger
Incorrectly executed work on
the heating system can lead to
life‐threatening accidents.
&Work on gas appliances must
only be carried out by a quali-
fied gas fitter.
&Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to
explosions which may result in
serious injury.
&Never smoke. Prevent naked
flames and sparks. Never
switch electrical lights or
equipment ON or OFF.
&Close the gas shut‐off valve.
&Open windows and doors.
&Remove all people from the
danger zone.
&Notify your gas or electricity
supplier and your local heat-
ing contractor from outside
the building.
&Shut off the electricity supply
to the building from a safe
place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life‐threa-
tening poisoning.
&Shut down the heating sys-
tem.
&Vent the boiler room.
&Close all doors in the living
space.
For your safety
2
Safety instructions
5592 547 GB

In case of fire
Danger
Fire creates the risk of burning
and explosions.
&Shut down the heating sys-
tem.
&Close the shut‐off valves of
the fuel lines.
&Use a tested fire extin-
guisher, class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions
can lead to damage to the
heating system and put the
safe operation at risk.
&Ensure ambient tempera-
tures above 0 ºC and below
35 ºC.
&Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids)
and excessive dust (e.g.
through grinding/polishing
work).
&Avoid continuously high
humidity levels (e.g. through
frequent drying of washing).
&Never close existing ventila-
tion apertures.
Ancillary components, spare and
wearing parts
!Please note
Components which are not
tested with the heating system
may lead to damage to the
heating system, or may affect
their various functions.
Installation or replacement
must only be carried out by
qualified personnel.
For your safety (cont.)
3
Safety instructions
5592 547 GB

Introductory information
Commissioning........................................................................................... 6
Your system is preset at the factory ............................................................. 6
Multi-boiler system ..................................................................................... 6
Where to find the controls
Summary of controls and indicators ............................................................ 7
&Opening the control unit ........................................................................... 7
&Functions ................................................................................................ 8
&Symbols in the display ............................................................................. 9
Start-up/shutdown
Starting the heating system......................................................................... 10
Shutting down the heating system............................................................... 10
Starting a heating circuit and DHW heating ................................................. 11
Starting DHW heating only .......................................................................... 12
Shutting down a heating circuit and stopping DHW heating.......................... 12
Switching the comfort function ON and OFF ................................................ 12
Setting temperatures
Adjusting the room temperature .................................................................. 13
Adjusting the boiler water temperature ........................................................ 13
Setting the DHW temperature ..................................................................... 14
Further adjustments
Restoring the standard settings................................................................... 15
Scanning options
Scanning temperatures and operating conditions ........................................ 16
Scanning fault display................................................................................. 17
Special displays
Service display ........................................................................................... 18
What to do if...
Rooms are too cold..................................................................................... 19
Rooms are too hot ...................................................................................... 20
There is no hot water .................................................................................. 20
The DHW is too hot ..................................................................................... 21
Maintenance
Cleaning..................................................................................................... 22
Inspection and maintenance ....................................................................... 22
Index
4
Index
5592 547 GB

&Boiler....................................................................................................... 22
&DHW cylinder (if installed)........................................................................ 22
&Safety valve (DHW cylinder) .................................................................... 23
&Potable water filter (if installed) ................................................................ 23
Energy saving tips .................................................................................... 24
Keyword index .......................................................................................... 25
Index (cont.)
5
Index
5592 547 GB

The commissioning and matching up
of the control unit to local conditions
and the structural characteristics of
the building must be carried out by
your heating contractor.
As the user of new combustion equip-
ment, you may be obliged to notify
your local flue gas inspector of the
installation [check local regulations].
Your local flue gas inspector will also
inform you [where appropriate] about
work he may be required to perform
on your combustion equipment (e.g.
regular checks, cleaning).
Your system is preset at the factory
The control unit is already adjusted to
"Heating and hot water" in the factory,
i.e. the system provides DHW and
central heating (if a DHW cylinder is
installed).
Your heating system is therefore
ready for use.
You may change the factory settings
in accordance with personal require-
ments.
Note
All data is saved in case of power fail-
ure.
Multi-boiler system
You only require the Vitotronic 300-K
operating instructions if the boiler is
used in a multi-boiler system in con-
junction with a Vitotronic 300-K con-
trol unit. These instructions also
include the operating steps for boiler
control.
Commissioning
6
Introductory information
5592 547 GB

You can change all settings for your heating system, centrally, at the program-
ming unit.
You can adjust the room temperature and the time programs at the remote con-
trol, if your system is equipped with a remote control unit .
Remote control operating instructions
Opening the control unit

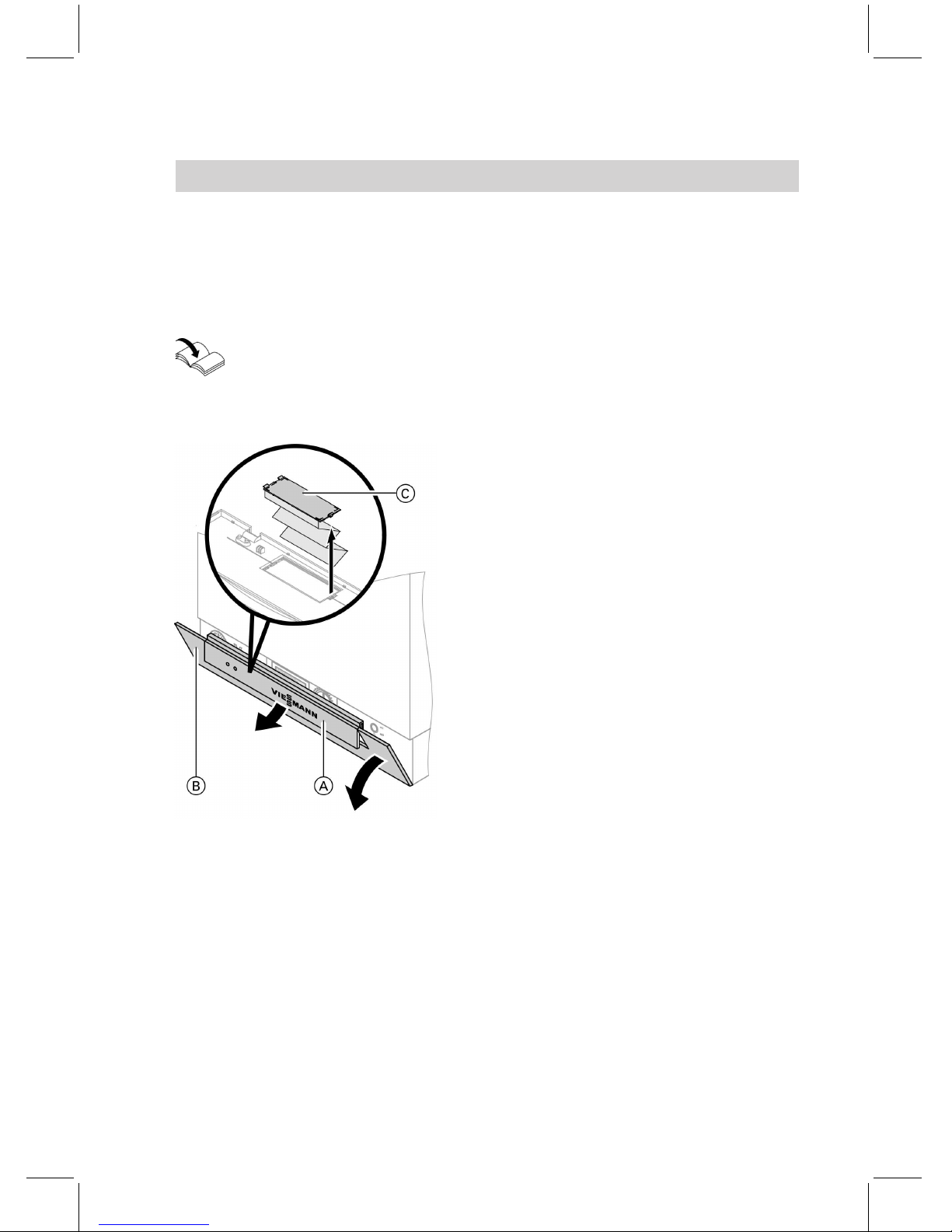

ACover
BControl unit flap (open to make
adjustments)
CFlap with abridged operating
instructions
Lift cover Aand pivot control unit flap
Bdown. All boiler controls are
located behind the control unit flap.
On the inside of control unit flap B,
an abridged version of these operating
instructions can be found behind a
further flap C. The abridged operat-
ing instructions can be removed with
the flap.
Summary of controls and indicators
7
Where to find the controls
5592 547 GB

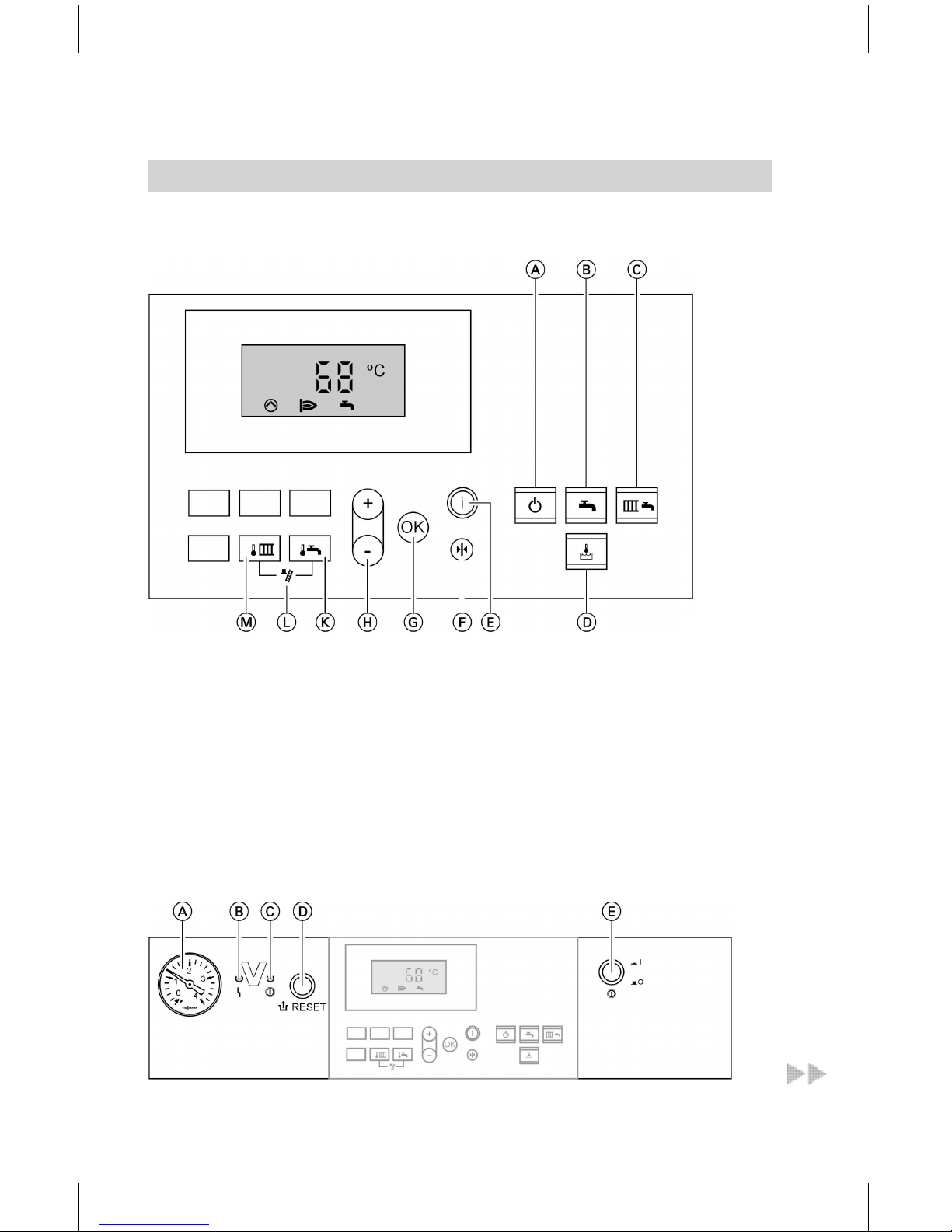

Functions
AStandby mode (page 12)
BDHW only (page 12)
CHeating and DHW (page 11)
DComfort function (page 12)
EHelp (page 16)
FStandard setting
GConfirmation
HSetting values
KDHW temperature (page 14)
LEmissions test function (only for
contractors)
MBoiler water temperature
(page 13)
Further controls and indicators
Summary of controls and indicators (cont.)
8
Where to find the controls
5592 547 GB

APressure gauge
BFault indicator (red)
CON indicator (green)
DReset button
EON/OFF switch
Symbols in the display
These symbols are not always displayed, but appear subject to the system ver-
sion and the operating condition. Flashing values in the display indicate that
modifications can be made.
rThe system delivers central
heating or the boiler in a multi-
boiler system is enabled
wDHW heating enabled
pHeating circuit pump running
Êp DHW heating by the solar heat-
ing system
ABurner "On"
SEmissions test function "On"
EBurner fault
UFault message
Summary of controls and indicators (cont.)
9
Where to find the controls
5592 547 GB

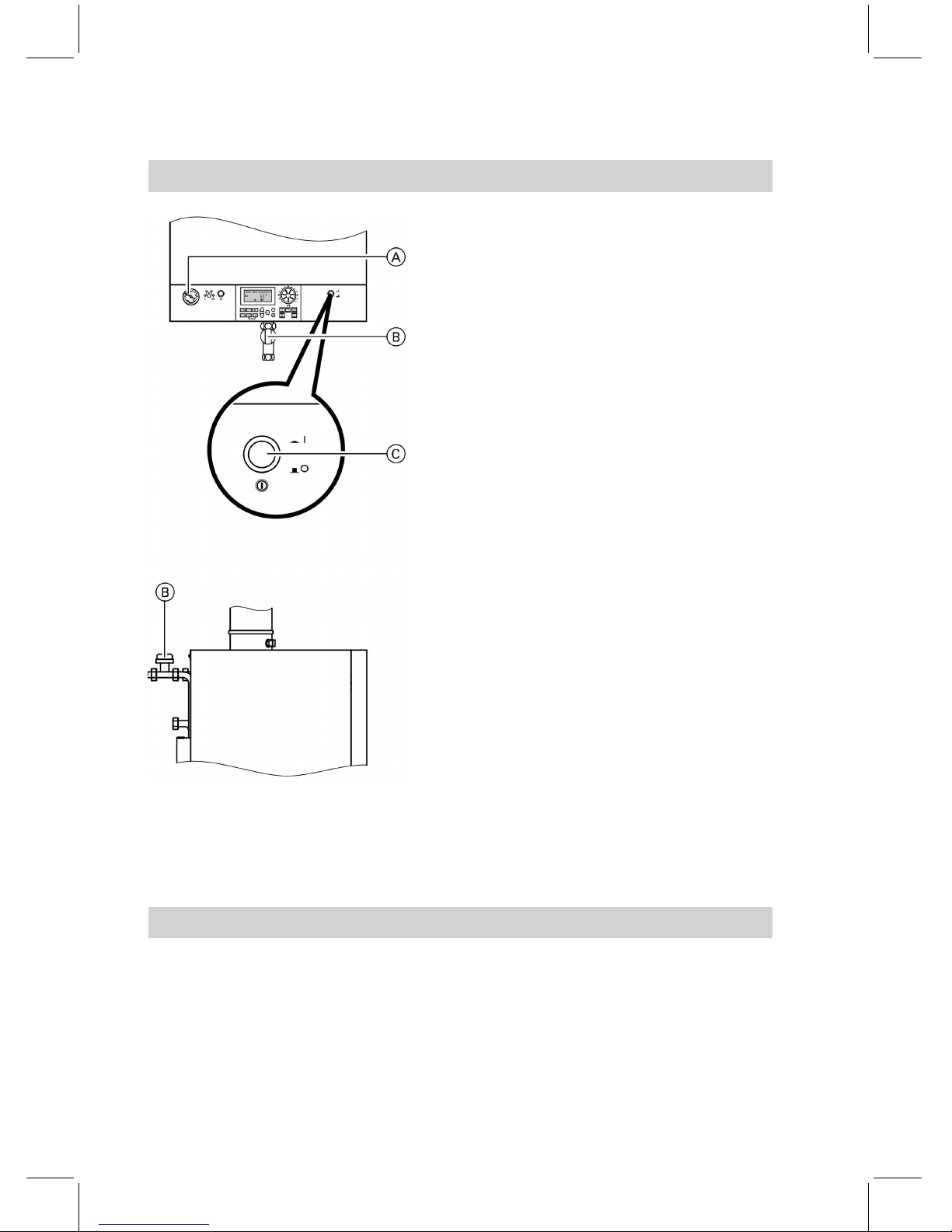

Position of the gas shut-off valve at
the Vitodens 333-F
1. Check the heating system pressure
at pressure gauge A: The system
pressure is too low if the indicator
points to the area below 1.0 bar. In
that case, top up with water or
notify your local heating contractor.
2. For open flue operation:
Check whether the ventilation aper-
tures in the installation room are
open and unobstructed.
Note
With open flue operation, the com-
bustion air is drawn from the instal-
lation room.
3. Open gas shut-off valve B.
4. Switch ON the power supply, e.g. at
a separate MCB/fuse or a main iso-
lator.

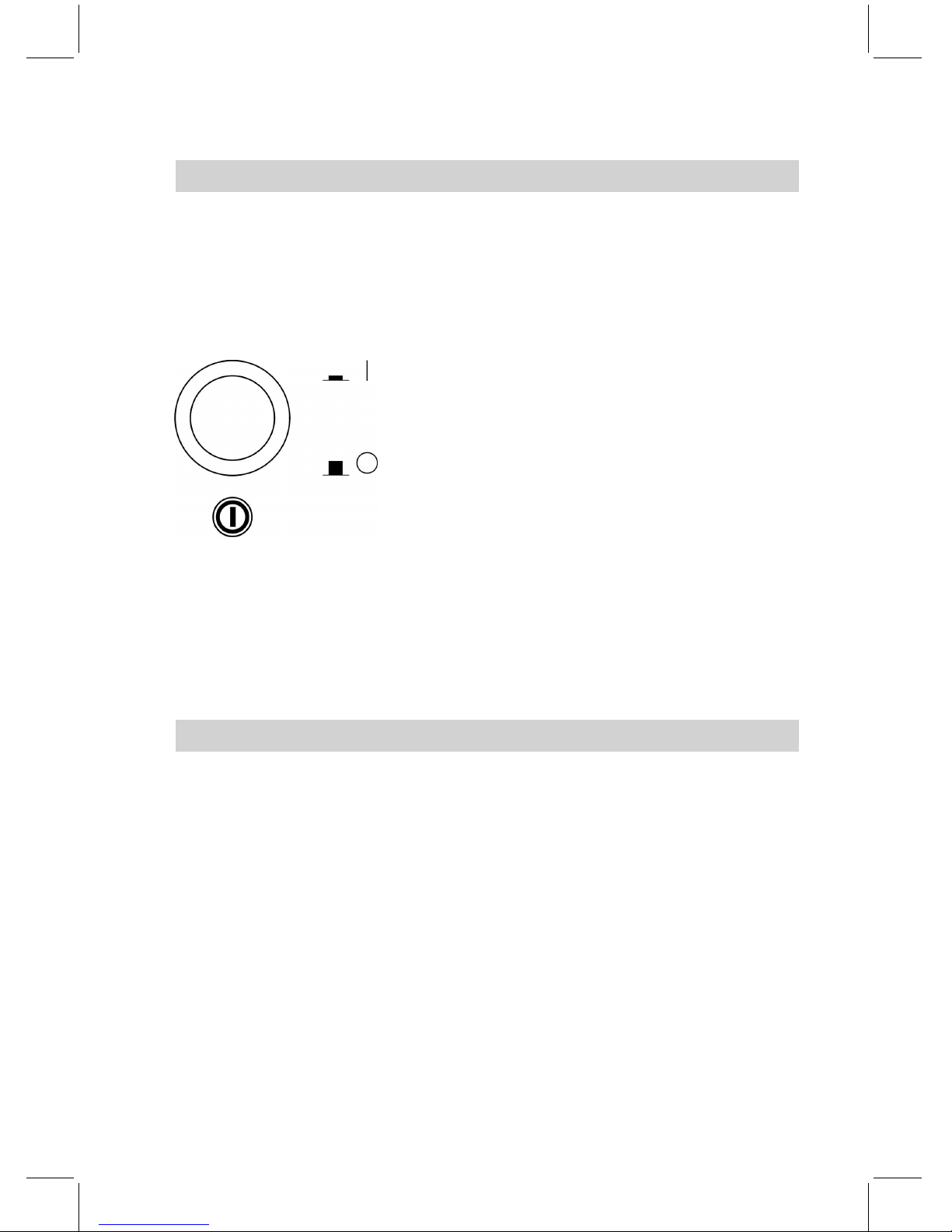

5. Switch system ON/OFF switch
"8"CON.
Standby is indicated by the green
indicator (ON indicator). The boiler
water temperature is displayed
after a short time. Your heating sys-
tem and, if installed, your remote
control unit are now ready for use.
Shutting down the heating system
If, temporarily, you have no need of your heating system, e.g. during a summer
holiday, switch the system to "Standby mode"K(see page 12).
Note
The circulation pumps are briefly started every 24 hours to prevent them from
seizing up.
Starting the heating system
10
Start-up/shutdown
5592 547 GB

If you do not want to use your heating system, you can shut it down.
We recommend you contact your local heating contractor, if you plan to take
your heating system out of use for longer periods and before returning it into
use.
Your heating contractor can then take any necessary actions, subject to require-
ments, e.g. frost protection or preserving the heating surfaces.
1. Switch system ON/OFF switch "8"
OFF.
The green indicator (ON indicator)
goes out.
2. Close the gas shut-off valve.
3. Isolate the system from its main
power supply, e.g. at a separate
MCB/fuse or a main isolator.
Note
Frost protection is no longer
enabled
All control settings are retained.
Starting a heating circuit and DHW heating
You want to heat your rooms and have DHW available.
Press G.
Heating and DHW:
&Central heating is active.
&DHW will be heated (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Boiler and DHW cylinder are pro-
tected against frost.
Shutting down the heating system (cont.)
11
Start-up/shutdown
5592 547 GB

You do not want to heat your rooms but would like to have DHW available.
Press L.
DHW only:
&No central heating.
&DHW will be heated (subject to a
DHW cylinder or instantaneous
water heater being installed).
&Frost protection for the boiler and
the DHW cylinder is enabled.
Shutting down a heating circuit and stopping DHW heating
You do not want to heat your rooms or have DHW available.
Press K.
Standby mode:
&No central heating.
&No DHW heating.
&Frost protection for the boiler and
the DHW cylinder is enabled.
&
Note
The circulation pump is briefly started
in certain intervals to prevent it from
seizing up. Your heating contractor
can alter these intervals.
Switching the comfort function ON and OFF
Only for Vitodens 200-W or Vitopend 200 (type WHKA) with integral instanta-
neous water heater.
If the comfort function is switched ON, the instantaneous water heater is kept up
to temperature (standby). This makes hot water available immediate.
You can switch OFF the comfort func-
tion with "/". This prevents the boiler
being switched ON, saving energy in
connection with maintaining the
standby temperature when no hot
water is being drawn (e.g. at night).
Starting DHW heating only
12
Start-up/shutdown
5592 547 GB

In addition to the boiler control unit, a separate room temperature controller (e.
g. Vitotrol 100 remote control) must be installed in one of the living rooms, if the
heating system is to be regulated in accordance with the required room tem-
perature.
Please make any adjustments using
the relevant operating instructions.
Please also note:
&"Htg.+ DHW"Gmust be selected.
&The boiler water temperature must
be set sufficiently high.
&All thermostatic radiator valves
must be fully open in the room
where the control unit is installed.
Adjusting the boiler water temperature
If a remote control unit is connected:
You set the room temperature on the remote control.
Set the boiler water temperature sufficiently high so the required room tempera-
ture can be achieved.
Press the following keys:
1. Ofor "Boiler temp.setpt."; the
current temperature will
flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
saved.
Adjusting the room temperature
13
Setting temperatures
5592 547 GB

Press the following keys:
1. Ffor "DHW temp.setpt."; the
current temperature will
flash.
2. a/bfor the required tempera-
ture.
3. dto confirm; the temperature
no longer flashes and is
saved.
Setting the DHW temperature
14
Setting temperatures
5592 547 GB

It is possible to simultaneously reset
all changed values to their factory set-
tings.
For this, press e.
Restoring the standard settings
15
Further adjustments
5592 547 GB

Subject to the connected components and previous settings, you can scan cur-
rent temperatures and operating conditions.
Press the following keys:
1. cfor boiler water tempera-
ture.
2. a/bfor further scans.
3. dto end scanning.
Display indication Description Notes
1 20°C Outside tempera-
ture
Display only if an outside tem-
perature sensor is connected.
3 65°C Boiler water tem-
perature
–
5 50°C DHW temperature Display only if a DHW cylinder
has been installed.
5 45°C DHW temperature
with solar opera-
tion
Display only if a solar heating sys-
tem is connected.
6 70°C Collector tempera-
ture
Display only if a solar heating sys-
tem is connected.
|
003572 h
Burner hours run Hours run are only approximate
values.
|||
030417
Burner starts
|||||
000850 h
Solar circuit pump
hours run
Hours run are only approximate
values.
||||||
002850
Solar energy in
kWh
The displayed solar yield repre-
sents only an approximate value.
Scanning temperatures and operating conditions
16
Scanning options
5592 547 GB

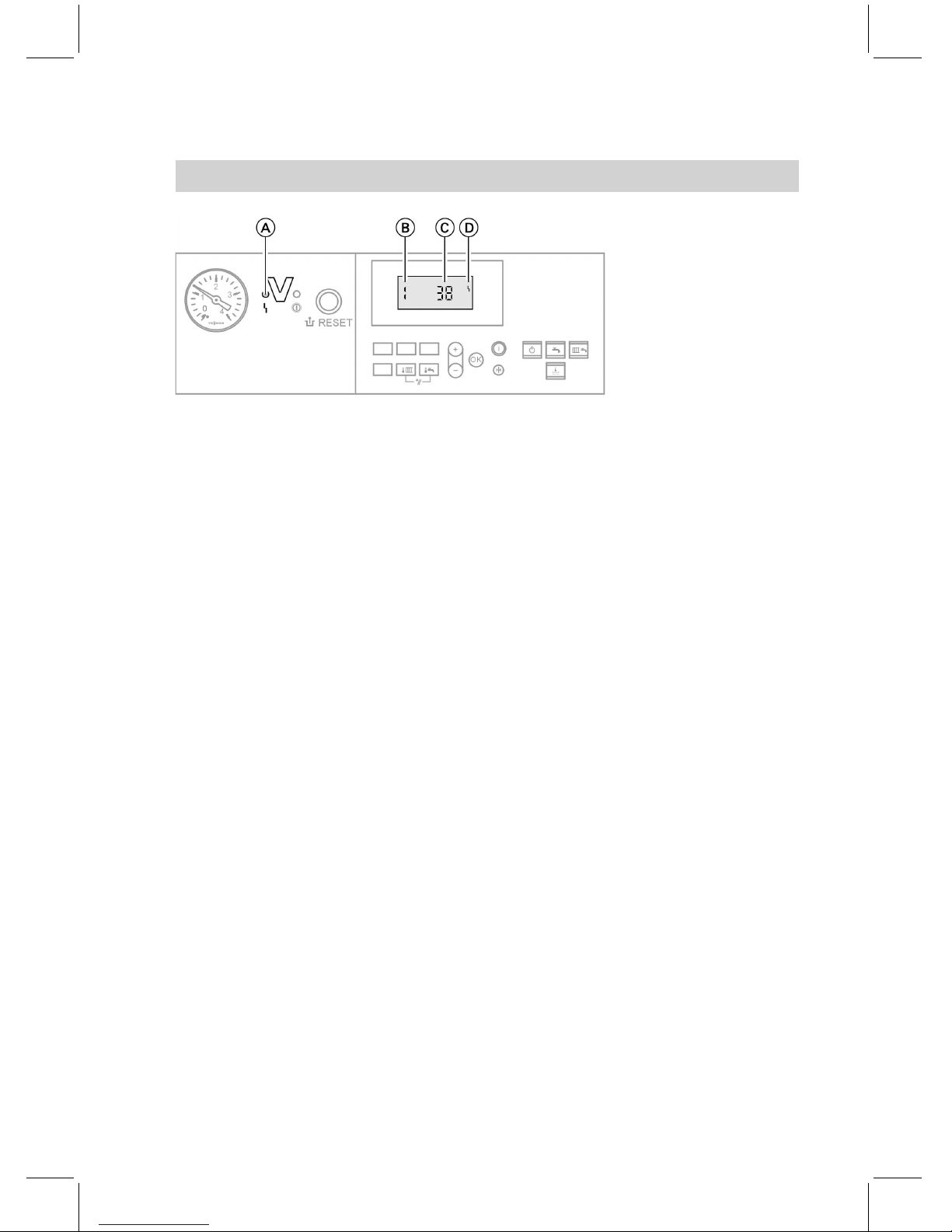

AFault display
BFault number
CFault code
DFault symbol
If your heating system has developed a fault, it will be displayed and indicated
by the flashing red fault indicator A.
You can check the fault code on the display and then notify your heating con-
tractor accordingly. This allows your contractor to better prepare for the service
call and may save additional travelling costs.
Press the following keys:
1. a/bto display further faults, if
several faults exist.
2. dto acknowledge the fault.
Note
The fault message will be displayed
again the following day, if the fault has
not been rectified. The red fault indi-
cator flashes until the fault has been
rectified.
To recall fault codes press the follow-
ing keys:
1. dfor approx. 3 s.
2. a/bto display further faults, if
several faults exist.
Scanning fault display
17
Scanning options
5592 547 GB

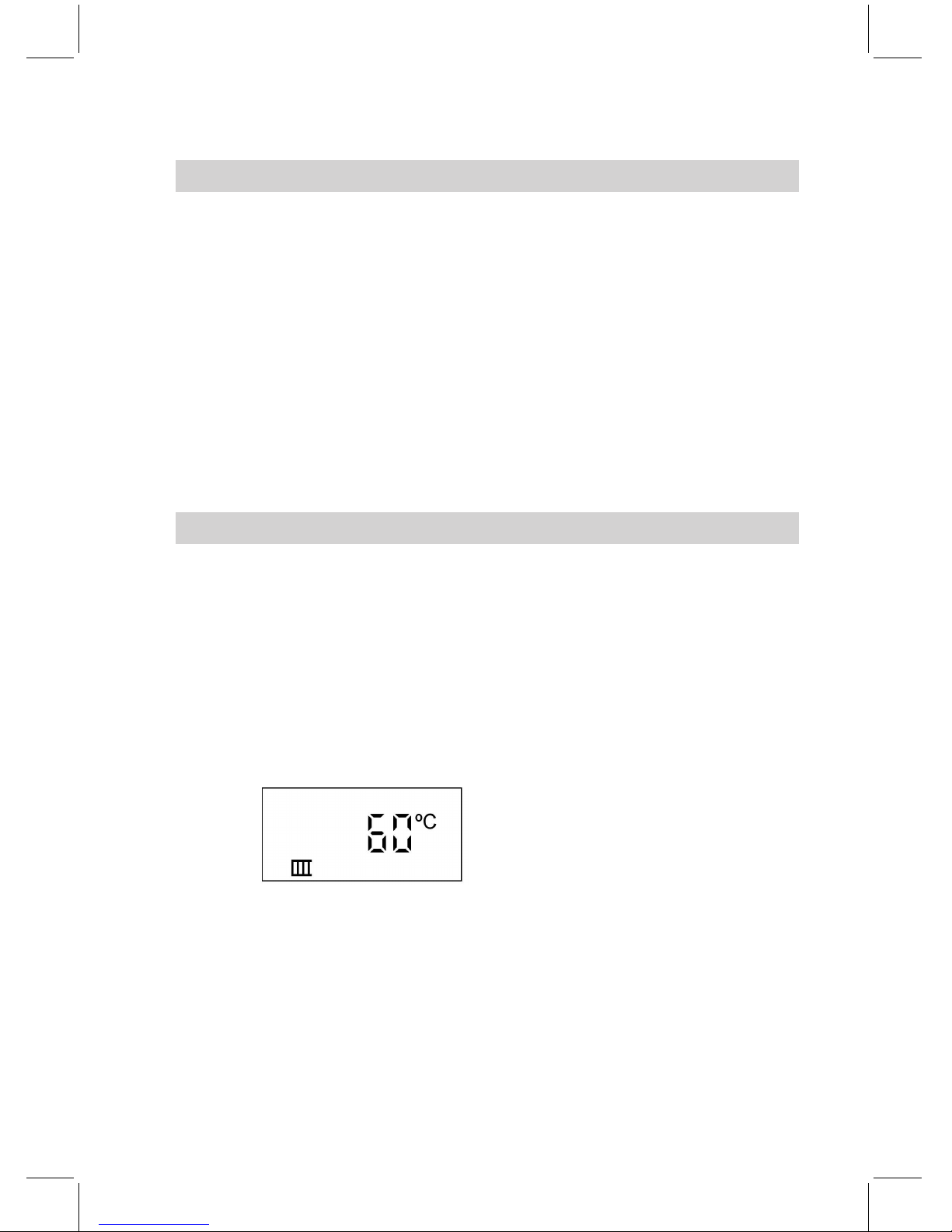

If your heating contractor has entered a service interval into the control unit, a
message will appear on the display after expiry of that period.
Service display after a set number of
hours run (display flashes):
Service display after an interval
(flashing display), e.g. service every
12 months:
Service display
18
Special displays
5592 547 GB

Cause Remedy
The heating system is switched OFF
ON indicator "8" (green) OFF
&Switch system ON/OFF switch "8"
ON (see page 10)
&Switch the main isolator ON, if
installed (outside the boiler room)
&Check and, if required, reset/replace
the MCB/fuse inside the power distri-
bution board (main domestic MCB/
fuse)
Control unit or remote control incor-
rectly adjusted
Check and, if required, correct adjust-
ments (see page 11 or the operating in-
structions of the remote control).
Only when operating with DHW heat-
ing:
DHW priority (wp is displayed)
Wait until the DHW cylinder has been
heated up or no more DHW is drawn
off when operating an instantaneous
water heater (pis extinguished from
the display)
No fuel For LPG:
Check the fuel stock and re-order, if re-
quired.
With natural gas:
Open the gas shut-off valve and check
with your gas supplier, if required.
Control unit fault: The display shows
"U", and the red fault indicator flashes
Check the fault code on the display
(see page 17) and notify your local
heating contractor
Burner fault: "E" is displayed and the
red fault indicator on the control unit
flashes
Press burner fault reset "E"; if that at-
tempt to start also fails, notify your
heating contractor.
Remote control fault Notify your local heating contractor
Rooms are too cold
19
What to do if...
5592 547 GB

Cause Remedy
Control unit or remote control incor-
rectly adjusted
Check and, if required, correct adjust-
ments (see page 11 or the operating in-
structions of the remote control).
Control unit fault: The display shows
"U", and the red fault indicator flashes
Check the type of fault (see page 17)
and notify your heating contractor
There is no hot water
Cause Remedy
The heating system is switched OFF
ON indicator "8" (green) OFF
&Switch system ON/OFF switch "8"
ON (see page 10)
&Switch the main isolator ON, if
installed (outside the boiler room)
&Check and, if required, reset/replace
the MCB/fuse inside power distribu-
tion (main domestic circuit breaker/
fuse)
Control unit incorrectly adjusted Check settings and correct, if required:
&DHW heating must be switched ON
(see page 11)
&DHW temperature (see page 14)
No fuel For LPG:
Check the fuel stock and re-order, if re-
quired.
With natural gas:
Open the gas shut-off valve and check
with your gas supply utility, if required.
Control unit fault: The display shows
"U", and the red fault indicator flashes
Check the type of fault (see page 17)
and notify your heating contractor
Burner fault: The red fault indicator on
the control unit flashes, and "E" is dis-
played
Press burner fault reset "E"; if that at-
tempt to start also fails, notify your
heating contractor.
Rooms are too hot
20
What to do if...
5592 547 GB
