Viessmann Vitocell 140-E Operating instructions

Installation and service instructions
for contractors
VIESMANN
Vitocell 140-E/160-E
Type SEIA
Type SESA
Solar buffer cylinder
For applicability, see the last page
VITOCELL 140-E/160-E
5674 572 GB 1/2015 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of Practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of your
system.
Replace faulty components with genuine
Viessmann spare parts.
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions
5674 572 GB

3
1. Information Symbols ................................................................................................. 4
Intended use .......................................................................................... 4
Product information ................................................................................ 5
2. Preparing for installation Connections ........................................................................................... 6
Siting information ................................................................................... 7
■Installing the Vitocell with an immersion heater .................................. 7
3. Installation sequence Vitocell without fitted Solar-Divicon ........................................................ 8
■Siting and levelling the Vitocell ........................................................... 8
■Fitting the thermometer sensor (if available) ...................................... 9
■Fitting the Vitotrans ............................................................................. 10
■Fitting the thermal insulation jacket .................................................... 12
■Fitting the cover strip .......................................................................... 13
■Fitting the cover .................................................................................. 15
■Installing the air vent valve on the solar side ...................................... 15
Vitocell with fitted Solar-Divicon ............................................................. 16
■Siting and levelling the Vitocell ........................................................... 16
■Fitting the support panel ..................................................................... 17
■Making connections on the solar side ................................................ 18
■Installing Solar-Divicon ....................................................................... 20
■Connecting the Solar-Divicon on the solar side and checking for
leaks ................................................................................................... 20
■Fitting the thermal insulation cover ..................................................... 21
■Fitting the thermometer sensor (if available) ...................................... 22
■Fitting the Vitotrans ............................................................................. 23
■Fitting the thermal insulation jacket .................................................... 24
■Fitting the cover strips ........................................................................ 26
■Fitting the cover .................................................................................. 27
Fitting the cylinder temperature sensor ................................................. 28
Connecting the heating water side ........................................................ 28
Connecting the equipotential bonding ................................................... 29
4. Commissioning, inspec-
tion, maintenance
5. Parts lists Overview of assemblies ......................................................................... 31
Cylinder assembly ................................................................................. 32
Thermal insulation assembly ................................................................. 34
Pipework set assembly (accessory) ...................................................... 36
6. Commissioning/service
reports
.................................................................................................................. 38
7. Specification .................................................................................................................. 39
8. Certificates Declaration of conformity ....................................................................... 41
9. Keyword index .................................................................................................................. 42
Index
Index
5674 572 GB

4
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
The work sequences for commissioning, inspection
and maintenance are summarised in the chapter
"Commissioning, inspection and maintenance "and are
marked as follows:
Symbol Meaning
Work sequences required during commis-
sioning
Not required during commissioning
Work sequences required during inspec-
tion
Not required during inspection
Work sequences required during mainte-
nance
Not required during maintenance
Intended use
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Information
Symbols
5674 572 GB
Information

5

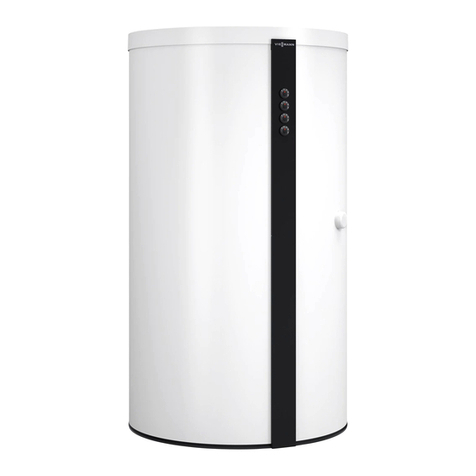

Vitocell 140-E, type SEIA and Vitocell 160-E, type
SESA
■Solar buffer cylinder made from steel, for central
heating backup in combination with heat pumps,
solar thermal systems, oil/gas boilers, solid fuel boil-
ers and/or electric heating with an immersion heater.
■For cylinder capacity and weight, see page 39.
■With the option to fit a Solar-Divicon, type PS10
(pump station for a collector circuit).
■With the option to fit a Vitotrans 353
■Suitable for systems to EN 12828 and DIN 4753
■Vitocell 160-E, type SESA also includes a stratifi-
cation system for solar heating
Information
Product information
5674 572 GB
Information

6
Front Back
A
B
C
D
E
Fig. View without Solar-Divicon (accessories)
N
F
P
B
A
C
E
G
L
D
H
K
M
O
AThermometer sensor retainer
BThermometers (up to 4 pce)
CHeating water flow G 1
DReturn stratification G 1
EHeating water return G 1
AHeating water flow 1 to the heating circuits / air vent
valve
BHeating water flow 2 from the heat source
CSensor well for cylinder temperature sensor
DThermometer sensor retainer
ESensor well 2 for cylinder temperature sensor and
thermometer sensor
FHeating water flow 3/heating water return
GHeating water return 2 from the heating circuits
HSensor well 3 for cylinder temperature sensor and
thermometer sensor
KHeating water return 3
LSensor well 4 for cylinder temperature sensor
MSolar heating water flow / air vent valve (if Solar-
Divicon accessory is fitted: at the front of the heat-
ing water buffer cylinder)
NHeating water return 4 to the heat source / drain
outlet
OSolar heating water return (if Solar-Divicon acces-
sory is fitted: at the front of the heating water buffer
cylinder)
PThermometer sensor retainer
Preparing for installation
Connections
5674 572 GB
Installation

7
!Please note
The appliance may suffer damage through the
influence of frost.
Install the heating water buffer cylinder in a
room that is free from the risk of frost and
draughts. When not in use, the heating water
buffer cylinder must be drained if there is a risk
of frost.
■Provide adequate clearance from the wall to allow for
operation of the temperature controller (if installed).
■Placing the heating water buffer cylinder on a plinth
will make the room easier to clean.
Installing the Vitocell with an immersion heater
a
b
Fig.1
Immersion heater installation instructions
Maintain the minimum clearance.
Note
The unheated length of any threaded immersion
heater installed on site must be at least 100 mm.
Output
Immersion heat-
er
Dim. a Dim. b
6 kW
12 kW
min. 500 mm
min. 700 mm
min. 650 mm
min. 650 mm
Preparing for installation
Siting information
5674 572 GB
Installation

8
See page 16 for installation of the version with fitted
Solar-Divicon (accessories).
Siting and levelling the Vitocell
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
A
B
3.
3x
1.
4.
2.
Fig.2
AType plate
BBag with 3 adjustable feet
3. Insert the adjustable feet into the supports as far as
they will go, then adjust them to level the cylinder.
Note
Never extend the adjustable feet beyond a total
length of 35 mm.
5. If no electric immersion heater is installed, seal in
the front female connection with the plug R1½ sup-
plied.
Installation sequence
Vitocell without fitted Solar-Divicon
5674 572 GB
Installation

9
Fitting the thermometer sensor (if available)
7.
2.
4.
5.
6.
3.
1.
Fig.3
1. Guide the thermometer sensor through the cover
strip and insert the thermometer.
2. Guide the upper thermometer sensor through the
lifting eye. Fully insert the sensor into the clamping
bracket. Tighten the wing nut.
Note
The cover strip is held in its vertical position by the
straight capillaries. This is necessary for the rest of
the installation.
3. Route the thermometer sensor capillaries to the
back.
Note
Repeat the following steps for each of the thermom-
eters installed.
4. Depending on where the sensor is being fitted,
secure the thermometer sensor in the clamping
bracket or pull the sensor retainer out of the sensor
well.
5. Position the sensor on the outside of the sensor
retainer contact spring so that it is flush with the
front of the spring.
Note
■Never wrap insulating tape around the sensors.
■Secure the sensor on the outside of the sensor
retainer contact spring (not in the groove) so that
it is flush with the front of the spring.
■Insert the sensor retainer together with the sensor
into the sensor well as far as they will go.
6. Secure the thermometer sensor capillaries.
7. Insert the sensor retainer.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

10
Fitting the Vitotrans
1.
2.
Fig.4
2.
3.
1.
Fig.5
1. Fit the bolts to the cylinder.
2. Fit the module.
3. Screw the nuts onto the bolts until hand-tight.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

11
C
A
B
DE F
3.
1.
2.
4.
Fig.6
1. Connect heating water flow connection pipe A to
connection D on the Vitotrans.
2. Connect heating water return connection pipe B to
connection E on the Vitotrans.
3. Connect return stratification connection pipe C to
connection F on the Vitotrans.
4. Secure the pipes to the cylinder connections.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

12
Fitting the thermal insulation jacket
!Please note
The thermal insulation must not come into con-
tact with naked flames.
Exercise caution when welding and brazing.
Note
■2 people are required for the following work.
■Ensure that no fleece remnants enter the heating
water buffer cylinder through the cylinder connec-
tions.
4. 3.
1.
2.
Fig.7
1. At the back of the cylinder: Attach 6 clip fasteners
to the edges of the right and left sections of the
thermal insulation jacket. Place the thermal insula-
tion jacket around the cylinder body.
Note
Leave the clip fasteners in the first notch.
2. Fit 4 clip fasteners above and 2 clip fasteners
behind the Vitotrans so that they are evenly
spaced.
3. Push the clip fasteners as close together as possi-
ble.
4. Install the immersion heater EHE or seal the hole
with a cover.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

13
Fitting the cover strip
3.
2. 1.
Fig.8
1. Tighten the nuts on the bolts.
2. Trim and fit the cover strip.
3. Insert the rear sections of the Vitotrans thermal
insulation. Observe the groove in the thermal insu-
lation.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

14
A
2.
3.
4.
1.
Fig.9
AType plate (self-adhesive)
1. Fit the front section of the Vitotrans thermal insula-
tion.
2. Push the cylinder thermal insulation towards the
front by patting it. This reduces the gap between
the Vitotrans and the cylinder.
3. Fit the rear strip to the thermal insulation.
4. Affix the type plate.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

15
Fitting the cover
1.
A
2.
Fig.10
AViessmann logo
Installing the air vent valve on the solar side
2.
1.
3.
Fig.11
1. Push the corrugated hose into the elbow fitting.
2. Screw the air vent plug into the elbow fitting.
3. Push the corrugated hose into the solar flow and
secure the elbow with flat gasket to the cylinder.
Route the drip hose of the air vent valve into a vessel.
Continue on page 28.
Installation sequence
Vitocell without fitted Solar-Divicon (cont.)
5674 572 GB
Installation

16
Siting and levelling the Vitocell
A
B
3.
3x
1.
4.
2.
Fig.12
AType plate
BBag with 3 adjustable feet
3. Insert the adjustable feet into the supports as far as
they will go, then adjust them to level the cylinder.
Note
Never extend the adjustable feet beyond a total
length of 35 mm.
5. If no electric immersion heater is installed, seal in
the front female connection with the plug R1½ sup-
plied.
Installation sequence
Vitocell with fitted Solar-Divicon
5674 572 GB
Installation

17
Fitting the support panel
1.
2.
Fig.13
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5674 572 GB
Installation

18
Making connections on the solar side
2.
2.
3.
3.
1.
1.
Fig.14
1. Remove the bottom pipes.
2. Rotate the pipes towards the front until they touch
the front adjustable foot.
3. Fit the pipes.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5674 572 GB
Installation

19
4.
5.
1.
2.
3.
Fig.15
1. Push the corrugated hose into the elbow fitting.
2. Screw the air vent plug into the elbow fitting.
3. Push the corrugated hose into the solar flow and
secure the elbow with flat gasket to the cylinder.
4. Fit the solar flow pipe.
5. Fit the solar return pipe.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5674 572 GB
Installation

20
Installing Solar-Divicon
Solar-Divicon installation instructions
!Please note
Wiring can be damaged if exposed to hot com-
ponents.
Ensure adequate thermal insulation between
cables and hot pipework.
1.
2.
3.
Fig.16
Connecting the Solar-Divicon on the solar side and checking for leaks
!Please note
Once the thermal insulation and thermal insula-
tion cover are in place, the fittings are no longer
visible.
Carry out the following steps before fitting the
thermal insulation.
Solar side
Permissible temperature 140 °C
Permissible operating pressure 10 bar
(1 MPa)
Test pressure 16 bar
(1.6 MPa)
Note
For connection locations, see page 6.
Installation sequence
Vitocell with fitted Solar-Divicon (cont.)
5674 572 GB
Installation
