Vitocell 340-M/360-M
Type SVKA
Type SVSA
Combi cylinder
750 and 950 litre capacity
VITOCELL 340-M/360-M
5719 714 UAE 4/2009 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These instructions are exclusively
designed for qualified personnel.
■ Work on gas equipment must only be
carried out by a qualified gas fitter.
■ Work on electrical equipment must
only be carried out by a qualified elec-
trician.
■ The system must be commissioned by
the system installer or a qualified per-
son authorised by the installer.
Regulations
Observe the following when working on
this system
■ all legal instructions regarding the pre-
vention of accidents,
■ all legal instructions regarding envi-
ronmental protection,
■ the Code of Practice of relevant trade
associations.
■ all current safety regulations as
defined by DIN, EN, DVGW, TRGI,
TRF, VDE and all locally applicable
standards.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may lead to serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
Safety instructions
Safety instructions
5719 714 UAE

3
Working on the system
■ When using gas as fuel, also close the
main gas shut-off valve and safeguard
against unauthorised reopening.
■ Isolate the system from the power sup-
ply and check that it is no longer 'live',
e.g. by removing a separate fuse or by
means of a main isolator.
■ Safeguard the system against unau-
thorised reconnection.
!Please note
Electronic modules can be dam-
aged by electrostatic dis-
charges.
Touch earthed objects, such as
heating or water pipes, to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a
safety function can compromise
the safe operation of your heating
system.
Replace faulty components only
with original Viessmann spare
parts.
Ancillary components, spare and
wearing parts
!Please note
Spare and wearing parts that
have not been tested together
with the heating system can com-
promise its function. Installing
non-authorised components and
non-approved modifications or
conversions can compromise
safety and may invalidate our
warranty.
For replacements, use only orig-
inal spare parts supplied or
approved by Viessmann.
Safety instructions
Safety instructions (cont.)
5719 714 UAE

4
Installation instructions
Preparing for installation
Product information.............................................................................................. 5
Installation sequence
Siting the combi cylinder ..................................................................................... 9
Fitting the thermal insulation................................................................................ 10
Fitting the cylinder temperature sensor................................................................ 15
Connecting the equipotential bonding.................................................................. 16
Installing an air vent valve on the solar side......................................................... 16
Installing a DHW circulation (accessory).............................................................. 17
Connecting the DHW side.................................................................................... 18
Connecting the heating water side....................................................................... 19
Service instructions
Commissioning, inspection, maintenance
Steps - commissioning, inspection and maintenance.......................................... 22
Further details regarding the individual steps....................................................... 23
Parts lists............................................................................................................ 25
Commissioning/service reports........................................................................ 27
Product parameters........................................................................................... 28
Accessories
Specification, immersion heater........................................................................... 29
Certificates
Declaration of conformity...................................................................................... 30
Index
Index
5719 714 UAE

5
Vitocell 340-M and 360-M
Combi cylinder made from steel for cen-
tral heating backup with corrugated
stainless steel pipe for DHW heating in
conjunction with oil, gas and solid fuel
boilers, solar thermal systems, heat
pumps and/or an immersion heater.
Capacity 750 litres 950 litres
Heating water: 708 litres 906 litres
DHW: 30 litres 30 litres
Solar heat
transfer
medium:
12 litres 14 litres
Suitable for systems conforming to
DIN 1988, EN 12828 and DIN 4753.
The Vitocell 360-M is also equipped with
a stratification system.
Preparing for installation
Product information
5719 714 UAE
Installation

6
Connections
Front
AThermometer sensor retainer
BThermometer (TH)
2 pce in standard delivery, up to 4
pce can be installed
CFemale connection for immersion
heater (ELH)
Preparing for installation
Product information (cont.)
5719 714 UAE

7
Back
AHeating water flow 1 (HV1) from the
heat source/ventilation (EL)
BDHW/DHW circulation (Z)
CThermometer sensor retainer
DSensor well for cylinder temperature
sensor 1 (SPR1)
EHeating water flow 2 (HV2)/heating
water return 1 (HR1)
Central heating backup
FSensor well for cylinder temperature
sensor 2 (SPR2) and thermometer
sensor
GHeating water return 2 (HR2)
Central heating backup
HSensor well for thermometer sensor
and cylinder temperature sensor 3
(SPR3)
KHeating water return 3 (HR3)
to the heat source
LCold water (KW)
MDrain (E)
NHeating water flow solar (HVs)/drain
solar (EL)
OThermometer sensor retainer
PHeating water return solar (HRs)
Preparing for installation
Product information (cont.)
5719 714 UAE
Installation

8
Installation information
!Please note
To prevent material losses, install
the combi cylinder in a draught-
free room free from the risk of
frost.
Otherwise the combi cylinder will
have to be drained if there is a risk
of frost and it is not in use.
!Please note
The thermal insulation must not
be able to come into contact with
naked flames.
Exercise caution when welding
and soldering.
Provide adequate clearance from the
wall so that the thermostat can be oper-
ated (if installed).
Installing the combi cylinder with an
immersion heater
a
Installation instructions, immer-
sion heater
Maintain minimum clearance in front of
the cylinder.
Note
The unheated length of any threaded
immersion heater installed on site must
be at least 100 mm.
Output
Immersion heater
Dimension a
6 kW min. 650 mm
12 kW min. 950 mm
Preparing for installation
Product information (cont.)
5719 714 UAE

9
4.
1.
2.
3.
1. Remove all packs from the cylinder
body, and keep safe.
2. Insert the adjustable feet into the hex-
agon nuts as far as they will go and
level the cylinder.
Note
Never wind out the feet more than 35
mm.
3. Install the thermal insulation mat
under the cylinder body.
4. If no immersion heater is installed,
seal the front female connection with
the plug supplied (R 1½).
Installation sequence
Siting the combi cylinder
5719 714 UAE
Installation

10
Fitting the thermometer sensor (if installed)
7.
1.
2.
3.
4.
5.
6.
1. Route the thermometer sensor
through the cover strip and insert the
thermometer.
2. Route the upper thermometer sensor
through the lifting eye, insert it into the
clamping bracket as far as it will go
and tighten the wing nut.
Installation sequence
Fitting the thermal insulation
5719 714 UAE

11
Note
The cover strip is held in its vertical
position by the wound capillaries.
This is necessary for the rest of the
installation.
3. Route the thermometer sensor capil-
laries to the back of the cylinder.
Note
Repeat the following steps subject to
the number of installed thermome-
ters.
4. Depending on the fitting location,
secure the thermometer sensor in the
clamping bracket or pull the sensor
retainer out of the sensor well.
5. Secure the sensor on the outside of
the contact spring of the sensor
retainer so that it is flush with the front
of the spring.
6. Secure the thermometer sensor
capillaries.
Note
Never wrap insulating tape around
the thermometer sensor.
7. Insert sensor retainer as far as it will
go.
Installation sequence
Fitting the thermal insulation (cont.)
5719 714 UAE
Installation

12

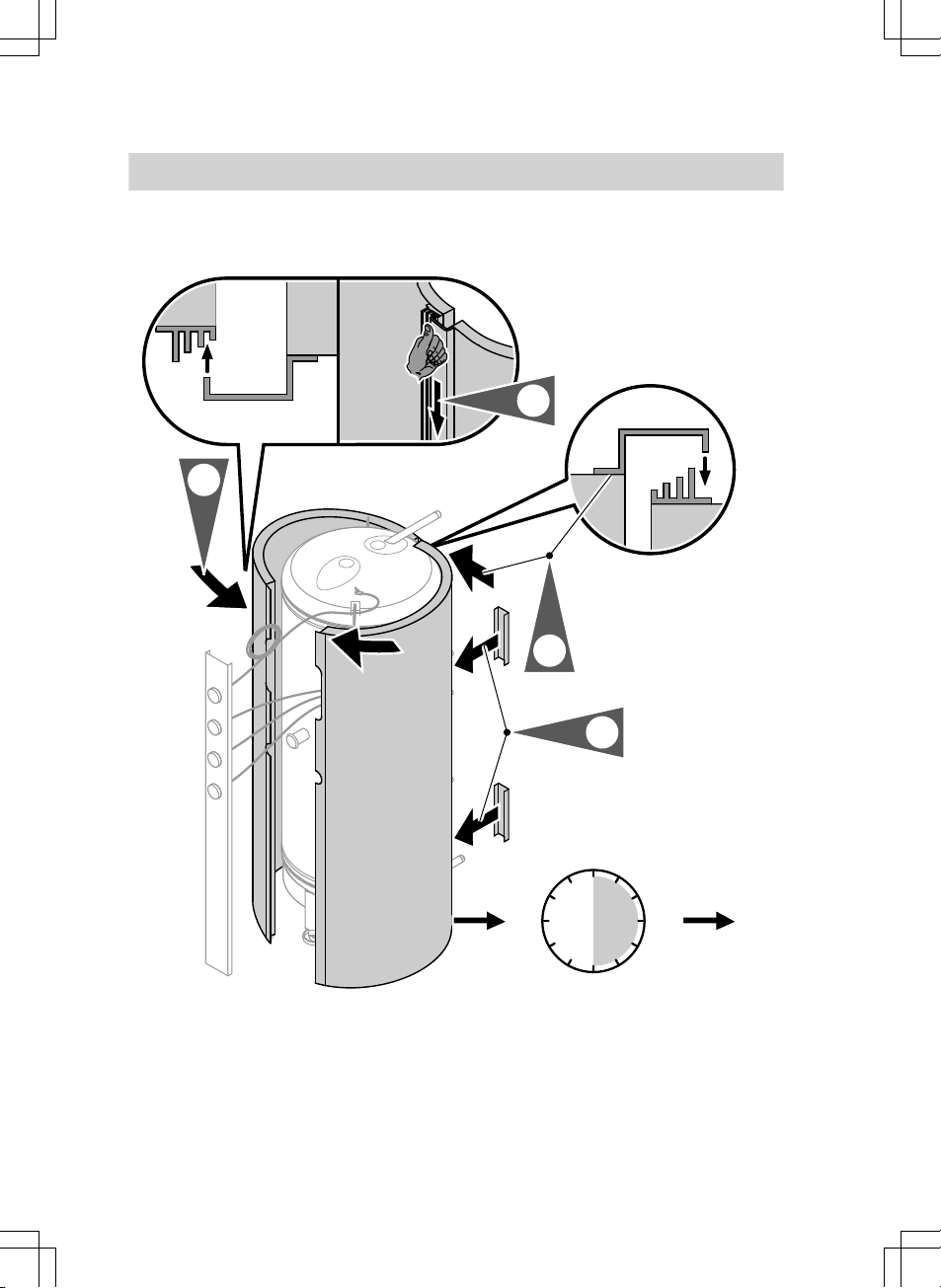

Fitting the thermal insulation jacket
0
30 min
45 15
1.
2.
3.
3.
1. Lay both parts of the thermal insula-
tion jacket around the cylinder body
and hook into the closure strip at the
back.
2. Push the cover strips onto the closure
strip at the back.
3. Close the thermal insulation jacket at
the front and hook the closure strip
into the first notch.
Installation sequence
Fitting the thermal insulation (cont.)
5719 714 UAE

13
Fitting the cover strip
Note
After 30 min, the thermal insulation jacket will have adjusted to the cylinder and the
closure strip can be more easily hooked into the final notch.
1.
2.
3.
4.
1. Fit the thermal insulation jacket by
patting it tightly against the cylinder
body.
2. Hook the closure strip into the final
notch.
3. Push the cover strip onto the closure
strip and cover the unused openings
with the covers.
4. Affix the type plate.
Installation sequence
Fitting the thermal insulation (cont.)
5719 714 UAE
Installation

14
Fitting the top cover
1.
3.
2.
AViessmann logo
1. Fit the thermal insulation mat.
2. Fit the top cover.
3. Affix the Viessmann logo.
Installation sequence
Fitting the thermal insulation (cont.)
5719 714 UAE

15
Note
The cylinder temperature sensor is sup-
plied in the control unit pack.
4.
1.
2.
3.
ASensor wells for cylinder tempera-
ture sensor
Installation sequence
Fitting the cylinder temperature sensor
5719 714 UAE
Installation

16
Note
■Never wrap insulating tape around the
sensor.
■ Secure the sensor on the outside of
the contact spring of the sensor
retainer (not in the groove) so that it is
flush with the front of the spring.
■ Insert the sensor retainer together with
the sensor into the sensor well as far
as it will go.
Connecting the equipotential bonding
Connect the equipotential bonding in
accordance with the requirements stipu-
lated by your local power supply utility
and VDE [or local] regulations.
Installing an air vent valve on the solar side
1.
2.
3.
Installation sequence
Fitting the cylinder temperature sensor (cont.)
5719 714 UAE

17
1. Push the corrugated hose into the
elbow fitting.
2. Insert the air vent plug into the elbow
fitting.
3. Push the corrugated hose into the
solar flow and seal in the elbow (flat
gasket).
Installing a DHW circulation (accessory)
1.
2.
1. Seal the corrugated hose into the tee
(connection R ½).
2. Fully push in and seal in the tee with
the corrugated hose into the DHW
connection.
Note
Rotating eases the entry of the cor-
rugated hose.
Installation sequence
Installing an air vent valve on the solar side (cont.)
5719 714 UAE
Installation

18
■ For connecting on the DHW side,
observe DIN 1988 and DIN 4753.
■ Connect all pipework with detachable
fittings.
■ Seal connections that are not required
with red brass caps.
■ Equip the DHW circulation pipe with a
DHW circulation pump, check valve
and time switch.
■ Connect the DHW circulation pump
either to the control unit or the sepa-
rate time switch
Permiss. temperature: 95 °C
Permiss. operating
pressure: 10 bar
Test pressure: 16 bar
WW ZP
MAG-W
EV
SIV
AV
DFR
MA
RV1
EV
AV AV
KW
EV
TF
DMV
AV
RV2
KW
Z
ASpring-loaded check valve
BVisible discharge pipe outlet
AV Shut-off valve
DFR Flow regulating valve
DMV Pressure reducer
EV Drain
KW Cold water
MA Pressure gauge connection
MAG-W Diaphragm expansion vessel
(suitable for DHW)
RV1 Non-return valve
RV2 Non-return valve/pipe separa-
tor
SIV Safety valve
TF Drinking water filter
WW DHW
Z DHW circulation pipe
ZP DHW circulation pump
Installation sequence
Connecting the DHW side
5719 714 UAE

19
Information regarding the safety
valve
The system must be equipped with a
type-tested diaphragm safety valve as
protection against overpressure.
Permiss. operating pressure: 10 bar.
The connection diameter of the safety
valve must be R ¾ (DN 20).
Consequently, the max. permissible
heat input would be 150 kW. If the heat
input of the Vitocell exceeds 150 kW,
select a larger safety valve that is able to
cope with the respective heat input (see
DIN 4753-1, issue 3/88, section 6.3.1).
Install the safety valve in the cold water
pipe. It must not be able to be isolated
from the DHW cylinder.
The pipework between the safety valve
and the DHW cylinder must not be
restricted in any way.
The safety valve discharge pipe must not
be able to be closed. Expelled water
should be safely and visibly drained into
a sewer. Place a sign close to the safety
valve discharge pipe or on the safety
valve itself with the following inscription:
"For safety reasons, water may be dis-
charged from the discharge pipe during
heating. Never seal off!"
Install the safety valve above the top
edge of the DHW cylinder.
Connecting the heating water side
■ Adjust the thermostat and high limit
safety cut-out so that the DHW tem-
perature in the cylinder never exceeds
95 ºC.
■ Connect all pipework with detachable
fittings.
Permissible temperatures
on the solar side: 140 °C
on the heating water side: 110 °C
Permissible operating pressure
on the solar side: 10 bar
on the heating water side: 3 bar
Test pressure
on the solar side: 16 bar
on the heating water side: 4.8 bar
1. Install the flow pipes with an incline
and fit an air vent valve at the highest
point.
2. Install control equipment that
ensures the permissible tempera-
tures on the heating side are main-
tained.
3. Install an additional type-tested high
limit safety cut-out, if none has been
installed so far in the system. For this,
use a twin thermostat (temperature
limiter and high limit safety cut-out).
4. Seal all unused connections with
plugs or caps.
Installation sequence
Connecting the DHW side (cont.)
5719 714 UAE
Installation

20
Installation example
Z
WW
M
EA
A
HC
KW
K
B
HV1/EL
WW/Z
SPR1
HV2/HR1
SPR2
HR2
SPR3
HR3
KW
E
HVs/HRs
P
ASolar collector BCombi cylinder
Installation sequence
Connecting the heating water side (cont.)
5719 714 UAE
