Viessmann VITOCELL 300V Instruction manual

Technical Data Manual
5672 342 - 02 10/2015
Vitocell 300-V
EVI Series
Indirect-fired domestic hot water storage tank
53 USG to 119 USG (200 L to 450 L) capacity
Product may not be exactly as shown
Vertical indirect-fired domestic hot water storage tank
of high-grade stainless steel with two coils. CAUTION
This tank version is not suitable for steam heating
applications.
Model Nos. and pricing: see Price List

2
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Benefits
Product Information
Fully hygienic, efficient and economical domestic
hot water production with DHW tanks of high-grade
stainless steel – vertical version.
Benefits at a glance:
Corrosion-resistant tank of high-grade SA 240-316
Ti stainless steel offers a long service life.
Fully hygienic due to high quality homogeneous
stainless steel surfaces.
The high-alloy material is immune to cracking or
peeling. The tank stays hygienic and requires only
minimum service.
Does not require a consumable anode for corrosion
protection.
The entire water content is heated by a 1¼ in. (34 mm)
diameter stainless steel heat exchanger surface which
extends to the bottom of the tank.
The positioning of the tubular heat exchanger coil
further ensures that 82 to 97% of the tank volume
can be drawn at constant water temperature.
The stainless steel heat exchanger coil is self-
venting towards the top and self-draining towards
the bottom, therefore not susceptible to reduced
heat transfer due to air lock or deposits.
Universally suitable – for applications requiring
larger quantities of hot water, multiple vertical tanks
can be combined via headers to form tank batteries.
Standby losses minimized by 2¼ in. (58 mm) highly
effective, foamed-in-place or 4 in. (100 mm) wrap-
around PET HCFC-free insulation.
Easy transport into mechanical room due to low
weight and compact construction.
Certified to CSA Low Lead Content Certification
Program;
including US Safe Drinking Water Act, NSF/ANSI
372 as well as other applicable US State
requirements.

3
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data

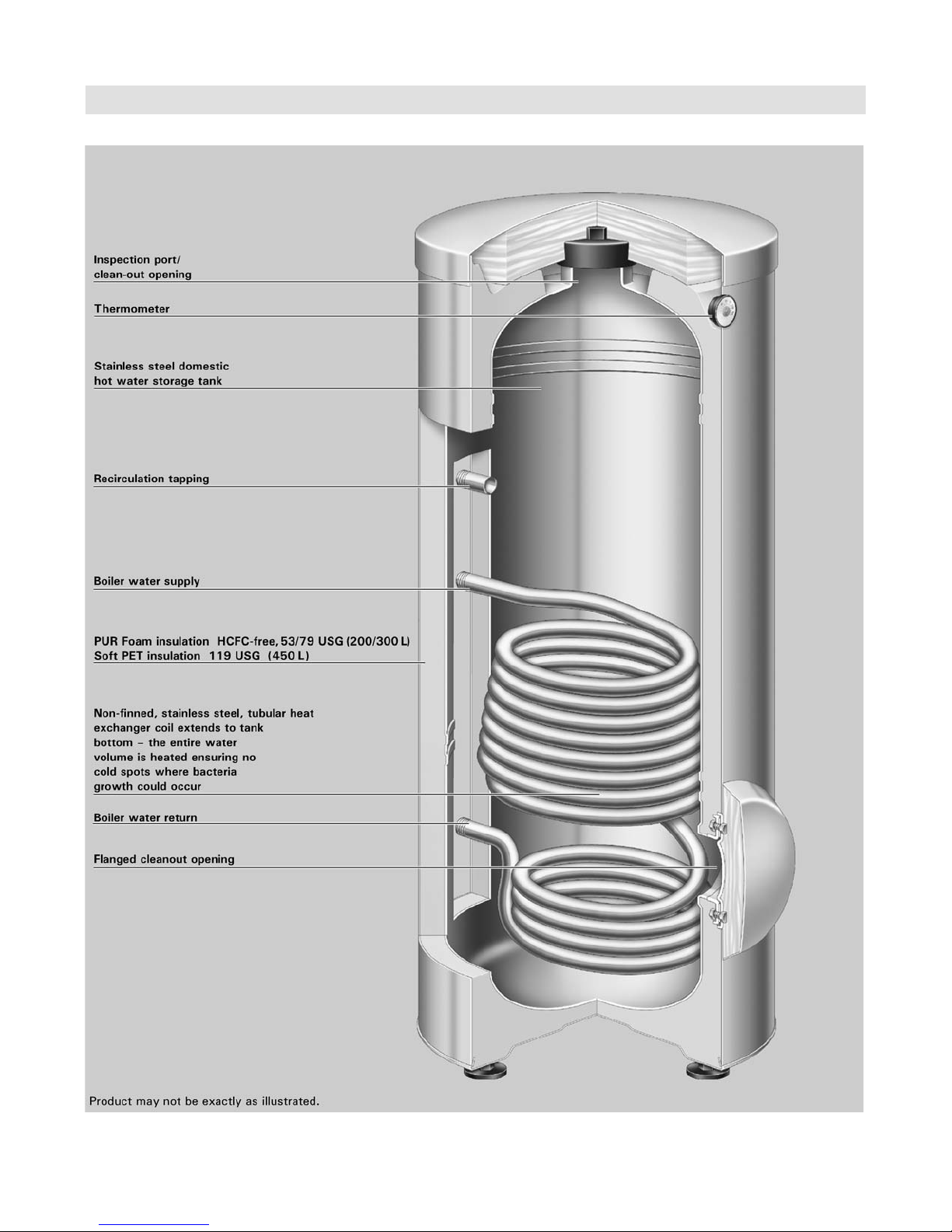

Cross Section
Product Information

4
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Technical Data
Technical Data
Suitable for heating systems with:
max. working pressure on heat exchanger side up
to 220 psig at 392°F (200°C)
max. working pressure on DHW water side of up
to 150 psig at 210°F (99°C)
For domestic hot water heating applications which
utilize modulating and low temperature hot water
heating boilers.
*1 When planning for the recovery rate as stated or calculated, allow for the corresponding circulation pump.
The stated recovery rate is only achieved when the rated output of the boiler is equal to or greater than that
stated under “Recovery rates”.
*2 Measured values are based on a room temperature of 68°F (20ºC) and a domestic hot water temperature of
149°F (65ºC) and can vary by ± 5%.
*3 For other dimensions, see illustrations and table on page 4.
*4 Adjustable feet can be adjusted up to 2 in. (50 mm).
For information regarding other Viessmann System Technology componentry, please reference documentation of
the respective product.
Storage capacity USG (L) 53 (200) 79 (300) 119 (450)
Recovery rates*1
with a DHW temperature rise of the
domestic hot water from 50 to 140ºF
(10 to 60ºC) and heating water supply
temperature of......
at the supply flow rate stated
below
194ºF (90ºC) MBH (kW)
GPH (L/h)
215 (63)
286 (1084)
280 (82)
372 (1410)
276 (81)
368 (1393)
176ºF (80ºC) MBH (kW)
GPH (L/h)
164 (48)
218 (826)
201 (59)
268 (1014)
212 (62)
282 (1066)
158ºF (70ºC) MBH (kW)
GPH (L/h)
99 (29)
132 (499)
140 (41)
186 (705)
147 (43)
195 (739)
Supply flow rate
for the recovery rates stated GPM (m3/h) 22.0 (5.0) 22.0 (5.0) 28.6 (6.5)
Insulation PUR Foam Soft PET
Standby losses*2MBH/24 h 5.5 6.8 9.2
Dimensions*3
Tank length without insulation
Overall length with insulation
Tank width without insulation
Overall width with insulation
Tank height without insulation
Overall height with insulation*4
Tilt height without insulation
Tilt height with insulation
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
--
23 (581)
--
25b(649)
--
56 (1420)
--
58 (1471)
--
25 (633)
--
27c(704)
--
70 (1779)
--
71c(1821)
28 (715)
36e(925)
36 (914)
38e(975)
65f(1667)
68b(1738)
66b(1690)
--
Weight
Tank with insulation lbs (kg) 76 (168) 100 (220) 111 (245)
Heating water content
(heat exchanger pipe coil) USG (L) 2.64 (10) 2.91 (11) 4.0 (15)
Heat exchanger surface area ft.2(m2) 14 (1.3) 16 (1.5) 20.5 (1.9)
Connections
Heating water supply/return
Domestic cold/hot water
Temp. and press. relief valve
Recirculation
in. (male NPT thread)
in. (male NPT thread)
in. (male NPT thread)
in. (male NPT thread)
1
1
1
1
1
1
1
1
1a
1a
1a
1a

5
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data

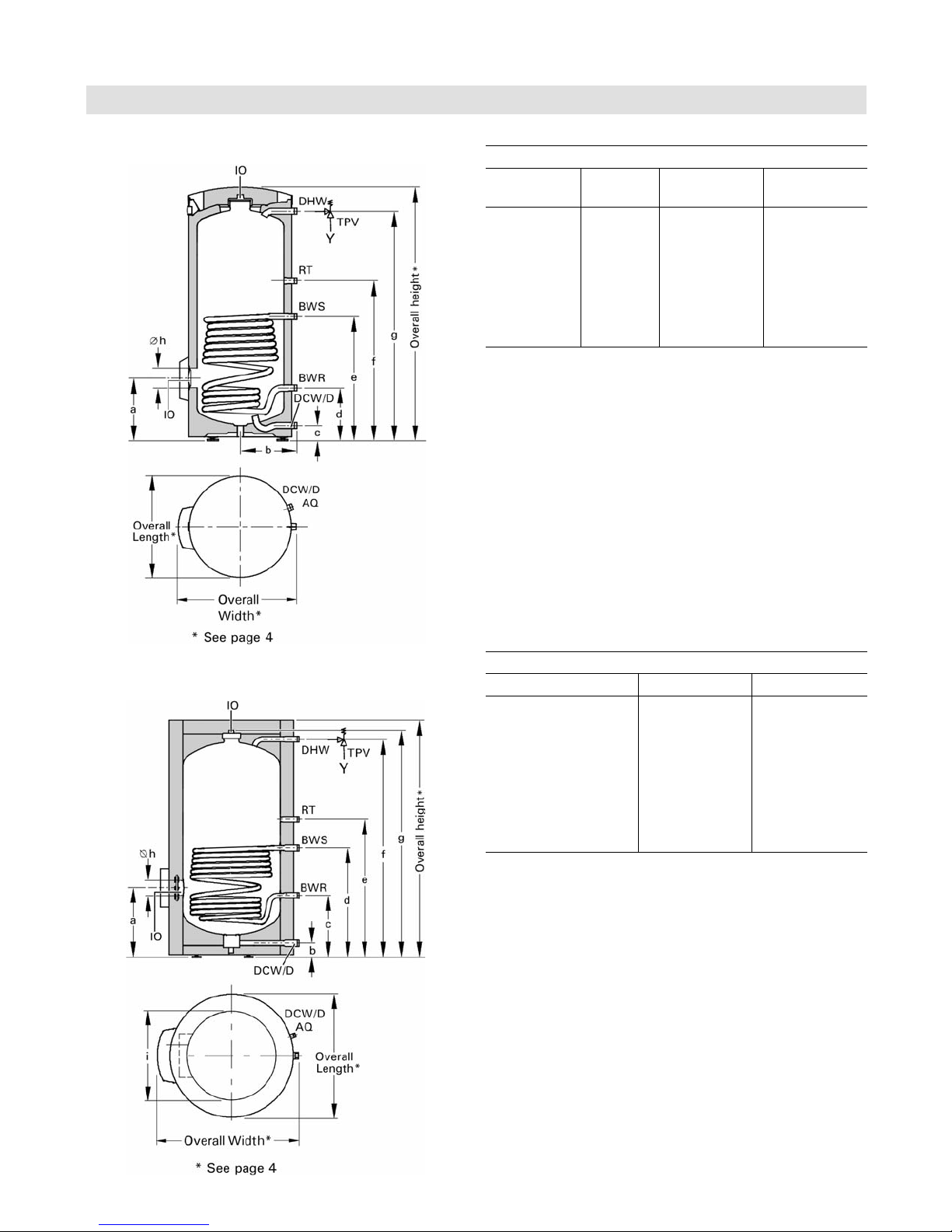

79 USG (300 L) Tank Dimensions
Technical Data
53 USG (200 L) and 79 USG (300 L) Tanks Dimensions
Storage
capacity USG (L) 53 (200) 79 (300)
a
b
c
d
e
f
g
h
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
14 (353)
12b(317)
3b(87)
11c(297)
27b(697)
35g(897)
50f(1286)
4 (100)
14a(357)
13b(343)
3b(87)
12 (301)
29b(751)
37b(951)
64b(1640)
4 (100)
Legend
AQ Aquastat well
BWR Boiler water return
BWS Boiler water supply
D Drain
DCW Domestic cold water
DHW Domestic hot water
IO Inspection and clean-out opening
RT Recirculation tapping
TPV Temperature and pressure relief valve
Legend
AQ Aquastat well
DHW Domestic hot water
BWR Boiler water return
IO Inspection and cleanout opening
BWS Boiler water supply
TPV Temperature and pressure relief valve
D Drain
RT Recirculation tapping
DCW Domestic cold water
Dimensions
Storage capacity USG (L) 119 (450)
a
b
c
d
e
f
g
h
i
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
20 (508)
4 (102)
18 (453)
31f(802)
40 (1012)
63 (1601)
65f(1667)
4 (100)
28 (715)
119 USG (450 L) Tank

6
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Technical Data
Water Flow
Legend
A79 USG (300 L) and 119 USG (450 L) storage capacity
B53 USG (200 L) storage capacity
Pressure drop on domestic hot water side (secondary circuit)
Pressure drop on heating water side (primary circuit)
Storage capacity USG
(L)
53
(200)
79
(300)
119
(450)
Domestic hot water
draw rate
GPM
(L/min)
2.6
(10)
4.0
(15)
4.0
(15)
Domestic hot water
draw water with
t= 140°F (60°C)
(constant)
USG
(L)
37
(139)
72
(272)
109
(413)
% tank volume 70 91 92
Domestic hot water draw rate
Storage tank contents heated to 140°F (60°C), boiler not
reheating.
Heat-up time
The stated heating times are achieved when the
maximum recovery rate of the domestic hot water tank
is made available at the respective supply temperature
and with a domestic hot water rise from 50 to 140°F
(10 to 60°C).
Storage capacity USG
(L)
53
(200)
79
(300)
119
(450)
Heating water supply
temperature
194°F (90°C)
176°F (80°C)
158°F (70°C)
Heat-up time (minutes)
11.4
15
23.5
15.5
21.5
32.5
20
24
35

7
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Multiple Tank Installation
Product Installation
Technical data
The 79 and 119 USG (300 and 450 L) tank sizes may be combined into a battery consisting of between 2 and 3 tanks.
Tank batteries consisting of more than 3 tanks can be installed by creating up to 4 batteries, each consisting of 3 tanks.
The heating contractor is responsible to ensure proper piping on both the primary and secondary circuits.
Tank storage capacity USG (L) 79 (300) 119 (450)
Total capacity of tank battery USG (L) 158 (600) 238 (900) 357 (1350)
Number of storage tanks 223
Recovery rates*1
with a temperature rise of the
domestic hot water from
50 to 140°F (10 to 60°C)
and heating water supply
temperature of.... at the
supply flow rate stated below
194°F (90°C) MBH (kW)
GPH (L/h)
560 (164)
74.5 (2820)
553 (162)
73.8 (2786)
829 (243)
1104 (4179)
176°F (80°C) MBH (kW)
GPH (L/h)
403 (118)
534 (2028)
423 (124)
564 (2132)
635 (186)
846 (3198)
158°F (70°C) MBH (kW)
GPH (L/h)
280 (82)
372 (1410)
293 (86)
390 (1479)
440 (129)
588 (2217)
Supply flow rate
for the recovery rates stated GPH (m3/h) 2640 (10) 3420 (13) 5160 (19.5)
Standby losses*2 MBH/24 h 13.6 18.4 27.6
Heat exchanger surface area ft.2(m2) 30.1 (2.8) 38.8 (3.6) 58.1 (5.4)
Ensure that temperature tempering valve(s) is installed
if the domestic hot water storage tank temperature
exceeds 140°F (60°C) to protect from scalding.
Consult plumbing codes and authorities for local
requirements.
WARNING
In a multiple-tank installation, it is recommended that an
additional high limit aquastat be installed in the common
domestic hot water supply header to the system. This
aquastat should be wired in series to the operating
aquastat on the tank battery. The setting on this
additional high limit aquastat should be approximately
9°F (5°C) higher than the operating high limit.
*1 When planning for the recovery rate as stated or calculated, allow for the corresponding circulation pump.
The stated recovery rate is only achieved when the rated output of the boiler is equal to or greater than that
stated under “Recovery rates”.
*2 Measured values are based on a room temperature of 68ºF (20ºC) and a domestic hot water temperature of
149ºF (65ºC) and can vary by ±5%.
Installation of additional aquastat(s)

8
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Product Installation
Multiple Tank Installation (continued)
For domestic hot water heating applications which
utilize modulating and low temperature hot water
heating boilers

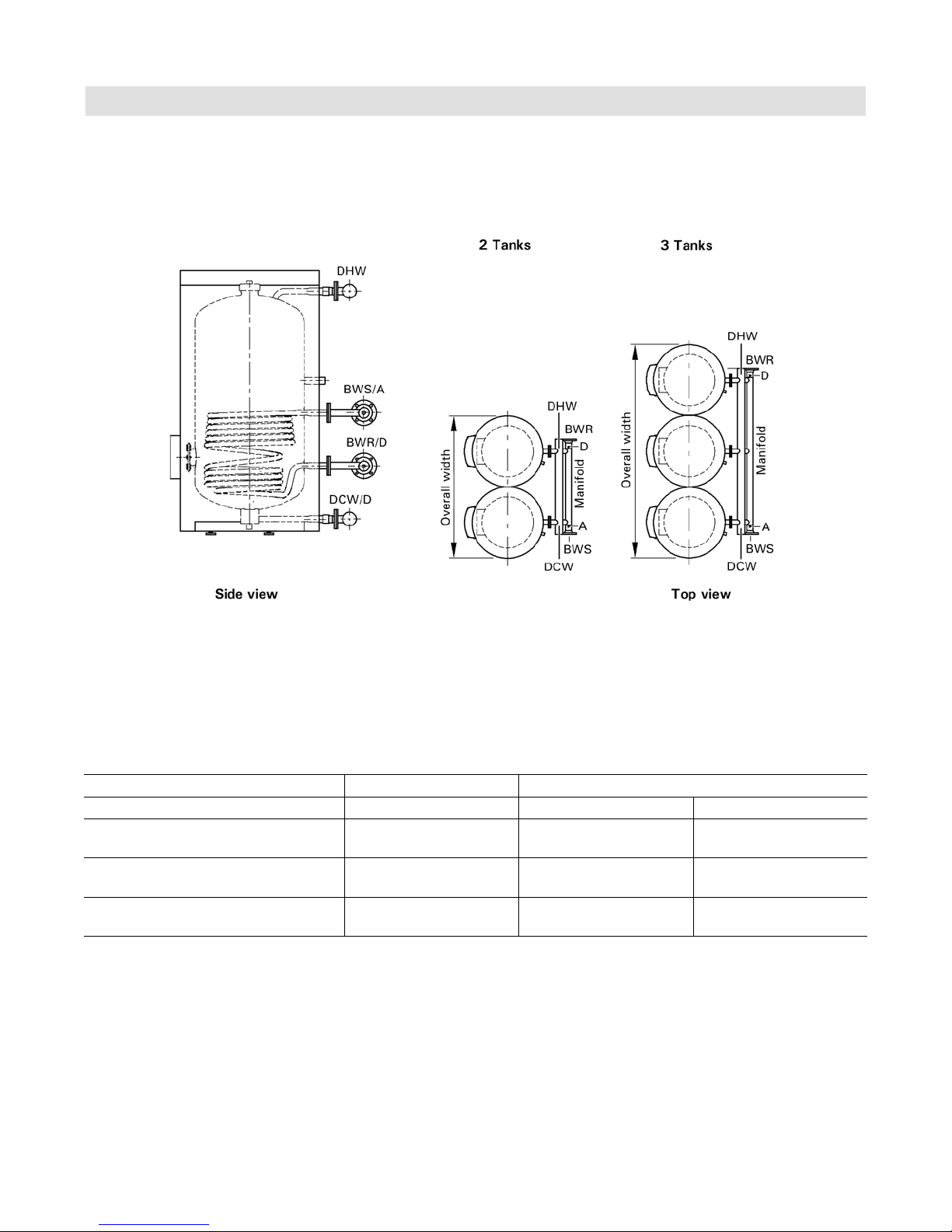

Examples of multiple tank installations (shown below) - All fittings including manifolds are field supplied.
Legend
A Air vent
DCW Domestic cold water
DHW Domestic hot water
BWR Boiler water return
BWS Boiler water supply
D Drain
Storage tank capacity 79 USG (300 L) 119 USG (450 L)
Number of storage tanks 223
Common header size
boiler supply / return
in.
(mm)
2
(51)
2
(51)
2
(51)
Common header size
domestic hot / cold water
in.
(mm)
1a
(32)
1a
(32)
1b
(38)
Dimensions with insulation
Overall width*1 in. (mm) 52 (1321) 70 (1778) 106 (2692)
*1 Overall width includes 2” clearance space between the tanks.

9
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data Product Installation
Multiple Tank Installation (continued)
Storage tank capacity USG (L) 79 USG (300 L) 119 USG (450 L)
Number of storage tanks
Battery storage capacity USG (L)
2
158 (600)
2
238 (900)
3
357 (1350)
DHW draw rate GPM (L/min) 7.9 (30) 7.9 (30) 11.9 (45)
Domestic hot water draw
Water with t=140°F
(60ºC) (constant)
USG (L) 143.7 (544) 243 (920) 365 (1380)
% of battery volume 93 92 92
Storage tank capacity USG (L) 79 USG (300 L) 119 USG (450 L)
Number of storage tanks
Battery storage capacity USG (L)
2
158 (600)
2
238 (900)
3
357 (1350)
Heating water supply temperature Max. DHW draw rate (over 10-minute period)
194°F (90°C)
176°F (80°C)
158°F (70°C)
GPM (L/min)
GPM (L/min)
GPM (L/min)
23.5 (90)
23 (87)
18.5 (70)
32 (120)
32 (120)
26.6 (101)
42.3 (160)
42.3 (160)
39 (148)
Domestic hot water draw rate
Storage tank content heated to 140°F (60°C),
boiler not reheating
Quick recovery (over 10-minute period)
Domestic hot water rise from 50 to 113°F (10 to 45°C)
Max. domestic hot water draw rate (over 10-minute period)
Domestic hot water rise from 50 to 113°F (10 to 45°C)
Storage tank capacity USG (L) 79 USG (300 L) 119 USG (450 L)
Number of storage tanks
Battery storage capacity USG (L)
2
158 (600)
2
238 (900)
3
357 (1350)
Heating water supply temperature Quick DHW recovery (over 10-minute period)
194°F (90°C)
176°F (80°C)
158°F (70°C)
USG/10 min
(L/10 min)
USG/10 min
(L/10 min)
USG/10 min
(L/10 min)
237
(898)
229
(870)
184
(698)
314
(1190)
314
(1190)
277
(1050)
422
(1600)
422
(1600)
388
(1470)

10
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Technical Data
Water Flow

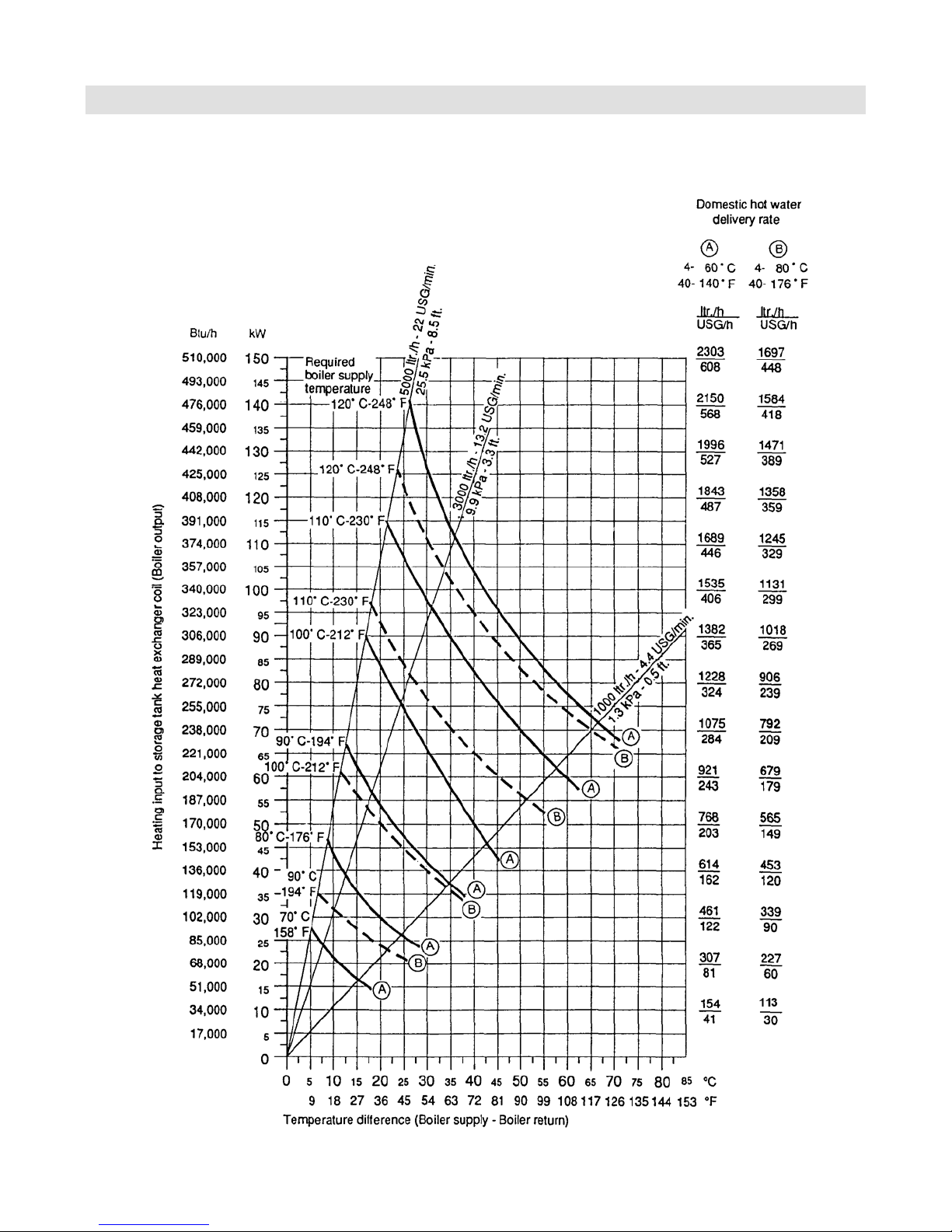

Continuous Flow Capacity Chart for 53 USG (200 L)
Curve ADomestic hot water 40 to 140°F (4 to 60°C)
Curve BDomestic hot water 40 to 176°F (4 to 80°C)

11
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Water Flow (continued)
Technical Data

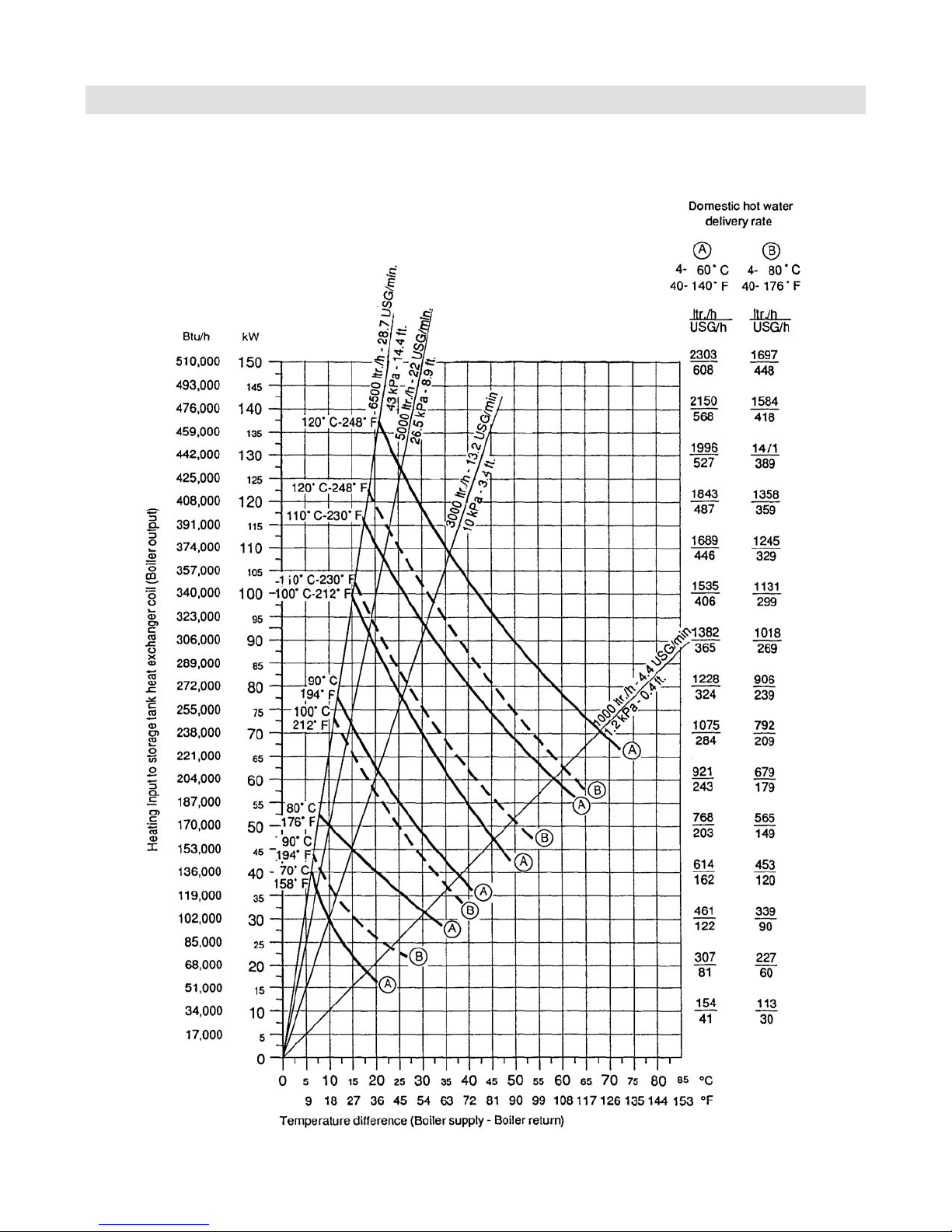

Continuous Flow Capacity Chart for 79 USG (300 L)
Curve ADomestic hot water 40 to 140°F (4 to 60°C)
Curve BDomestic hot water 40 to 176°F (4 to 80°C)

12
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Technical Data
Water Flow (continued)
Continuous Flow Capacity Chart for 119 USG (450 L)
Curve ADomestic hot water 40 to 140°F (4 to 60°C)
Curve BDomestic hot water 40 to 176°F (4 to 80°C)

13
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Water Flow (continued)
Technical Data

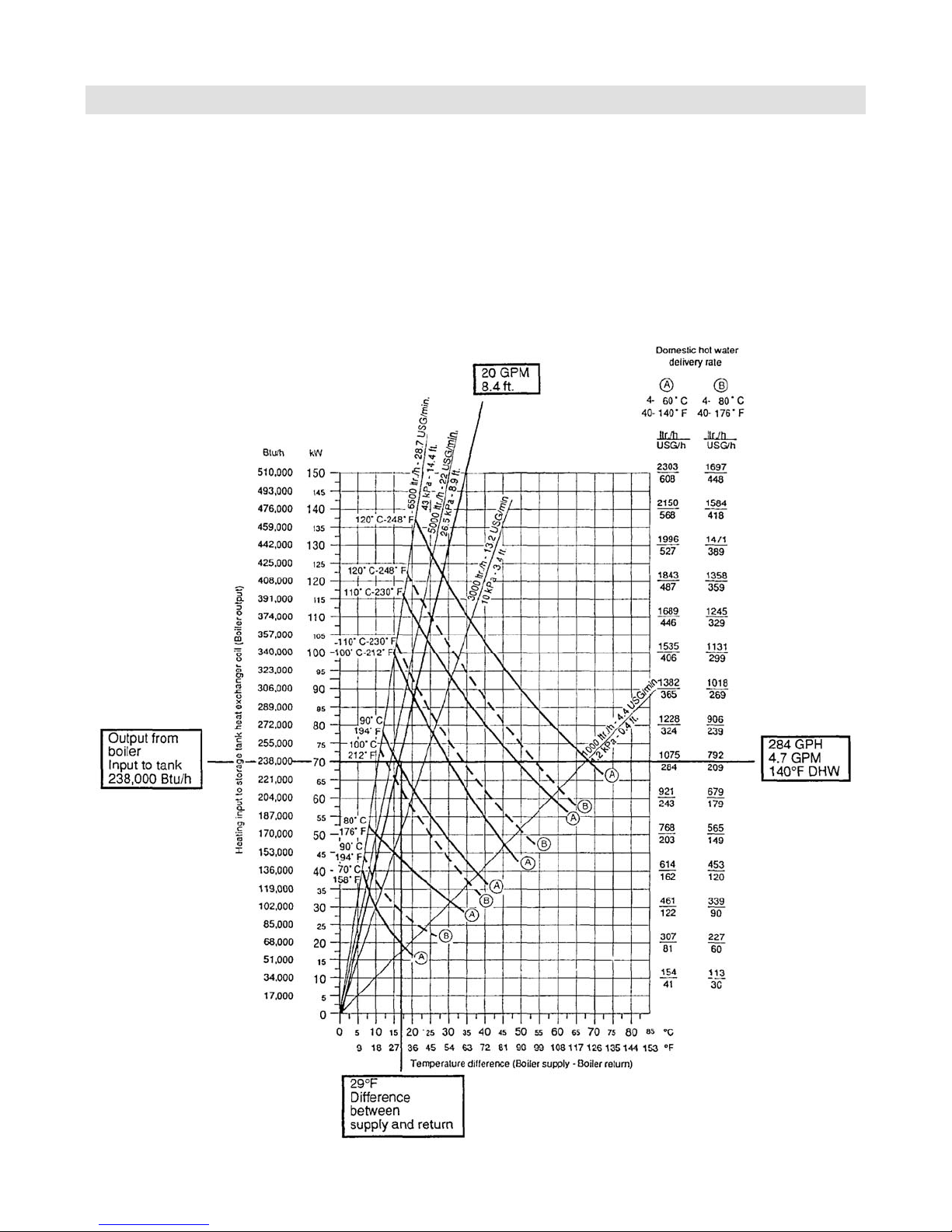

Example: Vitocell 300-V, 119 USG (450 L) capacity
Assume boiler output to tank is 238 MBH. Enter chart at left and draw horizontal line across to recovery rate of 284
GPH / 4.7 GPM for 140°F (60°C) domestic hot water under column A. Where the horizontal line intersects the 194°F
(90°C) curve is the point of intersection for the diagonal line used to size the pump. The diagonal line begins at the
origin and goes through the point of intersection extending up to the top of the chart. Read between the reference
diagonal lines to get a pump specification of 20 GPM at 8.4 ft. To summarize: For a Vitocell-V 300 with 119 USG
(450 L) capacity and 238 MBH input, the boiler water temperature is 194°F (90°C), difference between boiler return
and supply water temperature is 29°F (16°C), recovery rate is 4.7 GPM of 140°F (60°C) DHW, and the pump required
is 20 GPM, 8.4 ft. plus pressure drop in piping and boiler. If a multiple-tank application is required, i.e. 4 tanks at 238
MBH input each, then the pump selection would be (4 x 20 GPM) 80 GPM at 8.4 ft. plus piping pressure drop.

14
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Standard Equipment
Product Installation
119 USG (450 L) capacity
Domestic hot water tank of high-grade stainless steel
with wrap-around PET insulation with:
– thermometer and
– adjustable leveling bolts.
The following is packed separately and attached to
the crate:
– installation fittings package: with the necessary brass
adaptors, other necessary hardware
– sensor well with insulation
– temperature and pressure relief valve.
Synthetic wrap-around enclosure panel in a Vitosilver
finish.
This is a simplified conceptual drawing only!
Piping and necessary componentry must be field
verified. Proper installation and functionality in the
field is the responsibility of the heating contractor.
IMPORTANT

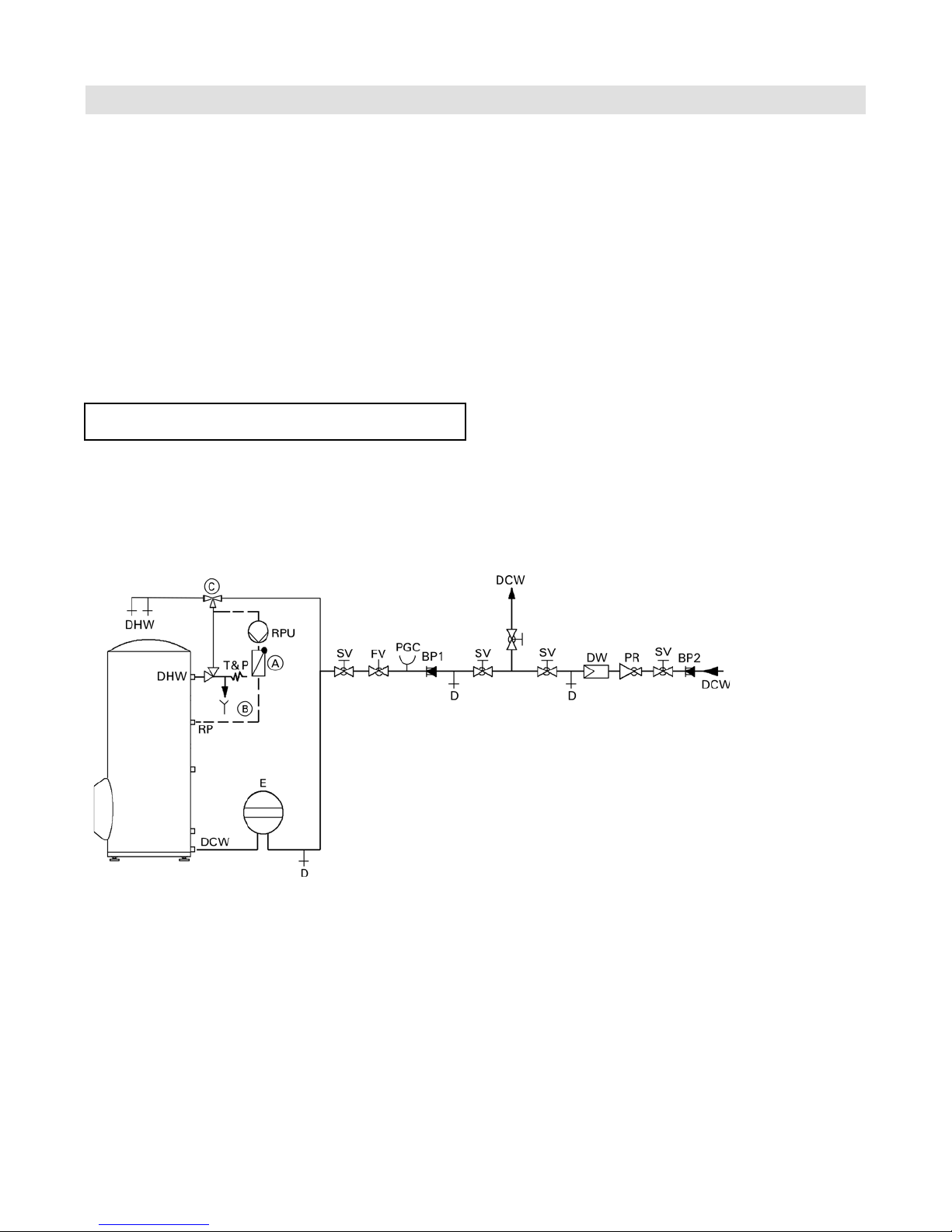

Domestic hot water connections
Legend
A Spring-loaded flow check valve
B Discharge pipe
C Anti-scald tempering valve (field supplied)
SV Shut-off valve
FV Flow check valve
PR Pressure reducing valve
D Drain
DCW Domestic cold water supply
PGC Pressure gauge connection
E Precharged expansion tank (required where
backflow preventer is installed; check local
plumbing codes and requirements)
BP1 Backflow preventer
BP2 Backflow preventer
T&P Temperature and pressure relief valve
DHW Domestic hot water supply
DW Water filter
RP Recirculation pipe
RPU Recirculation pump
53 USG (200 L) and 79 USG (300 L) capacity
Domestic hot water tank of high-grade stainless steel
with PUR Foam insulation with:
– thermometer and
– adjustable leveling bolts.
The following is packed separately and attached to
the crate:
– installation fittings package: with the necessary
brass adaptors, other necessary hardware
– sensor well with insulation
– temperature and pressure relief valve.
Electrostatically powder coated sheet metal enclosure
panel in a Vitosilver finish.

15
5672 342 - 02
Vitocell 300-V, EVI Series Technical Data
Sensor well
The supplied stainless steel sensor wells are to be used
for control sensors to ensure maximum operational safety.
Should the supplied sensors not fit into the sensor wells,
other stainless steel sensor wells must be used.
For solar heating systems, Viessmann recommends
placement of the DHW tank temperature sensor in the
solar collector return. This requires a brass elbow with
sensor well included in the accessory pack.
Heating water supply temperature over 230ºF (110ºC)
For these operating conditions, an approved high limit
safety aquastat must be installed to limit the domestic
hot water temperature to 203°F (95°C) in the tank.
Recirculation tapping
The recirculation tapping is on a separate tapping (see
page 5). Cap this opening if the tank is not installed
with recirculation.
Backflow preventers
Where backflow preventers are required, a domestic
water expansion tank installation is recommended in
the cold water inlet piping before the cold water enters
the Vitocell. For the backflow device, observe local
plumbing codes and regulations.
WARNING
To ensure optimum, safe operation, the supplied stainless
steel well must be installed. The well diameter is large
enough to accommodate a wide variety of sensing bulbs.
Always use spring clip to ensure proper contact of
capillary bulb against the stainless steel well for proper
sensing/heat transfer!
Warranty consideration
Viessmann DHW tanks require that the water heated
should be of drinking water quality and that any water
treatment equipment in use must function correctly.
If the product has been improperly installed or misapplied
by the installer, contractor or final user, Viessmann
accepts no responsibility for damage howsoever caused
and reserves the right to withdraw the product warranty.
In order to qualify for product warranty, strict adherence
to the installation and service manuals must be observed.
In the event that components not approved by Viessmann
are utilized, Viessmann reserves the right to withdraw all
expressed or implied warranties without written notice.
The water to be heated with the Vitocell must be drinking
(potable) water quality. If the tank is used to heat other
media, the warranty will be null and void. Damage
resulting from excessive pressure or temperature is
clearly not the responsibility of Viessmann.
The amount of chloride and sulfate acceptable to the tank
is limited. In areas where high concentrations of chloride
and sulfate are present in drinking water, please consult
Viessmann for directions.
For full warranty details, please read the product warranty
sheet.
Storage
capacity
USG
(L)
53
(200)
79
(300)
119
(450)
a
b
in.
(mm)
in.
(mm)
8¾
(220)
7¾
(200)
8¾
(220)
7¾
(200)
13
(330)
12a
(310)
Product Installation
System Design Guidelines
Temperature and pressure relief valve
A 150 psi temperature and pressure relief valve (T&P
relief valve) is supplied with the tank. The heating
contractor must install the valve on each tank in a
method meeting code requirements. If local codes require
a different relief valve, substitute the manufacturer’s
supplied valve. The tank is approved for 100 psig where
a Canadian Registration Number (CRN) is required.
Maximum operating pressure is 150 psig.
The T&P relief valve supplied with the tank is tested
under ANSI Z21.22 Code for Relief Valves and Automatic
Gas Shut-off Devices for Hot Water Supply Systems.
T&P Valve 100 psig (where
CRN is required)
150 psig
ASME pressure
steam rating
see ratings marked on T&P valve
CSA temperature
steam rating
205 MBH 205 MBH
Relief
temperature
210°F (99°C) 210°F (99°C)
Inlet thread c” male c” male
Outlet thread c” female c” female

5672 342 - 02 Technical information subject to change without notice. Printed on environmentally friendly
(recycled and recyclable) paper.
Vitocell 300-V, EVI Series Technical Data
