Viessmann Vitosol 111-F Operating instructions

Service instructions
for contractors
VIESMANN
Vitosol 111-F
Type TS1
Thermosiphon solar thermal system with 150, 200 l DHW cylinder and 1 flat-plate
collector
Thermosiphon solar thermal system with 300 l DHW cylinder and 2 flat-plate
collectors
For applicability, see the last page
VITOSOL 111-F
5786 170 GB 7/2016 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of Practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of your
system.
Replace faulty components with genuine
Viessmann spare parts.
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions
5786 170 GB

3
1. Information Symbols ................................................................................................. 4
Intended use .......................................................................................... 4
Product information ................................................................................ 5
2. Commissioning, inspec-
tion, maintenance
Steps - commissioning, inspection and maintenance ............................ 8
3. Parts lists Ordering parts ........................................................................................ 13
Parts list for 150/200 l cylinder ............................................................... 14
Parts list for 300 l cylinder ...................................................................... 16
4. Commissioning/service
reports
................................................................................................................ 18
5. Specification ................................................................................................................ 19
6. Shutdown Final decommissioning and disposal ..................................................... 21
7. Certificates Declaration of conformity ....................................................................... 22
Index
Index
5786 170 GB

4
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
The steps in connection with commissioning, inspec-
tion and maintenance are found in the "Commission-
ing, inspection and maintenance" section and identified
as follows:
Symbol Meaning
Steps required during commissioning
Not required during commissioning
Steps required during inspection
Not required during inspection
Steps required during maintenance
Not required during maintenance
Intended use
The appliance is only intended to be installed and
operated in sealed systems or solar thermal systems
that comply with EN 12976 and EN 12977, with due
attention paid to the associated installation, service
and operating instructions. DHW cylinders are only
designed to store and heat water of potable water
quality. Only operate the solar collectors with heat
transfer medium approved by the manufacturer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for purposes other
than heating a building or DHW shall be deemed inap-
propriate.
Any usage beyond this must be individually approved
by the manufacturer.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also applies if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Information
Symbols
5786 170 GB
Information

5
The thermosiphon solar thermal system consists of a
flat-plate collector with highly selective coating and an
enamelled DHW cylinder for DHW heating. A magne-
sium anode and an immersion heater are fitted in the
DHW cylinder.
The Vitosol 111-T can be installed on flat roofs and
pitched roofs.
The fixing systems for flat roof installation are available
for installation angles 15°, 30° and 45°.
Fig. 1

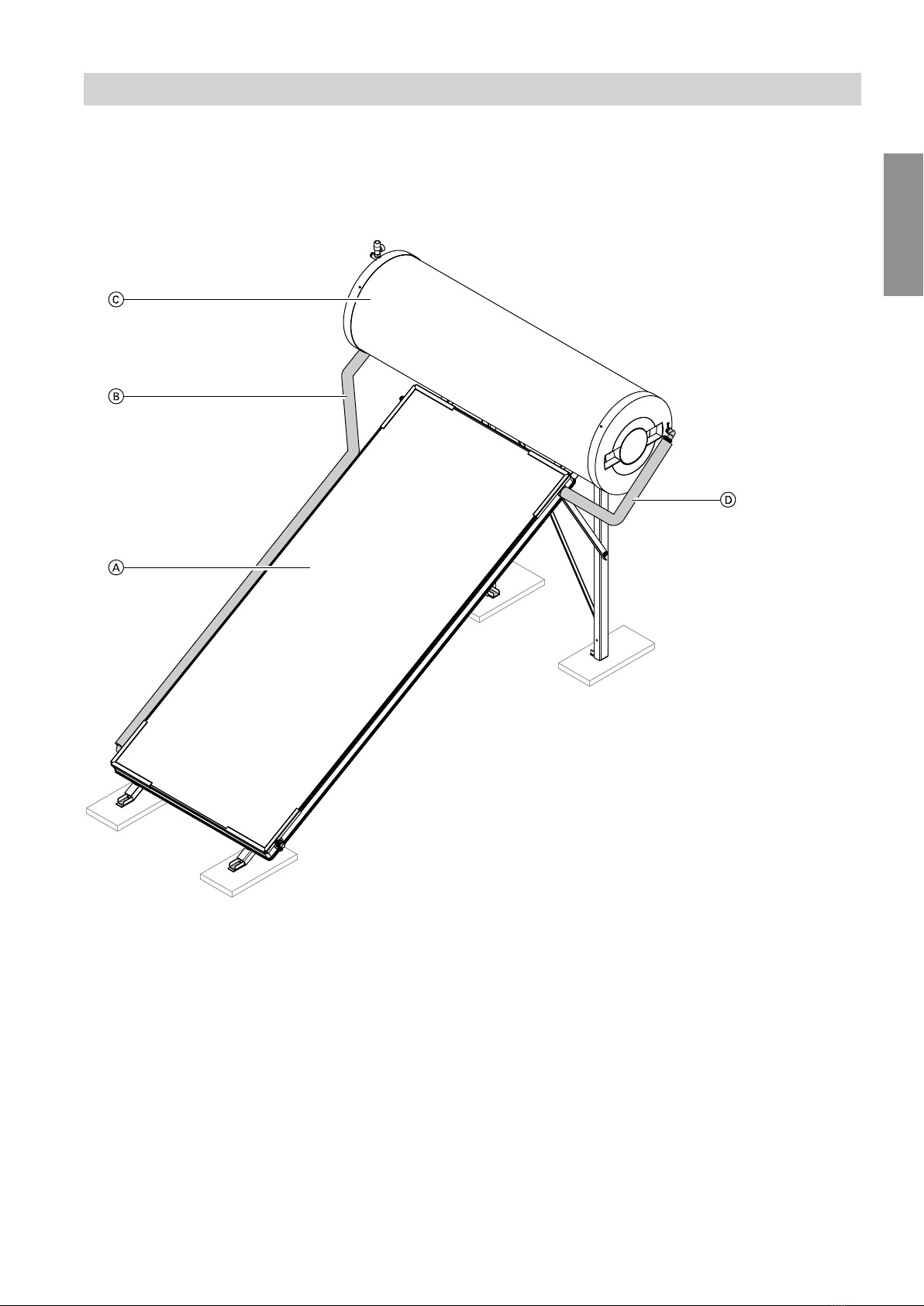

AFlat-plate collector
BSolar return line
CDHW cylinder
DSolar flow line
Information
Product information
5786 170 GB
Information

6
C
D
B
A
Fig. 2
AFlat-plate collector
BSolar return
CDHW cylinder
DSolar flow
Information
Product information (cont.)
5786 170 GB
Information

7
A
B
C
D
Fig. 3

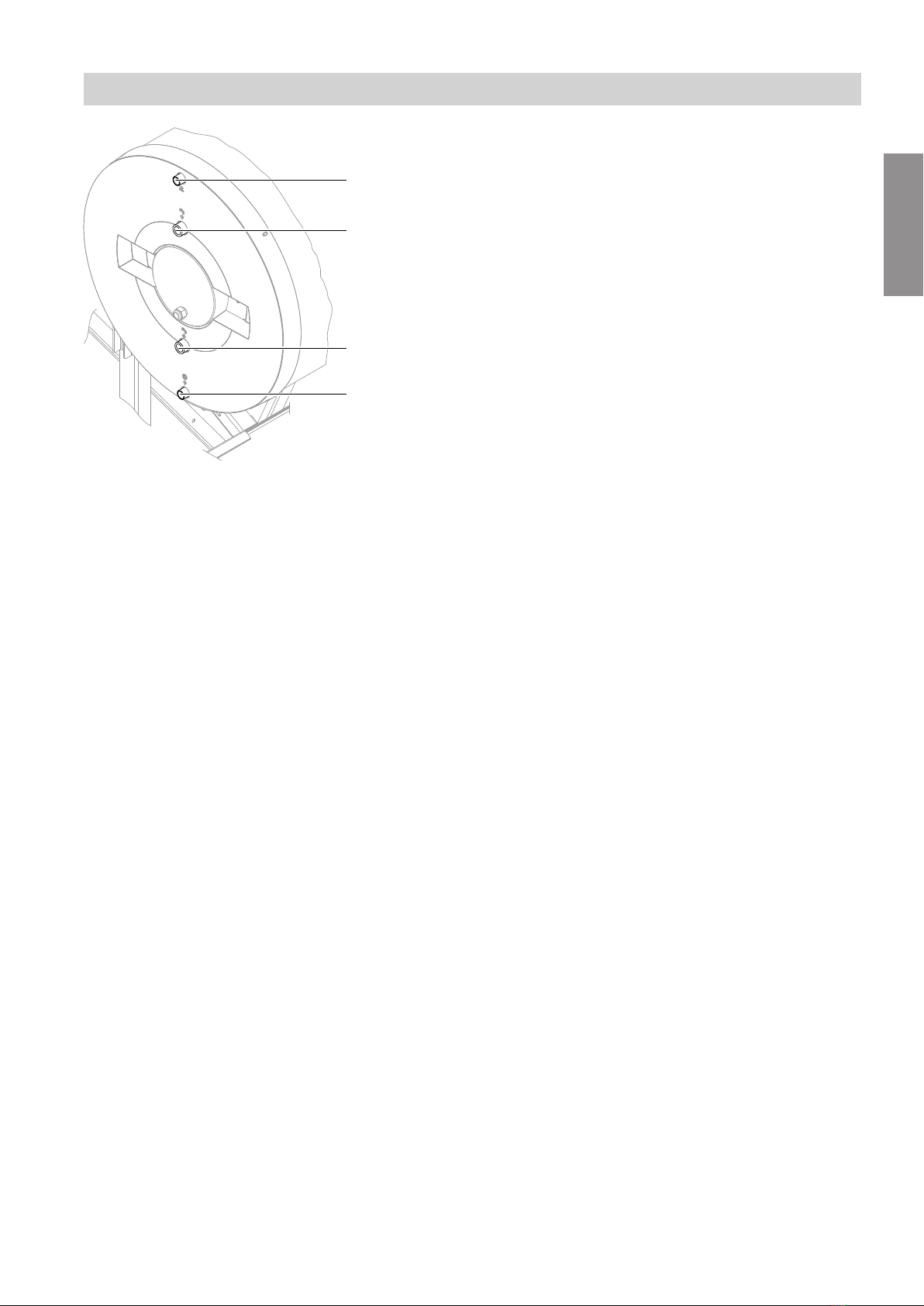

ASafety valve, 3 bar (0.3 MPa) and air vent valve
BDHW connection and pressure/temperature safety
valve, 10 bar (1 MPa)/90 °C (T&P valve)
CCold water connection, potable water
DSolar return
Information
Product information (cont.)
5786 170 GB
Information

8
Commissioning steps
Inspection steps
Maintenance steps Page
•1. Checks................................................................................................................................. 9
•2. Filling the DHW cylinder on the DHW side...................................................................... 9
• • 3. Filling the DHW cylinder on the solar side...................................................................... 9
• • 4. Inspection and maintenance............................................................................................. 9
• • 5. Shutting down the system................................................................................................. 9
• • 6. Checking the safety valve function
• • 7. Cleaning the inside of the DHW cylinder......................................................................... 10
• • 8. Checking and replacing the magnesium anode (if required)......................................... 10
• • 9. Returning the DHW cylinder to use.................................................................................. 11
• • 10. Checking connections on the water side for tightness
• • 11. Checking the thermal insulation of the cold water and DHW pipes
Commissioning, inspection, maintenance
Steps - commissioning, inspection and maintenance
5786 170 GB

9
■Has the safety valve (T&P valve) been installed?
■Has the hot water drain been installed so that any
discharged hot water or steam cannot present a risk
to individuals?
■Has the hot water drain been installed so that any
discharged hot water or steam cannot damage the
system and materials in or on the building?
■Has an automatic thermostatic mixing valve for limit-
ing the temperature to 60 °C been installed?
Filling the DHW cylinder on the DHW side
1. Fill the DHW cylinder on the DHW side.
Note
If the DHW cylinder is pressurised, retighten the
flange cover with a torque of 25 Nm.
2. Check the fittings on the DHW side and the immer-
sion heater for leaks. If required retighten fittings.
3. Check the function of the safety valves according
to the manufacturer's instructions.
Filling the DHW cylinder on the solar side

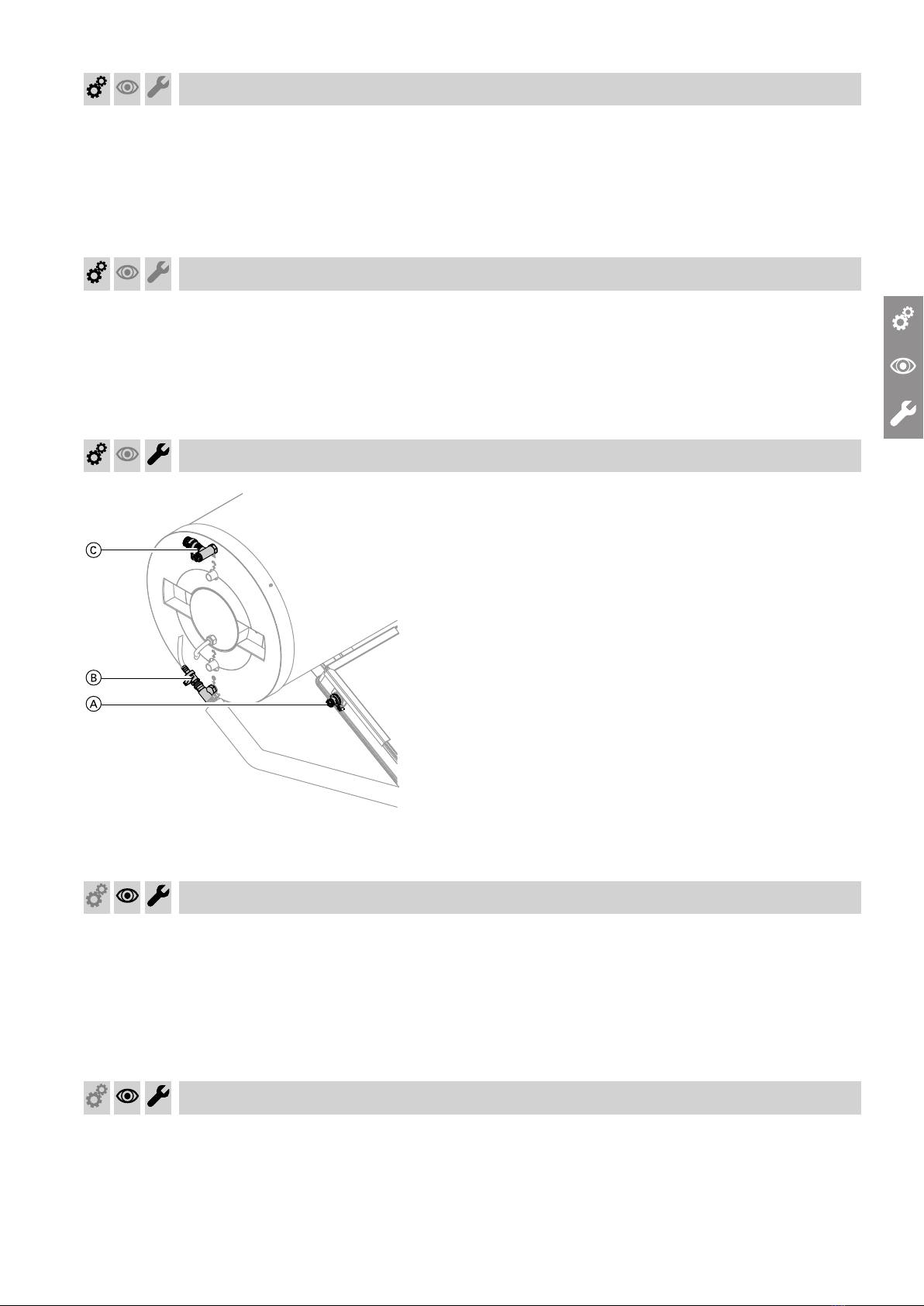

Fig. 4
1. Remove the closure on the container with heat
transfer medium and replace with the closure sup-
plied.
2. Make the hose connection between fill valve B on
the DHW cylinder and the container with heat
transfer medium.
3. Position the canister above the DHW cylinder.
4. Open fill valve B.
5. Vent the following while filling:
■DHW cylinder at air vent valve C
■Collectors at air vent valve A
Inspection and maintenance
When carrying out maintenance work, cover the col-
lector to protect the components from thermal loads.
DIN 1988 requires a visual inspection and (if neces-
sary) cleaning of the DHW cylinder no later than 2
years after commissioning, and thereafter according to
requirements.
Note
We additionally recommend that the function of the
magnesium anode is checked annually. For removing
the magnesium anode, see page 10.
Shutting down the system
Cover the collectors. Switch OFF the immersion heater
and safeguard against reconnection.
Commissioning, inspection, maintenance
Checks
5786 170 GB

10
Cleaning the inside of the DHW cylinder
8x
2x
Fig. 5

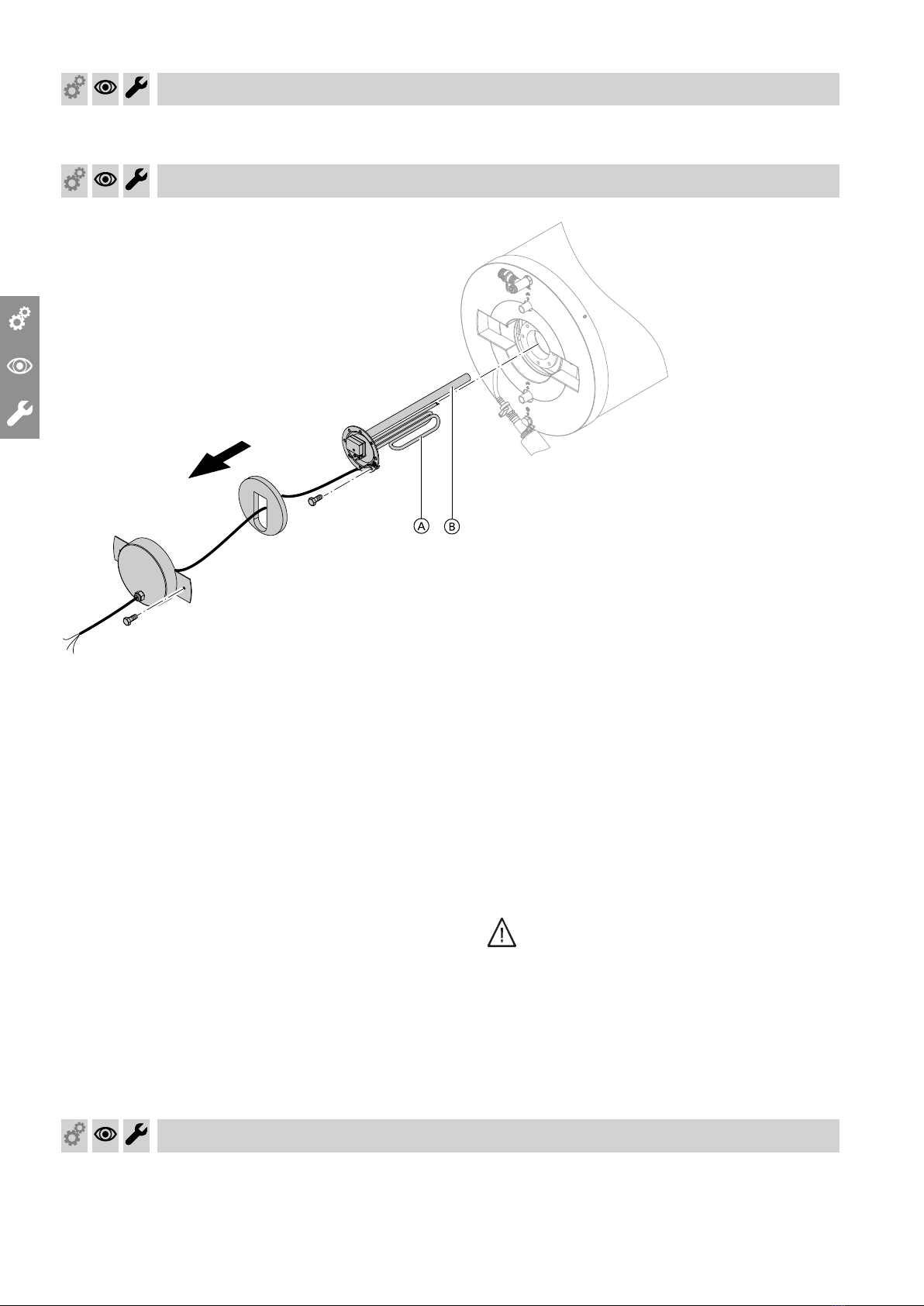

AImmersion heater
BMagnesium anode
1. Drain the DHW cylinder on the DHW side.
2. Open the DHW cylinder.
3. To prevent cleaning agents and contaminants
entering the pipework, separate the DHW cylinder
from the pipework.
4. Remove loose deposits with a high pressure
cleaner.
!Please note
Pointed or sharp cleaning tools will damage
the cylinder interior.
Only use plastic tools to clean the inside.
5. Use a chemical cleaning agent to remove hard
deposits that cannot be removed with a high pres-
sure cleaner.
!Please note
Cleaning agents containing hydrochloric acid
will attack the DHW cylinder material.
Never use such cleaning agents.
Danger
Cleaning agent residues can result in poi-
soning.
Always observe the information provided by
the cleaning agent manufacturer.
6. Fully drain all cleaning agent.
7. Flush the DHW cylinder thoroughly after cleaning.
Checking and replacing the magnesium anode (if required)
Check magnesium anode B. See Fig. 5.
We recommend replacing the magnesium anode if the
7 of the anode is ≤ 10 to 15 mm.
Commissioning, inspection, maintenance
Checking the safety valve function
5786 170 GB

11
1. Connect the DHW cylinder to the pipework.
2. Close the DHW cylinder.
3. Fill the DHW cylinder on the DHW side. Retighten
the screws with a maximum torque of 25 Nm.
Checking connections on the water side for tightness
Checking the thermal insulation of the cold water and DHW pipes
Commissioning, inspection, maintenance
Returning the DHW cylinder to use
5786 170 GB

12
Commissioning, inspection, maintenance
Checking the thermal insulation of the cold water and DHW pipes
5786 170 GB

13
The following details are required when ordering parts:
■Serial no. (see type plate)
■Position number of the part (from this parts list)
Parts lists
Ordering parts
5786 170 GB
Components

14
0001 0002 0003 0004
0005 0006 0007 0008
0009 0010 0011 0012
0013 0014 0015 0016
0017 0018 0019 0020
0021

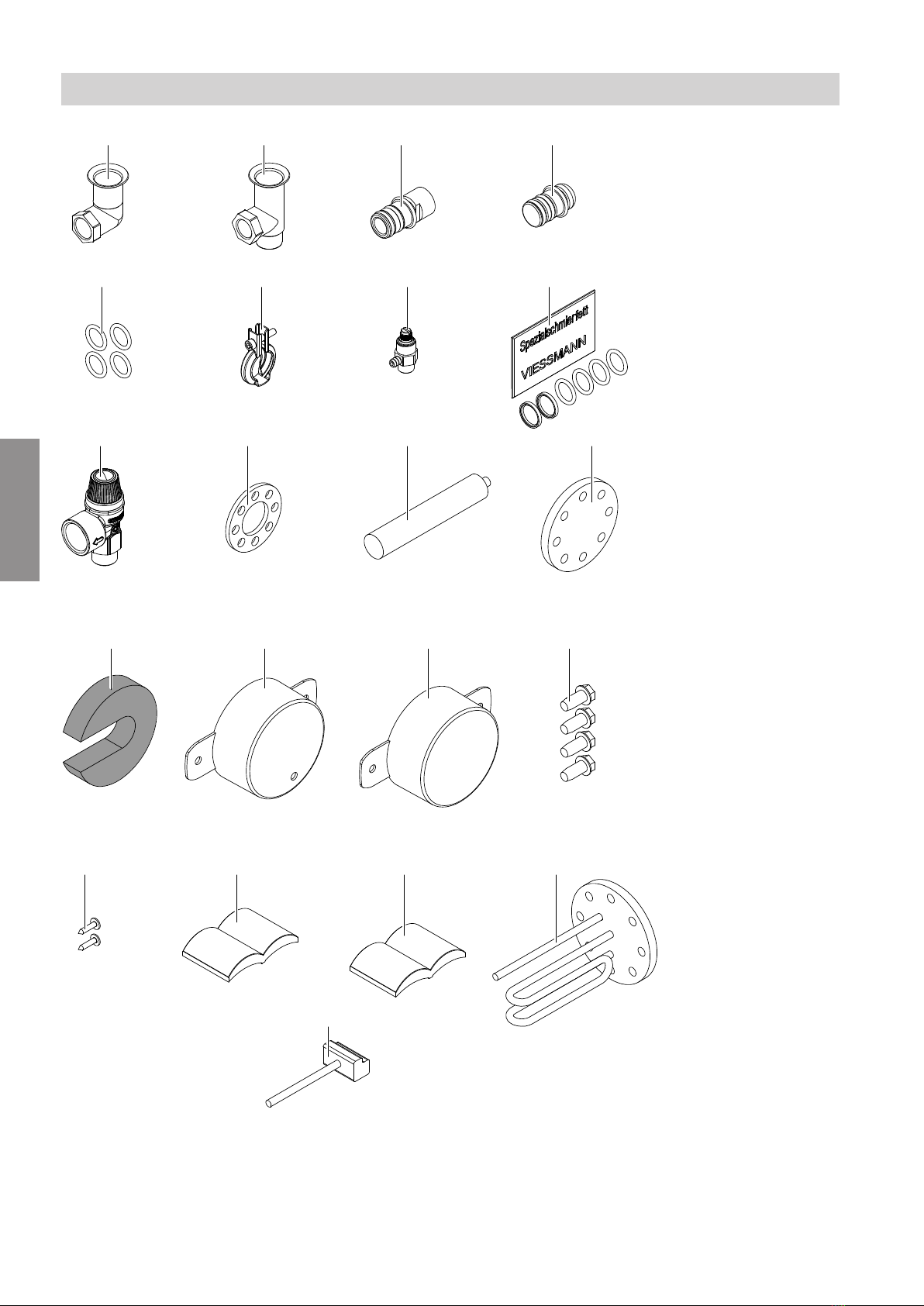

Fig. 6
Parts lists
Parts list for 150/200 l cylinder
5786 170 GB
Components

15
Pos. Part
0001 Elbow 90°
0002 Tee
0003 Connection pipe with O-ring
0004 Plug with O-ring
0005 O-rings
0006 Profile clip
0007 Air vent valve
0008 O-rings and guide rings
0009 Safety valve
0010 Immersion heater gasket
0011 Magnesium anode
0012 Flange
0013 Thermal insulation, flange
0014 Cover with aperture
0015 Cover without aperture
0016 Screws, flange
0017 Screws, cover
0018 Installation instructions
0019 Service instructions
0020 Immersion heater, 3.0 kW, 230 V~
0021 Temperature controller
Parts lists
Parts list for 150/200 l cylinder (cont.)
5786 170 GB
Components

16
0001 0002 0003 0004
0005 0006 0007 0008
0009 0010 0011
0012 0013 0014
0015 0016 0017 0018
0019 0020 0021
0022
0023
0024 0025
Fig. 7
Parts lists
Parts list for 300 l cylinder
5786 170 GB
Components

17
Pos. Part
0001 Elbow 90°
0002 Tee
0003 Connection pipe with O-ring
0004 Plug with O-ring
0005 O-rings (4 pce) 17.2 x 3 mm
0006 Profile clip
0007 Air vent valve
0008 O-rings (4 pce) 16 x 3 mm
0009 Safety valve
0010 Immersion heater gasket
0011 Magnesium anode
0012 Flange
0013 Thermal insulation, flange
0014 Cover with aperture
0015 Cover without aperture
0016 Screws, flange
0017 Screws, cover
0018 Installation instructions
0019 Service instructions
0020 Immersion heater, 3.0 kW, 230 V~
0021 Temperature controller
0022 Connection pipe
0023 Gasket, flange
0024 Cheese head screw, temperature controller
0025 Washer
Parts lists
Parts list for 300 l cylinder (cont.)
5786 170 GB
Components

18
Commissioning Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Maintenance/service Maintenance/service Maintenance/service
Date:
By:
Commissioning/service reports
Commissioning/service reports
5786 170 GB
Appendix

19
System size 150 l, 2 m2200 l, 2.3 m2300 l, 4 m2
DIN registration no. Applied for
Cylinder capacity l 150 200 300
Operating pressure on the DHW side bar
MPa
10
1
10
1
10
1
Drawable water volume
on a sunny day (insolation of 6.7 kWh/m2) with no
reheating
■Draw-off temperature 40 °C (V40) l 184 239 362
■Draw-off temperature 45 °C (V40) l 142 179 284
Thermal insulation Rigid PUR foam
System dimensions
■Height amm 2575 2875 2575
■Width c, overall width incl. connections mm 1460 1785 2200
■Depth h, incl. insulation 7 mm 550 550 685
■Total weight, excl. mounting frame kg 130 135 190
DHW cylinder dimensions
■Width bmm 1410 1735 1680
■Depth e7 mm 500 500 600
■Weight kg 70 90 110
Collector dimensions
■Height dmm 2066 2380 2066
■Collector width fmm 1056 1056 1056
■Depth gmm 70 70 70
■Weight kg 40 45 40
Absorber area m22.01 2.32 4.02
Aperture area m22.02 2.33 4.03
Connections
■DHW, side outlet tee G ¾G ¾G ¾
■Cold water R ¾R ¾R ¾
Immersion heater, pre-fitted, 230 V/50 Hz kW 3 3 3
Collector support angle, flat roof
45°
■Depth l
■Height k
mm
mm
1900
2125
2125
2345
1900
2220
30°
■Depth l
■Height k
mm
mm
2310
1705
2585
1835
2310
1795
15°
■Depth l
■Height k
mm
mm
2570
900
2870
1230
2570
1230
Space requirement on pitched roof a x c
Specification
Specification
5786 170 GB
Appendix

20
a
b
c
f
d
e

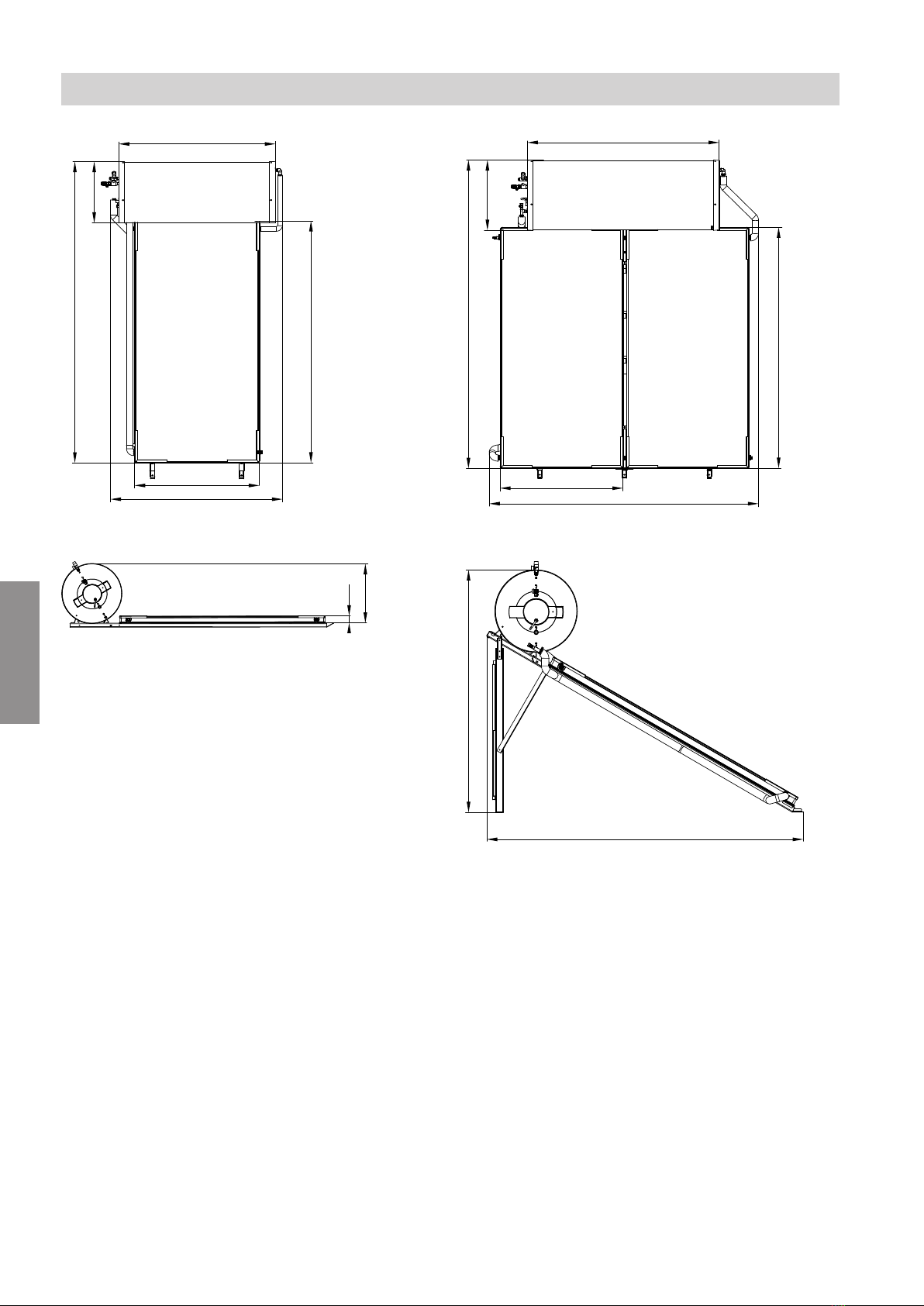

Fig. 8
a
b
c
f
d
e
Fig. 9
g
h
Fig. 10
l
k
Fig. 11
Specification
Specification (cont.)
5786 170 GB
Appendix
