Viessmann VITOCELL 300B Operating instructions

Service instructions
for contractors
VIESMANN
Vitocell 300-B
Type EVB
DHW cylinder, 300 and 500 l
Vitocell 300-V
Type EVI
DHW cylinder, 200 to 500 l
For applicability, see the last page
VITOCELL 300-B
VITOCELL 300-V
5607 062 GB 9/2013 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations
Observe the following when working on this system:
■National installation regulations
■Statutory regulations regarding the prevention of
accidents
■Statutory regulations regarding environmental pro-
tection
■The Code of Practice of relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, VDE and all locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI and SWKI
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close all doors in the living space.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other causes. Ensure a sufficient supply of
combustion air.
Instruct system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an insuffi-
cient supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in proper working
order. Apertures for supplying combustion air
must be non-closable.
Extractors
Operating appliances that extract air to the outside
(cooker hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to reverse flow of the
flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Fit an interlock circuit or take suitable steps to
ensure a sufficient supply of combustion air.
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Danger
Hot surfaces can cause burns.
■Before maintenance or service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Before beginning work, touch earthed objects,
such as heating or water pipes, to discharge
static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Faulty components must be replaced with origi-
nal Viessmann spare parts.
Safety instructions
Safety instructions
5607 062 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate the warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions
Safety instructions (cont.)
5607 062 GB

4
1. Intended use .................................................................................................................. 5
2. Commissioning, inspec-
tion, maintenance
Steps - commissioning, inspection and maintenance ............................ 6
3. Parts lists, type EVI, 200 l
and 300 l
Ordering parts ........................................................................................ 10
Overview of the assemblies ................................................................... 10
Cylinder assembly incl. thermal insulation ............................................. 10
Flanged immersion heater assembly ..................................................... 11
4. Parts lists, type EVI, 500 l Ordering parts ........................................................................................ 13
Overview of the assemblies ................................................................... 13
Cylinder assembly ................................................................................. 14
Thermal insulation assembly ................................................................. 14
Flanged immersion heater assembly ..................................................... 15
5. Parts lists, type EVB, 300 l Ordering parts ........................................................................................ 17
Overview of the assemblies ................................................................... 17
Cylinder assembly incl. thermal insulation ............................................. 17
Flanged immersion heater assembly ..................................................... 18
6. Parts lists, type EVB, 500 l Ordering parts ........................................................................................ 20
Overview of the assemblies ................................................................... 20
Cylinder assembly ................................................................................. 21
Thermal insulation assembly ................................................................. 21
Flanged immersion heater assembly ..................................................... 22
7. Commissioning/service
reports
.................................................................................................................. 24
8. Product characteristics .................................................................................................................. 25
9. Accessories Accessory specification ......................................................................... 26
■Immersion heater ................................................................................ 26
10. Certificates Declaration of conformity ....................................................................... 27
Index
Index
5607 062 GB

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
Intended use
5607 062 GB

6
Commissioning steps
Inspection steps
Maintenance steps Page
•1. Filling the DHW cylinder...................................................................................................... 7
• • 2. Inspection and maintenance............................................................................................... 7
• • 3. Shutting down the system
• • 4. Checking the sensor wells for leaks
• • 5. Checking the function of safety valves
• • 6. Cleaning the inside of the DHW cylinder........................................................................... 8
• • 7. Returning the DHW cylinder to use.................................................................................... 9
• • 8. Checking connections and sensor wells on the water side for leaks
Commissioning, inspection, maintenance
Steps - commissioning, inspection and maintenance
5607 062 GB

7
1. Fill the DHW cylinder from the DHW side.
Note
If the DHW cylinder is pressurised, tighten the
flange cover with a torque of 40 Nm.
The cylinder locking cap does not need to be tight-
ened.
2. Check the fittings on the heating water and DHW
sides for leaks and tighten if required.
3. Check sensor wells for leaks and tighten if required.
4. Check the function of the safety valves according to
the manufacturer's instructions.
Inspection and maintenance
DIN 1988 requires a visual inspection and (if neces-
sary) cleaning no later than two years after the cylinder
has been commissioned, and thereafter according to
requirements.
Shutting down the system
Checking the sensor wells for leaks
Checking the function of safety valves
Commissioning, inspection, maintenance
Filling the DHW cylinder
5607 062 GB

8
F
H
H
A
G
E
B
C
C
D

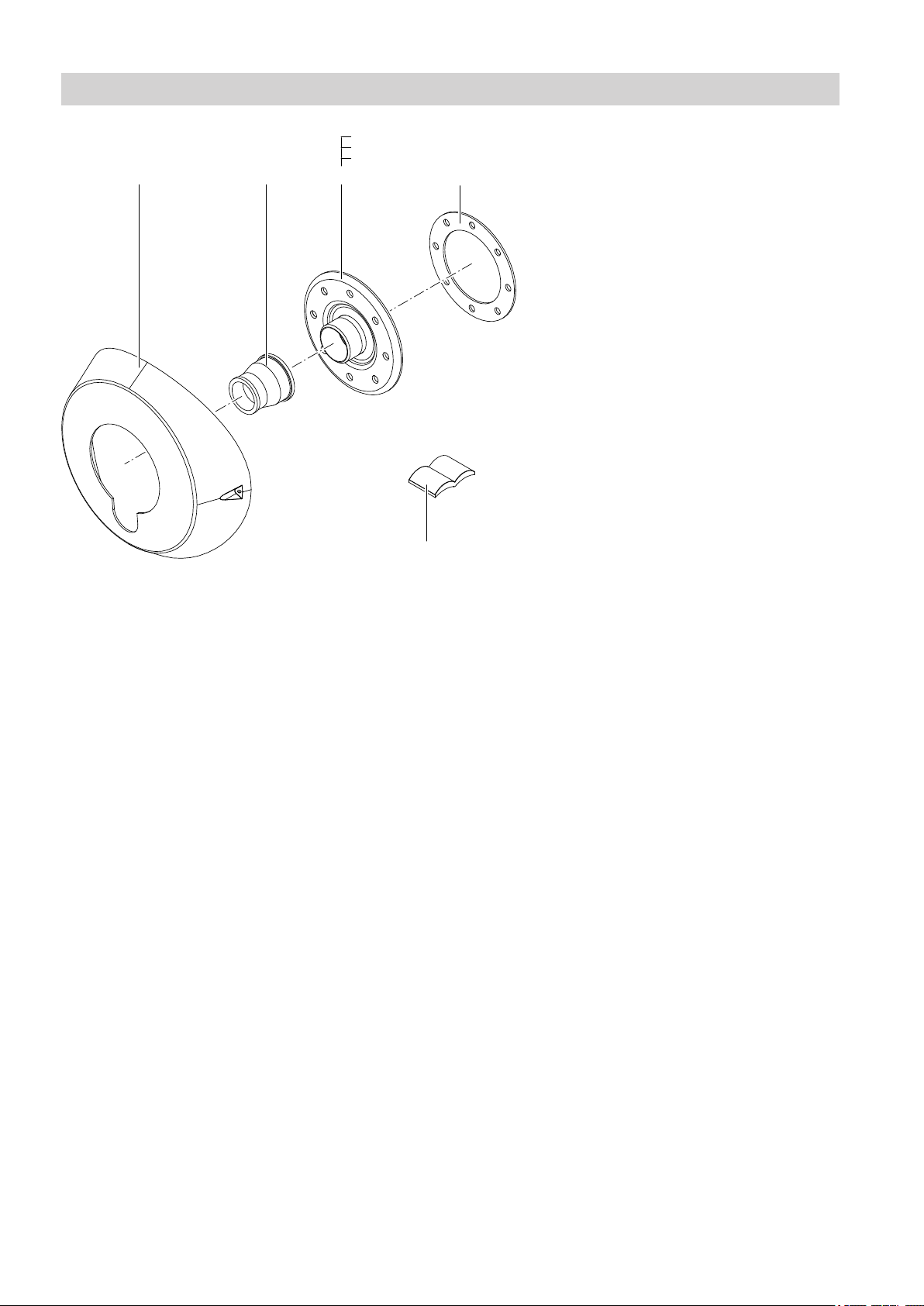

Fig. 1
1. Drain the DHW cylinder from the DHW side.
2. Remove top panel A, cover B, thermal insulation
mats C and thermometer sensor D.
3. Remove flange cover E and cylinder locking cap
F with stainless steel circular blank G and gas-
kets H.
4. Disconnect the DHW cylinder from the pipe system
to prevent cleaning agent and contamination from
entering the pipework.
5. Remove loose deposits with a high pressure
cleaner.
!Please note
Pointed or sharp cleaning equipment will
damage the cylinder interior.
Only use plastic tools to clean the inside.
6. Use a chemical cleaning agent to remove hard
deposits that cannot be removed with a high pres-
sure cleaner.
!Please note
Cleaning agents containing hydrochloric acid
attack the material of the DHW cylinder.
Never use such cleaning agents.
Danger
Cleaning agent residues can result in poi-
soning.
Always observe the information provided by
the cleaning agent manufacturer.
7. Fully drain any cleaning agent.
8. Flush the DHW cylinder thoroughly after cleaning.
Commissioning, inspection, maintenance
Cleaning the inside of the DHW cylinder
5607 062 GB

9
F
H
H
A
G
E
B
C
C
D
Fig. 2
1. Reconnect the DHW cylinder to the pipework.
2. Insert new gaskets H at flange cover E and cylin-
der locking cap F.
3. Refit flange cover E and cylinder locking cap F
with stainless steel circular blank G and tighten
with the required torque.
■Cylinder locking cap: 160 Nm
■Flange cover: 40 Nm
4. Fill the DHW cylinder from the DHW side.
5. If the DHW cylinder is pressurised, tighten the
screws on flange cover E with a torque of 40 Nm.
6. Refit thermometer sensor D, thermal insulation
mats C, cover B and top panel A.
Checking connections and sensor wells on the water side for leaks
Commissioning, inspection, maintenance
Returning the DHW cylinder to use
5607 062 GB

10
The following information is required:
■Serial no. (see Vitocell 300-V type plate A)
■Assembly (from this parts list)
■Position number of the individual part within the
assembly (from this parts list)
Standard parts are available from your local supplier.

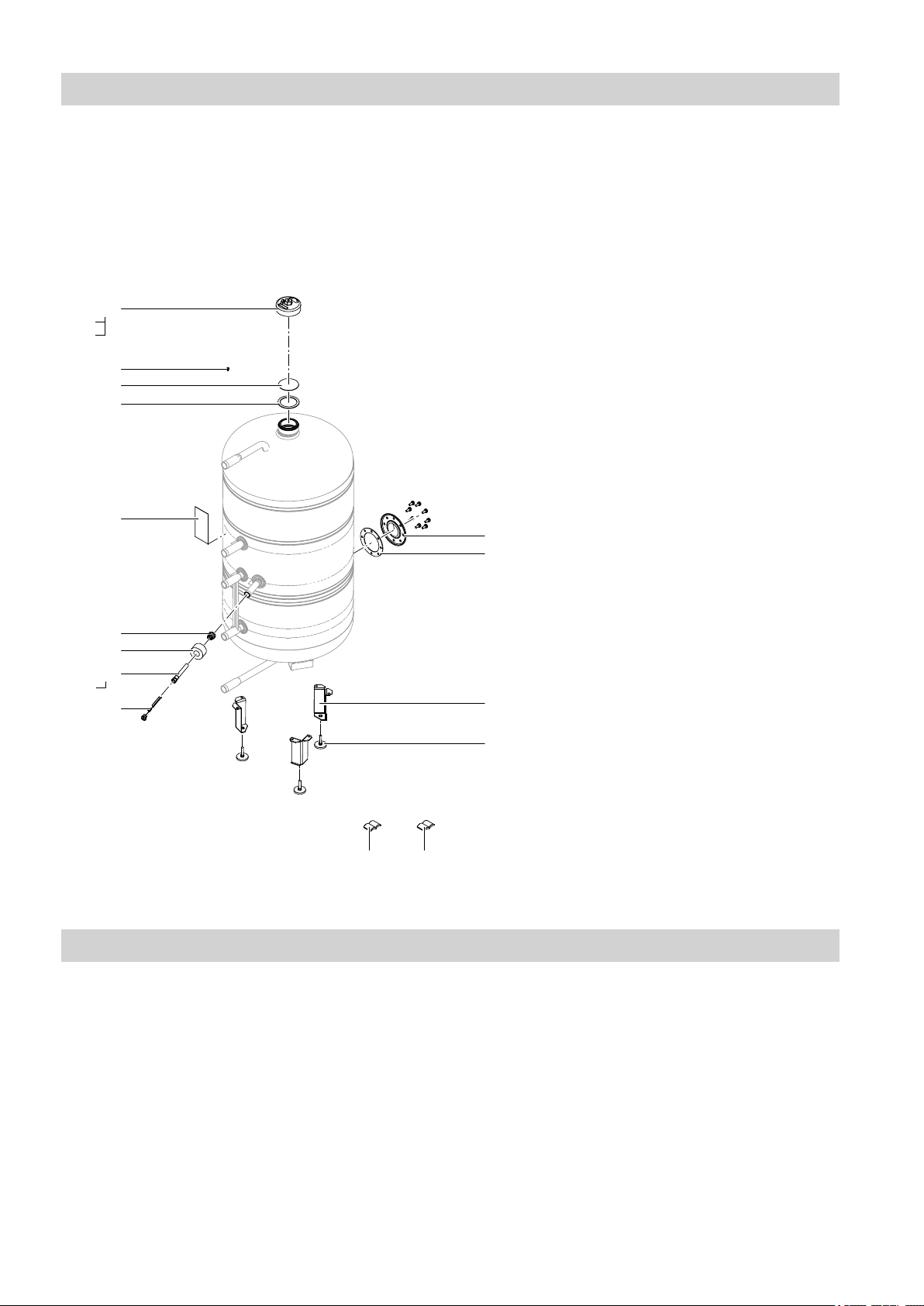

Overview of the assemblies
BC
A
Fig. 3
AVitocell 300 type plate
BCylinder assembly incl. thermal insulation
CFlanged immersion heater assembly
Cylinder assembly incl. thermal insulation
0001 Adjustable foot
0002 Sensor retainer
0003 Vitocell 300-V type plate
0004 Gasket
0005 Cylinder locking cap
0006 Clip
0007 Circular blank
0008 Sensor well with sensor retainer
0009 Thermometer 30 - 120 °C
0010 Viessmann logo
0011 Thermal insulation mat
0012 Top panel
0013 Sensor well thermal insulation
0014 Reducer
0015 Cover
0016 Thermal insulation mat
0017 Blank flange
0018 Gasket
0019 Installation instructions
0020 Service instructions
0021 Touch-up spray paint, Vitosilver
0022 Touch-up paint stick, Vitosilver
0023 Vitocell logo
0024 Viessmann logo
Parts lists, type EVI, 200 l and 300 l
Ordering parts
5607 062 GB

11
0012
0005
0011
0007
0004
0006
0007
0004
0003
0014
0013
0002
0001
0009
0018
0017
0016
0015
0022
0021
0020
0019
0024
0010
0002
0008
0023
Fig. 4
Flanged immersion heater assembly
0001 Gasket
0002 Flange cover
0003 Reducer
0004 Immersion heater fascia
0005 Flange installation instructions
Parts lists, type EVI, 200 l and 300 l
Cylinder assembly incl. thermal insulation (cont.)
5607 062 GB

12
0005
0001
0003
0001
0003 0002
0005
0004
Fig. 5
Parts lists, type EVI, 200 l and 300 l
Flanged immersion heater assembly (cont.)
5607 062 GB

13
The following information is required:
■Serial no. (see Vitocell 300-V type plate A)
■Assembly (from this parts list)
■Position number of the individual part within the
assembly (from this parts list)
Standard parts are available from your local supplier.
Overview of the assemblies
A
B C
D
Fig. 6
AVitocell 300-V type plate
BCylinder assembly
CThermal insulation assembly
DFlanged immersion heater assembly
Parts lists, type EVI, 500 l
Ordering parts
5607 062 GB

14
0001 Adjustable foot
0002 Sensor retainer
0003 Vitocell 300-V type plate
0004 Gasket
0005 Cylinder locking cap
0006 Clip
0007 Circular blank
0008 Gasket
0009 Flange cover
0010 Sensor well with sensor retainer
0011 Sensor well thermal insulation
0012 Reducer
0013 Support
0014 Installation instructions
0015 Service instructions
0002
0007
0004
0005
0006
0007
0004
0003
0012
0011
0010
0002 0013
0001
0009
0008
0015
0014
Fig. 7
Thermal insulation assembly
0001 Clip closure
0002 Thermal insulation jacket, right section
0003 Thermal insulation jacket, left section
0004 Thermal insulation mat, top
0005 Thermal insulation mat, bottom
0006 Cover
0007 Cover strip
0008 Thermometer cover
0009 Thermometer 30 - 120 °C
0010 Viessmann logo
0011 Cover strip
0012 Pipe collar with hole
0013 Flange cover
0014 Viessmann logo
0015 Pipe collar without hole
Parts lists, type EVI, 500 l
Cylinder assembly
5607 062 GB

15
0013
0001
0001
0012
0003
0009
0008
0007
0005
0002
0011
0004
0006
0010
0014
0014
0015
Fig. 8
Flanged immersion heater assembly
0001 Gasket
0002 Flange cover
0003 Reducer
0004 Immersion heater fascia
0005 Flange installation instructions
Parts lists, type EVI, 500 l
Thermal insulation assembly (cont.)
5607 062 GB

16
0005
0003
0001
0003 0002 0001
0005
0004
Fig. 9
Parts lists, type EVI, 500 l
Flanged immersion heater assembly (cont.)
5607 062 GB

17
The following information is required:
■Serial no. (see Vitocell 300-B type plate A)
■Assembly (from this parts list)
■Position number of the individual part within the
assembly (from this parts list)
Standard parts are available from your local supplier.
Overview of the assemblies
BC
A
Fig. 10
AVitocell 300-B type plate
BCylinder assembly incl. thermal insulation
CFlanged immersion heater assembly
Cylinder assembly incl. thermal insulation
0001 Adjustable foot
0002 Sensor retainer
0003 Vitocell 300-B type plate
0004 Gasket
0005 Cylinder locking cap
0006 Clip
0007 Circular blank
0008 Sensor well with sensor retainer
0009 Thermometer 30 - 120 °C
0010 Viessmann logo
0011 Thermal insulation mat
0012 Top panel
0013 Sensor well thermal insulation
0014 Reducer
0015 Cover
0016 Thermal insulation mat
0017 Flange cover
0018 Gasket
0019 Mini channel
0020 Installation instructions
0021 Service instructions
0022 Touch-up spray paint, Vitosilver
0023 Touch-up paint stick, Vitosilver
0024 Vitocell logo
0025 Viessmann logo
Parts lists, type EVB, 300 l
Ordering parts
5607 062 GB

18
0002
0007
0004
0012
0011
0005
0006
0007
0004
0019
0003
0014
0014
0013
0013
0008
0008
0002
0002
0001
0009
0009
0018
0017
0016
0015
0023
0022
0021
0020
0002
0024
0025
0010
Fig. 11
Flanged immersion heater assembly
0001 Gasket
0002 Flange cover
0003 Reducer
0004 Immersion heater fascia
0005 Flange installation instructions
Parts lists, type EVB, 300 l
Cylinder assembly incl. thermal insulation (cont.)
5607 062 GB

19
0005
0001
0003
0001
0003 0002
0005
0004
Fig. 12
Parts lists, type EVB, 300 l
Flanged immersion heater assembly (cont.)
5607 062 GB

20
The following information is required:
■Serial no. (see Vitocell 300-B type plate A)
■Assembly (from this parts list)
■Position number of the individual part within the
assembly (from this parts list)
Standard parts are available from your local supplier.
Overview of the assemblies
A
B C
D
Fig. 13
AVitocell 300-B type plate
BCylinder assembly
CThermal insulation assembly
DFlanged immersion heater assembly
Parts lists, type EVB, 500 l
Ordering parts
5607 062 GB
