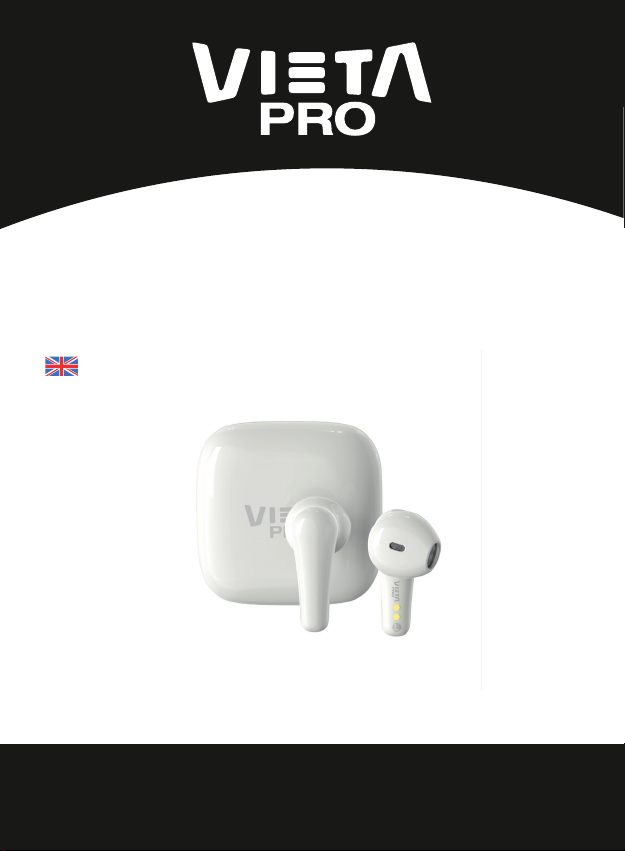

VIETA PRO VHP-TW24 User manual

USER MANUAL
VHP-TW24
Fit earphones
English
Thank you for purchasing the Fit earphones VHP-TW24.
To ensure correct operation, please read this manual carefully before use.
Have a problem
with your product?
Contact us at:
Email: [email protected]

www.vietapro.com
This product has been developed under the VIETA PRO
quality standards. For over 60 years, since its foundation in
1954 by the Vieta brothers, Vieta has always been guided by
the motto “Love and respect for the art of music”. It has
thus achieved a privileged position in the electronics
market, with constant eort and generous doses of
passion.
The VIETA PRO models are based on professional sound
standards, where quality, durability and sound are above
those in commercial products of consumer electronics.
They have been developed by the prestigious engineer
“Jordi Hernandez”, with more than 40 years in the sound
industry. Under his expert direction, the VIETA PRO
models are manufactured with the most precise
components, producing the purest VIETA PRO sound.

www.vietapro.com
Bluetooth earphones should be used with compatible
devices which supports Bluetooth wireless technology.
This will allow you to make calls and enjoy music freely at
any time.
Make sure that your equipment has an updated Bluetooth
5.0 protocol to correct communication with new earpho-
ne technologies and to be able to be used.
Please read this user manual carefully before using the
product as your smartphone’s manual regarding the use
and activation of the Bluetooth function.
Pay attention to the device safety and maintenance
recommendations and for safety reasons, keep the product
out of the reach of children. Keep it in a safe place for
future reference.

www.vietapro.com
Safety Information
a. There are voltage zones inside this unit that can cause injuries. Please
do not open the unit. In case of technical failure, please contact the
authorized service center.
b. Never place the unit in the rain or in moist zones so as to avoid a fire
or an electric shock.
c. If technical maintenance is required, please contact the authorized
service center.

www.vietapro.com
Caution
a. Do not place the unit on an unstable surface as it may fall and break or
cause damage to people or pets.
b. Disconnect the unit from the mains before cleaning it. Do not use
cleaning liquids or sprays. Use only a soft, damp cloth.
c. To avoid possible damage to the equipment, please unplug it during
storms or when it will not be used for a long time.
d. Do not insert any object into the unit through the loading ports as this
could cause a short circuit and start a fire. Do not pour liquid on the
earphone.
Power On and charging
a. Fully charge the built-in battery before using for the first time, which
will prolong the battery lifespan.
b. When the case battery (charging box) is fully charged, the green LED
next to the charging port will stop blinking (it blinks to inform about
charging mode) showing in green.

www.vietapro.com
1. Put the earphones inside the charge box.
2. Connect your smartphone's power adapter 5V to charge box using
USB Type C cable (included in the pack).
3. Verify that the charge box is charging: LED indicator shows the
blinking in green.
If the charging box is turned o due to running out of battery, the screen
will take between 3 or 5 minutes to enter the charging state.
4. A fully charge will take around 1 - 2 hours, the LED indicator will cease
blinking in green. You can disconnect the USB Type C cable.
5. Keep save the earphones into the charge box to will charge. It’s
recommended leave it for 1 -2 hours, so that the earphones are charged
to 100% to remains good them batteries.
When the battery of the earphones is below 10%, the voice prompt will
sound “Battery Low” and you must insert them into the charge box.
When the LED indicator inside the charge box turns Red, connect 5V
power again.
The charging indicator
cease flashing in green.
Charging finishing.
The charging indicator
flashing in green.
Under charging.

www.vietapro.com
Specifications
Charge box capacity 400 mAh.
Earphones battery 45 mAh.
Talking time 12 hours (50% Volume).
Play time 4 x 5h = 20h (50% Volume).
Input Power DC 5V/1A USB Type C.
Support phone system iOs, Android.
Audio format MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV, AIFF, AIFC.
Bluetooth version Bluetooth 5.0.
Transmission Distance 10m.
Charge time 1- 2 hours.
Model Name Vieta Pro Fit.

www.vietapro.com
Operations and features
1 Sound output.
Control panel.
Earphones charging points in the charging box.
USB Type C charging port.
Charging box battery level.
Green LED: 75%-100%
Blue LED: 11%-74%
Red blinks LED: 1%-10%
2
3
4
5
1
32
5
4

www.vietapro.com
Key Definition
Exit Voice Assistant One time touch “R” side.
Disconnect Bluetooth
pairing
Five times touch “L” side or “R” side.
Hang Up phone Call One time touch “L” side or “R” side.
Refuse phone Call Long press “L” side or “R” side.
Play / Pause One time touch “R” side.
Increase Volume Long press “R” side whole playing music.
Next song Double touch “R” side.
Previous song Double touch “L” side.
Active Voice Assistant One time touch “L” side.
Power OFF
When you insert the earphones in the charging box and close the charging
cover, they will turn o automatically.
When earphones are out of the charging box but remain inactive (standby
mode), insert to charging box to turn o and charge it.
If earphone not connected to the multimedia device (earphones waiting
for pair), it will automatically power o after 10 minutes.
IMPORTANT: It’s very important that if you’re not using the earphones,
keep them in the charging box.
Answer phone Call One time touch “L” side or “R” side.
Decrease Volume Long press “L” side whole playing music.
Power ON When you open the charging box cover, earphones will turn on automatically.

www.vietapro.com
Earphone pairing mode
1. Once earphones are charged, take it out of the charge box.
2. L/R turn on at the same time when you take them out of the
charge box and they will connect to each other automatically and
wait for the Bluetooth to be connected.
3. In media device (Smartphone/Computer/Tablet), you can search
for the reference Vieta Pro Fit and connect them. This procedure is
necessary only the first time you connect to the same device. After,
If saved the Bluetooth settings on the smartphone, when turn on the
Bluetooth in the smartphone, they will connect automatically.
It will pair successfully within 3 seconds with an indication sound to
show it connected.
If want to use the earphones on another smartphone or media
device (computer, tablet, laptop…) must first unlink the connection
they have established.

www.vietapro.com
You have two options to unpair the earphones from the device they
are paired:
1. Recommended: Disconnect the pairing on the BT device
2. Not recommended: Five time touch “L” side or “R” side to unpair
the connection (The earphones will inform about the order to unpair
to the paired device).
IMPORTANT
1. Bluetooth pairing named Vieta Pro Fit.
2. To Power O when the music is played, place it into the charging
box. At the moment, the earphones switch o.
When the cover of charging box is opened again, it powers on automa-
tically for connection.
3. Connect the mobile phone automatically after earphones power on.
If connection cannot be made automatically, disable and enable
Bluetooth on media device to find them and pair it. Also, can try
inserting and removing the earphones from the charging box to reset
them.
4. Please use a 5V charger with USB Type C cable included in the pack
(Smartphone or Tablet charger, or Computer USB port).

www.vietapro.com
Issuer’s name: FRAMASON AUDIO S.A
Address: Av. de Pau Casals 7, Entresuelo 2- 08021 Barcelona (España)
Tel: [phone]
CIF: A62829841
We declare under our own exclusive responsibility that the product:
• Description: True Wireless Earphones
• Brand: Vieta Pro
• Model: VHP-TW24
• Manufacturer: FRAMASON AUDIO S.A
• Manufacturing country: China
referred to in this declaration is in compliance with the essential norms and
standards
EN 55032:2015
EN 55035:2017
in conformity with the provisions of the Directive 2014/30/UE of the European
Parliament and of the Council of 29 de March of 2014.
Barcelona 1 November de 2020
Carlos Alberdi
Product Manager
Declaration of conformity

www.vietapro.com
