VIETA VPC550R User manual


CONTENTS
Installation...........................................3
DIN Front-Mount (Method A).................3
Installing the unit ...............................3
Removing the unit .............................4
DIN Rear-Mount (Method B).................5
Using the detachable front panel ......6
Wiring Connection..............................7
Operation.............................................8
Location of keys....................................8
Basic operation.....................................9
Switching on/off the unit....................9
Faceplate release..............................9
Sound adjustment .............................9
System setting...................................9
Loudness...........................................10
Display information............................10
Equalization.......................................11
Liquid crystal display.........................11
ESP function......................................11
Auxiliary input....................................11
Reset function...................................11
Radio operation ....................................11
Switching to radio mode....................11
Selecting the frequency band............11
Selecting station................................11
Automatic memory storing&
Program Scanning.............................11
Station storing ...................................12
RDS operation...................................12
CD operation.........................................13
Switching to CD mode.......................13
Selecting tracks.................................13
Pausing play......................................14
Previewing all tracks..........................14
Repeating the same track .................14
Playing all tracks in random...............14
Ejecting a disc...................................14
MP3 operation.......................................14
Switching to MP3 mode.....................14
Ejecting a disc...................................14
Selecting tracks in single step...........14
Selecting directory up/down ..............14
Pausing play......................................14
Previewing all tracks..........................14
Repeating the same track .................14
Playing all tracks in random...............14
Selecting tracks byAS/PS/D-AUD
button................................................14
Display information............................15
WMAoperation .....................................15
USB play operation...............................16
Supported MP3/WMA
Decoding modes...................................16
SD/MMC operation ...............................16
Disc notes.............................................16
Specification........................................18
Trouble shooting.................................19
2
Mute...................................................11

INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the normal
driving function of the driver.
Before installing the unit, connect the
wiring temporarily and make sure it is
all connected up properly and the unit
and the system work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.
If installation angel exceeds 30° from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, hot air, from the
heater, or where it would be subject to
dust, dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,
utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.
TAKEOUTSCREWBEFOREINSTALLATION
Before installing the unit, please remove
the two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of “to detach the front
panel”).
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
30
Take out screw
before installation.
3

INSTALLATION
they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.
6. Mount the sleeve by inserting it into the
opening of the dashboard and bend
open the tabs located around the sleeve
with a screwdriver. Not all tabs will be
able to make contact, so examine which
ones will be most effective. Bend open
the appropriate tabs behind the
dashboard to secure the sleeve in
place.
(1) Dashboard (2) Taps
7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
8. Slide the unit into the sleeve until it
locks into place.
9. To further secure the unit, use the
supplied metal strap to secure the
back of the unit in place. Use the
supplied hardware (Hex Nut (M5mm)
and Spring Washer) to attach one end
of the strap to the mounting bolt on the
back of the unit. If necessary, bend the
metal strap to fit your vehicle’s mounting
area. Then use the supplied hardware
(Tapping Screw and Plain Washer) to
attach the other end of metal strap to a
solid metal part of the vehicle under the
dashboard. This strap also helps ensure
proper electrical grounding of the unit.
Note: Install the short threading terminal
of the mounting bolt to the back of the
unit and the other long threading
terminal to the dashboard.
(1) Metal Strap; (2) Mounting Bolt;
(3) Hex Nut; (4) Spring Washer;
(5) Tapping Screw; (6) Plain Washer
10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install the
unit’s front panel (see the steps of “To
install the front panel”).
Removing the unit
1.Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2.Remove the metal strap attached to the
back of the unit (if attached).
3.Press the release button to remove the
front panel.
Outer Trim Ring
Front Panel
L Key Sleeve
R Key
4

INSTALLATION
4.Lift the top of the outer trim ring then pull
it out to remove it.
5.Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.
Dashboard or Console
Screw
Factory Radio
Mounting Bracket
Side View showing
Screw Holes marked
T, N
Screw
To fasten the unit to the factory radio
mounting brackets;
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
5

To Detach the Front Panel
1. Press the release ( ) button, then the
front panel will fold down.
OPEN
2. To remove the front panel, lift it up at a
small angle in a horizontal position, then
first pull out the right side and then pull
out the left side.
Front Panel The right side
3. For safekeeping, store the front panel in
the supplied protective case immediately
after being removed.
To Install the Front Panel
1.To install the front panel, first insert the
left side into proper position then insert
the right side into place.
The left side
Front Panel The right side
2.When the two sides are fixed into place,
push the front panel into the main unit.
3.Note that if the front panel fails to lock in
position properly, pressing the control
button may not function and the display
may be missing some segments. Press
the release button and then reinstall the
front panel again.
Precautions when handling
1. Do not drop the front panel.
2. Do not put pressure on the display or
control buttons when detaching or
re-installing the front panel.
3. Do not touch the contacts on the front
panel or on the main unit body. It may
result in poor electrical contact.
4. If any dirt or foreign substances are
adhered on the contacts, they can be
removed with a clean and dry cloth.
5. Do not expose the front panel to high
temperatures or direct sunlight.
6. Keep away any volatile agents (e.g.
benzene, thinner, or insecticides) from
touching the surface of the front panel.
7. Do not attempt to disassemble the front
panel.
USING THE DETACHABLE FRONT PANEL
Release button
6

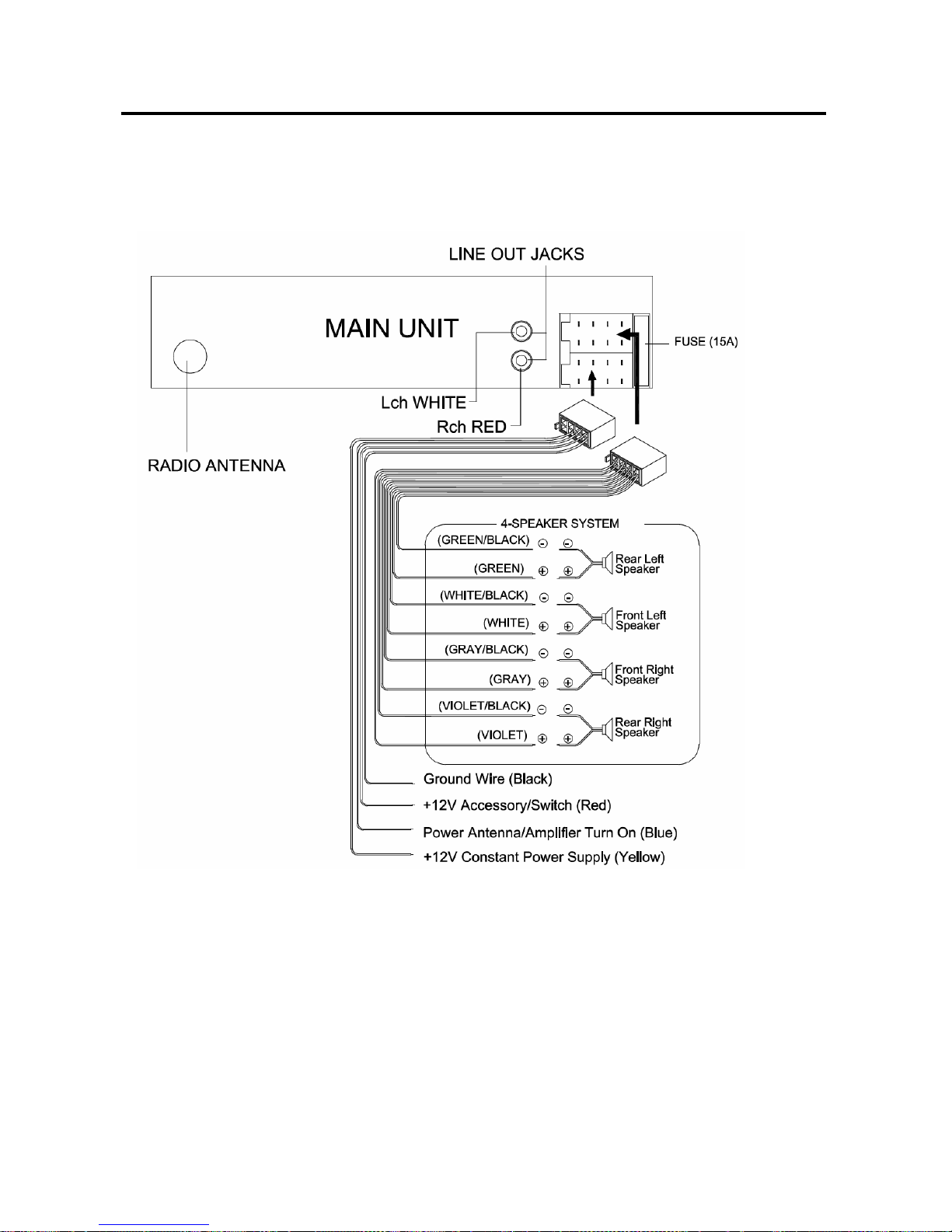

WIRING CONNECTION
FOR 4X40W SYSTEM
7

OPERATION
LOCATION OF KEYS
When the front panel is folded down:
1. Volume knob (when rotated)
SEL button (when pressed)
2. (release button)
3. BAND/LOUD/ENT button
4. MODE button
5. button
6. button
7. Liquid Crystal Display
8. 5 DIR- button
9. 4 SHF button
10. 1 PAU button
11. 1-6 preset buttons
12. 2 SCN button
13. 3 RPT button
14. button
15. 6 DIR+ button
16. USB interface
17. PTY button
18. EQ/MUT button
19. DISP button
20. AS/PS/D-AUD button
21. AF button
22. TA button
23. SD/MMC interface
24
.
AUX IN
25. Disc slot
26. Eject button
27. Reset button
8
111213432415
10
9
8
7
2
6145
117222120 191816

OPERATION
BASIC OPERATION
SWITCHING ON/OFF THE UNIT
Switch on the unit by pressing any button
(except button (26) and button
(2)). When system is on, press button
(14) to turn off the unit.
FACEPLATE RELEASE
Press button (2) to fold down the
removable faceplate.
SOUND ADJUSTMENT
Press SEL button (1) shortly to select the
desired adjustment mode. The adjustment
mode will change in the following order:
VOL BAS TRB BAL FAD
(Volume) (Bass) (Treble) (Balance) (Fader)
By rotating the volume knob(1)clockwiseor
counter-clockwise, it is possible to adjust the
desired sound quality.
SYSTEM SETTING
Press and hold SEL button (1) on the front
panel to enter system setting mode. Then
shortly press SEL button (1) to select the
item you want to change and rotate the
volume knob (1) to change the
corresponding setting.
1) BEEP ALL/OFF/2ND
Use the volume knob (1) to set Beep
sound ALL, OFF or 2ND.
- BEEP 2ND mode:
The beep is only generated when all
allowed double key is pressed long (1
sec).
e.g.
When preset button (11) is pressed.
When BAND/LOUD/ENT button (3) is
pressed.
When AS/PS (D-AUD) button (20) is
pressed.
- BEEPALL mode:
The beep is generated when every key
is pressed.
- BEEP OFF mode:
The beep is disabled.
2) AREA EUR/USA
Use the volume knob(1) to set EUR
or USA area frequency spacing.
When set AREA EUR, the button (21)
is AF function; when set AREA USA,
the button (21) has no function.
3) TAALARM/SEEK
Use the volume knob (1) to set TA
ALARM or TA SEEK.
- TA SEEK mode:
When newly tuned station does not
receive TP information for several
seconds, the radio retunes to next
station which has not the same
station (PI) as the last station, but
has the TP information.
When TP information gets lost at the
current station for retune time which
is set by RETUNE SHORT (30 sec.)
or RETUNE LONG (90 sec.), the
radio start to retune to next same PI
station. When same PI station does
not catch in 1 cyclic search, the radio
retunes to next station with TP
information.
- TAALARM mode:
When this mode is selected, any
automatic retune mode is not
activated. Only double beep sound
(ALARM) is output.
When newly tuned station does not
have TP information for several
seconds, beeps come out.
When TP information gets lost at the
current station for retune time, the
beep sound is out-putted.
When newly tuned station has not
RDS signal, “PI SEEK” is
suppressed somewhat.
4) PI SOUND/MUTE
Use the volume knob (1) to set PI
SOUND or PI MUTE.
WhileAF switching is implemented in
9

C201 station, AF can switch to 100 MHz,
which is non genuine AF (where,
different PI with same AF) in short “DIP”.
If a car cruises that critical area back
and forth, an oscillation phenomenon
can be occurred, because the different
PI code can be received from 100 MHz
with “XXX” PI.
The car radio has special procedure to
reduce even this kind of unavoidable
situation however there is a limit to be
escaped from this serious case
perfectly.
In that serious case, 2 mode is
selectable as follows:
- PI SOUND mode:
When above different PI sound (DIP)
is heard once in a while, the DIP’s
sound will be heard for a short time.
- PI MUTE mode:
Under above same situation, a mute
sound will be heard for a short time.
5)
RETUNE L/S
Use the volume knob (1) to set
RETUNE L or RETUNE S.
The initial time of automatic TA search
or PI search modes is selected.
When PI information is not caught for
retune time, the radio starts to retune
to next same PI station.
When same PI station does not catch
1 cyclic search, the radio goes to last
station and waits for several minutes
until PI code is received.
- RETUNE L mode:
Selected as 90 seconds.
- RETUNE S mode:
Selected as 30 seconds.
6) MASK DPI/ALL
Use the volume knob (1) to set
MASK DPI or MASK ALL.
The AF frequency (which has different
PI or NO RDS signal with high field
strength) is masked during checking
PI when the unit searches AF. The unit
doesn’t search this AF (DIP) for few
minutes. In the case of the AF of NO
RDS signal with high field strength, if
the real AF is wrongly
masked as DIP by some interference,
the unit hesitates to search real Afs.
For this reason, the unit has the user
option (MASK DPI) which doesn’t
mask the AF of NO RDS signal with
high field strength. In MASK DPI
mode, the wrong sound or long mute
(according to PI SOUND or PI MUTE)
can be heard from the AF station
which has NO RDS signal and of
which the field strength is higher than
that of the currently tuning AF (station).
But, these phenomenons are rare and
the user will hardly hear the wrong
sound in whole Europe.
- MASK DPI mode:
Masked only the AF which has
different PI.
- MASK ALL mode:
Masked the AF which has different
PI and NO RDS signal with high
field strength.
LOUDNESS
Press BAND/LOUD/ENT button (3) for
several seconds to reinforce the bass
output. Press it for several seconds again
to release this function.
DISPLAY INFORMATION
Press DISP button (19) to operate as the
conversion of each display mode as
follows:
- In case of receiving a RDS station
In radio mode:
->PS ->CT ->FREQ ->PTY ->
In CD(MP3/WMA) mode:
->CD(MP3/WMA) ->CT ->PS ->FREQ
->PTY ->
- In case of no receiving CT or PTY
100
100
PI: C201 PI: XXX
98
90
OPERATION
10

information, the display shows as “NO
CLOCK” or “PTY NONE”.
- In case of receiving a non RDS station
In radio mode:
-> ‘NO CLOCK’ ->FREQ -> ‘PTY NONE’
In CD mode:
-> CD -> CT -> FREQ -> ‘PTY NONE’ ->
Each displaying time is several seconds,
and come back to 1’st position after several
seconds.
Notes:
- CT = clock time
- FREQ = frequency
EQUALIZATION
Press EQ button (18) shortly to turn on
equalization function and to select desired
audio mode. There are five different modes
as below:
→FLAT→CLASSICS→POP M→ROCK M→DSP OFF
MUTE
Press and hold EQ/MUT button (18) for
several seconds to mute down the sound
instantly. Press and hold it again to
resume the sound.
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and active
functions on the display (7).
ESP FUNCTION
The unit can be shockproof about ten
seconds.
AUXILIARY INPUT
The unit can be connected to a portable
audio player through the auxiliary input jack
AUX IN (24) on the front panel. After
finishing the connection, you can press
MODE button (4) on the front panel to
switch the mode to AUX IN mode.
RESET FUNCTION
Reset button (27) must be activated with
either a ballpoint pen or thin metal object.
The reset button is to be activated for the
following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
If the unit doesn’t work after pressing the
reset button (27), please use a cotton swab
soaked in isopropyl alcohol to clean the
socket on the front panel.
RADIO OPERATION
SWITCHING TO RADIO MODE
Press MODE button (4) shortly to select
radio mode, the radio mode appears in the
display together with the memory band and
frequency.
SELECTING THE FREQUENCY BAND
At radio mode, press BAND/LOUD/ENT
button (3) shortly to select the desired
band.
The reception band will change in the
following order:
FM1 FM2 FM3 AM(MW)
SELECTING STATION
Press the button (5) and button (6)
shortly to activate automatic seek function.
Press for several seconds until “MANUAL”
appears on the display, the manual tuning
mode is now selected. If both buttons have
not been pressed for several seconds, it
will return to seek tuning mode and “AUTO”
appears on the display.
AUTOMATIC MEMORY STORING &
PROGRAM SCANNING
- Automatic memory storing
Press AS/PS (D-AUD) button (20) for
several seconds, the radio searches
from the current frequency and checks
the signal strength until one cycle
search is finished. And then 6 strongest
stations are stored into the
corresponding preset number button.
- Program scanning
Press AS/PS (D-AUD) button (20)
shortly to scan preset station. When the
OPERATION
11

field strength level is stronger than the
preset station, the radio is held at that
preset number for several seconds,
then searches again.
STATION STORING
Press any one of the preset buttons (11) (1
to 6) to select a station, which had been
stored in the memory. Press this button for
several seconds (until 2’nd beeps come
out), now the current station is stored into
the number button.
RDS (RADIO DATA SYSTEM)
OPERATION
- Setting RDS mode
Press AF button (21) and release
immediately to switch on or off RDS
mode.
Whenever RDS is switch on, symbol
“AF” appears on the display.
Program name is displayed on receiving
a RDS station.
“AF” starts blinking if the broadcasting
signal getting worse.
“ALARM” will be displayed when an
emergency broadcasting is received,
meanwhile sound output level will be
adjusted to the preset output level
automatically when the volume control
is set at minimum.
- Regional Program Operation
Press AF button (21) for several
seconds to switch on or off region
mode.
Some broadcasting stations change
their program from normal broadcasting
to regional broadcasting for a certain
time period. When region is on, the
current listening program remains
unchanged. When region is off, it allows
the reception moves to the regional
station.
- Using PTY to Select Program
PTY button (17) is operated as follows:
While selecting PTY engagement, its
selection is implemented by preset
buttons as described in notes.
When PTY is selected, the radio starts
to search corresponding PTY
information, and stops if the
corresponding PTY information is
detected.
If corresponding PTY information is not
existed any more, PTY engaging is
automatically exit to normal mode.
Notes:
When PTY mode is engaged, the
PTY switch is shared as follows:
According to above 2 allotted group, the
preset number is used for PTY selection
as follows:
MUSIC group
* POP M, ROCK M
*EASY M, LIGHT M
*CLASSICS, OTHER M
*JAZZ, COUNTRY
*NATION M, OLDIES
*FOLK M
SPEECH group
*NEWS, AFFAIRS, INFO
*SPORT, EDUCATE, DRAMA
*CULTURE, SCIENCE, VARIED
*WEATHER, FINANCE, CHILDREN
*SOCIAL, RELIGION, PHONE IN
*TRAVEL, LEISURE, DOCUMENT
- Listening to Traffic Announcement
TA button (22) is operated as follows:
When pressed shortly it is engaging
whether TA mode on or off.
When TA mode is on and a traffic
announcement is transmitted:
When the unit was in CD (MP3) or AUX
IN mode, it will switch temporarily to
radio mode.
Temporary switch over to an EON linked
station when EON detects a traffic
announcement on that other program.
If the volume level was under the
threshold point it will be raised to the
OPERATION
12

threshold point. But the user changed
the volume level, which was more than
the threshold point (min. TA volume
level), it will be set to the last level.
When TA mode is on, TA of individual
segment is turned on.
When a TP station is received, TP of
individual segment is turned on.
TA interruption function
The current traffic announcement is
cancelled by pressing this key.
But the TA mode will not be off.
When TA button (22) is pressed long, it
is selected EON TA LOCAL/EON TA
DISTANCE mode.
The purpose of this key is to reduce
unwanted EON TA switching, which
EON TA information was received from
current station and the radio switched to
that EON linked station, but no
information could not be received
because the EON linked station is
located too far from that area. So the
radio is switched back to current station
again. In above operation, a customer
listens to a wrong program or mute
sound for a while.
EON TA LOCAL mode
When the filed strength level of EON
linked is less than threshold level, the
radio does not switch that station, and a
customer can hardly listen to any
disturbances.
When EON TA LOCAL mode is selected,
“EON TA LO” on numeric display is
indicated for a few seconds.
EON TA DISTANCE mode
EON TA switch is tried to implemented
by the information of current station.
When EON TA DISTANCE mode is
selected, “EON TA DX” on numeric
display is indicated for a few seconds.
The RDS data used are the PI, PS, AF,
TP, TA, EON and PTY data.
PI: Program Identification code
Code for identifying programs
PS: Program Service Name
Broadcast station name data
expressed in alphanumerically
characters
AF: Alternative Frequencies
Frequency list of broadcasting
stations transmitting the same
program
TP: Traffic Program Identification
Identification data for traffic
information-broadcasting station
TA: TrafficAnnouncement Identification
Identification data showing traffic
information is being transmitted or
not
EON: Enhanced Other Networks
Information
Broadcasting information on PI, AF,
TP, TA, etc, relating to networks
other than the network used for
current reception
PTY: Program Type Code
Contents of programs such as
news, light music, sports etc.
CD OPERATION
SWITCHING TO CD MODE
If there is no CD inserted in the driver:
Gently insert the CD with the printed side
up into the CD compartment until you feel
some resistance. The CD is drawn into the
driver automatically. CD playback begins.
If a CD is already inserted in the driver:
Keep pressing MODE button (4) shortly
until the CD mode display appears.
SELECTING TRACKS
Press button (6) or button (5) to
move to the previous track or the following
track. Track number shows on display.
Hold button (6) or button (5) to fast
reverse or fast forward. CD play starts from
when you release the knob.
OPERATION
13

PAUSING PLAY
Press PAU button (10) to pause CD player.
Press it again to resume play.
PREVIEWING ALL TRACKS
Press SCN button (12) to play first few
seconds of each track on the current disc.
Press again to stop intro and listen to track.
REPEATING THE SAME TRACK
Press RPT button (13) to continuously
repeat the same track. Press it again to
stop repeat.
PLAYING ALL TRACKS IN RANDOM
Press SHF button (9) to play all tracks on
CD in random order. Press again to cancel
the function.
EJECTING A DISC
Press button (26) to stop CD playing
and eject the disc from the disc slot (25).
MP3 OPERATION
SWITCHING TO MP3 MODE
If there is no MP3 disc inserted in the
driver:
Gently insert the MP3 disc with the printed
side up into the disc slot (25) until you feel
some resistance. The MP3 disc is drawn
into the driver automatically. The MP3
playback begins.
If a MP3 disc is already inserted in the
driver:
Keep pressing MODE button (4) shortly
until the CD (MP3) mode display appears.
EJECTING A DISC
Press button (26) to stop MP3 playing
and eject the disc from the disc slot (25).
SELECTING TRACKS IN SINGLE STEP
Press button (6) or button (5) to
move to the previous track or the following
track. Track number shows on display.
SELECTING DIRECTORY UP/DOWN
Press DIR- button (8) or DIR+ button (15)
to select directory downward or upward. If
the MP3 disc does not contain any directory,
there is no function of pressing DIR- button
(8) or DIR+ button (15).
PAUSING PLAY
Press PAU button (10) to pause MP3 player.
Press it again to resume play.
PREVIEWING ALL TRACKS
Press SCN button (12) to play first few
seconds of each track on the current disc.
Press again to stop intro and listen to track.
REPEATING THE SAME TRACK
Press RPT button (13) to continuously
repeat the same track. Press it again to
stop repeat.
PLAYING ALL TRACKS IN RANDOM
Press SHF button (9) to play all tracks on
MP3 disc in random order. Press again to
cancel the function.
SELECTING TRACKS BY AS/PS/D-AUD
BUTTON
AS/PS (D-AUD) button (20) is assigned as
Digital Audio Mode selection button in MP3
operation.
When pressed, it is activated as selecting
each mode of Digital Audio.
“Searching track directly” => “Searching
Directory or File Name”=> “Navigation”
from root by the tune/seek/track buttons
(5&6)=> “Navigation” from current directory
by the tune/seek/track buttons.
Searching Track Directly
Press AS/PS (D-AUD) button (20) for
first time. It enters into “Searching track
directly” in Digital Audio CD.
The unit searches the track selected by
the volume knob (1).
If three digits are selected, the unit
searches the track at once. If one or two
digits are selected, the unit wait for
BAND/LOUD/ENT button (3) for
seconds. The unit searches the track
OPERATION
14

after few seconds, even if the enter
button is not pressed.
Searching Directory or File Name
Press AS/PS (D-AUD) button (20)
two times. It enters into “Searching
Directory or File Name” in Digital Audio
CD.
The unit searches files and directories
that have the same character which is
inputted by the user pressing the
corresponding buttons listed on the
Table 1 below.
Explain as follows:
- Use the volume knob (1) to select
the characters Ato Z, blank, 0 to 9, _,
-, +.
- Press SEL button (1) to confirm
entry of each characters.
- Press BAND/LOUD/ENT button (3)
to start the title search.
In case the selected title is a directory
name, display will show (‘ ‘), then
- Use button (6) or button (5)
to list all songs under this directory
and select the title.
- Press BAND/LOUD/ENT button (3)
to confirm and start the play.
- Repeat the above steps if the newly
selected title is again a directory.
Searching From Root Directory
Press AS/PS (D-AUD) button (20) three
times. The unit searches file or directory
from root by the button (6) or
button (5).
(D-DIR icon turns on if the name is
directory). Display will list all available
directories and songs. Select the
desired directory/songs by using the
/ buttons and BAND/LOUD/ENT
button (3) to confirm. If the selected title
is a song, it starts to play.
If the selected title is a directory name,
display will show (‘ ‘), then
- Use the / buttons (6&5) to list
all songs under this directory and
select the title.
- Press BAND/LOUD/ENT button to
confirm and start the play.
- Repeat the above steps if the newly
selected title is again a directory.
Searching From Current Directory
Press AS/PS (D-AUD) button (20) four
times. The unit searches file or directory
from current directory by
t
he /
buttons (6&5). (D-DIR icon turns on if
the name is directory). The current
directory name is displayed for a
second and the currently playing file
name is displayed (selected). The user
can select the directory or file in the
directory by the / buttons (6&5).
The selected file can be played by
pressing BAND/LOUD/ENT button.
DISPLAY INFORMATION
Press DISP button (19) to show the
following information, such as the clock,
ID3 TAG (if available: song title, directory
name, artist name, other contents…) (FOR
MP3 ID3 FUNCTION VERSION ONLY) and
other information.
KEYAssigned IN Searching mode (Table 1)
AS/PS Mode Select
BAND/LOUD ENTER
SEL CHARACTER SHIFT
RIGHT
Volum up/down CHARACTER SELECT
(A, B~8,9,0, _,-,+)
VOLUME KNOB &TUNE/SEEK/TRACK
buttons:
Searching file and directory during
Navigation.
WMA OPERATION
The unit that can play the WMA disc and
the operation is the same with MP3
operation described above.
OPERATION
15

USB PLAY OPERATION
On the front panel of unit, there is a USB
interface (16), you can connect a USB
driver through this interface.
When you connect a USB driver through
the interface, the unit will search the
MP3/WMAfiles and start to play it
automatically. In other modes, you can also
press MODE button (4) to select USB
mode.
When playing the MP3/WMA files in the
device, the operation is the same with the
MP3 operation described above.
Note:
::
:
The main unit can only support the
standard USB-memory disc.
USB MP3 player is not a standard
which means different brand name or
different models have their own
standard. So our product cannot
support all MP3 players.
When connecting an MP3 player and it
has a normal battery in the player
(non rechargeable battery), you should
remove the battery from the MP3 player
then connect it to the USB interface.
Otherwise, it may cause battery burst.
When in USB play mode, be sure not to
remove the USB driver from the USB
interface.
SUPPORTED MP3/WMA
DECODING MODES
The main unit supports the following
MP3/WMA (Windows Media Audio)
decoding modes as below.
Standard Bit Rate
(kbps) Supports
Mode
MPEG1 Audio
Layer 3
(44.1kHz)
16~ 320 Kbps
& VBR
Stereo
Windows
Media Audio
(44.1kHz)
16~ 320 Kbps
& VBR
Stereo
The USB solution can support:
1. Folder: 500 max.
2. File: 999 max.
3. Depth of folder: 8 layers
4. Size: 2 GB
CAUTION
When there are important files in the USB
device, do not connect it to the main unit to
play. And don’t play the CD-R/RW disc that
has important files in it. Because any wrong
operation may cause file loss. And our
company assumes no responsibility for this.
SD/MMC OPERATION
The SD/MMC interface (23) is on the
housing of the unit. When you press the
release button to fold down the front panel,
you will see the SD/MMC interface.
When you insert a SD/MMC card in the
SD/MMC interface, the unit will search the
MP3 files or WMAfiles in the card and start
to play MP3 files or WMA files
automatically.
The operation is the same with the MP3
operation described above. If in other mode,
you can also press MODE button (4) to
select SD/MMC mode.
DISC NOTES
A. Notes on discs:
1. Attempting to use non-standard shape
discs (e.g. square, start, heart) may
damage the unit. Be sure to use round
shape CD discs only for this unit.
2. Do not stick paper or tape, etc, onto the
label side or the recording side of any
discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warping discs
will cause misoperation.
B. Notes on CD-Rs (recordable
CDs)/CD-RWs (rewritable CDs):
1. Be sure to use discs with following
marks only for the unit to play:
OPERATION
16

2. The unit cannot play a CD-R and
CD-RW that is not finalized. (Please
refer to the manual of your
CD-R/CD-RW recorder or
CD-R/CD-RW software for more
information on finalization process).
3. Depending on the recording status,
conditions of the disc and the
equipment used for the recording, some
CD-Rs/CD-RWs may not be played on
this unit. (see *1)
*1: To have more reliable play back, please
see following recommendations:
a: Use CD-RWs with speed 1x to 4x
and write with speed 1x to 2x.
b. Use CD-Rs with speed 1x to 8x and
write with speed 1x to 2x.
c. Do not play a CD-RW which has been
written for more than 5 times.
C. Notes on MP3 files (MP3 Version
Only):
1. The disc must be in the ISO9660 level 1
or level 2 format, or Joliet or Romeo in
the expansion format.
2. When naming a MP3 file, be sure the
file name extension is “.MP3”.
3. For a non-MP3 file, even though the file
name extension is “.MP3”, the unit
cannot recognize it.
ReWritable
OPERATION
17

SPECIFICATION
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 160 (D) x 50 (H)
Tone Controls
- Bass (at 100 Hz) : ±10 dB
- Treble (at 10 kHz) : ±10dB
Maximum Output Power
- Version Y : 4x40 watts
Current Drain
- Version Y : 15 Ampere (max.)
CD PLAYER
Signal to Noise Ratio : More than 55 dB
Channel Separation : More than 50 dB
Frequency Response : 40Hz – 18 kHz
RADIO
For 2 Bands
FM
Frequency Coverage 87.5 to 108 MHz
IF 10.7 MHz
Sensitivity (S/N=30dB) 10dBu
Stereo Separation >25dB
MW
Frequency Coverage 522 to 1620 kHz
IF 450 kHz
Sensitivity (S/N=20dB) 36 dBu
Note:
Specifications and design are subject to modification, without notice, due to improvements in
technology.
18

TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems
persist after checklist has been made, consult your nearest service dealer.
Symptom Cause Solution
No power. The car ignition switch is
not on. If the power supply is
connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
The fuse is blown. Replace the fuse.
Disc cannot be
loaded or
ejected.
Presence of CD disc
inside the player. Remove the disc in the player,
then put a new one.
Inserting the disc in reverse
direction. Insert the compact disc with the
label facing upward.
Compact disc is extremely
dirty or defective. Clean the disc or try to play a new
one.
Temperature inside the car
is too high. Cool off until the temperature
returns to normal.
Condensation. Leave the player off for an hour or
so, then try again.
No sound. Volume is in minimum Adjust volume to a desired level.
Wiring is not properly
connected. Check wiring connection.
Sound skips. The installation angle is
more than 30 degrees. Adjust the installation angle less
than 30 degrees.
The disc is extremely
dirty or defective. Clean the
compact disc, then try to
play a new one.
The operation
keys do not
work.
The built-in microcomputer
is not operating properly
due to noise.
Press the RESET button.
Front panel is not properly fixed
into
its place.
The antenna cable is not
connected. Insert the antenna cable firmly.
The radio does
not Work. The
radio station
automatic
selection does
not work.
The signals are too weak. Select a station manually.
19

Table of contents
Other VIETA Car Stereo System manuals

VIETA
VIETA VTC1000R User manual

VIETA
VIETA VPC35R User manual

VIETA
VIETA CDV7200BT User manual

VIETA
VIETA VTC2000BT User manual

VIETA
VIETA VTC4000BT User manual

VIETA
VIETA VNT7800BT User manual

VIETA
VIETA CDV7500GP User manual

VIETA
VIETA CDV7000BT User manual

VIETA
VIETA VPC55BT User manual

VIETA
VIETA VPC45BT User manual
