VIETA VTC1000R User manual

BR - 1
1. HANDLING COMPACT DISCS
MOISTURE CONDENSATION
NOTES ON CDs
P. 2
P. 3
P. 4
P. 1
P. 5
P. 6
P. 7
1.
2.
3.
4.
5.
NOTES ON DISCS
There are paste residue.
Ink is sticky (P
.5).
Stickers that are beginning
to peel away, leaving a
sticky residue (P.6).
Labels are attached (P.7).
On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.
Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for
about an hour until the moisture has evaporated.
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the
disc clean, do not touch the surface (P
.1).
If you use the discs explained below, the
sticky residue can cause the CD to stop
spinning and may cause malfunction or
ruin your discs.
Do not use second-hand or rental CDs
that have a sticky residue on the surface
(for example, from peeled-off stickers or
from ink, or glue leaking from under the
stickers).
Do not stick paper or tape on the disc (P.2).
Before playing, clean the discs with an
optional cleaning cloth. Wipe each disc from
the centre out (P.4).
Do not use solvents such as benzine,
thinner,commercially available cleaners, or
antistatic spray intended for analog discs.
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in
temperature inside the car (P.3).
Do not use rental CDs with old labels that
are beginning to peel off.
Do not use your CDs with labels or
stickers attached.
**************
*******
*******
*******
*******
*******
*******
*******
*******
****
*******
******* *******
*******
Do Not Use Special Shape CDs
Be sure to use round shape CDs only for
this unit and do not use any special shape
CDs. Use of special shape CDs may
cause the unit to malfunction.(P.8).
Be sure to use CDs with disc mark
Only for this unit.
RECORDABLE REWRITABLE
P. 8
CD-Rs and CD-RWs which have not
undergone finalization processing cannot
be played. (For more information on
finalization processing, refer to the manual
for your CD-R/CD-RW writing software or
CD-R/CD-RW recorder.) Additionally
,
depending on the recording status, it may
prove impossible to play certain CDs
record on CD-R or CD-RW.

2. INSTALLATION
Before finally installing the unit, connect the wiring temporarily and make sure it is all
connected up properly and the unit and system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.I
If installation angle exceeds 30° from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, such as from direct
sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive
vibration.
Be sure to remove the front panel before installing the unit.
DIN FRONT/REAR-MOUNT
This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN
Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,
refer to the following illustrated installation methods A and B.

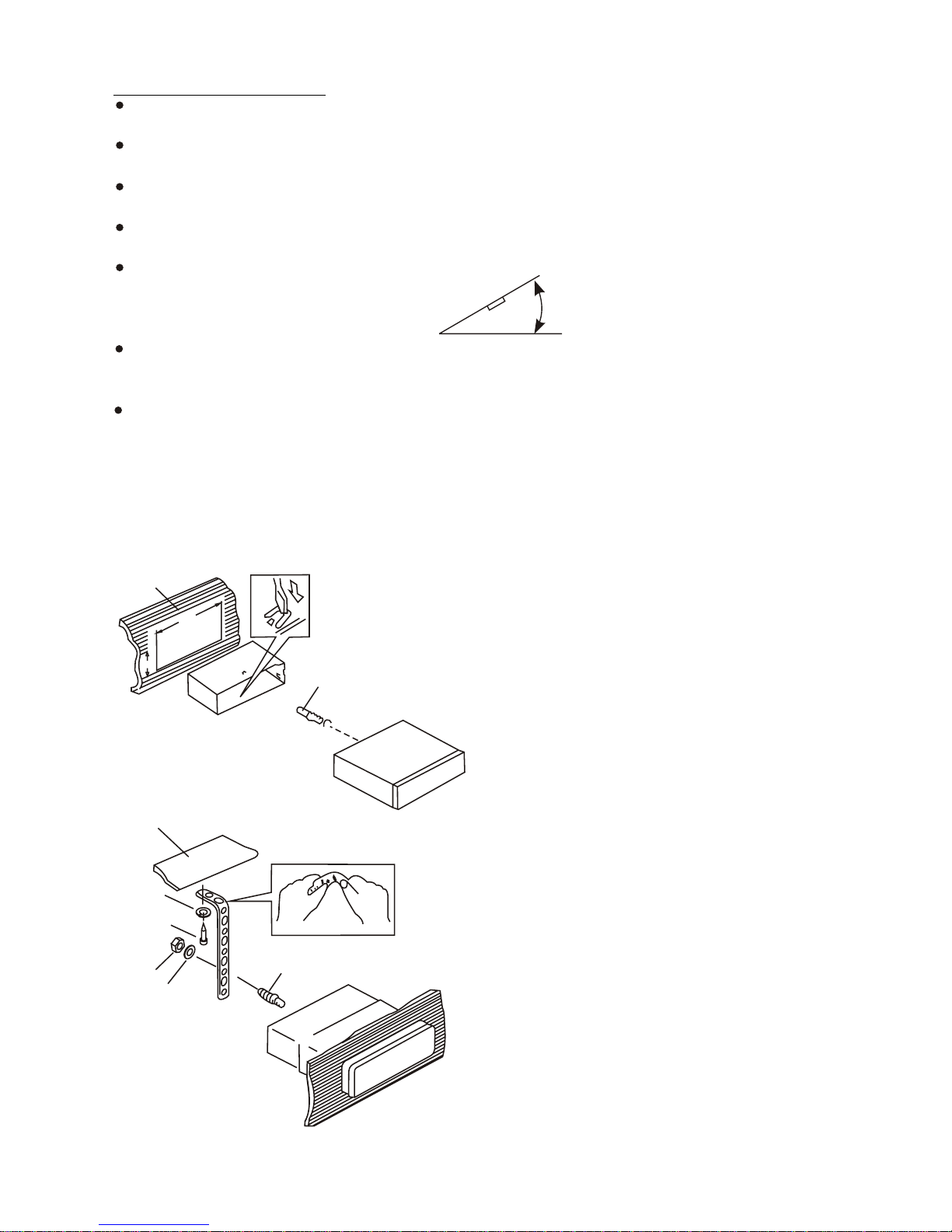

DIN FRONT-MOUNT (Method A)
Installation the unit
1. Dashboard
2. Holder
After inserting the half sleeve into the
dashboard, select the appropriate tab
according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.
3. Screw
30°
1
7
4
23
5
61. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (4x12mm)
5. Screw
6. Support Strap
Be sure to use the support strap to secure
the back of the unit in place. The strap can
be bent by hand to the desired angle.
7. Plain washer
182
53
12
3
BR - 2

DIN REAR-MOUNT (METHOD B)
Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio mounting bracket.
1. Select a position where the screw
holes of the bracket and the screw
holes of the main unit become
aligned (are fitted) and tighten the
screws at 2 places on each side.
2. Screw
3. Factory radio mounting bracket.
4. Dashboard or Console
5. Hook (Remove this part)
Note: the mounting box, outer trim ring,
and half-sleeve are not used for method
B installation.
5
2
4
3
2
5
a. Frame
b. Insert fingers into the groove in the
front of frame and pull out to remove
the frame. (When re-attaching the
frame, point the side with a groove
down wards and attach it.)
c. Insert the levers supplied with the
unit into the grooves at both sides of
the unit as shown in figure until they
click. Pulling the levers makes it
possible to remove the unit from the
dashboard.
Trim Plate Installation:
Push the trim plate against the chassis until it is fitted.
You must do this before you install the front panel, otherwise it can't be attached.
Removing the unit
a
b
c
BR - 3

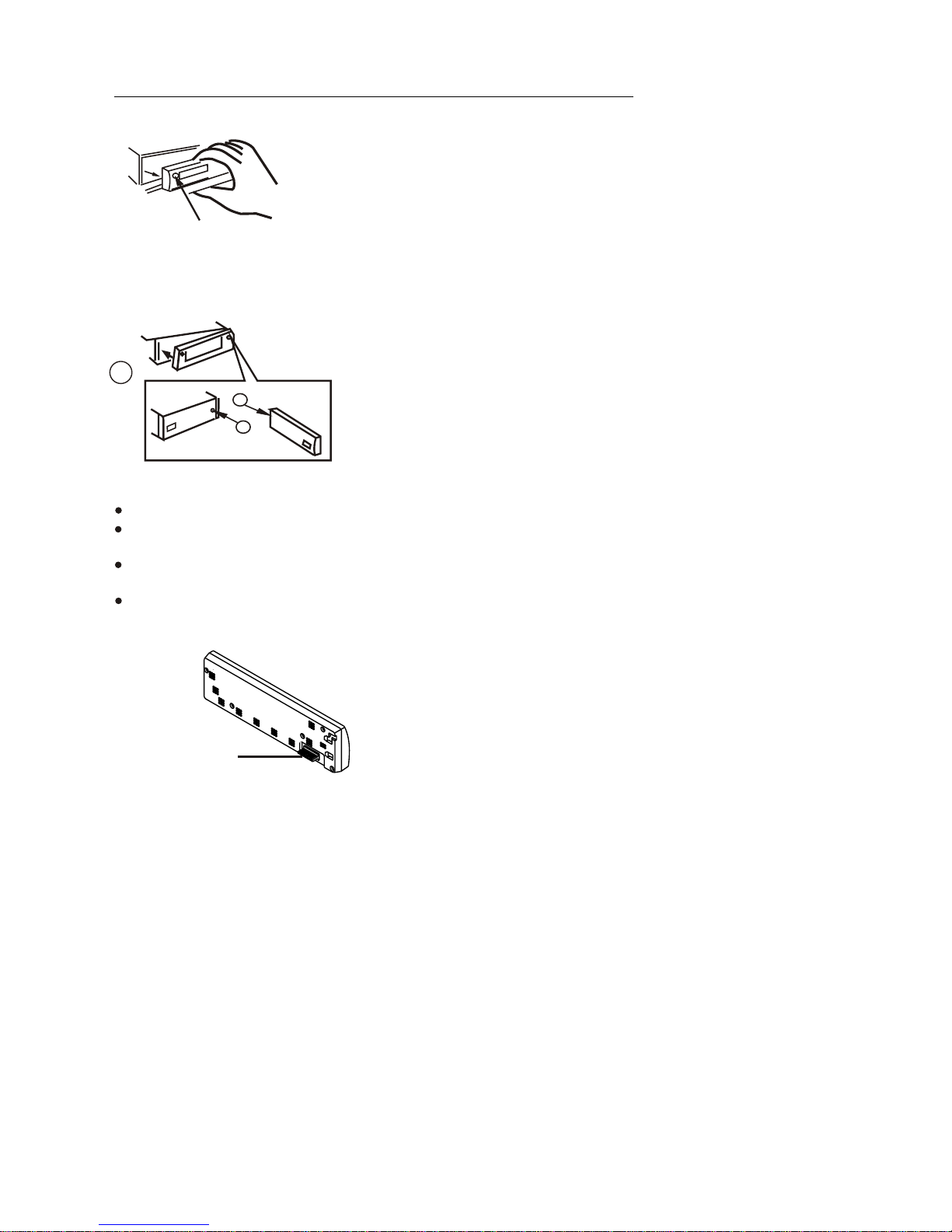

3. DETACHABLE CONTROL PANEL (D.C.P
.)
Removing The Detachable Control Panel (D.C.P.).
1. Turn the power off
2. Press the D.C.P
. release button
3. Remove the D.C.P.
PANEL RELEASE
BUTTON
B
A
2
Attaching the DCP
CAUTION
1. Attach the panel at the right side first, with
point B on the main unit touching point A on the
D.C.P. (As shown on the digram).
2. Then press the left side of D.C.P. onto the main
unit until a “click” sound is heard.
DO NOT insert the D.C.P from the left side. Doing so may damage it.
The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not
to drop it or subject it to strong shocks.
When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. T
o
prevent damage to the D.C.P
, always store it in a protective case after detaching it.
The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to
damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Note:
If the D.C.P is dirty, wipe off the dirt with soft,
dry cloth only. And use a cotton swab soaked
in isopropyl alcohol to clean the socket on the
back of the D.C.P.
Socket
BR - 4

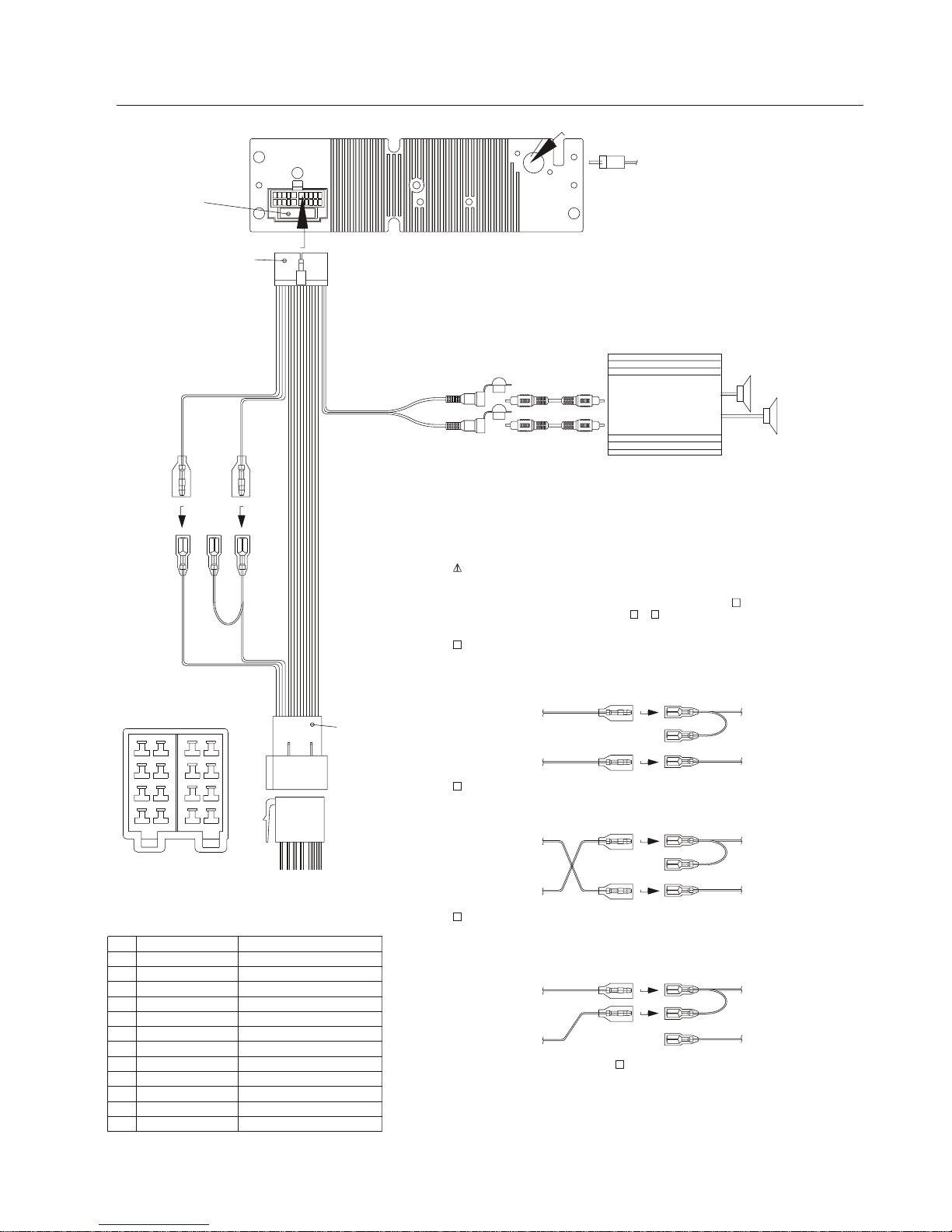

4. WIRING DIAGRAM (20 PIN + ISO + SMALL CONNECTORS
)
AMP
CONNECTOR
ISO
FEMALE WITH MALE TERMINAL
ISO CONNECTOR 4 PIN+8 PIN
112
3
7
5
7
5
3
8
6
4
2
4
6
8
(See Figure 1)
Figure 1
ISO CONNECTOR WIRING CHART
GROUND
POWER ANTENNA
BATTERY(+)
IGNITION(ACC)
RIGHT REAR SPEAKER (-)
RIGHT FRONT SPEAKER (-)
LEFT FRONT SPEAKER (+)
RIGHT FRONT SPEAKER (+)
RIGHT REAR SPEAKER (+)
LEFT REAR SPEAKER (-)
LEFT REAR SPEAKER (+)
LEFT FRONT SPEAKER (-)
FUNCTION/LABEL
B2
B3
B4
B5
B6
B1
B7
B8
GREY
WHITE
VIOLET
GREEN
GREY/BLACK
WHITE/BLACK
VIOLET/BLACK
GREEN/BLACK
A7
A8
PIN
A4
A5 BLUE
RED
BLACK
YELLOW
WIRE COLOR
CONNECTOR B
CONNECTOR A
YELLOW
RED
Battery wire (YELLOW)
Ignition wire
(RED)
GREY
R-CH L-CH
REAR LINE OUT WHITE
RED
FUSE
HARNESS
AUDIO/POWER
20-PIN
(See Figure 1)
ANTENNA
JACK
RCA-TO-RCA CABLES
(not supplied)
Ignition wire
(RED)
Battery wire
(YELLOW)
Battery wire
(YELLOW)
Ignition wire
(RED)
Battery wire
(YELLOW)
Unit
Unit
Ignition wire
(RED)
Unit
1 PIN (RED)
Vehicle
3 PIN(YELLOW)
3 PIN(YELLOW)
1 PIN (RED)
Vehicle
3 PIN(YELLOW)
Vehicle
1 PIN (RED)
WARNING Connecting the ISO Connector
The pin arrangement for the ISO connectors depends on the type of vehicle you
drive.Make sure to make the proper connections to prevent damage to the unit.
The default connection for the wiring harness is described in below. If the ISO
connector pins are set as described in or .make the connection as illustrated.
23
1
The 1 pin (red) of the vehicle's ISO connector is connected to the constant power
supply, and the 3 pin (yellow) is linked to the ignition.
2
The 3 pin (yellow) of the vehicle's ISO connector is not connected to anything,
while the 1 pin (red) is connected to the constant power supply (or both the 1(red)
and 3(yellow)pins are connected to the constant power supply).
3
(Default setting) The 1 pin (red) of the vehicle's ISO connector is linked with
the ignition,and the 3 pin (yellow) is connected to the constant power supply.
1
When the connection is made as in above,the unit's power will not be linked to the
ignition key. For that reason,always make sure to turn off the unit's power when the
ignition is turned off.
To link the unit's power to the ignition,connect the ignition cable (ACC...red) to a
power source that can be turned on and off with the ignition key.
3
ANTENNA SHOCKET
BR - 5

Press this button to remove the control panel.
Press this button to turn on or off the power.

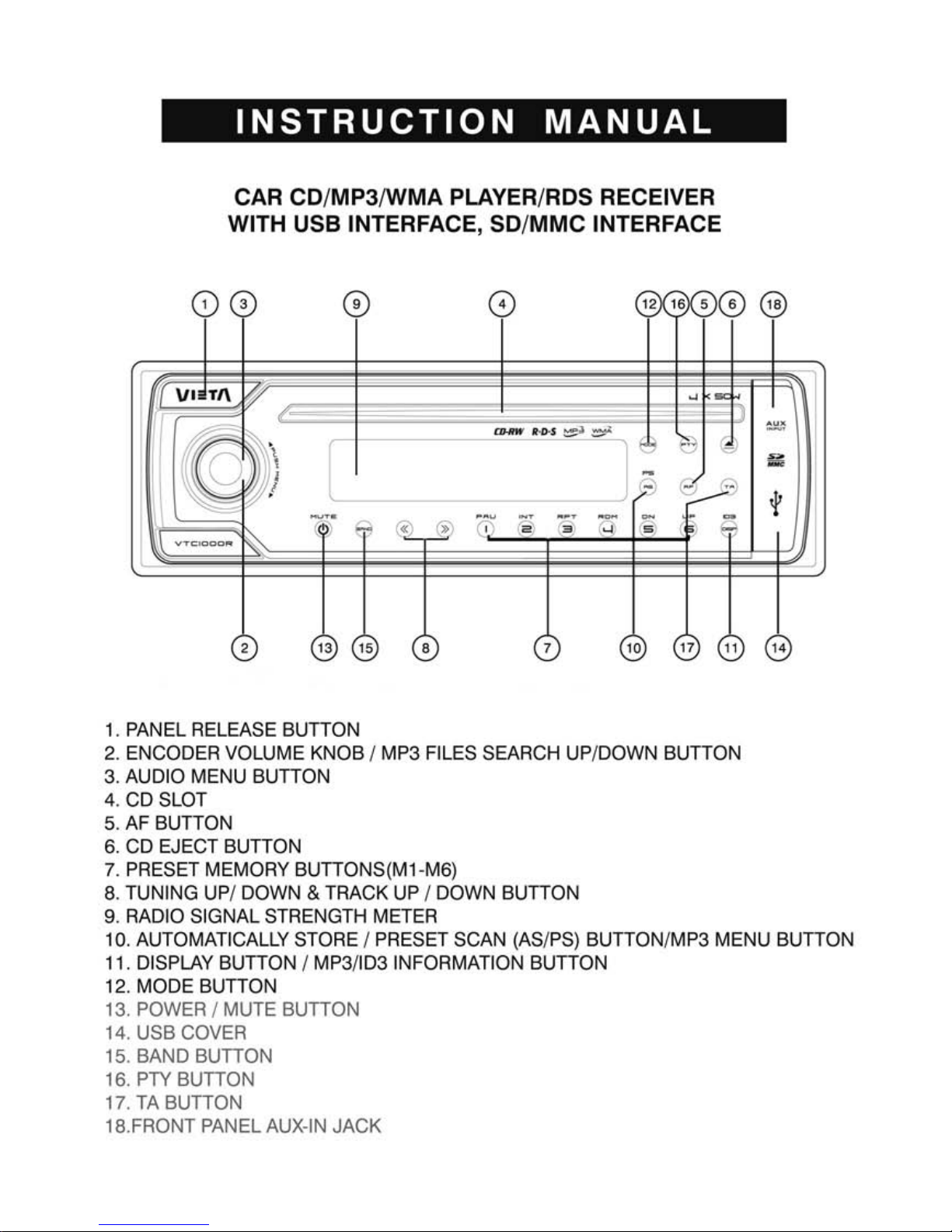

5. BASIC OPERATIONS
1) PANEL RELEASE BUTTON ( )
13) POWER ON/OFF BUTTON ( )
11) DISPLAY BUTTON( DISP )
BR - 6
12) MODE BUTTON (M)
The RESET button is located on the main unit (as shown on the diagram). To press it vertically
with a ballpoint pen or metal object will activate it. The reset button is to be activated for the
following reasons:
Initial installation of the unit when all wiring is completed.
All the function buttons do not operate.
Error symbol on the display.
RESET BUTTON
Note: If press RESET button, the unit still cannot function normally, please use a cotton swab
soaked in isopropyl alcohol to clean the socket on the back of the control panel.
Press this button to select different mode , sequence as follow:
MODE PRIORITY
A) Tuner mode (Radio)
B) CDP / MP3 (only if a CD or MP3 disc is inserted)
C) USB (only if a USB drive is inserted)
D) SD / MMC (Only if a SD or MMC card is inserted))
E) AUX IN (only if this unit with this features)
Whenever a USB or SD/MMC is being inserted, unit will automatically switch to USB or
SD/MMC mode, does not matter the unit is currently in what mode.
When in USB or SD / MMC mode, if the USB or SD / MMC is being removed, unit will
automatically switch to radio mode.
Press this button to view Clock, Programme Type (PTY), and Frequency of the station in listening.
18)
AUX INPUT
Connect the external signal to AUX in jack located at
the front of the panel , then press Mode button to
select Aux mode. Press Mode Button again to cancel
Aux Mode and return to previous mode.
FRONT CABINET
RIGHT TRACK
GROUND
A
L
UX IN
EFT TRACK
AUX IN

6. AUDIO OPERATIONS
BR - 7
TIME SET (CLK)
The time on the clock is set to “12:00” by default, Rotate the encoder volume knob to
adjust the minutes and hours.Press AUDIO/MENU button to select the hour or minutes.
Note: Time format can not to set up, it should be follow the tunner area to change, when is
in U.S.A Latin then the time in 12H by default, when is in Europe Latin then the time in 24H
by default.
LOCAL / DISTANTCE
Rotate the encoder volume knob to select the strong local station ( Local Mode ), or
access a wider range of using distant mode ( DX ).
BEEP ON / OFF
Rotate the encoder volume knob to select Beep On / Off option.
Beep Off: disable audible beep tone when any function is accessed.
Beep On: enable audible deep tone.
Programmable Turn-on Volume (P-VOL )
This option allows selection of the volume level the radio will automatically assume when
first turned on. " P - VOL 40 " is the default setting, which will turn the radio on at the volume
level selected when the unit was last turned off. To program a specific volume level for the
radio to turn on at, rotate the volume control to select "VOLUME LEVEL”. Within 5 seconds.
LOUD_OFF
Rotate the encoder volume knob select Loud On / Off to increase bass output, the default
is Off.
EQ_OFF
Turn the encoder volume knob to select EQ Off to step through the follwing equalizer
options:
POP -> JAZZ -> CLAS -> BEAT -> ROCK
BASS ( Bass level )
Turn the encoder volume knob to adjust the desired Bass level range from -10 to +10, the
default is “0”.
TREBLE ( Treble level )
Turn the encoder volume knob to adjust the desired Treble level range from -10 to +10, the
default is “0”.
BALANCE
Rotate the encoder volume knob to adjust the Balance between the right and left speakers
from R10 to L10, the “C00” is default.
FADER
Rotate the encoder volume knob to adjust the Fader between the front and rear speakers
from F10 to R10, the “C00” is default.
To use this function keep press short AUDIO/MENU Button for few seconds, each time you press
this button the mode will move and the functions will shown on the display, turn the encoder volume
knob up/ down to set the desires functions ,the function states as following:
At DSP OFF mode, EQ will be controlled by Bass/Treble setting.

7. RADIO OPERATIONS
9) RADIO SIGNAL STRENGTH METER (RSLM)
This is use to indicate the signal strength of current radio station broadcast. When you
choose RADIO mode, it will show on the display.
Best
reception
Worst
reception
7) STATION PRESET BUTTONS (M1-M6)
1.Press these buttons briefly to recall the stored stations in the selected band.
2.Presetting stations manually, Press the BAND button to select the band for the station to
be preset. Use Tuning Up/Down to tune in the stations to be preset. Press the Preset
button at which you want to store the station for at least 2 second. The preset number will
appear on the display accompanied by a beep, this indicate that the station has been
stored into memory.
BR - 8
8) TUNING / SEEK UP AND TUNING / SEEK DOWN BUTTONS
1.Press these buttons briefly will operate AUTO SEARCH tuning mode, the radio will tune up or
down to the next station and remain on the frequency.
2.Press these buttons more than 2 seconds, operate as MANUAL SEARCH buttons, under
this mode the tuning frequency will advance up or down rapidly when the button is
pressed. If the buttons are not pressed within 3 seconds, they will return to auto search
mode.
15) BAND/LOUDNESS BUTTON (BAND/LOUD)
10) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS)
1.PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the
preset stations in the memories, you can hear that it will stay on each station for about 5
seconds.
2.AUTO MEMORY STORE: Press AS/PS button for couple of seconds to enter Auto Store
mode, this feature will automatically scan the current band and enter up to 6 strongest
stations into the 6 preset memories. To stop Auto Store & Scan, press the AS/PS button
again.
This a dual function button. Press this button short to change between BAND FM1, FM2, FM3
& AM/MW bands. Press it long to turn on or off Loudness function.

Some broadcasting stations may change their program from normal broadcasting to regional
broadcasting for a certain period. When regional mode is off, the region identification in the PI
code is ignored; the radio may switch to a local variant of the current program. When region
mode is on, the radio will only switch to a program carrying the exact same PI code.
Note: When AF switch is on, at this moment use tuning up/down to search station will
only stop at station which has RDS broadcasting.
16)PTY BUTTON
Each time when this button is pressed, the PTY mode will toggle in the following order:
PTY Music Group -> PTY Speech Group ->PTY Off
Music Group Speech Group
M1 POP , ROCK NEWS, AFFAIRS, INFO
CLASSICS, CULTURE,SCIENCE,VAR IE D
JAZZ, COUNTRY
EASY
, LIGHT SPORT, EDUCATE, DRAMA
NATION, OLDIES SOCIAL, RELIGION, PHONE IN
FOLK TRAVEL, LEISURE, DOCUMENT
M2
M3
M4
M5
M6
WEATHER,FINANCE, CHILDREN
The current PTY code is displayed on the LCD, use the 6 preset buttons to select the other PTY
code, the distribution of program type are as follow:
Button Number
When PTY code is selected, the radio will search the band for the station that matches the PTY
code.
5) AF BUTTON(ALTERNATIVE FREQUENCIES)
When pressed short, AF switching mode is selected.
When AF switching mode is selected, the radio check the signal strength of the AF all the time.
When pressed long, it is activated as regional mode ON/OFF
.
- Regional mode ON:
AF Switching or PI SEEK is implemented to the station which have all PI codes are same as
current station. REG segment is turned on, in LCD display.
- Regional mode OFF:
The Regional code in the format of PI code is ignored when AF switching or PI SEEK is
implemented.
BR - 9
8. RDS OPERATIONS
17)TA BUTTON(TRAFFIC ANNOUNCEMENT)
When pressed short, it is activated as TA mode on or off
When TA mode is on and traffic announcement is transmittude
- When the unit is in CD mode, it will switch to radio mode temporarily.
- If the volume lever was under the threshold point, it will be raised to the threshold point.
- When TP station is received, TP segment is turned on in LCD display.
When pressed long, EON TA LOCAL /EON TA DISTANCE mode is selected.
- EON TA LOCAL mode
When the field strength level of EON linked is less than the threshold level. The radio does not
switch that station and user can hardly listen to any disturbances. “EON TA LO “ is displayed a
few second.
- EON TA DISTANCE mode
EON TA switching is try to implemented by the information of current station “EON TA DX” is
displayed a few second this mode is selected
Note: When TA switch is on, at this moment use tuning up/down to search station will
only stop at station which has TA broadcasting.

OVERVIEW OF THE RDS FUNCTION
Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional
digital information along with the regular radio program signal. Your car stereo offers you a variety
of services. Here are just a few:
- PI (Program identification)
It is a code that identified RDS stations; it is unique for each station.
- PS (PROGRAM Service Name)
The name of current station, it is shown on the display.
- AF (Alternative Frequencies List)
The list(s) of Alternative Frequencies give information on the various transmitters broadcasting
the same program in the same or adjacent reception area. If the main frequency should get
worse, the radio will tune automatically to the strongest Alternative frequency.
- TP (Traffic Program)
If the tuned program carries Traffic Announcement, the TP indicator will turn on.
- PTY (Program Type Codes)
This code is used to designate the current program material being broadcast. With this feature,
you can search the programs that match the selected program type, which is chosen from a
specific list of types.
- TP (Traffic Program)
If the tuned program carries Traffic Announcement, the TP indicator will turn on.
- PTY (Program Type Codes)
This code is used to designate the current program material being broadcast. With this feature, you
can search the programs that match the selected program type, which is chosen from a specific list of
types.
- EON (Enhanced Other Networks Information)
It is a supplementary service enabling the radio to obtain information not only from the current
station but also from the others.
- CT (Clock Time)
This function permits to update the clock of the receiver the nation from which the station is
broadcasting (from PI). It could happen that on the display will be shown the wrong hour; this happens
because in Italy the Clock Time function is not working yet.
Notes
Depending on the country or region, not all of the RDS functions are available in Italy.
RDS may not work properly if the signal strength is weak or if the station you are tuned to is not
transmitting RDS data.
BR - 10
- TA (Traffic Announcement)
When an actual traffic bulletin is on air, the TA indicator will also turn on.

BR - 11
PROGRAMMABLE OPTIONALS
- TA SEEK, TA ALARM
To determine what action will the radio take if the newly tuned station does not receive TP information
for 5 seconds.
TA SEEK
The radio retunes to a different station which contains TP information.
TA ALARM
The radio does not retune but beeps will come out.
- PI SOUND, PI MUTE
When the vehicle is crossing the area where two stations with same AF but different PI code can be
received at the same time, the receiver will become unstable, under this situation two modes can be
selected.
PI SOUND
The different PI sounds will be heard.
PI MUTE
Under the same situation, the radio will be muted.
- RETUNE L, RETUNE S
To determine the initial time of automatic TA Search or PI Search.
RETUNE L 90 seconds
RETUNE S 30 seconds
To use this function keep press long AUDIO MENU Button for few seconds, each time you press this
button the mode will move and the functions will shown on the display, turn the encoder volume
knob up/ down to set the desires functions ,the function states as following:
- MASK PI, MASK ALL
“PI” is referred to “Different PI with same AF”.
During AF search, PI stations and non-RDS stations with strong signal will be masked, in the latter
case, the non-RDS stations may cause interference, resulting the real AF to be masked due to the
misjudgment of the radio under interference.
There are two options to handle this situation.
MASK PI to mask only the AF with different PI.
MASK ALL mask both PI and strong signal non-RDS stations.

M3) REPEAT BUTTON (RPT)
Press this button, the current track will be played repeatedly until this button is pressed again.
M4) RANDOM BUTTON (RDM)
6) EJECT BUTTON
Press this button to eject the CD from the unit. The receiver will switches to radio mode
automatically.
8) TRACK UP AND TRACK DOWN BUTTON
Press the Track Up Button to skip to the next track or previous track. Press the Track Down
button during play will return to the beginning of the current track, press it one more time to skip
to previous skip. Press and hold Track Up/Down Button to fast forward or fast reverse. CD
player starts when you release the button.
BR - 12
9.CD OPERATIONS
4) CD SLOT
Insert the disc into CD slot. The CD will begin to play.
M1) PAUSE BUTTON ( )
Press this button to pause CD play, press again to release pause.
M2) SCAN BUTTON (SCN)
Press this button, the first 10 seconds of each track will be played sequentially until this button
is pressed again, then normal play will resume at the current track.
Press RANDOM BUTTON (RDM) during disc play to play all tracks on a CD in random, shuffled
order. Press RANDOM BUTTON (RDM) again to stop random play
.
( )

10. USB DRIVE OPERATIONS
START THE USB DEVICE MODE

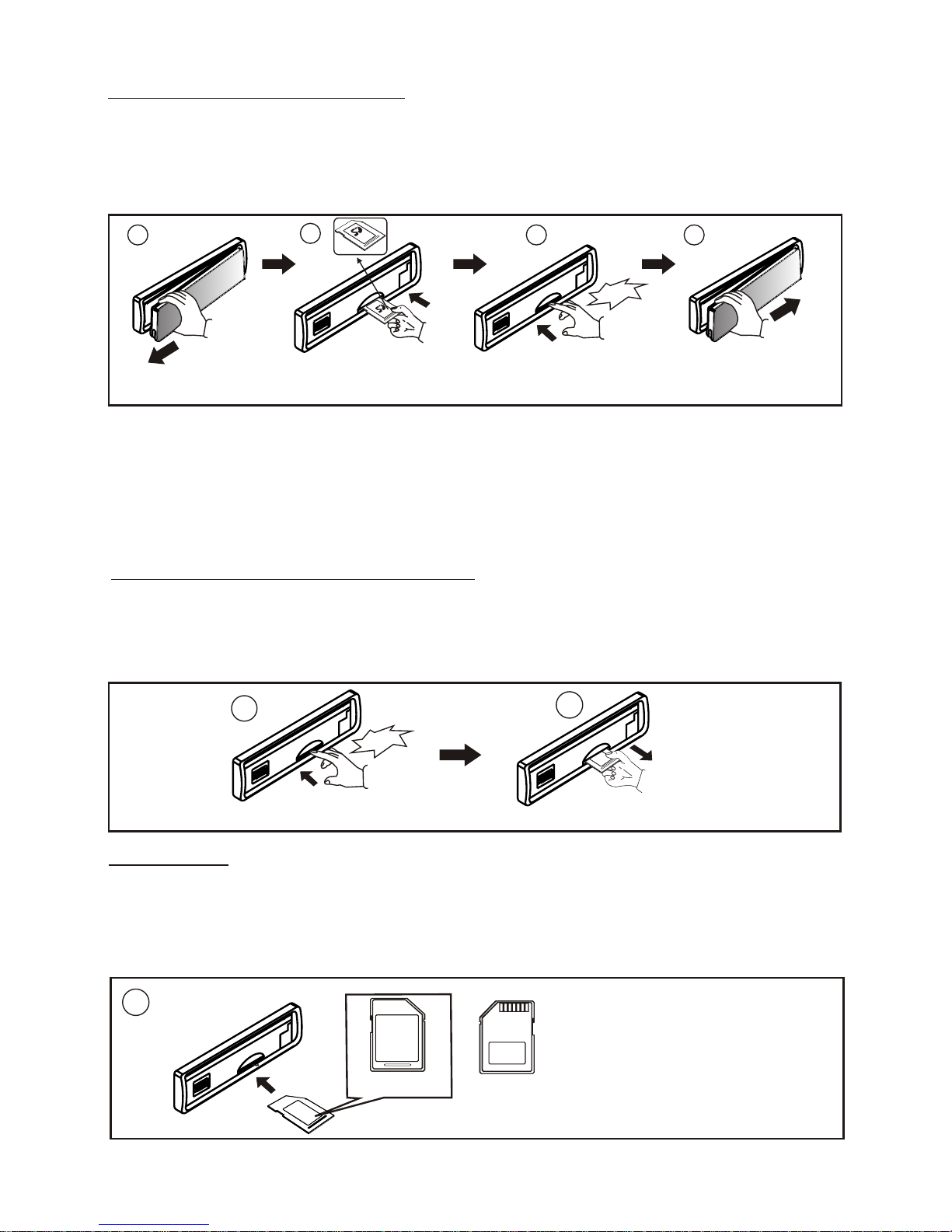

2. Plug in the USB drive / device completely as indicated in picture 2
and display will show “USB PLAY” to indicate that the USB drive /
device is being plugged in correctly & the download has begun.
(P.2)
3.Does not matter the unit is in what mode (TUNER, CDC, CD,
SD/MMC, etc), once a USB drive / device is being plugged into the
unit, unit will automatically switch to USB mode.
4.All the USB files playback function is same as normal CD or MP3
disc playback.(Please refer to section CD operations & MP3
operations)
1. Always unplugged the USB gently from the unit, excessive force
used will cause permanent & serious damage to the unit & the
USB drive / device.
TO STOP USB PLAYBACK
(P.3)
1.The USB drive / device is unplugged, the unit automatically switch
to radio mode. Or user can use mode button to switch to other
mode.
2.User can use the mode button to choose USB mode (only if USB
drive / device is inserted in the unit ) or any other modes, when they
are in any mode.
WARNING
COMPATIBILITY
Due to the fast changing technology world, this unit may or may not
be compatible to all the USB drive / device available with all the future
technology, especially those USB drive / device which require to
install a driver. Always choose a compatible USB drive / device which
is compatible with this unit.

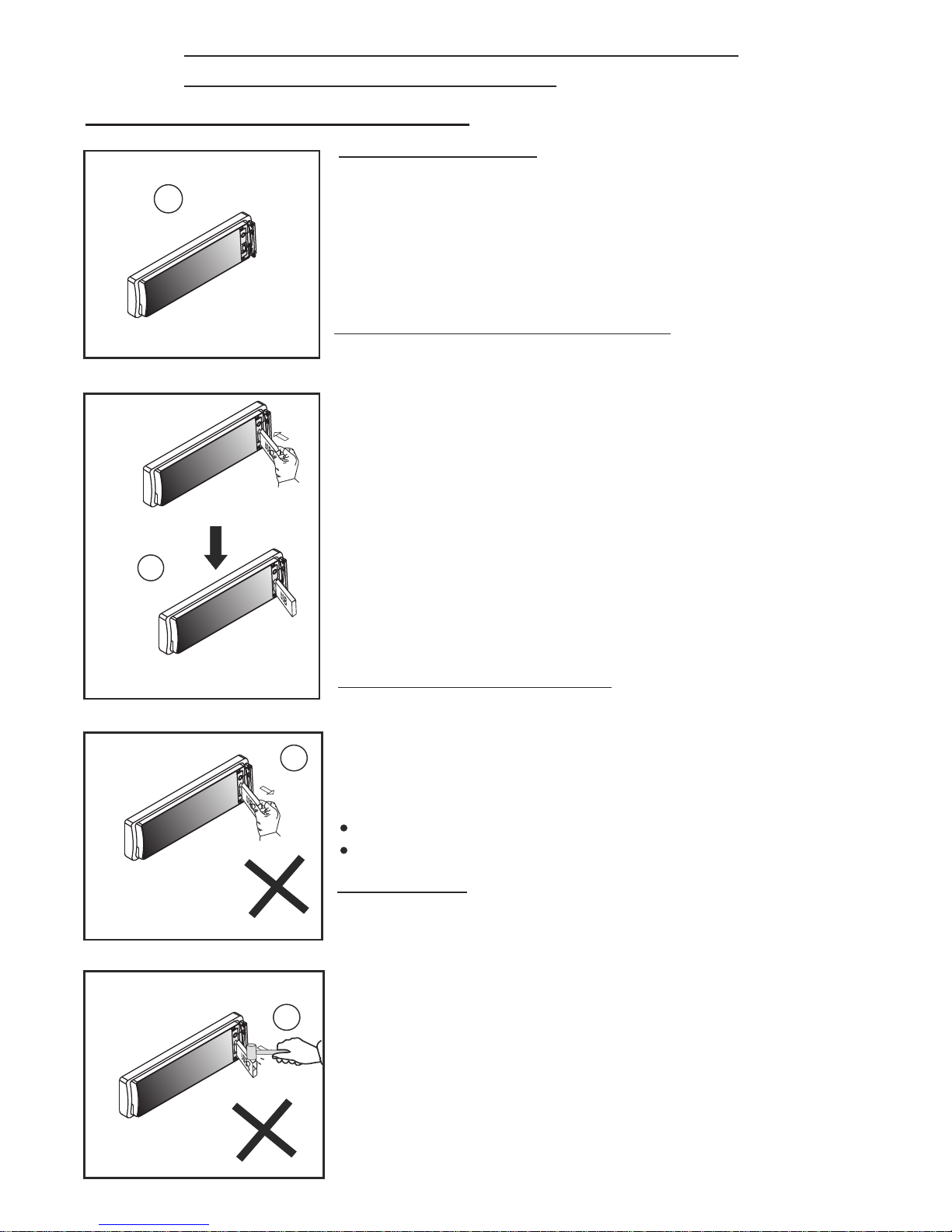

1.The USB socket is covered by the USB plastic cover as indicated in
picture 1 Flip open the USB plastic cover, and the USB
socket will become accessible.
(P.1).
USB 1.1 > 320KBPS
FILE MANAGE: FAT12 / FAT16/ FAT 32
NOTE:
PLEASE READ THIS INSTRUCTION CAREFULLY
This unit is not compatible with portable Hard-Disk.
BEFORE OPERATING THE UNIT
2. Please never intentionally or accidentally hit on the USB drive /
device when it is plugged in. This will cause permanent & serious
damage to the unit & USB drive / device.(P4)
3. Please never try to plug in any USB drive / device with excessive
weight or excessive size into the unit. Please always use USB drive /
device with reasonable weight & size which will not overload the unit,
which will not make performing normal operation on the front panel
impossible. Excessive weight or size USB drive / device may cause
permanent & serious damage to the unit. And may cause access to
the buttons / knobs on the front panel impossible.
The unit may take a while to detect or download the USB files, detect &
NOTE:
download time may vary depends on the type of USB drive / device.
P.3
P. 1
P. 2
P. 4
BR - 13

11. SD/MMC OPERATIONS
1.Press panel release button to release the front panel.(P.1)
2.The SD/MMC card slot is located on the unit as indicated in (P.2).
3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound
is heard.(P.3)
4.Close the front panel.(P.4)
5. The display will show “SD PLAY” to indicate that the SD or MMC card is correctly inserted.
Once the SD or MMC card is inserted, the MP3 file will automatically loaded & playback will
also start.
6. Does not matter the unit is in what mode (Tuner, CD, USB,etc), once a SD or MMC card
is being inserted in the unit, unit will automatically switch to SD / MMC mode.
7. All the SD / MMC files playback function is same as normal CD or MP3 disc playback.
(Please refer to section CD operations & MP3 operations)
P. 1
1.Please make sure to insert the SD or MMC card in the correct direction / orientation as
indicated in picture (P
.7). Wrong insert will cause permanent & serious damage to the unit &
the SD or MMC card.
TO STOP SD/MMC CARD PLAYBACK
1.Push on the end of the SD or MMC card to eject the sd or MMC card. Once the SD or MMC
card is taken out, the unit will automatically switch to previous mode.(P.5-P
.6)
2.User can use the mode button to choose SD / MMC mode (only if SD or MMC is inserted in the
unit ) or any other modes, when they are in any mode.
P. 7
Back side
Front side
P. 2 P. 3
Click
P. 5
BR - 14
WARNING
Click
Face
Up
Insert the SD/MMC Card
with Label up side
Detach the
Front Panel
Push in till heard a “click”
P. 4
Push in till heard a “click” Remove the Memory Card
Close the front Panel
P. 6
2. Always make sure the SD or MMC card is completely inserted before re-attaching the front panel.

Notes :
LOADING DISC
NAVIGATING THROUGH DIRECTORIES AND TRACKS
Insert the CD as usual, if it is an MP3 CD, the display will show “MP3 T01” then the message
“READING” will appear, when disc scanning completed, the first track on the first directory will play
.
- An MP3 directory is shown in this manual as “Directory”, and an MP3 file is shown as “Track”.
- Maximum length of file name : 28 characters.
- Maximum length of directory : 16 characters.
- Supports Multi-Session recording.
- Supports CD, CDR and CDRW.
- Disc written by Packet Write (UDF) is not supported.
Number
Button
1234567890
M1 M2 M3 M4 M5 M6 MODE TUNE.DN
NOTE: 1) MP3 ICON turns on when a MP3 disc is playing.
2) MP3 ICON is blinking when under directory/Files search mode.
NOTE: MP3 Directory / Track selection can be done by Encoder Volume Knob or Tune Up / Down
Buttons Both operations will be described. But Encoder Volume Knob is available on some
models only. Please skip this description if your model is not equipped with this feature.
THERE ARE FOUR WAYS TO SELECT YOUR FAVORITE TRACK / DIRECTORY
A) SEARCHING TRACK DIRECTLY
Under MP3 play mode, press MP3 MENU BUTTON once, the display shows “MP3 T*”, enter the
desired track number directly, then press MP3 ENTER BUTTON to confirm. The distribution of the
number are listed as follow:
SEARCH TRACK NUMBER BY USING ENCODER VOLUME KNOB
Rotate the ENCODER VOLUME KNOB to scroll through the numbers, then press MP3 ENTER BUTTON
to confirm.
B) SEACRCHING BY DIRECTORY OR TRACK NAME
(1) SEARCH DIRECTORY / TRACK NAME BY USING TUNE UP / DOWN BUTTON
Under MP3 Play Mode, press MP3 MENU BUTTON twice, the display shows “ * “ , enter the character
directly. The unit searches files and directories which have the same character which is inputted by the
user. The unit shows these sorted files and directories by TUNE UP / DOWN Button (TUNE DOWN
First). If the selected name is directory, the user can go into the selected directory by press MP3
ENTER BUTTON and continue to search the directory or file name in the directory by
12.MP3/WMA OPERATIONS
BR - 15
DISPTUNE.UP
MPEG1/2/2.5/ Layer 2/3
WMA Version 7/8/9
Sampling frequency
- MPEG1 : 32/44.1/48 KHz
- MPEG2 :16/22.05/24 KHz
- MPEG2.5 : 8/11.025/12KHz
- WMA : 22/32/44/48KHz
Sampling But rate
- MP3/WMA : 32~320Kbps & VBR
CDROM Mode 1 / 2
ISO9660 Level 1 / 2 & Joliet(unicode)
Max File/DIR. Count : 255
Max DIR. Depth : 255
Sorting Method : Tree sorting
Max File/DIR. Name : 64Byte
ID3 V1.0/1.1/2.0/2.3(Max 32Byte)
This unit support :

(2) SEARCH DIRECTORY / TRACK NAME BY USING ENCODER VOLUME KNOB
Under MP3 Play Mode, press MP3 MENU BUTTON twice, the display shows “ * “. Rotate the
ENCODER VOLUME KNOB for selecting the character. In this Encoder Search mode, SELECT button
use as move cursor. Press BAND/LOUDNESS button use as MP3 CONFIRM BUTTON. The unit
searches files and directories which have the same character which is inputted by the user. The unit
shows these sorted files and directories by ENCODER VOLUME KNOB (ROTATE ANTI-CLOCKWISE
First). If the selected name is directory, the user can go into the selected directory by press MP3
CONFIRM BUTTON and continue to search the directory or file name in the directory by ENCODER
VOLUME KNOB (ROTATE ANTI-CLOCK
WISE First ) The selected file can be played by pressing MP3
ONFIRM BUTTON.
(C) SEARCHING FROM DIRECTORY
(1) SEARCH DIRECTORY BY USING TUNE UP / DOWN BUTTON.
Under MP3 play mode, press MP3 MENU BUTTON three times, Then the first Directory name is
shown. Press TUNE UP/DOWN (TUNE DOWN FIRST ) to navigate through the directory list, press
MP3 ENTER BUTTON to select the desired directory. The display will show “ \\ “. T
o select the tracks
under the selected directory, by pressing TUNE UP/DOWN Buttons (TUNE DOWN FIRST) then press
MP3 ENTER BUTTON to confirm when desired track is found.
(2) SEARCH DIRECTORY BY USING ENCODER VOLUME KNOB
Under MP3 play mode, press MP3 MENU BUTTON three times, Then the first Directory name is
shown. Rotate ENCODER VOLUME KNOB (ROTATE ANTI-CLOCKWISE First ) to navigate through
the directory list, press MP3 ENTER BUTTON to select the desired directory. The display will show “ \\
“. To select the tracks under the selected directory, by Rotate ENCODER VOLUME KNOB (ROTATE
ANTI-CLOCKWISE First ) then press MP3 ENTER BUTTON to confirm when desired track is found.
ID3 TAG
Press DISPLAY button repeatedly to Display ID3 TAG information.
If the MP3 file is available with ID3 TAG, pressing the display button repeatedly will show information in
the following sequence:
SONG TITLE > ARTIST> ALBUM TITLE
If any of the ID3-TAG information is not available, pressing the DISPLAY button repeatedly will show
information in the following sequence:
UNKNOWN SONGNAME> UNKNOWN ARTIST> NO ALBUM TITLE
If the MP3 file is without ID3 TAG, pressing the DISPLAY button, & “NO ID3 T
AG” will be displayed.
The file name & track number of the MP3 file will scroll repeatedly through the display during the
playing of the MP3 file.
BR - 16
Press directory up (M6) or directory down (M5) buttons to skip the current directory forward or
backward by one position.
In a multi-level directories disc, the movement will take place at the current level until the last directory
is reached. At this point press directory down (M5) again , it will move to the next level of directory.
(D) NAVIGATING THROUGH DIRECTORY BY USING M5/M6 BUTTON
Character A,B,C D,E,F G,H,I J,K,L M,N,O P,Q,R S,T,U V,W,X Y,Z, Space _,-,+ Move Cursor Next/Previous Character
M1 M2 M3 M4 M5 M6 SEL VOL UP/DN
MODE TUNE DN TUNE UP
Button
The distribution of alphabetical characters are listed as follow :
TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter
Button

BR - 17
Frequency Range
Intermediate Frequency
Usable Sensitivity
Stereo Separation
S/N Ratio
87.5-108 MHz
10.7 MHz
Better than 15dB at S/N 30 dB
25 dB at 1KHz
50 dB
13.SPECIFICATIONS
CD PLAYER
GENERAL
Power Supply
Polarity
Speaker impedance
Power Output
DC 11 -14V
Negative Ground
4 ohms
0W x 4
REMARK :
Specifications subject to change without notice.
RADIO SECTION
FM
System
Usable disc
Sampling frequency
No of quantization bits
Frequency
Number of channels
S/N Ration
Compact disc audio system
Compact disc
44.1KHz
1bit
5-20,000Hz
2 stereo
70dB
AM/MW
Frequency Range
Intermediate Frequency
Usable Sensitivity
S/N Ratio
522-1620 Khz
450KHz
Better than 45dB
40 dB
5
