VIETA VPC750BT User manual

OWNER´S MANUAL
RADIO CD PLAYER
WITH BLUETOOTH
VPC750BT

CONTENTS
Installation...........................................3
Take out screw before installation.........3
DIN Front-Mount (Method A).................3
Installing the unit ...............................3
Removing the unit .............................4
DIN Rear-Mount (Method B).................5
Using the detachable front panel ......6
Wiring Connection..............................7
Location of keys .................................8
Basic operation...................................9
Switching on/off the unit........................9
Faceplate release.................................9
Sound adjustment.................................9
System setting......................................9
Mute......................................................9
Loudness..............................................9
Set the clock.........................................9
Equalization..........................................9
Reset function.......................................9
Mode selection......................................9
ESP function.........................................10
Auxiliary input .......................................10
Radio operation ..................................10
Switching to radio mode....................10
Selecting the frequency band............10
Selecting station................................10
Automatic memory storing&
program scanning .............................10
Mono/stereo......................................10
Scan..................................................10
Station storing ...................................10
RDS operation...................................10
CD/MP3/WMA operation.....................11
Switching to CD mode.......................11
Selecting tracks.................................11
Pausing playing.................................12
Previewing all tracks..........................12
Repeating the same track .................12
Playing all tracks in random...............12
Ejecting a disc...................................12
Special function for MP3/WMA disc...12
USB play operation.............................13
Support MP3/WMA
decoding mode ...................................13
SD/MMC operation..............................13
Disc notes............................................14
Bluetooth operation............................15
Preparing for operation......................15
Pairing...............................................15
Connect.............................................15
T-menu..............................................15
Answering/Rejecting an
incoming call......................................17
Making an outgoing call.....................17
Holding a call.....................................17
Transfer the call between mobile phone
and the unit........................................17
Bluetooth audio (A2DP function).......17
Specification........................................18
Trouble shooting.................................19
2

INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,
utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.
TAKEOUTSCREWBEFOREINSTALLATION
Before install the unit, please remove the
two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of “to detach the front
panel”).
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
30
Take out screw
before installation.
3

INSTALLATION
they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.
6. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the
sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the appropriate
tabs behind the dashboard to secure
the sleeve in place.
(1) Dashboard (2) Taps
7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
8. Slide the unit into the sleeve until it
locks into place.
9. To further secure the unit, use the
supplied metal strap to secure the
back of the unit in place. Use the
supplied hardware (Hex Nut (M5mm)
and Spring Washer) to attach one end of
the strap to the mounting bolt on the back
of the unit. If necessary, bend the metal
strap to fit your vehicle’s mounting area.
Then use the supplied hardware
(Tapping Screw and Plain Washer) to
attach the other end of metal strap to a
solid metal part of the vehicle under the
dashboard. This strap also helps ensure
proper electrical grounding of the unit.
Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to the dashboard.
(1) Metal Strap; (2) Mounting Bolt;
(3) Hex Nut; (4) Spring Washer;
(5) Tapping Screw; (6) Plain Washer
10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install the
unit’s front panel (see the steps of “to
install the front panel”).
Removing the unit
1.Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2.Remove the metal strap attached the
back of the unit (if attached).
3.Press the release button to remove the
front panel.
Outer Trim Ring
Front Panel
L Key Sleeve
R Key
4

INSTALLATION
4.Lift the top of the outer trim ring then pull
it out to remove it.
5.Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit to
fasten the unit to the factory radio mounting
brackets supplied with your vehicle.
Dashboard or Console
Screw
Factory Radio
Mounting Bracket
Side View showing
Screw Holes marked
T, N
Screw
To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
5

To Detach the Front Panel
1. Press the release ( ) button, then the
front panel will be folded down.
OPEN
2. To remove the front panel, lift it up at a
little angle from horizontal position, then
first pull out the right side and then pull
out the left side.
Front Panel The right side
3. For safekeeping, store the front panel in
the supplied protective case immediately
after being removed.
To Install the Front Panel
1.To install the front panel, first insert the
left side into proper position then insert
the right side into place.
The left side
Front Panel The right side
2.When the two sides fixed into place,
push the front panel into main unit.
3.Note that if the front panel fails to lock in
position properly, pressing control button
may not function and the display may be
missing some segments. Press the
release button and then reinstall the front
panel again.
Precautions when handling
1. Do not drop the front panel.
2. Do not put pressure on the display or
control buttons when detaching or
re-installing the front panel.
3. Do not touch the contacts on the front
panel or on the main unit body. It may
result in poor electrical contact.
4. If any dirt or foreign substances
adhered on the contacts, they can be
removed with a clean and dry cloth.
5. Do not expose the front panel to high
temperatures or direct sunlight in
anywhere.
6. Keep away any volatile agents (e.g.
benzene, thinner, or insecticides) from
touching the surface of the front panel.
7. Do not attempt to disassemble the front
panel.
USING THE DETACHABLE FRONT PANEL
Release button
6

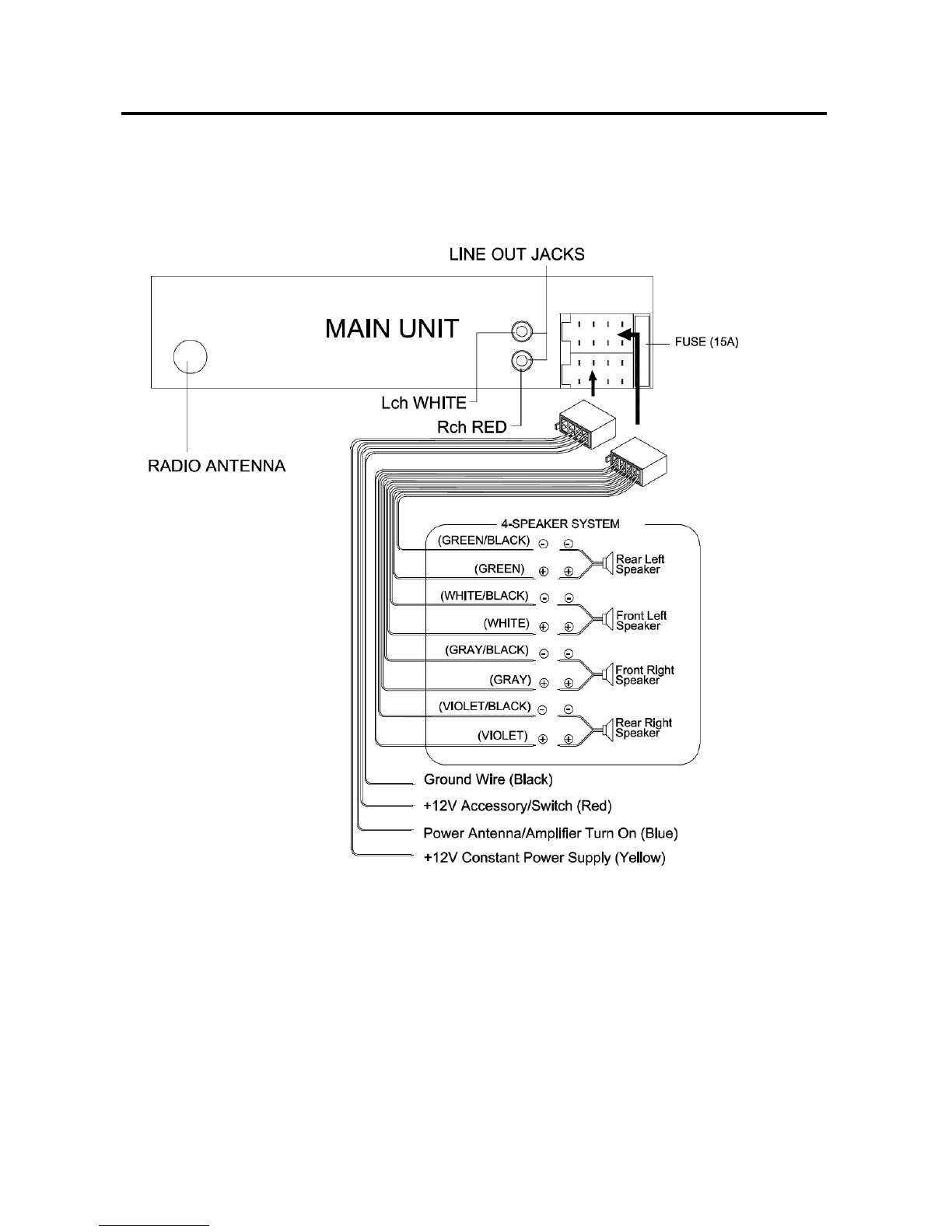

WIRING CONNECTION
FOR 4X40W SYSTEM
7

OPERATION
LOCATION OF KEYS
1. / (tune/seek/track
down/up buttons)
2. (release button)
3.Mic
4. (pick up)
5.PAIR/MOD
6.T-MENU
7.LCD (Liquid Crystal Display)
8.5 DIR-
9.4 SHF
10.1 PAU
11.1-6 preset buttons
12.2 SCN
13.3 RPT
14. /MUTE
15.6 DIR+
16.USB interface
17.9 PTY
18.# SCAN/CON
19.0 DISP
20.*/+ AS/PS/Navi-SCH
21.7 AF/MON
22.8 EQ/TA
23. AUX IN
24
. (hang up) / BND/LOUD/CLR
25. Reset button
26.Volume knob (when rotated)
27.SD/MMC interface
28.disc slot
29.eject button
8
111213452315
10
9
8
7
2
3
114
2617222120191824616
2829
27
25
SEL/MENU (when pressed)

BASIC OPERATION
SWITCHING ON/OFF THE UNIT
Press button (14) to turn on the unit,
When the unit is on, press and hold
button (14) to turn the unit off.
FACEPLATE RELEASE
Press button (2) to fold down the
removable faceplate.
SOUND ADJUSTMENT
Shortly press SEL/MENU button (26) to
enter AUDIO SETTING mode, use
SEL/MENU button (26) to select the
desired adjustment mode. The adjustment
mode will change in the following order:
VOL BAS TRE BAL FAD
(Volume) (Bass) (Treble) (Balance) (Fader)
Rotate the volume knob (26) to adjust the
sound quality .
SYSTEM SETTING
Press and hold SEL/MENU button (26) on
the front panel to enter SYSTEM SETTING
mode. Then shortly press SEL/MENU
button (26) to select the item you want to
change, and use volume knob (26) to
change the corresponding setting.
1) BEEP ON/OFF
Use volume knob (26) to set Beep
sound on or off.
2) P-VOL
Use Volume knob (26) to select
the volume level when the unit turns on.
3) AREA EUR/USA
USA area frequency spacing.
4) HOUR 24H/12H
24Hours or 12Hours format.
5) PCLK ON/OFF
or off when power off, when set PCLK.
ON, clock will appear with backlight on
when power off.
MUTE
Shortly press MUTE button (14) will mute
the sound instantly, press it again will
resume the sound.
LOUDNESS
Press LOUD button (24) for several
seconds to switch loudness function on,
and “LOUD” will appear on the LCD.
Press it for several seconds again to
release this function, and “LOUD” will
disappear.
SET THE CLOCK
Press the DISP button (19) shortly until the
clock is shown on the LCD display. Then
hold down DISP button (19) until the clock
flashes. Then press the button to
change minutes or the button to change
hours.
EQUALIZATION
Press EQ button (22) shortly to turn on
equalization function and to select desired
audio mode. There are several kinds of
mode as below:
→FLAT→CLASSICS→POP M→ROCK M→DSP OFF
RESET FUNCTION
RESET button (25) must be activated with
either a ballpoint pen or thin metal object.
The RESET button is to be activated for the
following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
Note: if press RESET button (25), the unit
can’t work yet, please use a cotton swab
soaked in isopropyl alcohol to clean the
socket on the front panel.
MODE SELECTION
Shortly press MOD button (5) to select the
9
OPERATION
Use Volume knob (26) to set EUR or
Use Volume knob (26) to set
Use Volume knob (26) to set clock on

desired mode, such as Radio, CD (MP3),
USB, SD, AUX.
When there isn’t an USB or SD connected
to the unit, the corresponding mode will be
skipped.
For Bluetooth function, when pairing
successful, you can select BT or A2DP
(Bluetooth audio) mode through MOD
button.
ESP FUNCTION
The unit can be shockproof about thirty
seconds.
AUXILIARY INPUT
The unit can be connected to a portable
audio player through the AUX IN jack (23)
on the front panel. After finishing the
connection, you can press MOD button (5)
on the front panel to switch the mode to
AUX IN mode.
RADIO OPERATION
SELECTING THE FREQUENCY BAND
At radio mode, press BND button (24)
shortly to select the desired band.
The reception band will change in the
following order:
FM1 FM2 FM3 AM (MW)
SELECTING STATION
Shortly press / buttons (1) to activate
automatic seek function. Press for several
seconds until “MANUAL” appears on the
display, the manual tuning mode is selected.
If both buttons have not been pressed for
several seconds, they will return to seek
tuning mode and “AUTO” appears on the
display then disappears.
AUTOMATIC MEMORY STORING &
PROGRAM SCANNING
- Automatic memory storing
Press AS/PS button (20) for several
seconds “SEARCH” will appear on LCD.
the radio will search from the current
frequency and checks the signal
strength until one cycle search is
finished. And then 6 strongest stations
are stored into the corresponding preset
number button.
- Program scanning
Press AS/PS button (20) shortly to scan
preset station. And the corresponding
station number P1~P6 will flash on
LCD.
MONO/STEREO
Press MON button (21) for several seconds
to select mono or stereo mode. You can
sometimes improve reception of distant
stations by selection mono operation.
SCAN
Press SCAN button (18) to enter scan
mode, the unit will scan to higher frequency
station and keep on each station for several
seconds (the corresponding frequency will
flash 3 times on LCD).
STATION STORING
Press any one of the preset buttons (11) (1
to 6) to select a station, which had been
stored in the memory. Press this button for
several seconds (until 2’nd beeps come
out), current station is stored into the
number button.
RDS (RADIO DATA SYSTEM)
OPERATION
−Setting RDS mode
Press AF/MON button (21) to switch on or
off RDS mode.
−USE PTY BUTTON (17)
Press PTY button (17) will enter PTY
SELECT mode, the program name will be
displayed on the LCD, you can use volume
knob (25) to select the items and
/
press buttons (1) to search the
corresponding program.
RDS Setting
Press and hold PTY button (17) to enter
RDS Setting mode. Then shortly press
10
OPERATION

PTY button (17) to select the item you
want to change, and use
Volume knob (26) to change the
corresponding setting as below:
TA SEEK (TA ALARM)PI SOUND (PI
MUTE)RETUNE S (RETUNE L)
MASK DPI (MASK ALL)EON TA DX
(EON TA LO)TA VOL 30REG OFF
(REG ON)
−Listening to Traffic Announcement
TA button (22) is operated as follows:
When pressed and held for several
seconds, it is engaging whether / mode
on or off.
When TA mode, is on and a traffic
announcement is transmitted:
When the unit was in CD (MP3) mode or
AUX IN mode, it will switch temporarily to
radio mode.
Temporary switch over to an EON linked
station when EON detects a traffic
announcement on that other program. If
the volume level was under the threshold
point it will be raised to the threshold point.
But the user changed the volume level,
which was more than the threshold point
(min. TA volume level), it will be set to the
last level. When TA mode is on, TA of
individual segment is turned on.
When a TP station is received, TP of
individual segment is turned on. TA
interruption function
The current traffic announcement is
cancelled by pressing this key. But the
TA mode will not be off.
The RDS data used are the PI, PS,AF,
TP, TA, EON and PTY data.
PI: Program Identification code Code
for identifying programs PS:
Program Service Name
Broadcast station name data
expressed in alphanumerically
characters
AF: Alternative Frequencies
Frequency list of broadcasting
stations transmitting the same
program
TP: Traffic Program Identification
Identification data for traffic
information-broadcasting station
TA: Traffic Announcement Identification
Identification data showing traffic
information is being transmitted or
not
EON: Enhanced Other Networks
Information
Broadcasting information on PI,
AF, TP, TA, etc, relating to
networks other than the network
used for current reception
PTY: Program Type Code
Contents of programs such as news,
light music, sports etc
CD/MP3/WMA OPERATION
SWITCHING TO CD MODE
If there is no CD/MP3/WMA disc inserted
into the driver:
Gently insert the CD/MP3/WMA disc with
the printed side uppermost into the disc
compartment until you feel some resistance.
The disc will be drawn into the driver
automatically. CD/MP3/WMA playback
begins.
Note when you insert the disc, you must be
sure the LED on the disc slot is lighting.
When the unit is on, the disc can be drawn
into the driver automatically.
If a CD/MP3/WMA disc is already inserted
in the driver:
Keep pressing MOD button (5) shortly.
SELECTING TRACKS
Press / (1) will skip to the
previous/next track. Track number will be
11
OPERATION
showed on display.

Press and hold / (1) will fast
reverse/forward. Disc play starts when you
release the button.
PAUSING PLAYING
Press PAU button (10) to pause the player.
Press it again to resume play.
PREVIEWING ALL TRACKS
Press SCN button (12) to play first several
seconds of each track on the current disc.
Press again to stop intro and listen to track.
REPEATING THE SAME TRACK
Press RPT button (13) to continuously
repeat the same track. Press it again to
stop repeat.
PLAYING ALL TRACKS IN RANDOM
Press SHF button (9) to play all tracks on
the disc in random order. Press again to
cancel the function.
EJECTING A DISC
Press button (29) to stop
CD/MP3/WMA playing and eject the disc
from the disc slot (28).
SPECIAL FUNCTIONS FOR MP3/ WMA
DISC
1) SELECTING DIRECTORY UP/DOWN
Press DIR- button (8) or DIR+ button
(15) to select directory downward or
upward. If the MP3/WMA disc does not
contain any directory, there is no
function of pressing DIR- button (8) or
DIR+ button (15).
2) SELECTING TRACKS BY AS/PS
/Navi-SCH BUTTON
AS/PS (Navi-SCH) button (20) is
assigned as Digital Audio Mode selection
button in MP3 operation.
When pressed, it is activated as selecting
each mode of Digital Audio.
“Searching track” => “Searching
Directory or File Name”=> “Navigation”
from root by volume knob.
 Searching Track Directly
Press AS/PS (Navi-SCH) button (20)
for one time. It enters into “Searching
track” in Digital Audio CD.
You can use the volume knob (26)
to select the track number in a
a sequence. The corresponding track
number, such as
Press BND/LOUD button (24) to
confirm and start the play.
 Searching Directory or File Name
Press AS/PS (Navi-SCH) button (20)
for two times. It enters into “Searching
Directory or File Name” in Digital Audio
CD.
- Use the volume knob to select the
characters A to Z, blank, 0 to
9, _, -, +.
- Press SEL button (26) to confirm
entry of each characters.
- Press BND/LOUD button (24) to
start the title search.
In case the selected title is a directory
name, display will show (‘ ‘), then
- Use the volume knob (26)
to list all songs under this
directory and select the title.
- Press BND/LOUD/ENT button (24)
to confirm and start the play.
- Repeat the above steps if the newly
selected title is again a directory.
 Searching From Root Directory
Press AS/PS (Navi-SCH) button (20)
for three times. The unit searches file or
directory from root by tune/seek/track
up/downbuttons / (1). (D-DIR icon
turns on if the name is directory).
Display will list all available directories
and songs. Select the desired
directory/songs by using volume
knob (26) and BND/LOUD
song, it starts to play.
If the selected title is a directory name,
12
OPERATION
“TRACK 12” will
appear on the display.
to confirm. If the selected title is a
button (25)

display will show (‘ ‘), then use the
volume knob (26) to list all songs
under this directory and select the
title. Press BND/LOUD
Repeat the above steps if the newly
selected title is again a directory.
4) DISPLAY INFORMATION
Press DISP button (20) to show the
following information, such as the track
number, the clock and other information.
For the disc with MP3 ID3 function
version only: ID3 TAG (if available: song
title, directory name, artist name, other
contents…) will be displayed on the
screen without pressing DISP button.
USB PLAY OPERATION
In the front panel of the unit, there is an
USB interface (16). You can connect an
USB device through this interface (16).
When you connect an USB device through
the interface, the unit will search the MP3
files or WMA files in the USB driver and
start to play MP3 files or WMAfiles
automatically.
If in other mode, you can also press MOD
button (5) to select USB mode.
When playing the MP3 files or WMA files in
the device, the operation is the same with
the MP3/WMA operation described above.
Note：
：：
：
The main unit can only support the
standard USB-memory disc.
USB MP3 player is not a standard
which means different brand name or
different models have their own
standard. So our product cannot
support every MP3 player.
When connecting an MP3 player and
there has normal battery in the player
(non rechargeable battery), you should
remove the battery from the MP3
player then connect it to the USB
interface. Otherwise, it may cause
battery burst.
When in USB play mode, be sure not to
remove the USB driver from the USB
interface.
CAUTION
When there are important files in the USB
device, do not connect it to the main unit to
play. And don’t play the CD-R/RW disc that
has important files in it. Because any wrong
operation may cause files loss. And our
company assumes no responsibility for this.
SUPPORTED MP3/WMA
DECODING MODES
The main unit supports MP3/WMA
(Windows Media Audio) decoding modes
as below.
Standard Bit Rate
(kbps) Supports
Mode
MPEG1 Audio
Layer 3
(44.1kHz)
16~ 320 Kbps
& VBR
Stereo
Windows
Media Audio
(44.1kHz)
16~ 320 Kbps
& VBR
Stereo
The USB solution can support:
1. Folder: 256 max.
2. File: 30000 max.
SD/MMCOPERATION
The SD/MMC interface (27) is on the
housing of the unit. When you press the
release button to fold down the front panel,
you will see the SD/MMC interface.
When you insert a SD/MMC card in the
SD/MMC interface, the unit will search the
MP3 files or WMAfiles in the card and start
to play MP3 files or WMA files
automatically.
The operation is the same with the MP3
13
OPERATION
operation described above. If in other mode,
you can also press MOD button (5) to
select SD/MMC mode.
onfirm and start the play.
button to
c

DISC NOTES
A. Notes on discs:
1. Attempting to use non-standard shape
discs (e.g. square, start, heart) may
damage the unit. Be sure to use round
shape CD discs only for this unit.
2. Do not stick paper or tape, etc, onto the
label side or the recording side of any
discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warping discs
will cause misoperation.
B. Notes on CD-Rs (recordable
CDs)/CD-RWs (rewritable CDs):
1. Be sure to use discs with following
marks only for the unit to play:
2. The unit cannot play a CD-R and
CD-RW that is not finalized. (Please
refer to the manual of your
CD-R/CD-RW recorder or
CD-R/CD-RW software for more
information on finalization process).
3. Depending on the recording status,
conditions of the disc and the
equipment used for the recording, some
CD-Rs/CD-RWs may not be played on
this unit. (see *1)
*1: To have more reliable play back, please
see following recommendations:
a: Use CD-RWs with speed 1x to 4x
and write with speed 1x to 2x.
b. Use CD-Rs with speed 1x to 8x and
write with speed 1x to 2x.
c. Do not play a CD-RW which has been
written for more than 5 times.
C. Notes on MP3 files (MP3 Version
Only):
1. The disc must be in the ISO9660 level 1
or level 2 format, or Joliet or Romeo in
the expansion format.
2. When naming a MP3 file, be sure the
file name extension is “.MP3”.
3. For a non-MP3 file, even though the file
name extension is “.MP3”, the unit
cannot recognize it.
ReWritable
14
OPERATION

BLUETOOTH OPERATION
PREPARING FOR OPERATION
(1) When use Bluetooth, please make sure
the mobile phone supports Bluetooth
function.
(2) For the different kind of mobile phone,
Bluetooth emissive power has some
difference. To get the best conversation
quality, it is commended that the
distance between the mobile phone and
the unit is within 3m.And please don’t
put any metal object or any obstacle
between the path of the mobile phone
and the unit.
PAIRING
1) Long pressing PAIR/MOD button (5)
until LCD display PAIRING to enter
paring mode. On the mobile phone,
select the Bluetooth set up. (Please
refer to the instruction manual of your
mobile phone on how to operate
Bluetooth.)
2) “CarBT” should appear in the list on
your mobile phone, please select
“CarBT” and then input password “0000”.
3) The unit has auto pairing function, it will
searching the Bluetooth mobile phone
automatically.
4) When successful paired, the Bluetooth
sign will be displayed on LCD.
5) If pairing failed, try to pair again within
several seconds. You can refer to the
operation about your mobile phone,
delete the device that just searching for
and repair again.
6) Note: During pairing, only (release)
button (2), volume knob (26) and
MUTE button (14) are
pairing mode. During pairing, if
you want to exit it, long pressing
PAIR/MOD button (5) unit LCD appears
“PAIR END”.
RE-CONNECTING
This unit is built-in auto-reconnection
function. In some conditions, the unit will
auto reconnect with the mobile phone (note:
the mobile phone must have been paired
with the unit before.)
Before dialing you need to confirm the
Bluetooth sign is displayed on LCD.
Within ten seconds in the following
conditions:
a. when you turn off the unit and then turn it
on again.
b. switch off the ACC wire and switch it on
again.
c. press (release) button (2) to release
the front panel and install the panel again.
Press button (4), ‘NOT PAIR’ may be
displayed on the LCD. You can wait for
several seconds to let the unit reconnection
automatically or press and hold CON
button (18) for several seconds to
reconnect. During reconnection, LCD will
show “CONN TRY” several times and then
show “CONN OK” if successfully connect.
T-MENU
When successful paired, shortly press
T-MENU button (6) on the front panel will
enter the telephone menu, keep pressing
this button or press / button (1) to
change the items in this menu. The items
will be displayed in the following sequence:
PRE NUM /RECEIVED/ DIALED/ MISSED/
MANU ANS/TALK XX.
The details please see the following
instruction.
PRE NUM: Display the speed dial
phone number you have stored in the
preset memory. The system can store
maximum 10 numbers.
Note: Every system reset operation by
pressing reset button (25), the setup of
PRE NUM will be cleared.
15
OPERATION
functional,
others keys are disabled during

1) Store speed dial numbers
a. Press T-MENU button and select
PRE NUM item.
b. Use volume knob to scan which
memory available store.
c. If any memory is available for input,
the phone item is empty, and
you can see the Memory No.
(”0”~”9”) will appear on LCD.
d. Press SEL/MENU button (26) to
enter the input interface. You
can see “DIAL -->” on the LCD.
e. Use 0~9, *, #, to input the desired
telephone number.
Note: When you input a wrong
number, shortly press CLR
button (24) will clear it. Press
and hold CLR button (24) will
clear all the numbers.
f. When you finish input, press
SEL/MENU button (26) to store
the number into the preset
memory. LCD will show “SAVE
OK”.
2) Make a speed dial call
Press button (4), then press and
hold the preset buttons (M0~M9) to
call the phone number stored in the
memory. And the number you stored
in it will be displayed on LCD.
3) Preview the speed list
Press T-MENU button (6) to select
PRE NUM menu. If you want to call
any number in dial list, use volume knob
to select the speed dial number, and
shortly press button (4) to confirm
the dialing.
4) Edit the speed dial list
Select the number you want to edit
from the speed dial list, then shortly
press SEL/MENU button (26) to enter
the edit interface.
RECEIVED: Display the last call you
have received.
You can use volume knob to scan the
last received numbers. And you can
shortly press button (4) to confirm
the dialing.
DIALED: Display the last 10 dialed
number.
You can use volume knob to scan the
numbers. And you can shortly press
button (4) to confirm the dialing.
MISSED: Display the call you have
missed.
You can use
numbers. And you can shortly press
button (4) to confirm the dialing.
MANU ANS/AUTO ANS
In this mode, press volume knob
(26) to select MANU ANS (manual
answer) or AUTO ANS (auto answer).
In AUTO ANS mode, when a call
coming. The unit will answer the call
automatically.
In MANU ANS mode, when a call
coming. You can press button (4)
to answer the call, or press button
(24) to reject the incoming call.
TALK VOLUME: Display the current
talk volume level, you can use
the volume knob (26) to adjust
the talk volume level in a certain range.
16
OPERATION
volume knob to scan the

ANSWERING/REJECTING AN
INCOMING CALL
Please refer to the MANU ANS/AUTO ANS
paragraph in T-MENU section.
MAKING AN OUTGOING CALL
1) Making an outgoing call from PRE NUM,
RECEIVED, DIALED, MISSED, please
refer to the T-MENU section.
2) Making an outgoing call by inputting the
phone number manually.
Press button (4) on the front panel.
Use 0~9, *, # buttons to enter the phone
number you want to dial. Then press
button (4) again will call the number.
Note: if you input the wrong number,
shortly press CLR button (24) will clear it.
Press and hold CLR button (24) will clear
all number.
3) Marking last call number, press
button (4) two times LCD will show
“LAST NUM”, then press button
again to call out the last call number.
HOLDING A CALL
During the talking mode, pressing
button (4) can interrupt the call temporally,
then press button (4) again to continue
the call. This function needs the mobile
phone support.
TRANSFER THE CALL BETWEEN
MOBILE PHONE AND THE UNIT
During the talking mode, you can press and
hold T-MENU button (6) to transfer the
phone call between the mobile phone and
the unit.
Note:
If you transfer the call to mobile phone, the
mute of the present mode will be released
at the same time.
BLUETOOTH AUDIO (A2DP FUNCITON)
The unit supports Bluetooth audio function.
If your mobile phone can play stereo audio,
when the paring is ok, you can select an
audio file and set to A2DP function on your
mobile phone (It is up to the mobile phone,
the different mobile phone has the different
define.)
When in A2DP mode, only / buttons
(1) and PAU button are functional.
Use / buttons (1) on the front panel of
the unit to choose the previous/next track.
Press PAU to pause the play.
17
OPERATION

SPECIFICATION
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 160 (D) x 50 (H)
Tone Controls
- Bass (at 100 Hz) : ±10 dB
- Treble (at 10 kHz) : ±10 dB
Maximum Output Power
- Version Y : 4x40 watts
Current Drain
- Version Y : 15 Ampere (max.)
CD PLAYER
Signal to Noise Ratio : More than 55 dB
Channel Separation : More than 50 dB
Frequency Response : 40Hz – 18 kHz
RADIO
For 2 Bands
FM
Frequency Coverage 87.5 to 108 MHz
IF 10.7 MHz
Sensitivity (S/N=30dB) 10dBu
Stereo Separation >25dB
MW
Frequency Coverage 522 to 1620 kHz
IF 450 kHz
Sensitivity (S/N=20dB) 36 dBu
Note:
Specifications and design are subject to modification, without notice, due to
improvements in technology.
18

TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems
persist after checklist has been made, consult your nearest service dealer.
Symptom Cause Solution
No power. The car ignition switch is
not on. If the power supply is
connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
The fuse is blown. Replace the fuse.
Disc cannot be
loaded or
ejected.
Presence of CD disc
inside the player. Remove the disc in the player,
then put a new one.
Inserting the disc in reverse
direction. Insert the compact disc with the
label facing upward.
Compact disc is extremely
dirty or detective disc. Clean the disc or try to play a new
one.
Temperature inside the car
is too high. Cool off or until the ambient
temperature return to normal.
Condensation. Leave the player off for an hour or
so, then try again.
No sound. Volume is in minimum Adjust volume to a desired level.
Wiring is not properly
connected. Check wiring connection.
Sound skips. The installation angle is
more than 30 degree. Adjust the installation angle less
than 30 degree.
The disc is extremely
dirty or defective disc. Clean the compact disc, then try to
play a new one.
The operation
keys do not
work.
The built-in microcomputer
is not operating properly
due to noise.
Press the RESET button.
Front panel is not properly fix into
its place.
The antenna cable is not
connected. Insert the antenna cable firmly.The radio does
not Work. The
radio station
automatic
selection does
not work.
The signals are too weak. Select a station manually.
19
