ViewSat VS2000 ULTRA User manual

User’s Manual
Free To Air
Digital Satellite Receiver
VS2000

1. SAFETY PRECAUTIONS
2. GENERAL FEATURES
3. HOW TO CONNECT YOUR RECEIVER
4. HARDWARE DESCRIPTION
5. SYSTEM SET-UP
6. MENU OPERATION
7. TROUBLE SHOOTING
8. TECHNICAL SPECIFICATIONS

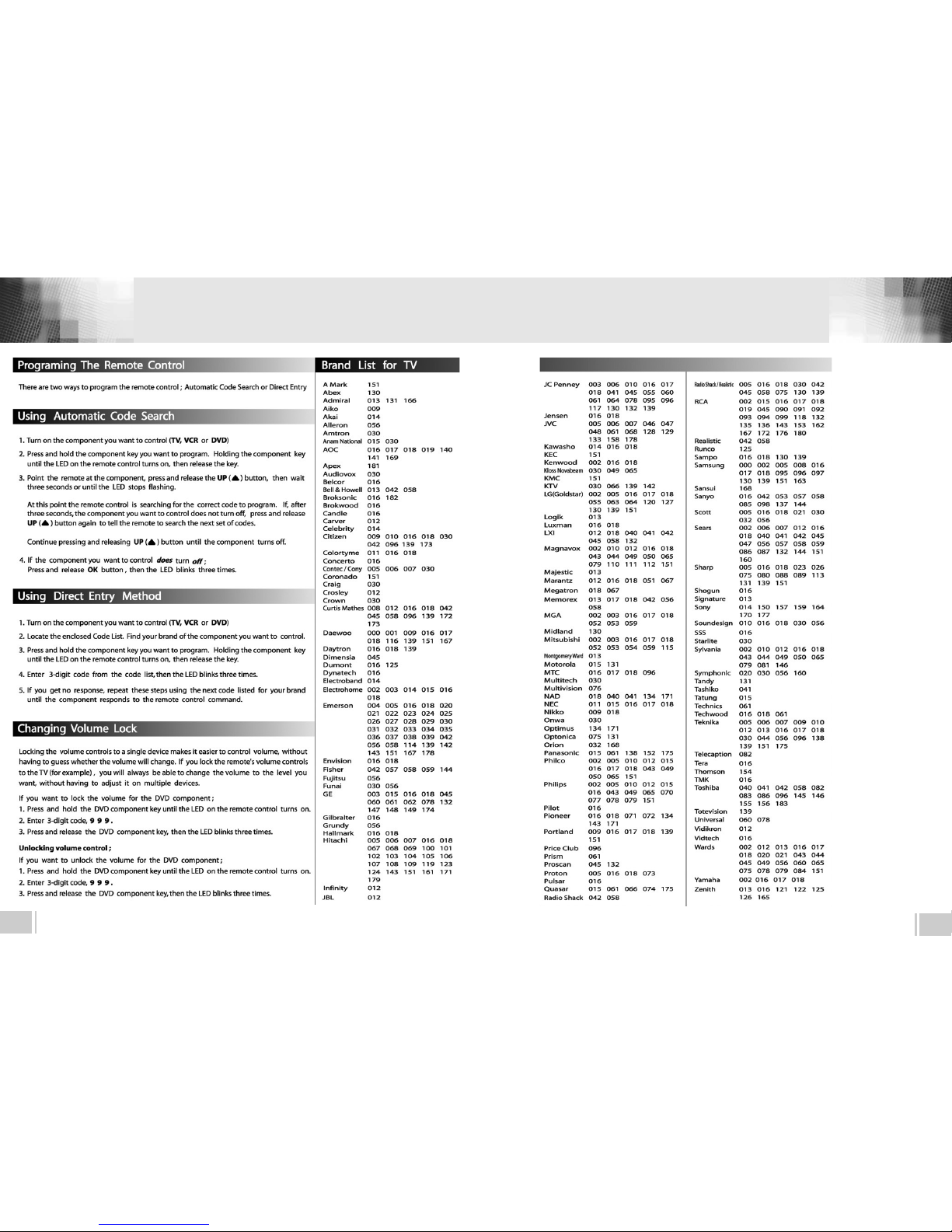

9. PROGRAMING THE REMOTE CONTROL
4
5
6
8
12
14
29
30
32
Table of Contents

Declaration of Conformity
FCC Rule : TESTED TO COMPLY WITH FCC PART 5, CLASS B
OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE.
FCC COMPLIANCE STATEMENT :
This device complies with part 15 of the FCC rules. Operation is subject to
the following conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation.
INFORMATION TO USER:
This equipment has tested and found to comply with the limits of a Class B
digital device, pursuant to part 15 of the FCC Rules. These limit are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, user and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation, if this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from that to
which the receiver is connected.
4. Consult the dealer or an experience radio / TV technician for help.
CAUTION :Changes or modifications not expressly approved by
manufacturer responsible for compliance could void the user's
authority to operate the equipment.
1) Read all of these instructions.
2) Save these instructions for later use.
3) Follow all warnings and instructions marked on the product.
4) Follow all instructions.
5) o not use the apparatus near water.
6) Clean only with dry cloth.
7) o not block any ventilation openings. Install in accordance with the manufacturerís instructions.
8) o not install near any heat sources such as radiators. heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) o not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safely. If the provided plug does not fit into your
outlet. Consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) o not place the apparatus on an unstable cart, stand or table. The apparatus may
fall, causing serious damage to the apparatus.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
moisture, does not operate normally, or has been dropped.
15) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Explanation of Safety Related Symbols
Shock Hazard Marking and Associated Graphical Symbols
WARNING : To Reduce The risk of fire or electric shock, do not expose this the apparatus to rain or moisture.
WARNING : To Reduce The risk of fire or electric shock, do not
expose this the TV to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK O NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK O NOT OPEN
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and
maintenance(servicing) instructions in the literature accompanying the appliance.
CAUTION : TO RE UCE THE RISK OF ELECTRIC SHOCK,
O NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSI E. REFER SERVICING
TO QUALIFIE SERVICE PERSONNEL.
The main socket-outlet for connecting mains plug shall be accessibly close to this apparatus
23
Important Safety Instruction

GENERAL FEATURES 5
SAFETY PRECAUTIONS 4
This receiver has been manufactured to satisfy the
international safety standards.
Please read the following recommended safety precautions carefully.
MAIN SUPPLY : AC 95V~240V 50 / 60 Hz
LOCATION : Locate the receiver indoor.
Locate receiver away from potential hazards such as houseplants, lighting, raining and direct sunlight.
OVERLOADING : Do not overload wall outlets, extension cords or adapters as this
can result in fire or electrical shock.
LIQUIDS : Keep liquids away from the receiver.
CLEANING : Before cleaning, disconnect the receiver from the wall socket.
Use a cloth lightly dampened with water (no solvents) to clean the exterior.
VENTILATION : Do not block the receiver ventilation holes. Ensure that free airflow is
maintained around the receiver.
Never set the receiver on soft furnishings or carpets. Do not use or store the receiver
where it is exposed to direct sunlight, or near heater.
Never stack other electronic equipment on top of the receiver.
Place the receiver at least 30mm from the wall.
ATTACHMENTS : Do not use any attachment that is not recommended by the manufacturer,
as it may cause a hazard or damage the equipment.
CONNECTION TO THE SATELLITE DISH LNB : The LNB connector cable has a
voltage in its center core. It is therefore recommended that the receiver is disconnected from
the mains power before connecting or disconnecting this cable.
FAILURE TO DO SO COULD DAMAGE THE LNB.
SERVICING : Do not attempt to service this product yourself. Any attempt to do so will
make the warranty invalid.Refer all servicing to a qualified service agent.
LIGHTNING : If the receiver is installed in an area subject to intense lighting activity,
protection devices for the receiver mains connector and modem telephone line are essential.
The individual manufacturers instruction for safeguarding other equipment, such as TV set,
Hi-Fi, etc., connected to the receiver, must also be followed during lighting storms.
GROUNDING : The ground of the LNB cable must be directly connected to the system
ground for the satellite dish. The grounding system must comply with local regulations.
1. SAFETY PRECA TIONS
- Fully MPEG-2 & DVB Compliant
- Input Frequency 9502150MHz
- Supports EPG, PIG
- Supports SCPC & MCPC from C / Ku-band
- 1 LNB Input Tuner with Loop Through IF Signal
- Tuner Symbol Rate : 145MS/s
- Fast Booting & Auto Scan
- Quick Channel Changing
- Max. 4000 Channels(TV & Radio) Programmable
- User Friendly 256 Colors OSD & Easy GUI
- A lot of OSD Language supported
- Radio Channel Background Display
- Favorite Channel List Programmable
- Master PIN Code Function & Parental Lock Function
- 100 Steps Volume Control
- Automatic Detection of Forward Error Correction
- Window based S/W Download Program Supported
by RS232 Serial Port
- Set to Set Download (Main Program, Channel Data)
- 4:3, 16:9 Letter Box
- Support Closed Caption
- 7 Segment-4 Digit Display
- 5 Keys on the Front Panel (Power On/Off, Channel
Up/Down, Volume Up/Down)
- Various LNB Polarity Control
�22KHz Switching Control
- 6 RCA Output for Video, Audio L/R, Component
- S/PDIF Output for Digital Audio
- S-VIDEO Output
- RF-Modulator Output
- Zoom function
- Multi Picture
- Blind Scan
- USALS
2. GENERAL FEAT RES

HOW TO CONNECT YOUR RECEIVER 7
HOW TO CONNECT YOUR RECEIVER
6
Please DO NOT plug in the main power supply cord until you have
finished all the connections.
) LOCATION OF THE RECEIVER
Your receiver should be placed under proper ventilation.
Dont put in completely enclosed cabinet that will restrict the flow of air, Resulting overheating.
The location should be safeguarded from direct sunlight, excess moisture,
rough handling or household pets.
Avoid stacking other electronic components on the top of the receiver.
The location should be safely accessible by the cable from your antenna system.
2) CONNECTING THE RECEIVER WITH DISH SYSTEM
After installing your dish system, connect the coaxial cable from LNB of your dish antenna to
LNB INterminal marked at the rear of the receiver.
All cable connectors should be finger tightened ; do not use any kind of wrench
on the cable over connectors.
The cable should be 75Ϊimpedence coaxial twisted at the end with aFtype connector.
3) CONNECTING THE RECEIVER TO TV
To connect the receiver with your television, you can follow three method ;
through RF cable, RCA cable, COMPONENT cable and S-Video cable.
Connect the RF cable to the terminal markedTV OUTat the rear panel of the
receiver and its other end to the TV RF input socket.
3. HOW TO CONNECT YO R RECEIVER
Analog
SVR
Hi-Fi
Stereo Audio
TV
Antenna
Satellite
Antenna
TV
4) CONNECTING EXTERNAL AUDIO HI-FI SYSTEM
To connect any external Audio Hi-Fi system, the receiver has been provided with
S/PDIF connector at the back of the receiver.
5) CONNECTING YOUR ANALOG RECEIVER
To facilitate the user using analog receiver to view analog channels,
the receiver has been provided with a loop through terminal marked asIF OUT.
Connect the coaxial cable from this terminal to the
IF input terminal of your analog receiver.
Now by keeping the receiver in standby,
you will be able to tune and view analog channels from your analog receiver.

HAR WARE ESCRIPTION 9
) LNB IN : This port is to connect the coaxial cable from LNB of your Dish. The IF input is provided through
this port and the input frequency range is 9502150MHz. Also the voltage switching 13V and 18V is
passed through this port.
2) IF OUT : To enable the connection of an analog receiver. The receiver is provided with this port. Connect
this port to LNB IN port of the other receiver via RF Cable.
3) SERIAL PORT : This is used to connect your receiver with computer through a serial cable.
This port can be used for upgrading software.
4) S/PDIF DIGITAL OUTPUT : This port is for the connection to the extenal Hifi system which has a optical
S/PDIF input interface.
5) VIDEO, AUDIO R/L, COMPONENT( Y ,Pb, Pr ): These RCA connectors are used to connect any external
video and audio.
6) ANT IN : This is used to connect your local RF channels to your TV through Loop.
7) TV OUT : This is used to connect your TV through RF cable.
8) POWER INPUT : This is to plug in the AC main power cord.
The input AC volts range is 95V~240V, 50/60Hz supply.
9) S-VIDEO : This is used to connect your TV through S-Video Cable.
0) CH 3,4 : The switch select RF 3,4 channel number.
) POWER SWITCH : This is swith to turn on and off the AC main power.
4. B. REAR PANEL
HAR WARE ESCRIPTION8
4. A. FRONT PANEL
4. HARDWARE DESCRIPTION
) POWER : This key is used to turn the receiver on and off (stand by).
2) CH : These keys are used to change the channels.
3) VOL : These keys are used to increase and decrease the volume
level manually.
4) INFRARED SENSOR : This is to receive the IR commands from the
RCU. Do not block the view of the sensor.
5) 7 SEGMENT DISPLAY : This SEGMENT display will show the current
channel number.While the receiver is in stand by mode, the display will show
the current time.
POWER
C H
VOL
INFRARED SENSOR
7 SEGMENT DISPLAY
①
②③ ④
⑤⑥⑧
⑦
⑩
⑨⑨
6) SMART CARD INTERFACE SLOTS : To watch scrambled
channels you should insert a smart card into Smart Card Interface issued the
service provider whom you subscribes to. Therefore you can watch only a
specific range of channels with entitlements in smart card. The smart card
includes information to decipher parameters necessary for descrambling the
program. Please note that the gold chip on the smart card should face
download and inward when you insert when you insert it into Smart Card
Interface.
SMART CARD
INTERFACE SLOTS

10 11HAR WARE ESCRIPTION
HAR WARE ESCRIPTION
4. C. REMOTE CONTROL UNIT
5) LAST : This key is used to return to the previous channel.
6) AUDIO : This key is used to select the soundtrack list for the current service
and also used to select audio mode.
7) PAUSE : This key is used to pause the screen.
8) SAT : This key is used to select the satellite.
9) F , F2, F3, F4 : Function Keys.
20) HELP: This key is for Help.
1) POWER : This is used to switch the receiver to ON/STANDBY mode.
2) MUTE : This key is used to toggle between normal and muted audio.
3) 0-9 NUMERIC KEYS : These keys are used to enter numeric values and to
select the channel directly by entering its number.
4) CH▲∙CH▼: These keys are used to change channels and to browse the menu.
5) VOL▶∙VOL◀: These keys are used to vary the volume level and to change the
cursor options in the menu.
6) MENU : This key is used to open up the menu.
7) EXIT : This key is used to exit from any menus.
8) OK : This key is used to enter and confirm any data to the receiver in the menu systems.
The Channel list can be accessed directly by pressing this Key
in the normal view mode.
9) Page Up : This key is used to page up the menu.
10) Page Down : This key is used to page down the menu.
11) FAV : This key is used to switch between favorite lists.
12) GUIDE : This key is used to open up the Electronic Program Guide.
13) i : This key is used to view the channel information.
: This key is used to toggle between the TV channel and the radio channel.
A DIO
PA SE
SAT
F1 F2 F3 F4
HELP
0~9
MEN
EXIT
OK
FAV
G IDE
INFO
14)

SYSTEM SET-UP 13
SYSTEM SET-UP
12
System Connection
Power On
Antenna Configuration Setting
Automatic Channel Search
Main Menu / Installation /
Antenna Setup
Connect the receiver to all peripheral devices.
Turn on the power of the receiver and other
devices.
Select Main Menu/Installation / Antenna Setup
using CH & OK keys.
Select the satellite which you want to search
using VOL keys.
Insert all information of your antenna.
Press OK key, and the receiver will automatically
search for all TV/Radio channels from a satellite.
5.A. Automatic channel search for a satellite
You can automatically detect and save all TV and Radio channels
of a satellite as follows :
5. SYSTEM SET- P
Select Menu/Installation/ Channel Scan.
Select the satellite which you want to search.
Insert all information of your antenna.
Select the transponder from transponder list
which you want to search.
If you cannot find it from transponder list, you
should insert all the
transponder information
(i.e., Frequency, Symbol Rate, Polarity and FEC).
Press OK key, and the receiver will automatically
search for all channels contained in the selected
transponder.
Antenna Configuration Setting
Manual Channel Search
Main Menu/Installation/
Channel Scan
5. B. Manual channel search for a transponder
You can automatically search and save all TV and Radio channels of
a transponder as follows :

MENU OPERATION 15
MENU OPERATION14
The main menu is classified into five sub menus which will carry out the
various operation individually.
. MAIN MENU
After installing your dish system and receiver with appropriate connectors, plug in the AC main
power and turn on the receiver.
Press the MENU key of the RCU. You will see theMain
Menuon the TV screen as follow.
You can move into the desired submenu using the
up/downkeys () or numeric keys.
PressOKkey to confirm your selection. If theMain
Menuis locked, note that you should enter the PIN
code in order to move into the corresponding submenu
in case ofEdit ChannelsmenuEdit Favoritesmenu
andInstallationmenu.
The default factory PIN code is0000
Press themenukey orexitkey to return to previous
menu.
2. EDIT CHANNELS
You can edit channels on various channel lists - channel
lock, delete channel, move channel, edit the name of a
channel, and sort the channel list.
SelectEdit Channelsmenu in main menu, and you will
be asked to enter your PIN code. You can find the
followingEdit Channelsscreen by entering it.
. A. CHANNEL LOCK
Select theChannel Lockicon using the left/right
keys (). Select the channel that you want to lock
or unlock from the channel list using theup/downkeys
() and thepage up/down
keys( ). Press theOKkey to confirm your selection.
Also, you can use thekey to select either TV channel list or Radio channel list.
Once the channel is locked, every time you try to watch the program, you will be asked to enter PIN
code. Press themenukey orexitkey to return to previous menu.
2. B. DELETE CHANNEL
S
elect theDelete Channelicon using theleft/rightkeys(). Select the channel that you
want to delete from the channel list using theup/downkeys() and thepage up/down
keys( ). Press theOKkey to confirm your selection. Also, you can use thekey to
select either TV channel list or Radio channel list.
Press themenukey orexitkey to return to previous menu.
2. C. MOVE CHANNEL
Select theMove Channelicon using theleft/rightkeys(). Select the channel that you
want to move from the channel list using theup/downkeys() and thepage up/down
keys( ). PressOKkey to confirm your selection.
Move it to the position where you want to place it using theup/downkeys() and thepage
up/downkeys( ). Press theOKkey to confirm. Also, you can use thekey to select
either TV channel list or Radio channel list.
Press themenukey orexitkey to return to previous menu.
2. D. EDIT CHANNEL NAME
Select theEdit Channel Nameicon using theleft/rightkeys(). Select the channel that you
want to edit from the channel list using theup/downkeys() and thepage up/downkeys
( ). PressOKkey to confirm your selection.
Select the character which you want to edit using the browse keys(,). PressOKkey
to confirm.Save the character currently selected using theF2key. Also, you can use the
key to select either TV channel list or Radio channel list. Press themenukey orexitkey to
return to previous menu.
2. E. SORT CHANNEL LIST
Select theSort Channel Listicon using theleft/rightkeys(). PressOKkey to confirm.
Select the sort type which you want to sort using theup/downkeys(). Press theOKkey
to confirm.Also, you can use thekey to select either TV channel list or Radio channel list.
Press themenukey orexitkey to return to previous menu.
6. MEN OPERATION
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲

MENU OPERATION 17
MENU OPERATION16
3. EDIT FAVORITES
You can edit the favorite channel list, such as add/delete a channel or move its position, which
facilitates you to easily find your favorite channel from the favorite channel list.
The favorite channel is classified into one of 8 favorite categories depending on its genre.
SelectEdit Favoritemenu in main menu, and you will be asked to enter your PIN code.
You can find the followingEdit Favoritescreen by entering it.
3. A. ADD FAVORITE CHANNEL
You can choose TV channel list or Radio channel list in an alternative way by pressing the
key on the RCU. By pressingFAVkey on the RCU, you can choose
your favorite channel group out of 8 favorite groups.
Select theAdd Channelicon using theleft/right
keys(). Select a channel that you want to add
into the favorite channel list using theup/down
keys() and thepage up/downkeys ( ).
Press theOKkey, and the selected channel will be
added to the favorite channel list. Press themenukey
orexitkey to return to previous menu.
3. B. DELETE FAVORITE CHANNEL
You can choose TV channel list or Radio channal list in an alternative way by pressing the
key on the RCU.
By pressingFAVkey on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select theDelete Channelicon using theleft/rightkeys().
Select a channel that you want to delete from the favorite channel list using theup/down
keys() and thepage up/downkeys( ). Press theOKkey, and the selected channel
will disappear from the favorite channel list.
Press themenukey orexitkey to return to previous menu.
▲
▲
▲
▲
▲
▲
▲
▲
3. C. MOVE FAVORITE CHANNEL
You can choose TV channel list or Radio channel list in an alternative way by pressing the
key on the RCU.
By pressingFAVkey on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select theMove Channelicon using theleft/rightkeys().
Select a channel that you want to move using theup/downkeys(). and thepage
up/downkeys( ). PressOKkey to confirm your selection.Move it to the position where you
want to place it using theup/downkeys(). and thepage up/down” keys( ).
Press theOKkey to confirm.
Press themenukey orexitkey to return to previous menu.
3. D. RENAME FAVORITE GROUP
You can choose TV channel list or Radio channel list in an alternative way by pressing the
key on the RCU.
By pressingFAVkey on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select theRename Favorite Groupicon using theleft/rightkeys().
Press theOKkey and select the character which you want to edit using the browse keys(,
).
Press theOKkey to confirm.
Save the character currently renamed using theF2key.
Press themenukey orexitkey to return to previous menu.
3. E. SORT CHANNEL LIST.
You can choose TV Channel list or Radio channel list in an alternative way by pressing the
key on the RCU.
By pressingFAVkey on the RCU, you can choose your favorite channel group out of 8 favorite
groups.
Select theSort Favorite Listicon using theleft/rightkeys(). PressOKkey to confirm.
Select the sort type which you want to sort using theup/downkeys().
Press theOKkey to confirm.
Press themenukey orexitkey to return to previous menu.
▲
▲
▲
▲
▲
▲
▲
▲

4. INSTALLATION
Installationmenu helps you to setup a variety of
parameters necessary for receiving signal, add
new service, upgrade the new software and reset
the channel data.
SelectInstallationmenu in main menu, and you
will be asked to enter your PIN code.
You can find the followingInstallationscreen by
entering it.
MENU OPERATION 19
MENU OPERATION18
LNB Power
LNB Type
LNB Freq.
22KHz
Search option
DiSEqC .0
Motor
: Depending on the users antenna LNB, you can supply either LNB power by
settingONor not by settingOFF. Normally set this toON.
: You can select the LNB type.
: You can select the predefined LNB frequency or manually enter a specific
frequency in MHz unit by pressing numeric keys.
: In case you are using two antennas connected to a 22KHz tone switch box,
you can supply either 22KHz by settingONor off by settingOFFto select
antenna.
: You can search all the free channels & scramble channels or only free channels
or onlyscramble channels by setting the search option.
: If you have DiSEqC box, you can choose port by selecting port number.
Otherwise, choosenone
: If you have a DiSEqC 1.2 motorised system, then you can takeadvantage of the
DiSEqC 1.2 functions available. Choose Installer as Motor and press “F1” key.
After that, adjust antenna direction using browse keys.
4.A. ANTENNA SETUP
Your receiver includes the preprogrammed information of transponders contained in various
satellites.
You can update the transponder list preprogrammed
for a satellite by adding a new transponder to it or
modifying the information of the existing transponder.
(Refer to the Channel Scan described in section 4.B)
SelectAntenna Setupmenu inInstallationmenu
and the following screen will be displayed.
Select the desired satellite using theleft/right
keys().SetLNB Power,LNB Type,LNB
Freq,22KHz”,Search Option, andDiSEqC 1.0
fields to the appropriate value using the left/right
keys() at each field.
4. A. Automatic Scan
Check the signal strength. PressOKkey to start the scan procedure.You can see the
progressive status of channel searching.
Please note that the scan procedure may take a few minutes.
Press themenukey orexitkey to return to previous menu.
4. A. 2 Blind Scan
Blind Scan search the channel when you don’t know
the transponder information.
Press the F2 key to start the blind scan procedure
and the following screen will be displayed.
Please note that the scan procedure may take a few
minutes.
Press the “menu” key or “exit” key to return to
previous menu.

MENU OPERATION 21
MENU OPERATION20
4. B. Channel Scan
Select the desired satellite using theleft/rightkeys ().
Select theAntenna Configurationicon using the browse keys( ).
PressOKkey, and setLNB Power,LNB
TypeLNB Freq,22KHz,Search Option, and
DiSEqC 1.0fields to the appropriate value using
theleft/rightkeys() at each field. Check the
signal strength and pressExitkey.
Select theSearch/Edit TPicon using theleft/right
keys(). PressOKkey, and select the
desiredtransponder using theup/downkeys (
). PressOKkey to start the manual searching for
selected transponder.
Freq.
S/R
PoI.
FEC
: Input the frequency of the transponder you want to find manually.
: Inputs the symbol rate of the transponder you want to find.
: Select the polarization of the transponder you want to find. In the case of
horizontal,18V and in the case vertical, 13V are output through LNB line.
:
Select the FEC of the transponder you want to find. You can select the value of 1/2,
2/3, 3/4, 5/6, 7/8 or auto.
4. B. 2 ADD SATELLITE
You can add a new satellite. Select theAdd Satelliteicon using theleft/rightkeys (),
and press theOKkey.
Select theSearch/Edit TPicon using theleft/rightkey (). Press theOKkey and add
a new transponder using theF1key. You should set various parameters of the transponder.
The default name of the added satellites isUserSAT-No.
4. B. 3 RENAME SATELLITE
You can also change the satellite name. Select theRename Satelliteicon using theleft/right
keys ().
PressOKkey and select the character which you want to edit using the browse
keys (,). Press theOKkey to confirm. Save the character currently renamed using
theF2key.
4. B. 4 DELETE SATELLITE
You can also delete the user satellite. Select the satellite that you want to delete from the satellite list.
Select theDelete Satelliteicon using the browse keys (,).
Press theOKkey, and the selected satellite will disappear.
You can see the progressive status of channel searching.
If you cannot find the desired transponder from the transponder list, you can add it by inputting
appropriate parameter values for a new transponder using theF1key. When you want to
change the parameter of an existent transponder, select the parameter using theF1key,
change its value and press theExitKey.Correctly set various parameters.
4. B. CHANNEL SCAN
It will be more convenient to useChannel
Scan
procedure when you want to search
channel for a specified transponder offered from the satellite. As inAntenna Setup,
Channel
Scan
also searches all channels broadcasted over a specific transponder
using its predefined information. You can add a new transponder if you cannot find it on
the predefined transponder list.
SelectChannel
Scan
menu inInstallationmenu, and the following screen will be
displayed.
4. A. 3 USALS
-Please go to Antenna Setup and select USALS
from motor.
-Press F1 then Pop-up will be appeared.
-Press arrow button to write Longitude
-Press arrow button to write Latitude, then OK to
work.

MENU OPERATION 23
MENU OPERATION22
4. D. TIME SETTING
You can change the time of your receiver and also
switch on/off the timer function in this menu.
Select “Time Settings” item in the “ Receiver Settings”
menu and the following screen will be displayed.
4. E. RECEIVER UPGRADE
You can upgrade the software of this receiver through
serial port when the new software is released.
Please contact the distributor for receiver upgrade.
Distributor supports you useful information and new
software for the receiver.
4. F. FACTORY DEFAULT
This is to restore the factory set values in case the user has encountered some problems after
changing any new values of channel data and others which may be in error.
SelectFactory Defaultmenu inInstallationmenu and pressOKkey.
If you want to continue, select optionYes.The receiver will be reset to settings automatically.
Please note that theFactory Defaultprocedure may take a few minutes.
: Select the time mode of your receiver. In Auto mode, your receiver will
use the information from the satellite as time reference. In manual
mode, you can set the time of your receiver manually.
: Set the time offset from the UTC (GMT).
Useful in auto mode only.
: Set the current time manually. Useful in manual mode only.
: Enable or disable the Summer Time. Most European countries use the
Summer Time.
Useful in auto mode only.
: Set the time when the receiver will be automatically turned on
: Set the time when the receiver will be automatically turned off.
Time Mode
Time Adjustment
Current time
Summer Time
On time
Off time
4.C.3 Change PIN Code
You can change your PIN code from factory default value0000as follow:
SelectChange PIN Codein theParental Controlmenu using the
left/right
keys
().
PressOKkey. Then you will be asked for a new PIN code.
Once you enter a new PIN code, the receiver will ask you to enter it in again.
After you enter a new PIN code twice, the PIN code is changed permanently.
If you forget the PIN code, you have to contact the distributor to find out it.
4. C. PARENT CONTROL
This function prevents children or unauthorized
persons from watching programs.
Also you can change PIN(Personal Identification
Number) code.
SelectParental Controlmenu inInst
tallation
menu, and the following screen will be displayed.
4.C. Receiver Lock
To lock receiver, selectReceiver Lockin theParental Controlmenu and change it toOn
mode using theleft/rightkeys ().
4.C.2 Menu Lock
To lock the Main Menu, selectMenu Lockin theParental Controlmenu and change it to
Onmode using theleft/rightkeys ().

MENU OPERATION 25
8. CHANNEL GUIDE
PressGUIDEkey, and the following screen will be displayed.It will give the titles of the current
and next programmes on different channels.
The information may include : current time / channel
name, name of the current and next programme, the
start and total time of the current programme, the start
and total time of the next programme.
Programme information will be available only when it is
included in the transmission.
When you press thekey, you can alternatively
select TV or radio channel guide.
Press themenukey orexitkey to return to previous
menu.
7. CHANNEL LIST
This menu helps you to easily select the channel that you want to watch.
The channel list is separately constructed for each
satellite. PressOKkey, and the following screen will be
displayed. You can get the information of channel
number, channel name, and whether the program is
scrambled or locked.
To watch a specific channel, first select it by pressing the
up/downkeys and thepage up/downkeys
( , ). Then, pressOKkey. This enables you to move
into that specific channel.
You can also select a specific satellite using theSAT
key. When you press thekey, you can
alternatively select TV or radio channel list. When you press Press themenukey orexitkey to
return to previous menu.
▲
▲
▲
▲
MENU OPERATION24
6. GAMES
This menu helps you play game called Tetris. In this
game you can choose level from 1 or 9. Once you
choose game menu from main menu, you can choose
OK to start a game.
: You can choose either 4:3 or 16:9 according to the TV type.
: You can select the transparency of the menu.
: You can select the menu language.
: You can select the audio language.
: You can select the channel mode when channel is changed.
: If this is “on” , receiver will beep out the signal status.
Screen Type
Menu Transparency
Menu Language
Audio Language
Channel Mode
Beep for scanning
Press themenukey orexitkey to return to previous menu.
5. SYSTEM SETTINGS
This menu helps you to Set up video output
mode,
Ianguage, screen type and SelectSystem
Settingsmenu in main menu

On the live TV screen or paused TV screen, you can magnify some region of TV screen.
Press “F4” key and the ZOOM box will be display.
You can use following keys.
- Up/Down/Left/Right keys () : Move the ZOOM box
- Page Up/Page Down keys ( , ) : Increase or decrease the ZOOM box
- OK key ( ) : Watch the ZOOM box to full screen or return to ZOOM box
- Exit key ( ) : Return to the live screen
MENU OPERATION 27
MENU OPERATION26
9. AUDIO
PressAUDIOkey.
Select the audio mode which you want using theleft / rightkeys
Some programs are broadcasted with one or more alternative language soundtracks.
You can select the preferred audio language for soundtrack using theup/downkeys
When you press”GUIDE” key again, Daily Guide will be
displayed. You can see all events for selected chanel.
0. ZOOM FUNCTION
OK
EXIT
▲
▲
▲
▲
. MULTI PICTURE
2. COLOR SETTING MENU
You can use the Multi-picture Function using F1 key.
You can watch four, six or nine pictures at the same
time using this function. And select the number of
pictures using () keys and press OK. After that,
you can see the Multi-Picture Screen. Also you can
select the channel using( ) keys and OK
key in the Multi-picture Screen. The channel of your
selection is only live signal when you selected one
channel of the several channels. The channels of
which is not selected are just the pictures.
You can adjust the color seting to take the enhonced
TV screen. Press “F2” key then below screen will
display.
4 Picture 6 Picture 9 Picture

TECHNICAL SPECIFICATIONS 29
MENU OPERATION28
7. TRO BLE SHOOTING
Problem
Does not display LED on the
front panel or the receiver has no power.
No pictures on the screen
No sound
Remote Control does not operate
Poor picture quality
Searching Signal
Unrecognized smartcard
Please insert your smartcard
Solution
- Connect the power cord to the power outlet
properly.
- Check if the receiver is in standby mode.
- Check if the video output port is firmly
connected to the Tv.
- Check if you have selected the correct
channel or video output on your TV.
- Connect the audio cords properly.
- Check the volume level of the TV.
- PressMUTEkey.
- Point remote control directly towards the
receiver.
- Check and replace batteries.
- Check the signal strength in theAntenna
Setupmenu
- If this is low, try adjusting the alignment of
your dish.
- Connect the antenna cable properly.
- Check the LNB. Please replace LNB if
necessary.
- Check the position of the dish. Please realign
dish if necessary.
- Check the signal strength in theAntenna
Setupmenu.
- Check the smartcard.
- Insert the smartcard.
About the Receiver
On - Screen Error Messages
: You can select this to “Default” or “User”
When “Mode” is “User” , you can change each color value.
: If your receiver connected to TV by using “VIDEO” or “S-VIDEO”
Connector , these items will change the color setting of TV
screen.
: If your receiver connected to TV by using “Component cable
“(Y-Pb-Pr)” , these three items will change the color setting of TV
screen.
Mode
Brightness
Contrast
Saturation
Sharpness
M_B_Y
M_G_U
M_R_V

TECHNICAL SPECIFICATIONS30
5. Audio Decoder
System Decoding
Audio Mode
Sampling Frequency
6. Audio/Video Output
Audio Output
Video Output
Digital Audio
S-Video
COMPONENT
7. RF Modulator
Modulator Output
Video Type
Output Connector
Ant. IN Connector
8. Serial Data Interface
Signal
Connector Type
9. Embedded Descramble
X Crypt Conditional Access System
: MPEG-1 ISO/IEC 11172-3
Layer I & II
: Mono, Dual, Stereo, Joint Stero
: 32, 44.1, 48 KHz
: 2 RCA Cinch
: 1 RCA Cinch
: 1 S/PDIF(Optical)
: 1 S-VIDEO
: 3 RCA Cinch
: CH3~4
: NTSC
: “F” Type Female
: “F” Type Female
: RS-232, Max. 115200 bps
: 9 Pin D-Sub(male)
31
TECHNICAL SPECIFICATIONS
. Power Supply
Type
Input Voltage
Fuse Rating
2. Tuner
Input Frequency
Input Signal Level
Input Impedance
Connector Type
LNB Power Supply
22KHz Tone
DiSEqC
Channel Selection
3. Demodulator
Type
Symbol Rate
Inner FEC
Outer FEC
4. Video Decoder
System Decoding
Profile and Level
Data Rate
Video Formats
: SMPS
: AC 95V~240v 50Hz / 60Hz
: 250V/T2A
: 9502150MHz
: -65-25dBm
: 75Unbalanced
:FType Female
: 13V/18V, Max 500mA with Short Circuit Protection
: Frequency 224KHz, Amplitude 0.60.2Vpp
: 1.0 & 1.2 Version Compatible
: PLL Frequency Synthesizer
: QPSK Demodulation(DVB-S)
: 145 MS/s
: Viterbi Convolutional Coding
Rate 1/2, 2/3, 3/4, 5/6, 7/8
: Reed Solomon Coding(204,188) T=8
: MPEG-2 ISO/IEC 13818-2
: MPEG-2 MP@ML
: 115 MB/s
: 4:3(Normal) & 16:9(Widescreen)
8. TECHNICAL SPECIFICATIONS

33
32

35
34
Brand List for TV
Brand List for TV
Other manuals for VS2000 ULTRA
1
This manual suits for next models
1
Table of contents
Other ViewSat Receiver manuals
