ViewSonic VA2756-4K-MHD User manual

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
VA2756-4K-MHD
Display
User Guide
Model No. VS17993
P/N: VA2756-4K-MHD

2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!

3
Safety Precauons
• Read these instructions completely before using the equipment.
• Keep these instructions in a safe place.
• Heed all warnings and follow all instructions.
• Sit at least 18” / 45 cm from the monitor.
• When installing the monitor, please leave 4” / 10 cm of open space around the
monitor for ventilation safety purposes.
• Always handle the display with care when moving it.
• Always use cabinets or stands or installation methods recommended by the
manufacturer of the monitor set.
• Always use furniture that can safely support the monitor.
• Always ensure the monitor is not overhanging the edge of the supporting
furniture.
• Do not place the monitor where children are likely to be present.
• Always educate children about the dangers of climbing on furniture to reach the
monitor or related equipment.
• Always route and manage cords and cables connected to your monitor so they
cannot be tripped over, pulled, or grabbed.
• Exercise caution when removing the rear cover of the monitor. This monitor
contains high-voltage parts.
• Do not use this equipment near water. To reduce the risk of fire or electric
shock, do not expose the monitor to rain or moisture.
• Avoid exposing the monitor to direct sunlight or other sources of sustained heat.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that may increase the temperature of the
monitor to dangerous levels.
• Clean with a soft, dry cloth. If further cleaning is required, see the
“Maintenance” section in this guide for further instructions.
• Avoid touching the screen. Skin oils are difficult to remove.
• Do not touch, rub, or apply pressure to the monitor screen, as it may
permanently damage the screen.
• Do not place the monitor in an unstable location.
• Do not place the monitor on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the monitor to a suitable support.
• Do not place the monitor on cloth or other materials that may be located
between the product and supporting furniture.

4
• Place the monitor in a well-ventilated area. Do not place anything on the display
that prevents heat dissipation.
• Do not place heavy objects on the display, video cable, or power cord.
• Do not place items that might tempt children to climb, such as toys and remote
controls, on the top of the monitor or furniture on which the product is placed.
• If smoke appears, an abnormal noise, or a strange odor is present, immediately
switch the display off and contact your dealer or ViewSonic. It is dangerous to
continue using the display.
• Do not attempt to circumvent the safety provisions of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the plug does not
fit into your outlet, obtain an adaptor and do not attempt to force the plug into
the outlet.
• Please confirm the distribution system installed in the building. The system
should provide a circuit breaker rated at 120/240V, 20A.
• When connecting to a power outlet, DO NOT remove the grounding prong.
Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched, particularly at the
plug, and at the point where it emerges from the equipment. Be sure that the
power outlet is located near the equipment so that it is easily accessible.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the equipment. When a cart is used, use with caution
when moving the cart/equipment combination to avoid injury from tipping over.
• Unplug this equipment when it will be unused for long periods of time.
• Refer all servicing to qualified service personnel. Service will be required when
the unit has been damaged in any way, such as: if the power-supply cord or
plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit
is exposed to rain or moisture, or if the unit does not operate normally or has
been dropped.
• Excessive sound volume from ear-/headphones may cause hearing damage/
hearing loss.
• Adjustment of the volume control as well as the equalizer may increase the ear-/
headphones output voltage and therefore, the sound volume level.
• The factors influencing the ear-/headphones output other than those specified
by the manufacturer (e.g. operating system, equalizer software, firmware,
driver) may increase the ear-/headphone output voltage and therefore, the
sound volume level.

5
• Stability Hazard: The display may fall, causing serious personal injury or death.
To prevent injury, this display must be securely attached to the floor/wall in
accordance with the installation instructions.
• Fastening the monitor to a wall or fixed object using cordage or other restraining
devices can help support the weight of the monitor in order to prevent the
monitor from falling over.
Hole paern
(W x H)
Interface Pad
(W x H x D) Pad Hole Screw Specicaon
Screw
Quanty
100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm 4 screws
NOTE:
• Restraining device/cordage should be able to withstand 100N force.
• Make sure the cordage is straightened, and any slack is removed. The back
of the device shall face the wall to ensure the device cannot tilt under
external force.
• Make sure the monitor does not tilt under external force at any height and
rotation angle of the device.
• If the existing monitor is going to be retained and relocated, the same
considerations as above should be applied.

6
Safety Precautions....................................................... 3
Introduction ................................................................ 8
Package Contents ...................................................................................................8
Product Overview...................................................................................................9
Front and Rear View................................................................................................ 9
I/O Ports ................................................................................................................. 9
Initial Setup............................................................... 10
Installing the Stand...............................................................................................10
Removing the Stand and Mounting the Display...................................................11
Using the Security Slot..........................................................................................12
Making Connections.................................................. 13
Connecting to Power ............................................................................................13
Connecting External Devices ................................................................................14
Using the Monitor ..................................................... 15
Adjusting the Viewing Angle.................................................................................15
Tilt Angle Adjustment............................................................................................ 15
Turning the Device On/Off ...................................................................................16
Quick Menu........................................................................................................... 17
Configuring the Settings .......................................................................................18
General Operations............................................................................................... 18
On-Screen Display (OSD) Menu Tree .................................................................... 20
Appendix................................................................... 23
Specifications........................................................................................................23
Glossary ................................................................................................................26
Troubleshooting ...................................................................................................30
Maintenance.........................................................................................................32
General Precautions.............................................................................................. 32
Cleaning the Screen............................................................................................... 32
Cleaning the Case.................................................................................................. 32
Contents

7
Regulatory and Service Information .......................... 33
Compliance Information.......................................................................................33
FCC Compliance Statement................................................................................... 33
Industry Canada Statement................................................................................... 33
CE Conformity for European Countries ................................................................. 33
Declaration of RoHS2 Compliance......................................................................... 34
Indian Restriction of Hazardous Substances ......................................................... 35
Product Disposal at End of Product Life................................................................ 35
Copyright Information ..........................................................................................36
Customer Service..................................................................................................37
Limited Warranty .................................................................................................. 38
Mexico Limited Warranty...................................................................................... 41

8
Introducon
Package Contents
• Monitor
• Power cord
• Quick start guide
• Video cable
NOTE: The power cord and video cable(s) included in your package may vary
depending on your country. Please contact your local reseller for more
informaon.

9
Product Overview
Front and Rear View
I/O Ports
HDMI
2
DP
12
1
1 2 2 3 3 4
1. AC IN 2. HDMI 3. DisplayPort 4. Audio In

10
Inial Setup
Installing the Stand
1
1
2
2
1
2
3
NOTE: Always place the device on a at, stable surface. Failure to do so may
cause the device to fall and damage the device and/or result in personal
injury.

11
Removing the Stand and Mounng the Display

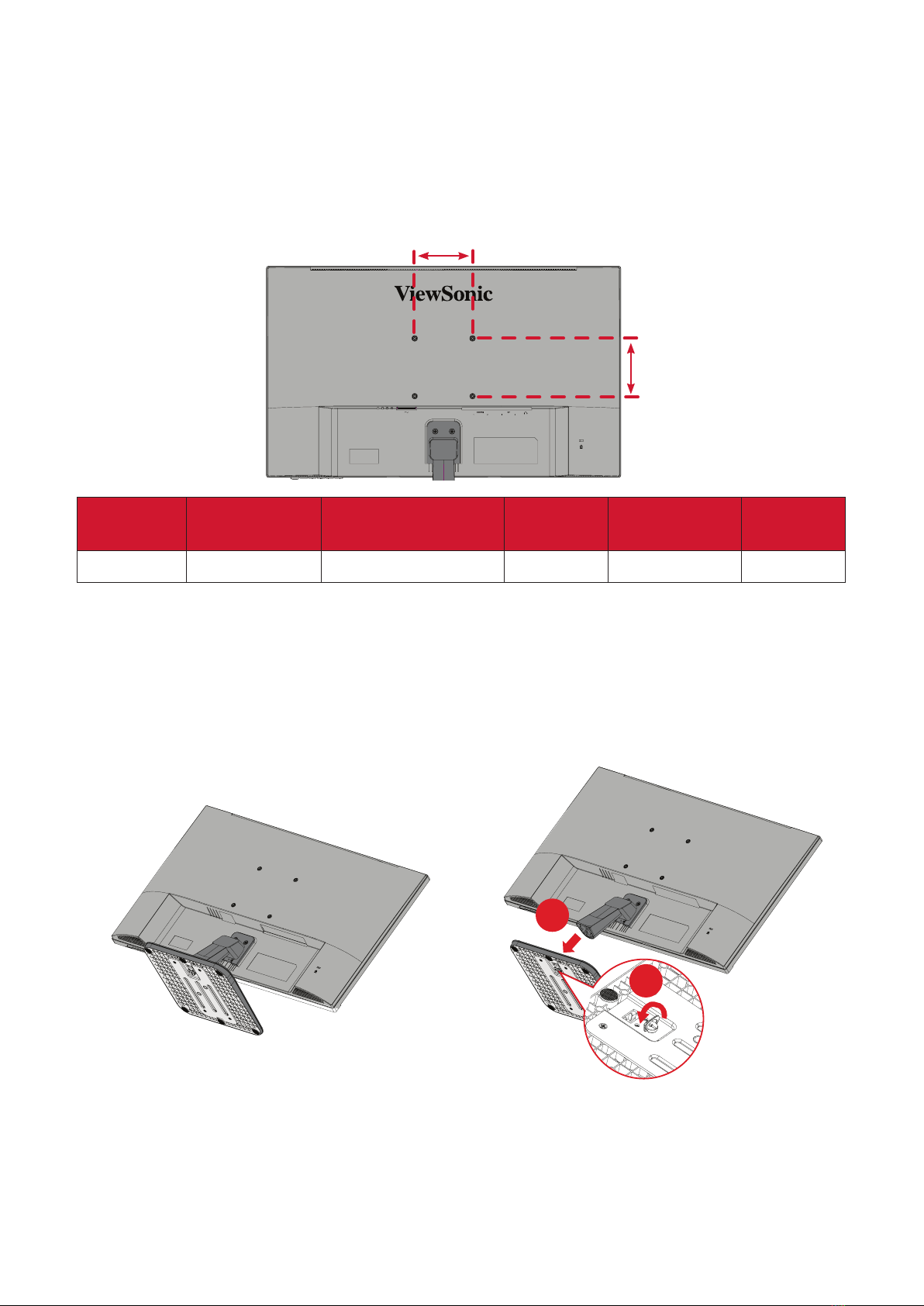

Refer to the table below for the standard dimensions for mounng kits.
NOTE: For use only with a UL cered mounng kit/bracket. To obtain a wall
mounng kit or height adjustment base, contact ViewSonic® or your
local dealer.
100 mm
100 mm
Maximum
Loading
Hole paern
(W x H)
Interface Pad
(W x H x D) Pad Hole Screw
Specicaon
Screw
Quanty
14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm 4 screws
NOTE: Mounng kits are sold separately.
1. Turn o the device and disconnect all cables.
2. Place the device on a at, stable surface with the screen facing down.
3. Remove the monitor stand.
1
2
1
2
2
1
4. Aach the mounng bracket to the VESA mounng holes at the rear of the
device. Then secure it with four (4) screws (M4 x 10 mm).
5. Follow the instrucons that come with the mounng kit to mount the monitor.

12
Using the Security Slot
To help prevent the device from being stolen, use a security slot locking device to
secure the device to a xed object.
Addionally, fastening the monitor to a wall or xed object using a security cable
can help support the weight of the monitor in order to prevent the monitor from
falling over.
Below is an example of seng up a security slot locking device on a table.

13
Making Connecons
This secon guides you on how to connect the monitor with other equipment.
Connecng to Power
1. Connect the power cord to the AC IN jack at the rear of the monitor.
2. Plug the power cord plug into a power outlet.
1 2

14
Connecng External Devices
HDMI
DP DisplayPort
HDMI

15
Using the Monitor
Adjusng the Viewing Angle
Tilt Angle Adjustment

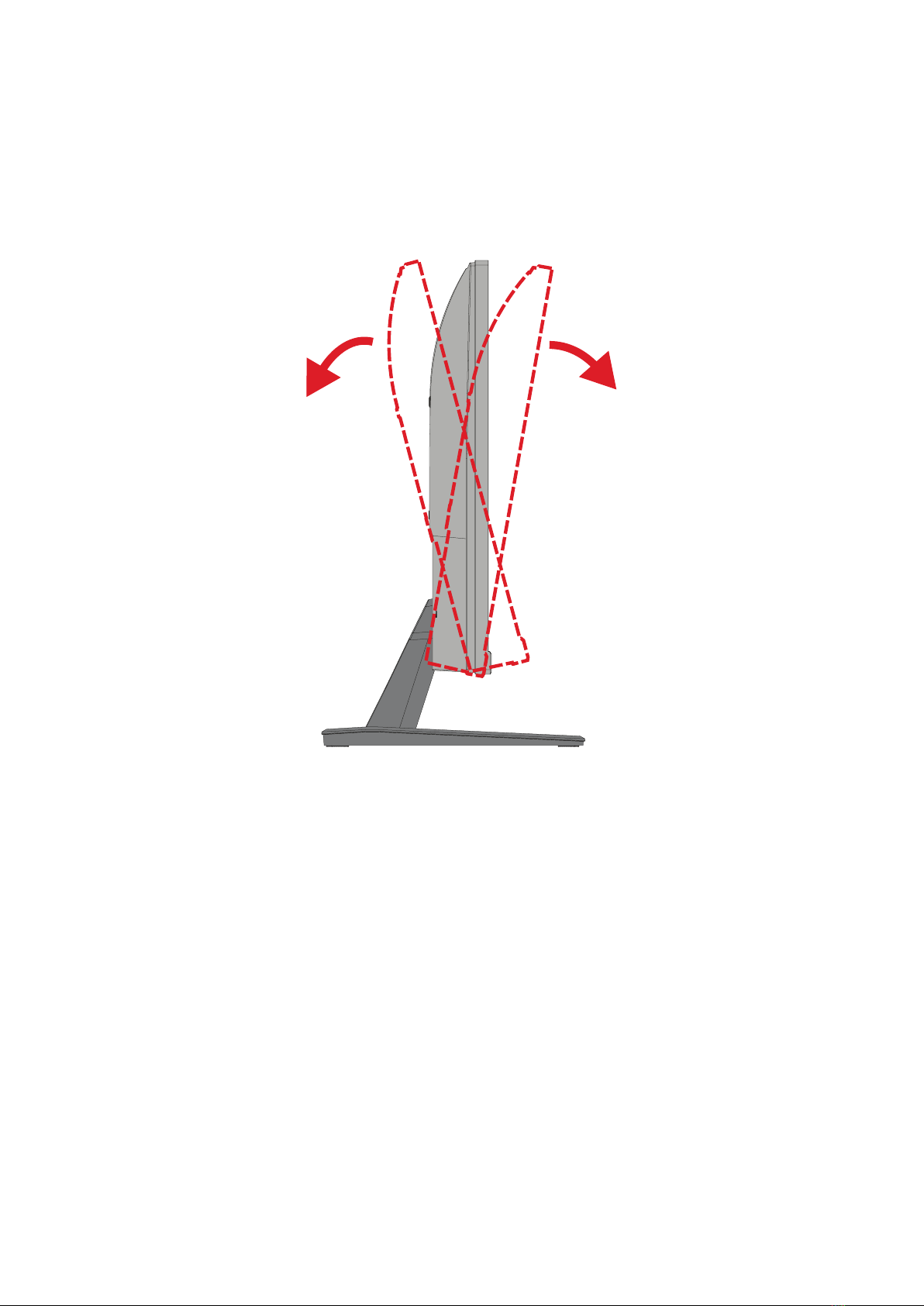

Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 20˚).
NOTE: When adjusng, support the stand rmly with one hand while lng the
monitor forwards or backwards with the other hand.

16
Turning the Device On/O

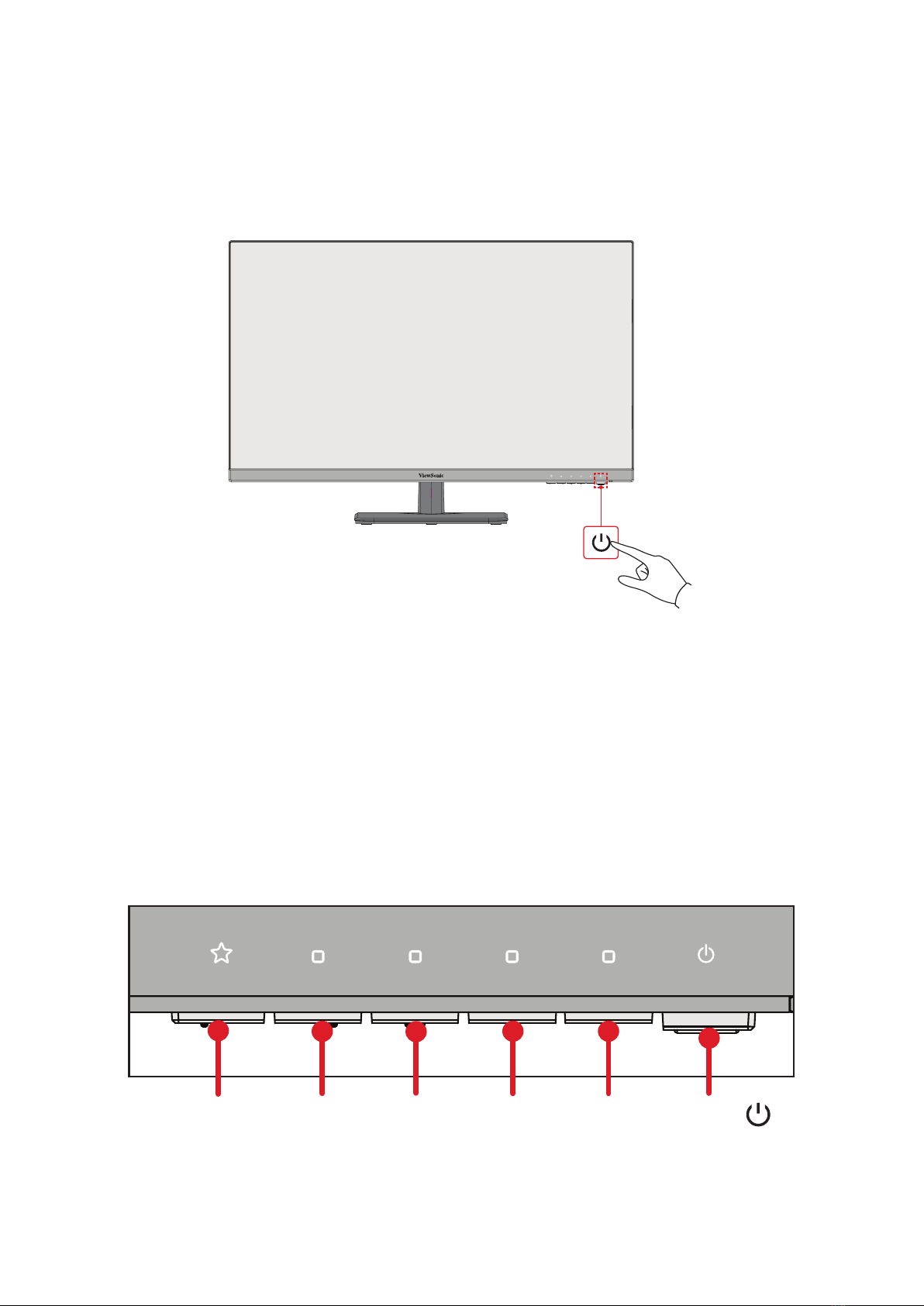

1. Plug the power cord into a power outlet.
2. Press the Power buon to turn on the monitor.
3. To turn the monitor o, press the Power buon again.
NOTE: The monitor will sll consume some power as long as the power cord
is connected to the power outlet. If the monitor is not being used for a
long period of me, please disconnect the power plug from the power
outlet.
Using the Control Panel Keys
Use the control panel keys to access the Quick Menu, acvate Hot Keys, navigate
the On-Screen Display (OSD) Menu, and change the sengs.
1(«)2 3 4 5 Power ( )

17
Quick Menu

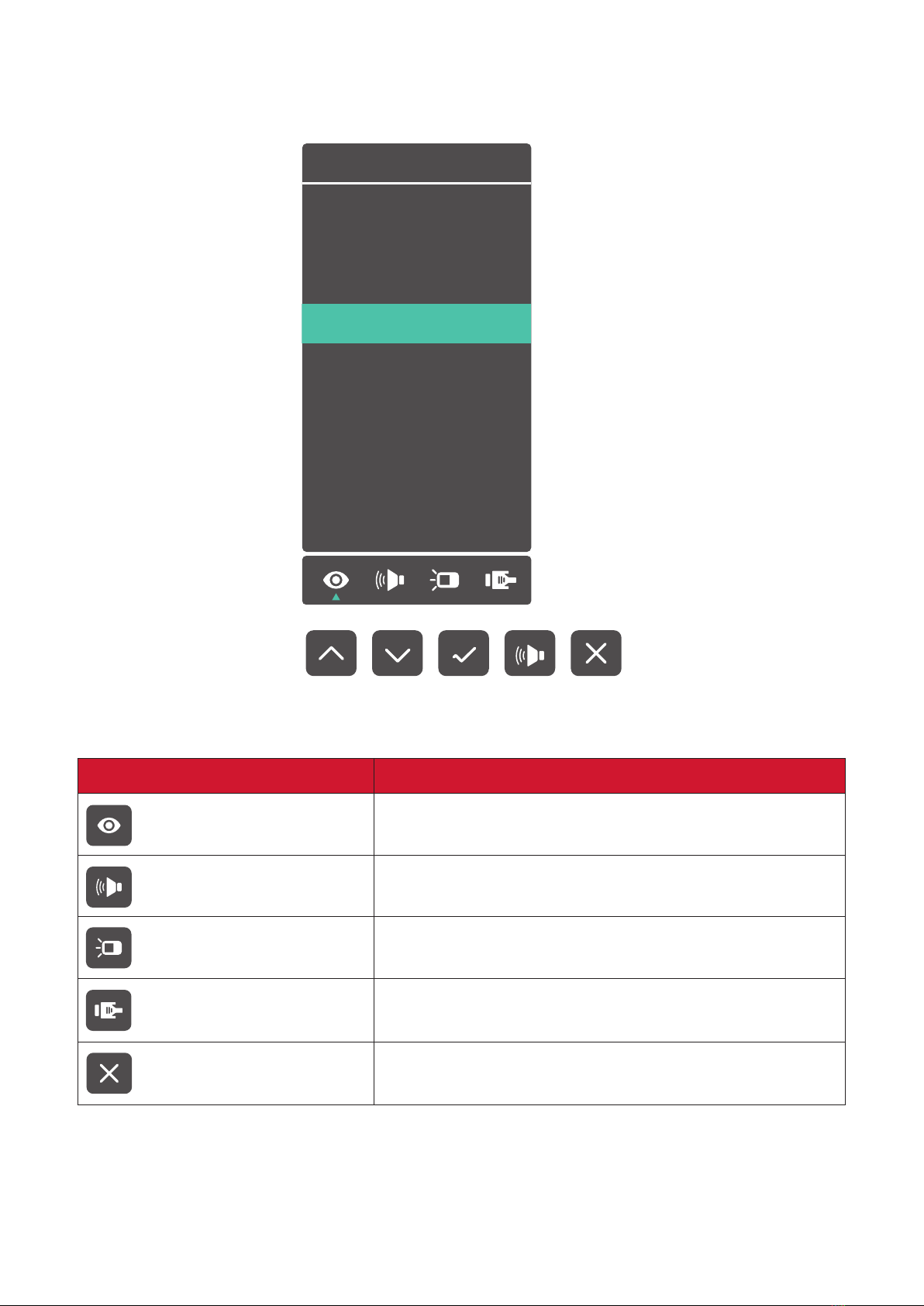

Press the 1(«) to acvate the Quick Menu.
ViewMode
Standard
FPS
RTS
MOBA
Movie
Web
Text
MAC
Mono
NOTE: Follow the key guide that appears on the screen to select the opon or
make adjustments.
Menu Descripon
ViewMode Select one of the preset color sengs.
Volume Adjust the level, or mute the volume.
Contrast/Brightness Adjust the contrast or brightness level.
Input Select Select the input source.
Exit Exit the Quick Menu.

18
Conguring the Sengs
General Operaons

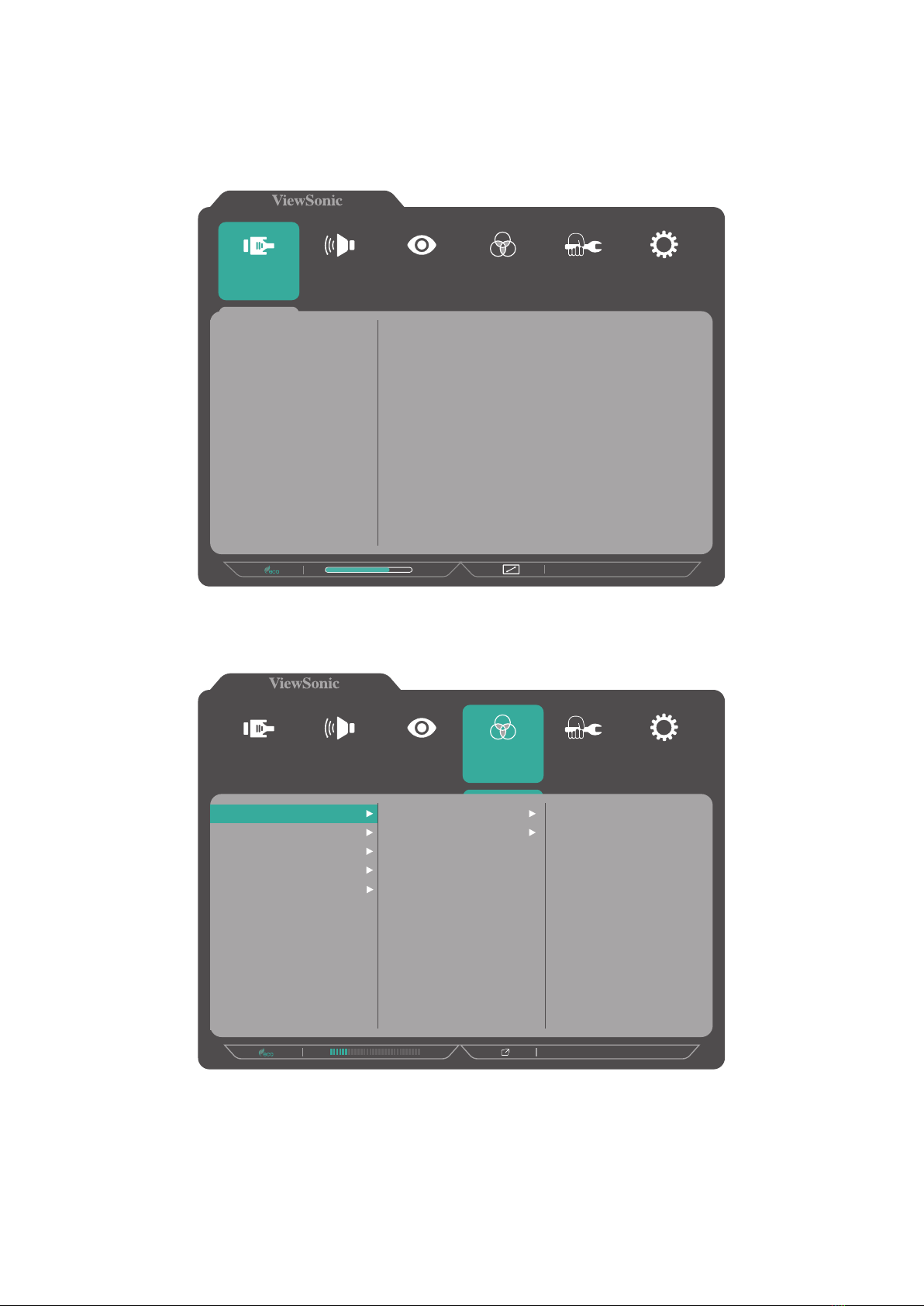

1. Press the 2/3/4/5 key to display the On-Screen Display (OSD) Menu.
3840 x 2160 @ 60Hz
75%
Setup Menu
Color AdjustViewMode Manual Image
Adjust
Input
Select
Audio Adjust
HDMI 1
HDMI 2
DisplayPort 1
DisplayPort 2
2. Press the 1(«)or 2key to select the main menu. Then press the 3key to enter
the selected menu.
3840 x 2160 @ 60Hz
Contrast
Brightness
Setup Menu
Color AdjustViewMode Manual Image
Adjust
Input
Select
Audio Adjust
Contrast/Brightness
Color Temperature
Color Space
Color Range
HDR

19

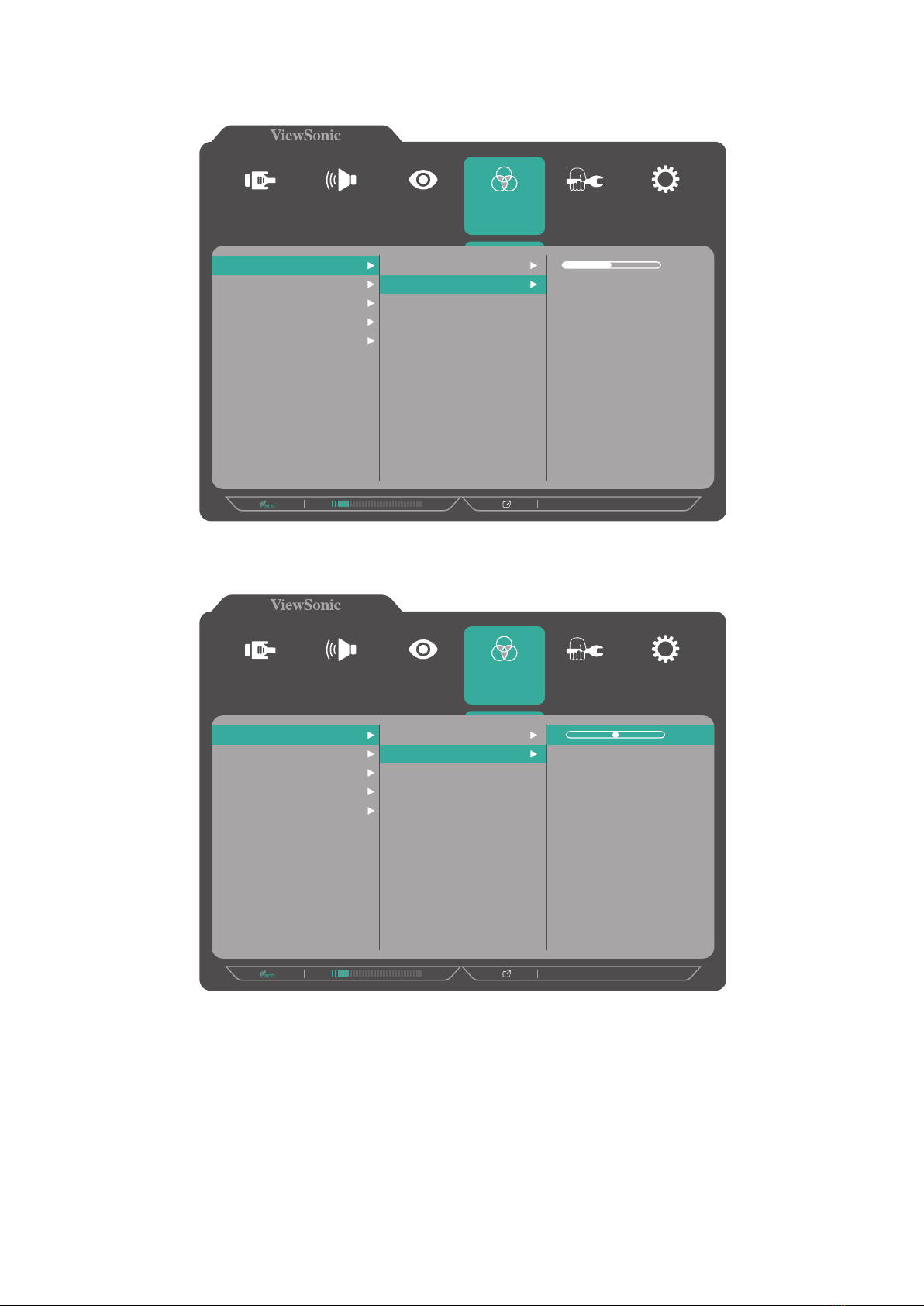

3. Press the 1(«)or 2 key to select the desired menu opon. Then press the 3key
to enter the sub-menu.
3840 x 2160 @ 60Hz
Contrast
Brightness
50
Setup Menu
Color AdjustViewMode Manual Image
Adjust
Input
Select
Audio Adjust
Contrast/Brightness
Color Temperature
Color Space
Color Range
HDR
4. Press the 1(«)or 2 key to adjust/select the seng. Then press the 3key to
conrm.
3840 x 2160 @ 60Hz
Contrast
Brightness
50
Setup Menu
Color AdjustViewMode Manual Image
Adjust
Input
Select
Audio Adjust
Contrast/Brightness
Color Temperature
Color Space
Color Range
HDR
NOTE: Certain menu opon adjustments do not require the user to press the 3
key to conrm the selecon. Follow the key guide that appears on the
boom of the screen to select the opon or make adjustments.
5. Press the 4key to return to the previous menu.

20
On-Screen Display (OSD) Menu Tree
Main Menu Sub-menu Menu Opon
Input Select
HDMI 1
HDMI 2
DisplayPort 1
DisplayPort 2
Audio Adjust
Volume (-/+, 0~100)
Mute On
O
ViewMode
Standard
FPS
RTS
MOBA
Movie
Web
Text
MAC
Mono
Color Adjust
Contrast/
Brightness
Contrast (-/+, 0~100)
Brightness (-/+, 0~100)
Color
Temperature
sRGB
Bluish
Cool
Nave
Warm
User Color
Red (-/+, 0~100)
Green (-/+, 0~100)
Blue (-/+, 0~100)
Color Space
Auto
RGB
YUV
Color Range
Auto
Full Range
Limited Range
HDR Auto
O
