ViewSonic PJD5223 User manual

The ViewSonic®PJD5223 DLP®projector is ideal for use in the office
or on the campus. It delivers amazingly clear images with 2700 ANSI
lumens, 3000:1 contrast ratio and XGA 1024x768 native solution. The
projector is packed with features like multiple PC and video inputs,
120Hz/3D-ready for any PC-based 3D applications, support HD 1080p
video signal and integrated speaker for multimedia. With high contrast
ratio and brightness and ViewMatch™technology to adjust color
perfectly, your presentations will be rich, vibrant in any setting. This
projector is lightweight – 5.7 lbs and is equipped with energy-saving Eco-
mode to lower power consumption and extend lamp life. The PJD5223
XGA DLP®projector delivers excellent performance and value for small
business and education applications.
Price/performance leader in
portable DLP®projectors.
PJD5223
PORTABLE XGA
DLP®PROJECTOR
120HZ AND 3D-READY
BRIGHT AND JUST RIGHT
>BrilliantColor™technology
Latest BrilliantColor technology delivers stunning all-digital
clarity with life-like color, sharp graphics and outstanding video.
The sophisticated 6-segment color wheel enhances the yellow
color performance that is key to accurate and vivid color
reproduction.
>Bright in virtually any setting with 2,700 lumens
Packs 2,700 lumens in just 5.7 lbs. It’s the bright choice
for mobile presenters.
>3D-ready powered by DLP®Link technology
Supports up to 120Hz frame rate.
>Give greener presentations and save
Use energy-saving Eco-mode to lower power consumption,
extend lamp life and reduce noise. Filter-less design for
saving maintenance costs and labor.
>New slim design
With only 3.2 inch height and lightweight of 5.7 lbs, it’s
designed for portability and convenient to move from
location to location.

Sales: [phone] . [email protected] . ViewSonic.com
*Running eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Specifications subject to change without
notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated
herein are the property of their respective companies. Copyright © 2011 ViewSonic Corporation. All rights reserved [15511-01B-05/11] PJD5223-1

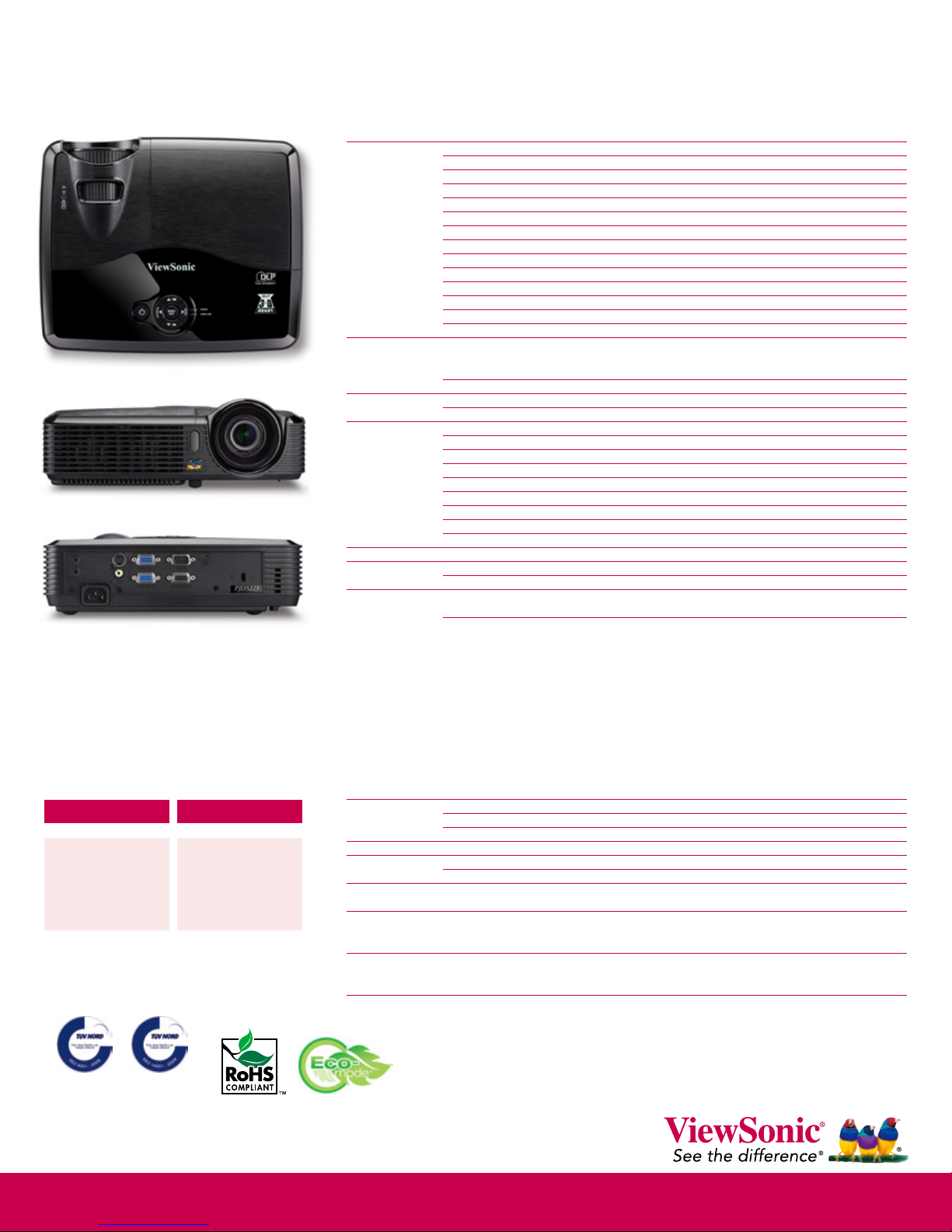

DISPLAY Type 0.55" Digital Micromirror Device (DLP™)
Resolution XGA 1024x768 (Native)
Lens 1.1× Manual optical zoom / Manual optical focus
Keystone Vertical digital keystone correction: +/– 40 degrees
Size 27"–300" / 0.7m–7.6m
Throw Distance 3.9ft.–32.8ft. / 1.2m–10m
Throw Ratio 1.97–2.17:1
Lamp 180 watt
Lamp Life (Normal / Eco-mode) 5000 / 6000* hours
Brightness 2,700 Lumens
Contrast Ratio 2000:1 (typ) / 3000:1 (dynamic)
Aspect Ratio 4:3 (native), 16:9, 16:10, auto
Color Depth 24 bits, 16.7M colors (8+8+8)
Color Wheel 6-Seg RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i and 1080p
Frequency Fh: 31–100KHz, Fv: 50–120Hz
COMPATIBILITY PC VGA to UXGA
Mac®Up to UXGA (scaled)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Component 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack
Audio Output 3.5mm mini jack
Control RS-232 (DB-9)
USB Type B
AUDIO Speaker 1W
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 235W (typ) / <1W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left/source, menu/exit,
right/mode
OSD Picture: Color Mode, Brightest, PC, ViewMatch, Movie,
User 1, User 2, White board, Black board, Green board,
Brightness, Contrast, Color setting, User color, White
intensity, Gamma, Aspect Ratio, Keystone, 3D sync, 3D invert
Video/Audio: Frequency, Tracking, H & V position, Zoom,
Video setting, Audio setting
Setting (Basic): Projector Projection, Menu Setting, Signal
Type, Blank Screen, Test Pattern, Start up screen, Message,
Auto source, Power saving, Green Mode
Option (Advanced): Closed Caption, DCR, Password,
Presentation Timer, High Altitude, Lamp Setting, Factory Default
Information: Current System Status, Input Source,
Resolution, H & V Frequency, Lamp hours
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–80% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL Normal / Eco-mode 32dB / 30dB
DIMENSIONS Physical 11.2 × 3.2 × 9.2 (in) / 284 × 82 × 234 (mm)
(W x H x D) Packaging 13.0 × 13.0 × 5.5 (in) / 330 × 330 × 140 (mm)
WEIGHT Net 5.7 lb (2.6 kg)
Gross 7.5 lb (3.4 kg)
REGULATIONS RoHS, CB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr,
ErP, SVHC list & REACH DoC, UL, FCC(including ICES-003),
cUL/ CSA, Argen, NOM
PACKAGE CONTENTS ViewSonic projector, power cable, VGA cable, remote
control with batteries, Quick Start Guide, ViewSonic Wizard
CD (with User Guide)
WARRANTY 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year Express Exchange®service.
For more product information, visit us on the web at ViewSonic.com
PJD5223
PORTABLE XGA DLP®PROJECTOR – 120HZ AND 3D-READY
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Optional Accessories
> Replacement Lamp RLC-072
> Universal Ceiling Mount Kit WMK-005
> Wireless Presentation Gateway WPG-360
> Soft Case PJ-CASE-001
> Extended Express Exchange®PRJ-EE-05-03
Projection Distance
4:3 Screen
Screen Size
4:3 Screen
Meters
1.2
1.5
1.8
2
3
5
10
Meters
0.7~0.8
0.9~1.0
1.0~1.1
1.2~1.3
1.7~1.9
2.9~3.2
5.8~6.3
Feet
3.9
4.9
5.9
6.6
9.8
16.4
32.8
Inches
28.0~31.5
35.4~39.4
39.4~43.3
47.2~51.2
67.0~74.8
114.2~126.0
228.3~248.0
