ViewSonic PJD6210-WH User manual

DLP Projector
PJD6210
PJD6210-WH
PJD6210-3D
ViewSonic®
IMPORTANT: Please read this User Guide to obtain important information on install-
ing and using your product in a safe manner, as well as registering your product for
future service. Warranty information contained in this User Guide will describe your
limited coverage from ViewSonic Corporation, which is also found on our web site
DWKWWSZZZYLHZVRQLFFRPLQ(QJOLVKRULQVSHFL¿FODQJXDJHVXVLQJWKH5HJLRQDO
selection box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las instrucciones en este manual”
- User Guide
- Guide de l’utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell’utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
Ɋɭɤɨɜɨɞɫɬɜɨɩɨɥɶɡɨɜɚɬɟɥɹ
-ٺҢЙыġĩᖅᡝĪ
-ሢ၊࿁࿳ġĩ⇷␅Ī
-㇠㟝㣄G㙼⇨㉐
-зѬѷєѪѠдѥіѲнѸкѥь
Model No. : VS12179

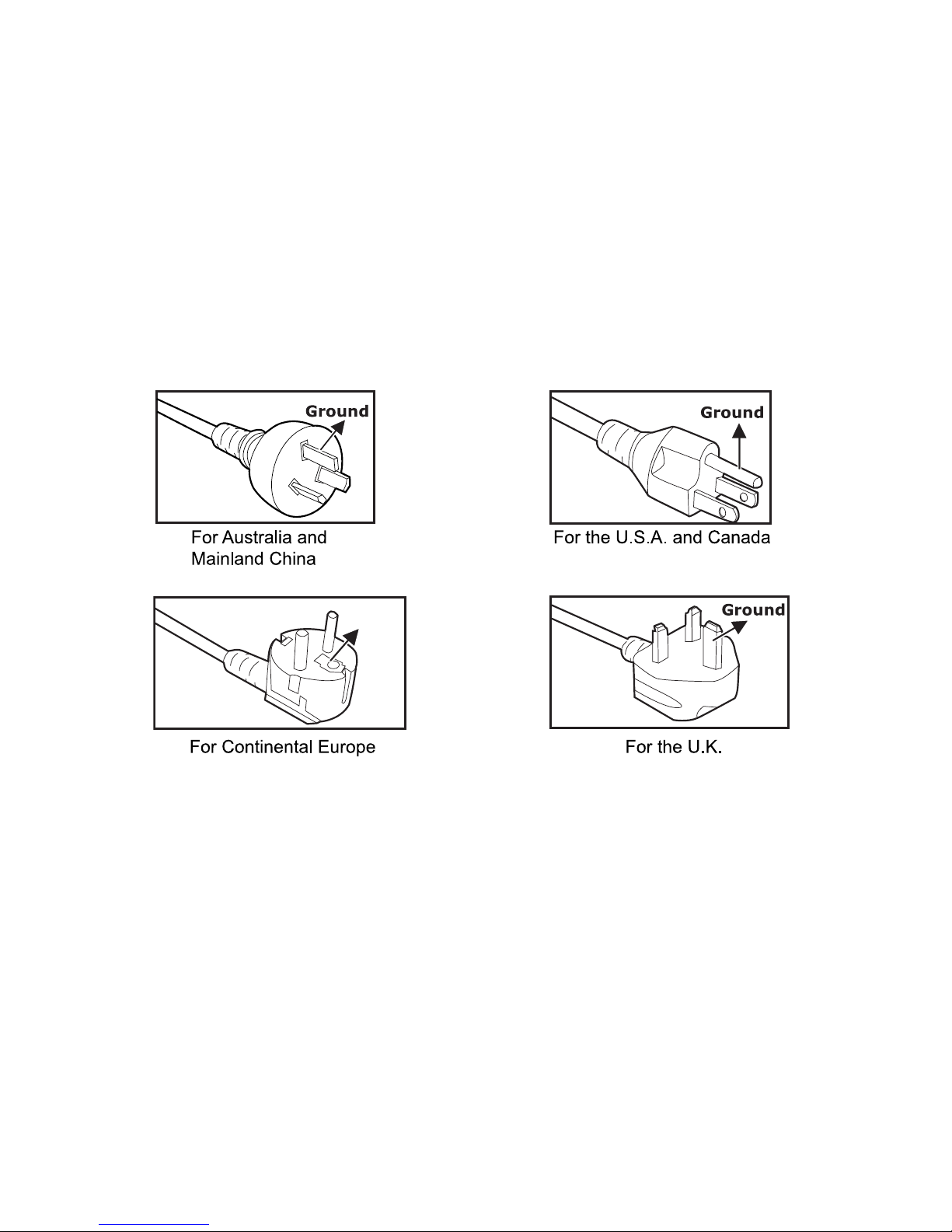

Notes on the AC Power Cord
AC Power Cord must meet the requirement of countries where you use this projector.
Please confirm your AC plug type with the graphics below and ensure that the proper
AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet,
please contact your sales dealer. This projector is equipped with a grounding type AC
line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose
of this grounding type plug. We highly recommend using a video source device also
equipped with a grounding type AC line plug to prevent signal interference due to
voltage fluctuations.
Ground

CONTENTS
Introduction................................................................................... 5
Projector Features........................................................................................................5
Package Contents........................................................................................................6

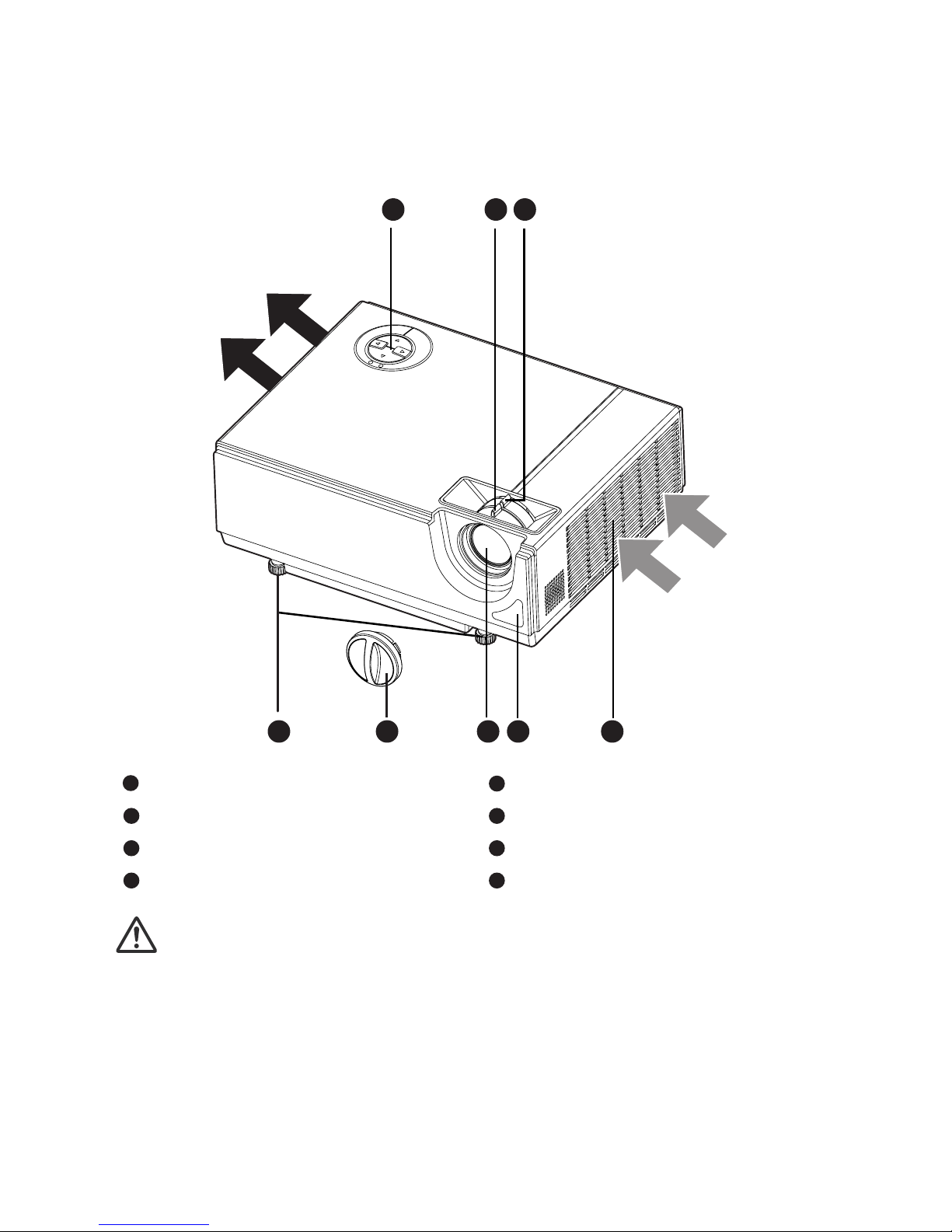

Projector Overview.......................................................................................................7
Using the Product.......................................................................... 9

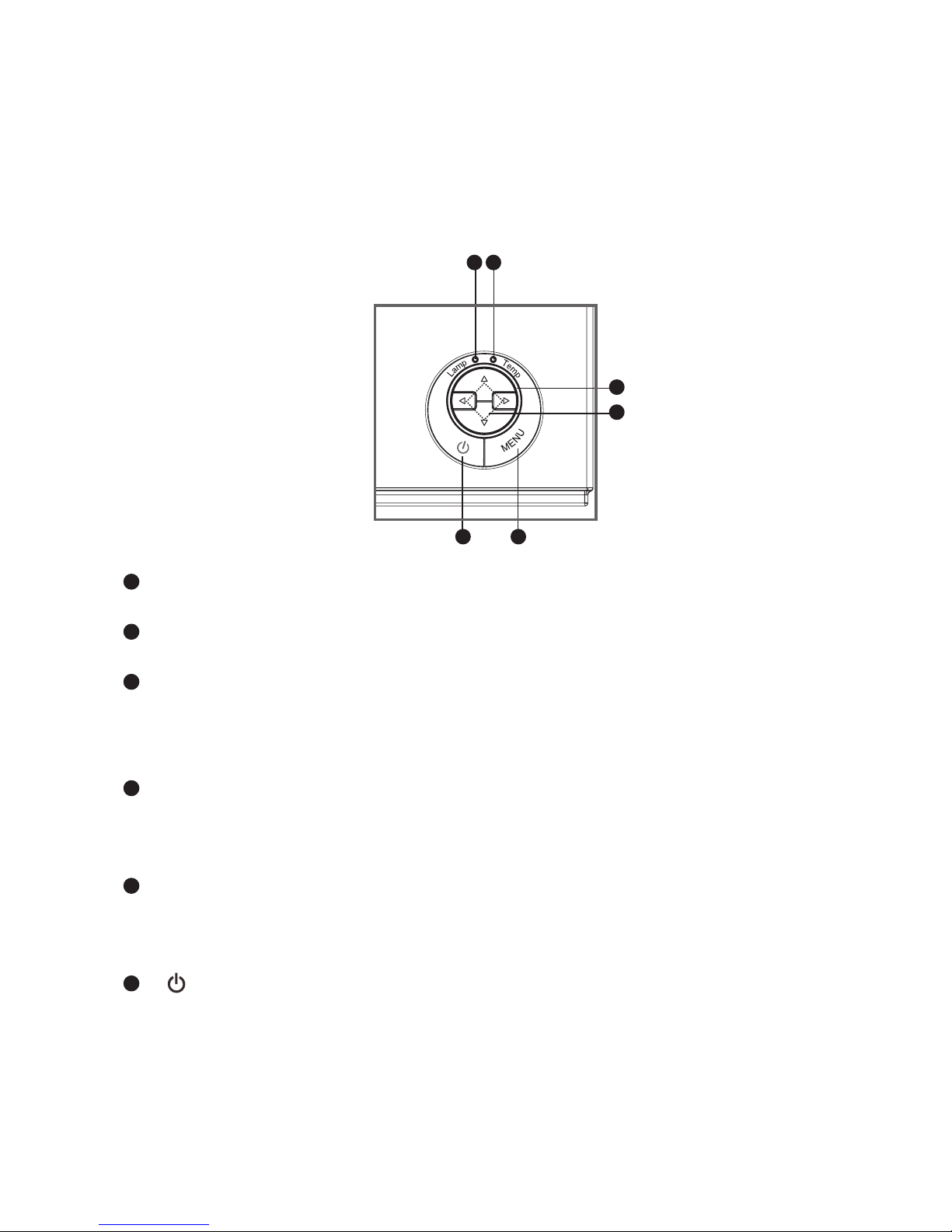

Control Panel ...............................................................................................................9
Connection Ports........................................................................................................10
Remote Control ..........................................................................................................11
Replacing the Battery.................................................................................................12
Remote Control Operation .........................................................................................13
Installation ................................................................................... 14

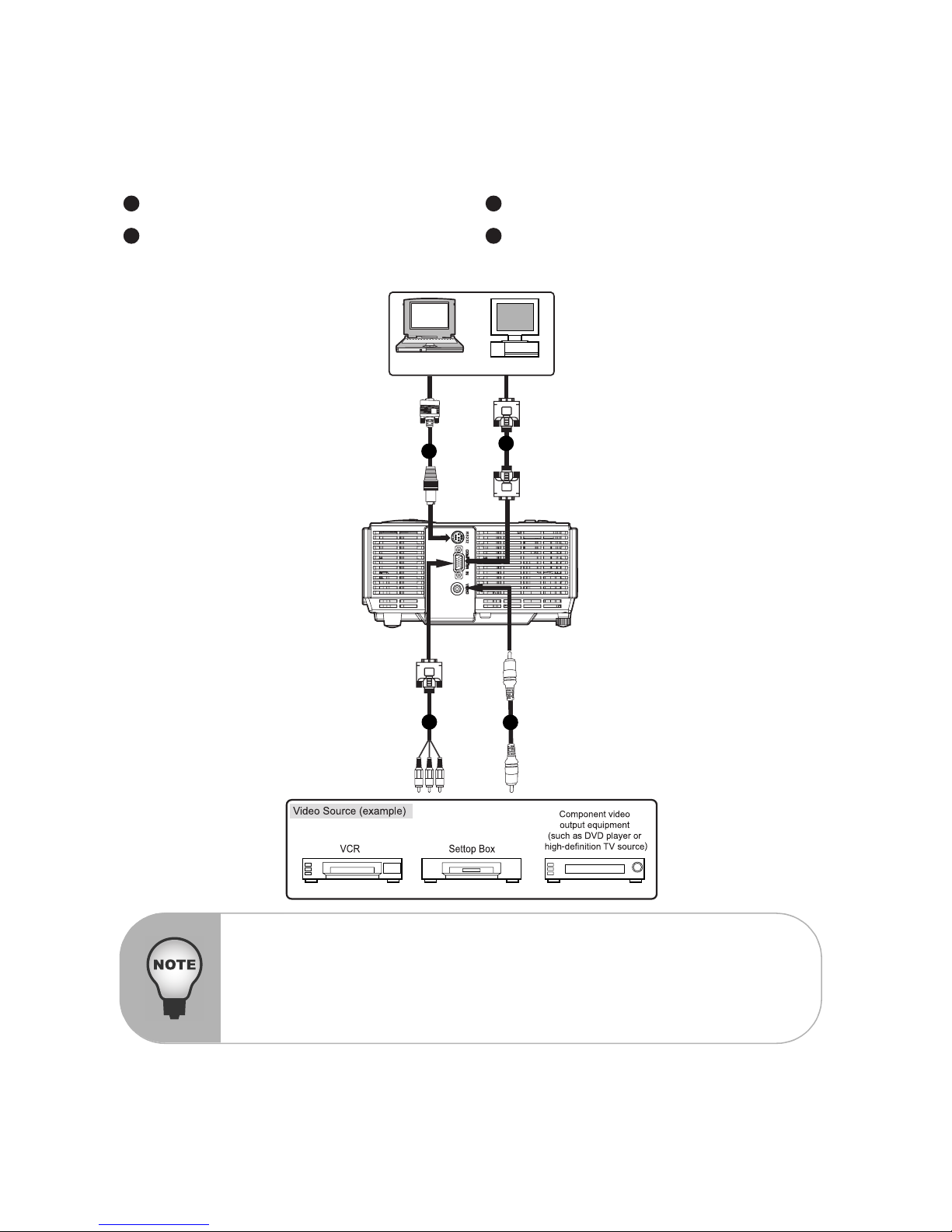

Connecting the Projector............................................................................................14
Powering On/Off the Projector ...................................................................................15
Adjusting the Projector ...............................................................................................16
Menu Operation .......................................................................... 18
Maintenance................................................................................. 23
Cleaning the Lens ......................................................................................................23
Cleaning the Projector Housing .................................................................................23
Replacing the Lamp ...................................................................................................24
Specifications ............................................................................... 26
Appendix ...................................................................................... 27
LED Indicator Messages ............................................................................................27
Compatibility Modes...................................................................................................28
Troubleshooting .........................................................................................................29
RS-232 Command and Configuration .......................................................................30
IR Control Code .........................................................................................................31

ViewSonic PJD6210/PJD6210-WH/PJD6210-3D
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: <RXDUHFDXWLRQHGWKDWFKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKH
party responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the requirements of the EEC directive 2004/108/EC as amended by
92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 2006/95/
EC as amended by 93/68/EEC Art.13 with regard to “Safety.”
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted municipal
waste, but use the return and collection systems according to local law.
1

ViewSonic PJD6210/PJD6210-WH/PJD6210-3D
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this guide
for further instructions.
7.
Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
GHYLFHVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided
IRU\RXUVDIHW\,IWKHSURYLGHGSOXJGRHVQRW¿WLQWR\RXURXWOHWFRQVXOWDQHOHFWULFLDQ
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure that the
power outlet is located near the unit so that it is easily accessible.
 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHPDQXIDFWXUHU
12. 8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFL¿HGE\WKH
manufacturer, or sold with the unit. When a cart is used, use caution when
moving the cart/unit combination to avoid injury from tipping over.
13. Unplug this unit when unused for long periods of time.
 5HIHUDOOVHUYLFLQJWRTXDOL¿HGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGZKHQWKHXQLW
has been damaged in any way, such as: if the power-supply cord or plug is damaged,
if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or
moisture, or if the unit does not operate normally or has been dropped.
2

ViewSonic PJD6210/PJD6210-WH/PJD6210-3D
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives
as noted below:
Examples of exempted components are:
0HUFXU\LQFRPSDFWÀXRUHVFHQWODPSVQRWH[FHHGLQJPJSHUODPSDQGLQRWKHUODPSVQRW
VSHFL¿FDOO\PHQWLRQHGLQWKH$QQH[RI5R+6'LUHFWLYH
/HDGLQJODVVRIFDWKRGHUD\WXEHVHOHFWURQLFFRPSRQHQWVÀXRUHVFHQWWXEHVDQGHOHFWURQLFFHUDPLF
parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up
to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
3

ViewSonic PJD6210/PJD6210-WH/PJD6210-3D
Copyright Information
Copyright©ViewSonic©Corporation, 2009. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are
trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this material, or
the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
SURGXFWVSHFL¿FDWLRQVZLWKRXWQRWLFH,QIRUPDWLRQLQWKLVGRFXPHQWPD\FKDQJHZLWKRXWQRWLFH
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please
register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard CD-ROM also
provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
PJD6210/PJD6210-WH/PJD6210-3D
ViewSonic DLP Projector
VS12179
PJD6210_PJD6210-WH_PJD6210-3D_UG_ENG Rev. 1B 02-26-09
______________________________________________________
______________________________________________________
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
4

Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55" Texas Instruments DLP®technology
XGA (1024 x 768 pixels)
Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling
compression compatibility for VGA, SVGA, XGA and SXGA*
Compatibility with Macintosh®computers
Compatibility with NTSC, PAL, SECAM and HDTV
D-Sub 15-pin terminal for analog video connectivity
User-friendly, multi-language on-screen display
Advanced electronic keystone correction
 The information in this manual is subject to change without notices.
 The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
5
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Package Contents
When you unpack the projector, make sure you have all these components:
Caution
Avoid using the projector in dust environment.
Leave the power cable plug-in for 5-10 minutes until projector adjust to
room temperature before using.
Save the original shipping carton and Packing material; they will come-in
handy if you ever to ship your unit. for maximum protection, repack your unit
as it was originally packed at the factory.
Projector with Lens Cap AC Power Cord Remote Control (IR)
ViewSonic CD Wizard Quick Start Guide VGA Cable (D-SUB to D-SUB)
 Contact you dealer immediately if any items are missing, appear damaged, or if
the unit does not work
.
6
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Projector Overview
Front View
Caution
Do not touch the lamp cover and exhaust vents during projector usage to
prevent from possible burning.
Do not looking into the lens or vents while the lamp is on. Strong light ray
may be harmful to eyes.
Do not carry the projector by solely handling the adjustment feet. Projector
may drop and be damaged.
Tilt-adjustment feet Ventilation holes ((intake)
Lens cap Zoom ring
Projection lens Focus ring
Front IR remote control sensor Control panel
7
8 6
2 3 4 5 1
15
2 6
3 7
4 8
7
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Rear View
Security lock
Kensington lock
AC power socket
Connection ports
Ventilation holes (exhaust)
Bottom View
Ceiling mount
Tilt-adjustment feet
4 5
3
21
1
2
3
4
5
1
2
1
22
 This projector can be used with a ceiling mount for support. The ceiling mount is
not included in the package.
 Contact your dealer for information to mount the projector on a ceiling.
8
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Using the Product
Control Panel
LED
Button Function
Lamp (Lamp LED indicator)
Refer to “LED Indicator Messages”.
Temp (Temperature LED indicator)
Refer to “LED Indicator Messages”.
Power LED
Refer to “LED Indicator Messages”.
Four directional (source / resync) buttons
- Use four directional buttons to select items or make adjustments to your selection.
- Manually select an input source. (Left button)
- Resynchronize the projector to the input signal from a computer. (Right button)
MENU
-
Display or exit the on-screen display menus.
- Enter to sub-menu and confirm the menu selection. Activate in Color Setting,
Lamp Hours Reset and Factory Default menu operations.
(Power)
Turn the projector on or off.
1 2
3
56
4
1
2
3
4
5
6
9
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Connection Ports
RS232
Reserved for installation control and firmware upgrades.
COMPUTER IN
Connect image input signal (analog RGB or component) to this jack.
VIDEO
Connect composite video output from video equipment to this jack.
1
2
3
1
2
3
10
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Remote Control
POWER
Turn the projector on or off.
Four directional buttons
Use four directional buttons to
select items or make adjustments
to your selection.
MENU
Display or exit the on-screen display
menus.
Resync
Resynchronize the projector to the
input signal from a computer.
Source
Manually select an input source.
Brilliant Color
Produce an expanded on-screen
color spectrum that delivers
enhanced color saturation for
bright, true-to-life images. Activate
this function for most computer
sources.
Blank
Cut off the screen temporarily.
Press again to cancel the blank
function.
Keystone+ / -
Adjust image distortion caused by
tilting the projector.
ViewMatch
Switch in between high brightness
performance or Accuracy color
performance
Freeze
Press "freeze" to pause the screen
image. Press again to cancel the freeze
function.
1
2
3
4
5
6
7 9
810
11
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Replacing the Battery
For the first time use:
Remove the transparent insulation tape by pulling
it before use.
For battery change:
1. Push the catch to the left and remove the battery
holder.
2. Remove the old Lithium coin cell and install new one
(CR2025). Ensure that the side with the mark “+” is up.
3. Push the battery holder back into the remote control
until you feel a click.
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
 Make sure the plus and minus terminals are correctly aligned when loading a battery.
Keep the battery out of the reach of children.
Do not recharge the battery or expose the battery to fire or water.
Do not dispose the used battery along with household waste. Dispose used
batteries according to local regulations.
Danger of explosion may happen if batteries are incorrectly replaced.
Replace only with the same type recommended by the manufacturer.
Battery should not be in or near to fire or water, keep batteries in a dark, cool
and dry place.
 If suspect battery leakage, wipe out the leakage and then replace a new battery. If
the leakage adheres to your body or clothes, rinse well with water immediately.
12
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
Operating the projector from
the front
30 20
7m
10
The remote control may not operate when there is sunlight or other strong
light such as a fluorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature or
humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.
13
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Installation
Connecting the Projector
RS-232 Cable VGA (D-Sub) to HDTV (RCA) Cable
VGA Cable (D-Sub to D-Sub) Composite Video Cable
1 3
2 4
Desktop type
Laptop type
4
2
3
1
 When connecting cable, power cords of both projector and external equipment
should be disconnected from AC outlet.
 The figure above is a sample connection. This does not mean that all of these
devices can or must be connected simultaneously.
 The cables that come with the projector may differ from the above illustration.
The included cables are based on actual shipment delivery.
14
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Powering On/Off the Projector
Powering On the Projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press button on the control panel or the POWER button on the remote
control to turn on the projector.
The projector takes a minute or so to warm up.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically
detects your source.
If you are connecting multiple sources to the projector simultaneously, press
the left button on the control panel or the Source button on the remote
control.
Warning
Remove the lens cap first before powering on.
Never look into the lens when the lamp is on. This can damage your eyes.
This focal point concentrates high temperature. Do not place any object near
it to avoid possible fire hazard.
Powering Off the Projector:
1. Press button on the control panel or the POWER button on the remote
control to turn off the projector lamp. You will see a message "Power off? Press
Power again" appear on the screen.
2. Press button on the control panel or the
POWER button on the remote
control again to confirm.
The cooling fans continue to operate for cooling cycle.
 When the Lamp LED begins flashing, the projector has entered stand-by mode.
If you want to turn the projector back on, you must wait until the projector has
completed the cooling cycle and has entered stand-by mode. Once in stand-
by mode, simply press button
on the control panel or the POWER button
on the remote control
to restart the projector.
3. Disconnect the AC power cord from the electrical outlet and the projector.
4. Do not turn on the projector right after power off.
5. This projector supports Off-To-Go function. User can safely cut off the power
source immediately without causing harm to the projector lamp.
 Using Off-To-Go function will interrupt projector's normal shutdown sequence.
The previously interrupted shutdown sequence (3-5 min) still needs to be
completed first prior the projector can power up the next time.
15
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Adjusting the Projector
Adjusting the Projector Height
The projector is equipped with two tilt-adjustment feet to adjust the image height.
To level the image on the screen, turn the tilt-adjustment feet to fine-tune the height.
Adjusting the Projector Zoom and Focus
1. Focus the image by rotating the focus ring. A still image is recommended for focusing.
2. Adjust the image by sliding the zoom ring.
Tilt-adjustment feet
 To avoid damaging the projector, make sure that the tilt-adjustment feet are
fully retracted before placing the projector in its carrying case.
Focus ring
Zoom ring
16
ViewSonic PJD6210/PJD6210-WH/PJD6210-3D

Adjusting Projection Image Size
Refer to the graphic and table below to determine the screen size and projection distance.
Screen
SizeDiagonal
(Inch)
4 : 3 Screen
Wide Tele
Projection Distance Projection Distance
minchminch
40 1.60 63.04 1.76 69.12
50 2.00 78.80 2.19 86.40
60 2.40 94.56 2.63 103.68
70 2.80 110.32 3.07 120.96
80 3.20 126.08 3.51 138.24
90 3.60 141.84 3.95 155.52
100 4.00 157.60 4.39 172.80
120 4.80 189.12 5.27 207.36
150 6.00 236.40 6.58 259.20
200 8.01 315.20 8.78 345.60
250 10.01 394.00 10.97 432.00
300 12.01 472.80 13.17 518.40
40"
60"
100"
120"
200"
Wide: 1.6m Tele: 1.76m
Wide: 2.4m Tele: 2.63m
Wide: 4m Tele: 4.39m
Wide: 4.8m Tele: 5.27m
Wide: 8.01m Tele: 8.78m
 Position the projector in a horizontal position; other positions can cause heat
build-up and damage to the projector.
 Keep a space of 30 cm or more between the sides of the projector.
 Do not use the projector in a smoky environment. Smoke residue may build-
up on critical parts and damage the projector or its performance
.
 Consult with your dealer for special installation such as suspending from a
ceiling.
17
