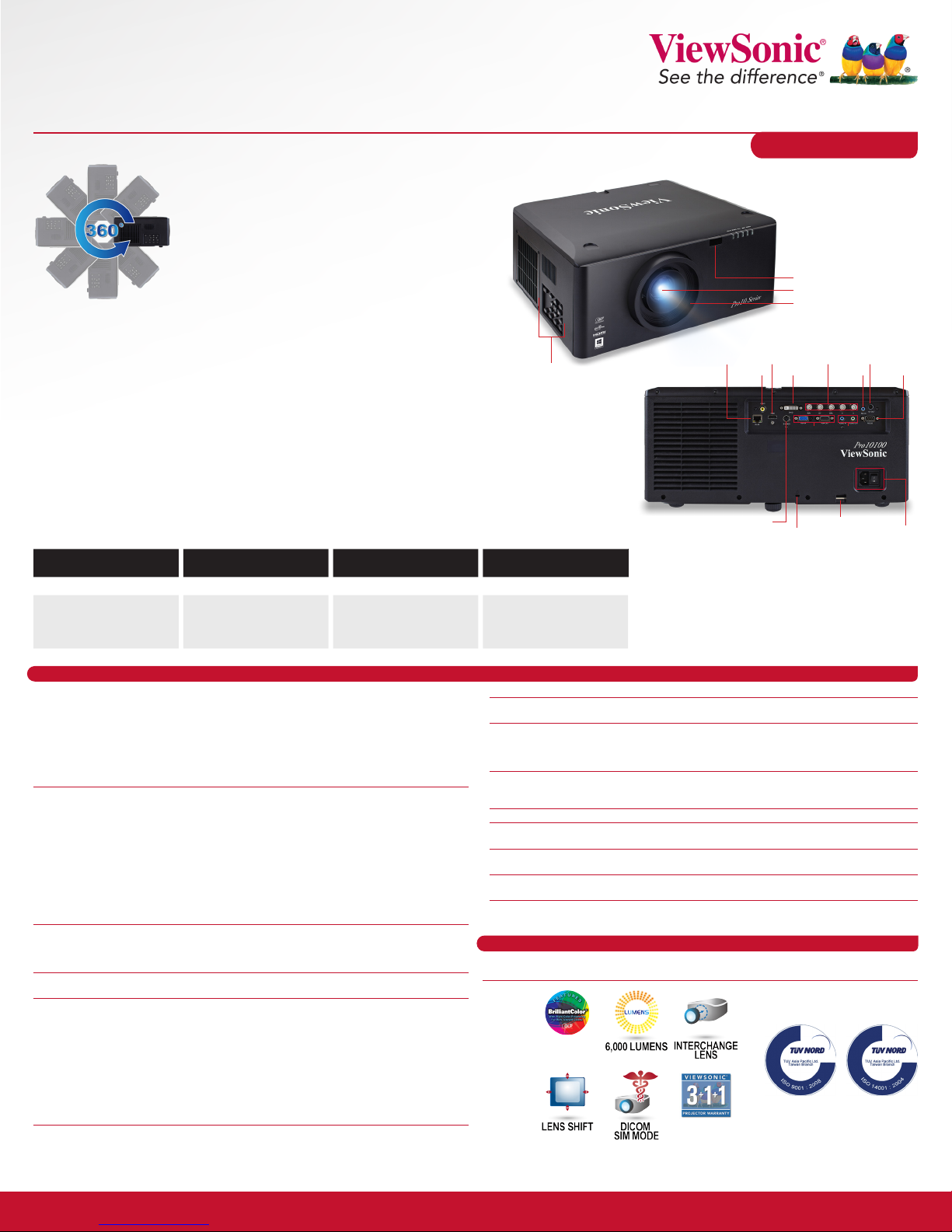

ViewSonic Pro10100 User manual

ProAV Projector for Large Commercial Venues
High Brightness
Installation DLP®Projector
Pro10100
Versatile Interchangeable Lens Options – Sold Separately
An interchangeable lens design provides greater
exibility for various large venue and commercial
installations. With optional short throw, standard
throw, and long throw lenses, the
Pro10100 offers various throw ratios and
distances to meet the installation needs
for different environments.
The ViewSonic®Pro10100 is a high-brightness
installation DLP®projector. It boasts 6,000 lumens of
brightness, XGA (1024x768) native resolution, and is
designed for theaters, museums, auditoriums, lecture
halls, houses of worship, and other large commercial
venues. The Pro10100 comes standard with powered
zoom and focus, motorized vertical and horizontal
lens shift, network management, and DICOM SIM
mode. With dual-layer dust-free filter and advanced
heat-dissipation technology, the Pro10100 is designed
to support 24/7 continuous use and 360-degree
installation. Optional features include interchangeable
lenses that provide increased installation flexibility,
multiple-image edge-blending capability, and image-
correction technology for 4-corner, curve, pincushion,
barrel, and rotation projection surfaces. In addition,
with its wide range of digital and analog inputs,
the Pro10100 is the ideal solution for commercial
installations and large venues.
Seamless Edge Blending – Optional
As an optional feature, multiple-image edge-blending functionality with advanced
picture adjustment is available for the Pro10100. Designed for ProAV applications
and challenging installations, this feature allows multiple Pro10100 projectors to
seamlessly project multiple images to form a single cohesive image with uniform
brightness and color – no matter how large the projection screen surface.
Warping and Geometric Adjustment – Optional
ViewSonic’s Pro10100 is equipped with a 5-mode warping and geometric
adjustment feature. This feature corrects distorted images caused by 4-corner,
curve, pincushion, barrel, and rotation projection surfaces. Plus, bi-directional
(vertical / horizontal) auto keystone correction automatically corrects and adjusts
distorted images into a perfect square shape.
Motorized Lens Shift with Powered Zoom & Focus
Motorized zoom, focus, and lens shift functions
let you easily adjust projector lens settings. These
functions enable image-size and focus adjustments
from remote, provide projector installation flexibility,
and ensure that images are accurately projected
from any position.
High Brightness for Large Commercial Venues
Designed to meet the needs of a large range of venues, the ViewSonic Pro10100
installation projector provides an ultra-high 6,000 lumens of brightness to easily
accommodate theaters, museums, auditoriums, lecture halls, houses of worship,
and other large commercial venues. The Pro10100 ensures that projected images
will remain crystal-clear from greater distances without quality decay.

RS-232
Specications
Sales: [phone] or [email protected] • More product information: www.ViewSonic.com
*Lamp life may vary based on actual usage and other factors. **One year free Express Exchange®service requires product registration. Programs, specications and availability are subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP® and DLP logo are registered trademarks of Texas Instruments
and BrilliantColor™ is a trademark of Texas Instruments. Crestron Roomview is a registered trademark of Crestron Electronics, Inc. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16813-00B-08/13]
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
DISPLAY Type TI DMD 0.7" XGA 2xLVDS Type A DMD, Dark chip 3
Resolution XGA 1024x768 (native)
Keystone Vertical digital keystone correction (+/- 20º)
Lamp 370 watt
Lamp Life (Normal / Eco-mode) 1500 / 2000 hours*
Brightness 6000 Lumens
Contrast Ratio 4,400:1 (DCR)
Aspect Ratio 4:3 (native)
Color Depth 30 bits, 1.07B Color (10+10+10)
LENS Zoom Range (ratio) LEN-008: 1.28x
(Sold Separately) LEN-009: 1.25x
LEN-010: 1.9x
Lens Shift Horz: 15% / Vert: 50% (motorized)
Zoom & Focus Adjust Motorized
Throw Ratio (XGA) LEN-008: 0.99 – 1.26:1
LEN-009: 1.26 – 1.58:1
LEN-010: 1.58 – 3.00:1
Throw Distance LEN-008: 3.3 – 25.2 ft. (1.01 – 7.68m)
LEN-009: 4.2 – 31.6 ft. (1.28 – 9.63m)
LEN-010: 5.3 – 60.0 ft. (1.61 – 18.29m)
Projection Image 50 – 300 in. (1.27 – 7.6m)
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i, 1080p
Frequency Fh: 15–100KHz, Fv: 24–87Hz
COMPATIBILITY PC VGA to WSXGA+ (1680x1050)
Mac® Up to 1152x870 (may require MAC adaptor)
CONNECTOR RGB Input 15-pin mini D-sub
RGB Output 15-pin mini D-sub
Digital Input HDMI
Component Input BNC (RGBHV, Y/Pb/Pr, Y/Cb/Cr)
Composite Input RCA jack
S-Video 4-pin mini-DIN
Audio Input 3.5mm mini jack
Audio Output 3.5mm mini jack
LAN RJ-45
Control RS-232 (DB-9)
12V Trigger 4mm DC Jack
AUDIO Speaker 10-watt (x1)
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 480w (typ.) / <0.5w (standby mode)
CONTROLS Basic Power, arrow keys, menu, exit, sync, enter, source, shift,
focus, zoom, info
OSD Picture, Screen, Setting, Options
(See user guide for full OSD functionality)
OPERATING Temperature 41ºF–104ºF (5ºC–40ºC)
CONDITIONS Humidity 0%–85% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL Normal / Eco-mode 38dB / 33dB
DIMENSIONS Physical 17.8 x 8.3 x 15.4 in. / 453 x 212 x 390 mm
(W x H x D) Packaging 23.2 x 16.1 x 19.7 in. / 590 x 408 x 500 mm
WEIGHT Net 30.6 lb. / 13.9 kg
(Without Lens) Gross 38.1 lb. / 17.3 kg
REGULATIONS CB, UL/cUL, FCC (including ICES-004), CE, TUV-GS.
C-Tick, CCC, WEEE, RoHS, ErP, REACH, SVHC
WARRANTY 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year free Express Exchange® service**
Pro10100
Pro10100 projector (without lens), power cable, VGA cable, remote control with batteries,
Quick Start Guide, ViewSonic Wizard CD (with User Guide)
What's in the box?
Optional Accessories
Short Throw Lens ........................................LEN-008
Standard Throw Lens ..................................LEN-009
Long Throw Lens.........................................LEN-010
Replacement Lamp .....................................RLC-087
Edge Blending Board.................................PJ-EB001
Wireless Presentation Gateway ................ WPG-370
AC Power
Dual-Layer, Dust-Free Filter with Heat-Dissipation Technology
A dual-layer dust-free lter system effectively prevents dust from entering the
projector, thereby lowering the heat generated by the projector. This advanced
technology extends the projector’s durability and lifespan, ultimately making the
Pro10100 ideal for 24/7 operation.detail.
Control Panel
IR Remote Sensor
Projection Lens (sold separately)
Kensington®Lock Slot
DVI-D
HDMI DC 12V Out
High Brightness
Installation DLP®Projector
Designed for 360-Degree Installation
With a 360-degree installation design, the Pro10100
can be installed both vertically and horizontally.
Combined with powered lens shift and optional edge
blending features, the Pro10100 reduces installation
limitations and provides improved projection exibility
for a wide range of usage environments and
installation applications.
Projection
Distance
Short Throw LEN-008
Screen Size (4:3) Diagonal
Standard Throw LEN-009
Screen Size (4:3) Diagonal
Long Throw LEN-010
Screen Size (4:3) Diagonal
Feet Meters Inches Meters Inches Meters Inches Meters
4.9 1.5 58.6 – 74.6 1.5 – 1.9 46.7 – 58.6 1.2 – 1.5 24.6 – 46.7 0.6 – 1.2
6.6 2.0 78.1 – 99.4 2.0 – 2.5 62.3 – 78.1 1.6 – 2.0 32.8 – 62.3 0.8 – 1.6
9.8 3.0 117.2 – 149.1 3.0 – 3.8 93.4 – 117.2 2.4 – 3.0 49.2 – 93.4 1.2 – 2.4
13.1 4.0 156.2 – 198.8 4.0 – 5.0 124.6 – 156.2 3.2 – 4.0 65.6 – 124.6 1.7 – 3.2
16.4 5.0 195.3 – 248.5 5.0 – 6.3 155.7 – 195.3 4.0 – 5.0 82.0 – 155.7 2.1 – 4.0
Versatile Connectivity
The Pro10100 includes a wide range of high-denition content inputs including
HDMI, DVI-D, 5 BNC (RGBHV), VGA, composite video and S-video. In addition,
a RJ45 connection provides network capability for monitoring and managing
with the included Crestron® RoomView Express™software. This wide range of
connectivity boosts the Pro10100's functionality by letting it work in tandem with
a number of other peripherals.
LAN
Motorized Zoom and Focus
BNC
R/C InVideo In
S-Video In Security Bar
VGA In/Out Audio In/Out
