ViewSonic Pro8200 User manual

The ViewSonic®Pro8200 delivers a true HD home theater entertainment
experience to even the most discriminating home theater enthusiast.
The NATIVE 16:9 WIDESCREEN ASPECT RATIO is ideal for HDTV and
movies as well as gaming. The Pro8200 combines state-of-the art DLP®
and BrilliantColor™technology with 2,000 lumens and 4000:1 contrast
ratio to deliver a stunning visual experience to any home theater.
The innovative seven segment color wheel provides vivid, rich colors.
With multiple connectivity, including dual HDMI inputs with HDCP,
connects any DVD player, game console and more for complete home
entertainment. Get ready for beautifully clear home theater entertainment.
Big Entertainment, right at home.
Pro8200
1080P DLP®PROJECTOR
PROFESSIONAL GRADE HOME THEATER
SHINE BRIGHT, ANYWHERE
Full 1080p HD resolution
Enjoy the finest quality in high-definition movies, video and TV.
Bright in virtually any setting with 2,000 lumens
Crisp 2,000 lumen output makes this the perfect choice
for family room or home theater.
Pixelworks high performance PW980 video processor
With full 10-bit color processing, detail enhancement
technology and motion adaptive de-interlacer for crisper,
sharper images.
BrilliantColor™technology
Latest BrilliantColor technology delivers stunning all-digital
clarity with life-like color, sharp graphics and outstanding video.
The advanced 7-segment color wheel enhances the yellow
color performance that is key to accurate and vivid color
reproduction.
Ultimate display source flexibility
Two HDMI 1.3 inputs with HDCP compliance and component
video input provide full connectivity in a customized home
theater installation.
Stay connected
Supports multiple video timing formats from
SD (NTSC, PAL & SECAM) to HD 1080p.
Control capabilities
Features full RS232 control for seamless
integration into your automation system.
Closed captioning
Integrated closed captioning
decoder for the hearing impaired.
Go green and save
Use the Eco-mode to achieve lower
power consumption, reduce overall
noise and extend lamp life.
>
>
>
>
>
>
>
>
>

Optional Accessories
> Replacement Lamp RLC-061
> Universal Ceiling Mount Kit WMK-005
> Wireless G Presentation Gateway WPG-360
> Extended Express Exchange®PRJ-EE-08-03
Sales: [phone] . [email protected] . ViewSonic.com
*Running eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Specifications and availability subject to change
without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks
stated herein are the property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved [15223-02B-12/10] Pro8200-1

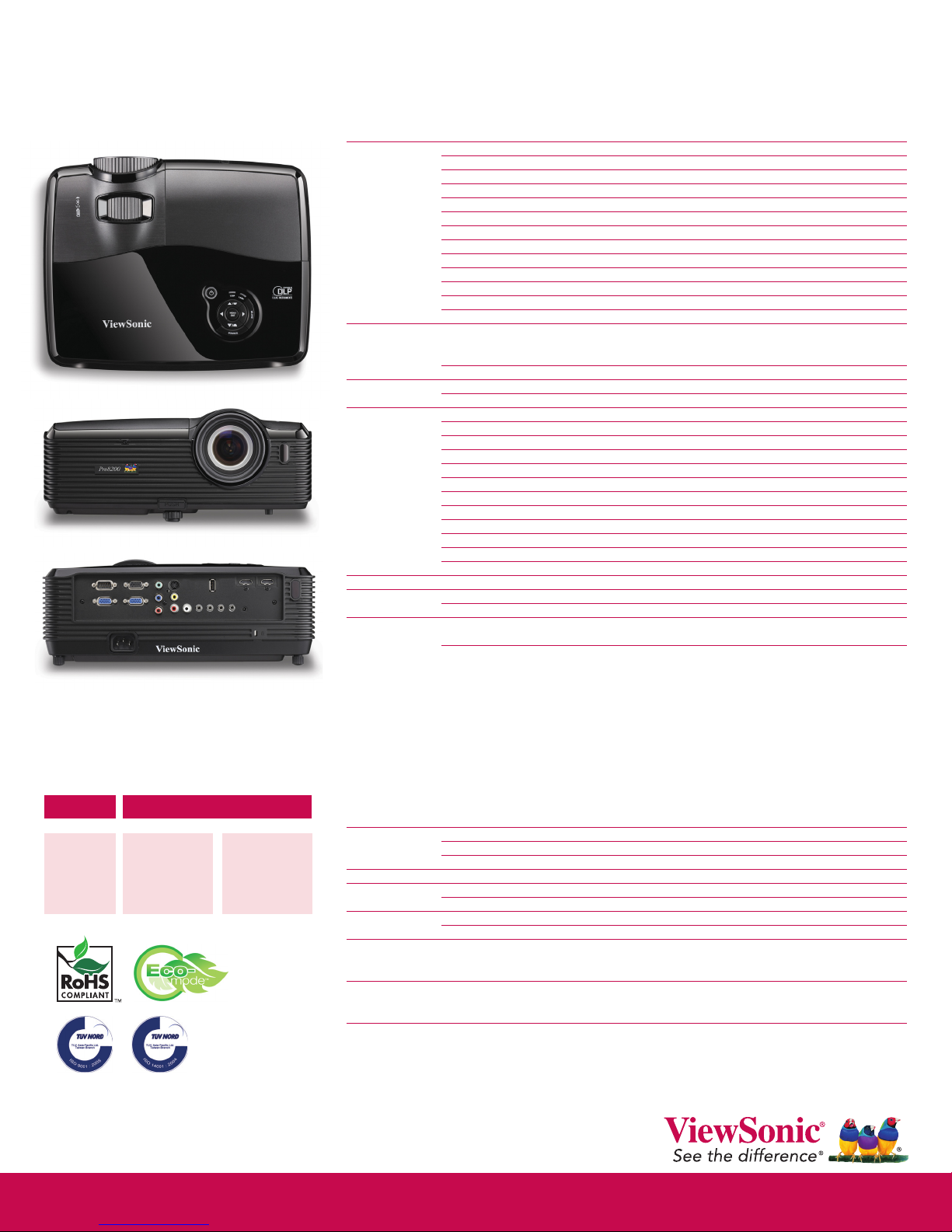

Projection
Distance
4:3 Aspect
M
1.5
1.8
2
3
5
10
DISPLAY Type 0.66" Digital Micromirror Device (DLP™)
Resolution 1920x1080 (1080p)
Lens 1.5× Manual optical zoom / Manual optical focus
Keystone Vertical digital keystone correction: +/– 20 degrees
Size 30"–300" / 0.76m–7.6m
Throw Distance 0.9m–10m / 3ft–32.8ft
Throw Ratio 1.4 – 2.14:1
Lamp 230 watt
Lamp Life (Normal / Eco-mode) 4000 / 6000* hours
Brightness 2000 Lumens
Contrast Ratio 4000:1 (dynamic)
Aspect Ratio 16:9 (native), 4:3, 16:10, Auto
Color Gamut 70% NTSC 1931 CIE
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i and 1080p
Frequency Fh: 30–100KHz, Fv: 50–85Hz
COMPATIBILITY PC VGA to 1080p
Mac®Up to 1080p
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Digital Input HDMI 1.3 (x2)
Component RCA (x3)
Composite Input RCA jack
S-video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack (x2), RCA (L/R) x1
Audio Output 3.5mm mini jack
Mic Input 3.5mm mini jack
Control RS-232 (DB-9)
Screen Trigger 3.5mm (12V/1A)
USB Type A for firmware update
AUDIO Speaker 10W (x2)
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 310W (max) / <1W (stand-by mode)
CONTROLS Basic Power, keystone/arrow keys, left/blank, menu/exit,
right/panel key lock, enter, source
OSD Picture: Color Mode, Brightness, Contrast, Video Setting,
Color Setting, User Color, Gamma
Video/Audio: Frequency, Tracking, H Position, V Position,
Overscan, Noise Reduction, Audio Setting, Microphone
Volume, Speaker Volume, Mute
Setting: Auto Keystone, Keystone, Aspect Ratio, Projection,
Auto Source, Signal Type, Eco-mode, Filter Mode, High
Altitude, Quick Power ON, Quick Cooling, DC 12V Trigger
Information: Input Source, Resolution, H Frequency, V
Frequency, Filter Hours, Filter Hours Reset, Equivalent
Lamp Hours, Equivalent Lamp Hours Reset, Factory Default
Option: Blank Screen, Password, OSD Setting, Closed
Caption, Others, Display Type, Swap, Function
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–90% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL Normal / Eco-mode 31dB / 27dB
DIMENSIONS Physical 13.1 × 4.3 × 10.4 (in) / 332.7× 110 × 264.2 (mm)
(W x H x D) Packaging 16.3 × 14.8 × 7.5 (in) / 414 ×375.9 × 190.5 (mm)
WEIGHT Net 8.5 lb (3.86 kg)
Gross 11.8 lb (5.36 kg)
REGULATIONS CB, RoHS, SVHC, WEEE, UL/cUL, FCC-B, ICES-004, TUV-S
(Argentina), NOM, PSB, C-tick, KC, CE, GOST-R, Hygienic,
UKrSEPRO, CCC
PACKAGE CONTENTS ViewSonic projector, power cable, VGA cable, HDMI cable,
remote control/laser with batteries, lens cap, Quick Start
Guide, ViewSonic Wizard DVD (with User Guide)
WARRANTY 3-year limited warranty on parts, 1-year limited warranty
on lamp, 1st year Express Exchange®service.
For more product information, visit us on the web at ViewSonic.com
Pro8200
1080P DLP®PROJECTOR – PROFESSIONAL GRADE HOME THEATER
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Feet
4.92
5.90
6.56
9.84
16.40
32.80
Wide Tele
Inches
47.8
57.4
63.7
95.8
159.5
319.0
Inches
31.8
38.1
42.4
63.7
106.0
212.1
M
1.22
1.49
1.62
2.44
4.05
8.11
M
0.81
0.97
1.08
1.61
2.69
5.39
