Vighnaharta IGNIS User manual

TISD
Conventional IGNIS Smoke Detector
Vighnaharta Technologies Pvt. Ltd.
(formally known as Realty Automation and Security Systems Pvt. Ltd)
www.vigh
www.Vighnaharta.in
Product Description:Optical smoke detector IGNIS is a photo
electric smoke detector that uses a state of the art optical
sensing chamber. Its advanced design ensures optimal
response and stable long-
term operation thanks to its self
check functions automat
ic sensitivity compensation and
status warning.
The IGNIS optical smoke detector indicates a fire alarm in the
presence of smoke whose opacity in the air is of the order of
0.12db. IGNIS smoke detector comes up with two different
bases High and Low profile bases.
The range of bases allows adapting the entire line of IGNIS
detectors to the different installation needs. Its ample interior
space makes mounting and electrical connection easier. Its
special double-sided nickel-
plated phosphor bronze terminals
guarantee an optimal and reliable long-
term contact with the
detector.
Application:
The IGNIS optical detector is suitable in general applications
where fire with visible smoke is foreseeable.
USPs:
●
Visual identification for a healthy, alarm and
maintenance mode.
●
espond well to slow burning & smouldering fires.
●
Unaffected by wind or atmospheric pressure.
● Light weight.
● Elegant Design.
● Easy Installation.
● Make in India design.
Product Features:
● Optical Smoke Detector model IGNIS.
● Available with low
profile base and high base with
four 20 mm inputs.
●
Independent head, bayonet system assembly and
extraction lock.
● Nickel-
plated phosphor bronze contacts, double
double-grip connection.
Conventional IGNIS Smoke Detector
Vighnaharta Technologies Pvt. Ltd.
(formally known as Realty Automation and Security Systems Pvt. Ltd)
www.Vighnaharta.in
Automation | Safety | Security | Surveillance
Product Description:Optical smoke detector IGNIS is a photo
-
electric smoke detector that uses a state of the art optical
sensing chamber. Its advanced design ensures optimal
term operation thanks to its self
-
ic sensitivity compensation and
The IGNIS optical smoke detector indicates a fire alarm in the
presence of smoke whose opacity in the air is of the order of
0.12db. IGNIS smoke detector comes up with two different
The range of bases allows adapting the entire line of IGNIS
detectors to the different installation needs. Its ample interior
space makes mounting and electrical connection easier. Its
plated phosphor bronze terminals
term contact with the
The IGNIS optical detector is suitable in general applications
Visual identification for a healthy, alarm and
espond well to slow burning & smouldering fires.
Unaffected by wind or atmospheric pressure.
profile base and high base with
Independent head, bayonet system assembly and
plated phosphor bronze contacts, double
-sided
●
SMT Design, High stability.
●
Wide supply voltage range.
● 360˚ visib
le red status LED and output for response
indicator.
●
Indication of normal operation by flashing every 4 sec.
●
Maintenance mode indication by flashing LED every
14 sec.
●
Automatic drift compensation.
●
ABS thermoplastic material and dust protective cover.
●
Size 100 x 36 (diameter x height)
General specifications
Detection
method Photo-
electric Light scattering
Gases
detected/Fire
Type
Slow burning, smouldering fires
Sensor type Photo diode
Sensor life
span 7 Years
esponse
time 10 - 30 Sec
Warm-up
period 40 Sec
Electrical specifications
Power supply 9Vdc to 32Vdc
Normal
Current
Consumption
65uA at 24V at 25
Environmental
specifications
Operating
temperature -10 ˚C to 70 ˚C
Storage
temperature -20 ˚C to 80 ˚C
Humidity 95% non-
condensing
SMT Design, High stability.
Wide supply voltage range.
le red status LED and output for response
Indication of normal operation by flashing every 4 sec.
Maintenance mode indication by flashing LED every
Automatic drift compensation.
ABS thermoplastic material and dust protective cover.
Size 100 x 36 (diameter x height)
General specifications
electric Light scattering
Slow burning, smouldering fires
Electrical specifications
65uA at 24V at 25
˚C (95uA at start-up)
specifications
condensing

TISD
Conventional IGNIS Smoke Detector
Vighnaharta Technologies Pvt. Ltd.
(formally known as Realty Automation and Security Systems Pvt. Ltd)
www.vigh
www.Vighnaharta.in

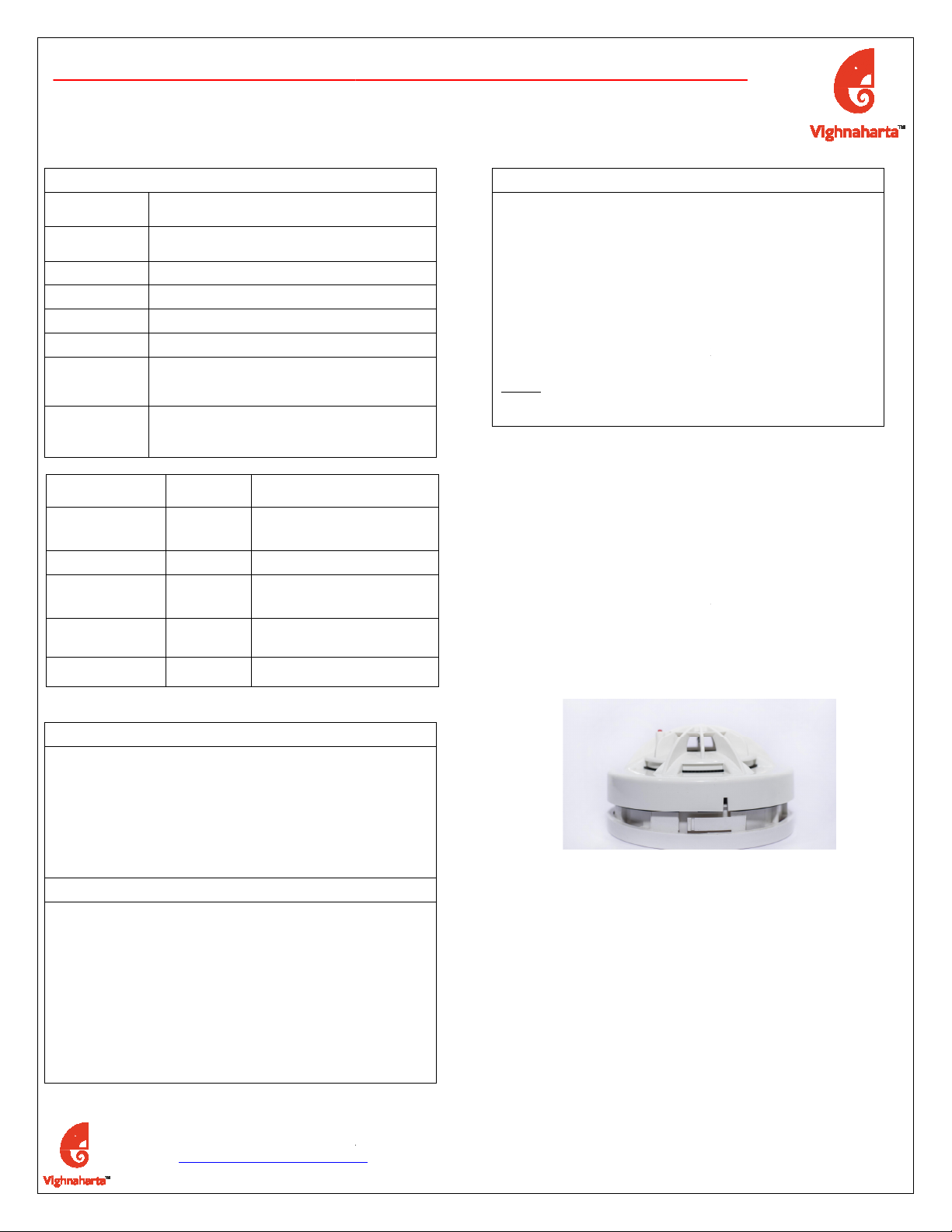

Mechanical specifications
Protection
class NA
Cabinet
material ABS Thermoplastic
Cable entry NA
Dimensions 100 x 36 (diameter x height)
Mounting Ceiling / Wall Mount
Weight
Output esponse Indicator
Accessories
with Unit
2 Screws (25*8 mm)
avel Plug(25 mm)
User Manual
LED Indication
Detector
Status
Chamber Status
Flashing Every
3.5 sec
Smoke
Detector
Healthy
Normal Operation
Continuous ON Alarm Smoke Detected
Flashing every 14
sec
Smoke
Detector
Healthy
Function correct but requires
cleaning
OFF Detector
Defective
Out of range, urgent cleaning
or replacement
Flashing every 75
millisec
Alarm after
Reset
Out of maximum range (at
start-up)
Warranty
We warranty its enclosed detector to be free from defects in
materials and workmanship under normal use and product
warranty of 12 months from the date of supply.
No agent, representative, dealer, or employee of the
company has the authority to increase or alter the
obligations or limitations of this warranty.
Warning/Caution
●
Install and use equipment in accordance with
installation instructions manual.
●Do not Paint the Detector.
●Dust cover must be removed before
commissioning to avoid detector contamination.
●
During maintenance, do not remove the detector
before notifying proper authority.
Conventional IGNIS Smoke Detector
Vighnaharta Technologies Pvt. Ltd.
(formally known as Realty Automation and Security Systems Pvt. Ltd)
www.Vighnaharta.in
Automation | Safety | Security | Surveillance
Chamber Status
Normal Operation
Function correct but requires
Out of range, urgent cleaning
Out of maximum range (at
We warranty its enclosed detector to be free from defects in
materials and workmanship under normal use and product
No agent, representative, dealer, or employee of the
company has the authority to increase or alter the
Install and use equipment in accordance with
commissioning to avoid detector contamination.
During maintenance, do not remove the detector
Maintenance
Before cleaning, disable the system to prevent false alarm
and inform proper authority.
1.
emove the detector to be cleaned from the
system.
2.
Gently remove the back plate and PCB from the
sensor chamber.
3.
Use a blower to clean the chamber. You can use
cotton o
r soft cloth to clean the chamber.
4. e-
insert the PCB & back plate properly.
5.
Fit the detector head with the base of the detector.
NOTE:
Strictly maintenance to be done by a technically
trained person.
Installation Procedure:
Note: Before Installation, this manual should be available with
the user of this equipment.
1.
IGNIS detectors are intended for mounting on a
ceiling or a wall in accordance with requirement.
2.
Fit the mounting base to the electrical junction box
with the given
screws. If a high profile base is used,
then a junction box is not required. (High profile base
directly comes up as a built in junction box.)
3. Connect ZONE ‘+’ & ‘-
‘to the mounting base pin 1 and
3 respectively ( efer connection diag.)
4. Align detector he
ad notch with mounting base notch
as shown in fig.
5.
Push the detector head into the base and turn
clock
wise to secure it in place.
Maintenance
Before cleaning, disable the system to prevent false alarm
emove the detector to be cleaned from the
Gently remove the back plate and PCB from the
Use a blower to clean the chamber. You can use
r soft cloth to clean the chamber.
insert the PCB & back plate properly.
Fit the detector head with the base of the detector.
Strictly maintenance to be done by a technically
Note: Before Installation, this manual should be available with
IGNIS detectors are intended for mounting on a
ceiling or a wall in accordance with requirement.
Fit the mounting base to the electrical junction box
screws. If a high profile base is used,
then a junction box is not required. (High profile base
directly comes up as a built in junction box.)
‘to the mounting base pin 1 and
3 respectively ( efer connection diag.)
ad notch with mounting base notch
Push the detector head into the base and turn
wise to secure it in place.
