User Manual
VIGMS Motion Sensor
Battery Replacement Instructions
①Unscrew to open the back cover. ②Replace with 2x AA battery.
LED Indication
LED flashes once: Motion is detected and transmitter sends signal to the main panel.
The LED indicator will light up once every 15 seconds in case of low battery. Please replace the battery in time.
Push notification will be sent to your APP.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, theuser is encouraged to try to correct theinterference by one
or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
①This device may not cause harmful interference.
②This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.

Operating Instructions
Installation & Notice
1. Working principle
With digital dual-core fuzzy logic operativeprogram-
ming and intelligent analysis, it accurately detects hu-
man body movement with the infrared sensorand
sends a signal to the main panel.
2. Pairing with main panel by App
①Scan the QR code on the sensor.
②The pairing result can be confirmed in App.
3. Product testing
• Pull out and remove the battery insulative plastic strip.
• Pair with the main panel using the App before installing.
• Fix the bracket to the wall using the screws included, connect the sensor to
bracket, adjust to the proper angle.
• Recommended to install at a height of 1.8-2.2m from ground, with gradient 10°~20°.
• Make sure there is no temptation for pets to pass by, like stairs, etc.
• Indoor use only. Avoid installing the sensors in an area with strong light, rapid
temperature changes, direct sunshine, heat source or the air stream flows frequently,
like close to windows, air- conditioners, and under rotating objects.
• Because the sensor is more sensitive to cross movement than vertical movement, it
works best when the detecting direction is vertical to the people's walking direction.
• To ensure the device is working, please perform a walktest periodically, once a
week recommended.
Detecting Area View (top view)
+6m
-6m
110°
Trigger Interval Time
Setting Switch
(Every 5s or 5min.)
Infrared Sensor
• Working Voltage DC 3V
• Battery 2 × AA battery(1.5V)
• Working Current ≤100mA
• Standby Current ≤15µA
•Detection Range 100°
•Detection Distance 9m
• Transmission Distance Up to 1000m line of sight
• Transmission Frequency 433.92MHz
• Working Temperature
• Humidity ≤90%rh (non-condensing)
• Weight 147g (battery not included) 194g (battery included) 65g (Bracket)
• Dimension 100x60x48mm Φ55x32mm(Bracket) LxWxH(±0.1mm)

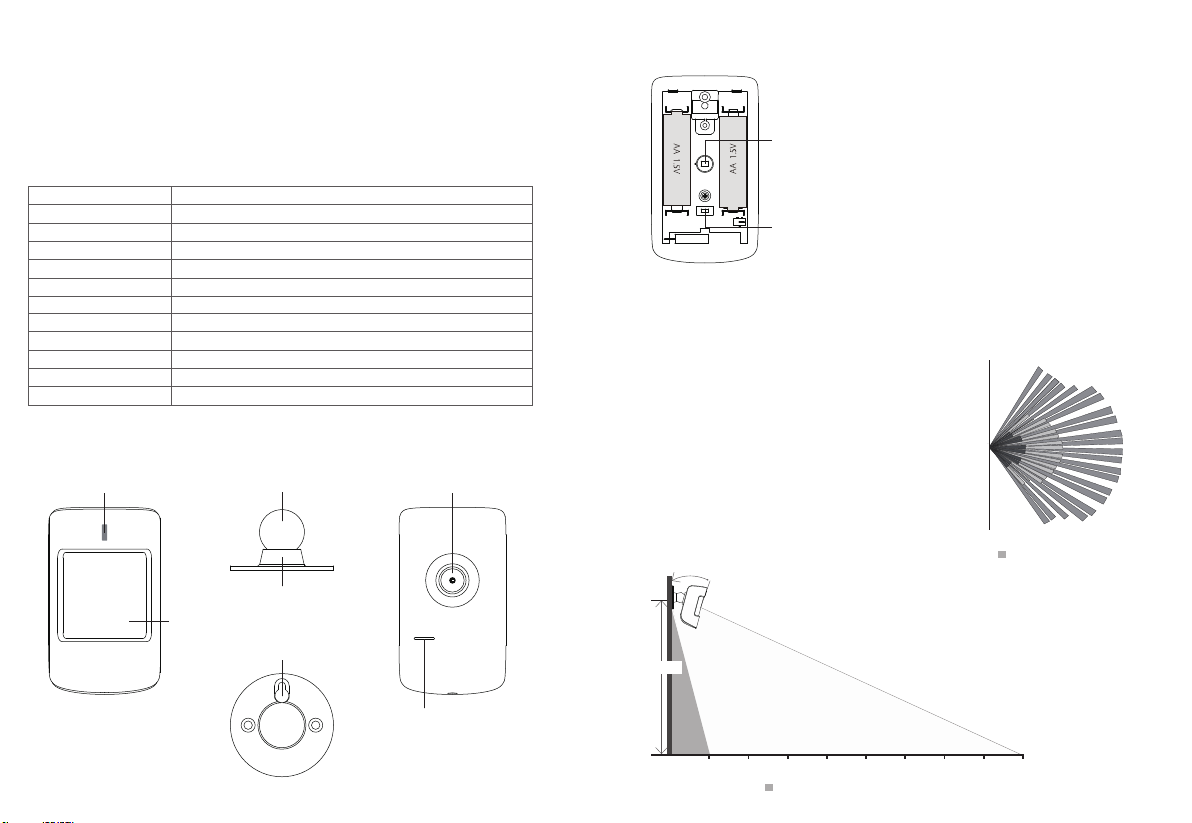

Detection Window
Tamper and Magnet
LED Indicator and Test Button Stainless-steel Bead
Bracket
Battery Insulative Strip
Appearance
10°-20°
1.8-2.2m
9m5m1m
Detecting Area View (side view)
①Power on, LED indicator would flash for 1s.
It takes about 30s to do a self-check.
②To verify this product is installed properly,
please walk in the sensing area to test.
Features
The wireless motion sensor is an accessory of the VIGILATE Smart Alarm System.
It accurately detects human body movement.Featured with automatic temperature compensation technology, it ensures
high intelligence, sensitivity, and stability.
It has a modern and elegantappearance. With technology like RF supervision, anti-tamper protection, energy saving and
low battery warning, it’s easy to set up and use.
Parameters
-10℃~50℃
Screw Mounting Hole
