Viglen Intel D955XBK User manual

Quick Start Guide
Viglen Product Description: Intel D955XBK Motherboard
Viglen Order Code: PMPBK001
Viglen System: Genie Pro(S775)

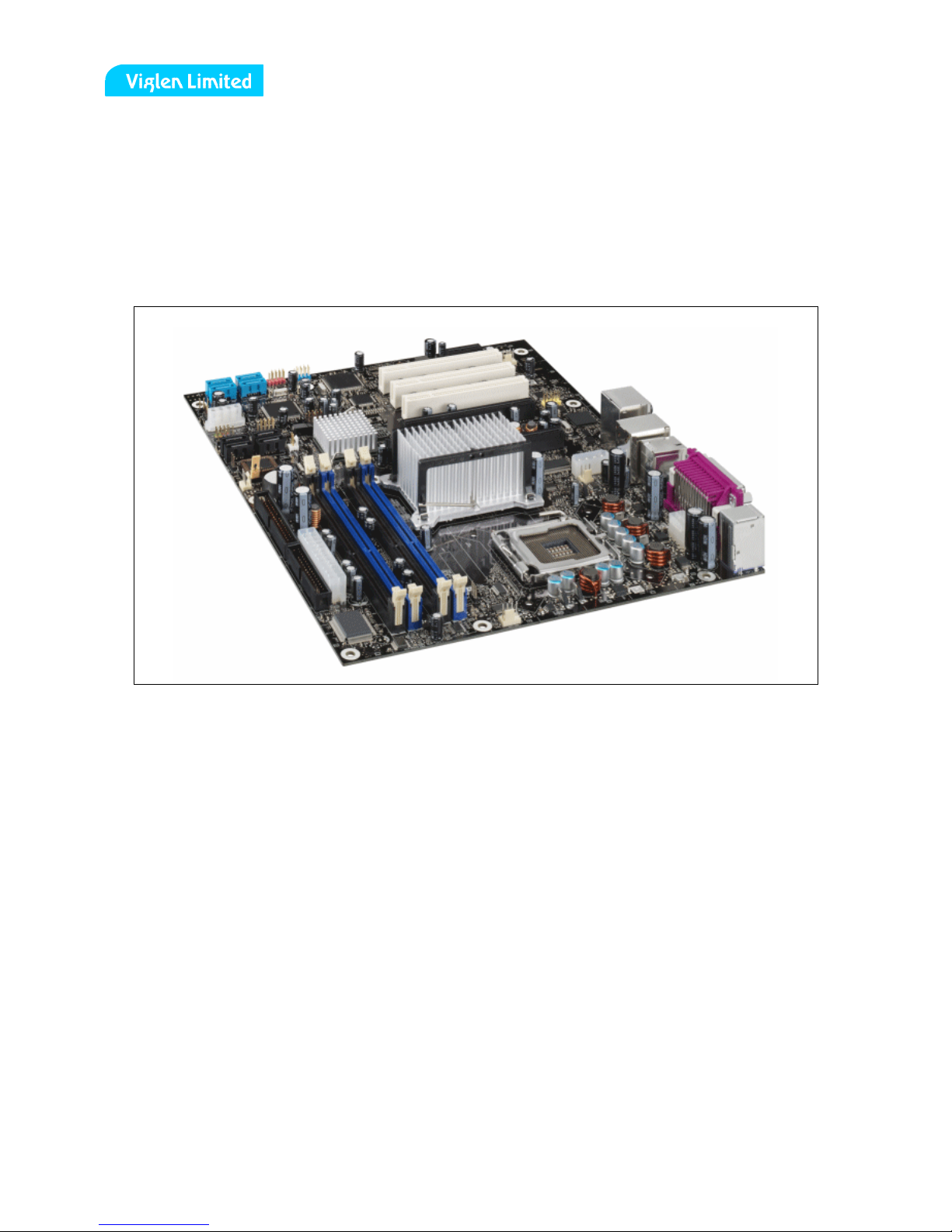

•Product photo
V1.0 Page 1 of 17

V1.0 Page 2 of 17
Product specification.
Motherboard Form Factor D955XBK: ATX (12.0 inches by 9.60 inches [304.80 millimetres
by 243.84 millimetres])
Motherboard chipset Intel® 955X Chipset, consisting of:
. Intel® 82955X Memory Controller Hub (MCH)
. Intel® 82801GR I/O Controller Hub (ICH7-R)
. Firmware Hub (FWH) or Serial Interface (SPI) Flash device
CPU connector type LGA775 socket
Number of CPUs supported 1
Supported CPU types (C,
P3 or P4 etc) Pentium 4 and Pentium 4 Extreme Edition (EE)
Supported CPU speeds CPU No. CPU speed FSB L2 cache L3 cache
840 EE 3.20 GHz 800MHz 2 x 1 MB -
800 -840 2.80 - 3.20
GHz 800 MHz 2 x 1 MB -
EE 3.40 GHz 1066 MHz 512 KB 2 MB
620-670 2.80 - 3.80
GHz 800 MHz 2 MB -
520-570 2.80 - 3.80
GHz 800 MHz 1 MB -
Front side bus speed 1066MHz and 800MHz
Number of PCI slots 3
PCI slot speeds 33MHz
Number of PCI-E slots 1 x PCI-e x16 and 1 x PCI-e x16/x4 and 1 x PCIe x 1
On board video No
Onboard audio type
Intel High Definition Audio subsystem in one of the following
configurations:
• 8-channel (7.1) audio subsystem with five analogue audio outputs and
two S/PDIF digital audio outputs (coaxial and optical) using the Sigmatel
9221 audio codec
Front facing audio header Yes
Audio Upgradeable via PCI/PCI-E
Onboard network fitted Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the
Intel® 82573E/82573V/82574V Gigabit Ethernet Controller
Number of network
connections 1
Upgradeable? Via PCI or PCI-E
Number of IDE channels 1
Number of SATA channels 8 (4 x SATA300 Intel RAID ICH7-R [RAID 0, 1, 0+1 and 5] ) and
(4 x SATA150 Silcon Image RAID Sil 3114 [RAID 0,1 and 0+1])
Maximum number of disks 6 (2 x IDE 2 x SATA) this would require full height ATX case
4 x USB 2 1 x MIC
Note 2 x USB 2 front headers
(2 ports per header) 1 x audio out
1 x serial 1 x audio in
1 x parallel 1 x PS2 mouse
Rear I/O connectors
1 x RJ45 LAN 1 x PS2 keyboard
1 x IEEE1394 (plus two
onboard front headers for an
additional ports IEEE1394a or
b configurable in BIOS)
Memory type 240-pin DDR2 SDRAM DIMM sockets DDR2 533 and DDR2 667
Number of memory sockets Four 240-pin DDR2 SDRAM DIMM sockets
Maximum memory support Support for up to 8 GB of system memory
Supported memory speed DDR 2 533 and DDR2 667
MTBF 91,425.23 hours

Upgrading and ESD precautions
WARNING
Unplug the system before carrying out the procedures described in this document.
Failure to disconnect power before you open the system can result in personal injury or
equipment damage. Hazardous voltage, current, and energy levels are present in this
product. Power switch terminals can have hazardous Voltages present even when the
power switch is off.
The procedures assume familiarity with the general terminology associated with
personal computers and with the safety practices and regulatory compliance required
for using and modifying electronic equipment.
Do not operate the system with the cover removed. Always replace the cover before
turning on the system.
As the colours of the wires in the mains lead of this computer may not correspond with the
coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug
which is marked by the letter Eor by the safety Earth symbol Ωor coloured green or green-and-
yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the
letter Nor coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the
letter Lor coloured red.
CAUTION!
The Viglen D955XBK motherboard
and associated components are
sensitive electronic devices. A small
static shock from your body can
cause expensive damage to your
equipment.
Make sure you are earthed and free of static charge before you open the computer case. If you
are unsure about upgrading your computer, return it to Viglen so a qualified engineer can
perform the upgrade.
V1.0 Page 3 of 17

V1.0 Page 4 of 17
STEPS TO TAKE TO PREVENT STATIC DISCHARGE:
1. The best way to prevent static discharge is to buy an anti-static strap from your local
electrical shop. While you are wearing the strap and it is earthed, static charge will be
harmlessly bled to ground.
2. Do not remove the component from its anti-static protective packaging until you are about to
install it.
3. Hold boards by the edges - try not to touch components / interface strips etc.
Note:
We recommend that you return your computer to the service department for upgrading. Any
work carried out is fully guaranteed. Upgrades should only be carried out by persons who are
familiar with handling IC's, as incorrect installation will invalidate the guarantee.

•System Board Components

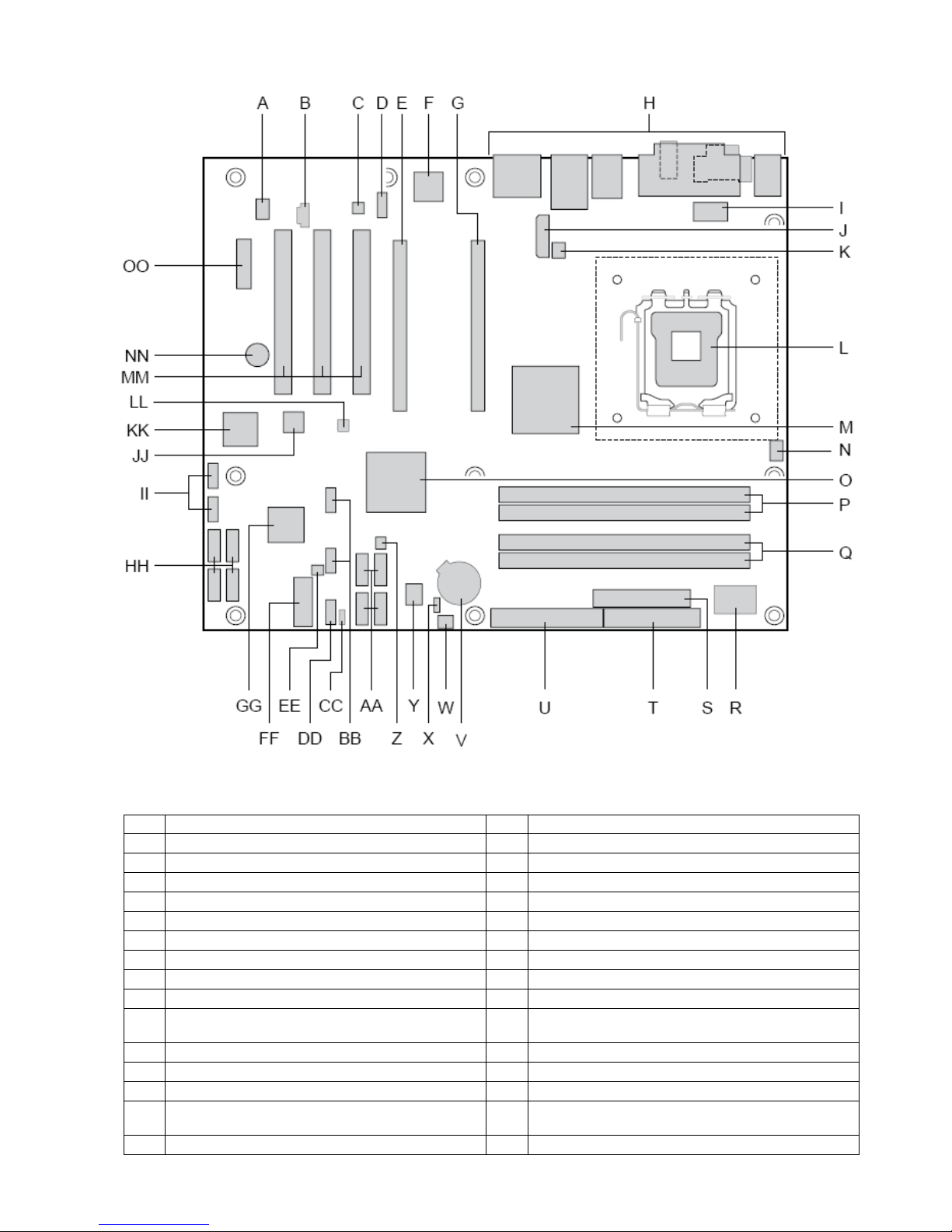

Figure 1 Motherboard Layout & Components
Table 2.
A Auxiliary rear fan connector V Battery
B CDROM ATAPI audio connector (not fitted) W Front chassis fan connector
C Sigmatel audio codec 9221 X BIOS Setup configuration jumper block
D Front panel audio connector Y Firmware Hub (FWH)
E Secondary PCI Express connectorx16/x4 Z Chassis intrusion connector
F Intel Giga bit Ethernet controller AA SATA RAID connectors Intel ICH7-R
G PCI Express x16 bus add-in card connector BB Front panel USB connectors
H Back panel connectors CC Auxiliary front panel power LED connector
I +12V power connector (ATX12V) 4/8 way DD Front panel connector
J Alternate power connector (not used) EE SCSI LED connector (optional)
K Rear chassis fan connector FF Auxiliary power connector (not to be used to
power HDD’s optical drive’s etc
L LGA775 processor socket GG SATA RAID controller Silicon Image
M Intel 82955X MCH HH SATA RAID connectors Silicon Image
N Processor fan connector II IEEE-1394a/b front panel connectors
O Intel 82801GR I/O Controller Hub (ICH7-R) JJ IEEE-1394a/b PHY component
P DIMM Channel A sockets KK IEEE-1394a/b Link component
V1.0 Page 5 of 17

Q DIMM Channel B sockets LL SPI Flash device
R I/O controller MM PCI Conventional bus add-in card
connectors
S Power connector (24 way ATX2.2) NN Speaker
T Diskette drive connector OO PCI Express x1 bus add-in card connectors
U Parallel ATE IDE connector
•Back Panel Connectors 7.1 Sigmatel audio 9221
Figure 2. Back Panel Connectors.
Table 3.
Item Description Item Description
A PS/2* mouse port (Green) I USB ports (two)
B PS/2 keyboard port (Purple) J
Center channel and LFE
(subwoofer) audio out/ Retasking
Jack G
[Orange]
C Serial port A (Teal) K Surround left/right channel audio
out/Retasking Jack H [Black]
D Parallel port (Burgundy) L Audio line in/Retasking Jack C
[Blue]
E Digital audio out coaxial M Digital audio out optical
F IEEE-1394a connector N Mic in/Retasking Jack B [Pink]
G USB ports (two)
O
Front left/right channel audio
out/Two channel audio line
out/Retasking Jack D
[Lime green]
H LAN - -
Note: The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are connected to
this output.
V1.0 Page 6 of 17

•Front panel connections
The following are all connectors situated along the front edge of the motherboard. They are
often connected to buttons and LED’s situated on the front panel.
Figure 3. Front panel connectors
A-Hard Disk L.E.D. Connector
This goes to the Hard Disk L.E.D. on the front panel, which lights up when the IDE Hard Disk is
in use.
B - Reset switch connector
When these pins are shorted, it will cause the computer to perform a cold reboot.
C - Power L.E.D.
This attaches to the power L.E.D on the front panel, to display if the computer is active or not.
D- Power On/Off
When these pins are shorted it turns the computer on and off.
V1.0 Page 7 of 17

•Motherboard Connectors
There are connectors on the motherboard for FAN, IDE, Power supply, CD audio, Floppy, IDE,
& Front Panel Connectors. The location and/or details of these connections are shown below.
Intel 82955X
MCH
Intel
82801GR
ICH7-R
PSU
ATX
12V
CPU
FAN
FRONT
IEE1394a/b
Header 2
1
Floppy Drive
Connector
31
331
2
5
FRONT USB
HEADERS
Front pannel
connectors
CHASSIS
INTRUSION
1
1
2
9
8
FAN
Rear
chassis
1
PCI IDE Connector 391
40202
bb
12
710
1
2
7
10
Auxiliary
FAN
header
Front Panel
Audio
1
9
2
10
1
SATA connectors
INTEL RAID
SATA 0 SATA 3
SATA 1 SATA 2
ATX 2.2
Power Connector
13
1
24
12
FAN
Front
chassis
1
SATA connectors
Silicon Image RAID
SATA 5 SATA 7
SATA 4 SATA 6
FRONT
IEE1394a/b
Header 1
12
710

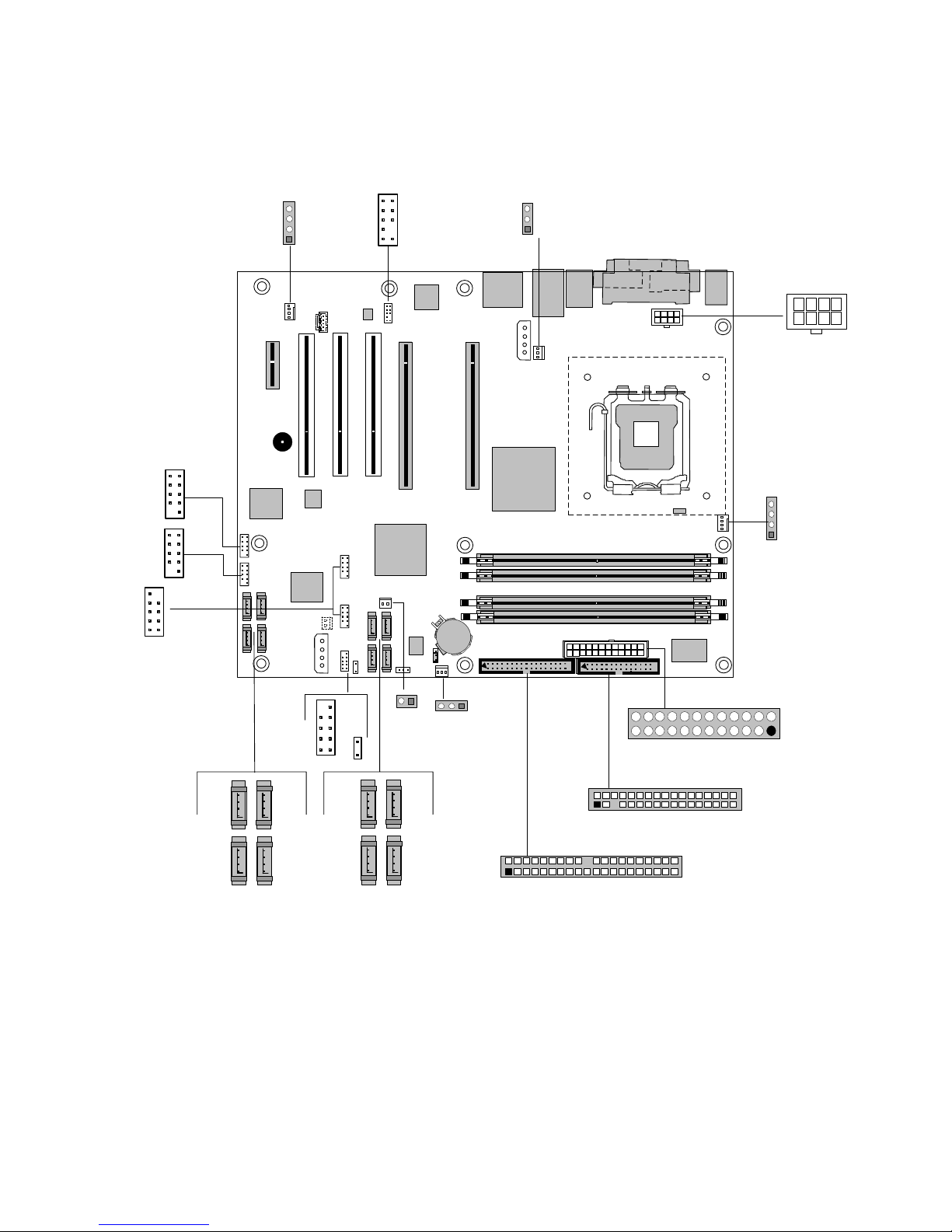

Figure 4. Motherboard Connectors
Note: Intel RAID 4 x SATA 300 connections will be used by default and then the
additional SATA 150 connections as necessary.
V1.0 Page 8 of 17

•Jumper settings
CAUTION Do not move any jumpers with the power on. Always turn off the power and unplug
the power cord from the computer before changing a jumper setting. Otherwise, the board could
be damaged.
Figure 5. Motherboard jumper.
BIOS Setup Configuration Jumper (J6J2) Settings
The 3-pin jumper block determines the BIOS Setup program's mode. The table below describes
the jumper settings for the three modes: normal, configure, and recovery. When the jumper is
set to configure mode and the computer is powered-up, the BIOS compares the processor
version and the microcode version in the BIOS and reports if the two match.
Table 4.
V1.0 Page 9 of 17
Function/Mode Jumper Setting Configuration
Normal 1-2 13The BIOS uses current configuration information and passwords for
booting.
Configure 2-3 After the POST runs, Setup runs automatically. The maintenance menu
is displayed.
Recovery None The BIOS attempts to recover the BIOS configuration. A recovery
diskette is required.

V1.0 Page 10 of 17

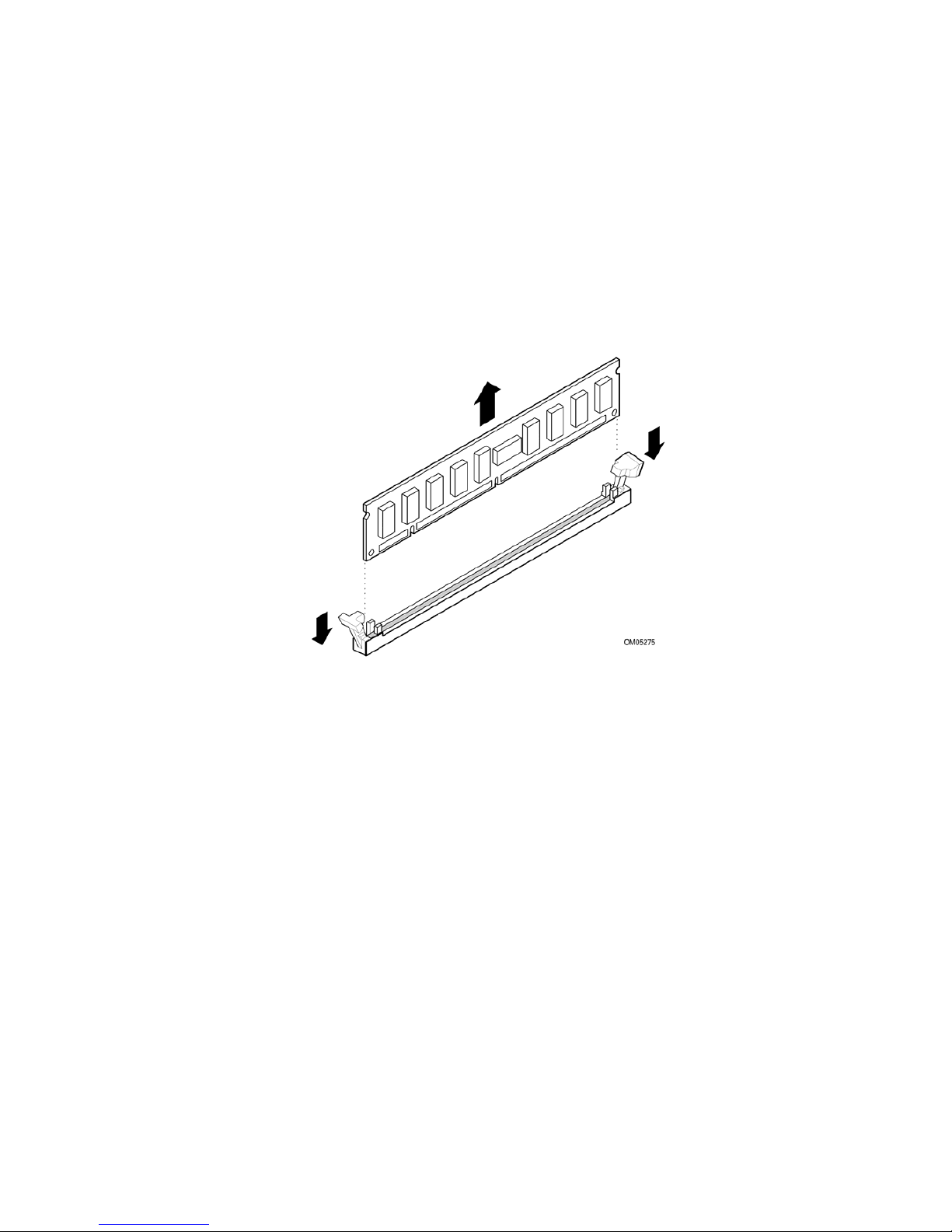

System Memory
The boards have four DIMM sockets and support the following memory features:
• 1.8 V and 1.9V DDR2 SDRAM DIMMs with gold-plated contacts.
• Unbuffered, single-sided or double-sided DIMMs with the following restriction:
Double-sided DIMMS with x16 organization are not supported.
• 8 GB maximum total system memory total amount of addressable memory.
• Minimum total system memory: 128 MB
• ECC and Non-ECC DIMMs
• Serial Presence Detect
• DDR2 667 MHz or DDR2 533 MHz SDRAM DIMMs
NOTES
• Remove the PCI Express x16 video card before installing or upgrading memory to avoid
interference with the memory retention mechanism.
• To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with DIMMs that support the Serial Presence Detect (SPD) data
structure. This allows the BIOS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. If non-SPD memory is
installed, the BIOS will attempt to correctly configure the memory settings, but
performance and reliability may be impacted or the DIMMs may not function under the
determined frequency.

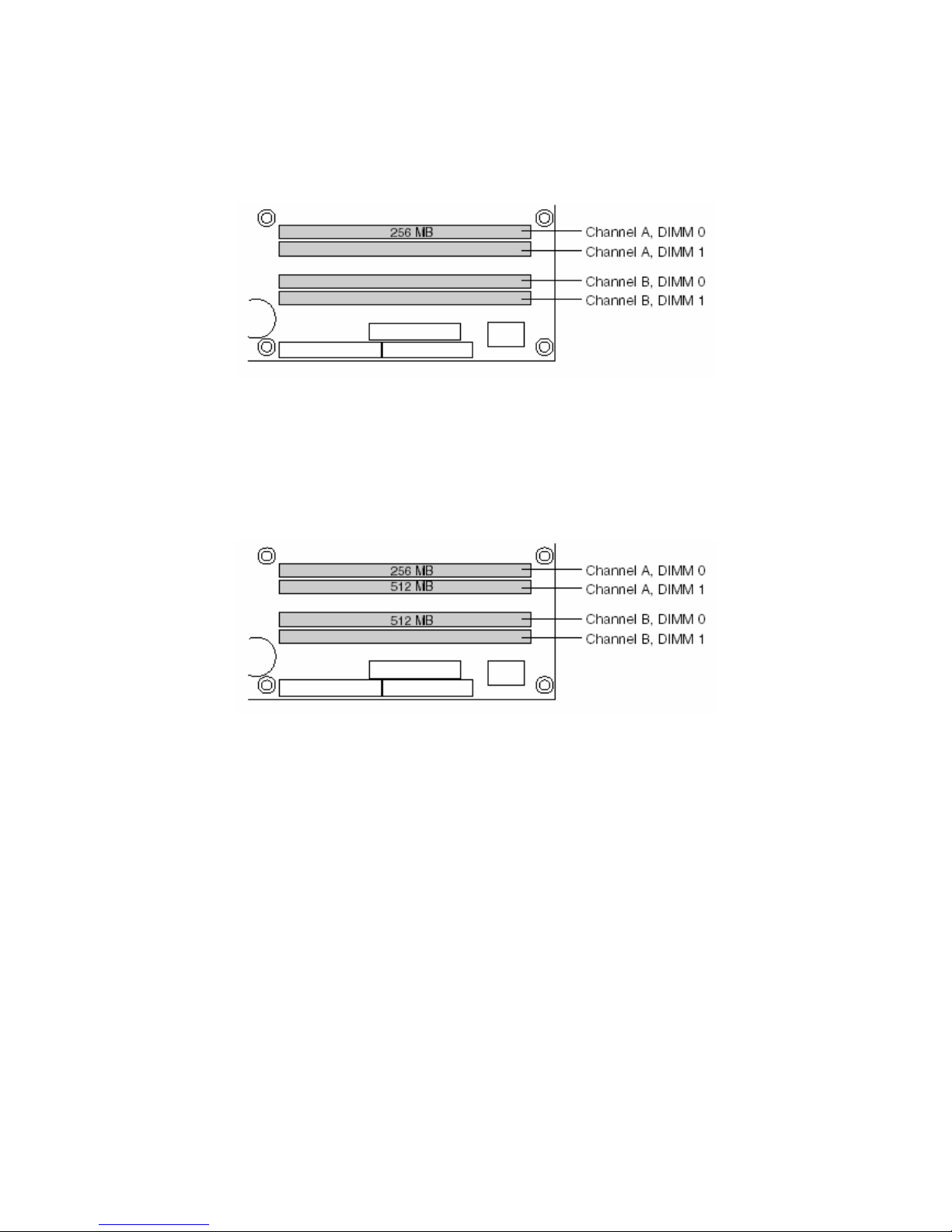

The following table lists the supported DIMM configurations.
Table 6.
DIMM
Capacity Configuration SDRAM Density SDRAM Organization Front-side/Back-side Number of SDRAM Devices
128 MB SS 256 Mbit 16 M x 16/empty 4
256 MB SS 256 Mbit 32 M x 8/empty 8
256 MB SS 512 Mbit 32 M x 16/empty 4
512 MB DS 256 Mbit 32 M x 8/32 M x 8 16
512 MB SS 512 Mbit 64 M x 8/empty 8
512 MB SS 1 Gbit 64 M x 16/empty 4
1024 MB DS 512 Mbit 64 M x 8/64 M x 8 16
1024 MB SS 1 Gbit 128 M x 8/empty 8
2048 MB DS 1 Gbit 128 M x 8/128 M x 8 16
Note: In the second column, "DS" refers to double-sided memory modules (containing two rows of DDR
SDRAM) and "SS" refers to single-sided memory modules (containing one row of DDR SDRAM).
