Viking HF-3W User manual

PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
COMMUNICATION & SECURITY SOLUTIONS
Allow Employees to Respond to Paging
Messages, Handsfree!
Features
The HF-3W handsfree paging unit allows employ-
ees to respond to a paging message without
reaching for the telephone. It is perfect for use in
city desks, shipping and service applications where
quick answers are needed.
The HF-3W generates its own talk battery and will
interface with unused trunk ports on PABX’s and
key systems, and single line phones, as well as
some telephone systems with a two-way paging
port and a contact closure.
Simply page the intended employee with a ques-
tion and they can respond by speaking toward the
paging horn.
Paging and talk-back volume sensitivity controls
are provided.
• Improved audio circuitry
• Alert tone
• Selectable “Push-to-Talk” feature for noisy en-
vironments
• 28V DC talk battery
• 3 watts of paging power
• Compatible with some two-way paging ports
• Background music input
• May be integrated into existing paging system
• (1) 25AE paging horn included
• 25-50 ft talk-back range
• Optional second speaker may be added
• City desks
• Shipping docks
• Manufacturing plants
• Service desks
• Warehouses
• Schools
• Parts departments
Power: 120V AC/13.8V AC 1.25A, UL listed
adapter provided
Dimensions: 133mm x 89mm x 44mm (5.25” x
3.5” x 1.75”)
Shipping Weight: 1.36 kg (3 lbs.)
Environmental: 0°C to 32°C (32°F to 90°F) with
5% to 95% non- condensing humidity
Talk Battery: 28V DC
Speaker: (1) 25AE 8 ohm 12 watt horn included,
(2) maximum
Maximum Speaker Run: 152 m (500 ft) maxi-
mum, 18 AWG
Amplifier: 3 watt output power
Connections: 10 pin screw terminal strip

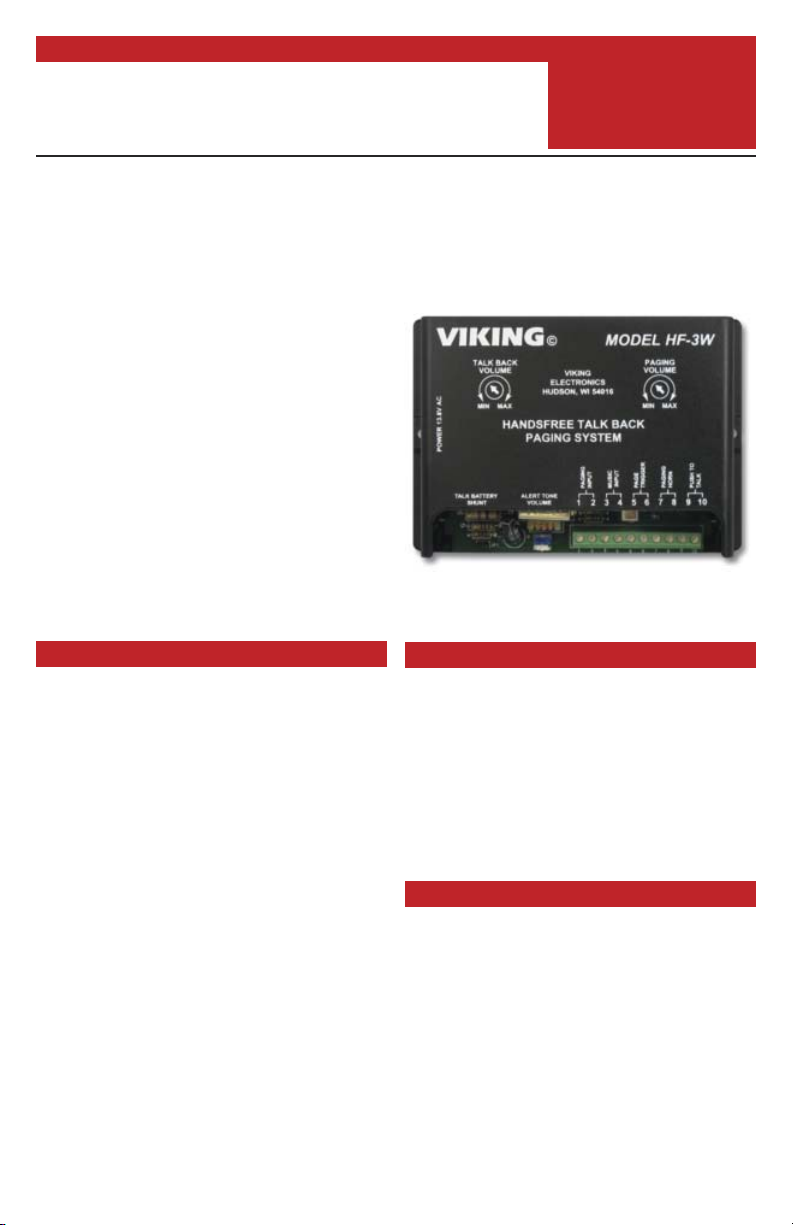

HF-3W
Handsfree Talkback
Amplifier
January 3, 2013
Applications
Specifications
www.vikingelectronics.com
Information: [phone]
VIKING

Installation
123456 78910
JP1
JP2
C
LED1
VIKING©
VIKING
ELECTRONICS
HUDSON, WI 54016
HANDSFREE TALK BACK
PAGING SYSTEM
POWER 13.8V AC
MODEL HF-3W
TALK BACK
VOLUME
PAGING
VOLUME
MIN MAX MIN MAX
12345678910
PAG IN G
INPUT
PUSH TO
TAL K
PAG IN G
HORN
PAG E
TRIGGER
MUSIC
INPUT
TALK BATTERY
SHUNT
ALERT TONE
VOLUME
Unused
PABX/KSU
Trunk Port
Single or Multi-
Line Phone
Existing Paging
System
or
Background
Music Source
Speaker Output
25AE
Paging Horn
(included)
Optional Paging Port
Installation
600 Ohm Two-Way Paging Port
with Contact Closure. Remove
Talk Battery Shunt (JP1).
Contact Closure
Two-Way
Paging Port
JP1
JP2
Alert Tone
Volume
13.8V AC
Adapter
(included)
120V AC
OR
* To Optional
Push-To-Talk
Button
(not included)
** Optional
Paging Horn
TALK BACK
VOLUME
MIN MAX
PAGING
VOLUME
MIN MAX
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from
both the AC outlet and the telephone line. It is recommended that a surge protector be installed to pro-
tect against such surges.
2
* Note: For loud background noise, an optional “Push-to-Talk” button may be added, using a N/O or
N/C switch or the Viking SW-2 panel mount switch (DOD# 844). Important: JP2 must be removed.
** Note: An optional second 25AE Paging Horn may be added in parallel to the existing horn to increase
the paging area.

Programming
A. Normal Background Noise Environment
1. Under normal background noise levels, set the Paging Volume control so that the page may be heard as
required. Then set the Talk Back Volume control in the middle (12 o’clock) position.
2. Test talk-back to be sure that the HF-3W will switch between paging and talk-back for your desired operating
distance and noise level.
3. Adjust the Talk Back Volume control as necessary for your environment. The louder the background noise
level, the more you have to decrease the Talk Back Volume and the shorter your talk-back distance will be.
B. Loud Background Noise Environment
If the background noise is too loud for the HF-3W’s VOX circuit to operate properly, you will need to add a “push-
to-talk” button across screw terminals 9and 10, and remove shunt JP2. The “push-to-talk” button may be installed
at either the telco end or the speaker end. Use a normally open switch for the telco side or use a normally closed
switch for the speaker side.
3
Operation
When sitting idle, the HF-3W allows audio from a background music source or an existing paging system’s speaker
output to pass through to the paging horn.
Handsfree talk back paging is achieved by either accessing the two-way paging port, accessing the unused trunk
port, or coming off-hook on the single/multi-line phone. At this time, the background music is muted, a page alert tone
is given and paging with talk back is enabled.
C. Two-Way Paging Port Interface
If the Paging Input is to be connected to a paging port, the paging port must allow two-way talk path and provide
a contact closure during paging. Disable the Talk Battery by removing the Talk Battery Shunt (JP1) before con-
necting to the paging port.
D. Page Alert Tone
If a page alert tone is not required, set the Alert Tone Volume to minimum (see diagram on page 2).

4
Printed in the U.S.A.
DOD# 470
ZF301430 Rev B
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates
and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued
to incorporate such changes.
Product Support: [phone]
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, CONTACT: VIKING TECHNICAL SUPPORT AT [phone]
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA) number. The customer MUST have a complete description of the problem,
with all pertinent information regarding the defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static sensitive equipment such as a circuit board should be in an anti-static bag,
sandwiched between foam and individually boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include ALL parts of the equipment. C.O.D. or
freight collect shipments cannot be accepted. Ship cartons prepaid to: Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input and troubleshooting, a Return Authorization (R.A.) number will be issued.
This number is valid for fourteen (14) calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then replace the Viking product using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't followed the steps listed in 1, 2 and 3, be aware that you will have to
pay a restocking charge.
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking
distributor or 18 months from the date manufactured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking
Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the
purchaser or others. This warranty does not cover non-EWP products that have been exposed to wet or corrosive environments.
NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THANAS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WAR-
RANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, IN-
CIDENTAL, SPECIAL OR EXEMPLARY DAMAGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER
LEGAL THEORY, ANY LIABILITY OF VIKING SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS
THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOODAND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF
CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE
AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED AS SUCH.
Warranty
If trouble is experienced with the HF-3W, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 [phone]
If the equipment is causing harm to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility com-
mission, public service commission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO
EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such
activities in the off-peak hours, such as early morning or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this
device is connected. This is to avoid damaging the equipment caused by local lightning strikes
and other electrical surges.
