Viking PA-2A Instructions for use

P
PA-2A A-2A
Paging Amplifier
Loud Ringer
August 29, 2005
P
Ph ho on ne e. .. .. .7 71 15 5. .3 38 86 6. .8 88 86 61 1
Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”)
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
Paging Output: 2 watts - powers up to (3) 8 ohm or (16) 45 ohm
speakers
Sound Pressure: 110 dB @ 1 meter (loud electronic warble)
Speakers: (1) 25AE 8 ohm paging horn included, (3) maximum
Maximum Speaker Run: 91m (300 ft) maximum 18 AWG
Talk Battery: 24V DC
Connections: (2) RJ25 jacks, (1) 10 position screw terminal
block
Add Paging and Multiple Line
Loud Ringing to Any Phone System
P
Pr ra ac ct ti ic ce e
T
TE
EL LE EC CO OM MS
SO
OL LU UT TI IO ON NS SF FO OR RT TH HE E2
21 1S
ST TC
CE
EN NT TU UR RY Y
TECHNICAL
TECHNICAL
S
Sp pe ec ci if fi ic ca at ti io on ns s
F
Fe ea at tu ur re es s
• Two watts of paging power
• All lines are optically coupled for compatibility
with fax switches and analog PABX/KSU
stations
• Can provide background music from an external
source (trunk mode only)
• Paging from an unused trunk port or paging port
• Choose one of four ringing sounds:
- Electronic warble (traditional loud ringer)
- Double gong (two identical “gong” tones)
- Quadruple chime (four descending chime tones)
- Door chime (ding-dong)
• Provides loud ringing or night bell, from 1-6 lines
for warehouses, yards, etc.
• Output for controlling a 12 volt relay from 1-6
ringing lines
• Page alert tone (trunk mode only)
• 600 ohm output for sourcing high powered
amplifiers
The PA-2A provides loud ringing and paging to elec-
tronic key systems, 1A2 Key systems, PABX’s as
well as No-KSU phones and multiline phones.
Paging is accomplished by connecting the PA-2A to
a paging port or unused telephone line input (trunk
port) of nearly any phone system.
The PA-2A will also generate adjustable loud ringing
from up to 6 analog lines or from a dry contact clo-
sure. Either a loud electronic warble, or one of three
other soft chime sounds may be selected. An external “night transfer” switch can be
added to turn loud ringing on or off in night bell applications.
The PA-2A is easy to install and eliminates the installation of multiple bells, relays and
paging cards. The unit comes
complete with a power supply,
amplifier and (1) paging horn.
h
ht tt tp p: :/ // /w ww ww w. .v vi ik ki in ng ge el le ec ct tr ro on ni ic cs s. .c co om m
i
in nf fo o@ @v vi ik ki in ng ge el le ec ct tr ro on ni ic cs s. .c co om m
• Amplified loud paging
• Night bell
• Loud ringing
A
Ap pp pl li ic ca at ti io on ns s

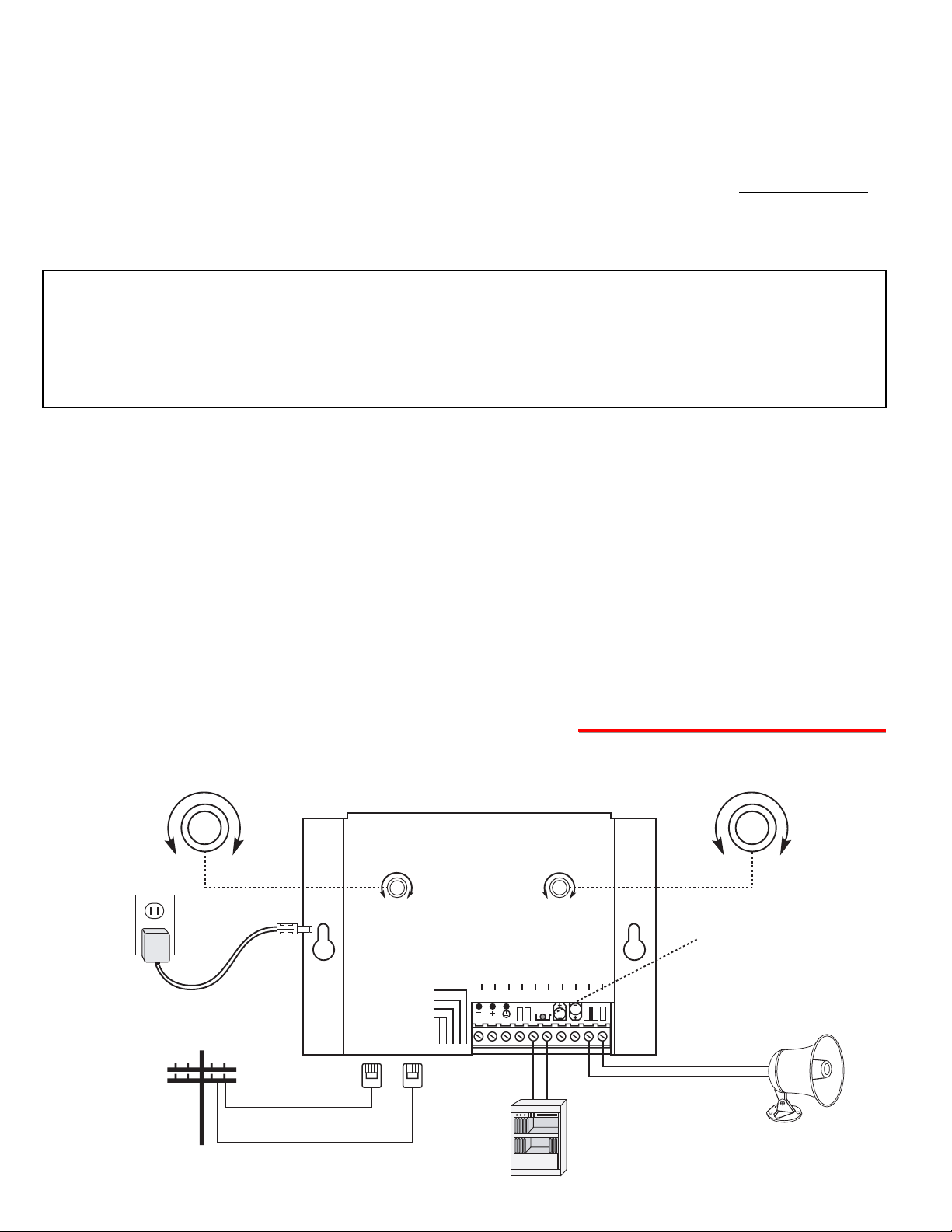

I
In ns st ta al ll la at ti io on na an nd dP Pr ro og gr ra am mm mi in ng g
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678910
NIGHT
TRANSFER
PAGING
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
C.O. Line or Analog
PABX/KSU Station Paging Port or
Unused Telephone Line
Input (Trunk Port)
25AE Paging Horn
(included)
Lines 1, 2 and 3
Lines 4, 5 and 6
13.8V AC
Adapter
(included)
120V AC
Paging Volume
MAX
MIN
Ringing Volume
MAX
MIN
PWR
Power LED
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT [phone]
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Thursday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manu-
factured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.
Vikings sole responsibility shall be to repair or replace (at Viking's option) the material within the terms stated above. VIKING SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND INCLUDING INCIDENTAL OR CONSE-
QUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY FROM ANY BREACH OF ANY WARRANTY EXPRESSED OR IMPLIED, OR FOR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limi-
tation of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY EXCLUDED
BEYOND THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual-
ly boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
If the trouble is causing harm to the telephone network, the telephone company may request you to remove
the equipment from the network until the problem is resolved.
The PA-2A uses the USOC jacks RJ11C, RJ14C, and RJ25C.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is con-
nected. This is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
This equipment is Hearing-Aid Compatible (HAC).
The telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device, including fax machines, to send any message unless such message clearly contains in a mar-
gin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is
sent and an identification of the business or other entity, or other individual sending the message and the tele-
phone number of the sending machine or such business, other entity, or individual. (The telephone number pro-
vided may not be a 900 number or any other number for which charges exceed local or long-distance transmis-
sion charges.)
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules. Located on the equipment is a label that contains,
among other information, the FCC registration number and ringer equivalence number (REN). If requested, this
information must be provided to the telephone company.
The REN is used to determine the quantity of devices which may be connected to the telephone line.
Excessive REN's on the telephone line may result in the devices not ringing in response to an incoming call. In
most, but not all areas, the sum of the REN's should not exceed five (5.0) To be certain of the number of devices
that may be connected to the line, as determined by the total REN's, contact the telephone company to deter-
mine the maximum REN for the calling area.
This equipment cannot be used on the telephone company-provided coin service. Connection to Party Line
Service is subject to State Tariffs.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance
that temporary discontinuance of service may be required. If advance notice isn't practical, the telephone com-
pany will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the operation of the equipment. If this happens, the telephone company will provide advance notice in
order for you to make the necessary modifications in order to maintain uninterrupted service.
If trouble is experienced with this equipment, please contact: Viking Electronics, Inc., 1531 Industrial
Street, Hudson, WI 54016 [phone]

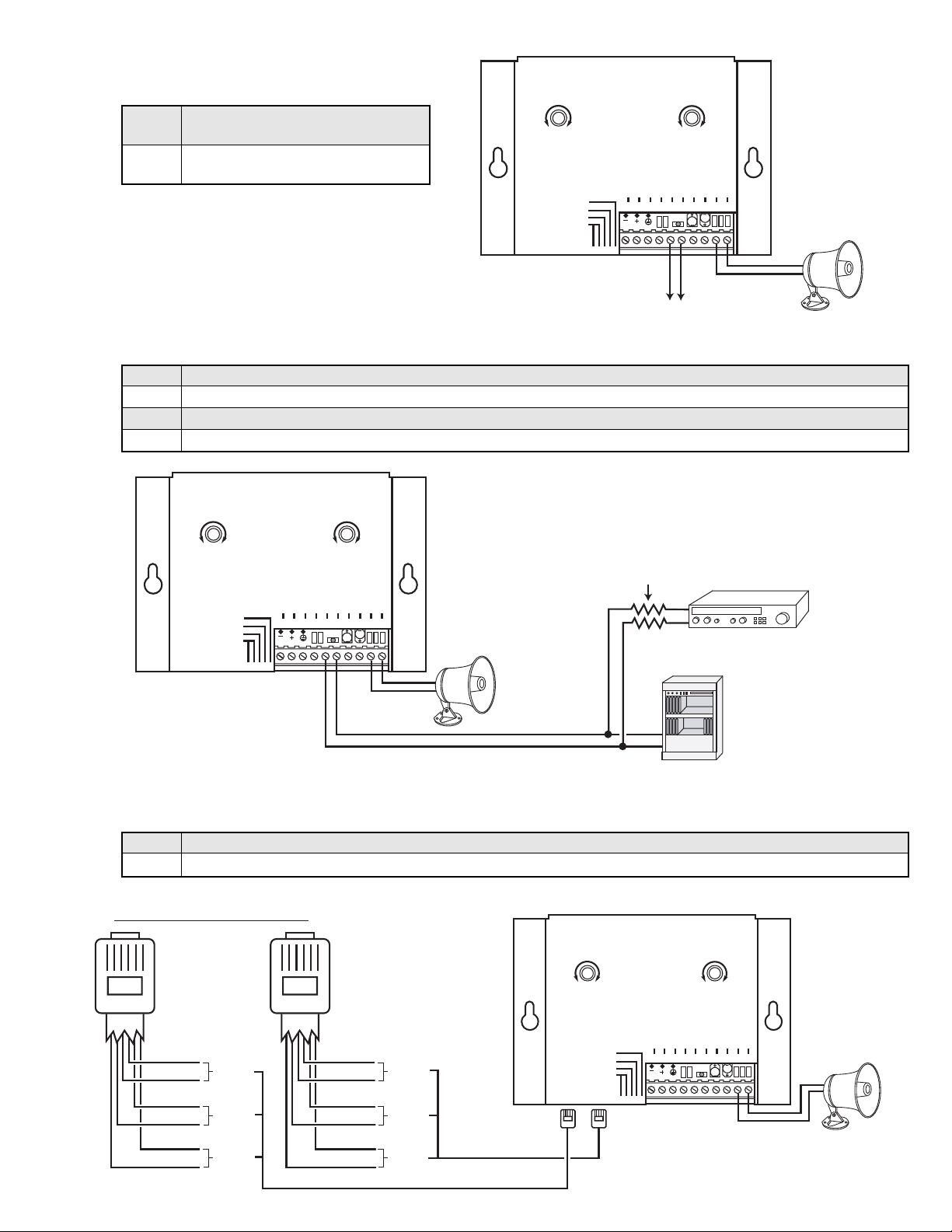

B. Loud Ringing/Night Bell
A. Amplified Loud Paging
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5 25AE
Paging
Horn
(included)
Unused Telephone
Line Input
(Trunk Port)
Background
Music Source
(2) 10K
Resistors
(included)
PWR
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
To Paging Port
25AE Paging Horn
(included)
PWR

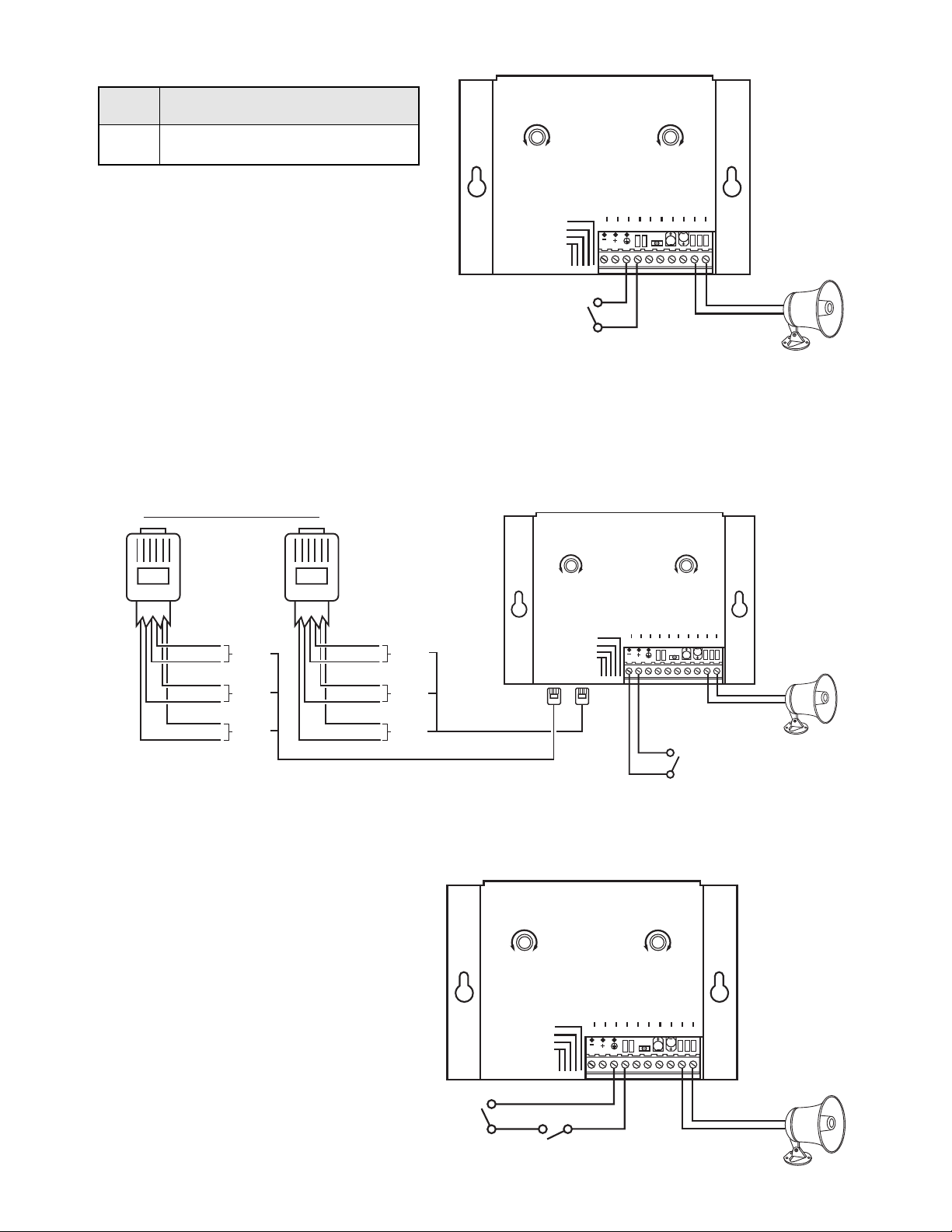

1. Paging Port
2. Trunk/Line Port
1. Ringing Analog Lines
25AE Paging Horn
(included)
Lines 1, 2 and 3
Lines 4, 5 and 6
Green
Red
Yellow
Black
Blue
White
RJ25
Line 4
Line 5
Line 6
Green
Red
Yellow
Black
Blue
White
RJ25
Line 1
Line 2
Line 3
Lines 1-3 Lines 4-6
Ringing Line Input Wiring
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAG I NG
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
PWR
Step 1. Move the TALK BATTERY switch to
the OFF position (DIP switch 4).
Step 2. Connect pins 5 and 6to the paging
port output.
Note: For information on speakers to use, ambient
noise levels and speaker wiring, see Fax Back
Document 498.
Important: Page Alert Tone or background
music can NOT be added when interfacing
the PA-2A to a Paging Port.
Step 1. Move the TALK BATTERY switch to the ON position (DIP switch 4).
Step 2. Move the AUDIO LOADING switch to the OFF position (DIP switch 5).
Step 3. Connect pins 5 and 6to an unused telephone line input (trunk port).
Step 4. Background music may be added as shown, the music level will be greatly reduced during a page.
Note: For information on speakers to use, ambient noise levels
and speaker wiring, see Fax Back Document 498.
Step 1. Connect lines 1 (R/G), 2 (Y/BK) and 3 (BL/W) to RINGING LINES 1-3.
Step 2. Connect lines 4 (R/G), 5 (Y/BK) and 6 (BL/W) to RINGING LINES 4-6.
Note: For information on speakers to
use, ambient noise levels and speaker
wiring, see Fax Back Document 498.

b. Dry Contact Closure with Night Transfer (Loud Ringing) Switch
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5 25AE Paging Horn
(included)
Dry Contact Closure
(not included)
Night Transfer (Loud Ringing) Switch
(not included)
PWR
Interface the night transfer switch in
series with the contact closure. When
the switch is on (closed), loud ringing is
enabled. When the switch is off (open),
loud ringing is disabled.
2. Dry Contact (Common Audible) Closure (contacts not included)
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
25AE Paging Horn
(included)
Dry Contact Closure
(not included)
PWR
A Night Transfer Switch may be used to enable or disable loud ringing.
a. Ringing Analog Lines
3. Night Transfer (Loud Ringing) Switch (switch not included)
25AE Paging Horn
(included)
Lines 1, 2 and 3
Lines 4, 5 and 6
Green
Red
Yellow
Black
Blue
White
RJ25
Line 4
Line 5
Line 6
Green
Red
Yellow
Black
Blue
White
RJ25
Line 1
Line 2
Line 3
Lines 1-3 Lines 4-6
Ringing Line Input Wiring
Night Transfer (Loud Ringing)
Switch (not included)
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAG I NG
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
PWR
Connect the night transfer switch to terminal pins 1 and 2. When the switch is on (closed), loud ringing is dis-
abled. When the switch is off (open), loud ringing is enabled.
Step 1. Connect the dry contact closure to pins
3 and 4.
Step 2. A dry contact closure will initiate loud
ringing.
Note: For information on speakers to use, ambient
noise levels and speaker wiring, see Fax Back
Document 498.
Note: For information on speakers to use, ambient noise levels and speaker wiring, see Fax Back Document 498.
Note: For information on speakers to use,
ambient noise levels and speaker wiring,
see Fax Back Document 498.

E. Connecting Multiple PA-2A’s
When more than 6 ringing lines are to be monitored or additional amplifiers need to be added, install as shown below,
using the 600 OHM AUDIO OUTPUT connections.
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5 1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
25AE Paging Horn
(included)
PWR PWR
C. Contact Closure from Up to 6 Ringing Lines
When a 12V DC relay coil (Radio Shack part: # 275-248, not included) is connected as shown in the diagram below,
the relay is activated for the duration of each ring on 1-6 C.O. lines or analog PABX/KSU stations.
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
Relay (Radio Shack
Part # 275-248)
N.O.
N.C.
COM
PWR
RELAY
CONTROL
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAGI N G
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
25AE Paging Horn
(included)
8 Ohm
Com
(Very Long Run)
Parts Express part # 300-040
1-800-338-0531
2.5 Watt
Com
2.5 Watt
Com
8 Ohm
Com
PWR
D. Long Runs Between Amplifer and Speakers
Very long runs between the PA-2A and the speakers might require
70V transformers (Parts Express 1-800-338-0531, part # 300-040 or
equivalent).
Note: For additional information on how to minimize loss of audio in
long speaker runs, see Fax Back Document 856.
Note: DIP switch 4 must
be in the OFF position.

DOOR ENTRY / CCTV VIDEO
/ PAGING CONTROLLER
VIKING©MODEL C-1000B
PWR 13.8 VAC
DOOR
STRIKE 1
DOOR
STRIKE 2
DOORBOX 2
DOORBOX
PWR OUTPUT
DOORBOX 1
123456789
10 11 12 13 14 15 16 17 18 19
EARTH GND
PHONE LINE INPUT
LINE OUT TO PHONES KEYLESS CONTACT CLOSURE INPUT
VIKING
ELECTRONICS
HUDSON, WI 54016
EARTH
GND
C.O. LINE
INPUT
OUT TO
PHONES
KEYLESS
C.C. INPUT
DOOR
BOX 1
DOORBOX
13VAC PWR
DOOR
BOX 2
N.O. COM N.C.
DOOR STRIKE 1
SIG GND
VIDEO 1 IN
SIG GND
VIDEO 2 IN
SIG GND
VIDEO OUT
N.O. COM N.C.
DOOR STRIKE 2
TALK BATTERY
OFF ON
C
LED1
C
LED2
C
LED3
ON
1 2 3
COM N.O. N.C. - - - - AUX.
CONTACT
OUTPUT
C.O. Line or Analog
PABX/KSU station
Standard
Analog Phones
25AE Paging Horn
(included)
C-1000B Door Entry/Paging Controller (not included)
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAG I NG
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
PWR
H. DIP Switch Programming
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAG I NG
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGING
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
1 2 3 4 5 PWR
Switch 1
OFF
OFF
ON
ON
Switch 2
OFF
ON
OFF
ON
Sound Output Description
Electronic Warble
Double Gong
Quadruple Chime
Door Chime

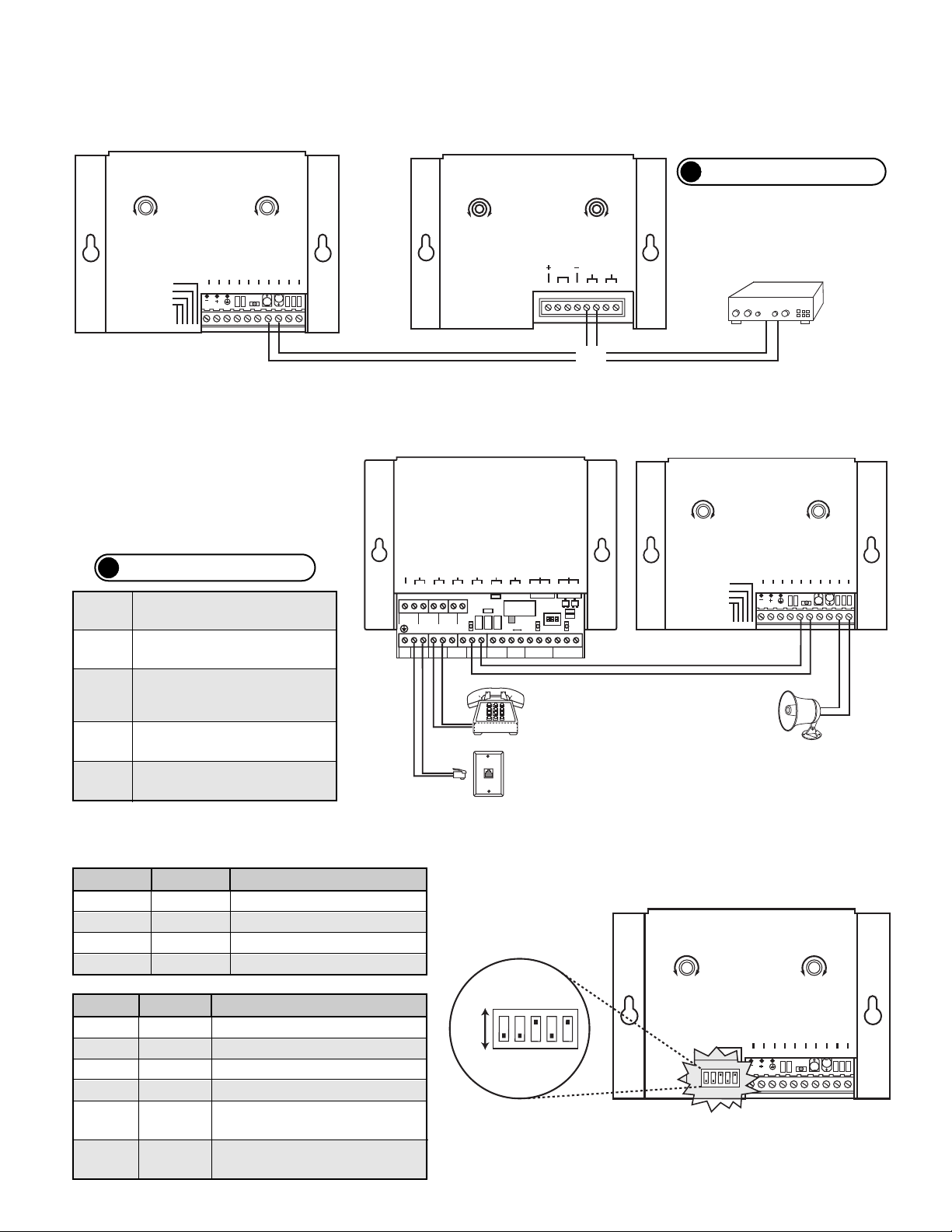

F. Adding Additional Paging Power
Existing Paging Amplifier
(not included)
MODEL M15W
TONE
CONTROL
PAGING
VOLUME
VIKING
ELECTRONICS
HUDSON, WI 54016
LOW HIGH MIN MAX
PAGING
POWER AMPLIFIER
POWER 13.8V AC
POWER
LED
OUTPUT INPUTS
15 WATT
AMPLIFIER 600
OHM
8
OHM
12345678
©
VIKING
or
M15W Paging Amplifier (not included)
1 2 3 4 5 6 7 8 9 10
PAGING - LOUD RINGING
AMPLIFIER SYSTEM
VIKING
ELECTRONICS
HUDSON, WI 54016
VIKING©MODEL PA-2A
POWER 13.8V AC
12345678 910
NIGHT
TRANSFER
PAG I NG
HORN
600 OHM
AUDIO OUT
TRUNK OR
PAGING PORT
DRY CONTACT
CLOSURE IN
PAGI N G
VOLUME
RINGING
VOLUME
MAX
MIN MAX MIN
1 - 3 4 - 6
RINGING LINES
AUDIO LOADING
TALK BATTERY
ALERT TONE
WARBLE / CHIME
1 2 3 4 5
PWR
G. Add Paging to Homes and Small Business with Single Line Phones
The C-1000B can be added to allow
PA-2A paging from the existing single
line phones. If need be, a doorbox or
a second paging amplifier may also
be added to the C-1000B Doorbox 2
Terminals .
An external amplifier can be added to increase the paging and loud ringing power. Simply connect the 600 OHM AUDIO
OUTPUT screw terminals to the line level input of any high powered paging amplifier, such as the Viking M15W, or any
existing paging system.
Step 1. Program the C-1000B to be
in the Paging Mode ✱4.
Step 2. Set the C-1000B Talk Battery
switch OFF.
Step 3. Connect the PA-2A Trunk Port
(pins 5 & 6) to the C-1000B
Door Box 1 terminals.
Step 4. Move the PA-2A Talk Battery
switch ON (DIP switch 4).
Step 5. To page, come off hook on the
phone and dial #1.
?Need More Information on the C-1000B?
Call [phone] and select 168.
Note: For information on speakers to
use, ambient noise levels and speaker
wiring, see Fax Back Document 498.
?Need More Information on the M15W?
Call [phone] and select 481.
Switch
3
3
4
4
5
5
Position
OFF
ON
OFF
ON
OFF
ON
Description
Alert tone OFF
Alert tone ON (factory default)
Talk battery OFF (factory default)
Talk battery ON
Audio load 10K (for applications
using background music)
Audio load 600 ohms (factory
default)
DIP Switches are
shown in the factory
default positions.

575 Hz
B. Double Gong (Two “Gong” Tones)
S
So ou un nd dO Ou ut tp pu ut tS Sp pe ec ci if fi ic ca at ti io on ns s
575 Hz
2.2 sec
0.74
sec
D. Door Chime (Ding-Dong)
C. Quadruple Chime (Four Descending Chime Tones)
A. Electronic Warble (Traditional Loud Ringer)
Duration of Contact Closure
Frequency alternates between 1440 Hz and 1140 Hz 20 times per second.
0.36
sec
0.36
sec
0.36
sec
2.2 sec
888 Hz 699 Hz 584 Hz 492 Hz
On
Off
On
Off
On
Off
On
Off
0.36
sec
794 Hz 526 Hz
2.7
sec
O
Op pe er ra at ti io on n
When interfacing the PA-2A to a paging port, the TALK BATTERY switch (DIP switch 4) must be OFF. The PA-2A will
amplify all signals sent from the paging port.
When interfacing with an unused telephone line input (trunk port), the TALK BATTERY switch (DIP switch 4) must be ON
and the PA-2A must be connected to an unused trunk port. Simply access that trunk port and talk into the handset to page.
A page alert tone may be enabled or disabled with DIP switch 3. When the page alert tone is enabled, paging will interrupt
and hold off loud ringing for the duration of the page.
In both instances, the PA-2A can monitor 1 - 6 C.O. lines, 1 - 6 analog PABX/KSU stations or a dry contact closure for loud
ringing. The PA-2A will produce the selected ringing tone when ring voltage is detected on these line inputs or a contact is
closed on pins 3 and 4. Select the electronic warble tone (traditional loud ringing) for noisy areas. The softer chime tones
work well in less noisy environments.
All tones require a minimum of 180ms of ringing voltage (or contact closure) to trigger. Once triggered, the electronic war-
ble will run continuously until ringing stops (or contacts open). All other tones (double gong, quadruple chime, doorbell) will
run through their full sequence once and will not cycle again until the ringing stops (or contact opens) for at least 50ms and
a second ring signal (or contact closure) triggers them again.

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or
subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate
such changes.
Fax Back Doc 485
ZF301730 Rev B
Printed in the U.S.A.
P
Pr ro od du uc ct tS Su up pp po or rt tL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .8 86 66 66 6F Fa ax xB Ba ac ck kL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .4 43 34 45 5
Even the best designed paging systems can experience feedback. Now you can elim-
inate annoying feedback over your paging speakers with Viking’s model FBI-1A dig-
ital anti-feedback paging interface.
The FBI-1A utilizes state of the art digital recording technology to record the “live”
page from a phone system’s paging port output or unused trunk port. The FBI-1A
then immediately plays back the recorded page once or twice (selectable) over the
paging system.
Pages of up to 16 seconds (expandable to 60 seconds) can be stored and the FBI-
1A automatically adjusts to the page length for faster processing. In addition, the FBI-
1A can be programmed to provide pre-page and post-page alert tones.
?Need More Information on the FBI-1A?
Call [phone] and select 465.
The M15W is designed to add more paging power to almost any amplified paging
product, or it may be used as a primary paging amplifier.
Audio can be input from a 600 ohm source or from an 8-ohm amplified source. The
15 watt output can drive an eight to four ohm load, or two separate two-ohm loads,
which simplifies installation of up to eight 8-ohm speakers. Installation of up to 32
speakers is possible. A power adapter and
one 25AE Paging Horn are included. ?Need More Information on the M15W?
Call [phone] and select 481.
The CPA-7B is a cost effective, multi- purpose, telecom paging system. The unit
features a low noise, high fidelity amplifier, providing 6 watts of power for a variety
of telecom paging applications. It can also provide background music and night
bell/common audible. In addition, multiple units may be daisy-chained for larger
paging applications.
The CPA-7B allows paging from any one of the following: an unused trunk input, a
page port, a C.O. line, Centrex line or analog PABX/KSU station port. For loud ring-
ing, the CPA-7B generates an adjustable loud warble from a dry contact closure, a
ringing C.O. line or a ringing analog
PABX/KSU station port. ?Need More Information on the CPA-7B?
Call [phone] and select 455.
R
Re el la at te ed dP Pr ro od du uc ct ts s
The 25AE and 30AE paging speakers provide additional economi-
cal paging coverage to existing Viking paging units (PA-2A, CPA-
7B, HF-3W, M2W) or to any system with an 8 ohm output.
In outdoor, factory or warehouse environments, 25AE paging horns
are the best method of producing understandable sound. In these
environments the directional design allows the installer to focus the
sound cone down aisles and toward work areas.
In office and restaurant environments, it is best to distribute sound
more evenly. Ceiling mounted 30AE speakers in close proximity
offer the best distribution and are cost effective.
The 25AE Paging Horn features: adjustable base for easy mounting and directional adjustment, compact design for out of
the way mounting, and is designed to work with all of Viking’s paging products.
The 30AE Ceiling Speaker features: attractive white grill for flush mounting in office ceiling, mounting hardware included,
large permanent magnet, excellent frequency response, and is designed to work with all of Viking’s paging products.
?Need More Information on the 25AE or 30AE?
Call [phone] and select 498.
