Viking Installation Guide
Side-By-Side &
Bottom-Mount Refrigerator/Free er
UL
C
UL

IMPORTANT–Please Read and Follow!
3
2
Table of Contents
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. Always read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by the
safety alert symbol and the word“DANGER”
or “WARNING.” These words mean:
D A N G E R
You will be killed or seriously injured if
you don’t follow instructions.
WARNING
You can be killed or seriously injured if
you don’t follow instructions.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
Warnings & Important Information_____________________________________________________ 3
Professional Side-by-Side
Dimensions & Specifications (Professional 42” & 48”) ________________________________ 6
Dimensions & Specifications (Professional 42” & 48” with flush mount trim) _____________8
Cutout Dimensions (42”) _________________________________________________________10
Anti-Tip Dimensions (42”) ________________________________________________________11
Cutout Dimensions (48”)_________________________________________________________ 12
Anti-Tip Dimensions (48”)________________________________________________________ 13
Professional Bottom-Mount
Dimensions & Specifications (36”)_________________________________________________ 14
Cutout Dimensions (36”)_________________________________________________________ 16
Anti-Tip Dimensions (36”)________________________________________________________ 17
Cabinet Information (Professional) ____________________________________________________ 18
Cabinet Information (Professional with flush mount trim) ________________________________ 20
Custom Side Panel Dimensions (Professional) __________________________________________ 22
Custom Side Panel Dimensions (Professional with flush mount trim) ______________________ 23
General Information ________________________________________________________________ 24
Unpacking & Moving _______________________________________________________________ 26
Flush Mount Side Trim Installation ____________________________________________________ 27
Installation_________________________________________________________________________ 27
Hinge Adjustment ______________________________________________________________ 28
Kickplate Installation ____________________________________________________________ 30
Door Stop Adjustment __________________________________________________________ 31
Water Filter Installation __________________________________________________________ 32
System Specifications and Data___________________________________________________ 33
Final Installation ________________________________________________________________ 34
Performance Checklist ______________________________________________________________ 35
Control Panels _____________________________________________________________________ 36
Service & Registration_______________________________________________________________ 37
• Make sure that incoming voltage is the same
as unit rating. An electric rating plate
specifying voltage, frequency, wattage,
amperage, and phase is attached to the
product.
• To reduce the risk of fire, electric shock, or
injury to persons, installation work and
electrical wiring must be done by qualified
people in accordance with all applicable
codes and standards, including fire-rated
construction.
• The installer should leave these instructions
with the consumer who should retain them
for local inspector’s use and for future
reference.

IMPORTANT–Please Read and Follow!
5
IMPORTANT–Please Read and Follow!
4
WARNING
ELECTRICAL SHOCK
HAZARD
Disconnect power or turn
power disconnect switch to
OFF position before removing
top grille. Failure to do so can
result in death or electrical shock.
WARNING
TIP OVER HAZARD
Appliance is top
heavy and tips easily
when not completely
installed. Keep doors
closed until appliance
is completely installed
and secured per installation instructions.
Use two or more people to move and
install appliance. Failure to do so can
result in death or serious injury.
Most of the unit’s weight is at the top. Extra care is needed when moving the unit to prevent
tipping. Use cardboard shipping material or plywood under unit until it is installed in the
operating position to protect floor surface.
It is your responsibility to:
• comply with installation specifications and dimensions.
• properly install unit.
• remove any moldings or decorative panels that prevent the unit from being serviced.
• make sure that you have these materials (not provided with your unit), which are necessary
for proper installation:
• 1/4” (6 mm) copper tubing with shutoff valve
• 6– #8 x 3” (7.6 cm) wood screws (longer screws may be required)
• 1– Saddle valve (do not use self-piercing feature of the valve)
• assure that floor will support unit, door panels and contents (approximately 1200 pounds [540 kg ).
• provide a properly grounded electrical outlet.
• assure that location will permit appliance doors to open 90° minimum.
A GFI shall be used if re uired by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which
are not installed properly or do not meet the requirements below.
If the use of a GFI is re uired, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible

Specifications (Side-By-Side)
7
Dimensions (Side-By-Side)
6
42” Side-By-Side
Descriptio VCSB5421 VCSB5421D
Overall width 42” (106.7 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 41-5/8” (105.7 cm) min. to 41-3/4” (106 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
Requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 15.0 cu. ft. (425 liters) 15.0 cu. ft. (425 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 24.0 cu. ft. (680 liters) 23.9 cu. ft. (677 liters)
Approximate shipping weight 652 lbs. (293.4 kg) 676 lbs. (304.2 kg)
48” Side-By-Side
Descriptio VCSB5481 VCSB5481D
Overall width 48” (121.9 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 47-5/8” (121.0 cm) min. to 47-3/4” (121.3 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
Requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 18.5 cu. ft. (524 liters) 18.5 cu. ft. (524 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 27.5 cu. ft. (779 liters) 27.4 cu. ft. (776 liters)
Approximate shipping weight 715 lbs. (321.8 kg) 735 lbs. (330.8 kg)
42” Side-By Side
24”
(61.0cm)
41”
(104.1cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
42”
42”
42”
(106.7cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7 cm)
22–3/16”
(56.4cm)
24”
(61.0cm)
47”
(119.4cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
48” 48”
48”
(121.9cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7cm)
1–1/2”
(3.8cm)
22–3/16”
(56.4cm)
26–1/2”
(67.3cm)
1–1/2”
(3.8cm)
26–1/2”
(67.3cm)
48” Side-By Side

Specifications (Side-By-Side with flush mount trim)
9
Dimensions (Side-By-Side with flush mount trim)
8
42” Side-By-Side with Flush Mou t Trim
Descriptio VCSB5421/Flush Mou t VCSB5421D/Flush Mou t
Overall width 42” (106.7 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 42” (106.7 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 15.0 cu. ft. (425 liters) 15.0 cu. ft. (411 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (255 liters)
Total capacity 24.0 cu. ft. (680 liters) 23.9 cu. ft. (677 liters)
Approximate shipping weight 625 lbs. (293.4 kg) 676 lbs. (304.2 kg)
48” Side-By-Side with Flush Mou t Trim
Descriptio VCSB5481/Flush Mou t VCSB5481D/Flush Mou t
Overall width 48” (121.9 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout width 48” (121.9 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; 1/4” copper tubing inlet waterline;
requirements minimum 20 psi; maximum 120 psi minimum 35 psi; maximum 120 psi
Overall interior dimensions
Refrigerator 18.5 cu. ft. (524 liters) 18.5 cu. ft. (507 liters)
Freezer 9.0 cu. ft. (255 liters) 8.9 cu. ft. (252 liters)
Total capacity 27.5 cu. ft. (779 liters) 27.4 cu. ft. (776 liters)
Approximate shipping weight 715 lbs. (321.8 kg) 735 lbs. (330.8 kg)
24”
(61.0cm)
41”
(104.1cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
42”
42”42”
(106.7cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7 cm)
23–3/8”
(59.4cm)
24”
(61.0cm)
47”
(119.4cm)
75–15/16”
(192.9cm)
3–19/32”
(9.1cm)
48” 48”48”
(121.9cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7cm)
1–1/2”
(3.8cm)
23–3/8”
(59.4cm)
26–1/2”
(67.3cm)
1–1/2”
(3.8cm)
26–1/2”
(67.3cm)
42” Side-By-Side with
Flush Mount Trim
48” Side-By-Side with
Flush Mount Trim
Note: Flush Mount Trim is shipped with the refrigerator in a box
marked “Refrigerator Trim Parts - DO NOT DISCARD”.

Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm),then shim behind the mounting
board by the difference.
One 2”x 4” Mounting Board
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
board by the difference.
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
NOTE: Top of unit must be placed firmly under anti-tip board.
Anti-Tip Location
Flush Mount Anti-Tip Location
79–3/8”
(201.6cm)min.
tobottomof
anti-tipboard
80–1/2”
(204.6cm)max.
tobottomof
anti-tipboard
35”
(88.9cm)
3–1/2”
(8.9cm)
3”
(7.6cm)
35”
(88.9cm)
3–1/2”
(8.9cm)
1.5”
(3.8cm)
Anti-Tip Dimensions (Side-By-Side)
11
9”
(22.9cm)
73-3/8”
(186.4cm)
82–7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84–1/16”
(213.5cm)max.
anti-tipboard&
openingheight
41–5/8”
(105.7cm)min.
to
41–3/4”
(106.0cm)max.
42”
(106.7cm)
FlushMountonly
24”
(61.0cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1cm)
7–5/8”
(19.4cm)
3”
(7.6cm)
5/8”
(1.6cm)
5/8”
(1.6cm)
10–1/2”
(26.7cm)
5/8”
(1.6cm)
10–3/4”
(27.3cm)
1”
(2.5cm)
3–5/8”
(9.2cm)
Optionalfloor
waterlineentry
42”
(106.7cm)
FlushMountonly
41–5/8”
(105.7cm)
SeeAnti-Tipboardinstallation
6”
(15.2cm)
9”
(22.9cm)
Cutout Dimensions (Side-By-Side)
10
42” Side-By-Side 42” Side-By-Side

Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
board by the difference.
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
board by the difference.
One 2”x 4” Mounting Board
3” (7.6 cm) x 3-1/2” (8.9 cm)
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
NOTE: Top of unit must be placed firmly under anti-tip board.
Anti-Tip Location
Flush Mount Anti-Tip Location
79–3/8”
(201.6cm)min.
tobottomof
anti-tipboard
80–1/2”
(204.6cm)max.
tobottomof
anti-tipboard
41”
(104.1cm)
3–1/2”
(8.9cm)
3”
(7.6cm)
41”
(104.1cm)
3–1/2”
(8.9cm)
1-1/2”
(3.8cm)
Anti-Tip Dimensions (Side-By-Side)
13
9”
(22.9 cm)
73-3/8”
(186.4cm)
82–7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84–1/16”
(213.5cm)max.
anti-tipboard&
openingheight
47–5/8”
(121.0cm)min.
to
47–3/4”
(121.2cm)max.
48”
(121.9cm)
FlushMountonly
24”
(61.0cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1cm)
7–5/8”
(19.4cm)
3”
(7.6cm)
5/8”
(1.6cm)
5/8”
(1.6cm)
10–1/2”
(26.7cm)
5/8”
(1.6cm)
10–3/4”
(27.3cm)
1”
(2.5cm)
3–5/8”
(9.2cm)
Optionalfloor
waterlineentry
47–5/8”
(121.0cm)
48”
(121.9cm)
FlushMountonly
SeeAnti-Tipboardinstallation
6”
(15.2cm)
9”
(22.9cm)
Cutout Dimensions (Side-By-Side)
12
48” Side-By-Side 48” Side-By-Side

Specifications (Bottom-Mount)
15
Dimensions (Bottom-Mount)
14
36” Bottom-Mou t
Descriptio VCBB5361
Overall width 36” (91.5 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout wdth 35-5/8” (90.5 cm) min. to 35-3/4” (90.8 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; minimum 20 psi;
requirements maximum 120 psi
Overall interior dimensions
Refrigerator 15.3 cu. ft. (434 Liters)
Freezer 5.1 cu. ft. (145 Liters)
Total capacity 20.4 cu. ft. (579 Liters)
Approximate shipping weight 565 lbs. (254.3 kg)
36” Bottom-Mou t with Flush Mou t Trim
Descriptio VCBB5361/Flush Mou t
Overall width 36” (91.5 cm)
Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26-1/2” (67.3 cm)
Cutout wdth 36” (91.4 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water 1/4” copper tubing inlet waterline; minimum 20 psi;
requirements maximum 120 psi
Overall interior dimensions
Refrigerator 15.3 cu. ft. (434 Liters)
Freezer 5.1 cu. ft. (145 Liters)
Total capacity 20.4 cu. ft. (579 Liters)
Approximate shipping weight 565 lbs. (254.3 kg)
24”
(61.0cm)
35”
(88.9cm)
52”
(132.1cm)
23–1/16”
(58.5cm)
3–19/32”
(9.1cm)
36”
36”
(91.5cm) (91.5 cm)
36”
(91.5cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7cm)
22–3/16”
(56.4cm)
1–1/2”
(3.8cm)
26–1/2”
(67.3cm)
24”
(61.0cm)
35”
(88.9cm)
52”
(132.1cm)
23–1/16”
(58.5cm)
3–19/32”
(9.1cm)
36”
36”
(91.5cm)
(91.5 cm)
36”
(91.5cm)
9–5/32”
(23.3cm)
82–3/4”
(210.2cm)
min.
to
84–1/16”
(213.5cm)
max.
20–3/4”
(52.7cm)
23–3/8”
(59.4cm)
1–1/2”
(3.8cm)
26–1/2”
(67.3cm)
36” Bottom-Mount
36” Bottom-Mount with
Flush Mount Trim
Note: Flush Mount Trim is shipped with the refrigerator in a box
marked “Refrigerator Trim Parts - DO NOT DISCARD”.

Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
boards by the difference.
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
boards by the difference.
One 2”x 4” Mounting Board
3” (7.6 cm) x 3-1/2” (8.9 cm)
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
NOTE: Top of unit must be placed firmly under anti-tip board.
Anti-Tip Location
Flush Mount Anti-Tip Location
79–3/8”
(201.6cm)min.
tobottomof
anti-tipboard
80–1/2”
(204.6cm)max.
tobottomof
anti-tipboard
29–1/2”
(74.9cm)
3–1/2”
(8.9cm)
3”
(7.6cm)
29–1/2”
(74.9cm)
3–1/2”
(8.9cm)
1.5”
(3.8cm)
Anti-Tip Dimensions (Bottom-Mount)
17
9”
(22.9 cm)
73-3/8”
(186.4cm)
82–7/8”
(210.5cm)min.
anti-tipboard&
openingheight
84–1/16”
(213.5cm)max.
anti-tipboard&
openingheight
35–5/8”
(90.5cm)min.
to
35–3/4”
(90.8cm)max.
36”
(91.5cm)
PFlushMountonly
24”
(61.0cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1cm)
7–5/8”
(19.4cm)
3”
(7.6cm)
5/8”
(1.6cm)
5/8”
(1.6cm)
10–1/2”
(26.7cm)
5/8”
(1.6cm)
10–3/4”
(27.3cm)
1”
(2.5cm)
3–5/8”
(9.2cm)
Optionalfloor
waterlineentry
35–5/8”
(90.5cm)
36”
(91.5cm)
FlushMountonly
SeeAnti-Tipboardinstallation
6”
(15.2cm)
9”
(22.9cm)
Cutout Dimensions (Bottom-Mount)
16
36” Bottom-Mount 36” Bottom-Mount

Top View
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
1–3/4”
(4.4 cm) Offset
Countertop
Overhang
Cabinet Information (Professional)
19
Top View
Top View
Door
Wall
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
3/4”
(1.9 cm)
Full End
Panel
24”
(61.0 cm)
Standard
Cabinet
Depth
1–3/4”
(4.4 cm) Offset
5/16”
(0.8 cm)
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
1–3/4”
(4.4 cm) Offset
Partial Overlay
Cabinet Door
Cabinet Information (Professional)
18
Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door
face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handle protrudes an additional
2-1/2” (6.4 cm) into the room.
Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door
face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handles protrude an additional
2-1/2” (6.4 cm) into the room.

Top View
Top View
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
25”
(63.5 cm)
Countertop
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
Door
Wall
1”
(2.5 cm)
space if
25” (63.5 cm)
cabinet depth
is used
3/4”
(1.9 cm)
Full End
Panel
25”
(63.5 cm)
Flush
1”
(2.5 cm)
space if
25” (63.5 cm)
cabinet depth
is used
Flush
Cabinet Information (Professional with Flush Mount Trim)
21
Top View
Overlapping cabinet doors
Top View
Flush mount cabinet doors
Door
24”
(61.0cm)
Standard
Cabinet
Depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
Full End
Panel
3/4”
(1.9 cm)
space if
24” (61.0 cm)
standard
cabinet depth
is used
Flush
Cabinet
Door
Door
Wall
3/4”
(1.9 cm)
Full End
Panel
1”
(2.5 cm)
space if
25” (63.5 cm)
cabinet depth
is used
Flush
25”
(63.5 cm)
Cabinet
Depth
Cabinet
Door
Cabinet Information (Professional with Flush Mount Trim)
20
Professional models with flush mount trim fit flush in standard 24” (61.0 cm) deep cabinet openings with
no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room.
Professional models with flush mount trim fit flush in standard 24” (61.0 cm) deep cabinet openings with
no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room.

3/4”
(1.9 cm)
End panel
1”
(2.5 cm) 1/4”
(0.6 cm)
Z-Bracket
21-3/4”
(55.2cm)
21-3/4”
(55.2cm)
24”
(61.0 cm)
Optional kickplate
Notch, dimensions
determined by cabinets
24”
(61.0 cm)
82-7/8”
(210.5cm)min.
to
84-1/16”
(213.5cm)max.*
82-7/8”
(210.5cm)min.
to
84-1/16”
(213.5cm)max.*

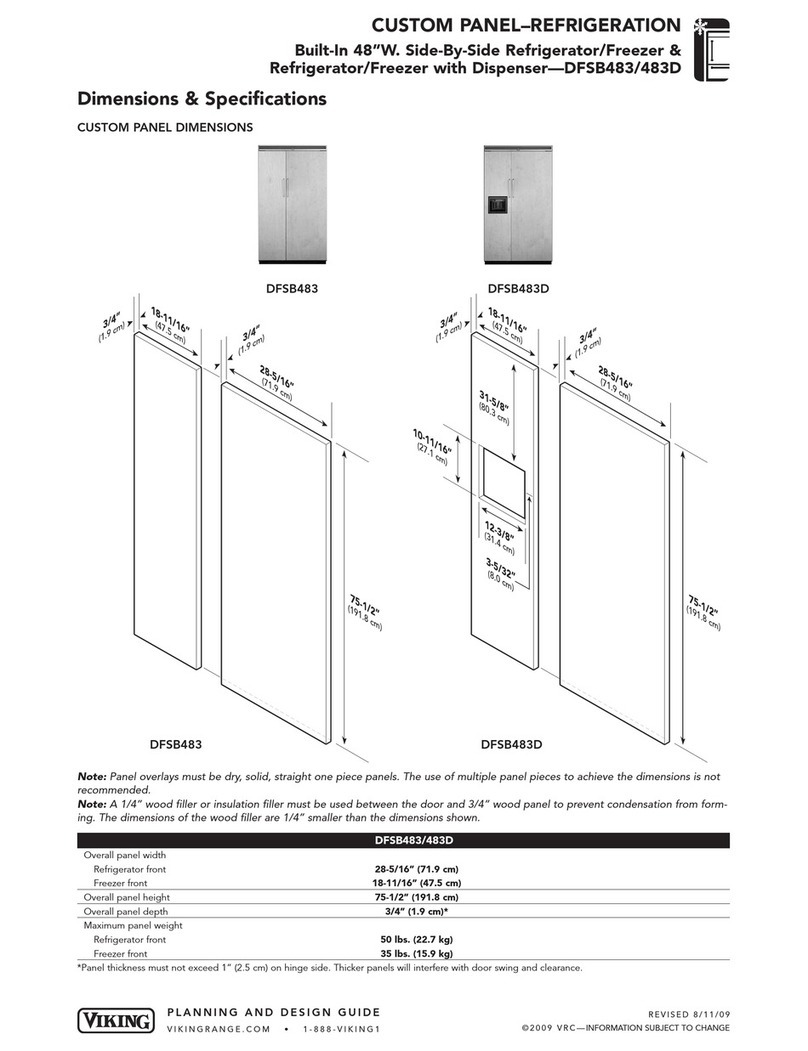

Custom Side Panel Dimensions
(Professional with Flush Mount Trim)
23
3/4”
(1.9 cm)
End panel
5/32”
(0.4 cm)
3/16”
(0.5 cm)
Back filler
panel
22-7/16”
(57.0cm)
22-7/16”
(57.0cm)
22-1/4”
(61.0cm)
6”
(15.2cm)
Optional kickplate
Notch, dimensions
determined by cabinets
82-7/8”
(210.5cm) min.
to
84-1/16”
(213.5cm) max.*
82-7/8”
(210.5cm)min.
to
84-1/16”
(213.5cm)max.*
6”
(15.2 cm)
22-1/4”
(61.0cm)
Custom Side Panel Dimensions
(Professional)
22
* Depending on how high leveling feet are raised, and cabinet enclosure height. * Depending on how high leveling feet are raised, and cabinet enclosure height.

General Information
Water Supply Requirements
Use only 1/4” (6 mm) copper tubing for
water line. Do Not install copper tubing in
area where temperatures drop below
35˚ F (1.7˚ C). Before attaching copper
tubing to the unit, flush at least 2 quarts
(1.9 L) of water through the copper tubing
and into a bucket to remove any particles
in the water line.
• Viking Range Corporation is not
responsible for property damage due to
improper installation or water
connection.
• Connect 1/4” (6 mm) flexible copper tubing
to household plumbing in compliance with
local codes and ordinances.
• Length of copper tubing must reach from
water supply connection to the unit
connection with an additional length to
facilitate moving the unit out of enclosure
for cleaning or service. Tubing should be
soft instead of rigid and ends should be
free of burrs.
• Copper tubing route must be above 35˚ F
(1.7˚ C) to prevent water line from freezing.
• Do not use plastic water lines from the
household plumbing to the water inlet
valve connection on the refrigeration
unit.
• Do not use the self-piercing feature of a
saddle valve. The hole made by the
piercing lance is too small for the water
flow rate required by the ice maker.
• If saddle valve is not used, place a
separate shut-off valve in an easily
accessible location between water supply
and the unit. Do not locate shut-off valve
behind the unit.
• The installation of Viking units with a
reverse osmosis system is acceptable
as long as the water pressure remains
within the allowable PSI as stated below.
It is important to note that with many
reverse osmosis systems, the pressure
starts off high, but then it decreases as the
water level of the reverse osmosis storage
area drops. This must be considered when
checking the water pressure coming into
the unit.
• Connect a vertical or horizontal 1/2” (1.2 cm)
to 1-1/4” (3.2 cm) COLD water line near
water area.
• Run water line through the floor, back, or
side wall. Tubing should lay flat on floor
underneath the unit. Clamp tubing to wall
or floor.
• Water pressure must be greater than 20 psi
and less than 120 psi on non-dispensers
and greater than 35 psi and less than 120
psi on dispensers.
25
Area Requirements
Verify the following:
• Unit can fit into residence and can be
moved around corners and through
doorways.
• Floors can support unit’s weight plus food
weight (approximately 1200 pounds [540 kg
total).
• Floors underneath refrigerator are level with
surrounding finished floor.
• Rear wall is solid and is able to support
two horizontally mounted 2X4s (included)
bolted to two wall studs. The 2X4
board bolt heads must be flush with 2X4
to prevent obstruction.
• Remove anything attached to rear or side
walls that can obstruct unit installation.
• Cutout dimensions are accurate.
• Electrical outlet is in correct location.
• Water line is in correct location.
• Do not install a refrigeration unit near a
heat source, nor in a location where the
surrounding temperature will fall below
60º F (16º C).
Electrical Requirements
It is the customer’s responsibility to:
• Contact a qualified electrical installer.
• Assure that the electrical installation is
adequate and in conformance with the
National Electrical Code, ANSI/NFPA 70-
latest edition or Canadian Electrical Code
C22.1-1998 and C22.2 No. 0-M91 (or
latest edition), and all local codes and
ordinances. A 115 volt, 60-Hz, 15 amp,
fused, electrical supply is required.
It is required that a separate circuit serving
only this appliance be provided. This
appliance is equipped with a power supply
cord having a 3-prong grounding plug. To
minimize possible shock hazard, the cord
must be plugged into a mating 3-prong,
grounding-type wall receptacle.
Do not use an extension cord.
If codes permit a separate grounding wire to
be used, it is recommended that a qualified
electrician determine that the grounding
path is adequate.
DO NOT ground to a gas pipe. Check with
a qualified electrician if you are not sure the
appliance is properly grounded. DO NOT
have a fuse in the neutral or grounding
circuit.
Anti-Tip Requirements
The anti-tip boards should be fastened
into position prior to moving the unit into
the opening.
NOTE: Additional mounting boards may
be re uired if the unit does not touch
the back wall of the enclosure. To
prevent unit from tipping forward, it
must be secured in place with a solid
soffit or wood block.
24
General Information
C A U T I O N
Be sure to have a replacement cartridge available
when filter change is required.
•If water filtration system has been allowed to
freeze, replace filter cartridge.
•If system has not been used in several months, and
water has an unpleasant taste or odor, flush system
by dispensing 2-3 glasses of water. If unpleasant
taste or odor persists, change filter cartridge.
WARNING
To avoid serious illness or death, do not use unit
where water is microbiologically unsafe or of
unknown quality without adequate disinfection
before or after the system. Systems certified for cyst
reduction may be used on disinfected water that
may contain filterable cysts. The contaminants or
other substances removed or reduced by this water
treatment system are not necessarily in you water.

27
1
2
Place unit in front of cutout. Pull the center grille louver up
at an angle and pull out.
3
4
Using an 8” magnetic nut driver, remove
the two 1/4” screws.
Remove grille assembly.
• Most of the unit’s weight is at the top.
Extra care is needed when moving the unit
to prevent tipping.
• Do not remove protective film until unit is
in operating position.
• All four leveling legs must contact the floor
to support and stabilize the full weight.
• Do not drop unit.
• Remove exterior shipping materials prior
to moving unit into home, except door
latching device.
• Use two or more people to move and
install unit. Failure to follow this instruction
can result in back or other injury.
• To avoid personal injury, wear gloves when
performing any installation procedure and
wear eye protection when cutting metal
straps.
TIP OVER HAZARD
Appliance is top heavy and tips easily
when not completely installed. Keep
doors closed until appliance is
completely installed and secured per
installation instructions. Use two or
more people to move and install
appliance. Failure to do so can result
in death or serious injury.
Unpacking Unit
1. Remove top and bottom strap.
2. Remove top cap.
3. Cut carton rear approximately 1/4”
(0.6 cm) to 1” (2.5 cm) from right corner
with a utility knife extended 1/4” (0.6 cm).
4. Remove carton and exterior packaging.
Save cardboard shipping material to
protect floor surface when installing unit.
Remove anti-tip board, kickplate and door
trim pieces (DF models) from rear of unit.
26
Moving Unit
Remove shipping brackets from skid by removing four
bolts (two on each side) with a 1/2” deep-well socket
wench and a pair of pliers.
NOTE: Tilting unit is not required to remove
shipping brackets
Slip appliance dolly between unit and skid. Remove
unit from skid.
NOTE: Use excess packaging to protect decorative
trim; also, verify that leveling legs are up (0”
adjustment)
General Information Flush Mount Side Trim Installation
Installation
Note: If the unit is to be installed flush with the cabinets, the flush mount side trim must be
installed. If not, skip to “installation”.
Step 1 - Remove the trim kit from the rear of the unit. The trim is contained in a box marked
“Refrigerator Trim Parts - DO NOT DISCARD”
Step 2 - Locate the necessary parts: Two (2) flush mount trim pieces and a hardware kit with
twenty-two (22) screws.
Step 3 - Remove the side trim on the refrigerator and discard the trim and screws.
Step 4 - Align the top of the flush mount side trim with the top of the unit's machine
compartment. Using the screws included in the hardware kit, attach the side trim to the unit,
only using the holes visible through the side trim. Note: Do not use the screw holes in the
machine compartment.

29
3”
3”
3”
10a
Place unit within 3” of being flush with cabinets.
NOTE: To avoid cabinet damage, place cardboard
between cabinets and unit When moving unit, do not
crimp, kink or crush water supply line
10b
11
Carefully move unit until semi flush with cabinet
(depending on unit).
Pull supply tubing forward under unit.
NOTE: DO NOT use plastic water lines
12
13
Flush water line by running two quarts of water
into a bucket. Turn water off.
Connect supply tube to water valve using
a 1/2” wrench. NOTE: DO NOT overtighten
28
Remove four side screws and remove unit top. Loosen the four hinge screws. Adjust door.
Retighten four hinge screws.
Replace unit top. Replace four side screws. Attach one 2x4 to wall stud (refer to dimensions page
for exact location).
If needed, depending on cabinet and depth,
attach second 2x4 to first 2x4.
2
1
5
Front of unit
2
1 3
6
1
2
7
8a
Wall
2 x 4
Refrigerator
8b
Wall
2 x 4
Refrigerator
Hinge Adjustment
9
Plug in power cord to verify operation.
NOTE: Make sure power switch is in the “On” Position
Turn on water supply and check for leaks.
14

31
3
1
2
20
1
2
21
110˚
120˚
90˚
Open refrigerator door so door stop and shoulder
screw are accessible.
NOTE: Shoulder screw should be in 110˚ door opening
position
Remove shoulder screw and place in 90° or
120° position.
3
1
2
22
1
2
23
110˚110˚110˚
90˚
120˚120˚120˚
Open refrigerator door so door stop and
shoulder screw are accessible.
NOTE: Shoulder screw should be in 110˚ door opening position
Remove shoulder screw and place in
90˚ or 120˚ position.
30
Lift unit off rollers to desired height and level unit using
a 5/16” head wrench.
NOTE: DO NOT use an electric device Overtightening
can cause damage
Attach positive secure self-tapping bolts to 2x4
using a 22” extension.
Verify that drain pan is installed and aligned.
Align holes on both ends of louvered panels and insert
screws.
Using a Phillips screwdriver, attach the
kickplate to the unit and adjust to desired height.
15
Wall
2x4
Refrigerator
Screw
16
17
1
2
18
2
1
3
19
Kickplate Installation
Door Stop Adjustment (Side-by-Side)
Door Stop Adjustment (Bottom-Mount)

3332
Locate water filter door. The door is located under
the Adjustable Cold Zone™ handle.
Push upper left corner of door to release latch
and pull door downward.
Insert filter cartridge into circular opening in filter
housing. Rotate clockwise gently until filter stops.
Close water filter door.
Flush 3 gallons through filter before use (flush
approximately 3 minutes). If water spurts occur,
continue to run water until water runs steady.
Additional flushing may be required in areas with poor
quality water.
NOTE: Allow 1-2 minute delay in water dispersal to
allow internal water tank to fill
24
2
1
25
13
2
26
27
Water Filter Installation (Side-by-Side with Dispenser)
Water Filter System Specification and Performance Data Sheet
This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration of less than or
equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.* (100% safety factors built-
in for unmetered usage for health claims only.)
*Based on the use of Cryptosporidium parvum oocysts
Operating Specifications
Capacity: Certified for up to 750 gallons (2,838 L); up to nine months
Pressure Requirement: 20 - 120 psi (1.4 - 8.2 bar)
Temperature: 33-100oF (0.6 - 37.8oC)
Flow rate: 0.78 gpm (2.9 l/min.)
Check for compliance with the state and local laws and regulations.
Note: While the testing was performed under standard laboratory conditions, actual performance may vary.
Must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines.
Installation instructions, parts and service availability, and standard warranty are included with the product when
shipped. This drinking water system must be maintained according to manufacturer’s instruction, including replacement
of filter cartridges.
Manufactured by: 3M Purification Inc.
400 Research Parkway
Meriden, CT 06770
System tested and certified by NSF International
against Standard 42 for the reduction of chlorine taste
and odor, particulate Class I and Standard 53 for the
reduction of Lead, Lindane, Atrazine, Mercury,
Toxaphene, Cyst, Turbidity, and Abestos.
Contaminant
Reduction
Average
Influent
NSF Specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentrtation
Max Permissible
Product Water
Concentration
NSF
Reduction
Requirements
NSF Test
Report
Chlorine Taste and
Odor
2.0 mg/L 2.0 mg/L + 10% 97.5% 0.05 mg/L N/A > 50% J-00056501
Nominal Particulate
Class I, >0.5 to <
1.0 µm
13,666,667
pts/mL
At least 10,000
particles/mL
98.9% 143,333 pts/mL N/A > 85% J-00056506
Asbestos 96 MF/L 107to 108fibers/L;
fibers greater than
10µm in length
>99% <1 MF/L N/A > 99% J-00056511
Atrazine 0.010 mg/L 0.009 mg/L + 10% 89.3% 0.001 mg/L 0.003 mg/L N/A J-00056512
Cyst* 122,500
cysts/L
Minimum 50,000
cysts/L
99.99% 1 cyst/L N/A > 99.95% J-00056513
Lead @ pH 6.5 0.153 mg/L 0.15 mg/L + 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00056515
Lead @ pH 8.5 0.150 mg/L 0.15 mg/L + 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00058784
Lindane 0.002 mg/L 0.002 mg/L + 10% 97.8% 0.00004 mg/L 0.0002 mg/L N/A J-00058969
Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L + 10% 95.0% 0.0003 mg/L 0.002 mg/L N/A J-00058785
Mercury @ pH 8.5 0.006 mg/L 0.006 mg/L + 10% 88% 0.0007 mg/L 0.002 mg/L N/A J-00058783
Toxaphene 0.015 mg/L 0.015 mg/L + 10% 93.2% 0.001 mg/L 0.003 mg/L N/A J-00056531
Turbidity 10.8 NTU 11 + 1 NTU 98.7% 0.153 NTU 0.5 NTU N/A J-00058972

3534
Replace top air grille. Using an 8” magnetic nut driver, replace
the two 1/4” screws.
Replace the center grille louver. Open door. Display should flash.
Press “ACTIVATE CONTROLS” pad and close door.
NOTE: There is a 6 minute delay before the unit starts
28
29
30
31
32
Final Installation
Performance Checklist
hVerify cabinet size.
hVerify electrical supply and water supply
(if applicable).
hInstall anti-tip device(s) and verify unit is
secure.
hPosition unit in cutout, level at desired
height and secure unit.
hPlug-in unit and verify operation.
hConnect water supply (if applicable).
• Verify icemaker fill tube is properly
inserted.
• Verify icemaker bail arm is down.
• Verify dispenser operation
(if applicable).
hAlign/square door(s).
hVerify drain pan is properly installed and
no leaks on water connection.
hInstall kickplate.
hRemove internal packaging and labels
and wipe unit down.
Installer’s information:
Installer’s name:_____________________________
Installer’s company:_________________________
Date: ________________________________________

Control Panels
1. Press “Activate Controls” pad.
2. Verify unit is not in Sabbath Mode.
If in Sabbath Mode:
A. The Sabbath Mode will disable the interior lights, display (except SAB indicator, temperature and
compartment indicator) and alarm.
To exit the Sabbath Mode:
B. Press and hold “Activate Controls” and then “Display Off” for 3 seconds. (The control will beep
three times to alert the user the Sabbath Mode has been exited.)
3. Verify unit is not in Showroom Mode.
If in Showroom Mode:
A. The Showroom Mode will disable the refrigerator system but all other functions are normal. These
include lights and control. (If the refrigerator is in Showroom Mode, SHOW will be lit.)
To exit Showroom Mode:
B. Press and hold “Activate Controls”; while holding, press and hold “Higher” and “Alarm Off”
together. (The control will beep three times to alert the user that Showroom Mode has been
exited.)
4. Press “Activate Controls” then press and hold “Lower”; while holding, press and hold “Display Off”
and hold until beeps (force start compressor).
5. All models need to be set at 38° F and 0° F for the Refrigerator and Freezer respectfully - factory
setting.
3736
Verify Operations
If service is required, call your dealer or authorized service agency. The name of the authorized
service agency can be obtained from the dealer or distributor in your area.
Have the following information readily available.
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an
authorized service agency, or if you continue to have service problems, contact Viking Range
Corporation at 1-888-VIKING1 (845-4641), or write to:
VIKING RANGE CORPORATION
PREFERRED SERVICE
1 03 Hwy 2W
Greenwood, Mississippi 3 930 USA
Record the following information indicated below. You will need it if service is ever required.
The serial number and model number for your appliance are located on the identification plate
mounted behind the top light.
Model No._________________________________________________________________________________________________________
Serial No. _________________________________________________________________________________________________________
Date of Purchase _________________________________________________________________________________________________
Date Installed _____________________________________________________________________________________________________
Dealer’s Name ____________________________________________________________________________________________________
Address ______________________________________________________________________________
If service requires installation of parts, use only authorized parts to insure protection under the
warranty.
Keep this manual for future reference.
Service & Registration
ACTIVATE
CONTROLS
FRZ
TEMP
REF
TEMP HIGHE R LOWE R FAST
COOL
MAX
REF
MAX
FRZ
ALARM
OFF
DISPL AY
OFF
FREEZER
MAX FRZ MAX REF
F
FAST COOL
SAB SHOW
REFRIGERATOR
DOOR OPEN
POWER
HIGH TEMP
C
Bottom-Mount
ACTIVATE
CONTROLS
FRZ
TEMP
REF
TEMP HIG HER LO WER FAS T
COOL
MAX
REF
MAX
FRZ
ALARM
OFF
DISPL AY
OFF
FREEZER
MAX FRZ MAX REF
F
FAST COOL
SAB SHOW
REFRIGERATOR
DOOR OPEN
POWER
HIGH TEMP
C
Side-by-Side

3938
