Viking VSLT240-MH User manual

Solar Light Tower
VSLT240-MH
OPERATION AND MAINTENANCE
MANUAL

1
This manual covers the following machines:
SN No. Production Date
Operating/Parts Information
You must be familiar with the operation of this machine before you attempt to
troubleshoot or repair it. Basic operating and maintenance procedures are
described in the Operator’s Manual supplied with machine. Keep a copy of the
Operator’s Manual with the machine at all times. If you are missing the
document, please contact us to order a replacement.
Damage caused by misuse or neglect of the unit should be brought to the
attention of the operator to prevent similar occurrences from happening inthe
future.
This manual provides information and procedures to safely repair and maintain
the S4 solar lighting tower. For your own safety and protection from injury,
carefully read, understand, and observe all instructions described in this
manual. THE INFORMATION CONTAINED IN THIS MANUAL IS BASED ON
MACHINES MANUFACTURED UP TO THE TIME OF PUBLICATION.
HARBINGER RESERVE THE RIGHT TO CHANGE ANY PORTION OF THIS
INFORMATION WITHOUT NOTICE.
Foreword

2
All rights, especially copying and distribution rights, are reserved.
Copyright 2020 by HarbinGer
No part of this publication may be reproduced in any form or by any means,
electronic or mechanical, including photocopying, without express written
permission from HarbinGer.
Any type of reproduction or distribution not authorized by maker HarbinGer
represent an infringement of valid copyrights, and violators will be prosecuted.
We expressly reserve the right to make technical modifications, even without
due notice, which aim at improving our machines or their safety standards.
Foreword

3
1. Safety Information
1.1 Operating Safety........................................................................................5
1.2 Towing Safety.............................................................................................6
1.3 Service Safety............................................................................................7
2. Control Box
2.1 Battery coulometer.....................................................................................8
2.2 Circuit breaker............................................................................................9
2.3 Solar panel charge and discharge controller..............................................9
2.4 Charging and discharging steps...............................................................10
2.5 Lift and Tilt button.....................................................................................10
2.6 Junction box and light cable.....................................................................11
3. Battery.......................................................................................................13
4. LED Light..................................................................................................14
5. Solar panel................................................................................................16
6. Mast...........................................................................................................18
7. Axle and Towing system..........................................................................20
8. Maintenance .............................................................................................22
9. Caution .....................................................................................................23
Table of Contents

4
1. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE and NOTE
callouts which must be followed to reduce the possibility of personal injury,
damage to the equipment, or improper service.
The followings are the safety alert words. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this symbol to
avoid possible injury or death.
DANGER indicates a hazardous situation which,if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE: Used without the safety alert symbol, NOTICE indicates a hazardous
situation which, if not avoided, could result in property damage.
Note: Contains additional information important to a procedure.
Safety Information

5
1.1 Operating Safety
WARNING: Familiarity and proper training are required for the safe operation
of the machine. Machines operated improperly or by untrained personnel can
be dangerous. Read the operating instructions carefully and familiarize
yourself with location and proper use of all controls. Inexperienced operators
should receive instruction from someone familiar with the machine before
being allowed to operate it.
1.1.1 The area immediately surrounding the Light Tower should be clean,
neat, and free of debris.
1.1.2 ALWAYS be sure the machine is on a firm, level surface and will not tip,
roll, slide or fall while operating.
1.1.3 NEVER start a unit in need of repair.
1.1.4 Lower the tower when not in use, or if high winds or electrical storms
are expected in the areas.
1.1.5 ALWAYS make certain the machine is well-grounded and securely
fastened to a good earthen ground per national and local regulations.
1.1.6 The tower extends up to 8.5m(27.9ft.). Make sure the area above the
trailer is open and clear of overhead wires and obstructions.
1.1.7 Keep the area behind the trailer clear of people while raising and
lowering the mast.
1.1.8 The trailer must be leveled and the outriggers extended before raising
the tower. The outriggers must remain extended while the tower is up.
1.1.9 If for any reason any part of the mast hangs up or the cable develops
slack while raising or lowering the tower, STOP immediately!
1.1.10 NEVER remove the mast locking pin while the tower is up!
1.1.11 NEVER use the machine if the insulation on the electrical cord is cut
or worn through.
1.1.12 NEVER operate the lights without the protective lens cover in place or
with a lens cover that is cracked or damaged!
1.1.13 NEVER adjusts the mast while the unit is operating.
1.1.14 NEVER raise the mast or operate the machine in high winds.
Safety Information

6
1.2 Towing Safety
WARNING: Towing a large trailer requires special care. Both the trailer and
vehicle must be in good condition and securely fastened to each other to
reduce the possibility of an accident.
1.2.1 ALWAYS check that the hitch and coupling on the vehicle are rated
equal to, or greater than, the trailer’s “gross vehicle weight rating”(GVWR).
1.2.2 ALWAYS inspect the hitch and coupling for wear or damage. DO NOT
tow the trailer using defective parts.
1.2.3 ALWAYS make sure the coupling is securely fastened to the vehicle.
1.2.4 ALWAYS check the tires on the trailer for tread wear, inflation, and
condition. Replace worn tires.
1.2.5 ALWAYS connect the safety chains.
1.2.6 ALWAYS make sure directional and trailer lights are connected and
working properly.
1.2.7 ALWAYS check that the lug nuts holding the wheels are tight and that
none are missing.
1.2.8 The maximum recommended speed for highway towing is 72km/hour
(45MPH). Recommended off-road towing speed is not to exceed 16 km/hour
(10MPH) or less depending on terrain.
1.2.9 ALWAYS refer to the applicable Department of Transportation
regulations before towing.
Safety Information

7
1.3 Service Safety
Only a qualified electrician should troubleshoot or repair electrical problems
occurring with this equipment.
1.3.1 ALWAYS replace the safety devices and guards after repairs and
maintenance.
1.3.2 Before servicing the Light Tower, make sure the circuit breakers are
open(off), and the negative terminal on battery is disconnected. NEVER
perform even routine service(hydraulic oil changes, cleaning, etc.) unless all
electrical components are shut down.
1.3.3 DO NOT allow water to accumulate around the base of the machine. If
water is present, move the machine and allow the machine to dry before
servicing.
1.3.4 DO NOT service the machine if your clothing or skin is wet.
1.3.5 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
1.3.6 ALWAYS make sure slings, chains, hooks, ramps, jacks and other
types of lifting devices are attached securely and have enough weight-bearing
capacity to lift or hold the machine safely.
Always remain aware of the location of other people around when lifting the
machine.
1.3.7 Always turn off the light circuit breakers before disconnecting the light
fixtures or changing the light bulbs.
Safety Information

8

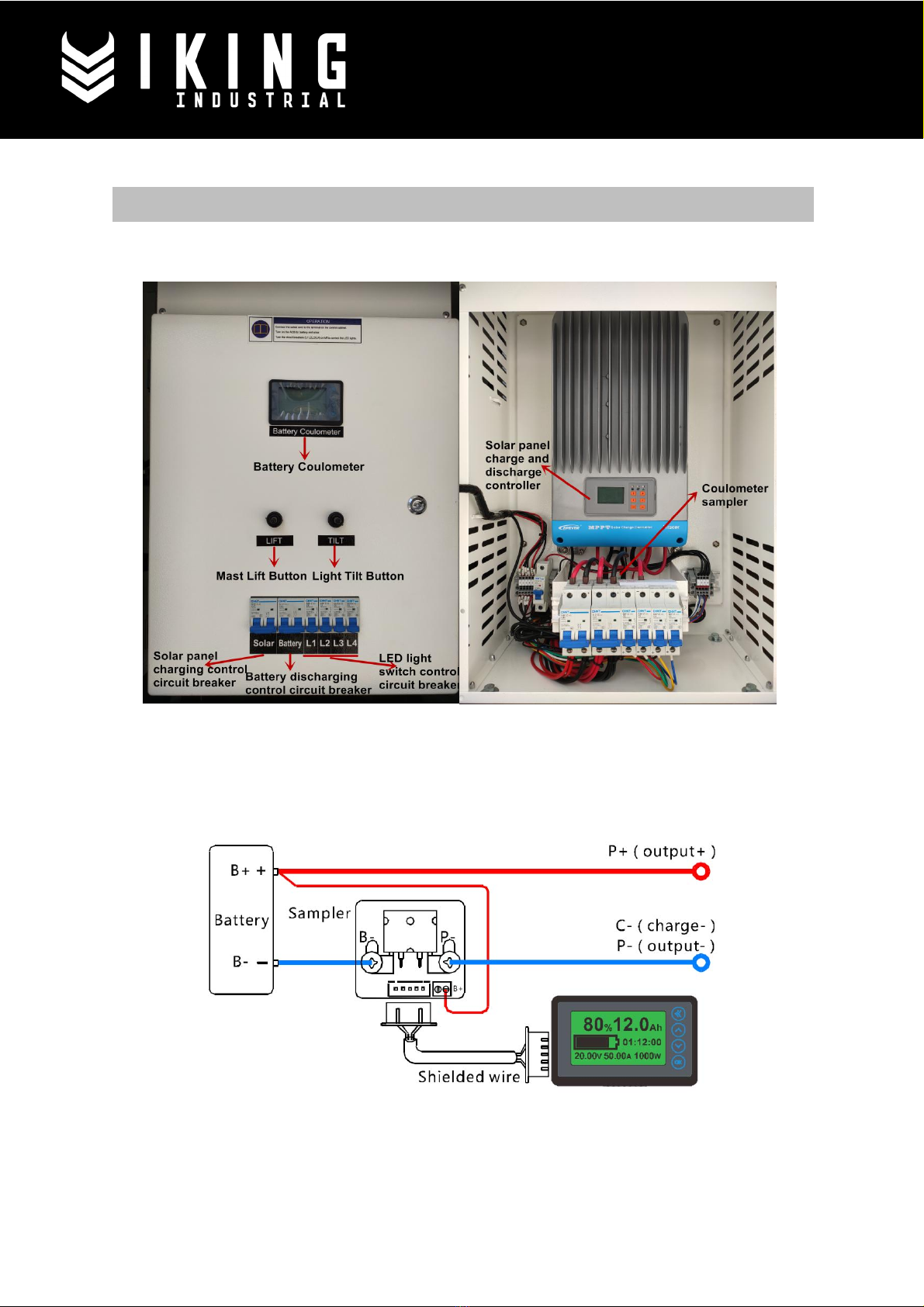

2. Control Box
2.1 Battery coulometer
2.1.1 Connection of coulometer.
We can accurately get the battery capacity information through the parameters
on the coulometer.
Control Box

9
2.2 Circuit breaker
2.2.1 Solar panel charging control circuit breaker.
We can use this circuit breaker to control whether the solar panels charge the
batteries.
2.2.2 Battery discharge control circuit breaker.
We can use this circuit breaker to control whether the batteries supply power to
the load.
2.2.3 LED light switch control circuit breaker.
We can use this circuit breaker to control the lighting on and off of the LED
lights.
2.3 Solar panel charge and discharge controller
2.3.1 Charging controller wiring system
Control Box

10
Key Explain
※Enter the corresponding interface※Save data
※Under any interface, return to the main interface※Cancel operation
※Move Cursor※Browsing parameters
※Modified value※Modify time parameters
The solar panel charges the battery through this charging controller,
which can also control the battery discharge.
2.4 Charging and discharging steps
2.4.1 Charging steps
Step1: Expanding solar panels
Step2: Turn on the solar panel charging control circuit breaker
Step3: Turn on the battery discharge control circuit breaker
2.4.2 Discharging steps
(Turn on the LED lights)
Step1: Turn on the battery discharge control circuit breaker
Step2: Turn on the LED light switch control circuit breaker one by one
2.5 Lift and Tilt button
2.5.1 Lift button
Step1: Press the button up to control the hydraulic system to lift the mast.
Step2: Press the button down to control the hydraulic system to down the
mast.
2.5.2 Tilt button
Step1: Press the button to adjust the Angle of the light.
Control Box

11
2.6 Junction box and light cable
Step1: Fix the LED light on the horizontal bar, and fix the light cable on the
horizontal bar with wire clip.
Step2: Thread the light cable from the waterproof lock to the junction box.
Step3: Thread the coil cord from the waterproof lock to the junction box.
Step4: Refer to the following picture for wiring.
Control Box

12
Control Box

13

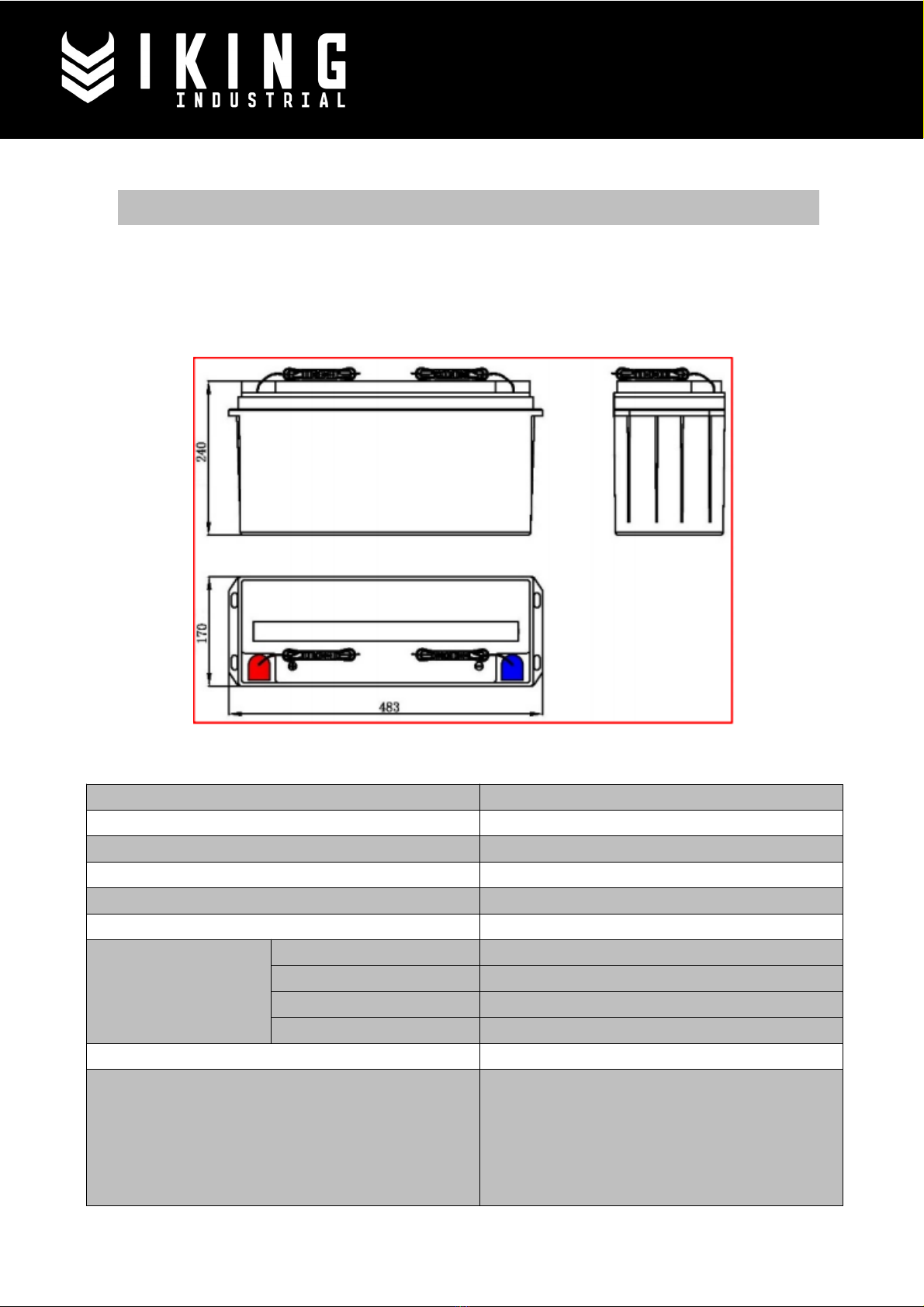

3. Battery
3.1 Battery parameters
Rated voltage 12V
Rated capacity 150 Ah(10hr, 1.80V/cell, 25℃)
Gross weight 40.2kg
Battery terminal Leading wire(4.0 mm² x 1.8m)
Maximum charging current 37.5A
Applicable temperature range -35~55 ℃
Size(±3%)
Length 483mm
Width 170mm
Height 240mm
Total height 240mm
Cover material ABS
Applications
Suitable for solar(wind) household systems, off-grid power
stations, the sun energy(wind) communication/
communication base station, solar(wind) street lamp,
mobile energy storage system, solar traffic lights, solar
buildings system etc.
Battery

14
4. LED light
4.1 LED light parameters
Model Harbinger-60W
Module Quantity 1
Power 60W
Input Voltage DC24V
Working Environment -40℃~+50℃
10%~90%RH
Bolt Torque 17Nm
Mounting Height 3~35m
Dimensions (L*W*H)mm 340*160*135
Net Weight 2.8KG
Degree of Protection IP67
LED Light

15
4.2 Adjust lighting Angle
Adjust the direction of the light by rotating the LED's body in the directionit
faces.
LED Light

16
5. Solar panel
5.1 Solar panel parameters
Rated maximum power(Pmax) 360W
Output tolerance 0 ~ +4.99W
Current at Pmax 9.33A
Voltage at Pmax 38.6V
Short-circuit current 9.98A
Open-circuit voltage 47.7V
Nominal operating cell temp 45±2 ℃
Weight 22KG
Dimension 1956*992*40mm
Maximum system voltage DC1000V
Maximum series fuse rating 20A
All technical data at standard test condition
AM=1.5 E=1000W/m² Tc=25℃
5.2 Steps to expand the solar panel
Step1: Draw back the pull pin on the upper part of the solar panel and lock it.
Step2: Lift the guide rail buckle up and pull out a small section of the solar
panel.
Step3: Lower the buckle and stretch until the buckle is locked.
5.3 Steps to retract the solar panel
Step1: Lift the guide rail buckle up and retract a small section of the solar
panel.
Step2: Lower the buckle and retract until the buckle is locked.
Solar panel

17
5.4 In normal use, please pay attention to the protection of solar panels,
to avoid the impact of hard objects.
Solar panel

18
6. Mast
6.1 Raise and lower the mast
(1). First fix the mast with the locating bolt to ensure that the mast does not
rotate.
(2). Check the condition of the wire rope before lifting or lowering the mast.
(3). Use toggle switch(‘Lift’ label) of control box to lift and lower the mast.
6.2 Rotate the mast
(1). First draw back the locating bolt.
(2). Rotate the mast to the desired angle by rotating the handle.
(3). Rotate the mast slowly to ensure safety.
Mast

19
NOTE: The mast can only be rotated clockwise.
6.3 Tilt the lamp horizontal mast
Use toggle switch(‘Tilt’ label) of control box to tilt the lamp horizontal mast.
Mast
