Vimar 01504.2 User guide

Installer manual
BUILDING AUTOMATION
01504.2
Line/Field coupler KNX standard

Contents

1. Product description …………………………………………………………………………………………………………………… 4
2. KNX topology ………………………………………………………………………………………………………………………… 4
3. Device frontend ……………………………………………………………………………………………………………………… 5
3.1 Installation example …………………………………………………………………………………………………………………… 6
4. Operational description ……………………………………………………………………………………………………………… 6
4.1 Normal mode …………………………………………………………………………………………………………………………… 6
4.2 Program mode ………………………………………………………………………………………………………………………… 6
4.3 Function button ………………………………………………………………………………………………………………………… 6
4.3.1 Manual function …………………………………………………………………………………………………………………………… 6
4.3.2 Factory reset ……………………………………………………………………………………………………………………………… 6
5. Application description line coupler …………………………………………………………………………………………… 7
6. ETS-Parameters line coupler ……………………………………………………………………………………………………… 7
6.1 Settings ………………………………………………………………………………………………………………………………… 7
6.2 General ………………………………………………………………………………………………………………………………… 8
6.3 Main line ………………………………………………………………………………………………………………………………… 8
6.4 Sub line ………………………………………………………………………………………………………………………………… 8
7. Application description line repeater …………………………………………………………………………………………… 10
8. ETS-Parameters line repeater …………………………………………………………………………………………………… 11
8.1 Settings ………………………………………………………………………………………………………………………………… 11
8.2 General ………………………………………………………………………………………………………………………………… 11
8.3 Main line ………………………………………………………………………………………………………………………………… 12
8.4 Sub line ………………………………………………………………………………………………………………………………… 13

4
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
SL
ML
ML
SL
BC
LC LC
R
BD
R R
NOT ALLOWED
SL
ML
SL
ML
SL
ML
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
ML
SL
NOT ALLOWED
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
Product description - KNX topology

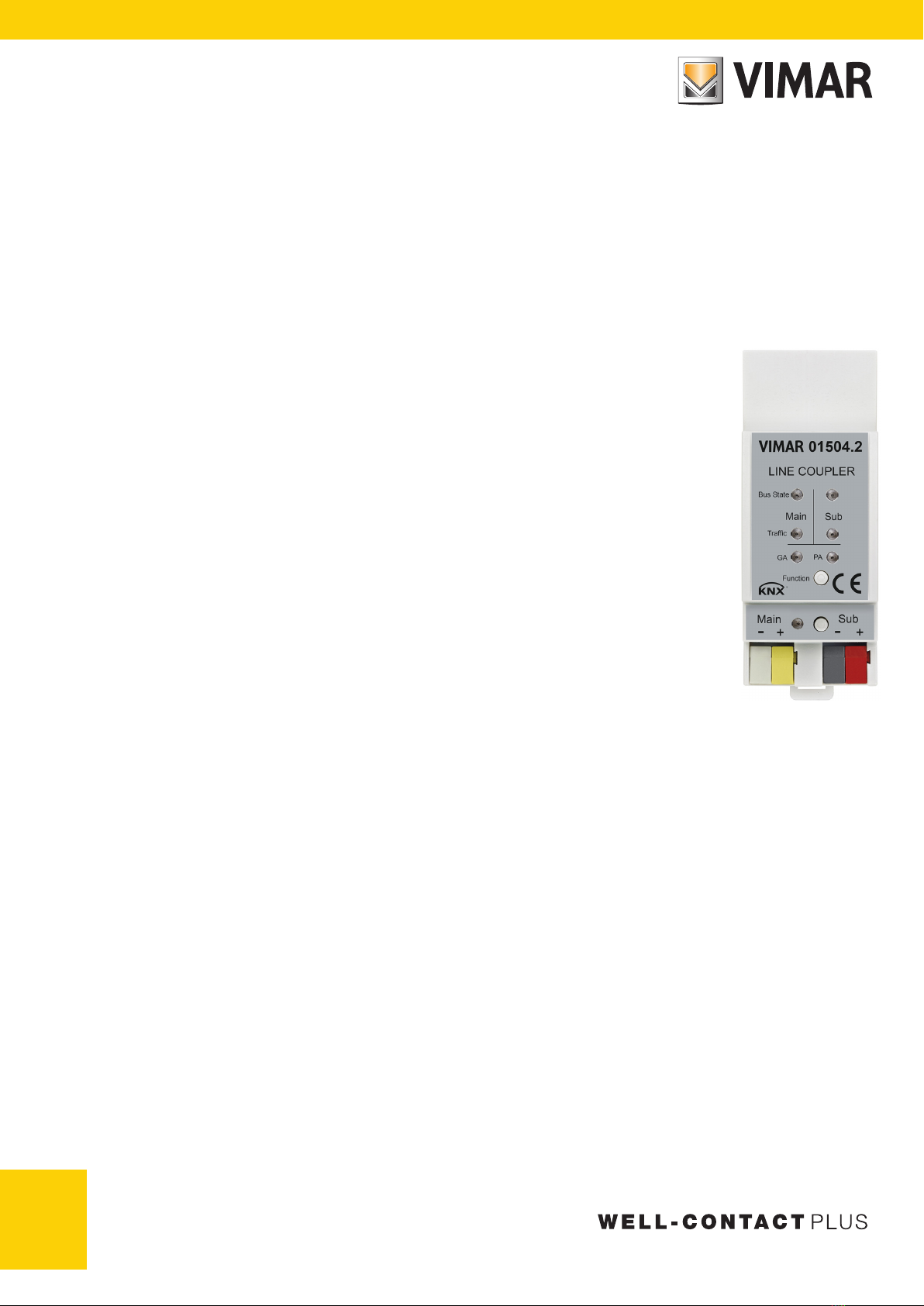

1. 01504.2 product description
The 01504.2 media coupling device can be used as a line coupler, as a backbone coupler or as a line repeater. The basic functionality of the 01504.2 is coupling a KNX
TP main line with a KNX TP sub line. Providing galvanic isolation between the two connected lines it enables a data connection between the upper line (main line or
backbone) and the lower line.
Due to its flexibility the coupler can be used as a line coupler to connect a sub line to a main line or as a backbone coupler to connect a main line to a backbone line.
The main task of the 01504.2 is to filter the traffic according to the installation place in the hierarchy (individually addressed telegrams, in this document named Physical
telegrams) or according to the built in filter tables for group oriented communication (Group telegrams).
Compared to other similar products the 01504.2 provides outstanding features, for example its support of long messages (up to 240 byte APDU length) and a configu-
rable one button activation of the “Manual Function” (transmit all telegrams, transmit Physical telegrams or transmit Group telegrams).This functionality is helpful during
installation, during run time and for trouble shooting. To easily identify common communication problems due to bus load or retransmissions on both lines the high
informative 6 duo LED display shows the bus status on each line accurately.
The 01504.2 is also able to link two lines for data transfer. As a line repeater the 01504.2 still provides galvanic isolation between the connected lines. Result is up to
four lines can form a single sub line with up to three line repeaters used after the line coupler. Each sub line segment requires its own KNX power supply unit.
2. KNX topology
ML: Main line
SL: Sub line
BC: Backbone coupler
LC: Line coupler
R: Repeater
BD: Bus devices

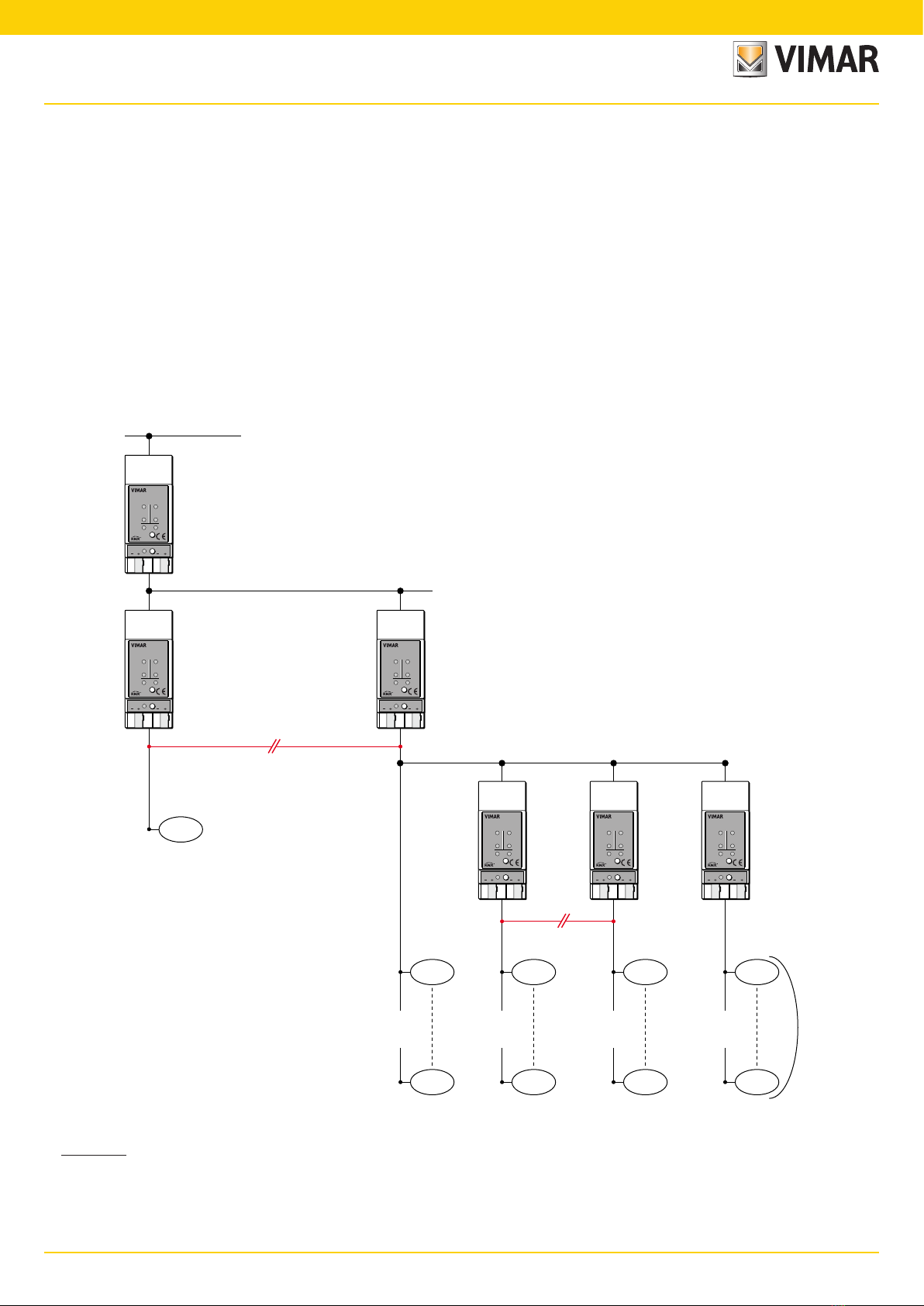

Fig. 1: Topology
Please note:
Commissioning at delivery status means:
• All telegrams are blocked because the filter table is not defined
• The fallback time after manual operation is 120 min
• The physical address is 15.15.0
01504.2
01504.2 01504.2
01504.2 01504.2 01504.2

5
Device frontend
3. Device frontend
Fig. 2: Front view
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
1
3
5
7
C
2
4
6
A
B
D
1Bus state main line LED
2Bus state sub line LED
3Bus traffic main line LED
4Bus traffic sub line LED
5Group address filter table status LED
6Physical address filtering status LED
7Programming LED
AFunction button
BProgram button
CKNX main line
DKNX sub line

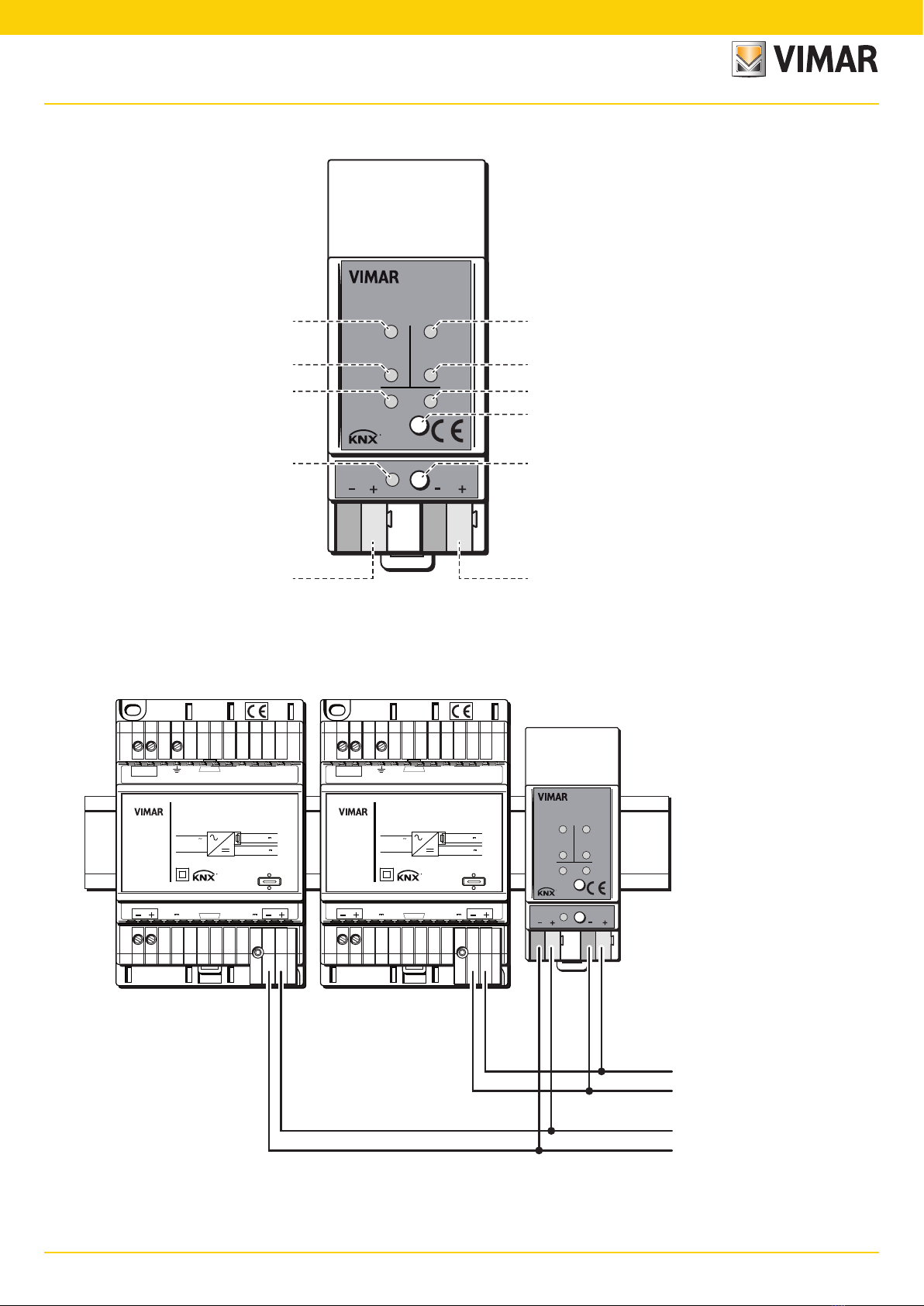

3.1 Installation example
01501.2
POWER SUPPLY UNIT
L N
AUX KNX
30V
KNX
120-240V
50/60Hz
360-220mA
-5°C+ +45°C
mains
overload
I KNX + I AUX ≤ 640mA
30V
AUX
30V 30V
01501.2
POWER SUPPLY UNIT
L N
AUX KNX
30V
KNX
120-240V
50/60Hz
360-220mA
-5°C+ +45°C
mains
overload
I KNX + I AUX ≤ 640mA
30V
AUX
30V 30V
01504.2
Bus State
Traffic
Function
LINE COUPLER
Main Sub
GA PA
Sub
Main
sub line
main line
Fig. 3: Connections

6
Operational description
4. Operational description
According either to the factory default settings or to the latest parameter settings (downloaded from ETS, also other tools) being in “Normal Mode” the 01504.2 oper-
ates as it is supposed to.
The default configurations of the “Normal Mode” are set by the main line and the sub line parameters.
4.1 Normal mode
Green Red
LED 1
Bus State Main
Off: main line error or not connected
On: main line OK On: manual overwrite active.
LED 2
Bus State Sub
Off: sub line not connected
On: sub line OK N.A.
LED 3
Traffic Main
Blinking: bus traffic on main line (only valid telegrams)
Off: no traffic on main line Blinking: transmission error on main line
LED 4
Traffic Sub
Blinking: bus traffic on sub line (only valid telegrams)
Off: no traffic on sub line Blinking: transmission error on sub line
LED 5
Group Address
Routing of Group telegrams
Off: main and sub different,
On: Filter table is active
Block
On with Amber colour: route all
LED 6
Physical Address
Routing of Physical telegrams
Off: main and sub different,
On: Filter table active
On: block
On with Amber colour: route all
LED 7
Programming N.A. On: device in “Program Mode”
4.2 Program mode
With the Programming button the device can be switched between “Normal Mode” and “Program Mode”. To download the physical address to the device this
function is essential. After the download the 01504.2 automatically returns to the “Normal Mode”.
Programming LED (7):
Off: Normal Mode
On: Program Mode
4.3 Function button
The function button is used for two purposes, either to switch to “Manual Function” or to do a factory reset. Being in “Normal Mode” it depends on the duration
of time the button is being pressed.
4.3.1 Manual function
• Long press (≈ 3 sec) in “Normal Mode”
The device activates the “Manual Function” and the LEDs change their status.
Pressing the button again for some seconds deactivates the “Manual Function”.
After expiration of the Fallback time the device returns to “Normal Mode” automatically. To configure the “Manual Function” and set the Fallback time
use the parameter tab “General”.
Please note:
The latest downloaded settings (parameters) and the filter table are still available after switching back from “Manual Function” to “Normal Mode”.
4.3.2 Factory reset
• Very long press (≈ 15 s) in “Normal Mode”
A factory reset is carried out by pressing the button for about 15 seconds (LEDs 1,2,5,6 light with mixed colour). After release, pressing it again for
some seconds resets all the parameters to factory default (incl. physical address). Subsequently, the LEDs change their status.

7
Application description line coupler - ETS-Parameters line coupler
5. Application description line coupler
With the coupler receiving physically addressed telegrams (Physical telegrams), for example during commissioning, it compares the physical address of the receiver
with its own physical address to decide whether to route the telegrams or not. On receiving telegrams with group addresses (Group telegrams) the coupler proceeds in
accordance with its parameter settings.
At default setting the coupler only routes those telegrams whose group addresses have been entered in its filter table.
In case of not receiving an acknowledgement after routing a telegram, due to a bus transmission error for example, the coupler repeats the telegram up to three times
(depending on the corresponding parameter that is set by ETS). With the parameters „Repetitions if errors ...“ this function can be adjusted separately for both con-
nected lines. The default settings of these parameters should be retained.
6. ETS-Parameters line coupler
All screenshots in this document describing ETS parameters represent the Line/Field coupler´s database entry in the ETS5.
6.1 Settings
In the properties window the basic settings of the Line/Field coupler can be adjusted and checked. Under the Settings tab the device name and the physical ad-
dress (individual address) can be changed/downloaded to the device.
Fig. 4a: Properties/Settings Fig. 4b: Properties/Information
When not already configured as “Line coupler”, the application program for “Line coupler” has to be downloaded to the device.
Under the Information tab this configuration can be changed by the menu “Change Application Program”. After changing the configuration the filter table entries can
be added manually. Also updating the application program can be done here.

8
ETS-Parameters line coupler
6.2 General
ETS-Text Selection
[Factory default] Comment
Fallback time
for manual operation
10 min, 1 hour, 4 hours, 8 hours
[1 hour] After this time period the “Manual Function” is switched off automatically.
Manual function
disabled
pass all telegrams
pass physical telegrams
pass group telegrams
[pass all telegrams]
Telegram routing configuration for the “Manual Function”.
Fig. 5: General
Fig. 6: Main line configuration
6.3 Main line
Important note:
The parameter “transmit all” for Group telegrams or Physical telegrams is intended only for testing purposes. This setting should not be used during normal
operation.

9
ETS-Parameters line coupler
ETS-Text Selection
[Factory default] Comment
Configuration
groups: filter, physical: block groups, physical: filter
groups: route, physical: filter groups, physical: route
configure
[groups, physical: filter]
- Block: no telegram is routed.
- Filter: only telegrams are routed which are entered in the filter table.
- Route: the telegrams are routed.
- Configure: the following parameters can be set manually.
This parameter is to be set depending on the planed configuration.
Group telegrams
1. transmit all (not recommended)
2. block
3. filter
[filter]
1. All group telegrams are transmitted.
2. No group telegram is transmitted.
3. Only Group telegrams entered in the filter table are routed.
ETS3/4 produces the filter table automatically.
Main group
telegrams 14/15
1. transmit all
2. block
[transmit all]
1. Group telegrams with the sub group 14 or 15 (e.g. 14/1) are routed.
2. Group telegrams with the sub group 14 or 15 (e.g. 14/1) are not routed.
Physical telegrams
1. transmit all (not recommended)
2. block
3. filter
[filter]
1. All Physical telegrams are transmitted.
2. No Physical telegram is transmitted.
3. Depending on the physical address only Physical telegrams are routed.
Physical:
Repetition when
errors on main line
1. no
2. normal
3. reduced
[normal]
If a transmission error (e.g. due to missing receiver) is found after sending a
Physical telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once
Group:
Repetition when
errors on main line
1. no
2. normal
3. reduced
[normal]
If a transmission error (e.g. due to missing receiver) is found after sending a
Group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Telegram
confirmations on line
1. if routed
2. always
[if routed]
1. Only telegrams which are to be routed are confirmed on the main line
(ACK).
2. Each telegram on the main line is confirmed (ACK).
Send confirmation
on own telegrams
1. yes
2. no
[no]
1. Every telegram on the main line is confirmed with its own ACK (from the
Line coupler).
2. No confirmation with own ACK
See note below.
Fig. 7: Sub line configuration
Please note:
If the parameter “Send confirmation on own telegrams” is set to yes the line coupler will send an ACK systematically on any own routed telegram.
6.4 Sub line

10
ETS-Parameters line coupler - Application description line repeater
7. Application description line repeater
Line repeaters do not use a filter table. A received telegram is routed to all lines irrespective of in which line it is processed. It is therefore not important whether the
telegram is triggered within a line or whether it is sent from an upper line to a lower line via a coupler.
When an error occurs during transmission of a telegram according to the physical address of a receiver the line repeater is able to repeat the telegram. With the param-
eters „Physical:
Repetition if errors on main line/on sub line“ this function can be set separately for both lines.
In case of routing a group telegram with not receiving an acknowledgement or in case of a bus device detecting a transmission error the line repeater repeats the
telegram three times.
With the parameters „Group: Repetition if errors on main line/on sub line“ this function can be adjusted separately for both lines.
ETS-Text Selection
[Factory default] Comment
Configuration
groups: filter, physical: block groups, physical: filter
groups: route, physical: filter groups, physical: route
configure
[groups, physical: filter]
- Block: no telegram is routed.
- Filter: only telegrams are routed which are entered in the filter table.
- Route: the telegrams are routed.
- Configure: the following parameters can be set manually.
Group telegrams
1. transmit all (not recommended)
2. block
3. filter
[filter]
1. All group telegrams are transmitted.
2. No group telegram is transmitted.
3. Only group telegrams entered in the filter table are routed.
ETS3/4 produces the filter table automatically
Sub group
telegrams 14/15
1. transmit all
2. block [transmit all]
1. Group telegrams with the sub group 14 or 15 (e.g. 14/1) are routed.
2. Group telegrams with the sub group 14 or 15 (e.g. 14/1) are not routed.
Physical telegrams
1. transmit all (not recommended)
2. block
3. filter
[filter]
1. All Physical telegrams are transmitted.
2. No Physical telegram is transmitted.
3. Depending on the physical address only Physical telegrams are routed.
Physical: Repetition
if errors on the sub
line occur
1. no
2. normal
3. reduced
[normal]
If a transmission error (e.g. due to missing receiver) is found after sending a
physical telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Group: Repetition if
errors on the sub
line occur
1. no
2. normal
3. reduced
[normal]
If a transmission error (e.g. due to missing receiver) is found after sending a
group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once..
Telegram
confirmations on line
1. if routed
2. always
[if routed]
1. Only telegrams which are to be routed are confirmed on the sub line
(ACK).
2. Each telegram on the sub line is confirmed (ACK).
Send confirmation
on own telegrams
1. yes
2. no
[no]
1. Every telegram on the sub line is confirmed with its own ACK (from the
Line coupler).
2. No confirmation with own ACK

11
ETS-Parameters line repeater
Fig. 8a: Properties/Settings
Fig. 9: General
Fig. 8b: Properties/Information
8. ETS-Parameters line repeater
8.1 Settings
In the properties window the basic settings of the Line/Field coupler can be adjusted and checked. Under the Settings tab the device name and the physical ad-
dress (individual address) can be changed and downloaded to the device.
When not already configured as “Line repeater”, the application program for “Line repeater” has to be downloaded to the device. Under the Information tab this
configuration can be changed by the menu “Change Application Program”. After changing the configuration the filter table entries can be added manually. Also
updating the application program can be done here.
8.2 General
ETS-Text Selection
[Factory default] Comment
Fallback time
for manual operation
10 min, 1 hour, 4 hours, 8 hours
[1 hour] After this time period the “Manual Function” is switched off automatically.
Manual function
disabled
pass all telegrams
pass physical telegrams
pass group telegrams
[pass all telegrams]
Telegram routing configuration for the “Manual Function”.

12
ETS-Parameters line repeater
8.3 Main line
Important note:
The parameter “transmit all” for Group telegrams or Physical telegrams is intended only for testing purposes. This setting should not be used during normal
operation.
Fig. 10: Main line configuration
ETS-Text Selection
[Factory default] Comment
Configuration groups, physical: route configure
[groups, physical: route]
- Route: the telegrams are routed.
-Configure: the following parameters can be set manually.
Physical telegrams
1. transmit all
2. block
[transmit all]
1. All physical telegrams are transmitted.
2. No physical telegram is transmitted.
Physical:
Repetition when
errors on main line
1. no
2. normal
3. reduced
[reduced]
If a transmission error (e.g. due to missing receiver) is found after sending a
Physical telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Group:
Repetition when
errors on main line
1. no
2. normal
3. reduced
[reduced]
If a transmission error (e.g. due to missing receiver) is found after sending a
Group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Telegram
confirmations on line
1. if routed
2. always
[always]
1. Only telegrams which are to be routed are confirmed on the main line
(ACK).
2. Each telegram on the main line is confirmed (ACK).
Send confirmation
on own telegrams
1. yes
2. no
[yes]
If a transmission error (e.g. due to missing receiver) is found after sending a
group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once..
Please note:
If the parameter “Send confirmation on own telegrams” is set to yes the line repeater will send an ACK systematically on any own routed telegram. With the
repeater using no filter table it is useful to send an ACK with every routed telegram.

13
ETS-Parameters line repeater
8.3 Sub line
Fig. 11: Sub line configuration
ETS-Text Selection
[Factory default] Comment
Configuration groups, physical: route configure
[groups, physical: route]
- Route: the telegrams are routed.
- Congure: the following parameters can be set physically.
Physical telegrams
1. transmit all
2. block
[transmit all]
1. All physical telegrams are transmitted.
2. No physical telegram is transmitted.
Physical: Repetition
if errors on the sub
line occur
1. no
2. normal
3. reduced
[reduced]
If a transmission error (e.g. due to missing receiver) is found after sending a
Physical telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Group: Repetition if
errors on the sub
line occur
1. no
2. normal
3. reduced
[reduced]
If a transmission error (e.g. due to missing receiver) is found after sending a
group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once.
Telegram
confirmations on line
1. if routed
2. always
[always]
1. Only telegrams which are to be routed are confirmed on the sub line
(ACK).
2. Each telegram on the sub line is confirmed (ACK).
Send confirmation
on own telegrams
1. yes
2. no
[yes]
If a transmission error (e.g. due to missing receiver) is found after sending a
group telegram on the main line:
1. Physical telegrams are not repeated.
2. Physical telegrams are repeated up to three times.
3. Physical telegrams will be repeated only once..

Viale Vicenza 14
36063 Marostica VI - Italy
www.vimar.com
01504.2 EN 03 2102
