BSWT-6T Loudspeaker Installation Guide

Item Number

Item Name

Description

2131000137

BSWT-6T

On-wall speaker, 100V, IP65, 6W

1 Contents of the delivery

2 Dimension and mounting details

•Fastening the rear box to wall or ceiling by using the 4xscrew 3.7 x 15mm stainless steel

or other suitable screws depending on the material of the surface

•Lead the cable through the cable inlet side by knocking out the two Ø20 holes or by using cable gland type

M20. Cable inlet rear by knocking out two Ø20

the rear cable inlet is used and the loudspeaker is mounted on plane surface, the rubber ring

will replace cable glands

Observe

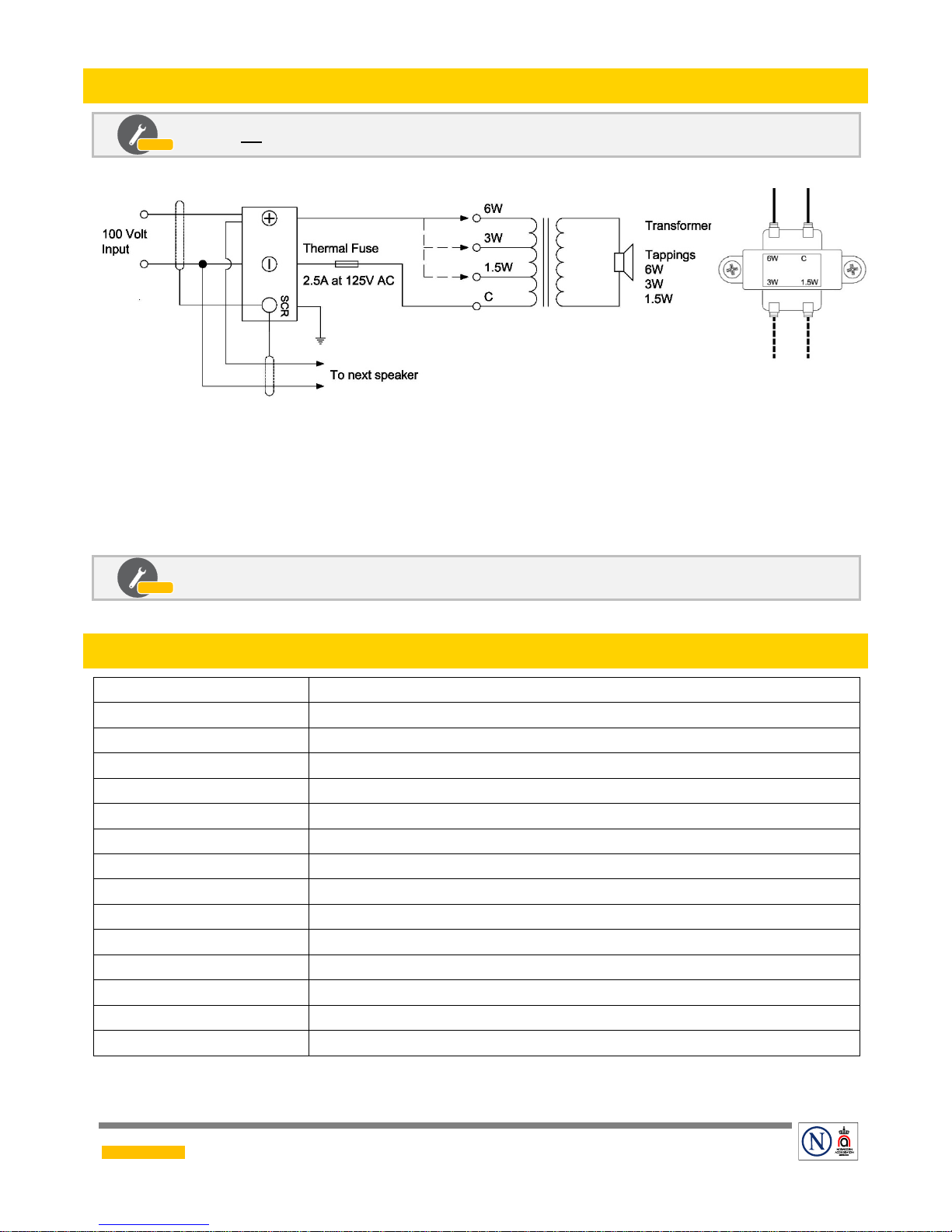

3 Connections

not open loudspeaker when energized

•Cable requirements:

Approved ships cable 0,5 – 1,5 mm2 with outer braided tinned copper screen. The screens must be

interconnected and grounded in a common ground point in the central unit only

•Optional tapping 1.5W, 3W or 6W by changing cable position as shown in the figure. C is common

The loudspeaker must be connected to a 100V voltage

amplifier line

4 Specifications

Dimensions 133 x 133 x 70,5 mm

Woofer size 3"

Mounting Screw Mount

IP rating IP-65

Operating temperature range -20

℃

~ + 70

℃

Rated Power 6W

Max Power 10W

Power tapping 6-3-1.5W

Sensitivity SPL 1W / 1m 89dB

Sensitivity Max SPL, 1m 97dB

Rated Voltage 100V

Frequency range 150 ~ 16 KHZ

Termination Ceramic Terminal Block With thermal fuse

Color White RAL 9010

Weight 0.68 kg

Observe

A100K11809
