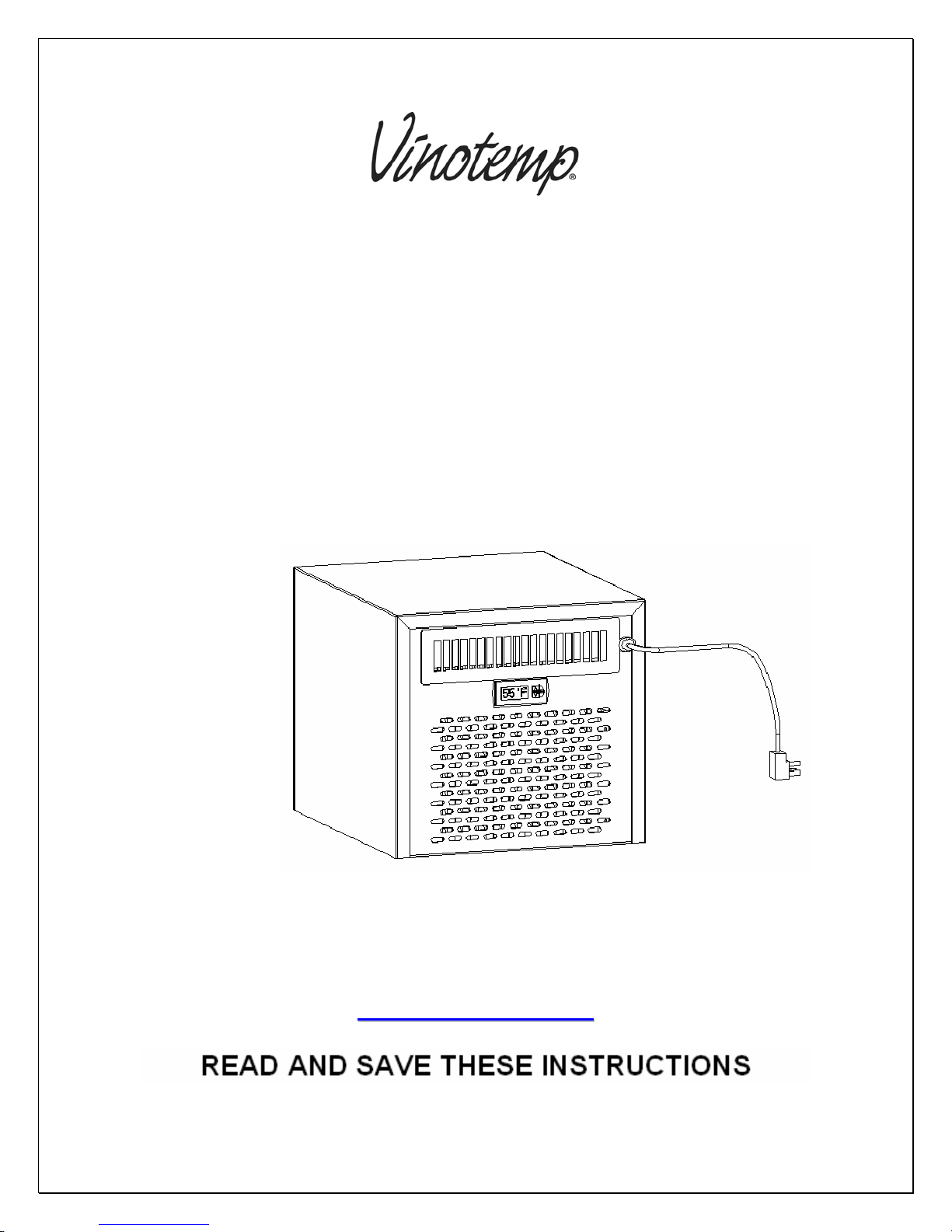

Vinotemp WINE-MATE VINO1500HZD User manual

WINE-MATE Cooling Unit
Use & Care Manual
VINO1500HZD
VINO2500HZD
VINO3500HZD
VINO4500HZD
VINO6500HZD
VINO8500HZD
V
Vi in no ot te em mp p I In nt te er rn na at ti io on na al l C Co or rp p. .
w
ww ww w. .w wi in ne em ma at te e. .c co om m

- 1 -
Important Safety Information
•DO NOT PLUG IN UNTIL 24 HOURS AFTER DELIVERY.
•DO NOT USE A GROUND FAULT INTERRUPTER (GFI).
•A DEDICATED 15 OR 20 AMPCIRCUIT IS HIGHLY RECOMMENDED.

- 2 -
TABLE OF CONTENTS
Feature Description…………………………….……………..3
Installation Instruction………………………………………..5
Temperature Control & Humidity Adjustment...………..12
Care Guide…………………………………………………….16
Troubleshooting……………………………………………..17
Wiring Diagram……………………………………….………20
Customer Support……………………………………………22
Warranty……………………………………………………….23

- 3 -
Feature Description
•HZD cooling unit is designed and used to provide a stable temperature
between 50~65 °F for suitable space at a normal environment.
•The refrigerated space will maintain humidity of 50~70% RH even when
the environment becomes dry and humid.
•These temperatures and humilities are optimized for long term storage of
wine, fur and tobacco.
•Horizontal cold-air supply is optimized for use in the wide cabinets or wine
rooms.
•Self-contained ready for use and easy for installation

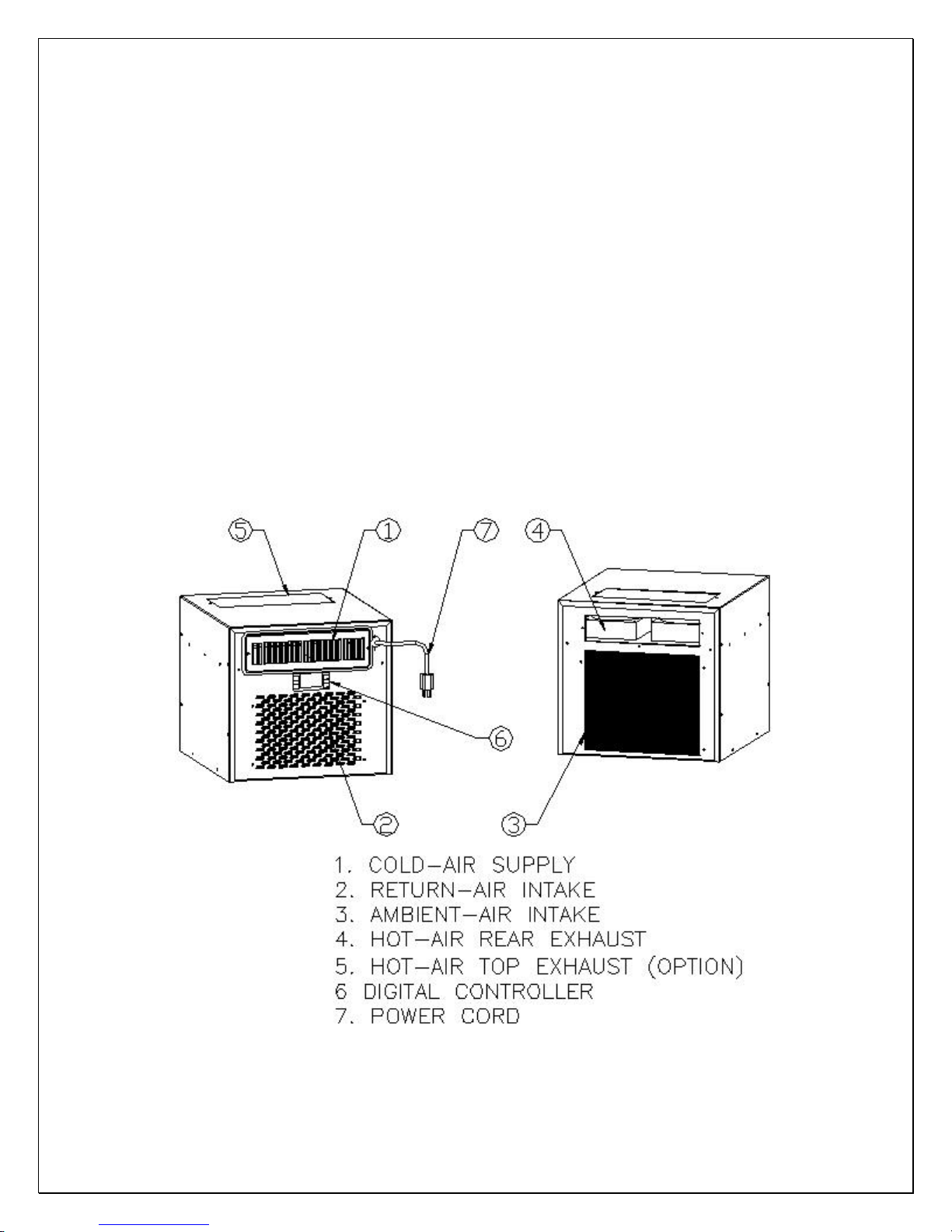

Fig. 1.1 FEATURE DESCRIPTIONS

- 4 -
•See the voltage, frequency and current from the label on the back or
side of the cooling unit.
The dimension and capacity are specified as follows:
MODEL
COOLING
CAPACITY,
CFM
55°F/75°F
BOTTLE
CAPACITY
55°F/75°F
DIMENSIONS IN.
WXHXD ELECTRICAL WEIGHT (lb)
VINO-
1500HZD 1500 Btu/h, 120 CFM 150 cu ft 800 bottles 14.25X13.25X 16 115V/60HZ/4A 50
VINO-
2500HZD 2500 Btu/h, 180 CFM 250 cu ft 1200 bottles 14.25X13.25X 16 115V/60HZ/5A 55
VINO-
3500HZD 3500 Btu/h, 250 CFM 650 cu ft 3000 bottles 14.25x19.75x21.25 115V/60Hz/6A 75
VINO-
4500HZD 4500 Btu/h, 250 CFM 1000 cu ft 4500 bottles 14.25x19.75x21.25 115V/60Hz/9A 75
VINO-
6500HZD 6500 Btu/h, 500 CFM 1500 cu ft 6500 bottles 17x22x28 115V/60Hz/14A 110
VINO-
8500HZD 8500 Btu/h, 500 CFM 2000 cu ft 8500 bottles 17x22x28 115V/60Hz/16A 110
Fig. 1.2 DIMENSIONS

- 5 -
Installation Instruction
Select a place to mount the unit where the exhaust airflow is unobstructed for a
minimum of 6 inch. The area into which the unit exhausts must be well ventilated.
If it is not, heat exhausted by the unit will build up and the unit will not operate
properly. The ambient temperatures shall not be higher than 90 °F or lower than
50 °F. Additionally, cold supply air from the front grille must remain unobstructed.
The unit shall be mounted near the ceiling with equal distance from each side of
the cabinet or room.
The cooling unit produces cooling supplied into the cabinet, and it also generates
heat that must be exhausted outside the cabinet. So the supply side and exhaust
side must be separated and sealed.
1. VINO1500-2500HZD CABINET INSTALLATION
•Cut a rectangular inside opening with the 1/4” clearance inwards to the
width and height of the cooling unit. By not going through, leave 1/2” lip
inside at the wall to place the gaskets (see Fig 2.1 & 2.2).
•If top exhaust, cut another rectangular opening at the top of the cabinet to
the length and width of the top exhaust.
•Make 2 holes at the ceiling to install the 1/4 inside diameter wood thread
inserts (see Fig.2.1 & 2.4).
•Place the gaskets (1/2” foam tape) on the mounting lip sides (see Fig 2.2).
•If top exhaust, place another gaskets along the top exhaust at the top of
the cooling unit (see Fig.2.3).
•Move the cooling unit towards the mounting sides and push to press the
gaskets (see Fig 2.5).
•Fasten the 2 brackets and use 7/16” wrench to tighten the two ¼” screws
(see Fig 2.6).
•Attach the exhaust and fresh air grille from the rear side of the cellar (see
Fig 2.7).
•Plug the cooling unit in receptacle.
•Plug the wine cellar.

- 6 -

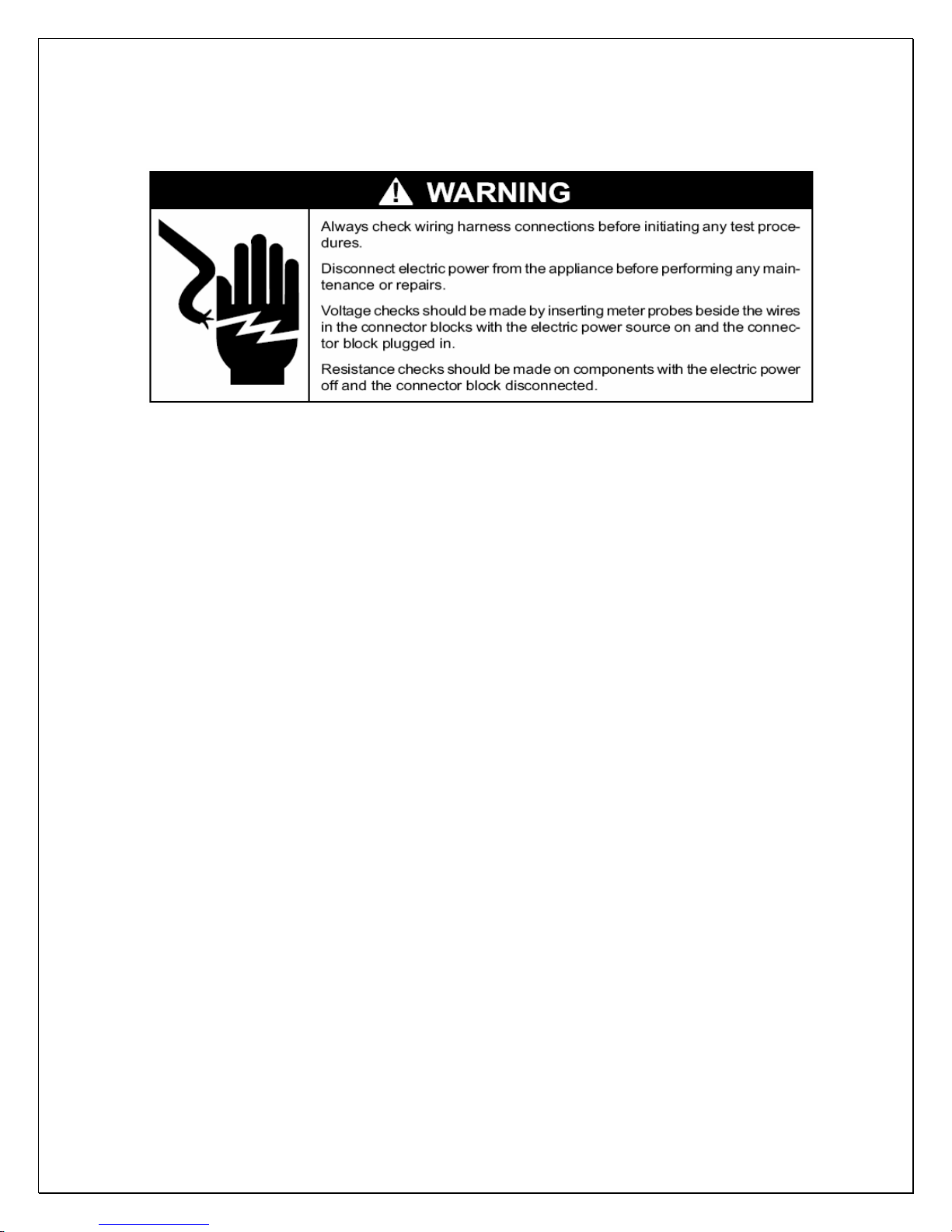

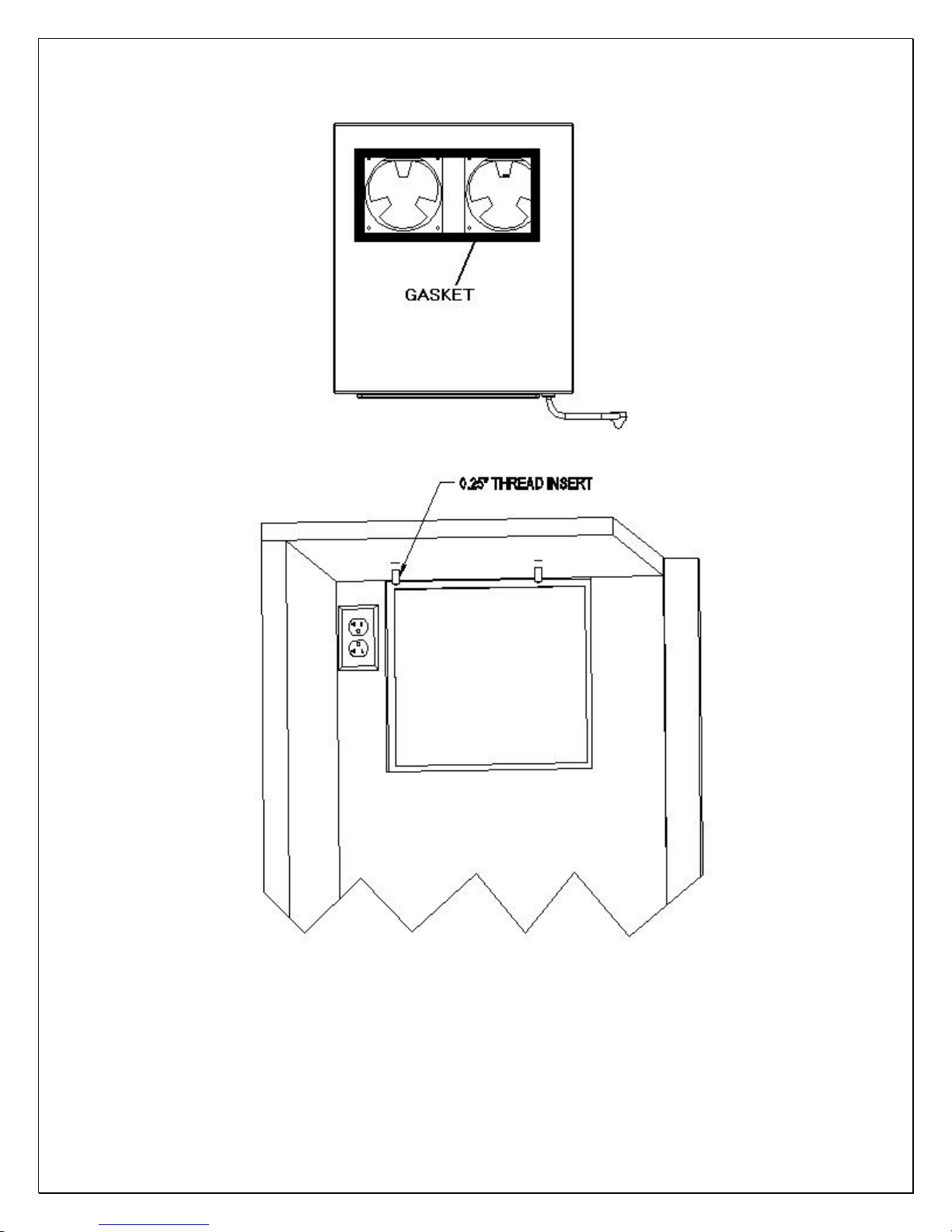

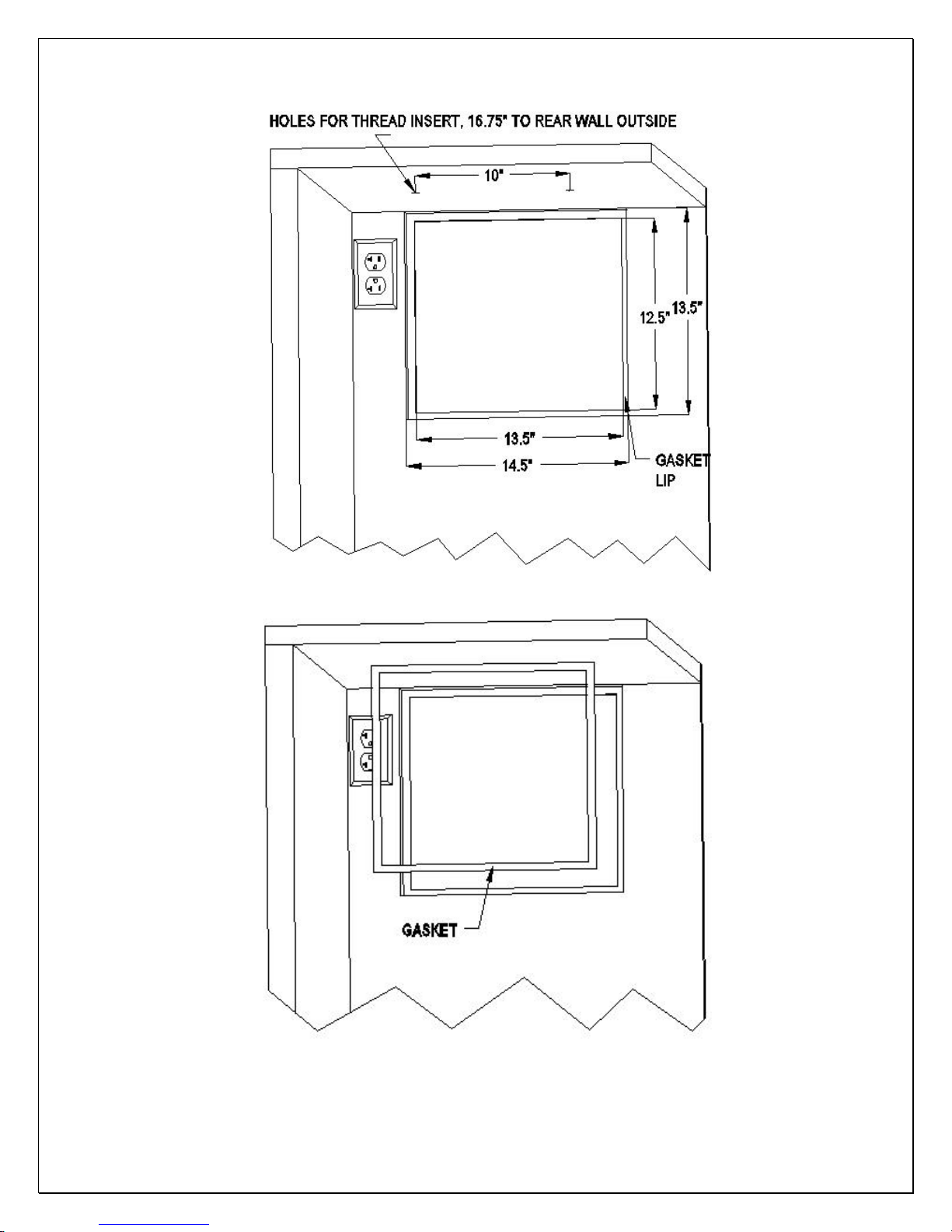

Fig. 2.1 CABINET CUTOUT & GASKET LIP
Fig. 2.2 GASKET

- 7 -
Fig. 2.3 TOP EXHAUST GASKET
Fig. 2.4 THREAD INSERT

- 8 -

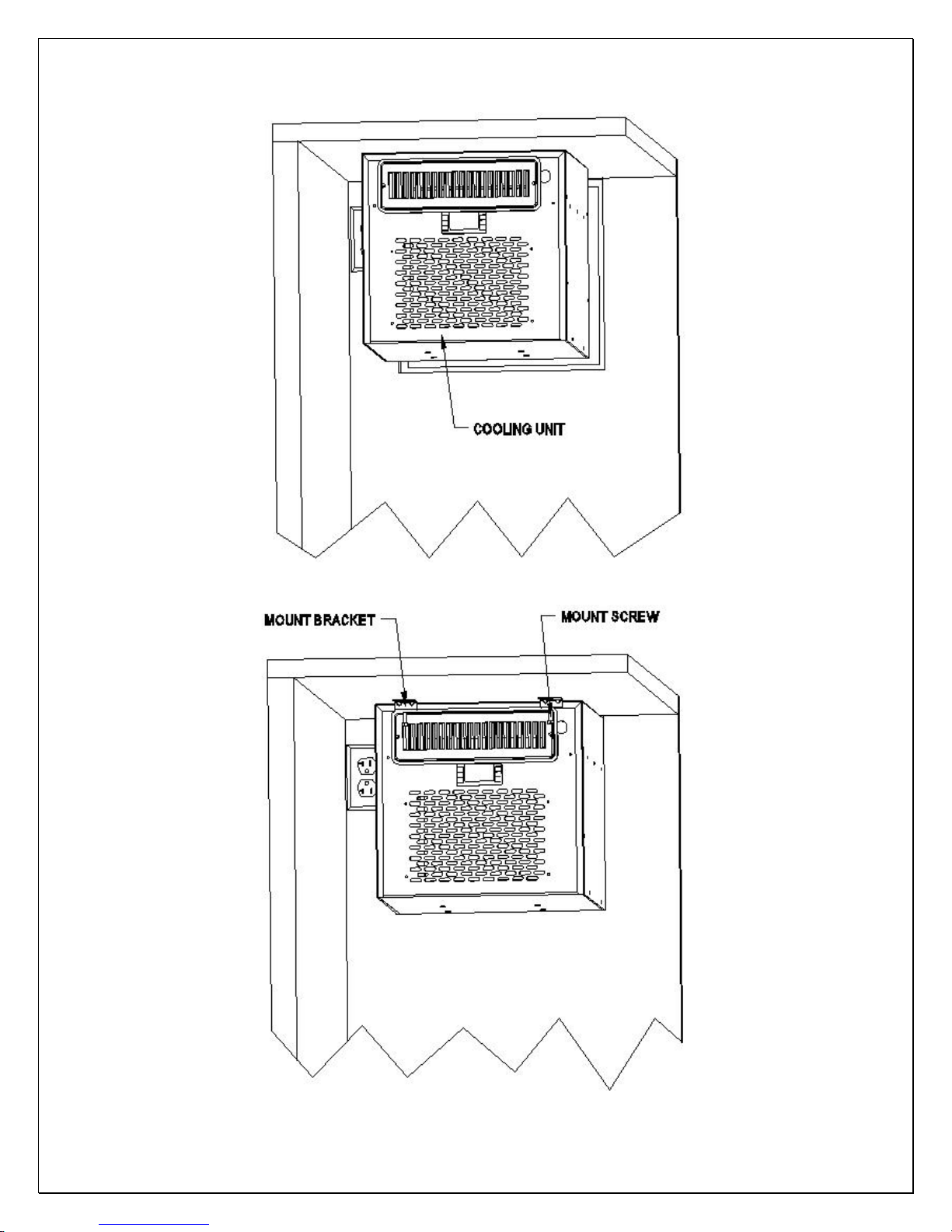

Fig. 2.5 COOLING UNIT
Fig. 2.6 FASTENING BRACKET & SCREW

- 9 -

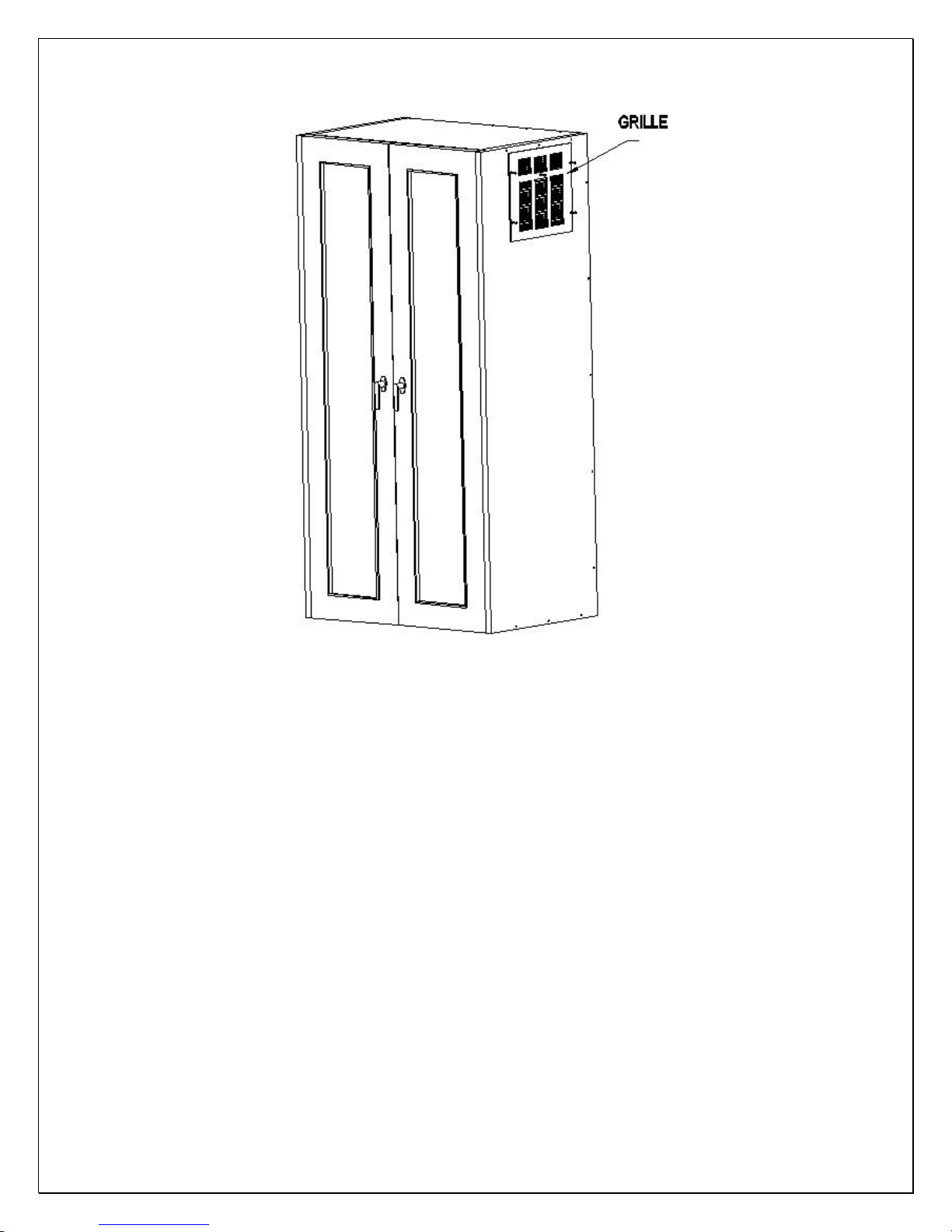

Fig. 2.7 CABINET GRILLE
2. VINO3500-8500HZD THROUGH WALL INSTALLATION
1. Cut a rectangular opening at the wine room wall as illustrated. The
dimensions of the opening shall be 1/4” larger than the width and height of
the unit.
2. If top exhaust, cut another rectangular opening at the top of the cabinet to
the length and width of the top exhaust.
3. Construct a shelf as shown. The shelf must be capable of supporting the
weight of the unit.
4. Place the unit on the shelf with the back of unit flush with the outside of
the wall.
5. Attach the grille to the outside wall with screws.
6. Seal the area between the cooling unit and opening with a high quality
weather stripping or polyurethane spray foam and cover with molding.
7. If top exhaust, place another gaskets along the top exhaust at the top of
the cooling unit (see Fig.2.9).
8. Attach the molding to the wall not the unit.
9. Plug the unit into a properly grounded and dedicated outlet of adequate
capacity.

- 10 -

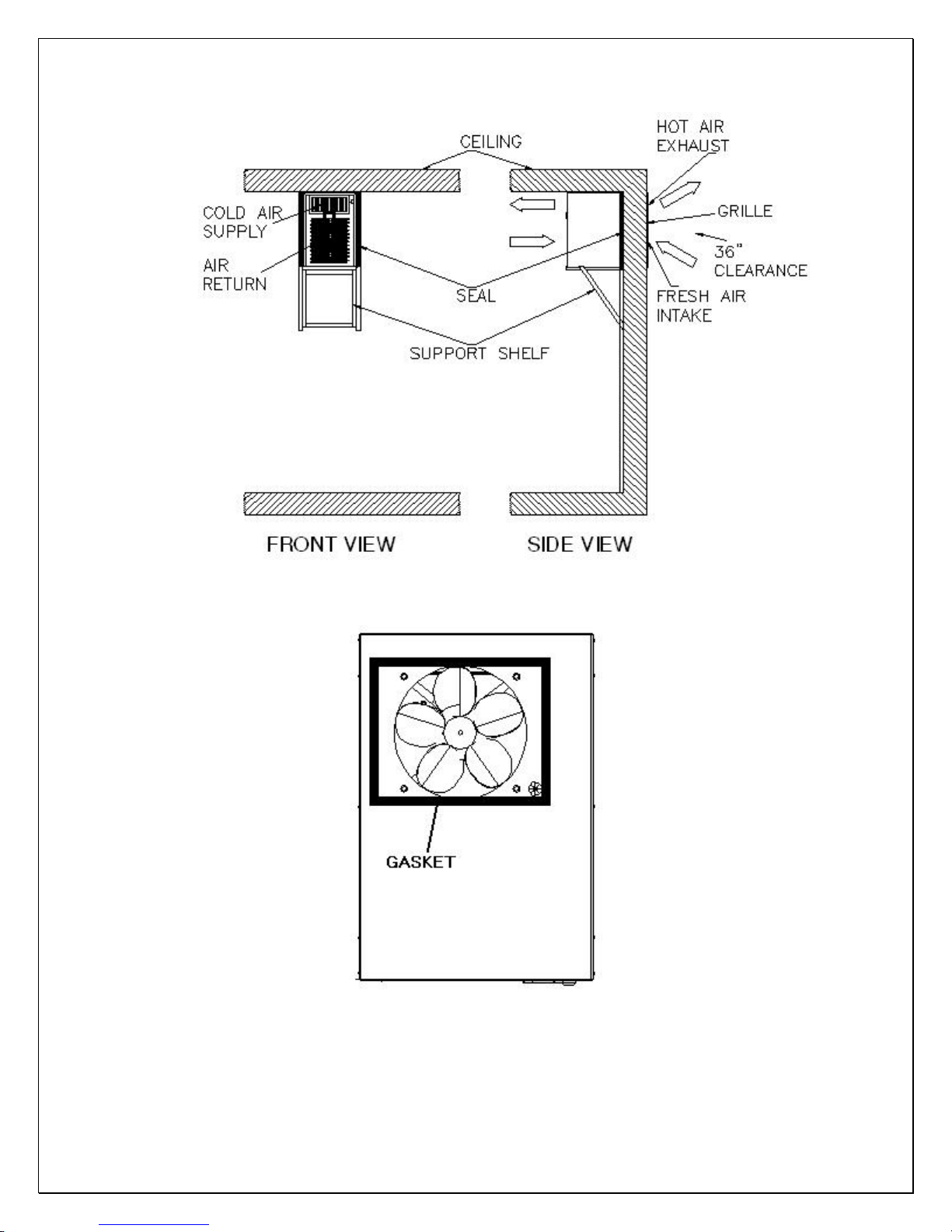

Fig. 2.8 THROUGH WALL INSTALLATION
Fig. 2.9 TOP EXHAUST GASKET

- 11 -
3. Cellar Construction
This is only a guide and shall be considered as minimum requirements.
All interior walls and floors shall have a vapor barrier and a minimum of R11
insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum
of R19 insulation. The vapor barrier shall be installed on the warm side of the
insulation. All joints, door frames, electrical outlets or switches and any pipes or
vents that go through the enclosure shall be sealed to prevent air and moisture
leakage into the room. Concrete, rock, and brick are not insulation or vapor
barriers.
Doors shall be of a minimum size, insulated to at least R11 and tightly sealed
with high quality weather stripping. Be sure to seal the bottom of the door and fill
gap between the door’s frame and wall before installing the cap molding.
In order to maintain 55 °F in the wine cellar, the ambient temperature
surrounding the enclosure shall not exceed the temperature of the enclosure by
more than 25 °F. No enclosure wall shall receive direct sun or strong wind.
Lighting shall be of low wattage, with a timer to insure lights are not left on when
the enclosure is not occupied.
The cooling system will not be able to maintain the proper temperature if fresh
moisture-laden air is constantly being introduced to the enclosure. Symptoms of
this condition are; unit runs all the time with only a slight reduction in temperature
and/or water overflows from the unit. Because of the temperature difference
between the inside and outside, very small cracks can allow large amounts of
outside air to enter into the enclosure. Please be aware that moisture can pass
through solid concrete, paint and wood. Often a newly constructed room contains
fresh wood, paint, concrete and other building materials. These materials contain
large amounts of moisture. When placed into operation in this type of
environment, the system will work harder to remove this extra moisture resulting
in increased “run” time.
4. Electrical Cord
Because of potential safety hazards under a certain condition we strongly
recommend against the use of an extension cord. However, if you still select to
use an extension cord, it is absolutely necessary that it is a UL LISTED 3-wire
grounding type appliance extension cord having a 3-blade grounding plug and a
3-slot receptacle that will plug into the appliance. The marked rating of the
extension cord shall be 115 V, 15 A or equivalent for VINO1500-2500HZD, 115
V, 20 A or equivalent for VINO3500-8500HZD and not greater than 15ft in length.
NOTES:
1) DO NOT INSTALL ANY DUCTS ONTO THE SUPPLY, INTAKE ANY
EXHAUST.
2) MOUNTING BRACKETS, SCREWS, GASKETS AND OTHER SEAL
MATERIALS ARE NOT INCLUDED.

- 12 -
Temperature Control & Humidity Adjustment
1. Temperature Setting
•Set the temperature at 55 °Ffor the optimum aging of wine
•On initial start-up, the time required to reach the desired temperature
will vary, depending on the quantity of bottles, temperature setting
and surrounding temperature.
•Allow 24 hours to stabilize the temperature for each new temperature
setting operation
2. Use of the controller

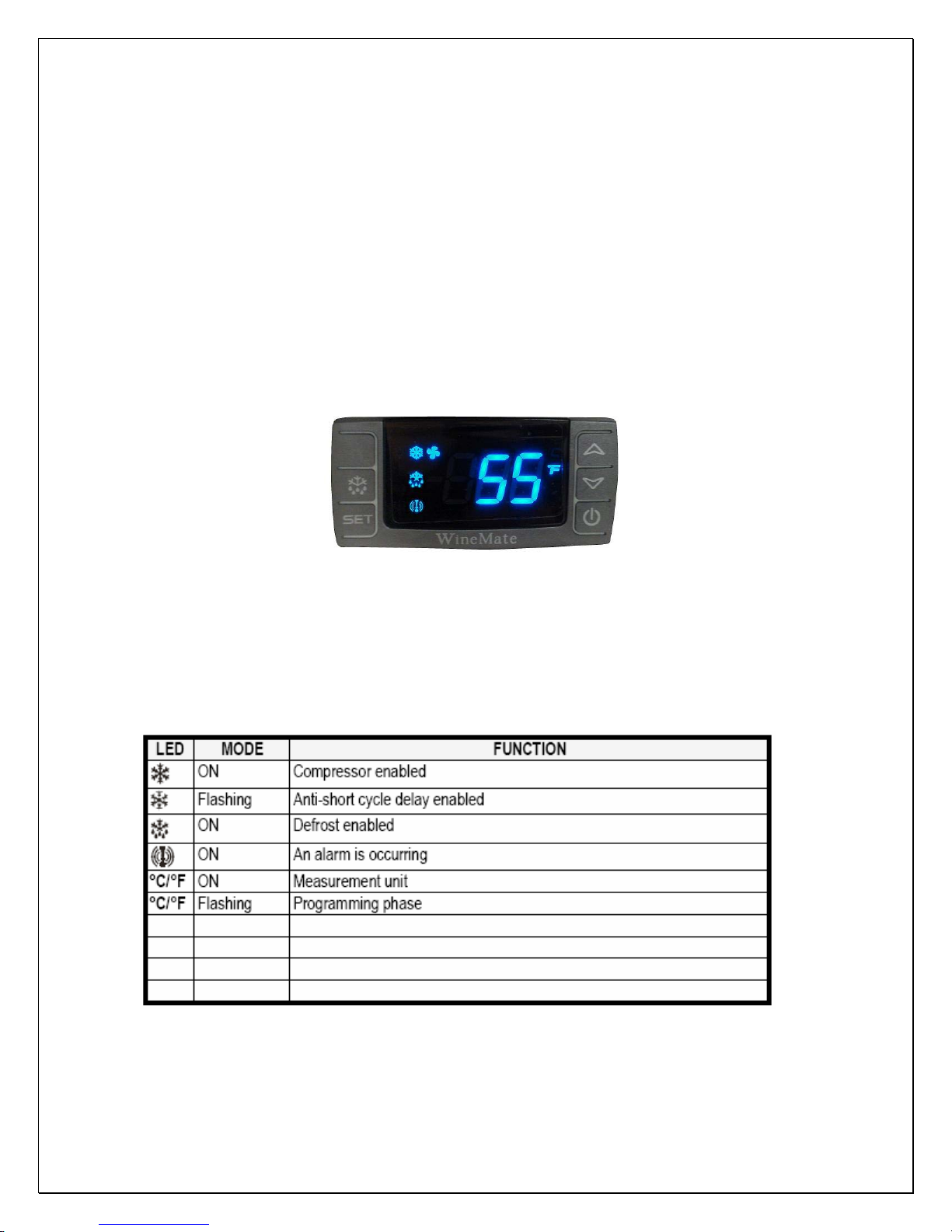

Fig. 3.1 DIGITAL CONTROLLER
1) Display
During normal operating conditions, the display shows the value measured by
the air regulation probe. In case of active alarm, the temperature flashes
alternately to the code alarm.
1.1 LED Functions
1.2 Front Panel Commands

- 13 -
2) Alarm Signals
2.1 Code Description
2.2 Alarm Recovery
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation.
Check connections before replacing the probe. Temperature alarms “HA”, “LA”
automatically stops as soon as the temperature returns to normal value. Alarm
“CA” (with i1F=PAL) recovers only by switching off and on the instrument.
3) Temperature Set-Point
3.1 How to see the set-point
1. Push and immediately release the SET key: the display will show the Set-point
value;
2. Push and immediately release the SET key or wait for 5 seconds to display the
probe value again.
3.2 How to change the set-point
1. Push the SET key for more than 3 seconds to change the Set point value;

- 14 -
2. The value of the set point will be displayed and the “°C” or “°F” LED starts
blinking;
3. To change the Set value, push the keys or arrows within 10s.
4. To memorize the new set point value, push the SET key again or wait 10s.
4) Humidity Adjustment
The parameter Fon is used to adjust the humidity in the wine cabinet. The higher
value of Fon, the higher relative humidity will be.
1. Press the Set +keys for 3 sec until the “°C” or “°F” LED starts blinking.
2. Release the keys, then push again the Set +keys for more than 7sec, the
Pr2 label will be displayed.
3. Release the keys, select the required parameter Fon by up or down keys .
4. Press the “SET” key to display its value.
5. Use up or down keys to change its value.
6. The default value is 0, change high or low value to maintain high or low
humidity.
7. Press “SET” to store the new value.
8. To exit: Press SET + or wait 15sec without pressing a key.
5) Regulation Differential
The parameter Hy is used as intervention differential for set point. Compressor
cut-in is the set-point + Hy, and compressor cut-out is the set-point.
1. Press the Set +keys for 3 sec until the “°C” or “°F” LED starts blinking.
2. Release the keys, then push again the Set +keys for more than 7sec, the
Pr2 label will be displayed.
3. Release the keys, HY will display immediately.
4. Press the “SET” key to display its value.
5. Use up or down keys to change its value.
6. The default value is 4, change high or low value to result in long high or short
running cycle.
7. Press “SET” to store the new value.
8. To exit: Press SET + or wait 15sec without pressing a key.
6) Defrost Cycle
The parameter IdF is used as interval between defrost cycles.
1. Press the Set +keys for 3 sec until the “°C” or “°F” LED starts blinking.
2. Release the keys, then push again the Set +keys for more than 7sec, the
Pr2 label will be displayed.
3. Release the keys, select the required parameter IdF by up or down keys .
4. Press the “SET” key to display its value.
5. Use up or down keys to change its value.
6. The default value is 24, change high or low value to result in less or more
defrost cycle.
7. Press “SET” to store the new value.
8. To exit: Press SET + or wait 15sec without pressing a key.

- 15 -
7) Manual Defrost
Push the DEF key for more than 2 seconds and a manual defrost will start.

- 16 -
Care Guide
1. Coil Cleaning
•Clean the condenser coil regularly. Coil may need to be cleaned at least
every 6 months.
•Coil is on the ambient air intake side of the cooling unit.
•Unplug the unit or disconnect power.
•Use a condenser brush or a vacuum cleaner with an extended attachment to
clean the coil when it is dusty or dirty.
•Plug the cooling unit or reconnect power.
2. Moisture Removing
•Remove the extra condensate if it is accumulated in the wine cellar at high
humidity condition.
3. Drain Line

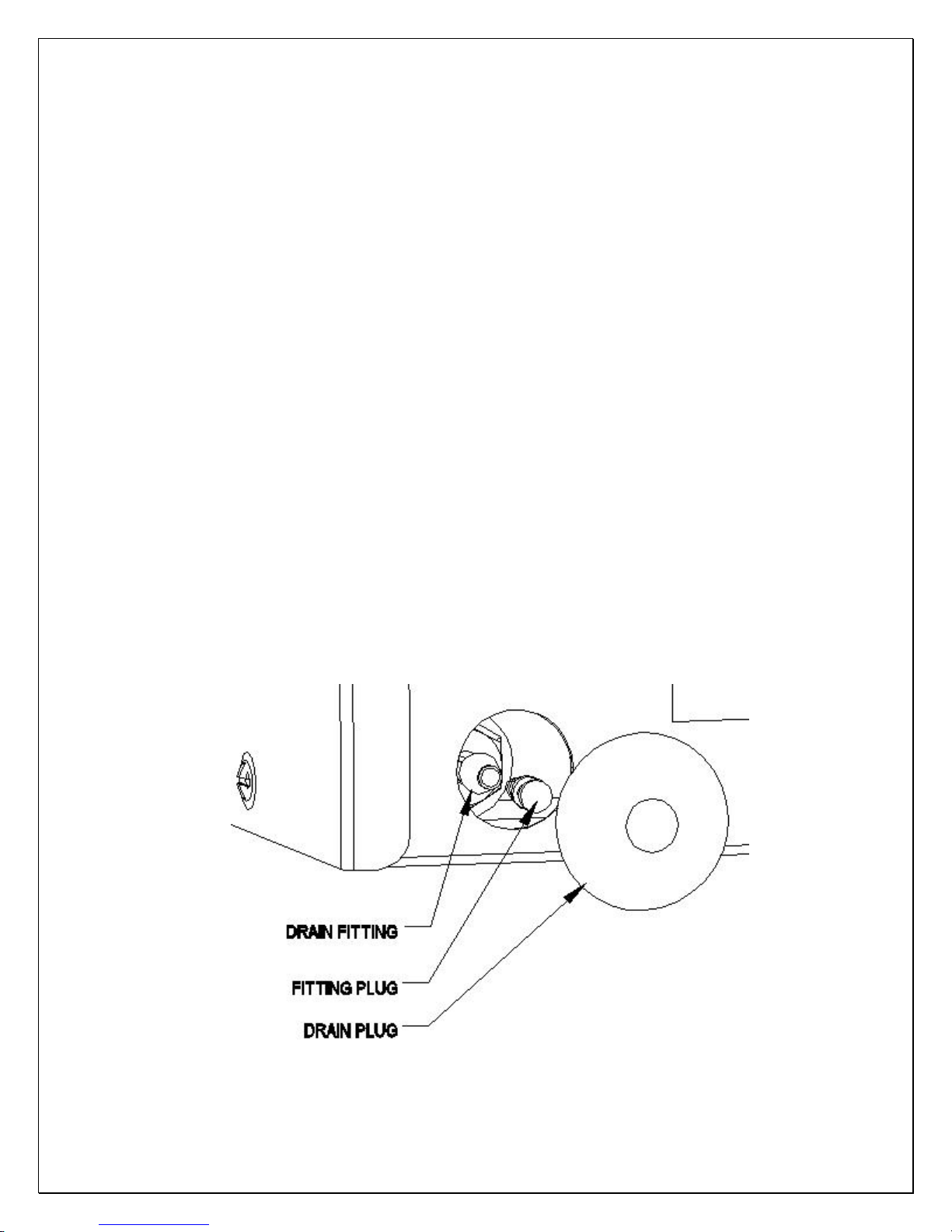

VINO3500-8500HZD units are equipped with a drain line fitting. In case there is a
drain line needed, remove the drain plug on the bottom left at the rear, then
remove the fitting plug, add a drain tube onto the drain fitting, 0.25” ID tube for
VINO3500-4500HZD and 0.5”ID tube for VINO6500-8500HZD

- 17 -
Troubleshooting
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive
Troubleshooting Chart
Complaint Possible Causes Response
1.Unit not
running a. Power cord unplugged
b. No power to unit
c. Setting higher than ambient
temperature
d. Differential too high
e. Incorrect or loose wirings
f. Low voltage
g. Defrost light blinking
h. Compressor light blinking
a. Check for power cord plug
b. Check power at receptacle & fuses
c. Lower temperature setting
d. Decrease the value as to 4 °F
e. Check all wirings and connections
f. Contact an authorized electrician
g. Unit is under defrost mode
h. Unit waits for anti-short cycle delay
2.Fan running
continually a. Post-compressor fan running
mode for humidity modulation
a. See 4) to set FON = 0
3.Temperature
fluctuating a. Air sensor a. When using an air sensor, the wine
bottle temperature is mainly
controlled by the average air
temperature. If the set-point is 55°F
with the differential 4F, the cooling
unit turns on at 59°F of air
temperature and turns off at 55°F of
air temperature. The average air
temperature is 57°F, and then the
wine temperature is around 57+/-
0.5°F. The air is light enough to
change so quickly that it maintains
relatively constant average
temperature that would prevent wine
bottle temperature from varying.
4.Temperature
high, unit
stopping and
starting but
short
running time
a. Displaying 55°F, air sensor
contacting the evaporator or in
the supply air
b. Setting too high
a. Move the air sensor away from the
evaporator and supply air
b. Lower setting
5. Temperature
high,
compressor
stopping and
starting but
short
running time
a. Incorrect voltage
b. Failed thermistor
c. Failed components
d. Improper condenser airflow
e. Dirty condenser
f. Overcharge of refrigerant
g. Discharge or suction pressure
too high
a. Check for voltage
b. Check thermistor by placing it in ice
water and measuring resistance
c. Check compressor windings, start
relay and overload protector.
d. Check for condenser fan
e. Clean condenser
f. Call service for removing refrigerant
g. Call service for OEM information

- 18 -
6. “HA” alarm
blinking and
beeping,
temperature
high or not
cooling and
running
continually
a. Improper room insulation & seal
b. Room too large
c. Ambient temperature too high
d. Exhaust restricted
e. Malfunctioning fans
f. Improper evaporator or
condenser airflow
g. Dirty Condenser
h. Iced evaporator
i. Refrigeration system restriction
j. Refrigerant leak
k. Undercharge or overcharge
l. Failed components
a. Check for insulation, gasket and
door opening
b. Check for excessive size
c. Check for installation location
d. Leave minimum 3 feet clearance for
the exhaust side and leave
minimum 1 foot clearance for the
fresh air intake side
e. Check for both evaporator and
condenser fans
f. Check for air restrictions
g. Clean condenser
h. Defrost and reset temperature
i. Call service for checking
restrictions
j. Call service for checking loss of
refrigerant
k. Call service to add or remove
refrigerant
l. Check compressor windings, start
relay and overload protector
7.Unit running
too long a. Improper room insulation & seal
b. Exhaust restricted
c. Room too large
d. Ambient temperature higher >
90°F
e. Dirty Condenser
a. Check for insulation, gasket and
door opening
b. Leave minimum 3 feet clearance for
the exhaust side and leave minimum
1 foot clearance for the fresh air
intake side
c. Check for excessive size or increase
setting
d. Check for installation location or
increase setting
e. Clean condenser
8.Fan motor
running but
compressor
not running
a. Post-compressor fan running
mode
b. Incorrect power supply
c. Incorrect or loose wirings
d. Failed components
e. Liquid refrigerant in the
compressor
a. Check for fan running time FON
b. Check for proper voltage
c. Check all wirings and connections
d. Check start relay, start capacitor,
overload protector, compressor.
e. Call service for OEM information.
9.Compressor
running but
fan not
running
a. Fan blade stuck
b. Incorrect or loose wirings
c. Failed motors
a. Check for proper clearance
b. Check all wirings
c. Call service for checking open or
shorted windings
10.Evaporator
Icing a. Evaporator air flow restriction
b. Not stopping due to air leak, high
ambient temperature or low
setting
c. Low ambient temperature
d. Bad thermostat or sensor
e. Moisture in the system
a. Check for fans
b. Check for seal, door opening,
ambient temperature and setting
c. Defrost unit
d. Check for thermostat and sensor
e. Working initially then stopping

- 19 -
f. Refrigerant low or leaking
g. Capillary tube blockage
f. Check for current and sealed
system leakage
g. Check for low side pressure
11.Water leak a. High humidity
b. Air leak in wine cellar
c. Evaporator air flow restriction
d. Water passages restricted
e. Drip tray leak
a. Use drain line
b. Check for any air leak
c. Check air flow or air TD crossing
evaporator
d. Clean the drip tray
e. No water overflow but leak
12.Circuit
tripping a. Incorrect fuse or breaker
b. Incorrect wirings
c. Failed components
a. Check for proper fuse or breaker
b. Check for wirings and connections
c. Call service
13.Noisy
operation a. Mounting area not firm
b. Loose parts
c. Compressor overloaded due to
high ambient temperatures or
airflow restriction
d. Malfunctioning components
a. Add support to improve installation
b. Check fan blades, bearings, cabinet
washers, tubing contact and loose
screws.
c. Check for airflow blockage
d. Call service for checking internal
loose, inadequate lubrication and
incorrect wirings
