Vinotemp WINE-MATE WM-1500LOWP Instructions for use

Installation, Use & Care Manual
Self-contained Wine Cooling System
WM-1500LOWP
WM-1500LOWP-TE
WM-2500LOWP
WM-2500LOWP-TE
Read and save these instructions.
Do not plug the unit into power until 24 hours after
delivery.

- 1 -
SAFETY INSTRUCTIONS
Electrical Safety
DANGER
Improper use of the power cord plug can result in the risk of electrical
shock, property damage and personal injury or death.
Unplug the unit or disconnect power before performing any
maintenance.
Upon receipt and inspection of the unit the power cord must be replaced
if it is damaged.
A dedicated 20 AMP circuit is required.

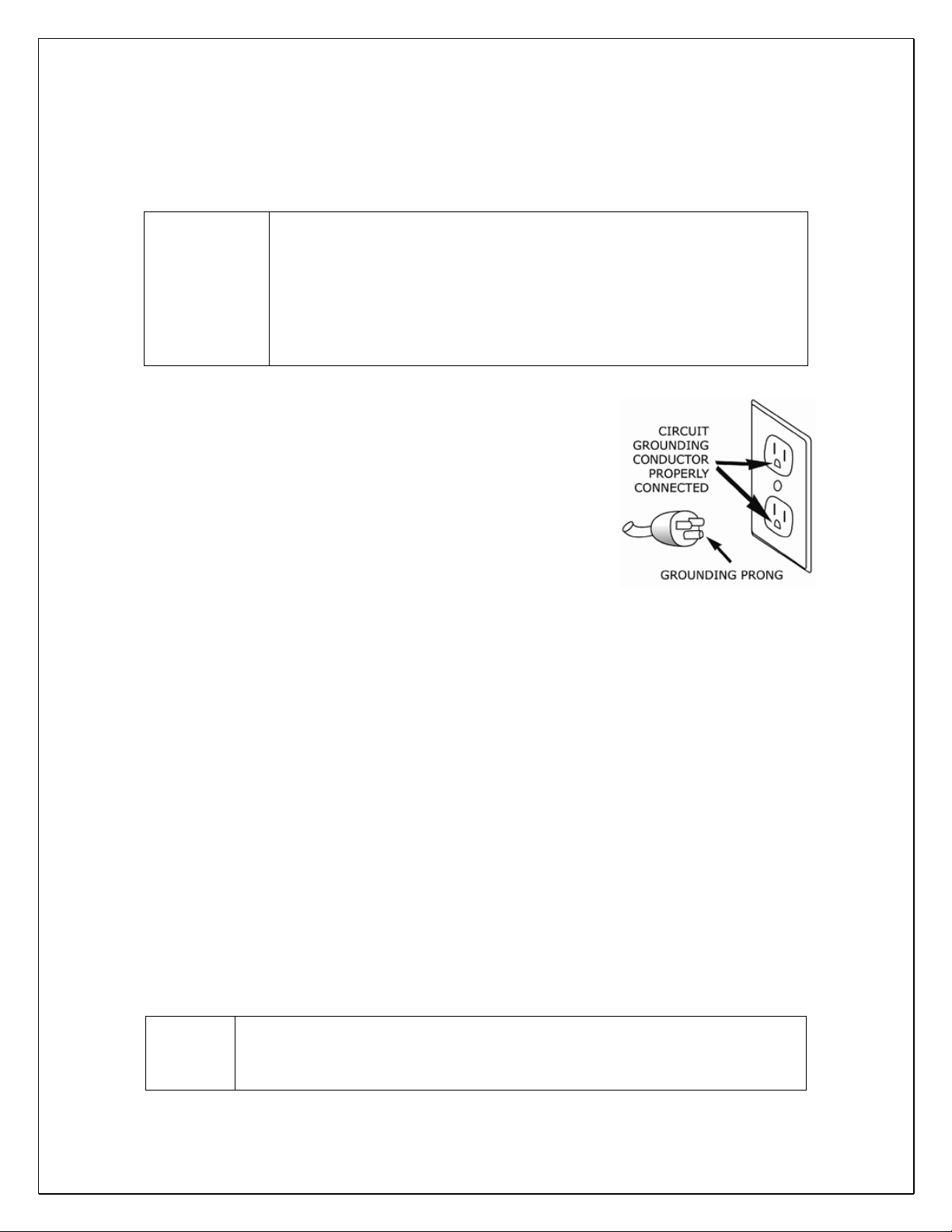

• This product is equipped with a 3-prong grounding-type
plug and shall be plugged into a properly connected
grounding-type outlet.
• It is required to use a 3–prong grounding-type electrical
outlet properly grounded in accordance with the National
Electrical Code and local codes and ordinances.
• A separate adequately fused and grounded circuit shall
be used for this unit. The voltage rating must match the
rating label on the unit.
• Do not use an adapter or an extension cord.
• Do not use a ground fault interrupter (GFI).
• Do not under any circumstances cut or remove the third ground prong from the
power cord.
• Never unplug the unit by pulling the power cord. To disconnect the unit always grip
the plug firmly and pull straight out from the wall outlet.
• Do not operate the unit if the unit housing is removed or damaged.
• Do not attempt to repair or replace any part of your unit unless it is specifically
recommended in this manual. All other servicing shall be referred to a qualified
technician.
• Unplug the unit or disconnect power before performing any maintenance.
• To protect against electric shock do not immerse unit plug or cord into water or
other liquids.
• Do not operate the unit with wet hands, while standing on a wet surface, or while
standing in water.
Disposing Safety
CAUTION
When disposing of refrigeration products, special handling is often required.
It is the consumer’s responsibility to comply with federal and local
regulations when disposing of this product.

- 2 -
Table of Contents
Features & Specifications………………………………………………………….3
Installation Instructions…………………....……………………………………..5
Temperature and Humidity………………………………..…………………..12
Care Guide……………………………………………………………………..………16
Troubleshooting……………………………………………………………………..17
Electrical Wiring Diagram……………………………………………..…………20
Customer Support……………………..……………………………………………21
Warranty…………………………….………………………………………………….22

- 3 -
Features and Specifications
• WM-1500LOWP & 1500LOWP-TE and WM-2500LOWP & 2500LOWP-TE cooling units
are designed to provide a subtle temperature between 50~65 °F for a properly
insulated wine cabinet.
• The refrigerated space will maintain humidity range within 50~70% RH.
• These temperature and humidity ranges are optimized for long term storage of
wine.
• Temperature is controlled and humidity is adjusted using patented technology.
• Larger bottom cold air supply provides more even temperature distribution in the
wine cabinet.
• Multiple options for top or rear hot air exhaust are convenient for flexible
installations.
• Extremely 7.5” low profile is ideal for conceal installations.
• Patented condensate drain tray is used for humidity adjustment.
• The unit is self-contained ready for easy installation and use.

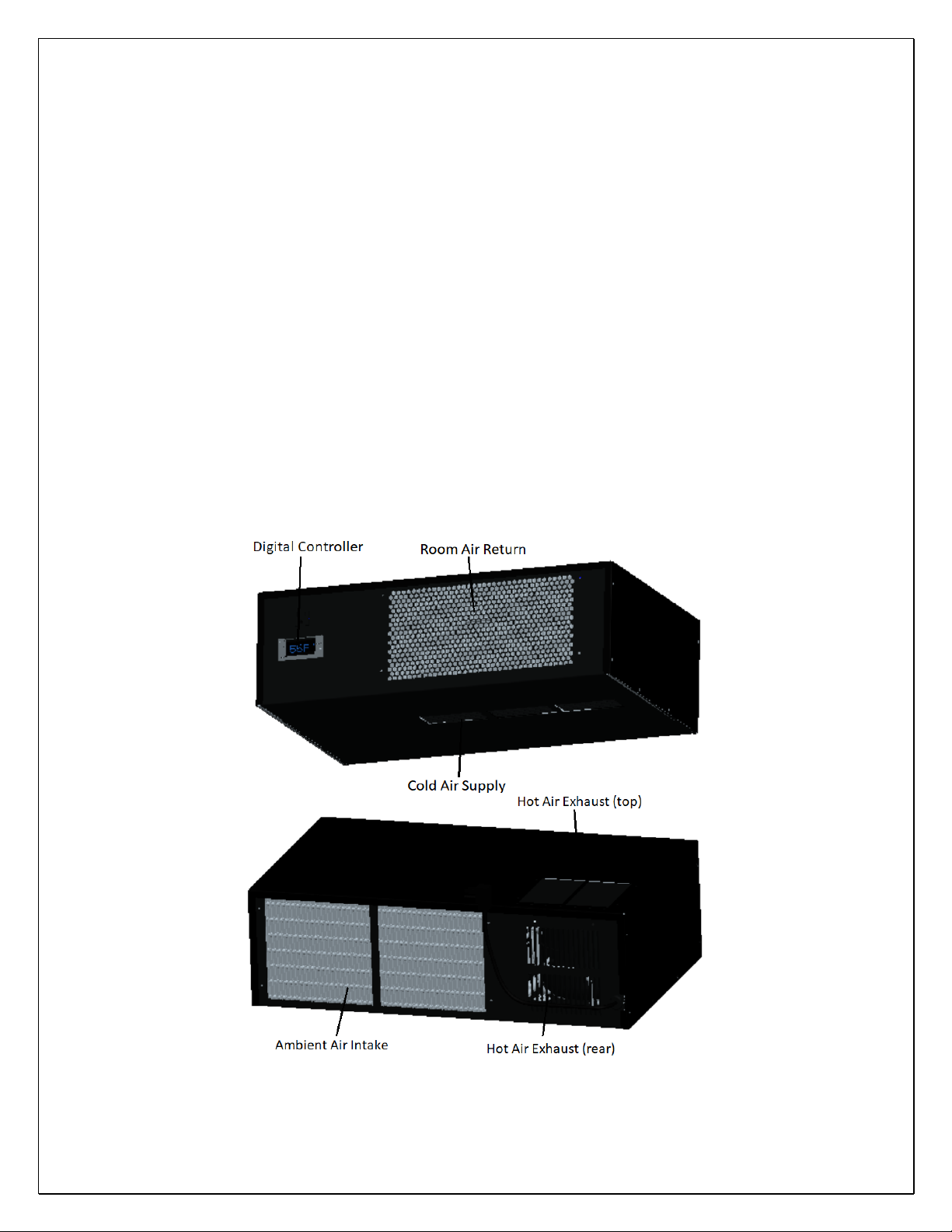

Fig. 1.1 Feature Descriptions

- 4 -
Fig. 1.2 Dimensions
The specifications are listed as follows:
Model No
Exhaust
Dim L x W x H
(in)
Airflow
(CFM)
Cabinet Size
(cu ft)
Electrical
Rating
Weight
(lb)
WM-1500LOWP
Rear
24-1/4 x 15-1/8 x
7-1/2
120
90
115V/60Hz/3A
55
WM-1500LOWP-TE
Top
24-1/4 x 15-1/8 x
7-1/2
120
90
115V/60Hz/3A
55
WM-2500LOWP
Rear
24-1/4 x 15-1/8 x
7-1/2
180
200
115V/60Hz/4A
60
WM-2500LOWP-TE
Top
24-1/4 x 15-1/8 x
7-1/2
180
200
115V/60Hz/4A
60
NOTE
See the voltage, frequency and current specified on the label of the
cooling unit.
The rated cooling capacity is determined under the cabinet and
ambient temperatures of 55°F and 75°F with R13 interior and R19
exterior insulations. Higher ambient temperatures and less insulation
will cause reducing the capacity.

- 5 -
Installation Instructions
NOTE
Mounting brackets, screws, gaskets and other seal materials are not
included.
Do not install any ducts onto the supply, return, intake and exhaust.
CAUTION
Because of potential safety hazards under a certain condition, we
strongly recommend against the use of an extension cord. However, if
you still elect to use an extension cord, it is absolutely necessary that it
will be a UL LISTED 3-wire grounding type extension cord having a 3-
blade grounding plug and a 3-slot receptacle that will plug into the unit.
The marked rating of the extension cord shall be 115 V, 15 A.
1. Cabinet Location
• Place the wine cabinet in a properly ventilated location. Otherwise, heat exhausted
by the cooling unit will build up and it may cause the cooling unit not to work
properly.
• The exhaust area must not be closed space and must be ventilated.
• The ambient temperatures shall not be higher than 78°F for running WM-1500LOWP
& 1500LOWP-TE or 95°F for running WM-2500LOWP & 2500LOWP-TE and shall not
be lower than 50 °F for all units.
1) Rear Exhaust Cabinet
• Leave min 6 “clearance from the rear to the wall.
• Leave min 12” clearance from the top to the ceiling.
• Leave min 6” clearance on the sides.
2) Front Exhaust Cabinet
• Leave min 6” clearance on the front if the sides are unobstructed.
• Or, leave min 36” clearance on the front if the sides are obstructed
3) Top Exhaust Cabinet
• Leave min 12” from the top to the ceiling.
• Leave min 2 “clearance from the rear to the wall.
• Leave min 2” clearance on the sides.
4) Side Exhaust Cabinet
• Leave min 6 “clearance on the side that hot air exhausts.
• Leave min 12” clearance from the top to the ceiling.

- 6 -
2. Cooling Unit Installation
• The cooling unit produces cooling supplied into the cabinet, meanwhile it also
generates heat that must be exhausted outside the cabinet. So the cold-air supply
and warm-air return must be separated from the hot-air exhaust and ambient-air
intake. Foam tape gasket may be used to seal them. The cooling unit must intake
adequate fresh ambient-air to work properly. The ambient-air intake and hot-air
exhaust must not be short-circulated.
1) Making Cutout
• Make a rectangular through hole at the rear wall of the cabinet with 1/4” less than
the width and height of the cooling unit. Make 1/2” tabs to place the gaskets as
shown in Fig. 2.1.
• If it is a top exhaust installation, make another rectangular hole at the top of the
cabinet with the length and width of the top exhaust as shown in Fig. 2.2.
• Install 2 pieces of 1/4” ID wood thread inserts on the ceiling as shown in Fig. 2.3.
• Install the rear gaskets (1/2” foam tape) as shown in Fig. 2.4.
• If it is a top exhaust installation, install the top gaskets on the cooling unit as shown
in Fig. 2.5.
2) Installing Cooling Unit
• Push the cooling unit towards the mounting tabs until it stops and press the gaskets
as shown in Fig. 2.6.
• Use two mounting brackets and two 1/4” screws with 7/16” wrench to secure the
cooling unit as shown in Fig. 2.6.
3) Low Profile Front Grille
• Install an exhaust cover to redirect the hot air to the front as shown in Fig. 2.9.
• Install the low profile front grilles as shown in Fig. 2.9.
Fig. 2.1 Rear Exhaust Cutout

- 7 -
Fig. 2.2 Top Exhaust Cutouts
Fig. 2.3 Installing Screw Inserts
Fig. 2.4 Installing Rear Gaskets
Fig. 2.5 Installing Top Gaskets
16”
Top Gasket

- 8 -
Fig. 2.6 Installing Cooling Unit

- 9 -
Fig. 2.7 Cooling Unit Installed (Rear Exhaust)
Rear Exhaust
Ambient Air Intake

- 10 -

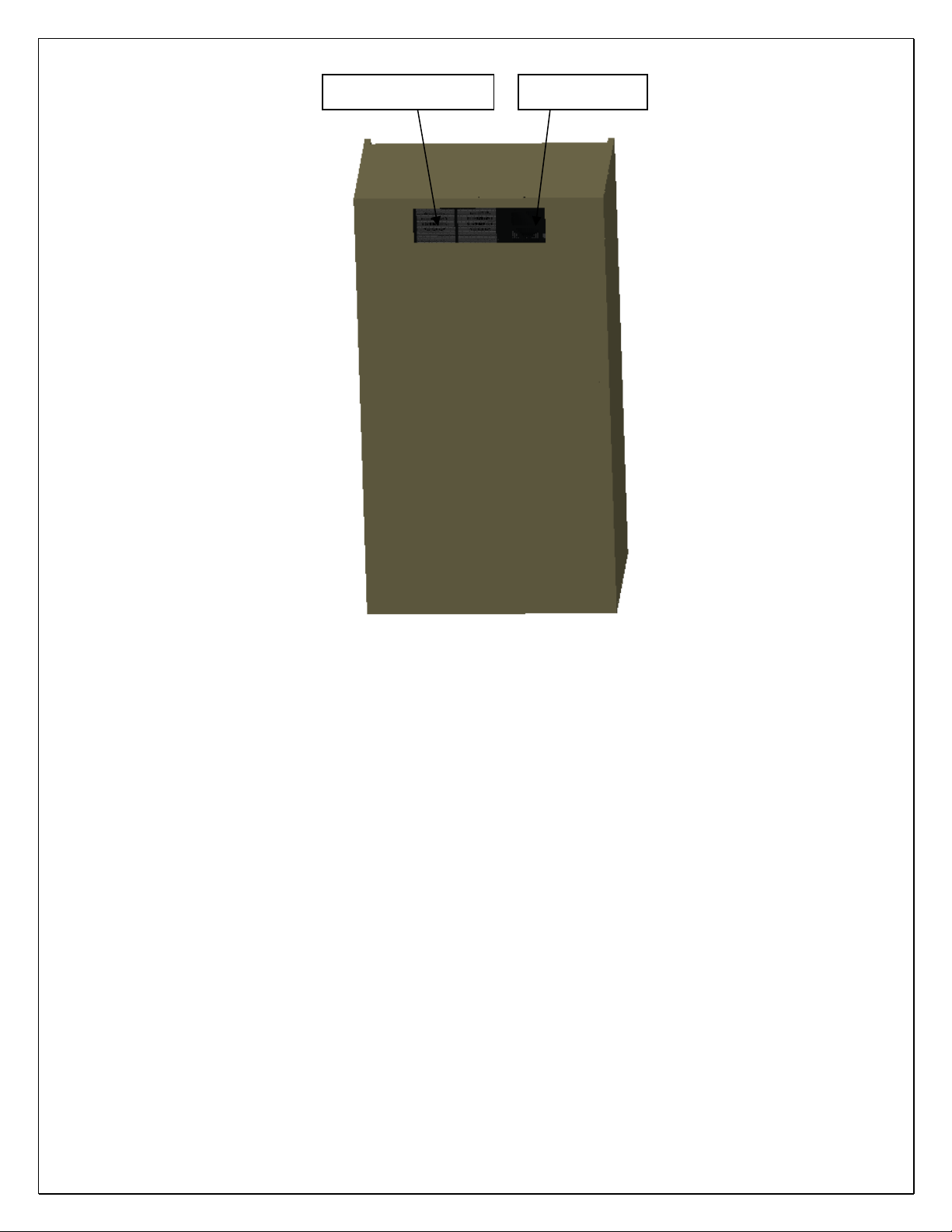

Fig. 2.8 Cooling Unit Installed (Top Exhaust)
Top Exhaust
Ambient Air Intake

- 11 -
Fig. 2.9 Cooling Unit Installed (Low Front Grille)
Top Exhaust Cover
Low Front Grille
Ambient Air Intake

- 12 -
Temperature and Humidity
1. The controller
Fig. 3.1 Temperature Controller
1) Keys
SET: To display set-point; in programming mode it selects a parameter or confirms an
operation.
: To start a manual defrost.
: To see the maximum stored temperature; in programming mode it browses the
parameter codes or increases the displayed value.
: To see the minimum stored temperature; in programming mode it browses the
parameter codes or decreases the displayed value.
: To turn on/off the power to the unit.
+ : To lock/unlock the keypad.
SET+ : To enter in the programming mode.
SET+ : To return to the temperature display.
2) Lock and unlock the keys
To lock the keys, press up + down keys + until POF is displayed; to unlock the keys,
press up + down keys + until PON is displayed.
3) Display
During normal operating conditions, the display shows the value measured by the air
temperature probe. In case of active alarm, the temperature flashes alternately to the
code alarm. The LED functions are listed as follows.
LED
MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle enabled
ON
Defrost cycle enabled
ON
Fan enabled
Flashing
Fan delay after defrost enabled
ON
Alarm occurring
ON
Temperature measuring unit
Flashing
Programming mode

- 13 -
4) Alarm Signals
The alarm codes are described as follows.
MESSAGE
CAUSE
FUNCTION
P1
Temperature probe
faulty
Compressor switching to Con and CoF
HA
High temperature alarm
Probe temperature ALU higher than the
setting temperature; Outputs unchanged
LA
Low temperature alarm
Probe temperature ALL lower than the
setting temperature; Outputs unchanged
CA
External alarm
All outputs off
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation. Check
connections before replacing the probe. Temperature alarms “HA”, “LA” automatically
stops as soon as the temperature returns to normal value. Alarm “CA” (with i1F=PAL)
recovers only by switching off and on the instrument.
2. Temperature Setting
• Set the temperature at 55 °F for the optimum aging of wine
• On initial start-up, the time required to reach the desired temperature will vary,
depending on the quantity of bottles, temperature setting and surrounding
temperature.
• Allow 24 hours to stabilize the temperature for each new temperature setting
operation
3. How to see temperature set-point
1) Press and immediately release the SET key, the display will show the set-point value.
2) Press again and immediately release the SET key to display the probe value.
4. How to change the set-point
1) Press and hold the SET key until the “°C” or “°F” LED starts flashing and the set-point
is displayed.
2) Press the up/down keys / to change the set-point value within 10 sec.
3) Press the SET key again to store the new set-point value.
NOTE: The unit turns on at set-point Set plus regulation differential Hy after anti-short
cycle AC has elapsed; the unit turns off at set-point Set.
5. Manual Defrost
Press and hold the defrost key until defrost starts. The defrost indicator will be on.

- 14 -
6. Parameter Programming
1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing, then release
the keys.
2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the
keys. The first parameter Hy will be displayed.
3) Press up/down keys / to scroll to the required parameter within 10 sec.
4) Press the “SET” key to display its value.
5) Use up/down keys to change its value within 10 sec.
6) Press “SET” to store the new value and the display will flash 3 times.
7) To exit: Press SET + or wait 15sec without pressing a key.
PARAMETER
DESCRIPTION
DEFAULT VALUE
Set
set-point (°)
55
Hy
temperature regulation differential (°)
4
AC
anti-short cycle delay (min)
10
Con
compress on with probe faulty (min)
20
CoF
compress off with probe faulty (min)
20
CF
temperature unit (°F/ °C)
F: Fahrenheit
rES
display resolution
in: integer
dLy
temperature display delay (min)
1
ot
probe calibration (°)
0
LS
minimum set-point (°)
50
US
maximum set-point (°)
65
idF
defrost cycle interval time (hour)
12
MdF
defrost cycle endurance time (min)
30
ALC
temperature alarm type
rE: relative to set-point
ALU
high temperature alarm (°)
10
ALL
low temperature alarm (°)
10
AFH
alarm recovery differential (°)
5
ALd
temperature alarm delay (min)
60
dAo
temperature alarm delay on startup (hr)
23
SAA
heater set-point (°)
40
SHy
heater regulation differential (°)
4
FSU
fan action
Std
FnC
fan operating mode
C-n: on with compressor & off during defrost
Fon
fan on with compressor off (min)
0
FoF
fan off with compressor off (min)
15
NOTE: Depending on the controller, not all parameters are used.

- 15 -
7. How to calibrate the air probe
If the actual cellar temperature differs from the setting temperature, set parameter ot =
actual cellar temperature minus set-point.
8. How to adjust defrost cycle
In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be
used to avoid frost.
9. How to adjust the humidity
The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon results
in higher relative humidity. Use a separate hygrometer to monitor the humidity.
10. How to set alarm call
1) Speech notice will be sent to your phones when the cellar temperature is ALU higher
or ALL lower than the set-point Set.
2) In order to test the call function, set parameters Ald = 0 and dAO = 0. After testing,
set Ald = 60 and dAO = 23.
11. How to set low cellar temperature heater
The heater turns on at SAA minus Shy; the heater turns off at SAA.
NOTES:
• Use a forced air heater to warm up the wine cellar.
• If there is a thermostat on the heater, bypass it or set the thermostat at the highest
level.
• If the heater runs more than 10 A current, use a 120VAC coil contactor

- 16 -
Care Guide
1. Cleaning Condenser
• Clean the condenser regularly at least every 6 months.
• Condenser is located on the ambient air intake side of the cooling unit.
• Use a condenser brush or a vacuum cleaner with an extended attachment to clean
the condenser.
2. Removing Condensate
Remove the excessive condensate if it is accumulated on the cooling unit in high
humidity conditions.
3. Removing Unit
When you remove the cooling unit, beware water may come out of the unit.

- 17 -
Troubleshooting
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive
Complaint
Possible Causes
Response
1. Unit not running
a. Power cord not plugged
b. No power from supply
c. Incorrect or loose wirings
d. Low voltage
e. Setting higher than ambient
temperature
f. Cut-in too high
g. Defrost light blinking
h. Compressor light blinking
i. Defective controller
a. Check power cord
b. Check receptacle and fuses
c. Check all wirings and connections
d. Contact an authorized electrician
e. Lower temperature setting
f. Reduce Hy
g. Unit is under defrost mode
h. Unit is under anti-short cycle delay
i. Call service for diagnosis
2. Unit not starting,
but temperature
rising high
a. Anti-short cycle
a. Reset AC
3. Temperature
fluctuating
a. Air probe
a. When using an air probe, the wine
bottle temperature is mainly controlled
by the average air temperature. If the
set-point is 55°F with the differential
4F, the cooling unit turns on at 59°F of
air temperature (It may be higher than
59°F if it is in anti-short cycle or defrost
cycle) and turns off at 55°F of air
temperature. The average air
temperature is 57°F, and then the wine
temperature is around 57+/-0.5°F. The
air is light enough to change so quickly
that it maintains relatively constant
average temperature that would
prevent wine bottle temperature from
fluctuating.
4. Temperature
high, unit
stopping and
starting
normally
a. Temperature setting high
a. Lower the setting
5. Temperature
high, unit
stopping and
starting with
short running
time
a. Air probe touching the
evaporator coil, displaying
temperature ok
b. Short circuit of air flow between
cold-air supply and cellar-air
return, displaying temperature
ok
c. Failed controller and probe
a. Move the air probe away from the
evaporator
b. Deflect the supply air down
c. Call service for diagnosis

- 18 -
6. Temperature
high or not
cooling and
running
continually
a. Improper cellar insulation & seal
b. Cellar too large
c. Ambient temperature too high
d. Exhaust restricted
e. Malfunctioning fans
f. Evaporator or condenser airflow
g. Dirty Condenser
h. Iced evaporator
i. Refrigeration system restriction
j. Refrigerant leak
k. Undercharge or overcharge
l. Failed components
a. Check insulation, gasket and door
opening, power cord grommet
b. Check for excessive size
c. Check installation location
d. Leave minimum 3 feet clearance for
the hot air exhaust side and leave
minimum 1 foot clearance for the
fresh air intake side
e. Check for both evaporator and
condenser fans
f. Check for air restrictions, air short-
circulation, grille directions
g. Clean condenser
h. Defrost and reset temperature
i. Call service
j. Call service
k. Call service
l. Check compressor windings, start relay
and overload protector
7. Unit running too
long
a. Improper cellar insulation & seal
b. Cellar too large
c. Ambient temperature higher >
90°F
d. Exhaust restricted
e. Dirty Condenser
f. Improper condenser air flow
a. Check insulation, gasket and door
opening, power cord grommet
b. Check for excessive size
c. Check for installation location
d. Leave minimum 3 feet clearance for the
hot air exhaust side and leave minimum
1 foot clearance for the fresh air intake
side
e. Clean condenser
f. Check for fan and air short circulation
8. Fan motor
running but
compressor not
running
a. Post-compressor fan running
mode
b. Incorrect or loose wirings
c. Failed components
d. Liquid refrigerant in the
compressor
a. Check fan running time FON
b. Check all wirings and connections
c. Check start relay, start capacitor,
overload protector, compressor.
d. Call service.
9. Compressor
running but fan
not running
a. Fan blade stuck
b. Incorrect or loose wirings
c. Failed motors
a. Check for proper clearance
b. Check all wirings
c. Call service
10.Temperature
high,
compressor
stopping and
starting but very
short running
time
a. Failed components
b. Improper condenser airflow
c. Dirty condenser
d. Overcharge of refrigerant
e. Discharge or suction pressure
too high
a. Check compressor windings, start relay
and overload protector.
b. Check for condenser fan
c. Clean condenser
d. Call service for removing refrigerant
e. Call service for information
11.Fan running too
long
a. Post-compressor fan running
mode for humidity modulation
a. Reset FON

- 19 -
12.Temperature
low
a. Low temperature setting
b. Low ambient temperature
c. Air probe fault
d. Temperature controller fault
a. Raise the setting
b. Move to another location
c. Change a new one
d. Change a new one
13.Evaporator
freezing up
a. Evaporator air flow restriction
b. Low temperature setting
c. Low ambient temperature
d. Defective controller or probe
e. Not stopping due to air leak, high
ambient temperature, condenser
air flow restriction or pull-down
cooling
f. Initially working then stopping,
moisture in the system
g. Refrigerant low or leaking
h. Capillary tube or expansion valve
blockage
a. Check for fans and air flow
b. Check for set-point
c. Change defrost cycle
d. Check for controller and probe
e. Check for seal, door opening, ambient
temperature and condenser air flow
f. Call service
g. Call service
h. Call service
14.Water leak
a. Air leak in the wine cellar causing
excessive condensate
b. High humidity causing excessive
condensate
c. Evaporator air flow restriction
d. Water passages restricted
e. Drip tray leak (No water overflow
but water leak)
a. Check for air leak
b. Use drain line
c. Check supply air flow or air TD
d. Clean the drip tray
e. Seal the leak using silicone sealant
15.Excessive
condensate in
wine cellar
a. Air leak in the wine cellar causing
excessive condensate
b. High humidity causing excessive
condensate
c. Water passages restricted
a. Check for any air leak
b. Use drain line
c. Clean the drip tray
16.Circuit tripping
a. Incorrect fuse or breaker
b. Incorrect wirings
c. Failed components
a. Check for proper fuse or breaker
b. Check for wirings and connections
c. Call service
17.Noisy operation
a. Mounting area not firm
b. Loose parts
c. Compressor overloaded due to
high ambient temperatures or
airflow restriction
d. Defective components
a. Add support to improve installation
b. Check fan blades, bearings, washers,
tubing contact and loose screws.
c. Check for airflow
d. Call service for checking internal loose,
inadequate lubrication and incorrect
wirings
