Vinotemp Wine-Temp WM-6500HZD-DE Instructions for use

www.winemate.com
Wine Cooling System
WM-6500HZD-DE, WM-8500HZD-DE
Installation, Use & Care Manual
www.vinotemp.com
Read and save these instructions

-1-
Important Safety Information
NOTES:
• Do not plug in until 24 hours after delivery.
• Do not use a ground fault interrupter (GFI).
• Do not use an electrical extension cord.
• A dedicated 30 AMP circuit is required.

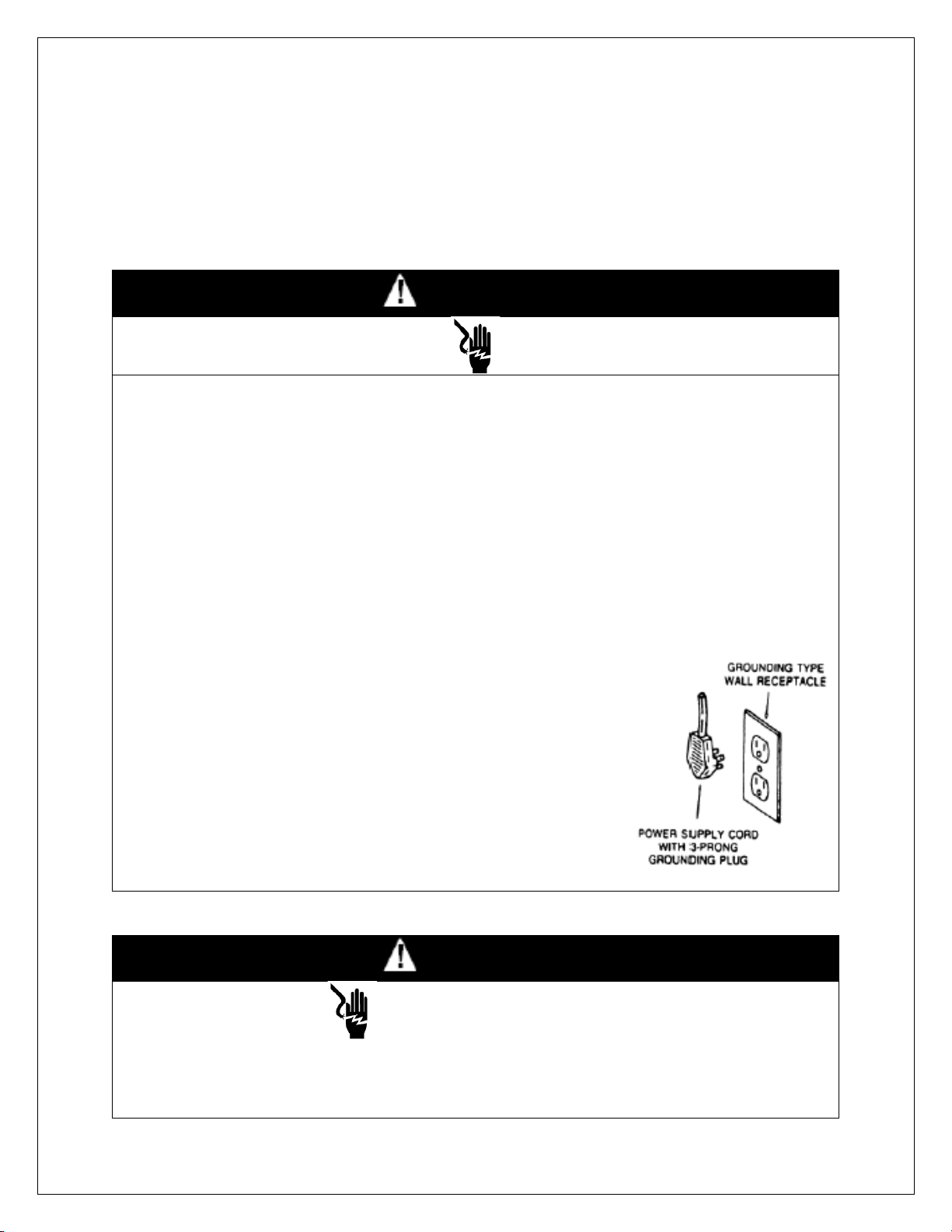

WARNING
To avoid the risk of electrical shock, property damage, personal injury, or death:
•The power cord must be plugged into a 3-prong grounding type wall receptacle,
grounded in accordance with the National Electrical Code, ANSI/NFPA 70 –latest
edition and local codes and ordinances.
•It is the personal responsibility of the consumer to have a proper 3-prong wall
receptacle installed by a qualified electrician.
•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER CORD
GROUNDING PRONG.
•A separate adequately fused and grounded circuit should be available for this
appliance.
•Do not remove any grounding wires from individual components while servicing unless
the component is to be removed and replaced. It is extremely important to replace all
grounding wires when components are replaced.
WARNING
ELECTRICAL SHOCK HAZARD
•Disconnect electrical supply from appliance before servicing.
•Replace all panels before operating.
•Failure to do so could result in death or electrical shock.

-2-
Table of Contents
Features & Specifications..................................................3
Installation Instructions…..................................................5
Temperature & Humidity… ..............................................11
Care Guide........................................................................15
Troubleshooting…............................................................16
Electrical Diagrams… ......................................................19
Customer Support…........................................................21
Warranty….........................................................................22

-3-
Features and Specifications
oHZD-DE series cooling units are designed and used to provide a stable
temperature between 50~65 °F for a properly insulated space.
oThe refrigerated space will maintain humidity ranges within 50~70% RH.
oThese temperature and humidity ranges are optimized for long termstorage
of wine.
oTemperature is controlled and humidity is adjusted using
▪innovative technology.
oHorizontal cold-air supply is optimized for use in the wine cellars.
oBackward-curved impeller fan can duct the condenser hot air 50 ft in totalto
exhaust outside.
oThe unit is self-contained ready for easy installation and use.
Fig. 1.1 FEATURE DESCRIPTIONS

-4-
Fig. 1.2 DIMENSIONS
The specifications and dimensions are listed as follows:
MODEL
CFM
CELLAR SIZE
(CUFT)
DUCT HOOD
WXDXH –DIA
(EXHAUST/INTAKE)
DUCT SIZEDIA
(“)
ELECTRICAL
WEIGHT
(lb)
WM-
6500HZD-DE
500
1500
18.5”X4.5”X8” –10”
12”X12”X10” –10”
10
115V/60Hz/10A
140
WM-
8500HZD-DE
500
2000
18.5”X4.5”X8” –10”
12”X12”X10” –10”
10
115V/60Hz/12A
140
NOTES:
• Also see the voltage, frequency and current specified on the label at the
cooling unit.
• The rated capacity is determined under the cellar and ambienttemperatures of
55°F and 75°F with R13 interior and R19 exterior insulations. Any lower cellar
temperature, higher ambient temperature and less insulation will cause
reducing capacity and may not maintain 55°F.
• The ambient temperatures shall not be higher than 100°F or lower than 50°F in
order to operate properly.

-5-
Installation Instructions
WARNING
•Always check wiring harness connections before initiating any test procedures.
•Disconnect electric power from the appliance before performing any maintenance or
repairs.
•Voltage checks should be made by inserting meter proves beside the wires in the
connector blocks with the electric power source on and the connector block plugged
in.
•Resistance checks should be made on components with the electric power off and the
connector block disconnected.
NOTES:
oMounting brackets, screws, gaskets and other seal materials are not included.
oDo not install any ducts onto the cold-air supply and cellar-air return.
oDucts can be used on the hot-air exhaust and ambient-air intake side
oMounting brackets, screws, gaskets and other seal materials are not included.
1. General Instructions
• The cooling unit produces cooling supplied into the cellar, meanwhile it also
generates heat that must be exhausted outside the cellar. So the cold- air
supply with cellar-air return side and the hot-air exhaust with ambient-air intake
side must be separated and sealed. Through-wall installations can separate
these two sides.
• Furthermore, the condenser of cooling unit must intake adequate fresh
ambient-air to work properly. The ambient-air intake and hot-air exhaust must
not be short-circulated. Both of them must remain unobstructed 36” clearance
all around. The area into which the hot air is exhausted must be well ventilated.
If it is not, heat generated by the unit will build up and the unit will not operate
properly.
• Additionally, cold-air supply from the front grille must remain unobstructed 36”
clearance.
• The ambient temperatures shall not be above and below what are specified.

-6-
2. WM-6500~8500HZD-DE through-wall installation
Fig. 2.1 THROUGH- WALL INSTALLATION
• The cooling unit shall be mounted near the ceiling with equal distance from each side
of the cellar.
• Cut a rectangular opening at the wine cellar wall as illustrated. The dimensions of
the opening shall be 1/4” larger than the width and height of thecooling unit.
• Construct a shelf as shown. The shelf must be capable of supporting the weight of
the cooling unit and preventing it from moving.
• Place the cooling unit on the shelf with the back of the unit flush with the outside of
the wall.
• Seal the clearance between the cooling unit and opening with a high quality weather
stripping, polyurethane spray foam, or foam tape. Cover the seal withmolding and
attach the molding to the wall not the unit.
• Attach the adapter of hot-air exhaust duct hood to the rear of the cooling unit with
screws; then attach the hot-air exhaust duct hood with adhesive tapes.
• Attach the ambient-air duct hood to the rear of the cooling unit with adhesive tapes.
• Attach the insulated ducts to the hoods with adhesive tapes.
• Secure the ducts with conduits to the cellar exterior walls and make sure they are not
curled, twisted, bent and clogged.
• Plug the unit into a properly grounded and dedicated outlet of adequate capacity.

-7-
NOTE:
• The cooling unit can be installed with the front of the unit flush with the
inside of the wall. Construct a shelf outside the cellar accordingly.
• The exhaust and intake ducts can be 50 ft in total.
Fig. 2.2 Through-wall Installation with hot-air exhaust duct (outside wall
flush)
Fig. 2.3 Through-wall Installation with hot-air exhaust duct (inside wall
flush)

-8-
Fig. 2.4 Through-wall Installation with hot-air exhaust and ambient-air
intake ducts
Fig. 2.5 ATTACHING THE ADAPTER OF HOT-AIR EXHAUST DTCT HOOD

-9-

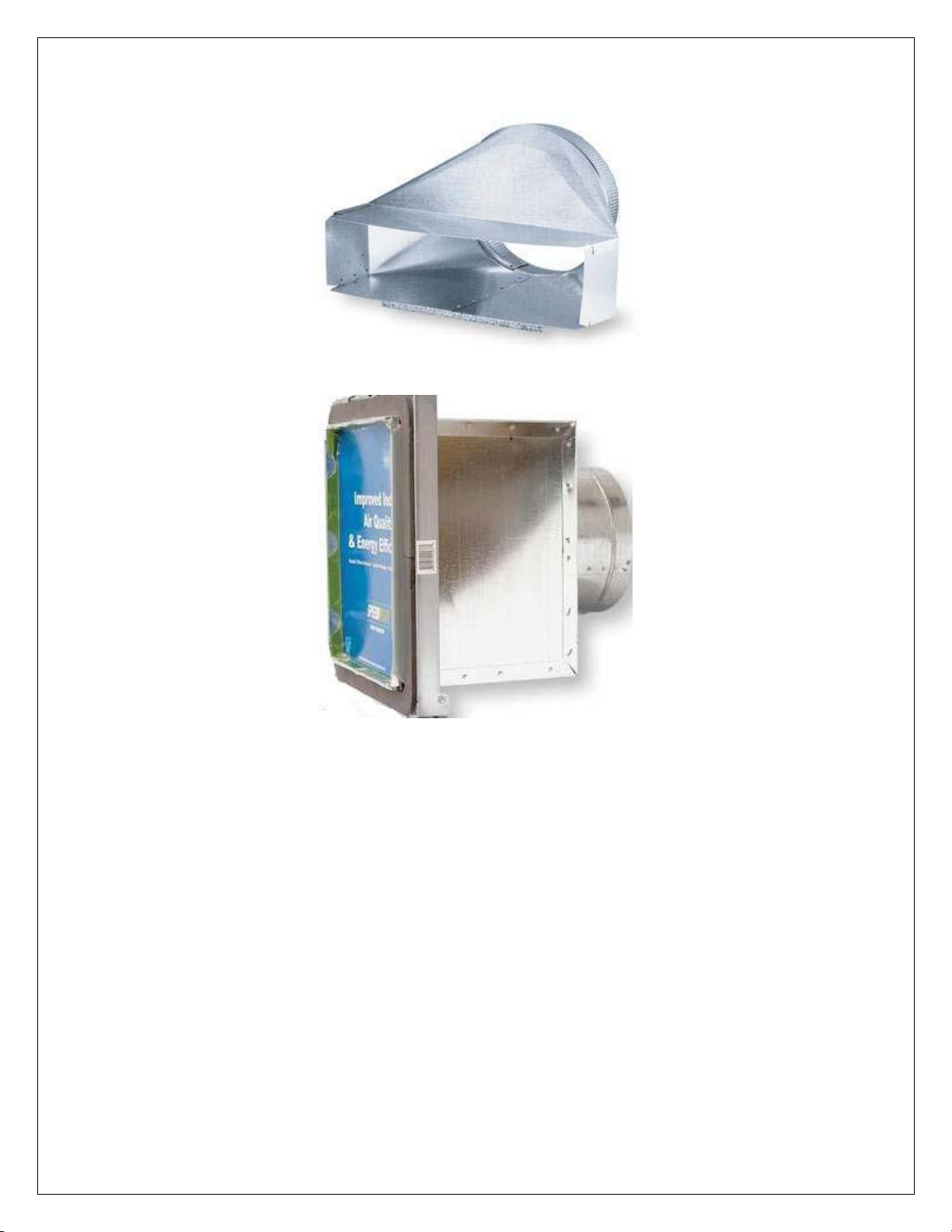

Fig. 2.6 HOT-AIR EXHAUST DUCT HOOD (18.5”WX4.5”DX8”H - 10” DIA)
Fig. 2.7 AMBIENT-AIR INTAKE DUCT HOOD (12”WX12”DX10”H - 10” DIA)
4. Cellar Construction
This is only a guide and shall be considered as minimum requirements.
All interior walls and floors shall have a vapor barrier and a minimum of R13
insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum
of R19 insulation. The vapor barrier shall be installed on the warm side of the
insulation. All joints, door frames, electrical outlets or switches and any pipes or
vents that go through the cellar shall be sealed to prevent air and moisture leakage
into the cellar. Concrete, rock, and brick are not insulation or vapor barriers.

-10-
Doors shall be of a minimum size, insulated to at least R13 and tightly sealed
with high quality weather stripping. Be sure to seal the bottom of the door and fill
gap between the door’s frame and wall before installing the cap molding.
In order to maintain 55 °F in the wine cellar, the ambient temperature surrounding
the enclosure shall not exceed the temperature of the cellar by morethan 25 °F.
No cellar wall shall receive direct sun or strong wind.
Lighting shall be of low wattage, with a timer to insure lights are not left on when
the cellar is not occupied.
The cooling system will not be able to maintain the proper temperature if fresh
moisture-laden air is constantly being introduced to the cellar. Symptoms of this
condition are; cooling unit runs all the time with only a slight reduction in
temperature and/or water overflows from the unit. Because of the temperature
difference between the inside and outside, very small cracks can allow large
amounts of outside air to enter into the cellar. Please be aware that moisture can
pass through solid concrete, paint and wood. Often a newly constructed cellar
contains fresh wood, paint, concrete and other building materials. These materials
contain large amounts of moisture. When placed into operation in this type of
environment, the system will work harder to remove this extra moisture resulting
in increased “run” time.

-11-
Temperature and Humidity
1. The controller
Fig. 3.1 TEMPERATURE CONTROLLER
1) Keys
SET: To display set-point; in programming mode it selects a parameter or
confirms an operation.
: To start a manual defrost.
: To see the maximum stored temperature; in programming mode it browses
the parameter codes or increases the displayed value.
: To see the minimum stored temperature; in programming mode it browses
the parameter codes or decreases the displayed value.
: To turn on/off the power to the unit.
+ : To lock/unlock the keypad.
SET+ : To enter in the programming mode.
SET+ : To return to the temperature display.
2) Lock and unlock the keys
To lock the keys, press up + down keys + until POF is displayed; to unlock
the keys, press up + down keys + until PON is displayed.
3) Display
During normal operating conditions, the display shows the value measured by
the air temperature probe. In case of active alarm, the temperature flashes
alternately to the code alarm. The LED functions are listed as follows.
LED
MODE
FUNCTION
ON
Compressor enabled
Flashing
Anti-short cycle enabled
ON
Defrost cycle enabled
ON
Fan enabled
Flashing
Fan delay after defrost enabled
ON
Alarm occurring
ON
Temperature measuring unit
Flashing
Programming mode

-12-
4) Alarm Signals
The alarm codes are described as follows.
MESSAGE
CAUSE
FUNCTION
P1
Temperature probe
faulty
Compressor switching to Con and
CoF
HA
High temperature
alarm
Probe temperature ALU higher than
thesetting temperature; Outputs
unchanged
LA
Low temperature alarm
Probe temperature ALL lower than the
setting temperature; Outputs
unchanged
CA
External alarm
All outputs off
Probe alarms P1”, start a few seconds after the fault in the related probe; they
automatically stop a few seconds after the probe restarts normal operation.Check
connections before replacing the probe. Temperature alarms “HA”, “LA”
automatically stops as soon as the temperature returns to normal value. Alarm
“CA” (with i1F=PAL) recovers only by switching off and on the instrument.
2. Temperature Setting
• Set the temperature at 55 °F for the optimum aging of wine
• On initial start-up, the time required to reach the desired temperature will
vary, depending on the quantity of bottles, temperature setting andsurrounding
temperature.
• Allow 24 hours to stabilize the temperature for each new temperature setting
operation
3. How to see temperature set-point
1) Press and immediately release the SET key, the display will show the set-point
value.
2) Press again and immediately release the SET key to display the probe value.
4. How to change the set-point
1) Press and hold the SET key until the “°C” or “°F” LED starts flashing and the
set-point is displayed.
2) Press the up/down keys / to change the set-point value within 10 sec.
3) Press the SET key again to store the new set-point value.
NOTE: The unit turns on at set-point Set plus regulation differential Hy after anti-
short cycle AC has elapsed; the unit turns off at set-point Set.
5. Manual Defrost
Press and hold the defrost key until defrost starts. The defrost indicator will be
on.

-13-
6. Parameter Programming
1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing,
then release the keys.
2) Press and hold again the SET + keys until the Pr2 label is displayed, then
release the keys. The first parameter Hy will be displayed.
3) Press up/down keys / to scroll to the required parameter within 10 sec.
4) Press the “SET”key to display its value.
5) Use up/down keys to change its value within 10 sec.
6) Press “SET”to store the new value and the display will flash 3 times.
7) To exit: Press SET + or wait 15sec without pressing a key.
PARAMETER
DESCRIPTION
DEFAULT VALUE
Set
set-point (°)
55
Hy
temperature regulation differential (°)
4
AC
anti-short cycle delay (min)
10
Con
compress on with probe faulty (min)
15
CoF
compress off with probe faulty (min)
30
CF
temperature unit (°F/ °C)
F: Fahrenheit
rES
display resolution
in: integer
dLy
temperature display delay (min)
1
ot
probe calibration (°)
0
LS
minimum set-point (°)
50
US
maximum set-point (°)
65
idF
defrost cycle interval time (hour)
12
MdF
defrost cycle endurance time (min)
30
ALC
temperature alarm type
rE: relative to set-point
ALU
high temperature alarm (°)
10
ALL
low temperature alarm (°)
10
AFH
alarm recovery differential (°)
5
ALd
temperature alarm delay (min)
60
dAO
temperature alarm delay on startup
(hr)
23
SAA
heater set-point (°)
40
SHy
heater regulation differential (°)
4
FSU
fan action
Std
FnC
fan operating mode
C-n: on with compressor & off during
defrost
Fon
fan on with compressor off (min)
0
FoF
fan off with compressor off (min)
15
NOTE: Depending on the controller, not all parameters are used.
7. How to calibrate the air probe
If the actual cellar temperature differs from the setting temperature, set
parameter ot = actual cellar temperature minus set-point.
8. How to adjust defrost cycle

-14-
In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF =
20 can be used to avoid frost.
9. How to adjust the humidity
The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon
results in higher relative humidity. Use a separate hygrometer to monitor the
humidity.
10. How to set alarm call
1) Speech notice will be sent to your phones when the cellar temperature is ALU
higher or ALL lower than the set-point Set.
2) In order to test the call function, set parameters Ald = 0 and dAO = 0. After
testing, set Ald = 60 and dAO = 23.
11. How to set low cellar temperature heater
The heater turns on at SAA minus Shy; the heater turns off at SAA.
NOTES:
ï Use a forced air heater to warm up the wine cellar.
ï If there is a thermostat on the heater, bypass it or set the thermostat at the
highest level.
If the heater runs more than 10 A current, use a 120VAC coil contactor.

-15-
Care Guide
1. Cleaning Condenser
• Clean the condenser regularly at least every 6 months.
• Condenser is located on the ambient air intake side of the cooling unit.
• Use a condenser brush or a vacuum cleaner with an extended attachment to
clean the condenser.
2. Removing Condensate
Remove the excessive condensate if it is accumulated on the cooling unit in high
humidity conditions.
3. Removing Unit
When you remove the cooling unit, beware water may come out of the unit.

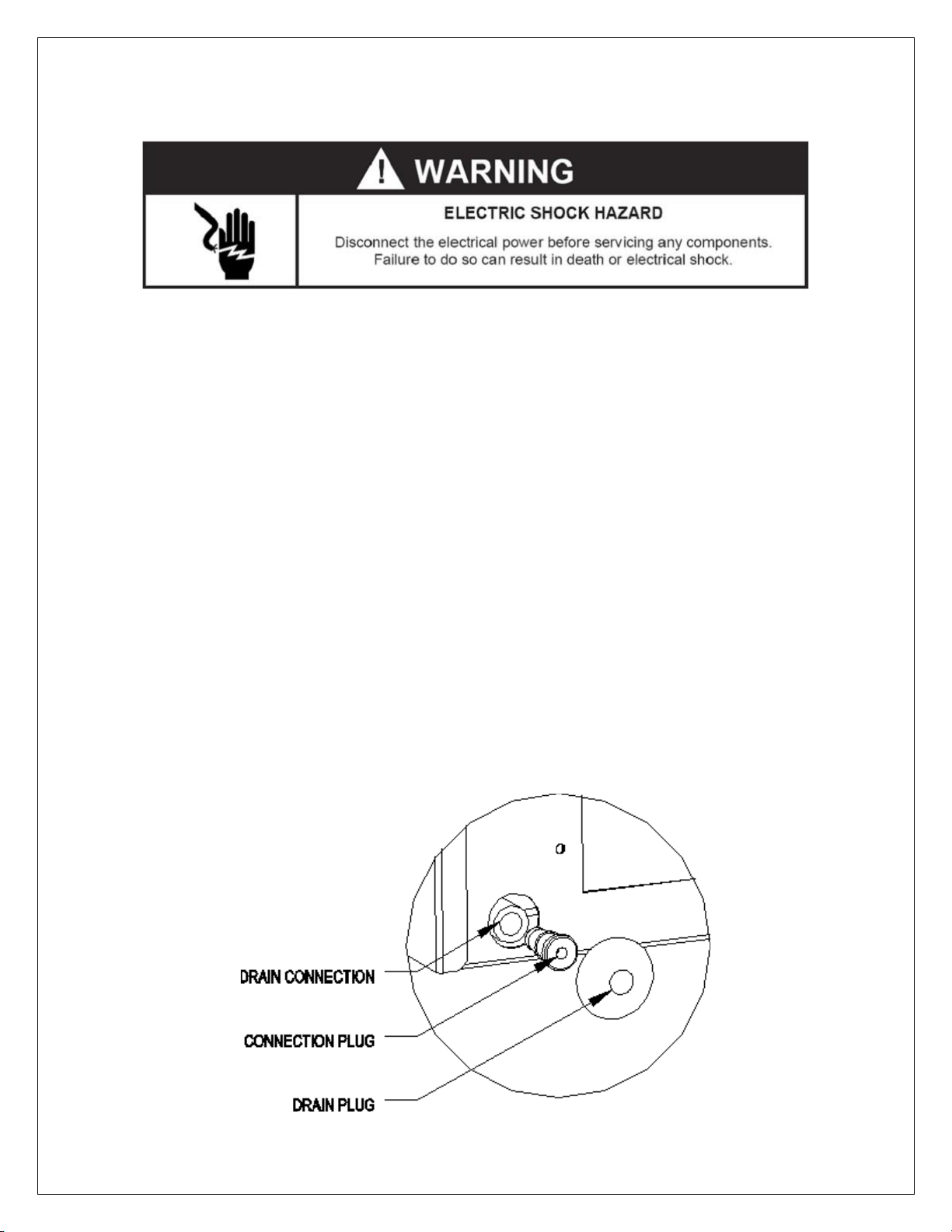

4. Installing Drain Line
The units are equipped with an additional drain fitting. In case of extreme humidity
there is a drain line needed, remove the drain plug on the bottom left at the rear,
then remove the connection plug and fit a 0.375” OD drain tube into the drain
connection. Install the cooling unit with the front higher than the rear.

-16-
Troubleshooting
This Troubleshooting Chart is not prepared to replace the training required for a
professional refrigeration service person, not is it comprehensive
Complaint
Possible Causes
Response
1. Unit notrunning
Power cord not plugged
No power from supply
Incorrect or loose wirings
Low voltage
Setting higher than ambient
temperature
Cut-in too high
Defrost light blinking
Compressor light blinking
Defective controller
Check power cord
Check receptacle and fuses
Check all wirings and connections
Contact an authorized electrician
Lower temperature setting
Reduce Hy
Unit is under defrost mode
Unit is under anti-short cycle delay
Call service for diagnosis
2. Unit not starting
, buttemperature
rising high
a. Anti-short cycle
a. Reset AC
3. Temperature
fluctuating
a. Air probe
a. When using an air probe, the wine
bottle temperature is mainly controlled
by the average air temperature. If the
set-point is 55°F with the differential 4F,
the cooling unit turns on at 59°F of air
temperature (It may be higher than
59°F if it is in anti-short cycle or defrost
cycle) and turns off at 55°Fof air
temperature. The average air
temperature is 57°F, and then the wine
temperature is around 57+/- 0.5°F. The
air is light enough to change so quickly
that it maintains relatively constant
average temperature that would
prevent wine
bottle temperature from fluctuating.
4. Temperature
high, unit stopping
and starting
normally
a. Temperature setting high
a. Lower the setting
5. Temperature
high, unit stopping
and starting with
short running time
Air probe touching the evaporator
coil, displaying temperature ok
Short circuit of air flow between cold-
air supply and cellar-air return,
displaying temperatureok
Failed controller and probe
Move the air probe away from the
evaporator
Deflect the supply air down
Call service for diagnosis
6. Temperature
a. Improper cellar insulation & seal
a. Check insulation, gasket and door

-17-
high or not
cooling and
running
continually
Cellar too large
Ambient temperature too high
Exhaust restricted
Malfunctioning fans
Evaporator or condenser airflow
Dirty Condenser
Iced evaporator
Refrigeration system restriction
Refrigerant leak
Undercharge or overcharge
Failed components
opening
Check for excessive size
Check installation location
Leave minimum 3 feet clearance forthe
hot air exhaust side and leave minimum
1 foot clearance for the fresh air intake
side
Check for both evaporator and
condenser fans
Check for air restrictions, air short-
circulation, grille directions
Clean condenser
Defrost and reset temperature
Call service
Call service
Call service
Check compressor windings, startrelay
and overload protector
7. Unit runningtoo
long
Improper cellar insulation & seal
Cellar too large
Ambient temperature higher >90°F
Exhaust restricted
Dirty Condenser
Improper condenser air flow
Check insulation, gasket and door
opening
Check for excessive size
Check for installation location
Leave minimum 3 feet clearance for the
hot air exhaust side and leave minimum
1 foot clearance for the fresh air intake
side
Clean condenser
Check for fan and air short circulation
8. Fan motor
running but
compressornot
running
Post-compressor fan
runningmode
Incorrect or loose wirings
Failed components
Liquid refrigerant in the
compressor
Check fan running time FON
Check all wirings and connections
Check start relay, start capacitor,
overload protector, compressor.
Call service.
9. Compressor
running butfan not
running
Fan blade stuck
Incorrect or loose wirings
Failed motors
Check for proper clearance
Check all wirings
Call service
10.Temperature
high, compressor
stopping and
starting but very
short running time
Failed components
Improper condenser airflow
Dirty condenser
Overcharge of refrigerant
Discharge or suction pressuretoo
high
Check compressor windings, startrelay
and overload protector.
Check for condenser fan
Clean condenser
Call service for removing refrigerant
Call service for information
11.Fan runningtoo
long
a. Post-compressor fan
runningmode for humidity
modulation
a. Reset FON
12.Temperature
a. Low temperature setting
a. Raise the setting

-18-
low
Low ambient temperature
Air probe fault
Temperature controller fault
Move to another location
Change a new one
Change a new one
13.Evaporator
freezing up
Evaporator air flow restriction
Low temperature setting
Low ambient temperature
Defective controller or probe
Not stopping due to air leak, high
ambient temperature, condenser air
flow restriction or pull-down cooling
Initially working then stopping,
moisture in the system
Refrigerant low or leaking
Capillary tube or expansion valve
blockage
Check for fans and air flow
Check for set-point
Change defrost cycle
Check for controller and probe
Check for seal, door opening, ambient
temperature and condenserair flow
Call service
Call service
Call service
14.Water leak
Air leak in the wine cellar causing
excessive condensate
High humidity causing excessive
condensate
Evaporator air flow restriction
Water passages restricted
Drip tray leak (No water overflowbut
water leak)
Check for air leak
Use drain line
Check supply air flow or air TD
Clean the drip tray
Seal the leak using silicone sealant
15.Excessive
condensatein
wine cellar
Air leak in the wine cellar causing
excessive condensate
High humidity causing excessive
condensate
Water passages restricted
Check for any air leak
Use drain line
Clean the drip tray
16.Condensate
inside ducts
Drain line restricted
Continually running not stopping
Too cold supply air
Check for drain
raise temperature setting or
increase defrost cycle
Increase air flow or
raisetemperature setting
17.Condensate
outside ducts
Duct not insulated
High humidity
Too cold supply air
Check for insulation
Use dehumidifier
Increase air flow or
raisetemperature setting
18.Circuit
tripping
Incorrect fuse or breaker
Incorrect wirings
Failed components
Check for proper fuse or breaker
Check for wirings and connections
Call service
19.Noisy
operation
Mounting area not firm
Loose parts
Compressor overloaded due tohigh
ambient temperatures or airflow
restriction
Defective components
Add support to improve installation
Check fan blades, bearings,washers,
tubing contact and loose screws.
Check for airflow
Call service for checking internal loose,
inadequate lubrication and
incorrect wirings

-19-
Electrical Wiring Diagram

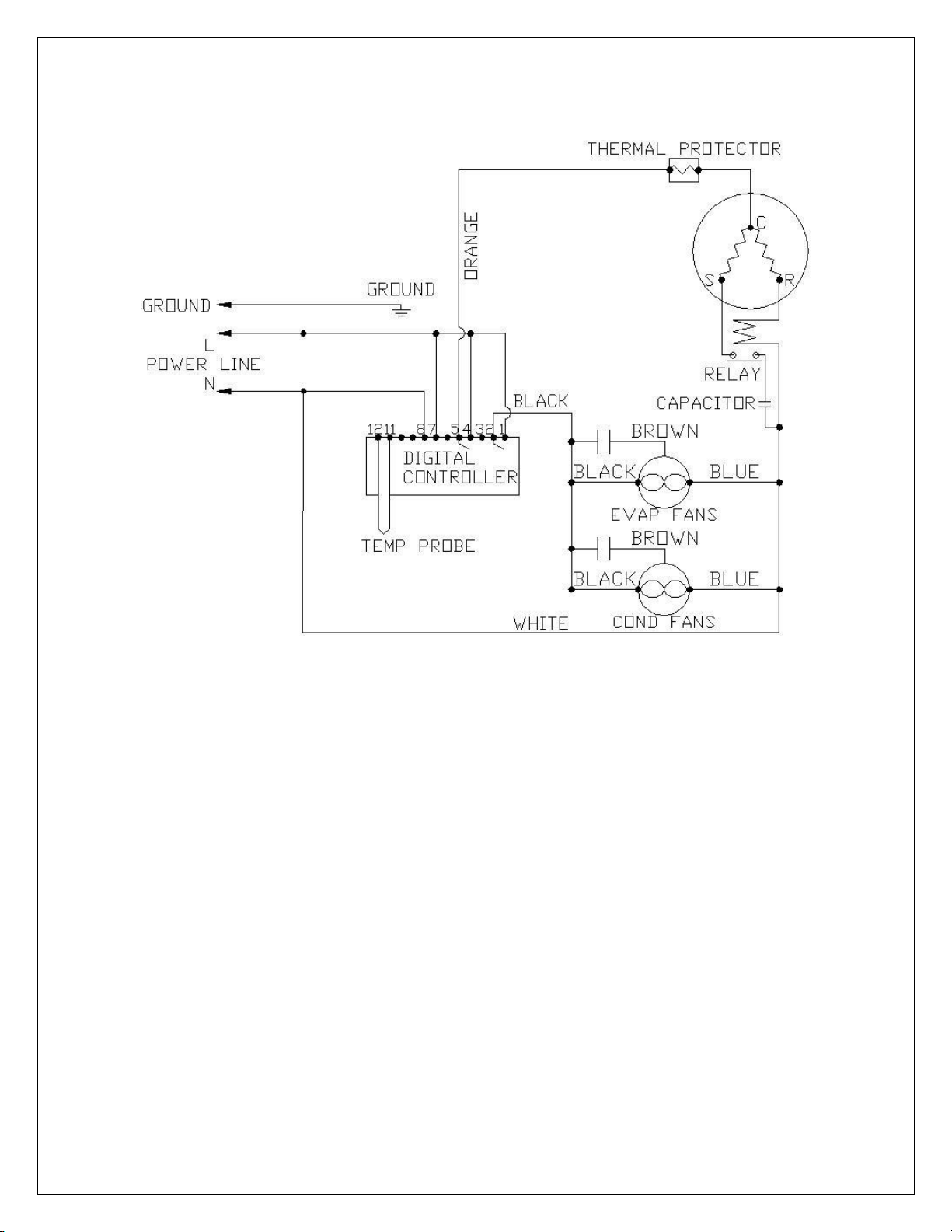

Fig. 6.1 WM-6500~8500HZD-DE WIRING DIAGRAM
