Vintage Air 1967-68 CAMARO w/o Factory Air Gen IV User manual

18865GOLL ST
.- SAN ANTONIO, TX.- 78266 ph.210-654-7171 - fax [phone]
1967-68 CAMARO
w/o FACTORY AIR GEN IV
561167
CAMARO w/o AC GEN IV EVAP INSTR PG 1 OF 32901167 REV A , 67-685/4/07

1967-68 CAMARO w/o AC GEN IV
PAGES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
COVER
TABLE OF CONTENTS
PACKING LIST/ PARTS DISCLAIMER
INFORMATION PAGE
WIRING NOTICE
ENGINE COMPARTMENT
FIGURE 1
PASSENGER COMPARTMENT
FIGURES 2 & 3
DASH FRAME MODIFICATION & TRIM PLATE MODIFICATION
FIGURES 4 & 5
CENTER LOUVER INSTALLATION
FIGURES 5a & 5b

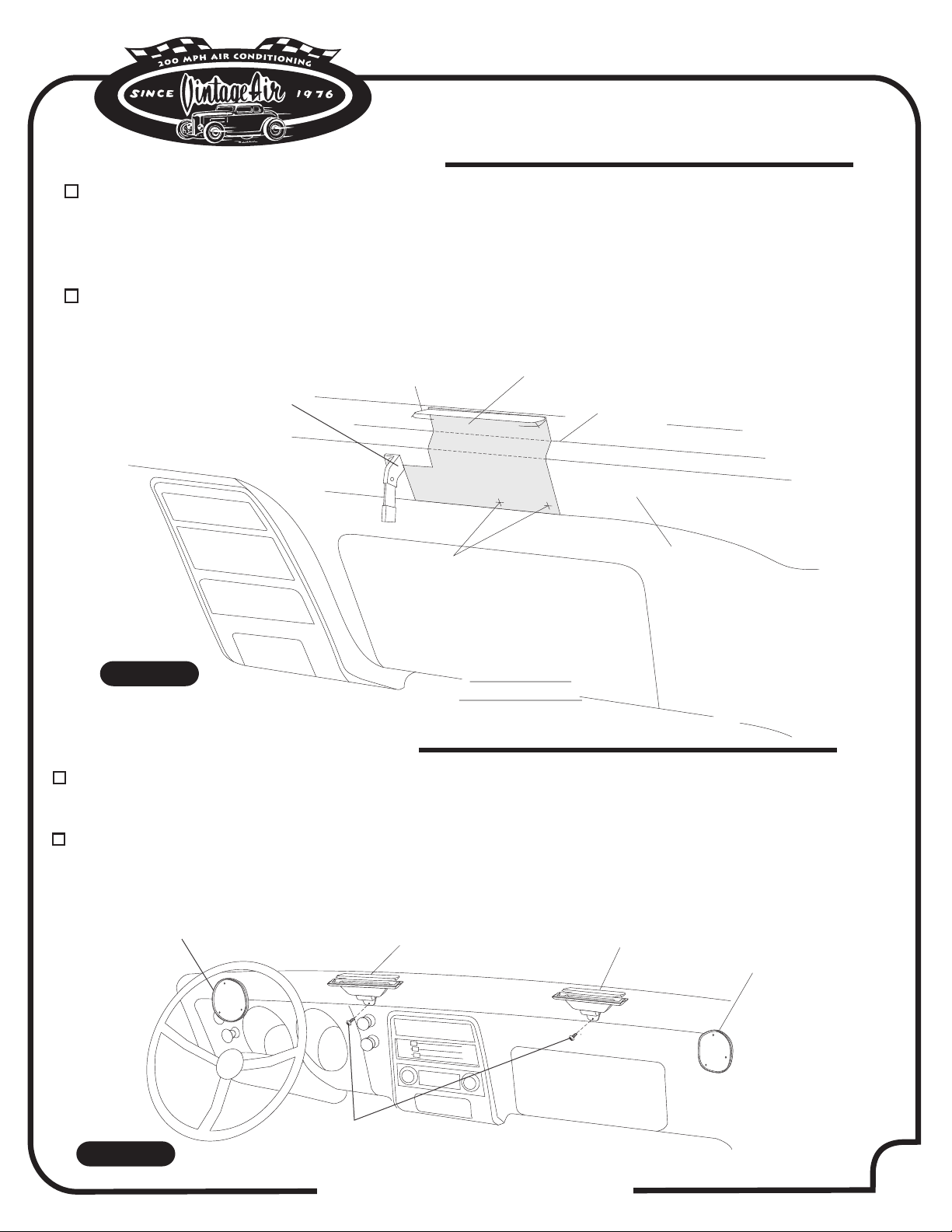

EVAPORATOR MOUNTING HOLES, DEFROST DUCT, & FRESH
AIR COVER INSTALLATION
FIGURES 6 & 7

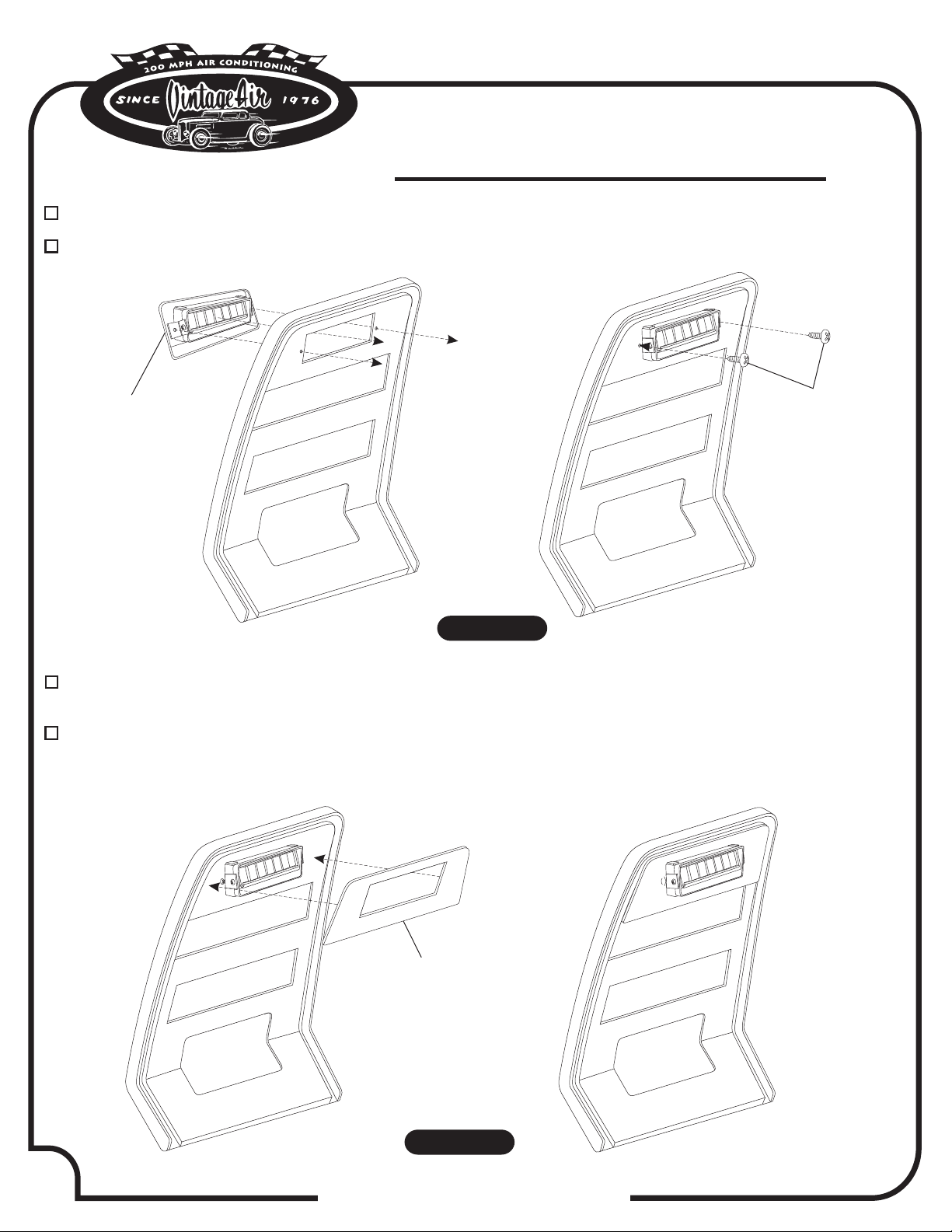

PASSENGER AND DRIVER SIDE LOUVER INSTALLATION
FIGURES 8 & 8a
PASSENGER & DRIVER SIDE LOUVER INSTALLATION CONT. AND 1968 ASTRO VENT
HOSE ADAPTER INSTALLATION
FIGURES 9 & 9a

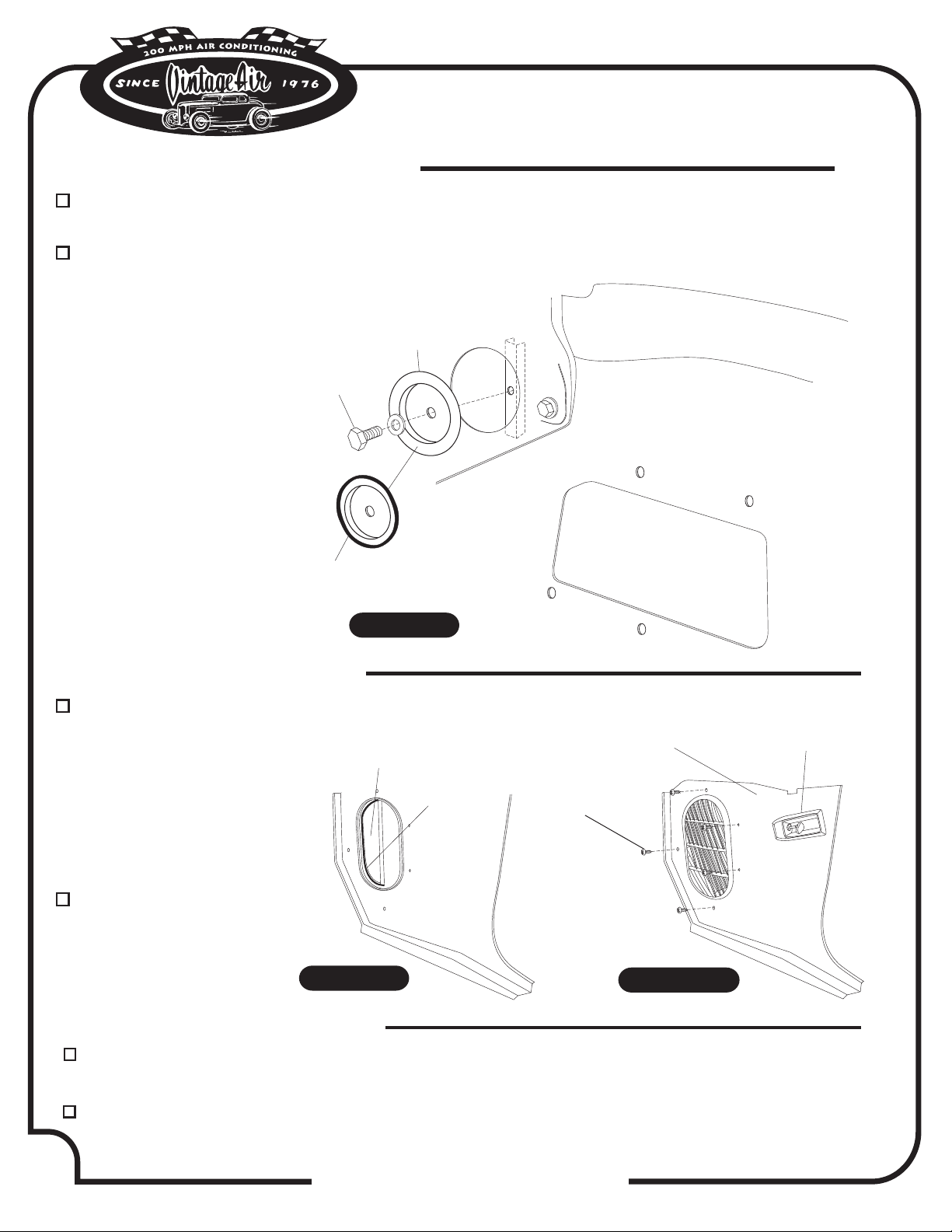

FRESH AIR COVER, KICK PANEL, FIREWALL COVER INSTALLATION
FIGURES 10, 11, 11a
EVAPORATOR INSTALLATION
FIGURE 12
FIREWALL COVER, & EVAPORATOR INSTALLATION
FIGURES 13 & 14
CENTER LOUVER & HOSE ADAPTER, AND DRAIN HOSE INSTALLATION
FIGURES 15 & 16

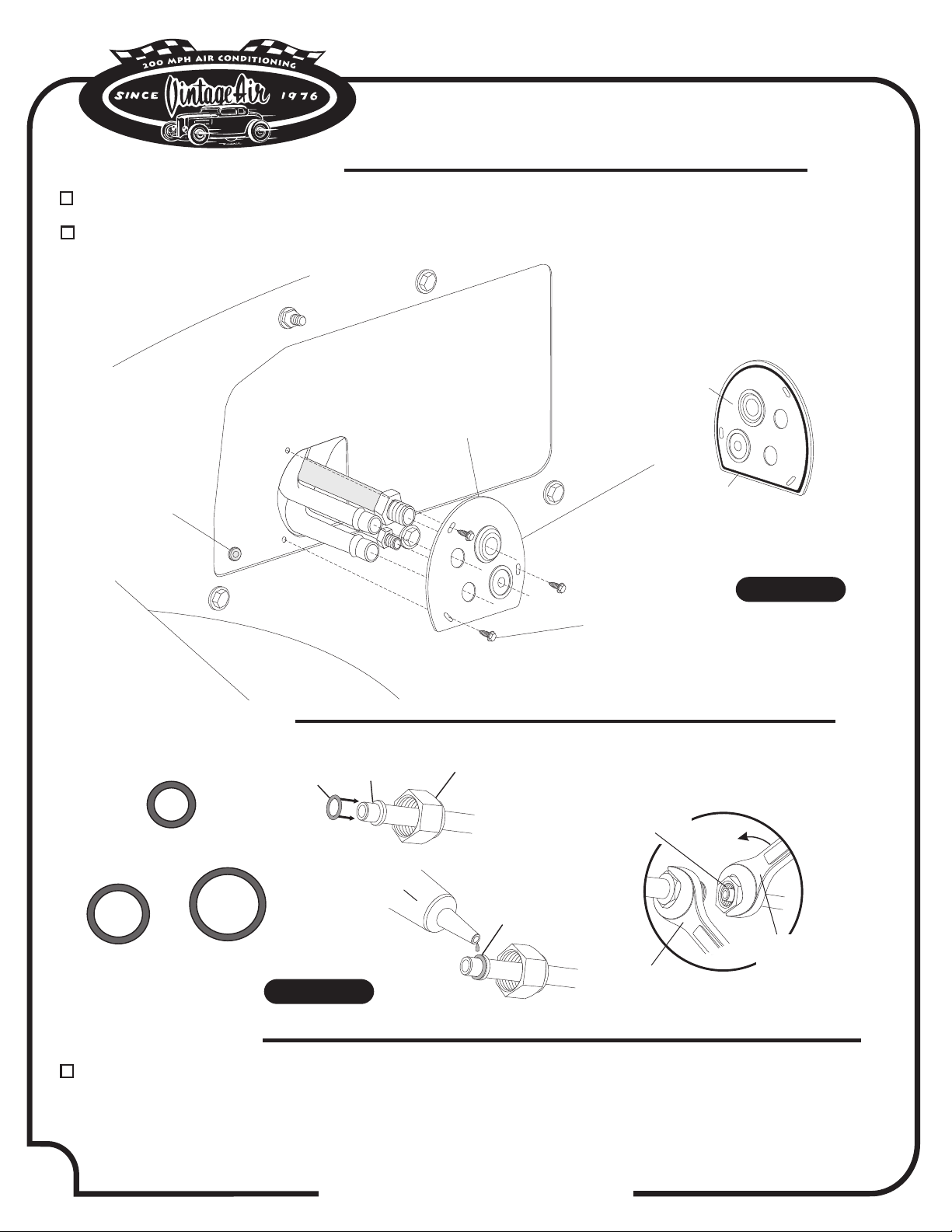

FIREWALL CAP INSTALLATION, AND LUBRICATING O-RINGS, STANDARD HOSE KIT.
FIGURES 17 & 18
STANDARD HOSE KIT CONT. & MODIFIED HOSE KIT, HEATER HOSE, HEATER
CONTROL VALVE INSTALLATION
FIGURES 19 & 19a

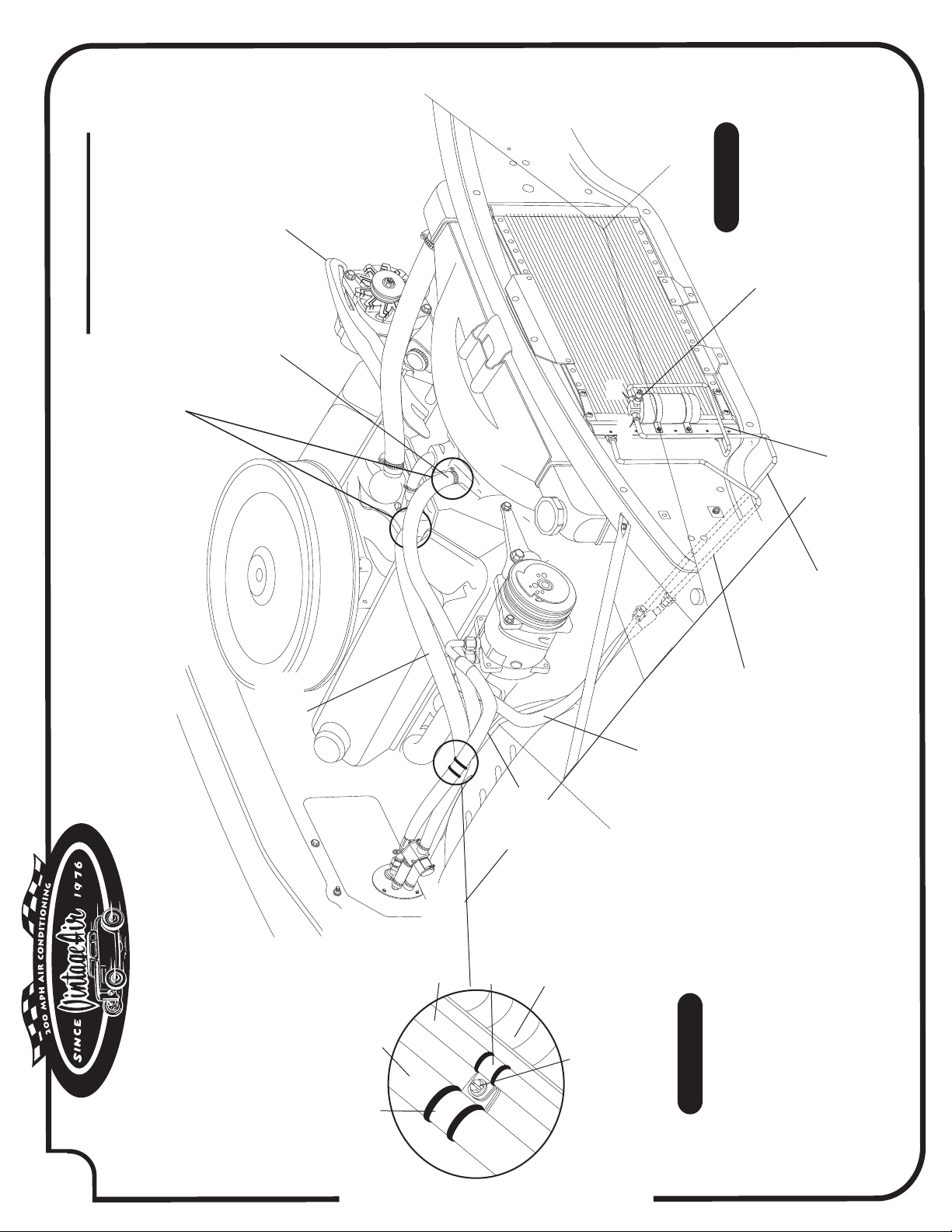

A/C & HEATER HOSE ROUTING
FIGURES 20 & 20a
FINAL STEPS &
FIGURES 21 & 21a
CONTROL PANEL & DUCT HOSE ROUTING
FIGURES 22 & 23
EVAPORATOR HARDLINE AND BRACKET INSTALLATION
FIGURE 24
WIRING DIAGRAM
OPERATION OF CONTROLS
TROUBLE SHOOTING
TROUBLE SHOOTING CONT.
EVAPORATOR BRKT MOUNTING HOLE TEMPLATE
CENTER VENT TEMPLATE
PASSENGER SIDE VENT TEMPLATE
DRIVER SIDE VENT TEMPLATE
EVAPORATOR KIT PACKING LIST
GLOVE BOX INSTALLATION
GEN IV WIRING CONNECTION INSTRUCTIONS
Table of Contents
AC GEN IV EVAP INSTR PG 2 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 2

1967-68 CAMARO w/o AC GEN IV
** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT.
PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS,
VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
EVAPORATOR KIT PACKING LIST EVAPORATOR KIT
561167
No. QTY. PART No. DESCRIPTION
1.
2.
1
1
1
ACCESSORY KIT
781168
2
1967-68 CAMARO w/o AC
GEN IV EVAP. SUB CASE
761168
761168
781168
1967-68 CAMARO w/o AC GEN IV EVAP. SUBCASE
1967-68 CAMARO w/o AC GEN IV ACC. KIT
AC GEN IV EVAP INSTR PG 3 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES
OFF
COLD
OFF
FLR
HOT
ON
DE-ICE
3

1967-68 CAMARO w/o AC GEN IV
IMPORTANT NOTICE-PLEASE READ
FOR MAXIMUM SYSTEM PERFORMANCE VINTAGE AIR RECOMMENDS THE FOLLOWING:
LUBRICANT CAPACITIES:
134a SYSTEM R-12 SYSTEM
CHARGE WITH 2.0 lbs. OF REFRIGERANT
CHARGE WITH 1.8 lbs.
(1lbs. 12ozs) OF REFRIGERANT
NEW COMPRESSOR - NO ADDITIONAL OIL NEEDED
USED COMPRESSOR - CONSULT VINTAGE AIR
SERVICE INFO:
SAFETY SWITCHES:
ATTENTION: SYSTEM COMPONENTS: THE COMPRESSOR, EVAPORATOR, CONDENSER & DRIER ARE CAPPED.
CAPS MAY BE UNDER PRESSURE WITH DRY NITROGEN; BE CAREFUL REMOVING CAPS. DO NOT REMOVE CAPS
PRIOR TO INSTALLATION. REMOVING CAPS PRIOR TO INSTALLATION WILL CAUSE COMPONENTS TO COLLECT
MOISTURE AND LEAD TO PREMATURE FAILURE AND REDUCED PERFORMANCE.
EVACUATE THE SYSTEM FOR 35-45 MINUTES WITH SYSTEM COMPONENTS (DRIER, COMPRESSOR, EVAPORATOR
AND CONDENSER) AT A TEMPERATURE OF AT LEAST 85° F. ON A COOL DAY THE COMPONENTS CAN BE HEATED
WITH A HEAT GUN OR BY RUNNING THE ENGINE WITH THE HEATER ON BEFORE EVACUATING. LEAK CHECK
AND CHARGE TO SPECIFICATIONS.
YOUR VINTAGE AIR SYSTEM IS EQUIPPED WITH A BINARY PRESSURE SAFETY SWITCH. A BINARY SWITCH
(11078-VUS) DISENGAGES THE COMPRESSOR CLUTCH IN CASE OF EXTREME LOW PRESSURE CONDITION
(REFRIGERANT LOSS) OR EXCESSIVELY HIGH HEAD PRESSURE (406 PSI), TO PREVENT COMPRESSOR DAMAGE
OR HOSE RUPTURE. A TRINARY SWITCH (11076-VUS) COMBINES HI/LO PRESSURE PROTECTION WITH AN
ELECTRIC FAN OPERATION SIGNAL AT 254 PSI., AND MAY BE SUBSTITUTED FOR USE WITH ELECTRIC
CONDENSER FANS. COMPRESSOR SAFETY SWITCHES ARE EXTREMELY IMPORTANT SINCE AN A/C SYSTEM
RELIES ON REFRIGERANT TO CARRY LUBRICATION THROUGH THE SYSTEM.
THIS KIT DOES NOT CONTAIN HEATER HOSE. YOU MUST PURCHASE 8 FEET OF 5/8” DIA.
HEATER HOSE FROM VINTAGE AIR (31800-VUD) OR FROM YOU LOCAL PARTS RETAILER
VINTAGE AIR SYSTEMS ARE DESIGNED TO OPERATE WITH R134a or R-12
REFRIGERANT ONLY ! USE OF ANY OTHER REFRIGERANTS RISKS A DANGER OF FIRE
AND COULD DAMAGE EITHER YOUR AIR CONDITIONING SYSTEM OR YOUR VEHICLE.
USE OF ANY OTHER REFRIGERANTS WILL VOID ALL WARRANTIES OF
THE AIR CONDITIONING SYSTEM AND COMPONE NTS. USE OF THE PROPER
TYPE AND AMOUNT OF REFRIGERANT IS CRITICAL TO PROPER SYSTEM
OPERATION. VINTAGE AIR RECOMMENDS OUR SYSTEMS BE CHARGED BY
WEIGHT WITH A QUALITY CHARGING STATION OR SCALE.
REFRIGERANT CAPACITIES FOR VINTAGE AIR SYSTEMS
(FOR OTHER SYSTEMS, CONSULT MANUFACTURER GUIDELINES)
1967-68 CAMARO
w/o FACTORY AIR
4
AC GEN IV EVAP INSTR PG 4 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o

THE HEATER CONTROL VALVE IS A NORMALLY OPEN VALVE. IT MUST BE CONNECTED TO
THE ECU TO BLOCK WATER FLOW IN AC MODE.
CARE MUST BE TAKEN WHEN INSTALLING THE COMPRESSOR LEAD, NOT TO SHORT
IT TO GROUND. THE COMPRESSOR LEAD MUST NOT BE CONNECTED TO A CONDENSER
FAN OR ANY OTHER AUXILIARY DEVICE. SHORTING TO GROUND OR CONNECTING
TO A CONDENSER FAN OR ANY OTHER AUXILIARY DEVICE WILL CAUSE SEVERE DAMAGE
TO THE ECU.
SOME VEHICLES MAY HAVE HAD SOME OR ALL OF THEIR RADIO INTERFERENCE CAPACITORS REMOVED.
THERE SHOULD BE A CAPACITOR FOUND AT EACH OF THE FOLLOWING LOCATIONS:
1. ON THE POSITIVE TERMINAL OF THE IGNITION COIL
2. IF THERE IS A GENERATOR, ON THE ARMATURE TERMINAL OF THE GENERATOR
3. IF THERE IS A GENERATOR, ON THE BATTERY TERMINAL OF THE VOLTAGE REGULATOR
MOST ALTERNATORS HAVE A CAPACITOR INSTALLED INTERNALLY TO ELIMINATE WHAT IS CALLED
'WHINING' AS THE ENGINE IS REVVED. IF WHINING IS HEARD IN THE RADIO, OR JUST TO BE EXTRA
CAUTIOUS, A RADIO INTERFERENCE CAPACITOR CAN BE ADDED TO THE BATTERY TERMINAL OF THE
ALTERNATOR.
IT IS ALSO IMPORTANT THAT THE BATTERY LEAD IS IN GOOD SHAPE AND THAT THE GROUND LEADS
ARE NOT COMPROMISED. THERE SHOULD BE A HEAVY GROUND FROM THE BATTERY TO THE ENGINE
BLOCK, AND ADDITIONAL GROUNDS TO THE BODY AND TO THE CHASSIS.
IF THESE PRECAUTIONS ARE NOT OBSERVED, IT IS POSSIBLE FOR VOLTAGE SPIKES TO BE PRESENT ON
THE BATTERY LEADS. THESE SPIKES COME FROM IGNITION SYSTEMS, CHARGING SYSTEMS, AND FROM
TURNING SOME OF THE VEHICLE'S OTHER SYSTEMS ON AND OFF. MODERN COMPUTER OPERATED
EQUIPMENT CAN BE SENSITIVE TO VOLTAGE SPIKES ON THEIR POWER LEADS, WHICH CAN CAUSE
UNEXPECTED RESETS, STRANGE BEHAVIOR, AND MAY ALSO CAUSE PERMANENT DAMAGE.
VINTAGE AIR STRIVES TO HARDEN THEIR PRODUCTS AGAINST THESE TYPES OF ELECTRICAL NOISE,
BUT THERE IS A POINT WHERE A VEHICLE'S ELECTRICAL SYSTEM CAN BE DEGRADED SO MUCH THAT
NOTHING CAN HELP.
RADIO INTERFERENCE CAPACITORS SHOULD BE AVAILABLE AT MOST AUTO & TRUCK PARTS SUPPLIERS.
THEY TYPICALLY ARE CYLINDRICAL IN SHAPE, A LITTLE OVER AN INCH LONG, A LITTLE OVER A HALF
INCH IN DIAMETER, THEY HAVE A SINGLE LEAD COMING FROM ONE END OF THE CYLINDER WITH A
TERMINAL ON THE END OF THE WIRE, AND THEY WILL HAVE A MOUNTING CLIP WHICH IS SCREWED
INTO A GOOD GROUND ON THE VEHICLE. THE SPECIFIC VALUE OF THE CAPACITANCE IS NOT TOO
SIGNIFICANT, IN COMPARISON TO IGNITION CAPACITORS THAT ARE MATCHED WITH THE COIL TO
REDUCE PITTING OF THE POINTS.
IMPORTANT WIRING NOTICE-PLEASE READ
G
WHEN INSTALLING GROUND LEADS ON EN IV SYSTEMS, THE BLOWER CONTROL GROUND
AND ECU GROUND MUST BE CONNECTED DIRECTLY TO THE NEGATIVE BATTERY POST.
1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 5 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
5

1967-68 CAMARO w/o AC GEN IV
BEFORE STARTING THE INSTALLATION, CHECK THE FUNCTION
OF THE VEHICLE (HORN, LIGHTS, ETC.) FOR PROPER OPERATIONS.
STUDY THE INSTRUCTIONS, ILLUSTRATIONS, & DIAGRAMS.
ENGINE COMPARTMENT
CONDENSER ASSEMBLY & INSTALLATION
REFER TO SEPARATE INSTRUCTIONS INCLUDED WITH THE BRACKET KIT TO INSTALL THE COMPRESSOR BRACKET.
COMPRESSOR & BRACKETS
IN MOST INSTANCES THE BELT LENGTHS WILL REMAIN THE SAME.
PULLEYS
RADIATOR
INNER
FENDER PANEL
OUTER
FENDER
BATTERY &
BATTERY TRAY
HEATER HOSE
CLAMP
OEM
BLOWER MOTOR
ASSEMBLY
HOOD LATCH
AND SUPPORT
ASSEMBLY FIGURE 1
REMOVE THE FOLLOWING
BATTERY AND BATTERY TRAY (RETAIN). SEE FIGURE 1a.
DRAIN RADIATOR
HOOD LATCH ASSEMBLY (RETAIN) INCLUDING HOOD LATCH SUPPORT
HEATER BLOWER MOTOR ASSEMBLY (DISCARD). TO REMOVE THE HEATER BLOWER MOTOR ASSEMBLY
(UNDER HOOD) AND THE AIR DISTRIBUTION SYSTEM (UNDER DASH), THE FACTORY MANUAL
INDICATES DOING THE FOLLOWING: "REMOVE RIGHT LOWER ROCKER MOLDING. REMOVE
LOWER FENDER ATTACHING BOLTS. REMOVE SKIRT TO FENDER AND SKIRT TO REINFORCEMENT
SCREWS. PULL OUT ON LOWER PORTION OF FENDER, MOVING THE SKIRT AWAY FROM THE
FENDER FLANGE AND FIREWALL. BLOCK THE SKIRT WITH A 2 x 4 BLOCK OF WOOD".* TO AVOID
DAMAGE TO PAINT AND SHEET METAL, AND FOR EASE OF REMOVAL AND REPLACEMENT OF
COMPONENTS; VINTAGE AIR SUGGESTS THAT THE RIGHT FENDER BE REMOVED AND INNER PANEL
BE LOWERED. SEE FIGURE 1.
OEM HEATER HOSES (DISCARD). SEE FIGURE 1.
REMOVE OEM HEATER WIRING/VACUUM HARNESS MOLDED GROMMET. SEE FIGURE 1.
INSTALL 1 ½” PLUG IN FIREWALL. SEE FIGURE 1b BELOW.
OEM HEATER
WIRING/VACUUM
HARNESS
MOLDED GROMMET
33173-VUI
1 ½” PLUG
REFER TO SEPARATE INSTRUCTIONS INCLUDED WITH THE CONDENSER KIT TO INSTALL THE CONDENSER.
BINARY SWITCH INSTALLATION (REFER TO CONDENSER INSTRUCTIONS)
FIGURE 1b
AC GEN IV EVAP INSTR PG 6 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 6

1967-68 CAMARO w/o AC GEN IV
PASSENGER COMPARTMENT
OEM GLOVE BOX
ASTRO VENT
DOOR ASSEMBLY
(PASSENGER &
DRIVER SIDE)
ASTRO VENTS
IF EQUIPPED
(PASSENGER &
DRIVER SIDE)
TINNERMAN NUTS
OEM GLOVE BOX
DOOR
VIEW FROM INSIDE VEHICLE
ASTRO
VENTILATION
LOUVER
(1968 MODELS
ONLY)
CENTER DASH
TRIM PLATE
ASH
TRAY
ASH TRAY
SLIDER ASSEMBLY
OEM CONTROL
PANEL
RADIO
REMOVE THE ASH TRAY (RETAIN).
REMOVE ASH TRAY SLIDER ASSEMBLY (RETAIN).
REMOVE GLOVE BOX DOOR (RETAIN).
REMOVE AND DISCARD OEM GLOVE BOX (SAVE THE (3) TINNERMAN NUTS
FROM THE BOTTOM EDGE).
REMOVE THE CENTER DASH TRIM PLATE (RETAIN).
REMOVE THE RADIO (RETAIN).
REMOVE OEM CONTROL PANEL (RETAIN).
LOOSEN STEERING COLUMN AND LOWER.
REMOVE THE INSTRUMENT PANEL ASSEMBLY (RETAIN),
REMOVE THE FOLLOWING: SEE FIGURE 2
ON 1968 MODELS EQUIPPED WITH ASTRO VENTILATION YOU MUST REMOVE
THE ASTRO VENTS AND DOOR ASSEMBLIES (RETAIN THE DASH VENTS AND
DISCARD THE DOOR ASSEMBLIES).
REMOVE THE FRONT SEATS (OPTIONAL FOR EASE OF
A/C INSTALLATION ONLY).
INSTRUMENT PANEL
ASSEMBLY
STEERING
COLUMN
NOTE
NOTE
FIGURE 2
REMOVE THE OEM DEFROST DUCT (DISCARD).
SEE FIGURE 3 BELOW.
REMOVE THE OEM HEATER ASSEMBLY
(DISCARD). SEE FIGURE 3 BELOW.
FIGURE 3
HEATER
ASSEMBLY
DEFROST
DUCT
AC GEN IV EVAP INSTR PG 7 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
7

1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 8 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
MARK CENTER LOUVER OPENING AND MOUNTING HOLES ON TRIM PLATE. ONCE
CAREFULLY CUT OUT OPENING IN TRIM PLATE.
USING A 1/8” DRILL BIT, DRILL MOUNTING HOLES AS MARKED ON CENTER TRIM PLATE.
CUT OUT CENTER LOUVER TEMPLATE ON PAGE 29. ALIGN CENTER LOUVER TEMPLATE ON TRIM PLATE
AS SHOWN IN FIGURE 5 BELOW.
CENTER LOUVER OPENING
AND MOUNTING HOLES ARE MARKED REMOVE TEMPLATE AND
CUT ALONG THE DOTED LINE ON DASH AS SHOWN BELOW IN FIGURE 4.
TRIM PLATE MODIFCATION
DASH FRAME MODIFCATION
CUT CUT CUT
REMOVE SHADED
PORTION OF
DASH FRAME
CUT
CUT
FIGURE 4
TRIM
PLATE
CUT OUT
OPENING
MARK
OPENING
DRILL 1/8”
MOUNTING
HOLES
MARK 1/8”
MOUNTING
HOLES
TEMPLATE
FIGURE 5
8

1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 9 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
INSTALL CENTER LOUVER IN TRIM PLATE AS SHOWN BELOW IN FIGURE 5a.
SECURE CENTER LOUVER TO TRIM PLATE USING (2) #6 x 3/8” PH PAN HEAD SCREWS AS SHOWN
FIGURE 5a.
PILL PAPER BACKING FROM FOAM AND INSTALL FOAM ON BACK SIDE OF TRIM PLATE AS SHOWN IN
FIGURE 5b BELOW.
CUT OUT CENTER LOUVER FOAM TEMPLATE ON PAGE 29. PLACE CENTER LOUVER FOAM TEMPLATE ON
FOAM STRIP PROVIDED. TRACE TEMPLATE ON FOAM AND CUT OUT.
CENTER LOUVER INSTALLATION
CENTER
LOUVER
FOAM
(2) #6 x 3/8”
PH PAN HEAD
SCREWS
FIGURE 5a
FIGURE 5b
9

FOLD
FOLD
TEMPLATE
VIEW SHOWN
THROUGH DASH
EVAPORATOR MOUNTING HOLES
CUT OUT TEMPLATE PROVIDED ON PAGE 28. PLACE THE TEMPLATE UNDER THE DASH ON INNER
COWL BY ALIGNING THE LEFT SIDE OF THE TEMPLATE AGAINST THE DASH BRACKET AS SHOWN
IN FIGURE 6. FOLD THE TEMPLATE TO FOLLOW THE CONTOUR OF THE INNER COWL. MAKE SURE
THE UPPER LEFT HAND CORNER OF THE TEMPLATE ALIGNS WITH LEFT SIDE OF THE DEFROST
OPENING IN DASH AS SHOWN IN FIGURE 6.
ONCE TEMPLATE IS ALIGNED CORRECTLY, MARK MOUNTING HOLES ON
INNER COWL. ONCE HOLES ARE MARKED IN THE CORRECT LOCATION, DRILL (2) 3/16” HOLES IN
INNER COWL FOR EVAPORATOR FRONT MOUNTING BRACKET. SEE FIGURE 6 BELOW.
DEFROST DUCT &
FRESH AIR COVER INSTALLATION
INSTALL DEFROST DUCTS UNDER DASH AS SHOWN IN FIGURE 7 BELOW. ALIGN
DEFROST DUCT WITH DEFROST OPENING IN DASH, HOLD IN PLACE. USE BRKT AS TEMPLATE
AND DRILL 7/64” HOLE. SECURE USING #8 x ½” PH PAN HEAD SCREW.
IF VEHICLE IS EQUIPPED WITH ASTRO VENTILATION YOU MUST INSTALL DRIVER AND PASSENGER
SIDE FRESH AIR COVERS, SECURE USING OEM HARDWARE SEE FIGURE 7 BELOW.
INNER COWL
MARK
MOUNTING
HOLES
ALIGN WITH
FOLD IN
INNER COWL
TOP OF
DASH
ALIGN WITH
OPENING
ALIGN WITH
DASH
BRACKET
PASSENGER SIDE
DEFROST
DUCT
626675-VCA
DRIVER SIDE
DEFROST
DUCT
626675-VCA
(2)
PAN HEAD SCREW
18235-VUB
#8 x ½” PH
DRIVER SIDE
FRESH AIR COVER
498840-VCA PASSENGER SIDE
FRESH AIR COVER
498850-VCA
FIGURE 6
FIGURE 7
1967-68 CAMARO w/o AC GEN IV
10
AC GEN IV EVAP INSTR PG 10 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o

1967-68 CAMARO w/o AC GEN IV
PASSENGER AND DRIVER SIDE LOUVER INSTALLATION (67 MODELS ONLY)
CUT OUT TEMPLATE PROVIDED ON PAGE 30. PLACE THE PASSSENGER SIDE TEMPLATE ON THE
DASH BY ALIGNING THE LEFT SIDE OF THE TEMPLATE AGAINST THE GLOVE BOX EDGE AS SHOWN
ON FIGURE 8. FOLD THE BOTTOM OF TEMPLATE UNDER THE DASH BY ALIGNING IT WITH THE
EXISTING OEM HOLE.
ONCE TEMPLATE IS ALIGNED CORRECTLY, USE A CENTER PUNCH TO MARK THE HOLE ON THE
DASH. ONCE THE CENTER OF THE HOLE IS LOCATED ON THE DASH REMOVE TEMPLATE. USE A
2 ½” HOLE SAW TO CUT 2 ½”HOLE IN DASH FOR PASSENGER SIDE LOUVER. SEE FIGURE 8, BELOW
CUT OUT TEMPLATE PROVIDED ON PAGE 31. PLACE THE DRIVER SIDE TEMPLATE ON THE DASH BY
ALIGNING THE RIGHT SIDE OF THE TEMPLATE AGAINST THE INSTRUMENT PANEL PARTING LINE,
AS SHOWN ON FIGURE 8a. FOLD THE BOTTOM OF TEMPLATE UNDER THE DASH BY ALIGNING IT
WITH THE EXISTING OEM HOLE.
ONCE TEMPLATE IS ALIGNED CORRECTLY, USE A CENTER PUNCH TO MARK THE HOLE ON THE
DASH. ONCE CENTER OF THE HOLE IS LOCATED ON THE DASH. REMOVE TEMPLATE. USE A 2 ½”
HOLE SAW TO CUT 2 ½”HOLE IN DASH FOR DRIVER SIDE LOUVER, SEE FIGURE 8a BELOW.
FOLD
PASSENGER SIDE
DRIVER SIDE
ALIGN WITH
EXISTING
OEM HOLE
UNDER DASH
FOLD
ALIGN WITH
EXISTING
OEM HOLE
UNDER DASH
ALIGN
THIS EDGE
WITH DASH
TO INSTRUM ENT
PANEL
PARTING LINE
CENTER PUNCH
AND DRILL
2 ½”
DIAM. HOLE
CENTER PUNCH
AND DRILL
2 ½”
DIAM. HOLE
ALIGHN
WITH
GLOVE BOX
EDGE
TEMPLATE
TEMPLATE
FIGURE 8
FIGURE 8a
AC GEN IV EVAP INSTR PG 11 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
11

1967-68 CAMARO w/o AC GEN IV
INSTALL LOUVER BEZEL THROUGH DASH OPENING, FROM BACK SIDE OF DASH INSTALL HOSE
ADAPTER TO LOUVER BEZEL, AS SHOWN IN FIGURE 9 BELOW.
DRIVER SIDE
HOSE ADAPTER
DRIVER SIDE
LOUVER BEZEL
PASSENGER SIDE
HOSE ADAPTER
PASSENGER SIDE
LOUVER BEZEL
PASSENGER AND DRIVER SIDE LOUVER INSTALLATION CONT.
(FOR 1968 OEM ASTRO VENTS ONLY)
HOSE ADAPTER INSTALLATION
INSTALL S-CLIPS ON HOSE ADAPTERS AS SHOWN IN FIGURE 9a BELOW.
INSTALL DRIVER & PASSENGER SIDE HOSE ADAPTERS ON OEM LOUVERS. SEE FIGURE 9a BELOW.
CUT AND MODIFY AS SHOWN BELOW.
REINSTALL MODIFIED ASTRO VENTS IN DASH
HOSE
ADAPTER
49870-VCI
INSTALL
(3) S-CLIPS
OEM
LOUVER
OEM
ASTRO
LOUVER
CUT &
DISCARD
FIGURE 9
FIGURE 9a
AC GEN IV EVAP INSTR PG 12 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 12

1967-68 CAMARO w/o AC GEN IV
FIREWALL COVER INSTALLATION
KICK PANEL INSTALLATION
APPLY A 1/4” BEAD OF SILICONE AROUND THE BACK SIDE OF THE FIREWALL COVER AS SHOWN IN
FIGURE 13, PAGE 15.
FROM INSIDE OF CAR INSTALL FIREWALL COVER ON FIREWALL SEE FIGURE 13, PAGE 15. FROM THE ENGINE COMPARTMENT
SIDE OF FIREWALL, SECURE FIREWALL USING (4) 1/4-20 x 1” HEX BOLTS WITH
WASHER SEE FIGURE 13, PAGE 15.
REMOVE THE KICK PANEL BY
REMOVING THE (5) #10 x 1”
PH PAN HEAD SCREWS,
DISCONNECT THE FRESH AIR
DOOR FROM THE LEVER
HOUSING, CLOSE FRESH
AIR DOOR ASSEMBLY IN KICK
PANEL AND SEAL DOOR w/ 1/4”
BEAD OF SILICONE AROUND
DOOR AS SHOWN IN FIGURE 11.
INSTALL KICK PANEL USING
THE (5) #10 x 1” PH PAN
HEAD OEM SCREWS AS
SHOWN INFIGURE 11a.
AC GEN IV EVAP INSTR PG 13 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
KICK PANEL
#10 x 1” PH
PAN HEAD
SCREWS
OEM LEVER
HOUSING
FRESH
AIR DOOR
1/4”
BEAD
OF
SILICONE
OEM
HEATER
HOLE IN
FIREWALL
FRESH AIR COVER INSTALLATION
APPLY A 1/4” BEAD OF SILICONE AROUND THE BACK SIDE OF THE FRESH AIR CAP AS SHOWN IN
FIGURE 10, BELOW.
ATTACH FRESH AIR CAP TO FIREWALL USING A 1/4-20 x 1" BOLT AND WASHER, SEE FIGURE 10,
BELOW.(NOTE: FRESH AIR CAP INSTALLS ON ENGINE SIDE
OF FIREWALL.)
1/4-20 x 1”
BOLT w/
WASHER
SILICONE
BACK SIDE
OF FRESH AIR
CAP
FRESH AIR
CAP
49864-VCI
FIGURE 10
FIGURE 11 FIGURE 11a
13

EVAPORATOR INSTALLATION
ON A WORK BENCH, INSTALL EVAPORATOR REAR BRACKET AND HARDLINES WITH PROPERLY LUBRICATED O-RINGS.
(SEE FIGURE 18, PAGE 17, AND FIGURES 24, PAGE 22.)
INSTALL FRONT MOUNTING BRACKET ON EVAPORATOR USING (2) 1/4-20 x 1/2” HEX BOLTS AND TIGHTEN AS
SHOWN IN FIGURE 12, BELOW.
LIFT EVAPORATOR UNIT UP UNDER THE DASHBOARD SEE FIGURE 14, PAGE 15. SECURE LOOSELY TO THE FIREWALL FROM
THE ENGINE COMPARTMENT SIDE USING A 1/4-20 NUT AND WASHER, SEE FIGURE 14, PAGE 15.
USING (2) #14 x 3/4” SHEETMETAL SCREW SECURE THE FRONT EVAPORATOR MOUNTING BRACKET TO THE INNER
COWL. SEE FIGURE 14, PAGE 15.
VERIFY THAT EVAPORATOR UNIT IS LEVEL AND SQUARE TO THE DASH,
THEN TIGHTEN ALL MOUNTING BOLTS.
(NOTE: TIGHTEN THE BOLT ON FIREWALL FIRST, THEN
THE FRONT MOUNTING BRACKET SCREWS.)
(2)1/4-20 x ½”
HEX BOLT
REAR
BRACKET FRONT
BRACKET
643169-FCB
FIGURE 12
1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 14 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 14

1967-68 CAMARO w/o AC GEN IV
FIREWALL
COVER
648223-FCA
(4) 1/4-20 x 1”
HEX BOLT
w/ WASHER
FIREWALL COVER INSTALLATION
BACK SIDE
OF FIREWALL
COVER
SILICONE
NOTE: FIREWALL COVER MOUNTING
HOLES MUST BE ENLARGED.
ENLARGE EXISTING HOLES
IN FIREWALL TO 5/16”
ENGINE
COMPARTMENT
SIDE OF FIRWALL
VIEW SHOWN FROM
INSIDE CAR, THROUGH
DASH
FIREWALL
(2) #14 x 3/4”
SHEETMETAL
SCREW
1/4-20 NUT
w/ WASHER
EVAPORATOR INSTALLATION
INNER
COWL
FIGURE 13
FIGURE 14
AC GEN IV EVAP INSTR PG 15 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
15

1967-68 CAMARO w/o AC GEN IV
CENTER LOUVER AND HOSE ADAPTER INSTALLATION
NSTALL CENTER VENT HOSE ADAPTER TO DASH USING (2) 8 x ½” SHEET MEATAL SCREWS AS SHOWN IN
FIGURE 15 BELOW.
INSTALL THE TRIM PLATE, SEE FIGURE 15 BELOW.
ATTACH THE DUCT HOSE TO CENTER VENT HOSE ADAPTER AS SHOWN IN FIGURE 15, BELOW.
I
IN-LINE WITH THE DRAIN, LIGHTLY MAKE A
MARK ON THE FIREWALL. MEASURE ONE
INCH DOWN AND DRILL A 5/8” HOLE
THROUGH THE FIREWALL. SEE FIGURE
16.
INSTALL DRAIN HOSE TO BOTTOM OF
EVAPORATOR UNIT AND ROUTE THROUGH
FIREWALL. SEE FIGURE
FIGURE 16.
LOCATE EVAPORATOR DRAIN ON BOTTOM OF EVAPORATOR CASE.
DRAIN HOSE INSTALLATION
1” DRAIN
DRAIN
HOSE
TRIM
PLATE
CENTER VENT
HOSE ADAPTER
49875-VCI
DUCT
HOSE
FIGURE 15
FIGURE 16
AC GEN IV EVAP INSTR PG 16 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 16

LUBRICATING O-RINGS
FIREWALL CAP INSTALLATION
APPLY A 1/4” BEAD OF SILICONE AROUND THE BACK SIDE OF THE FIREWALL CAP AS SHOWN IN
FIGURE 17 BELOW.
PASS LINES THROUGH FIREWALL CAP, AND SECURE WITH (3) #10 x ½” HEX SHEETMETAL SCREWS.
SEE FIGURE 17 BELOW.
SILICONE
BACKSIDE
OF FIREWALL
CAP
(3) 18247-VUB
#10 x ½” HEX
SHEETMETAL SCREW
FIREWALL
CAP
648225-FCR
GROMMET
VIEW SHOWN FROM
ENGINE COMPARTMENT
LOCATE THE #8 COMPRESSOR A/C HOSE. LUBRICATE (2) #8 O-RINGS (SEE FIGURE 18 ) AND
CONNECT THE 135° FEMALE w/ 134a SERVICE PORT FITTING TO THE #8 DISCHARGE PORT ON THE
COMPRESSOR. ROUTE THE 45° FEMALE FITTING TO THE #8 CONDENSER HARDLINE COMING FROM UNDER
THE RADIATOR CORE SUPPORT. SEE FIGURE 20, PAGE 19. TIGHTEN EACH FITTING CONNECTION AS SHOWN
IN FIGURE 18, ABOVE.
, ABOVE
STANDARD HOSE KIT
#6O-RING
#8O-RING#10 O-RING
HOLD WITH
THIS WRENCH
FOR A PROPERSEAL OFFITTINGS:
INSTALL SUPPLIEDO-RINGSASSHOWN
ANDLUBRICATE WITHSUPPLIEDOIL.
O-RING
SUPPLIEDOIL
FORO-RINGSO-RING,INSTALES
OVERMALE INSERT
TOSWAGEDLIP
MALE
INSERTFEMALE
NUT
O-RING
TWIST WITH
THIS WRENCH
FIGURE 17
FIGURE 18
1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 17 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
17

#10 SUCTION
LINE w/ (INSULATED)
09151-PCS
FIREWALL
COVER
PRESS
TAPE
EXPANSION
VALVE
#6 LIQUID LINE
09150-PCL
5/8 HEATER LINE(INTAKE)
09152-PCH
5/8 HEATER LINE
(WATER PUMP)
09153-PCH
FLOW
O-RING
#6 LIQUID
LINE
#10 SUCTION
HOSE
HEATER
HOSE HEATER VALVE
46115-VUH
TO WATERPUMP
PRESS TAPE
FROMHTRCNTRLVLV
FROM INTAKE
HEATER HOSE & HEATER CONTROL VALVE INSTALLATION
ROUTE A PIECE OF HEATER HOSE FROM THE WATER PUMP TO THE HEATER LINE COMING THROUGH THE FIREWALL
AS SHOWN IN FIGURE 19, BELOW. SECURE USING HOSE CLAMPS.
ROUTE A PIECE OF HEATER HOSE FROM THE INTAKE TO THE HEATER LINE COMING THROUGH THE FIREWALL
AS SHOWN IN FIGURE 19, BELOW. NOTE: INSTALL HEATER CONTROL VALVE IN-LINE WITH INTAKE MANIFOLD
(PRESSURE SIDE) HEATER HOSE, SECURE USING HOSE CLAMPS AS SHOWN IN FIGURE 19.
NOTE PROPER FLOW DIRECTION.) HEATER HOSE COMING FROM THE INTAKE & THE #6 EVAP
HARDLINE TO THE INNER FENDER USING A #10 & #2 ADEL CLAMP .SECURE CLAMPS USING A 10-32 x ½”
PH PAN HEAD SCREW w/ NUT. SEE FIGURE 20a, PAGE 19.
SECURE THE
CONNECT THE 135° FEMALE w/ 134a SERVICE PORT FITTING TO THE #10 SUCTION PORT ON THE
COMPRESSOR, ROUTE THE STRAIGHT FEMALE FITTING TO THE #10 EVAPORATOR HARDLINE COMING
THROUGH THE FIREWALL. SEE FIGURES 19, BELOW. TIGHTEN EACH FITTING CONNECTION AS SHOWN IN
FIGURE 18, PAGE17. (NOTE: WRAP THE #10 FITTING CONNECTIONSWITH PRESS TAPE. SEE FIGURE 19a, BELOW.
LOCATE THE #6 EVAP/DRIER HARDLINE AND LUBRICATE (2) #6 O-RINGS (SEE FIGURE 18, PAGE 17) AND
CONNECT THE HARDLINE TO THE #6 HARDLINE ON FENDERWELL COMING FROM DRIER. ATTACH THE OTHER
END OF THE HARDLINE WITH LUBRICATED O-RING TO THE #6 EVAPORATOR HARDLINE COMING THROUGH
THE FIREWALL. SEE FIGURE 19, BELOW. TIGHTEN EACH FITTING CONNECTION AS SHOWN
IN FIGURE 18, PAGE 17.
USE A #2 ADEL CLAMP TO SECURE THE #6 EVAP/CORE HARDLINE TO THE INNER FENDERWELL AS SHOWN IN
FIGURE 20a, PAGE 19. SECURE THE ADEL CLAMP TO THE INNER FENDER USING A 10-32 x ½” PH PAN HEAD
SCREW w/ NUT.
LOCATE THE #10 COMPRESSOR A/C HOSE. LUBRICATE (2) #10 O-RINGS (SEE FIGURE 18, PAGE 17) AND
STANDARD HOSE KIT CONT.
REFER TO SEPARATE INSTRUCTIONS INCLUDED WITH MODIFIED HOSE KIT.
MODIFIED HOSE KIT
NOTE: VINTAGE AIR SYSTEMS REQUIRE (2) 5/8 HOSE NIPPLES (NOT SUPPLIED). ONE
AND ONE FOR THE WATER PUMP (SUCTION) - IF REQUIRED REMOVE EXISTING HOSE NIPPLE OR NIPPLES AND
INSTALL NEW 5/8 HOSE NIPPLES IN INTAKE AND WATER PUMP.
FOR THE INTAKE (PRESSURE)
FIGURE 19
FIGURE 19a
1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 18 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 18

AC& HEATER HOSE ROUTING
#6
HARDLINE
FROMDRIER/
FENDERWELL
35067-VCG#6
HARDLINE
DRIER/ CONDENSER
35368-VCG
IN
OUT
COMPRESSOR
SAFETY SWITCH
(BINARYTYPE)
SCREW ON DRIER
(REFER TO
CONDENSER
INSTRUCTIONS)
ALTERNATOR
SUPPORT
#10
SUCTION
HOSE
#8
DISCHARGE
HOSE
090167
#8
CONDENSER
HARDLINE
35367-VCG
#10 ADEL
CLAMP
#2 ADEL
CLAMP
10-32 x½
PHPANHEAD
SCREW w/ NUT
INNER
FENDERWELL
HEATER HOSE
(HEATER CNTRL
VALVE/INTAKE)
HEATER HOSE
(HEATER CORE/
WATER PUMP)
#6 EVAP
HARDLINE
091694-FFL
#10
SUCTION
HOSE
090168
AC GEN IV EVAP INSTR PG 19 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o
1967-68CAMARO w/o AC GEN IV
#6EVAP
HARDLINE
NOTE: VINTAGE AIR SYSTEMS REQUIRE (2) 5/8
HOSE NIPPLES (NOT SUPPLIED)
FIGURE 20a
FIGURE 20
19

PLUG THE WIRING HARNESS INTO THE ECU MODULE ON SUB CASE AS SHOWN IN FIGURE 23
PAGE 21. (WIRE ACCORDING TO WIRING DIAGRAM ON PAGE 23 & 24.)
REINSTALL ALL PREVIOUSLY REMOVED ITEMS (BATTERY TRAY & BATTERY).
OWNER'S RESPONSIBILITY TO KEEP THE FREEZE PROTECTION AT THE PROPER LEVEL FOR THE CLIMATE IN
WHICH THE VEHICLE IS OPERATED. FAILURE TO FOLLOW ANTIFREEZE RECOMMENDATIONS WILL CAUSE
HEATER CORE TO CORRODE PREMATURELY AND POSSIBLY BURST IN AC MODE AND/OR FREEZING WEATHER,
VOIDING YOUR WARRANTY.
DOUBLE CHECK ALL FITTINGS, BRACKETS AND BELTS FOR TIGHTNESS.
VINTAGE AIR RECOMMENDS THAT ALL AC SYSTEMS BE SERVICED BY A CERTIFIED AUTOMOTIVE AIR
CONDITIONING TECHNICIAN.
EVACUATE THE SYSTEM FOR A MINIMUM OF 45 MINUTES PRIOR TO CHARGING AND LEAK CHECK PRIOR
TO SERVICING.
CHARGE THE SYSTEM TO THE CAPACITIES STATED ON THE INFORMATION PAGE (PAGE 4) OF THIS
INSTRUCTION MANUAL.
FILL RADIATOR WITH AT LEAST A 50/50 MIXTURE OF APPROVED ANTIFREEZE AND DISTILLED WATER. IT IS THE
FINAL STEPS
INSTALL DUCT HOSES AS SHOWN IN FIGURE 23, PAGE 21.
INSTALL CONTROL PANEL ASM.
GLOVE BOX INSTALLATION (SEE FIGURE 21)
ROUTE A/C WIRES THROUGH 5/8 GROMMET AS SHOWN ON FIGURE 21a.
(12 VOLT/ GROUND/ BINARY SWITCH/HEATER VALVE).
GLOVE BOX INSTALLATION
THE NEW GLOVE BOX IS MADE IN TWO (2) PIECES FOR EASY INSTALLATION.
LOCATE THE THREE (3) TINNERMAN NUTS PREVIOUSLY REMOVED FROM THE ORIGINAL GLOVE
BOX SHELL AND SLIDE THEM INTO POSITION AT DOOR HINGE HOLES PUNCHED IN DASH.
INSERT BOTTOM HALF OF NEW GLOVE BOX, SECURING ONLY WITH ONE OEM SCREW ON EACH
SIDE THROUGH DASH HOLES (SEE FIGURE 21, BELOW).
INSERT TOP HALF OF GLOVE BOX AND FASTEN TO BOTTOM HALF USING FIVE (5) #6 x 3/8"
BLACK PAN HEAD PHILLIPS SCREWS (SEE FIGURE 21, BELOW).
INSTALL GLOVE BOX DOOR USING THREE (3) OEM SCREWS THROUGH THE TINNERMAN NUTS.
GLOVE BOX
TOP
49067-VCI
GLOVE BOX
BOTTOM
49068-VCI
OEM SCREWS
OEM SCREWS
FIREWALL
COVER ASM.
648223-FCA
GROMMET
FIGURE 21
TINNERMAN
NUTS
FIGURE 21a
1967-68 CAMARO w/o AC GEN IV
AC GEN IV EVAP INSTR PG 20 OF 32901167 REV A 5/4/07, 67-68 CAMARO w/o 20
