INTERKOOL, SLIMLINE
TUSCANY WINE COOLING SYSTEM
INSTALLATION & OPERATION MANUAL
INTERKOOL
300 . 600 . 900
SLIMLINE

~ 2 ~
~ 3 ~
Vintage Keeper wine cooling units must be installed
precisely as directed in the Manual. DO NOT attempt to
install this unit before reading the Manual!
DO NOT INSTALL THIS UNIT THROUGH AN EXTERIOR WALL!
Vintage Keeper units must ventilate to an adjacent INTE-
RIOR space, NEVER to OUTDOORS! The area in which
Vintage Keeper vents its warm air must be completely
unobstructed.
DO NOT install this unit in an enclosure where ANY sur-
faces are uninsulated or unprotected by vapor barrier.
Especially in basement or other below-grade locations,
ALL surfaces (walls, oor and ceiling) must be insulated
to at least R-20 and protected by vapor barrier on both
sides. Uninsulated concrete oors will radiate heat and
humidity during summer months, forcing the unit to work
much harder than necessary, WILL shorten the life of the unit, AND WILL PRODUCE EXCESS CONDENSATION.
The Digital Sensor, which is encased in a vinyl cap and permanently mounted on the front of the unit, must
not be modied or handled. The Sensor will read and
respond to changes in AIR temperature in the enclo-
sure, to ensure most efcient operation and ideal
storage temperature control. DO NOT attempt to
modify the sensor to read liquid temperature.
VINTAGE KEEPER units must be cleaned as directed,
at least 4 times a year, or more frequently if located
in a dusty area. DO NOT install the unit in a location
where the condenser (warm side) coil is not acces-
sible for periodic cleaning.
VINTAGE KEEPER WINE cooling units must be supplied
by a dedicated, separately-fused and grounded 15-
Amp 115 Volt line. The line must not be shared with any other outlet or appliance. If an extension cord must
be used, it must be rated for at least 15 Amps. Before operating Vintage Keeper, have the output tested and
veried. If the line delivers less than 105 Volts, do not attempt to operate your unit. If the supplied voltage
is insufcient or if intermittent shorting occurs, the unit may be unable to start its compressor, and the LED
display may be corrupted. Before requesting warranty service for these problems, test and verify the voltage
output. You might also try plugging the unit into a different circuit, and see if it performs differently. The
electronic controller must also be protected against sudden power surge. Use a good quality surge suppressor.
If the power source is prone to signicant “noise” or interference, it may be advisable to use a good quality
power line conditioner. As with any sensitive electronic device, Vintage Keeper wine cooling systems may be
damaged by power surges or spikes, sudden interruptions or prolonged low-voltage conditions. You must moni-
tor the unit on a daily basis. If there is an apparent
problem or “Alarm” condition, you must disconnect
the power supply to avoid potential damage to your
wine collection. If unable to correct the problem
through consultation with our Trouble-shooting
resources, contact Customer Service. Be advised
that Drobot-Vintage Keeper cannot in any event be
liable or responsible for incidental or consequential
damages.
This unit is not designed for COMMERCIAL USE. Such
usage will void any warranty. In addition, Third
party servicing of these units during the warranty
period will void the warranty.
Kitchen Pantry
Wine Cellar
Basement Cold Room
READ BEFORE YOU START

~ 2 ~
~ 3 ~
General:
Select a suitable area, sized appropiated to the model’s capac-
ity, in a location where ambient temperature will not exceed
the desired storage temperature by more than 25ºF (14ºC). This
appliance is for INDOOR USE ONLY, and must not be vented into
a laundry room or similar which traps warm air. The unit must
vent to an adjacent INTERIOR CLOSE TO THE CEILING. Exhaust
air must not be obstructed in any way. The temperature of
the air in the immediate area where the unit vents its warm
air must never exceed 80ºF with 70% R.H. (non-condensing).
Operating temperatures are :
- Outside of wine cellar : min. 65ºF (18ºC) Max. 80ºF (26ºC)
- Inside of wine cellar : min. 50ºF (10ºC) Max. 70ºF (21ºC)
WARNING : Lower SET TEMPERATURE FROM DEFAULT 57ºF
(14ºC) only if ambient conditions allow. A lower set temp can
cause water leaks or overow in high humidity conditions.

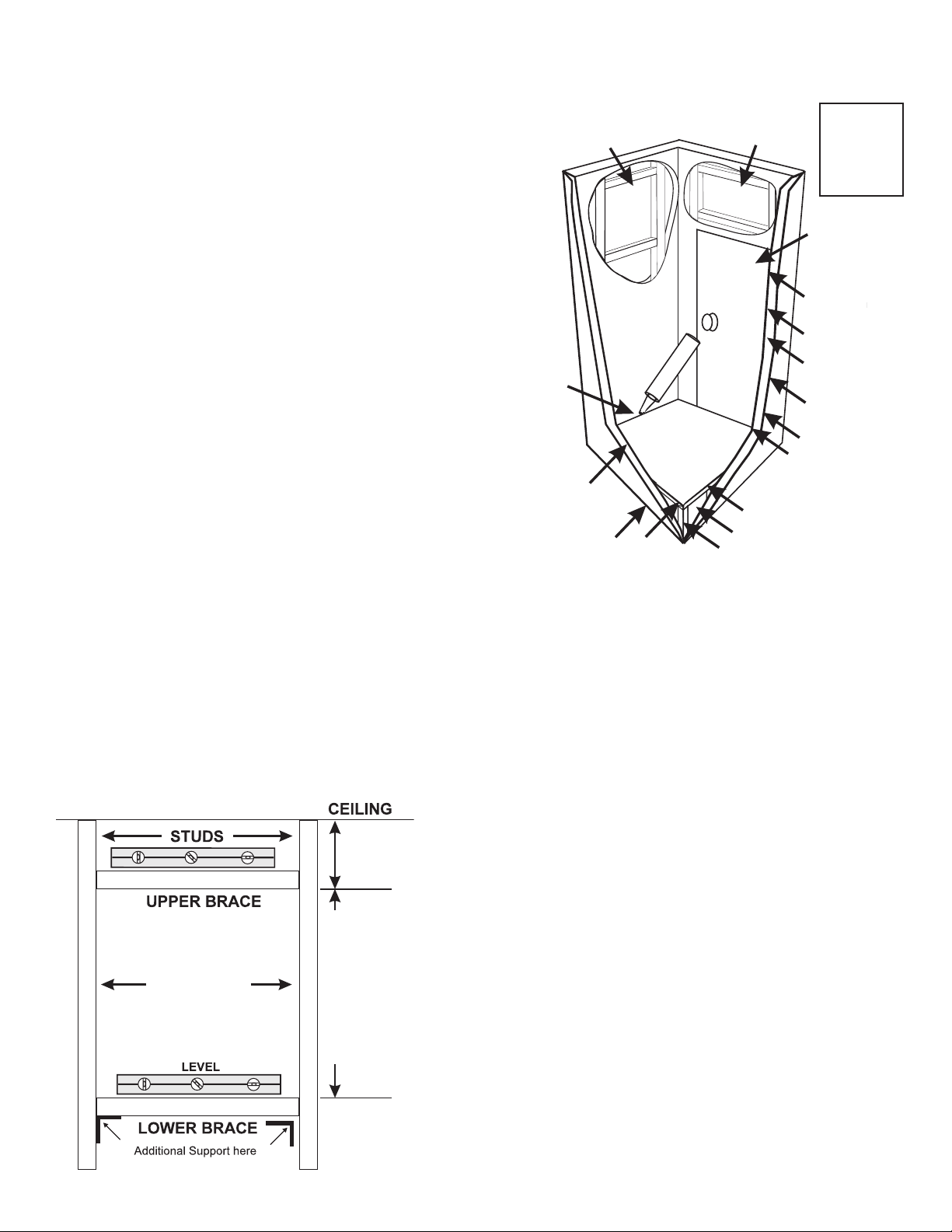

Insulation:
Floor, ceiling and all walls of the enclosure must be insulated
to minimum R-20 rating, although R-30 is recommended. Best
material is foil-backed urethane foam, sealed at all joints with
thermal tape. Build a proper sub-oor with vapor barrier, and
insulate to at least R-20, especially if oor is concrete.
Vapor Barrier:
All surfaces of the enclosure must be protected by a proper
vapor barrier, ideally on both inside and outside of wine
cellar.
Seal:
Seal corners, joints, gaps, vents, electrical outlets and switches,
and especially around door and frame, to achieve air tight
seal. Pack larger gaps with insulation. Seal all with silicone
caulking. Seal drywall with odorless waterproof paint.
Close to
Ceiling
Models 300,600,900:
15 5/8”
(15 1/2” Min.,
15 3/4” Max)
Model Slimline:
9 ”
Models 300,600,900:
14 ”
(14 ” Min,14 ” Max)
Model Slimline:
21 ”
(21 ” Min., 21 ” Max)
Power Supply:
This appliance must be installed in accordance
with national wiring regulations. Do not use if the
power cord is damaged; it must be replaced by the
manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard. Plug
must remain accessible after installation.
Electrical service must be a dedicated, separately
fused and grounded 15 Amp, 115V line. Do not share
the circuit with any other appliance. If extension
cord must be used, it must be rated for 15 Amps.
Test line voltage BEFORE operating, and do not use if
line voltage is less than 105V. The unit must be pro-
tected against power surges and spikes: use a good
quality surge suppressor.
Wall Cutout:
Ideal cutout for Models 300, 600 and 900 is 14 ”
wide by 15 5/8” high, located reasonably close to
the ceiling. For Slimline model, ideal cutout is 21 ”
wide by 9 ” high.
Width of 14 ” is standard between studs; if cutout
for Models 300, 600 or 900 is less than 14 ”, you
may need to remove rubber bumpers from sides of
cooling unit. Install cross-braces above and below
cutout; level lower brace carefully and provide addi-
tional support, as required. Vintage Keeper will
mount with warm end ush to exterior wall surface,
and the cool end will extend into the enclosure.
Maximum wall thickness is 7 ”, to avoid obstructing
the drain pan.
SEAL�
ALL�
JOINTS
DOOR�
WITH�
AIRTIGHT�
SEAL
ODORLESS�
WATERPROOF�
PAINT
DRYWALL
INSULATION�
(MIN R-20)
DRYWALL
VAPOR�
BARRIER�
(BOTH SIDES)
PLYWOOD FLOOR
INSULATION (MIN R-20)
INSULATION�
(MIN R-20)
VAPOR BARRIER�
(BOTH SIDES)
�SUB-FLOOR (STUD LUMBER)
WALL�
CUTOUT
SILICONE�
CAULKING
WALL�
CUTOUT
IDEAL FOR�
MODELS 300,�
600 and 900
IDEAL FOR�
SLIMLINE
Air tempera-
ture outside
this unit
must never
exceed 80ºF
and 70%R.H.
HOW TO PREPARE FOR INSTALLATION

~ 4 ~
~ 5 ~
R u b b e r
Bumpers
COOL
END
WARM
END
Faceplate
SET
ADJUST
1 OUT 2
Drobot Controls TM
SERIAL NUMBER

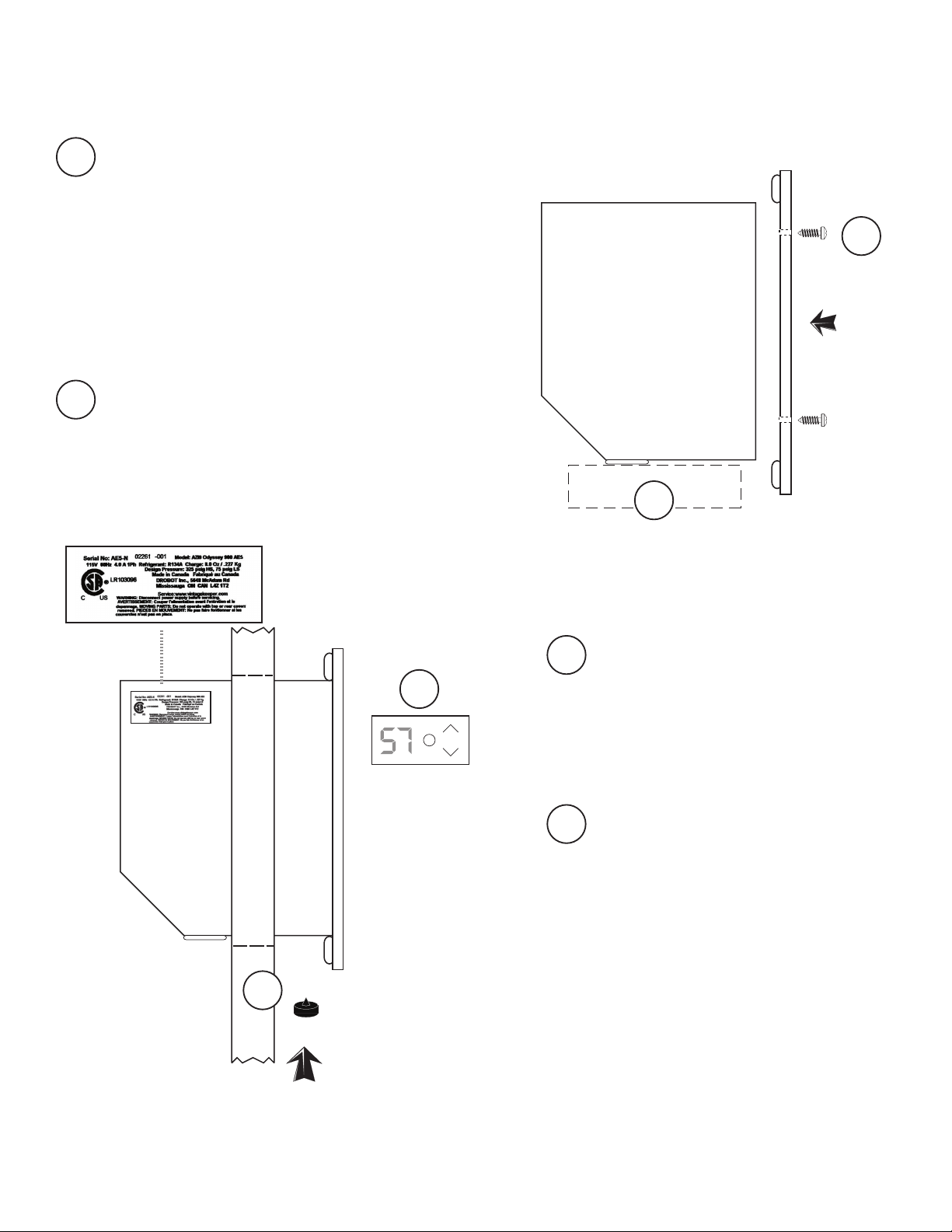

Lift unit carefully and place it on a table
top edge or a thick book.
NOTE :
Fasten the faceplate to the WARM END
with 4 small screws provided.
For model SLIMLINE, faceplate has a
protective coating, which may be peeled
off prior to installation.
1
The end with Control Panel,
power cord and digital sensor is
the COOL END and will extend
INSIDE the enclosure.
The opposite end is the WARM
END, and will mount ush to
OUTSIDE surface of wall.
2
Plug the unit in and test the cooling and
controller functions (see page for opera-
tion instructions).
NOTE:
Lift unit up into cutout opening. With
the assistance of a helper, lift from both
WARM and COOL ENDS to move unit
partly into position.
Install three large rubber bumpers in
holes* on underside of unit near the
WARM END. (Some force may be required;
bumpers are more easily installed with a
twisting motion).
* For Model SLIMLINE, two sets of holes
are provided. If installing through a door,
use the set of holes closest to faceplate.
For installation in other locations (i.e.,
through a wall), use the holes nearer
the middle of the unit.
Copy the serial number to your
warranty registration form. Unit
has a 1-minute delay between
plug-in and start-up .
3
4
1
2
4
3
HOW TO INSTALL YOUR COOLING UNIT

~ 4 ~
~ 5 ~

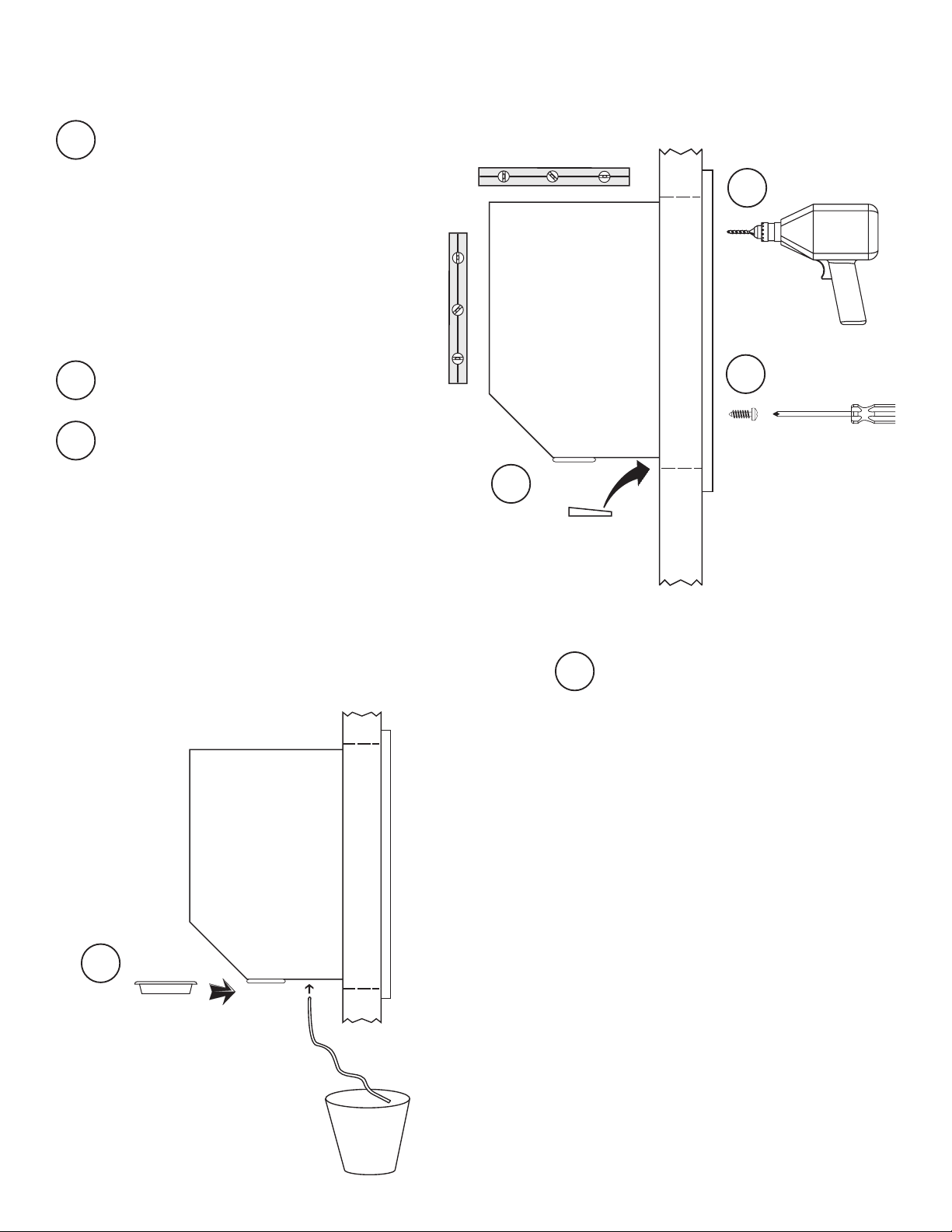

For Models 300, 600 and 900, slide the
accessory drain pan into tabs on underside
of unit. Check pan periodically and empty
if necessary.
NOTE: Model Slimline does not require an
accessory drain pan.
Substitute the supplied vinyl tubing for
the drain pan only if you observe a little
water in the pan. Our units are designed
to evaporate the condensate internally.
Only if your room is not designed accord-
ing to our specications should you
require a drainage tube attached to an
exterior container. If you are in doubt -
use the tubing.
NOTE: If the unit DOES produce excess
condensation, that’s a sure sign that the
enclosure is NOT adequately insulated,
the air seal is not sufcient and/or
the ambient conditions are too extreme.
Failure to correct these conditions will
result in shortened life expectancy for
the unit, excessive power consumption,
continued dripping, and will void the
warranty.
! Use a wedge under the
unit while moving into
position, to keep it up
off the rubber bumpers !
Drain Pan
Lift unit , tightly to the top of the cutout,
and move fully into position, resting on
the rubber bumpers.
Use a wedge or shim under the unit
Check that all bumpers remain in position,
as required, after moving.
Level the unit carefully from side to
side and from end to end, using shims if
necessary.
Pre-drill 1/16” holes through faceplate
holes into studs.
Partially install one upper screw through
faceplate into stud, then adjust the side-
to-side level again.
Partially install a second upper screw,
then adjust the back-to-front level.
Install the remaining screws, re-check all
levels and adjust if necessary.
Insulating tape on inner edges of faceplate
will compress to seal gap between cooling
unit and wall cutout.
Do not tighten the mounting screws
excessively !
5
HOW TO INSTALL YOUR COOLING UNIT
6
7
8
5
6
7
8

~ 7 ~
CONTROLS : PLUG IT IN (wait one minute) and ENJOY!
DEFAULT SETTINGS : Storage Temperature : 57°F / 14°C (ideal temp for wine cellaring)
Fan Speed: DEFAULT. Optimized for maximum efciency and moderate noise
Display: SET - POINT (°F)
FEATURES: Digital Sensor: Sensing ACTUAL TEMP (air in cabinet)**
Set temp range: 50°F / 72°F (check humidity levels and lower
temperatures from default only if conditions allow dialing unit
below 57ºF could cause a water leak or overow in high humidity
conditions.
Selectable modes: QUIET, DEFAULT, EFFICIENT
Dual display: °F / °C
Press
TO SEE CABINET TEMP. :
OPERATION
SET
ADJUST
1 OUT 2
Drobot Controls TM
Press Release
SET
SET POINT :
Unplug / Re plug the unit, but rst eliminate the possible cause; inspect the seals
of the door and cabinet, reduce ambient temperature, remove obstructions on the
exhaust side.
Press and together NOTE : All other settings, reset to DEFAULT
Press and together to display the default offset, then
Press or once per degree to offset the display temperature.
TO RESET FROM ALARM :
TO CHANGE FROM °F TO °C :
TO CALIBRATE :
SET
DEFAULT TO EFFICIENT :
EFFICIENT TO QUIET :
QUIET TO DEFAULT :
Press and hold for 5 sec. until the unit will stop and store the request *
Press and hold for 5 sec. until the unit will stop and store the request *
Press and hold for 5 sec. until the unit will stop and store the request *
* The unit will restart after 1 minute in the selected mode or a higher one as required
by the temperature conditions.
SET
SET
SET
TO CHANGE FAN SPEED :
NOTE : Automatic modes are disabled during the rst 4 hours after plug in.
QUIET
DEFAULT
EFFICIENT
EMERGENCY
ALARM
Quiet operation, slowest fan speed, least efcient, with usually longer cycles.
* USE AT YOUR OWN RISK AND ONLY WHEN AMBIENT CONDITIONS ARE IDEAL.
Optimal noise, efciency, cycle time balance
Higher fan speed, best performance if noise is not an issue.
* USE THIS SETTING WHENEVER AMBIENT CONDITIONS ARE WARM OR HUMID
(ABOVE 50%R.H.)(ABOVE 75ºF).
Higher fan speeds, unit will automatically operate with higher fan speed if out of
set-point range
The unit will shut down in case the cabinet temperature exceeds 72 °F
  
  
  
  
  
Press Release
Then, press or once per degree. The unit will memorize the new value and
it will restart after 1 minute delay.
SET
TO CHANGE SET POINT :
** Reading AIR temperature the
controller will respond more quickly
to temperature changes than using a
LIQUID probe. As in any refrigerator
air temperature may change 7 or
8 degrees during a complete cycle,
however, the wine temperature,
will remain constant, within one
degree Farenheit.

~ 7 ~
TROUBLE SHOOTING GUIDE
Although each Vintage Keeper cooling unit has been carefully tested at every stage of manufacture, occasional problems
arise, the majority of which are due to rough or careless handling during shipping or installation. Other problems may
derive from improper insulation of your room, power interruption or surge, low line voltage (less than 105V), or failure
to clean the unit regularly. The following may help you determine what the problem may be, what steps you can
take to correct it, and what further steps may be required. Additional Trouble-Shooting information and downloadable
documents are available in the “Support” area of our web site: www.vintagekeeper.com
IMPORTANT NOTE:
In order to provide maximum protection for your valuable wine collection, the following steps are highly advisable.
First and foremost, have your wine collection adequately insured. Second, install a battery-powered heat-sensitive alarm
to warn of any loss of cooling due to power interruption. Third, monitor your storage and ambient conditions on a regular,
daily basis. Fourth, install a high quality surge suppressor to protect against sudden power uctuations. Fifth, clean the
unit as directed, on a regular basis, every 3 to 4 months vacuum the cooling unit coils (check our website for more info).
Be advised, also, that Drobot-Vintage Keeper cannot in any event be liable or responsible for incidental or consequential
damages.
IF: CHECK: THEN:
COOLING UNIT
DOES NOT RUN
AT ALL WHEN
PLUGGED IN
- Is the unit plugged in?
- Is the power supply operational?
- Is the LED display functional?
- Is there any evidence of shipping
damage on the cooling unit or
packaging materials?
- Note that the unit has a 1-minute cautionary delay
between plugging in and full start-up; this is a built-in
safeguard to protect the compressor in the event of
sudden power failure
- Note that the power supply must be a dedicated,
separately-fused and grounded 15 Amp, 120V line. If an
extension cord must be used, it must be rated for 15
Amps. Do not share the outlet with other appliances
- If the unit is receiving power yet fans or compressor
fail
to run, unplug for ten minutes, then try again
COOLING UNIT
RUNS BUT DOES
NOT COOL
SUFFICIENTLY
- Is the storage temp properly
set?
- Is the room well insulated?
- Is the door properly adjusted to
seal tightly when closed?
- Is airow to and from the
cooling unit unobstructed?
- Is the ambient air temperature
within the specied range?
- Note that the unit may take a few days to achieve the
desired storage temperature, even in a properly built
wine cellar
- Take steps to reduce ambient temperatures and
humidity.
- Make sure your wine cellar was built according to the
requirements stated in this manual (insulation, vapor
barrier, oor, venting.)
- Eliminate any air leaks (check door as well).
- Set the fan speed to “EFFICIENT”
- Raise the SET TEMPERATURE from default 57ºF to 60ºF
- Make sure there are no heat sources in your room (e.g. a
100W light bulbs will “waste” more than half of the
cooling power of the unit)
- Vacuum the coils
- If the problem persists, go to our website at
www.vintagekeeper.com and perform the “cooling unit
diagnostic” in the support section.

Vintage Keeper wine cooling systems are designed to maintain storage temperatures between 50° and 72° F, and moderate (50-80%) relative humidity, when installed as
directed in a properly constructed, insulated and airtight enclosure, in a location where ambient temperatures do not exceed the desired storage temperature by more than 15
degrees C (25 F). The location must provide adequate clearance for airow from the warm side of the unit, and the adjacent area, which must be an interior room, must be
properly ventilated to remove warm air vented by the unit during operation. Unlike an air conditioner, this unit must never be vented directly to outdoors. Vintage Keeper uses
environment-friendly R134-A refrigerant, which contains no CFC’s. NOT WARRANTED FOR COMMERCIAL USE.
SPECIFICATIONS
Model Maximum Capacities Power Amps Wall Cutout Dimensions
Cu. Ft.* Bottles
Slimline 100-300 2000 120V 4.0 9 1/2”H x 21 1/2”W 9 ”H x 21”W x 14 1/2”D
300 200-300 2500 AC 4.0 15 5/8”H x 14 1/2”W 15”H x 14”W x 15”D
600 500-600 5000 60 4.5 15 5/8”H x 14 1/2”W 15”H x 14”W x 15”D
900 600-900 7500 Hz 6.12 15 5/8”H x 14 1/2”W 15”H x 14”W x 15”D
* Figures pertaining to cooling capacity may vary considerably according to the construction of your enclosure, particularly with regard to insulation used (recommended
rating: R30), air seal and vapor barrier. The location of the enclosure, for example, whether above ground or below ground, within an air-conditioned space, etc., will further
inuence variations in actual cooling capacity. Specications for cooling capacity apply only to residential applications. This unit is not designed, intended or warranted for
commercial use.
DESIGN AND APPLICATION
LIMITED WARRANTY AND PRODUCT SUPPORT
ONE YEAR LIMITED WARRANTY
If your Vintage Keeper cooling unit or cabinet fails to perform as designed within one year of the date of purchase, VINTAGE KEEPER INC. warrants that, upon your request,
it will be repaired or replaced, at our option, during the one year warranty period. This warranty applies only to the rst end-user purchaser of a Vintage Keeper unit that
is purchased and used in the continental United States or Canada (excludes Alaska and Hawaii). It is not valid for subsequent purchasers, nor for units in use outside North
America. The warranty period for your Vintage Keeper unit commences on the date you purchased it and expires one year thereafter.
PROOF OF PURCHASE
Within 10 days of purchase, complete and mail, fax or e-mail the registration sheet to VINTAGE KEEPER INC. Alternately, you may register your warranty on our Internet web
site, www.vintagekeeper.com. When you make a warranty claim, you must forward a copy of your original dated bill of sale to establish your date of purchase.
IF YOU HAVE A PROBLEM WITH YOUR UNIT
Customer service and warranty problems are handled online at www.vintagekeeper.com. You will nd a comprehensive well-documented and easy-to-use solution to almost
any question or problem you may have. The inquiry forms are lled in on-line and connect you to our representatives who will process your requests for warranty service.
This is the quickest way to solve your problems. If you do not have access to the internet you may call us from 9:00 a.m to 4:00 p.m EST, to request a WARRANTY CLAIM
INFORMATION KIT. We can fax or mail it to you. You can ll in the enclosed REQUEST FOR RETURN AUTHORIZATION CODE form and return it by mail or fax. We can then
promptly process your claim.
REPLACEMENT ?
At our option we may choose to offer you a replacement part or product rather than a repair. Upon your authorization to accept a replacement unit and with appropriate
security (credit card authorization), we will promptly ship a replacement unit. The replacement may be a unit that has been reconditioned by VINTAGE KEEPER INC. The
unit that needs service must be packed and returned to us, shipping prepaid. Upon its receipt, we will release your credit card security. Go online to the SUPPORT section
on our web site at www.vintagekeeper.com to request warranty service.
REPAIR ?
If we determine that your unit needs to be repaired rather than replaced we will issue you a return authorization code. Go online to the SUPPORT section of our web site
at www.vintagekeeper.com to request warranty service. Please save the original packaging materials to facilitate shipment. Mark the Return Authorization code clearly on
the outside of the package, enclose a brief note describing the problem and send the unit, shipping prepaid, to VINTAGE KEEPER INC.
WHAT MUST YOU DO?
Your unit is designed to perform with a minimum amount of user maintenance when installed and operated precisely as directed in the manual. You are, however,
responsible for the required user maintenance described in the manual, specically, regular cleaning of the condensor coil and fans. Also, you must take steps to protect
the unit from sudden power surges. As with any sensitive electronic device, your Vintage Keeper unit may be damaged by power surges or spikes, including lightning strikes,
acts of god, sudden interruptions or prolonged low-voltage conditions, which are not covered by this Warranty. You must monitor your unit’s performance on a daily basis.
If there is an apparent problem or “Alarm” condition, you must disconnect the power supply to avoid potential damage to your wine collection. It is your responsibility to
insure your wine, and to take all reasonable and necessary precautions to safeguard its condition.
WHAT THE WARRANTY DOES NOT COVER
This warranty covers only defects in materials and workmanship provided by VINTAGE KEEPER INC. and does not cover equipment damage or malfunction from misuse,
abuse, accident, act of God, or any unauthorized alteration or modication. The product must have been installed and operated precisely as directed in the manual which
acompanies each product. Improper return shipping, inadequate packaging or shipping damage is not covered unless the unit is packaged and shipped in accordance with
Vintage Keeper replacement procedures. This product is not warranted for COMMERCIAL USE. Such usage will void any warranty. Third party servicing of this product during
the warranty period will also void the warranty, as will any evidence of tampering or alteration to the serial number and or the original dated bill of sale.
REPLACEMENT AND REPAIR ARE YOUR ONLY REMEDIES
YOUR ONLY REMEDY UNDER THIS WARRANTY IS THE REPLACEMENT OR REPAIR OF YOUR ELIGIBLE PRODUCT AS DESCRIBED ABOVE. NEITHER THIS WARRANTY NOR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL EXTEND
BEYOND THE ONE-YEAR WARRANTY PERIOD. UNDER NO CIRCUMSTANCES SHALL VINTAGE KEEPER INC. BE LIABLE FOR ANY SPECIAL INCIDENTAL, INDIRECT OR PUNITIVE DAMAGES
OR FOR ANY CONSEQUENTIAL DAMAGES, INCLUDING SPOILAGE OF WINE, EVEN IF VINTAGE KEEPER INC. KNOWS OR IS INFORMED THAT SUCH DAMAGES ARE POSSIBLE. IT IS YOUR
RESPONSIBILITY TO INSURE YOUR WINE, AND TAKE ALL REASONABLE, NECESSARY PRECAUTIONS TO SAFEGUARD ITS CONDITION. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. NO RESELLER IS AUTHORIZED TO MODIFY THE
TERMS OF THIS WARRANTY. ANY ADDITIONAL WARRANTY OFFERED BY A RESELLER IS THE SOLE RESPONSIBILITY OF THAT RESELLER.
SERVICE AFTER YOUR WARRANTY EXPIRES
If your unit requires service after the one-year warranty period expires, you may have it serviced locally by any qualied HVAC technician, or you may purchase a new unit
at a special discount under our Extended Warranty Program. Please be ready to provide model, serial number, credit card number and a copy of your original dated bill of
sale. In addition, repair service is always available direct from us at at rates below the prevailing charges for local service. However, using our Extended Warranty Program
for units under 5 years old will always be a preferable solution to returning a unit for repair. Go online at www.vintagekeeper.com to request Repair Service or see our
Extended Warranty Program.
VINTAGE KEEPER Inc., 5648 McAdam Rd., Mississauga ON CAN L4Z 1T2
Telephone: [phone] Fax: [phone] E-Mail: [e-mail]
