Vinvautz VZ20SSUG User manual

1
INSTRUCTION MANUAL
FOR WINE CELLAR
Model Number:
VZ07SSUG
VZ19SSUG
VZ20SSUG
VZ22BI

2
Thank you for choosing Vinvautz Wine Cellar.
Before use, please read and follow all safety and operating instructions.

3
Vinvautz is the world’s famous designer and manufacturer of professional Wine Cellar which
manufactures Wine Cellar for your house and private dwellilngs. We have created aesthetic masterpieces
worldwide by perfectly blending architectural elements and artistic creations in our Wine Cellar designs.
The Vinvautz Difference (Vin + Vautz = Wine + Safe!)
Vinvautz is one of the first to develop a self-contained wine cellar suitable for big and small family and
office with excellence in its French craftsmanship and unique stylish design sets for the needs of the
trendy cosmopolitan life. Vinvautz is the famous designer and manufacturer of professional Wine Cellar
and creates aesthetic masterpieces by perfectly blending architectural elements and artistic creations in
its designs.
Vinvautz wine cellar is purposefully engineered for wine storage in a variety of elegant, beautiful, and
stylish that enhances the ensembles in your home.
Digital control
A digital control and multiple sensors ideal for storage of both red and white wine.
Flexible storage
Retractable shelves are designed to provide easier accommodation.
Durable and High quality
Compressor type cooling offers stability in operation and durability for long lasting storage.

4
CONTENTS
DISPOSAL OF APPLIANCES............................................................................................................. 5
BEFORE INSTALLING AND USING YOUR NEW APPLIANCE .................................................. 5
IMPORTANT SAFETY INSTRUCTIONS.......................................................................................... 5
INSTALLATION OF YOUR WINE CELLAR..................................................................................... 7
BEFORE USING YOUR WINE CELLAR.................................................................................... 7
INSTALLATION OF YOUR WINE CELLAR............................................................................. 7
OPERATING YOUR WINE CELLAR ...............................................................................................10
CONTROL PANEL..................................................................................................................... 10
FOR VZ07SSUG.................................................................................................................10
FOR VZ19SSUG...............................................................................................................111
FOR VZ20SSUG...............................................................................................................112
FOR VZ22BI......................................................................................................................133
CARE & MAINTENANCE ..............................................................................................................177
PROBLEMS WITH YOUR WINE CELLAR...................................................................................188

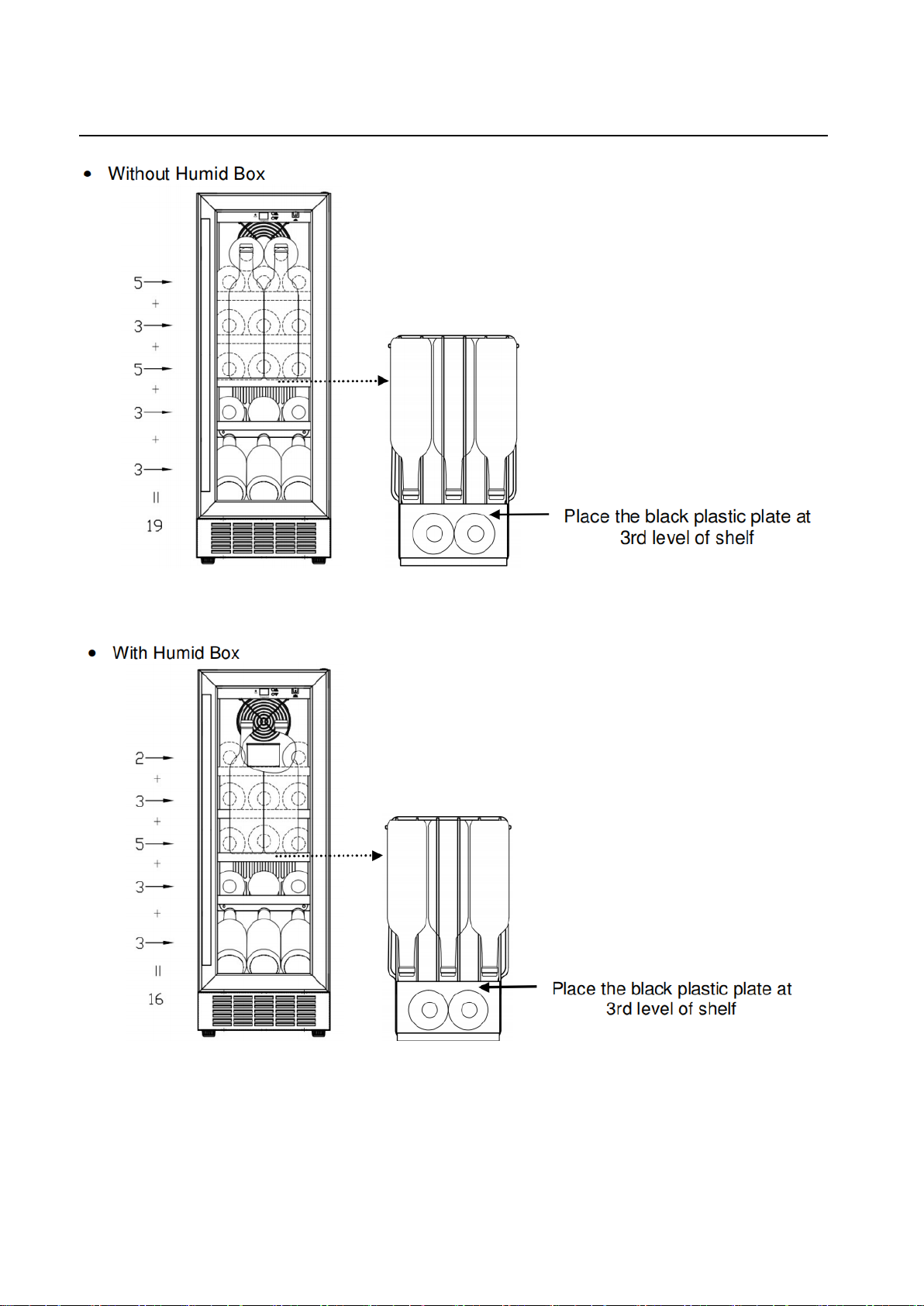

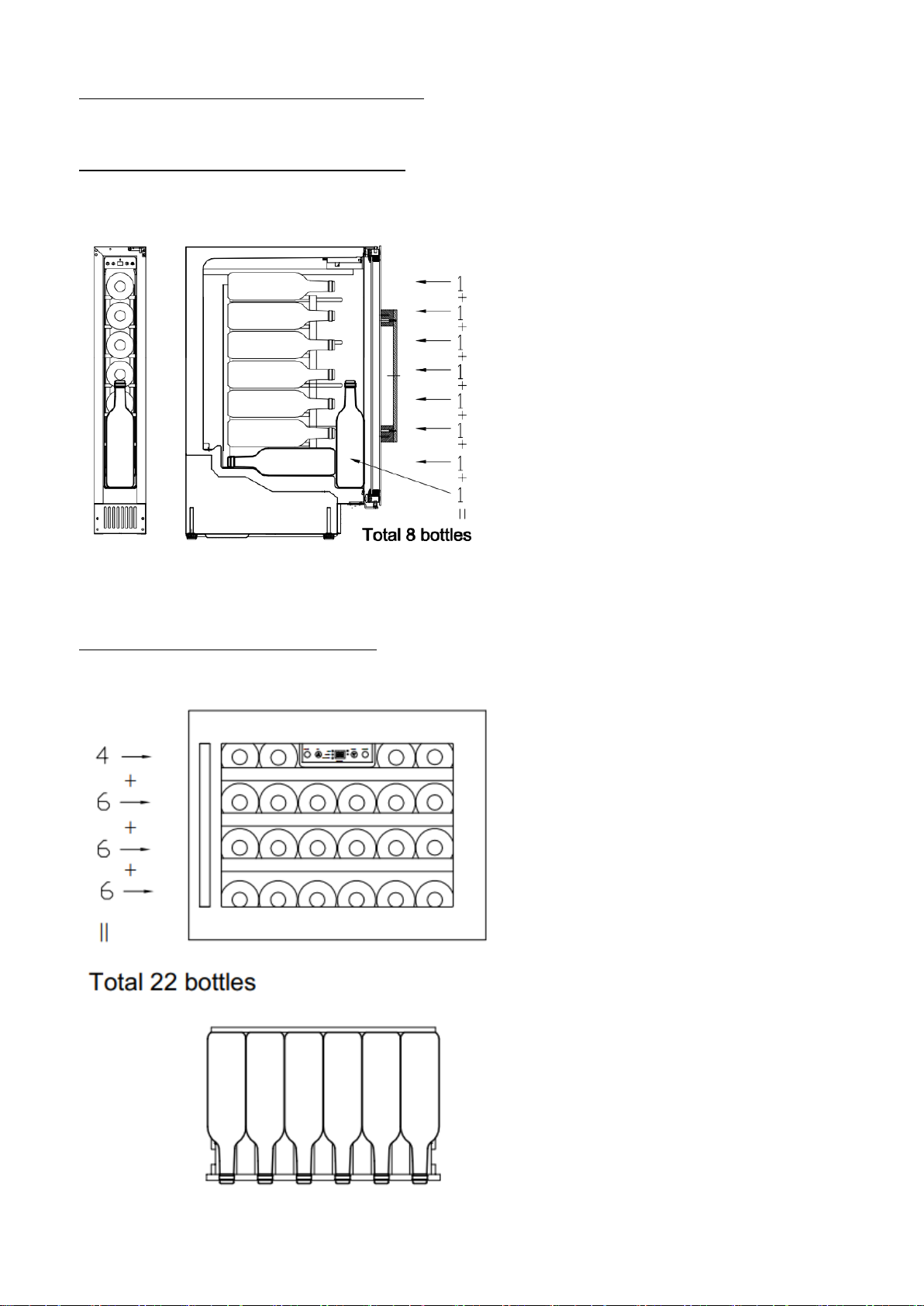

APPENDIX - LOADING DIAGRAM...............................................................................................19

5
DISPOSAL OF APPLIANCES
Before disposing any appliance, please remove any plugs and cut the power leads to ensure that the
appliance is inoperative.
Remove the door but leave the shelves in place to prevent children climbing inside.
Dispose of your wine cellar packaging properly. Ensure that any plastic wrappings, bags etc. are disposed
of safely and kept out of the reach of babies and young children. Danger of suffocation!
This symbol indicates that it must not be discarded as general household waste.
Instead, it should be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
By disposing of this product correctly you will help prevent potential negative consequences for the
environment and human health, which would otherwise be caused by inappropriate waste handling of
this product.
Refrigeration equipment must be properly disposed of in a professional and appropriate way, in
accordance with the current local regulations and laws which protects the environment this applies to
your old Wine Cellar and to your new Wine Cellar once it has reached the end of its service life.
Warning: When disposing of old appliance, make sure that the pipe work does not damage.
BEFORE INSTALLING AND USING YOUR NEW APPLIANCE
Warning: Before powering up the appliance, please open the door for 5 minutes to ventilate the cabinet.
Read through the instruction manual supplied with the appliance – failure to install or use this appliance
in accordance with the instruction manual may invalidate any warranty.
The manufacturer does not accept any liability for damage caused through improper use or incorrect
installation.
Do not install this appliance if it has been damaged during transportation. This includes the plug and
power cord.
Please keep this instruction manual in a safe place for future reference.
Note: This appliance is intended to be used exclusively for the storage of wine only.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Wine Cellar, basic precautions should always be followed to reduce the risk of
fire, electric shock, and injury to persons, including the following:
•To prevent damage to the door and door gasket, make sure the door is fully opened before pulling
out any shelves.
•Do not move the wine cellar when it is loaded with wine, you might distort the appliance.
•If the power lead becomes damaged it should only be replaced by the manufacturer or a qualified
person.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any
other appliance. This will cause a fire hazard or explosion.
•Warning: Do not allow the refrigerant circuit to become damaged while using or installing the

6
appliance. Should it become damaged, do not use the appliance until you are instructed to do so by
service engineer. Refrigerant can ignite or cause damage to the eye when leakage.
•Always remember to unplug the appliance before cleaning. When disconnecting from the electricity
supply, pull the plug, not the power cord.
•Do not use anything electrical inside the wine cellar.
•All electrical repairs must be carried out by a qualified service engineer. Inadequate repairs may result
in a major source of danger for the user and invalidate any warranty.
•Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid, or
alkali etc.
•Always keep any ventilation openings clear of obstruction. Should they become blocked, clear them
straight away.
•Make sure that the plug is in an accessible place when installation is complete.
•Only use this appliance for domestic purposes in accordance with these instructions.
•Do not connect or disconnect the electric plug when your hands are wet.
•The wine cellar is suitable for storing wine only. It is not suitable for storing fresh or frozen foods.
To avoid contamination of wine, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
•Clean the surfaces that have contact with bottles regularly.
•If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mold developing within the appliance.
•If the refrigerant of these appliances is R600a, flammable and explosive articles should not be put in or
near the cabinet, to avoid the fire or explode caused.
Warning:
•This appliance cannot be used by children aged from 8 years and below
and persons with reduced physical, sensory, or mental capabilities or lack
of experience and knowledge if they have not been given supervision or
not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•Children are not allowed to load and unload wine cellar

7
INSTALLATION OF YOUR WINE CELLAR
Before Using Your Wine Cellar
•Remove the exterior and interior packing.
•Before connecting the Wine cellar to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
•Check that the voltage marked on the product corresponds with your supply voltage.
•Clean the interior surface with lukewarm water using a soft cloth.
•When replace the illuminating lamp, please contact local service provider for replacement.
•When disposing your appliance, please choose an authorized disposal site.
Installation of Your Wine Cellar
•Place your Wine cellar on a floor that is strong enough to support it when it is fully loaded. To
level your Wine cellar, adjust the front leveling leg at the bottom of the Wine cellar.
•Locate the Wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
•Avoid locating the unit in moist areas.
•Plug the Wine cellar into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
•Important: If the lowest temperature is set during periods of high humidity and ambient
temperature, condensation may appear on outside surfaces and the door of wine cellar, this is a
normal phenomenon.
ATTENTION:
This wine cellar has been designed for freestanding or built-under installation.
(Except VZ22BI for built-in only)
In every case, there must be adequate ventilation and access for service.
FREESTANDING INSTALLATION:
Freestanding installation will allow you to install the wine cellar in almost any indoor place you desired.
You must follow the stated instructions for electrical requirements, recommended install area and
leveling of the wine cellar.

8
BUILT-UNDER / BUILT-IN INSTALLATION
When installing the wine cellar under a counter, to ensure proper service access and ventilation, allow
between at least 5mm of clearance at the sides and top of the wine cellar, and at least 30-50mm of
clearance at the back. Follow the recommended spacing dimensions shown and always keep any
ventilation openings clear of obstruction.
For VZ07SSUG
For VZ19SSUG/VZ20SSUG

9

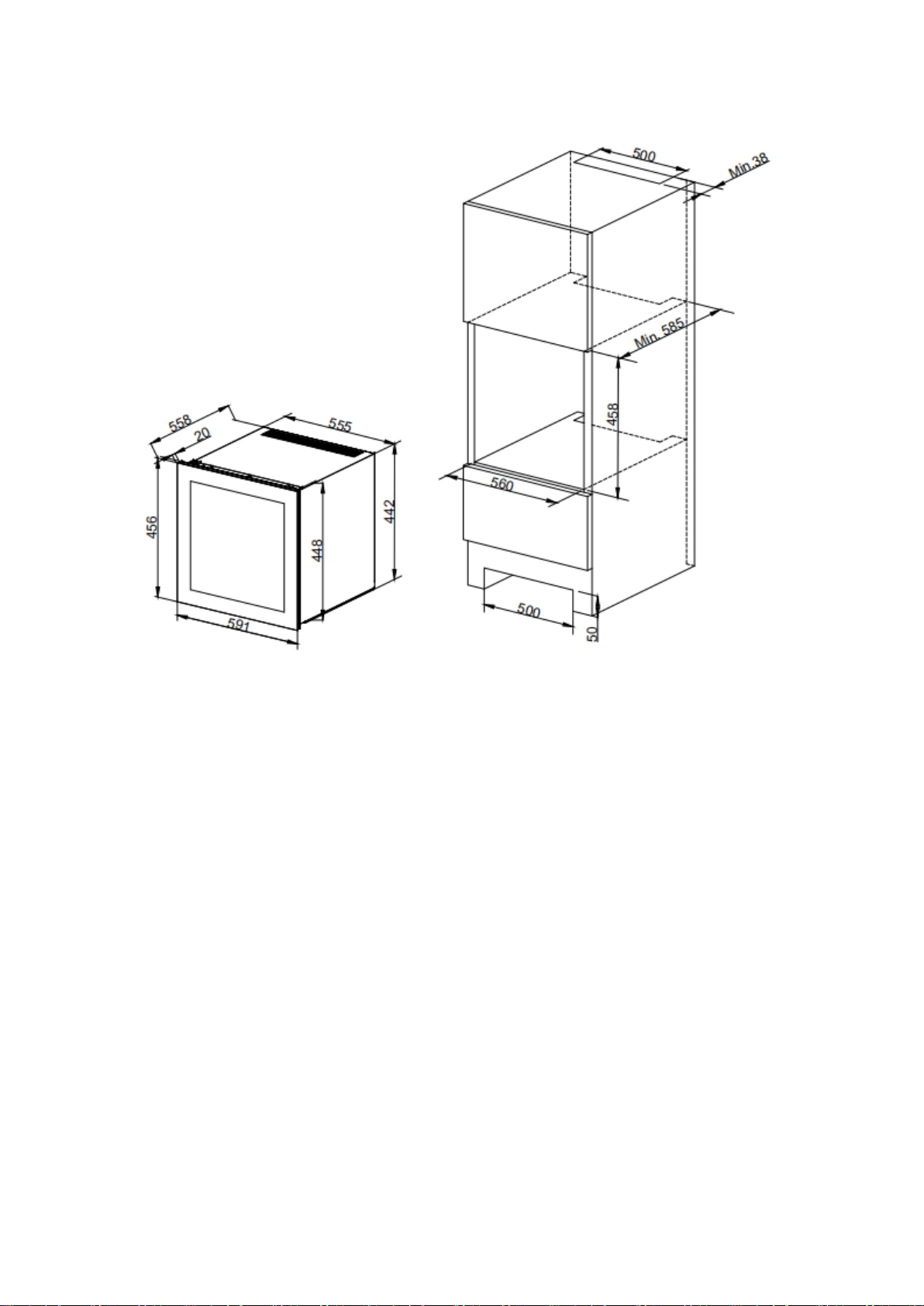

For VZ22BI

10
OPERATING YOUR WINE CELLAR
CONTROL PANEL
For VZ07SSUG
+ Button Display Panel – Button
The temperature setting can be adjusted from 5°C to 18°C.
•
To control the appliance turn ON or OFF.
•
To control the interior light ON or OFF.
To reduce energy consumption, the wine cellar will automatically switch off the internal light after 10
minutes. If you want the internal light to remain on continuously. Press and hold this button for 5
seconds until display show “LP”. To revert to normal mode. Press and hold this button for 5 seconds
until display show “LF”.
•
Used to raise(warm) the temperature in 1°C.
•
Used to lower(cool) the temperature in 1°C.
•
To show the set temperature / actual temperature of the wine cellar.
Temperature Memory Function
If the power is suddenly lost, the set temperature will be saved by the unit.
Once the power is back on, the unit will be at the same actual temperature.
Temperature Alarm Function
If the interior temperature is higher than 23°C (73°F), “HI” is shown on the display panel and the
buzzer alarm sounds continuously after one hour. This indicates that the inner temperature is too
high, please look for the reason. If the inner temperature is lower than 0°C (32°F), “LO” is shown
on the display panel; the alarm and the malfunction indicator light turn on at the same time.
Power Button Light Button

11

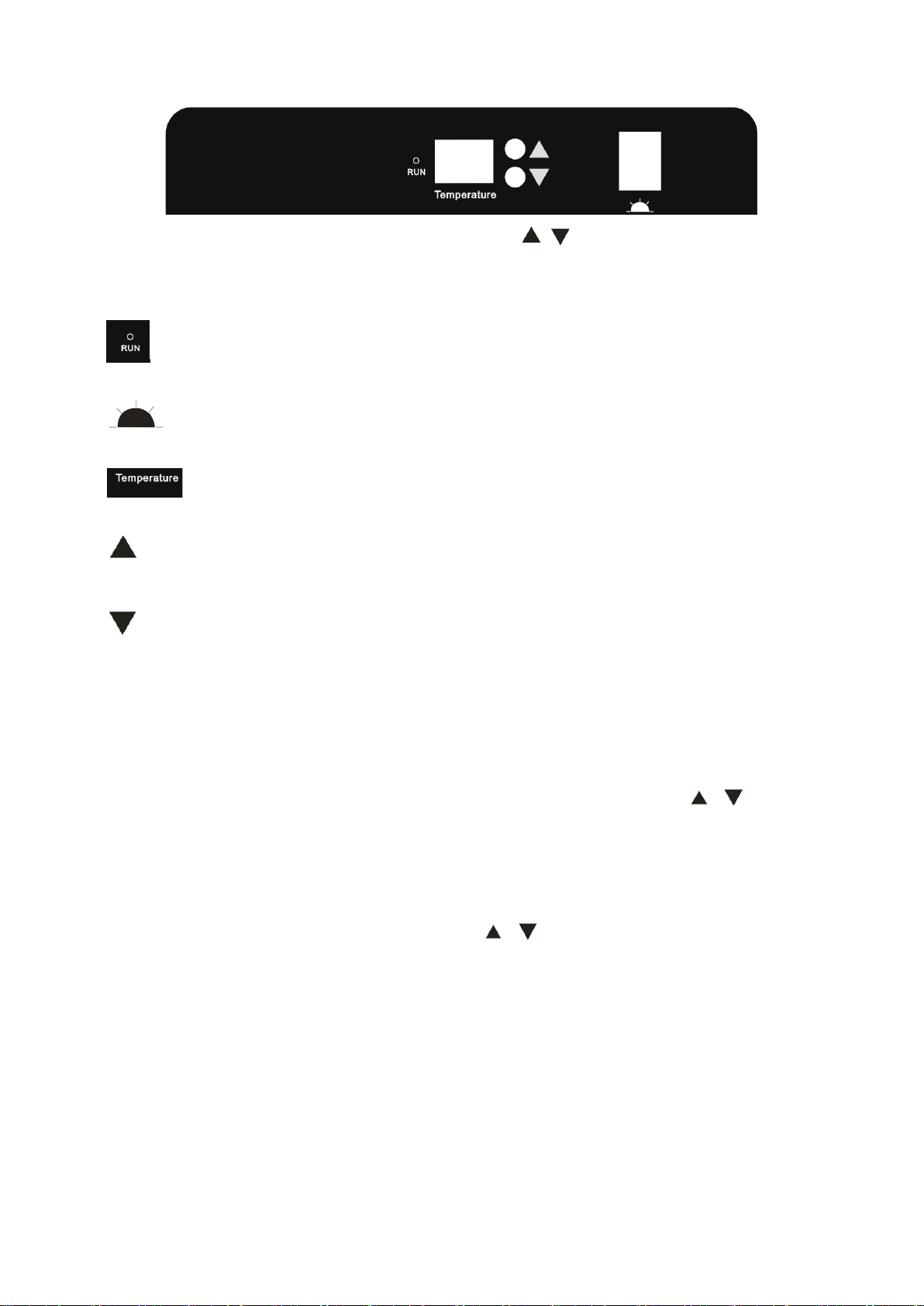

For VZ19SSUG
The temperature setting can be adjusted from 5℃ to 18℃.
•
Indicator light to signify the cooling mode is currently in operation.
•
To control the interior light ON or OFF.
•
To show the temperature of the wine cellar.
•Button
Used to raise(warm) the temperature in 1℃.
•Button
Used to lower(cool) the temperature in 1℃.
Setting the Temperature Controls
To set the temperature, connect the power cord to a properly grounded outlet.
In case of any power interruption, the previous temperature setting will be erased.
Set the desired cooling temperature by pressing the buttons adjacent to the “ / “button.
Each press of the buttons will scroll through the available temperature setting of 1
degree. The temperature selected will flash in the LED display for approximately 5 seconds,
then revert back to display the temperature of the wine cellar.
To view the set temperature, press and hold the “ / “ button for approximately
5 seconds, the set temperature temporarily flashes in the LED display for 5 seconds.
Flashing LED display = Wine Cellar Set Temperature
Steady LED display = Wine Cellar Actual Temperature
Display Panel /button Light Button

12
Power Button + Button
Light Button - Button
Display Panel
FOR VZ20SSUG
The temperature setting can be adjusted from 5°C to 20°C.
•
To control the appliance turn on/off.
•
The wine cellar has two levels of light can be selected (Dimmer / Bright).
At light OFF position, press once for dimmer light, press again for bright light.
To reduce energy consumption, the wine cellar will automatically switch off the internal light after 10
minutes. If you want the internal light to remain on continuously. Press and hold this button for 5
seconds until display show “LP”. To revert to normal mode. Press and hold this button for 5
seconds until display show “LF”.
•
Used to raise(warm) the temperature in 1°C.
The screen is set to display the actual temperature, press + or – button to display the set temperature.
•
Used to lower(cool) the temperature in 1°C.
The screen is set to display the actual temperature, press + or – button to display the set temperature.
•
To show the actual temperature of the wine cellar.
To view the set temperature, press and hold the “+/ -“ button for approximately
5 seconds, the set temperature temporarily flashes in the LED display for 5 seconds.
Flashing LED display = Wine Cellar Set Temperature
Steady LED display = Wine Cellar Actual Temperature

13
For VZ22BI
Up Button Display Panel Down Button
The temperature setting can be adjusted from 5℃ to 18℃.
•
Touch the ON/OFF mark and hold for 2 second to control the appliance turn on/off.
•
To control the interior light ON or OFF.
•
Used to raise(warm) the temperature in 1°C.
•
Used to lower(cool) the temperature in 1°C.
•
To show the set temperature / actual temperature of the wine cellar.
Light Button ON/OFF Button

14
Attention
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restart the unit.
If you need attempt to restart before this time delay, the wine cellar will not start.
For first time use or longer absence of using, the temperature will difference between setting and
LED display temperature. After running a certain period, the temperature will be reverted.
Note: During periods of high humidity, condensation may appear on outside surfaces of the
appliances.
This condensation will disappear once humidity levels drop. To prevent, it is recommended to install
the appliance with sufficient ventilation in a dry and/or an air-conditioned room. Please ensure that
doors are closing and sealing properly.
Remove the shelves (For VZ19SSUG/VZ20SSUG/VZ22BI only)
To prevent damaging the door gasket, make sure to have the door all the way opened when pulling
shelves out of the rail compartment.
When removing/inserting the shelves from/into the shelf track, lift one side of the shelf as shown in
the picture below and pull the shelf out towards you, or push it in when inserting it, until one side is
securely seated on the support brackets.

15
Reverse the door (Not Applicable for VZ19SSUG/VZ22BI)
For VZ07SSUG
This appliance has the capability of the door opening from either the left or right side. The unit is preset
with the door opening from the left side. Should you desire to reverse the opening direction, please
contact local service provider, and follow below instructions.
Open the door, remove the two screws in the bottom hinge and lift out the door.
Remove the hinge supporter of the lower door.
Remove the door shaft from the right upper hinge.
Install and tighten the left upper hinge from the plastic bag that includes the instruction manual.
Remove the right lower hinge.
Install the left lower hinge from the plastic bag that includes the instruction manual.
Rotate the door 180 degrees, install the lower hinge supporter to the left of the lower door.
Mount the door and screws tight.

16

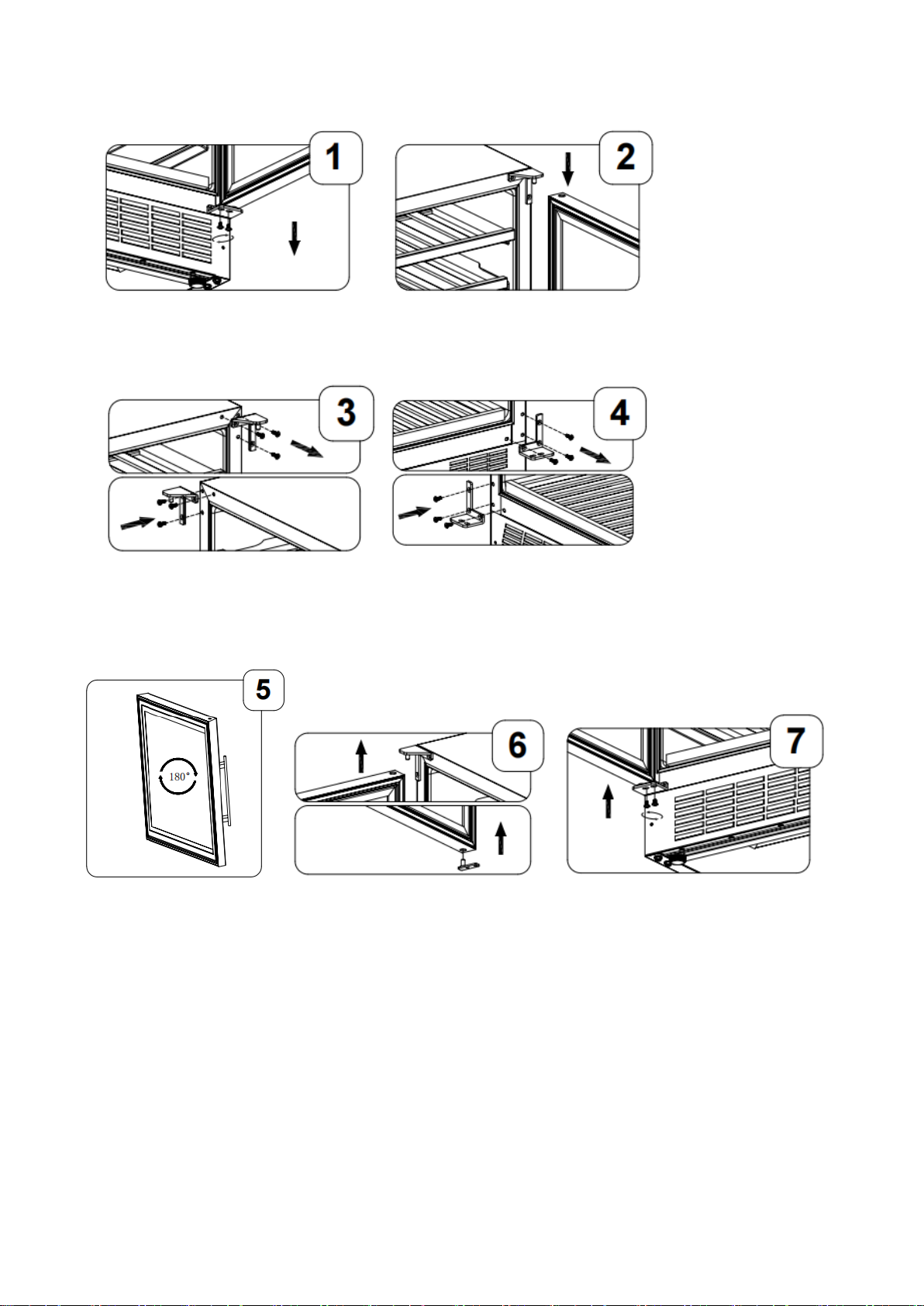

For VZ20SSUG
Open the door, remove the two screws in the bottom hinge and lift out the door.
Remove the hinge supporter of the lower door.
Remove the door shaft from the right upper hinge.
Install and tighten the left upper hinge from the plastic bag that includes the instruction manual.
Remove the right lower hinge.
Install the left lower hinge from the plastic bag that includes the instruction manual.
Rotate the door 180 degrees, install the lower hinge supporter to the left of the lower door.
Mount the door and screws tight.

17
CARE & MAINTENANCE
Clean your wine cellar
Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a warm water and diluted mild detergent.
Wash the shelves with a diluted mild detergent.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical
parts.
Wash the outside cabinet with warm water and diluted mild liquid detergent.
Rinse well and wipe dry with a clean soft cloth.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for
a long period of time, you need to take the proper steps to protect your contents.
Vacation Time
Leave the wine cellar operating during vacations of less than three weeks.
If the appliance will not be used for more than three months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly, blocking it open if necessary.
Make sure there will be no children and animals climb into the appliance.
Moving your wine cellar
Remove all items.
Take out the loose items inside the wine cellar (such as shelf) or fix the loose items with the foam.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect outside
of appliance with a blanket or similar item.
Energy saving tips
The wine cellar should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Set temperature according to the characteristics of your wine to maximize energy saving.

18
PROBLEMS WITH YOUR WINE CELLAR
You can solve common problems by reading the suggestions below to save the cost of a possible service
call. Try to see if you solve the problem before calling the service.
Troubleshooting Guide
Problem Possible Cause
Wine cellar does not operate
No plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine cellar is not
cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is always opened.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently
The room temperature is hotter than normal.
Overload of the cabinet
The door is always opened.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light bulb has burned out.
The light button is “OFF”
Abnormal vibrations Check to sure that the Wine cellar is level.
Too much noise
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The wine cellar is not level.
The door will not close properly
The wine cellar is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

1
APPENDIX - LOADING DIAGRAM
VZ07SSUG – Total 8 Bottles
VZ22BI – Total 22 Bottles

2
VZ19SSUG – Total 19 Bottles (Total 16 Bottles with Humid Box)
