VIP Residential IP Intercom Installation Guide - Issued January 2017 1
VIP Residential IP Intercom
Installation Guide

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
2
Table of Contents
1 Pre-Installation 3
1.1 Installation Requirements & Notes 3
1.2 Components 4
2 Installation 8
2.1 1 Indoor Monitor Door Station (No Network Functionality) 8
2.2 1 Indoor Monitor to 1 Door Station via a Network Switch 9
2.3 2 Indoor Monitors to 1 Door Station via a Network Switch 11
2.4 2 Indoor Monitors to 2 Door Stations via a Network Switch 14
3 Additional Configuration 19
3.1 How to change the Indoor Monitor's IP Address 19
3.2 How to set up an Indoor Monitor as an Extension Monitor 19
3.3 How to change the Door Station's IP Address 20
3.4 Setting the Time and Date 23
3.5 Wiring an Electric Door Strike to the Door Station 24
3.6 Adjust Electric Door Strike Timing 25
3.7 Learning in Swipe Cards 25
3.8 Deleting Swipe Cards 26
3.9 Indoor Monitor Volume Configuration 26
3.10 Door Station Volume Configuration 26
3.11 P2P Configuration (QR Code) 27
3.12 Advanced Configuration for Remote Access (optional) 29
3.13 Changing Door Station Network Ports (optional) 29
3.14 Finding out your network range, and available IP addresses via PC 30
3.15 Using the INTIPMONPOE (Sold Separately) 31
3.16 Using a PoE Switch to Power the Intercom System (Sold Separately) 31
3.17 Adding IP Cameras to an Indoor Monitor 32
3.18 Adding Your Door Station to a VIP Vision NVR 33
4 How to Use Your Intercom System 34
4.1 Making and Answering Calls 34
4.2 Taking Videos / Snapshots from the Indoor Monitor 34
4.3 Viewing Your Videos/Snapshots from the Indoor Monitor 34
4.4 Calling Between Indoor Monitors 35
4.5 Create Favourites 35
5 Updating Intercom Firmware 36
6 Troubleshooting 38
7 Limited Warranty 39

VIP Residential IP Intercom Installation Guide - Issued January 2017 3
1 Pre-Installation
1.1 Installation Requirements & Notes
1.1.1 Door Station Web Interface Login
To access the door station's Web Interface, you will need a Windows computer (in the same IP address range)
that can connect to the Internet.
A maximum of 6 Indoor Stations and 6 Door Stations can be connected.
The User Password is 123456 which may be used for basic operation of the Intercom System.
The Project Settings Password is 888888 which may be used for configuration of the Intercom System.
The Door Station’s web interface will require the default username admin and password admin.
The Door Station’s default IP address is 192.168.1.110
The Indoor Monitors default IP address is 192.168.1.109
Please note that only the Door Station has a web interface; the Indoor Monitor does not.
1. Open Internet Explorer and input the Door Station
IP Address in to the address bar.
e.g. http://192.168.1.110
(Refer to Section 3.1 for how to change the door
station's IP address.)
2. Log in with the default username admin, password
also admin.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
4

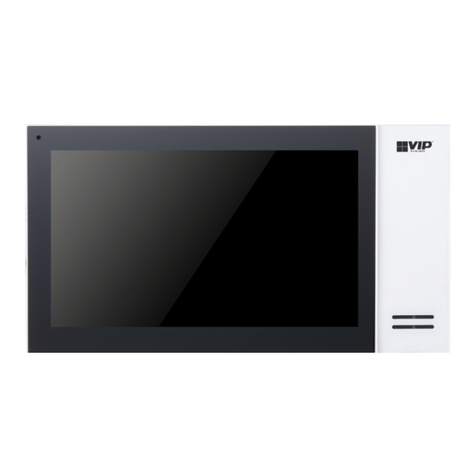

VIP Residential IP Intercom Indoor Monitor
Product ID — INTIPMONBLW (white), INTIPMONBL (black)
• Advanced H.264 Video Compression Technology for High Quality Images
• 800 x 480 pixels resolution
• 7”Touch Screen
• Built in 4GB MicroSD Card (non-removable)
VIP Residential IP Intercom Door Station
Product ID — INTIPRDSVW
• 1MP Camera
• IP54 Rated
• Loudspeaker
• Door Release Output
VIP Residential IP Intercom Door Station
Product ID — INTIPRDSBW (white), INTIPRDSB (black)
• 1MP Camera
• Built-in NFC Card Reader
• Weather Resistant Front Panel (Sheltered Installation recommended)
• Loudspeaker
• Door Release Output
1.2 Components

VIP Residential IP Intercom Installation Guide - Issued January 2017 5
1
2
1When lit, the LED indicates that there is a missed call,
or a message has been left.
2When lit, the LED Indicates that the Indoor Monitor is
powered on
Press to view the Door Station’s camera
Press to view the Door Station’s camera
Press to answer the call, once finished, press to hang-
up the call.
Press to return to the main menu
Not Used
INTIPMONBL(W) - Front
INTIPMONBL(W) - Back
1
2
3
4
1Alarm Inputs Insert a small screwdriver, and gently move the
camera to the desired position.
2RJ-45 Port To connect a Cat5 cable.
3Power Input To connect 12V DC.
4Debug Port Not used.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
6
1Camera Adjustment Insert a small screwdriver, and gently move the
camera to the desired position
2Tamper Switch This must be fully pressed down once installed. If
the switch is released, the alarm will sound.
3RJ-45 Port To connect a Cat5 cable, with the included adaptor
4Debug Port Not used.
5Input Connectors Connections for 12V DC, and Door Strike wiring
1Microphone
2Camera
3Compensation Light
4Speaker
5Name Plate
6Call Button
1
2
3
4
5
6
1
2
3
4
5
INTIPRDSVW - Front
INTIPRDSVW - Back

VIP Residential IP Intercom Installation Guide - Issued January 2017 7
1Tamper Switch This must be fully pressed down once installed. If
the switch is released, the alarm will sound.
2RJ-45 Port To connect a Cat5 cable.
3Power Input 12V DC Input
4Connection Port Door Station wiring is to be connected to these
ports, with the included breakout cable
5Speaker Speaker
1Compensation Light
2Camera
3NFC Card Reader
4Call Button
1
2
3
4
5
1
2
3
4
INTIPRDSB(W) - Front
INTIPRDSB(W) - Back

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
8
If this is your first time purchasing a VIP Residential IP Intercom, we recommend setting it up on the bench be-
fore installation, to familiarize yourself with the product.
If you are setting up more than one Door Station, or wish to connect to the Door Stations web interface, a Win-
dows computer is required to login to the Door Station.
The IP intercom requires a Cat5 cable to be run between the Indoor Monitor, and Door Station. If you wish to
connect to the system remotely your Monitor and Door Station must be connected to your modem or network
switch (sold separately). 12V DC power must be provided to each Door Station and Indoor Monitor.
When connecting to the Door Stations’ web interface, the default IP address is 192.168.1.110. We recommend
using Internet Explorer to connect to the Door Station. Please note that the Indoor Monitor does not have a web
interface.
This configuration requires a length of Cat5 cable running between the Indoor Monitor, and Door Station.
12VDC power must be provided to both the Door Station, and Indoor Monitor
1. Install each unit at their respective location and connect the devices together with a Cat5 cable.
2. Power both the Indoor Monitor and Door station with 12VDC.
3. You have now successfully connected your VIP Residential IP Intercom.
2 Installation
2.1 1 Indoor Monitor Door Station (No Network Functionality)
+ / -
12VDC
+ / -
12VDC
Power
Cat5e
Indoor MonitorDoor Station

VIP Residential IP Intercom Installation Guide - Issued January 2017 9
This configuration allows you to connect your Indoor Monitor and Door Station together, and provide them
with network access.
Cat5 cable will need to be run between the Indoor Monitor, Door Station, and Network Switch
(sold separately). 12V DC power must be provided to both the Door Station, and Indoor Monitor.
A Cat5 cable will need to be connected from the Network Switch to your existing computer network.
In this example, we are going to connect the intercom Door Station and Indoor Monitor to a Network Switch,
and change the IP address of the Door Station and Indoor Monitor.
Device IP Adresses Subnet Mask Gateway Room Number
Door Station 10.1.1.110 155.155.155.0 10.1.1.1
Master Indoor
Monitor
10.1.1.111 255.255.255.0 10.1.1.1 9901
1. Install each unit at their respective location and both the Indoor Monitor and Door Station with a Cat5 cable,
to the Network Switch.
2. Connect a Cat5 cable from the Network Switch, to your existing computer network.
3. Connect a 12VDC power supply to both the Door Station, and Indoor Monitor.
4. Once the Indoor Monitor has powered on, go to“Settings”>“Project Settings”> then enter password 888888.
Settings”> then enter the password 888888.
Switch
Indoor MonitorDoor Station
2.2 1 Indoor Monitor to 1 Door Station via a Network Switch
+ / -
12VDC
+ / -
12VDC
Power
Cat5e
5. Choose“Net Set”and change the IP address,
subnet mask, and default gateway to
match your local computer network. Press
“OK” to save. In this example, we are going
to change the IP address of the Indoor
Monitor from 192.168.1.109 to 10.1.1.111.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
10
6. On the Indoor Monitor go to “Settings” >
“Project Settings”> then enter the password
888888.
7. Select “Search Device”. You will see the Door
Station’s IP address listed.
8. Select the Door Station, then select “Modify
IP” and change the IP address, subnet mask
and default gateway of this Door Station
from 192.168.1.110 to the new IP address
10.1.1.110 Press “OK” to save.
9. Once you have set the Door Stations IP
address, select the Door Station, then the
“Add” button.
10. Enter a name for the Door Station for
example “Front Gate”. Press the “OK” button.
11. A green icon will now appear next to the
IP address indicating the Door Station is
connected.
12. Turn off power to both the Door Station and
Indoor Monitor, after 10 seconds, turn the
power back on.
13. You have now successfully connected your
VIP Residential IP Intercom.

VIP Residential IP Intercom Installation Guide - Issued January 2017 11
This configuration allows you to connect your Indoor Monitor and Door Station together, and provide them
with network access.
Cat5 cable will need to be run between the Indoor Monitors, Door Station, and Network Switch. 12V DC power
must be provided to both the Door Station, and Indoor Monitors. A Cat5 cable will need to be connected from
the Network Switch to your existing computer network.
In this example, we will be changing each devices IP address.
Device IP Adresses Subnet Mask Gateway Room Number
Door Station 10.1.1.110 155.155.155.0 10.1.1.1
Master Indoor
Monitor
10.1.1.111 255.255.255.0 10.1.1.1 9901
Extension Indoor
Monitor
10.1.1.112 255.255.255.0 10.1.1.1 9901-1
2.3 2 Indoor Monitors to 1 Door Station via a Network Switch
+ / -
12VDC
+ / -
12VDC
+ / -
12VDC
Power
Cat5e
Indoor Monitor
Indoor Monitor
Door Station
Switch
1. Install each unit at their respective location and connect the Indoor Monitors and Door Station with a Cat5
cable, to the Network Switch.
2. Connect a Cat5 cable from the Network Switch, to your existing computer network.
3. Connect the 12V DC power supply to both the Door Station, and Indoor Monitor.
4. Once the Master Indoor Monitor has powered on go to “Settings”> “Project Settings”> then enter password
888888.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
12
5. Select “Product Info” and set the “Room No.”
(it must be at least 3 digits, such as 102, in
our example we will be using 9901) and
press “OK” to save.
6. Select “Net Set” and change the local
IP address of this Indoor Monitor from
192.168.1.109 to 10.1.1.111 and press
“OK” to save.
7. The other Indoor Monitor we will setup
as an “Extension” Indoor Monitor. On the
“Extension” Indoor Monitor go to “Settings”
> “Project Settings” > then enter the
password 888888.
8. Select “Product Info” and set the mode to
“Extension”. You can now set the Room
Number to the same as the Master Indoor
Monitor but add “ -1 “ to show that it is the
first extension (such as 9901-1). Enter the
IP address of the “Master” Indoor Monitor
10.1.1.111 and press “OK” to save.
9. Select “Net Set” and change the local
IP address of this Indoor Monitor from
192.168.1.109 to 10.1.1.112 and press
“OK” to save.

VIP Residential IP Intercom Installation Guide - Issued January 2017 13
10. On the “Master” Indoor Monitor, go to
“Settings” > “Project Settings” > then enter
the password 888888.
11. Select “Search Device”. You will see the Door
Station’s IP address listed.
12. Select the Door Station, then select “Modify
IP” and change the IP address, subnet mask
and default gateway of this Door Station
from 192.168.1.110 to the new IP address
10.1.1.110. Press “OK” to save.
13. Once you have set the Door Stations IP
address, select the Door Station, then select
“Add”
14. Enter a name for the Door Station for
example “Front Gate”. Press the “OK” button.
15. A green icon will now appear next to the
IP address indicating the Door Station is
connected.
16. Turn off power to the Door Station and
Indoor Monitors, after 10 seconds, turn the
power back on.
17. You have now successfully connected your
VIP Residential IP Intercom.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
14
2.4 2 Indoor Monitors to 2 Door Stations via a Network Switch
This configuration allows you to connect your Indoor Monitors and Door Stations together, and provide them
with network access.
Cat5 cable will need to be run between the Indoor Monitors, Door Stations, and Network Switch. 12V DC power
must be provided to both the Door Stations, and Indoor Monitors. A Cat5 cable will need to be connected from
the Network Switch to your existing computer network.
In this example, we will be changing each devices IP address.
Device IP Addresses (Example) Room Number
Door Station 1 10.1.1.110
Door Station 2 10.1.1.111
Master Indoor
Monitor
10.1.1.112 9901
Extension Indoor
Monitor
10.1.1.113 9901-1
+ / -
12VDC
+ / -
12VDC
+ / -
12VDC + / -
12VDC
Power
Cat5e
1. Install each unit at their respective location and connect the Indoor Monitors and Door Stations with a Cat5
cable, to the Network Switch.
2. Connect a Cat5 cable from the Network Switch, to your existing computer network.
3. Connect the 12V DC power supply to both the Door Station, and Indoor Monitor.
1. Once the“Master”Indoor Monitor has powered on go to“Settings”>“Project Settings”> then enter password
888888.
Indoor Monitor
Indoor Monitor
Door Station
Door Station
Switch

VIP Residential IP Intercom Installation Guide - Issued January 2017 15
5. Select “Product Info” and set the “Room No.”
(it must be at least 3 digits, such as 102, in
our example we will be using 9901). Press
“OK” to save.
6. Select “Net Set” and change the local
IP address of this Indoor Monitor from
192.168.1.109 to 10.1.1.112. Press “OK” to
save.
7. The other Indoor Monitor will be configured
as an “Extension” Indoor Monitor. On the
“Extension”Indoor Monitor go to“Settings”>
“Project Settings”> then enter the password
888888.
8. Select “Product Info” and set the mode
to “Extension”. You can now set the room
number to the same as the “Master” Indoor
Monitor but add “ -1 “ to show that it is the
first extension (such as 9901-1). Enter the
IP address of the “Master” Indoor Monitor
10.1.1.112. Press “OK” to save.
9. Select “Net Set” and change the local
IP address of this Indoor Monitor from
192.168.1.109 to 10.1.1.113. Press “OK” to
save.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
16
10. Log in to the Door Station's Web Interface.
(Refer to Section 1.1.1 for how to log in.)
11. Once logged in, go to “System Config” >
“Local Config”.
12. Change the VTO number. Each Door
Station must have a different VTO number,
otherwise they will not function correctly.
For example,“6901”for the first Door Station
and“6902”for the second Door Station. Press
“OK”. Repeat this set for each Door Station.
13. On the “Master” Indoor Monitor, go to
“Settings” > “Project Settings” > then enter
the password 888888.
14. Select “Search Device”. You will see the Door
Station’s IP address listed.
15. Select the Door Station, then select “Modify
IP” and change the IP address, subnet mask
and default gateway of this Door Station
from 192.168.1.110 to the new IP address
10.1.1.110. Press “OK” to save.
16. Select the Door Station, then select “Modify
IP” and change the IP address, subnet mask
and default gateway of this Door Station
from 192.168.1.110 to the new IP address
10.1.1.110. Press “OK” to save.

VIP Residential IP Intercom Installation Guide - Issued January 2017 17
17. Once you have set the Door Station’s IP
address, select the Door Station, then the
“Add” button.
18. Enter a name for the Door Station, for
example “Front Gate”. “Channel” must be
“Vto0”. Press the “OK” button.
19. A green icon will now appear next to the
IP address Indicating the Door Station is
connected.
20. Connect your additional Door Station.
21. Select the Door Station, then select “Modify
IP” and change the IP address, subnet mask
and default gateway of this Door Station
from 192.168.1.110 to the new IP address
10.1.1.111. Press “OK” to save.
22. Once you have set the Door Stations IP
address, select the Door Station, then the
“Add” button.
23. Press the right arrow, enter a name for the
Door Station. “Channel” must be “Vto1”.
24. Select “State” and turn it to “On”. Press the
“OK” button.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
18
25. On the Master Indoor Monitor go to
“Settings” > “Project Settings” > then enter
the password 888888.
26. Select “Network”.
30. Select “Network”.
27. You will see the IP address of the first Door
Station that is added. Ensure “Enable Status”
is set to “ON”.
28. Press the right arrow to view the second
Door Station. Ensure“Enable Status”is set to
“ O N ”.
29. On the Extension Indoor Monitor go to
“Settings” > “Project Settings” > then enter
the password 888888.
31. You will see the IP Address of the first Door
Station that is added. Ensure “Enable Status”
is set to “ON”.
32. Press the right arrow to view the second
Door Station. Ensure“Enable Status”is set to
“ O N ”.
33. Turn off power to all Door Station and
Indoor Monitor’s, after 10 seconds, turn the
power back on.
34. You have now successfully connected your
VIP Residential IP Intercom.

VIP Residential IP Intercom Installation Guide - Issued January 2017 19
3 Additional Conguration
3.1 How to change the Indoor Monitor's IP Address
3.2 How to set up an Indoor Monitor as an Extension Monitor
When you have more than one Indoor Monitor, you must setup one Indoor Monitor as the “Master” and all the
additional monitors as“Extension”monitors. All the Door Station details will be entered into the Master monitor
and the Extension monitors will retrieve the settings from the Master monitor. You must enter in each Extension
monitor, the “Master IP” which is the IP address of the Master monitor.
1. Power on the Indoor Monitor.
2. On the Indoor Monitor go to “Settings” >
“Project Settings”> then enter the password
888888
3. Select “Net Set” and change the IP address,
Subnet Mask and Gateway of the Indoor
Monitor, to the details you have chosen.
Press “OK” to save.
1. Change the Indoor Monitors IP Address (see
Section 3.1), to match your network range.
2. On the Indoor Monitor go to “Settings” >
“Project Settings”> then enter the password
888888.
3. Choose“Product Info”and change the Mode
from “Master” to “Extension”.
5. Enter the IP Address of your Master monitor
e.g. 10.1.1.112. Press“OK”to save.
4. Input the room number you wish to use.
This should be the same number as your
Master monitor with a “-“ to indicate it is
an extension. e.g. 9901-1 for your first
Extension monitor, and 9901-2 for the
second.

VIP Residential IP Intercom Installation Guide v1.1 - Issued January 2017
20
3.3.1 Method 1 - Setup from the Indoor Monitor
If you have multiple Door Stations, connect and configure one Door Station at a time, otherwise you may
encounter IP address conflicts.
3.3 How to change the Door Station's IP Address
1. Power on the Indoor Monitor.
2. On the Indoor Monitor go to “Settings” > “Project
Settings”then enter the password 888888
3. Select“Search Device”.You will see the Door Station’s
IP address on the list.
4. Select the Door Station, then select “Modify IP” and
change the IP address, subnet mask and default
gateway of this Door Station from 192.168.1.110
to the new IP address 10.1.1.110. Press“OK”to save.
5. Once you have set the Door Stations IP address,
Subnet Mask and Gateway, select the Door Station,
then the “Add” button.
6. Enter a name for the Door Station for example
“Front Gate”. Press the“OK” button
7. A green icon will now appear next to the IP address,
indicating the Door Station has been added to the
Indoor Monitor.
8. You have now successfully set the Door Station to a
new IP Address and can now set up additional Door
Stations if required.
