VISIO BW-54-3RGBW IV User manual

BW-54-3RGBW
User Manual
Please read the instructions carefully before use
UnRegistered

1-
TABLE OF CONTENTS
1. Safety Instuctions............................................................................................................ 2
2. Technical Specifications .................................................................................................. 3
3. How To Set The Fixture................................................................................................... 4
3.1 Control Panel .......................................................................................................... 4
3.2. Main Functions....................................................................................................... 4
4. How To Control The Unit............................................................................................... 10
4.1 Master/Slave Built-In Preprogram Function........................................................... 10
4.2 DMX Controler ...................................................................................................... 10
4.3 DMX 512 Configuration..........................................................................................11
4.4 DMX512 Conntections.......................................................................................... 12
5. Troubleshooting ............................................................................................................ 12
6. Fixture Cleaning............................................................................................................ 13
UnRegistered

2-
1. Safety Instruction
WARNING
—Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Caution：
—All fixtures are intact from the manufacturer, please operate follow up the user manual, artificial fault
are not under guarantee repair.
—Unpack and check carefully there is no transportation damage before using the unit。
—The unit is for indoor use only. Use only in a dry location。
—Do install and operate by operator。
—Use safety chain when fixes the unit。
—The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
—Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
—Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
—It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
—Maximum ambient temperature TA: 40 . Don’t operate it where the temperature is higher than this.℃
—Don’t connect the device to any dimmer pack.
—First run, there will be smoke or smells, and all disappearing a few minutes later.
—Make sure there are no flammable materials close to the unit while operating, as it is fire hazard.
—Look over power wires carefully, replace immediately if there is any damage.
—Unit surface temperature may reach up to 60 . Don’t touch the housing bare℃-hand during its
operation.
—Never run on for a long time lest shortening lifespan.
—Avoid any inflammable liquids, water or metal objects entering the unit. Once it happen, cut off the
mains power immediately.
—Do not operate in dirty and dusty environment, also cleaning fixtures regularly.
—Do not allow children to operate the fixture.
—Do not touch any wire during operation as there might be a hazard of electric shock.
—Avoid power wires together arounding other cables.
—Replace fuse only with the same type.
—In the event of serious operating problem, stop using the unit immediately.
—Never turn on and off the unit time after time.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
UnRegistered

3-
—The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
—Do not open the unit as there are no user serviceable parts inside. Never try to repair the unit by
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center.
—Disconnect the mains power if the fixture is not used for a long time.
—Do use original packing materials once transport it again.
—To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
—Do not look directly at the LED light beam while the fixture is on.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating.Always ensure that the structure to which you are
attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.Also always
use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch
of people and has no one pass by or under it.
Fittings:
User Manual
Power cable
0.36m Water proof female socket+ male XLR signal cable x1pc
0.36m Water proof male socket+ female XLR signal cable x1pc
2. Techical Specfications
ŸLight source: 3W LED x 54pcs
Red：14pcs，Green：14pcs，Blue：14pcs white：12pcs
ŸVoltage：AC 110-240V/50/60Hz
ŸPower consumption：140W
ŸBeam Angle: 15°
ŸDimension：300.6 x 229 x 340 mm
ŸWeight：9 kg
UnRegistered

4-
3. How To Set The Fixture
3.1 Control Panel
1: Power
Water proof connectors for power input/output
2: DMX input/output
Water proof connectors for DMX 512 operation, 3-pin XLR cable to link the unitstogether
3: Display
To show the menu and the selected functions
Button: 4 MENU To select the programming functions
5 DOWN To go backward in the selected functions
6 UP To go forward in the selected functions
7 ENTER
To confirm the selected functions
3.2. Main Functions
To select any functions, press MENU button until the required one is shown on the display. Select the
function by ENTER button and the display will blink. Use DOWN and UP button to change the mode.
Once the required mode has been selected, press ENTER button to setup or it will automatically return
to the main functions without any change after idling one minute. Back to the functions without any
change press MENU button. The main functions are shown below:
：
UnRegistered

5-
Once you set to , after running in show mode for 5
minutes without any change or restarting the unit, the key board
become locked. Press ENTER button to enable the menu, the display
will show , press UP and DOWN button until it shows ,
then press ENTER to unlock.
UnRegistered

6-
DMX 512 Address Setting
Press the MENU button up to when the is shown on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has
been selected, press ENTER button to setup or automatically exit menu mode without any change after
one minute. Back to the previous functions without any change press MENU button.
UnRegistered

7-

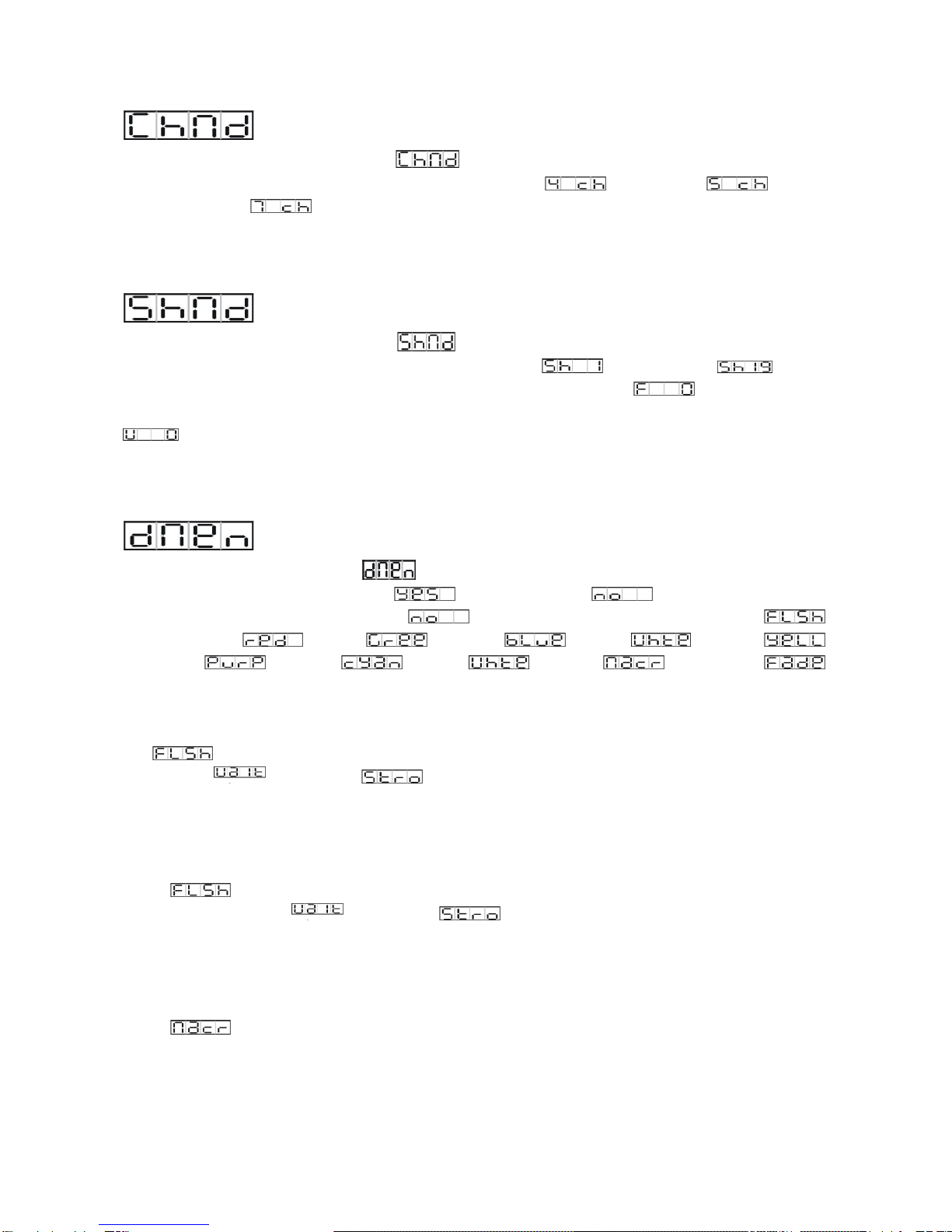

Channel mode
Press the MENU button up to when the is shown on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to select the （4channels,
（5channels）or （7channels），Once select, press ENTER button to setup or automatically
exit menu mode without any change after one minute. To go back to the functions without any change
press the MENU button.
Show mode
Press the MENU button up to when the is shown on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to select the （show 1）…. （show
19），Once select, press ENTER button to setup. press the ENTER button，will blinking on the
display, use DOWN and UP button adjust the fade time (0~255), press ENTER button to store and
will blinking on the display, use DOWN and UP button adjust the white time (0~255), press
ENTER button to store or automatically return to the main functions without any change after one minute.
To go back to the previous functions without any change press the MENU button.
DMX Control Mode
Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will
blink. Use DOWN and UP button to select the （DMX control）or （manual control），Once
select, press ENTER button to setup。If is selected, use DOWN and UP button to select
（Flash mode）， （Red）， （Green）， （Blue）， （White），
（Yellow）， （Purple）， （Cyan）， （Whole）， （Rotation）or
（fade），press ENTER button to confirm, then use DOWN and UP button to adjust the dimmer(1…9).
Notice：
1.If （flash mode）is selected，press ENTER button to confirm, then use DOWN and UP button
to select the (wait time) or (shutter), Once select, press ENTER button to confirm.
then use DOWN and UP button to adjust the the wait time or shutter speed(solw ,midum, fast)(1…..9).
Once select ,press ENTER button to store or automatically return to the main functions without any
change after one minute. To go back to the previous functions without any change press the MENU
button.
1. If （flash mode）is selected，press ENTER button to confirm, then use DOWN and UP
button to select the (wait time) or (strobe), Once select, press ENTER button to
confirm. then use DOWN and UP button to adjust the the wait time or strobe speed (solw ,middle,
fast) (1…..9). Once select, press ENTER button to store or automatically return to the main
functions without any change after one minute. To go back to the previous functions without any
change press the MENU button。
2. If （flash mode）is selected, press ENTER button to confirm, then use DOWN and UP
button to adjust the type of the rotation(1…..9). Once select ,press ENTER button to store or
automatically return to the main functions without any change after one minute. To go back to the
previous functions without any change press the MENU button.
UnRegistered

8-
3. If （fade）is selected, press ENTER button to confirm, then use DOWN and UP button to
adjust rotation time(1…..9). Once select ,press ENTER button to store or automatically return to the
main functions without any change after one minute. To go back to the previous functions without
any change press the MENU button.
Manual Mode
Press the MENU button up to when the is showing on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to select the （Red）， （Green），
（White）， （Dimmer）or （Shutter），Once select, press ENTER button to
setup or automatically exit menu mode without any change after one minute. To go back to the functions
without any change press the MENU button.
System information
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the below operation. Once select, press
ENTER button to setup or automatically exit menu mode without any change after one minute. To go
back to the functions without any change press the MENU button.
Blackout mode
Press the MENU button up to when the is showing on the display.Pressing ENTER button
and select the mode,Pressing ENTER button and the display will blink. Use DOWN and UP
button to select the （blackout）or （normal），Once select, press ENTER button
to setup or automatically exit menu mode without any change after one minute. To go back to the
functions without any change press the MENU button.
Program Shows
Press the MENU button up to when the is showing on the display.Pressing ENTER button
and select the mode,Pressing ENTER button and the display will blink. Use DOWN and UP
button to select the （Show 17）， （Show 18）or （Show 19），Once the show
has been selected, press the ENTER button to enter setting program. Use DOWN and UP button to
select (length, the steps, you choose from the total amount of steps, you want to run, for
example, if the total amount of steps you set is 50, you can choose only first 1-10 steps to run).
(step), select to set (color) and (white) and (dimmer) for every step.
Automatically return to the main functions without any change after one minute. To go back to the
previous functions without any change press the MENU button.
UnRegistered

9-
Adjust White Balance
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the （Red）， （Green），
or （Blue）mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after one minute. To go back to the
previous functions without any change press the MENU button.
Display Inversion
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the （normal）or
（inverse），Once the mode has been selected, press the ENTER button to setup or automatically return
to the main functions without any change after one minute. To go back to the previous functions without
any change press the MENU button.
Key Board Lock
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to select the （lock the key board）或
（normal），Once select, press the ENTER button to setup or automatically return to the main
functions without any change after one minute. Back to the previous functions press MENU button.
Self-Test
Press the MENU button up to when the，is blinking on the display. Pressing ENTER button and
the unit will run self-test by built-in program. To go back to the functions press the MENU button again.
LED
Press the MENU button up to when the is shown on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to select （display on）or （display off
20 seconds after exit menu）mode. Once select, press ENTER button to setup or exit menu mode
without any change after one minute. Back to the functions without any change press MENU button
again.
Temperature Test
Press the MENU button up to when the is blinking on the display. Pressing ENTER button
and the display will show the temperature of the unit. To go back to the functions press the MENU button
again.
UnRegistered

10-
Fixture Hours
Press the MENU button up to when the is blinking on the display. Pressing ENTER button
and the display will show the number of working hours of the unit. To go back to the functions press the
MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Pressing ENTER button
and the display will show the version of software of the unit. To go back to the functions press the MENU
button again.
4. How TO Control The Unit
You can operate the unit in two ways：
1. By master/slave built-in preprogram function
2. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address setting will be
effected at once. Every time you turn the unit on, it will show on the display and move all the
motors to their ‘home’ position. After that the unit will be ready to receive DMX signal or run the built in
programs.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to give an
automatic, sound activated, synchronized light show. This function is good when you want an instant
show. You have to select (show 1) or (show 2) ……or (show 19, show17~19 have
to be edited by the user) show for the first unit. Its DMX input jack will have nothing plugged into. The
other units will be slave mode automatic.
4.2 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel
so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing ENTER button and
the display will blink. Use DOWN and UP button to change the DMX512 address. Once the address has
been selected, press and keep ENTER button pressed up to when the display stops blinking or storing
automatically 8 seconds later. To go back to the functions without any change press the MENU button
again.
UnRegistered

11-
Please refer to the following diagram to address your DMX512 channel for the first 4 units：
4 Channels：
5 Channels：
7 Channels：
4.3 DMX 512 Configuration
UnRegistered

12-
4.4 DMX512 连接
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of
the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed
signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
UnRegistered

13-
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or
the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage
or interference to DMX interface circuit.
6. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency
depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding
can cause greater accumulation of dirt on the fixture’s optics.
ŸClean with soft cloth using normal glass cleaning fluid.
ŸAlways dry the parts carefully.
ŸClean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
UnRegistered

14-
UnRegistered

15-
Innovation, Quality, Performance
UnRegistered
