Operation Manual
ZL 7261 CL-5
ZL 7261 CN-5
ZL 7261 DE-5
ZL 7261 FR-5
ZL 7261 IT-5
ZL 7261 JP-5
ZL 7261 KR-5
ZL 7261 RU-5
ZL 7261 US-5
Z-Wave Power Monitor
ZL 7201 CL-5
ZL 7201 CN-5
ZL 7201 DE-5
ZL 7201 FR-5
ZL 7201 IT-5
ZL 7201 JP-5
ZL 7201 KR-5
ZL 7201 RU-5
ZL 7201 US-5
Z-Wave On/Off Module
ZL 7261/7201 V3
1031007 6B1Z-72003

Introduction
Thanks for choosing the Vision’s Power Monitor or On/Off Module of the home automation device. This
Power Monitor or On/Off Module is a Z-Wave
TM
enabled device (interoperable, two-way RF mesh
networking technology) and is fully compatible with any Z-Wave
TM
enabled network. Every main powered
Z-Wave
TM
enabled device acts as a signal repeater and multiple devices result in more possible
transmission routes, which helps eliminate “RF dead-sport”.
Z-Wave
TM
enabled devices displaying the Z-Wave
TM
logo can also be used with it regardless of the
manufacturer, and ours can also be used in other manufacturer’s Z-Wave
TM
enabled networks. This
module will send On/Off signal to the appliance that attached to this module by receiving Z-Wave
TM
signal from controller or manually switch. It also sends the energy consumption (ZL7261 only) to the
controller when it requests. With special design, this module won’t interfere the other power outlet when
plug into the AC outlet. This module also acts as repeater (supporting FLiRS).

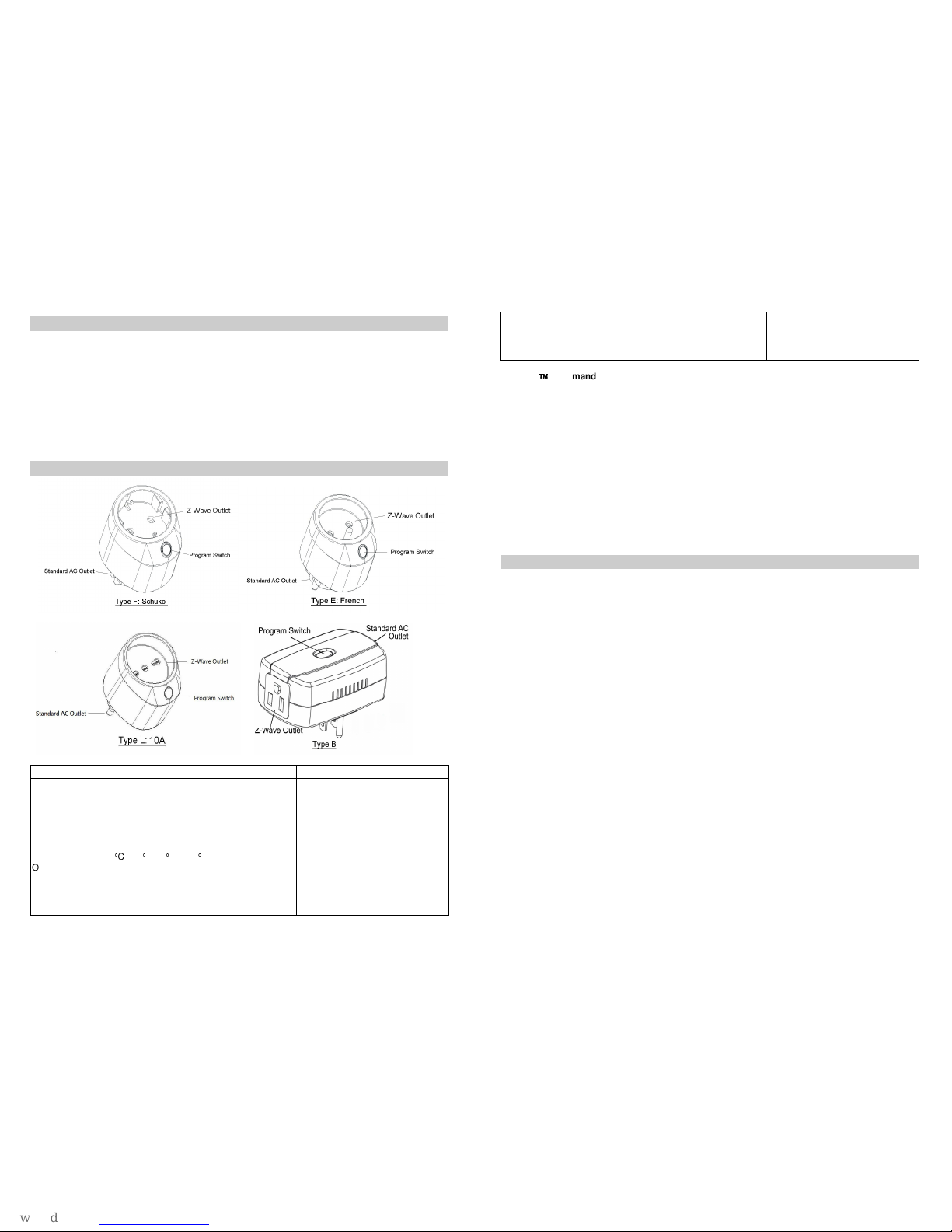

Product Description and Specification
Specification:
Package Content:
Protocol: Z-Wave
TM
(ZM5202)
Frequency:
868.42 MHz (ZL7201CN/DE/FR/IT / ZL7261CN/DE/FR/IT)
869.00 MHz (ZL7201RU / ZL7261RU)
908.40 MHz (ZL7201CL/US / ZL7261CL/US)
919.70 MHz (ZL7201KR / ZL7261KR)
922-926MHz (ZL7201JP / ZL7261JP)
Operating Temp. -15 ° C~ 60 ° C (-5 ° F~ 140 ° F)
Operating Voltage: AC 100V~230V
Operating Range: Up to 100 feet (about 30m)
Data Rate: Up to 9.6k/40k/100kbps
Application: Indoor use
Max Loading
1pc Power Monitor or On/Off Module
1pc User Manual
Type B: 110V/15A/1600W (Resistive)
220V15A/3200W (Resistive)
Type E, F & L: 230V/10A/2300W (Resistive)
Z-Wave ™
™™
™ Command Class:
COMMAND_CLASS_APPLICATION_STATUS
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_METER_V4 (ZL7261 only)
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_PROTECTION (ZL7201 only)
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SWITCH_ALL
COMMAND_CLASS_SWITCH_BINARY mapping COMMAND-CLASS_BASIC
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_ZWAVEPLUS_INFO
Operation
If you are installing the entire Z-Wave
TM
system for the first time, please refer to the
installation guide of Z-Wave
TM
Interface Controller before installing ZL7261 or ZL7201.
1. For “Inclusion” in (adding to) a network: Put the Z-Wave
TM
Interface Controller into
“inclusion” mode, and following its instruction to add the ZL7261 or ZL7201 into your
controller. To get in the “Inclusion” mode, the distance between ZL7261 or ZL7201 and
controller is suggested to be in one meter. By power up to get included for first time, or
press the Program switch 3 times within 2 seconds to be included.
For “Exclusion” from (removing from) a network: Set up the Z-Wave
TM
Interface
Controller into “exclusion” mode, and following its instruction to delete the ZL7261 or
ZL7201 from your controller. Press the Program Switch 3 times within 2 seconds to
be excluded.
For “Association”: the Z-Wave
TM
interface controller set “Association”, and following its
instruction to associate the ZL7261 or ZL7201 with other device. Support one group (5
nodes). ZL7261 or ZL7201 will report back every time ON and OFF status, also it will
reports every notification to all devices in the association group.
2. For “Meter Supported Get” (ZL7261 only): the Z-Wave
TM
Interface Controller or Gateway
can send “Meter Get” command with any of the following supported scales, and the
ZL7261 will report back with the energy consumption values for the requested scale:
Scale: 0x00-kWh(Default);
0x01-kVAh
0x02-W
0X04-V
0X05-A
0X06-Power Factor.
-1-
-2-

3. LED visual indication:
Excluded Red and Green LED flashing separately
Included Switch ON Red, Switch Off Green ZL7201 only
Energy
0 ~ 5 AMP Green ZL7261 Type
B plug only
5 ~ 10 AMP Orange
10 ~ 15 AMP Red
0 ~ 3 AMP Green ZL7261 all
other plug
only
3 ~ 7 AMP Orange
7 ~ 10 AMP Red
4. Manually turn the connected appliance On/Off by your controller or pressing the Program
Switch. This is toggle switch. If the connected appliance is OFF, pressing the
Program Switch turns the connected appliance ON and vice versa.
5. The on/off function uses the Z-Wave Switch Binary Command Class (or Basic Command
Class) to control its operation. Sending a switch binary set command with a level of 0
(0x00) will turn off the device, and sending a level of 255 (0xFF) will turn on the device.
6. Repeater Function: This device acts as a repeater for the Z-Wave mesh network
functionality.
7. Support Meter Auto Report Function (ZL7261 only)
8. Configuration (ZL7261 only):
Parameter
Size
Value Notes
Auto report
timing 1 1 byte
60~255 seconds
(Default 60 seconds) Report kWh/kVAh
Report when
Watt change 2 2 byte
5-3600 watt for Type B
plug
5~2300 watt for all
other plug
(Default 50 watt)
Report V.A.W
9. Protection function (ZL7201 only)
Protection State Program Switch Notes
0x00 1 times (Default)
0x01 4 times Within 2 seconds
0x02 Off
10. Reset: Press the Program Switch then power on (plug-in) and hold for 5 seconds before
release the switch. Only use this procedure when the primary controller is lost or
otherwise inoperable.
11. Support OTA (Over-the Air) Firmware update from controller. Please refer to your
controller manual. Once OTA function success, please make sure to exclude the device
& include again before using the device.
12. Overload Protection: If load is excess 15.5A for Type B plug or 10.5A for all others, then
relay will automatically cut off. To restore the relay, please power off & power on the
device again.
-3-
-4-
