Vision SB-900P User manual

USER MANUAL
Azlan Logistics Limited
VISION SB-900P Active Soundbar
SB-900P

Contents
Important Safety Instructions ............................................................................3
Safety ................................................................................................................................................................................... 3
Warning............................................................................................................................................................................... 4
What’s in the Box..................................................................................................5
Specifications .......................................................................................................5
Identifying the Parts ............................................................................................6
Main Unit ........................................................................................................................................................................... 6
Preparations .........................................................................................................6
Connect to Power............................................................................................................................................................ 7
General Operation ...............................................................................................8
Standby/ON....................................................................................................................................................................... 8
Select Modes..................................................................................................................................................................... 8
Adjust the Volume .......................................................................................................................................................... 8
Select Equaliser (EQ) Effect.......................................................................................................................................... 8
Play for External Audio Devices..........................................................................8
Bluetooth Operation............................................................................................8
Connect to a Bluetooth Device.................................................................................................................................. 8
Troubleshooting...................................................................................................9

3
Important Safety Instructions
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude as
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions - All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions-The safety and
operating instructions should be retained for
future reference.
3 Heed all warnings - All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions - All operating and use
instructions should be followed.
5 Do not use this apparatus near water - The
appliance should not be used near water or
moisture - for example, in a wet basement or
near a swimming pool and the like.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heaters, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and
a third grounding prong. The wide blade or
the third prong is provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10 Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11 Onlyuse attachments/accessoriesspecied
by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket or table specified
by the manufacturer, or sold with
the apparatus. When a cart or rack
is used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
13 Unplug the apparatus during lightning
storms or when unused for long periods of
time.
14 Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the unit has been exposed to rain
or moisture, does not operate normally, or
has been dropped.
15 This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical
earth.
16 The apparatus shall not be exposed to
dripping or splashing. No objects filled with
liquids, such as vases, shall be placed on the
apparatus.
17 Minimum distance around the apparatus for
sufficient ventilation is 5cm.
18 The ventilation should not be impeded
by covering the ventilation openings with
items, such as newspapers,table-cloths,
curtains, etc…
19 No naked flame sources, such as lighted
candles, should be placed on the apparatus.
20 Batteries should be recycled or disposed of
as per state and local guidelines.
21 The use of apparatus in moderate climates.

4
Caution:
- Use of controls or adjustments or performance
of procedures other than those described
herein, may result in hazardous radiation
exposure or other unsafe operation.
- Toreducetheriskofreorelectricshock,do
not expose this apparatus to rain or moisture.
The apparatus must not be exposed to
dripping or splashing and objects filled with
liquids, such as vases, must not be placed on
apparatus.
- The mains plug/appliance coupler is used as
the disconnect device, the disconnect device
must remain readily operable.
- Danger of explosion if battery is incorrectly
replaced.
- Replace only with the same or equivalent type.
Warning
• Before operating this system, check the
voltage of this system to see if it is identical
to the voltage of your local power supply.
• Do not place this unit close to strong
magnetic fields.
• Do not place this unit on the amplifier or
receiver.
• Do not place this unit close to damp areas
as the moisture will affect the life of the laser
head.
• If any solid object or liquid falls into the
system, unplug the system and have it
checked by qualified personnel before
operating it any further.
• Do not attempt to clean the unit with
chemical solvents as this may damage the
finish. Use a clean, dry or slightly damp
cloth.
• When removing the power plug from the
wall outlet, always pull directly on the plug,
never yank on the cord.
• Changes or modifications to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority
to operate the equipment.
• The rating label is pasted on the bottom or
back of the equipment.
Correct Disposal of this product. This
marking indicates that this product
should not be disposed with other
household wastes throughout
the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To return your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
We hereby declares that this product is in
compliance with the essential requirements and
other relevant provisions of Directive 2014/53/
EU.
The Bluetooth word mark and logos are
registered trademarks owned by Bluetooth SIG,.
Inc.

5
What’s in the Box
Main Unit x1
AC Power Cable x4
Wall Bracket x2
• Design and specifications are subject to
change without notice.
Specifications
Soundbar
Power Supply AC 100-240V~ 50/60H
Output Power 15 W x 2
Power Consumption 30 W
< 0.5 W (Standby)
Frequency Response 40Hz - 20KHz
Audio input
sensitivity (AUX) 500mV
Speakers Impedance 8Ωx2
Dimension (W x H x D ) 745 x 62 x 92 mm
Bluetooth
Version V 4.2
Maximum power
transmitted <5 dbm
Frequency bands 2402 MHz ~ 2480 MHz
FCC INFORMATION
(for US customers)
Warning:
- This equipment should be installed and
operated with minimum distance 20cm
between the radiator & your body.
- Changes or modifications to this unit not
expressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment. ”
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio /
TV technician for help.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.

6
1
2
3 4 5 6 7
8 9 10
Identifying the Parts
Main Unit
1LED Indicators
•Red indicator: In STANDBY mode.
•Green indicator: In AUX mode.
•Blue indicator: In Bluetooth mode.
2 Wall bracket screws
3button
Switch the unit between ON and STANDBY
mode.
4 SOURCE button
Select the play function.
5 EQ button
Select Equaliser (EQ) Effect.
6BF/PAIR button
In BT mode, start or pause playback.
Press and hold to activate the pairing
function in Bluetooth mode and disconnect
the existing paired Bluetooth device.
7 VOL+/VOL- buttons
Increase/decrease the volume level.
8 AC~ Socket
Connect power cord.
9 SERVICE ONLY Socket
The USB socket is for service only.
10 AUX Socket
Connect to an external audio device.
Preparations
Placement
A You can place the unit on the table
directly in front of the TV stand,
centered with the TV screen.
B You can mount the unit on the wall
directly below the TV screen.
Option - A Option - B

7

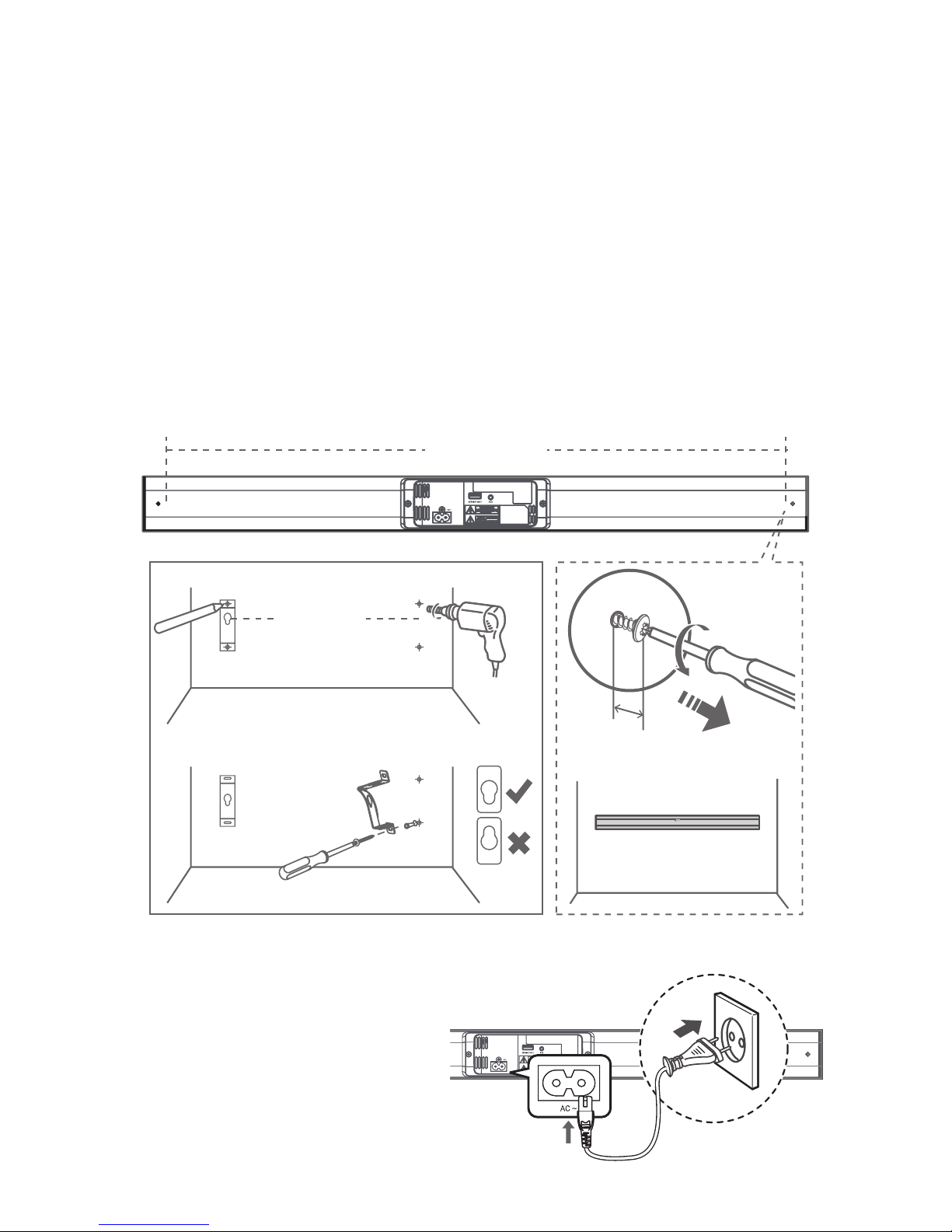

Wall Mounting (if using option-B)
Note:
- Installation must be carried out by qualified
personnel only. Incorrect assembly can
result in severe personal injury and property
damage (if you intend to install this product
yourself, you must check for installations
such as electrical wiring and plumbing
that may be buried inside the wall). It is the
installer’s responsibility to verify that the
wall will safely support the total load of the
unit and wall brackets.
- Additional tools (not included) are required
for the installation.
- Do not overtighten screws.
- Keep this instruction manual for future
reference.
- Use an electronic stud finder to check the
wall type before drilling and mounting.
1. Drill 4 parallel holes (Ø 3-8 mm each
according to wall type) in the wall. The
distance between the holes should be 710
mm.
- Firmly fi x 1 dowel into each hole in the wall
if necessary.
2. Tighten the wall mount brackets on the wall
with screws and screwdriver (not included).
Make sure the they are securely installed.
3. Loosen the screws at the back of the unit
for 3 mm. Lift the unit onto the wall mount
brackets and slot into place.
710mm
710mm
3mm
Connect to Power
- Before connecting the AC power cord,
ensure you have completed all other
connections.
- Risk of product damage! Ensure that the
power supply voltage corresponds to
the voltage printed on the back or the
underside of the unit.
• Connect the mains cable to the AC~ Socket
of the unit and then into a mains socket.

8
General Operation
Standby/ON
When you first connect the main unit to the mains
socket, the main unit will be in Standby mode.
- Press the button on the unit to switch the
unit ON.
- Press the button again on the unit to
switch the unit back to STANDBY mode. The
POWER indicator will light up red.
- Disconnect the mains plug from the mains
socket if you want to switch the unit OFF
completely.
- If a TV or an external device (Only for AUX
socket) is connected, the main unit will
switch on automatically when the TV or the
external device is switched on.
- When the unit no input signal (or weak
input signal) in AUX, Bluetooth for over 15
minutes, the unit will automatically switch
to Standby mode.
Select Modes
- Press the SOURCE button repeatedly on the
unit to select the AUX, BLUETOOTH mode.
- The indicator light on the front of the main
unit will show which mode is currently in use.
•Red indicator: In STANDBY mode.
•Green indicator: In AUX mode.
•Blue indicator: In Bluetooth mode.
Adjust the Volume
- Press the VOL+ / VOL- buttons on the unit
to adjust the volume.
- While adjusting the volume, the status
indicatorashesquickly.
- While the volume level reaches its maximum
level, if you press the VOL+ button again,
thestatusindicatorashesonce.Whilethe
volume level reaches its minimum level, if
you press the VOL- button again, the status
indicatorashesonce.
Select Equaliser (EQ) Effect
- While playing, press the EQ button on the
unit to select preset equalisers: MOVIE
(recommended for viewing movies), MUSIC
(recommended for listening to music),
NEWS (recommended for listening to news)
Play for External Audio Devices
1. Ensure that the unit is connected to the TV
or audio device.
TV
A
B
AUX
A.) Use a 3.5mm to 3.5mm audio cable (not
included) to connect the TV’s or external
audio device headphone socket to the AUX
socket on the unit.
B.) Use a RCA to 3.5mm audio cable (not
included) to connect the TV’s audio output
sockets to the AUX socket on the unit.
1 While in ON mode, press the SOURCE
button on the unit to select the AUX mode.
2 Operate your audio device directly for
playback features.
3 Press the VOL +/– buttons to adjust the
volume to your desired level.
Bluetooth Operation
Connect to a Bluetooth Device
The first time you connect your Bluetooth device
to this player, you need to pair your device to this
player.
Note:
- The operational range between this player
and a Bluetooth device is approximately 8
meters (without any object between the
Bluetooth device and the unit).
- Before you connect a Bluetooth device
to this unit, ensure you know the device’s
capabilities.
- Compatibility with all Bluetooth devices is
not guaranteed.
- Any obstacle between this unit and a
Bluetooth device can reduce the operational
range.
- If the signal strength is weak, your Bluetooth
receiver may disconnect, but it will re-enter
pairing mode automatically.

9
1 During ON mode, press the SOURCE button
on the unit to select Bluetooth mode. The
Blue indicator will flash slowly.
2 Activate your Bluetooth device and select
the search mode. “SB-900P” will appear on
your Bluetooth device list.
- If you cannot find the soundbar, press and
hold the BF/ PAIR button on the unit. The
system has entered pairing mode. The unit'
Blue indicator will flash rapidly and prompt
“Pairing“.
3 Select “SB-900P” enter “0000” for the
password if necessary. The unit will voice
“Paired” and the Blue indicator will light up
solidly.
4 You can now play music from your
connected device.
- Press the BF/ PAIR button on the unit to
pause/resume play.
To disconnect the Bluetooth function:
- Switch to another function on the unit.
- Disable the function from your Bluetooth
device.The Bluetooth device will be
disconnected from the unit after the
“Disconnected” voice prompt.
- Press and hold the BF/ PAIR button on the
unit.
Tips:
- Enter "0000" for the password if necessary.
- If no other Bluetooth device pairs with this
player within two minutes, the player will
recover its previous connection.
- The player will also be disconnected
when your device is moved beyond the
operational range.
- If you want to reconnect your device to this
player, place it within the operational range.
- If the device is moved beyond the
operational range, when it is brought back,
please check if the device is still connected
to the player.
- If the connection is lost, follow the
instructions above to pair your device to the
player again.
Troubleshooting
To keep the warranty valid, never try to repair
the system yourself. If you encounter problems
when using this unit, check the following points
before requesting service.
No power
- Ensure that the AC cord of the apparatus is
properly connected .
- Ensure that there is power at the AC outlet.
- Press standby button to turn the unit on.
No sound
- Increase the volume. Press Volume Up on
the soundbar.
- Press source buttons to select a different
input source.
- If using Bluetooth, ensure that the volume
on your source device is turned up and that
the device is not muted.
I can’t find the Bluetooth name of
this unit on my Bluetooth device for
Bluetooth pairing
- Ensure the Bluetooth function is activated
on your Bluetooth device.
- Ensure you have paired the unit with your
Bluetooth device.
This is a 15 mins power off function, one
of the ERPII standard requirement for
saving power
- When the unit's external input signal
level is too low, the unit will be turned off
automatically in 15 minutes. Please increase
the volume level of your external device.

IC Caution
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not
cause interference, and (2) This
device must accept any interference, including interference that may cause
undesired operation of the device.
This equipment complies with Canada radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
- French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi,
mêmesi le brouillageest susceptible
d'encompromettre le fonctionnement.
Cet équipement est conforme Canada limites d'exposition aux radiations
dans un environnement non contrôlé. Cet équipement doit être installé et
utilisé à distance minimum de 20cm entre le radiateur et votre corps.
