1 Overview
1.1 Introduction
VIS-3021 Series Card Enrollment Station
The picture is only for reference. Please refer to the actual
products.
VIS-3021 is a non-touch IC card enrollment station, used
as a necessary non-touch card test machine by card
issuers, chip suppliers, and testing organizations. The size
of its SAM cassette equals to that of two SIM cards. The
card enrollment station can connect to PC or other devices
via USB interface. No-driver USB is applied to facilitate the
installation and operation of the card enrollment station.
It is a front-end device which is necessary for developing
IC card-related products or integrating system. With a wide
variety of well-defined APIs (Application Programming
Interface), the card enrollment station can widely applied in
various industries and situations, such as business,
telecommunication, post, insurance, medical treatment,
bank, gasoline station, parking lot, and so on.

Proximity Card Reader Enroller·User Manual
2
1.2 Main Features
Plug-and-play USB with no-driver technology
2 SAM cassettes (standard configuration)
Supports on-line upgrade
Supports various card types (Mifare card, CPU, PSAM, and
EM card)
Well-defined API
Adopts high-level encryption algorithm to ensure the security
for data communication
Provides general interface library supporting various
operation systems and language development platform
Supports USB upgrade
Auto-adapt with PSAM card of multiple baud rate
1.3 Appearance
Appearance of Card Enrollment Station
The picture is only for reference. Please refer to the actual
products.

Proximity Card Reader Enroller·User Manual
3
2 Connection Description
2.1 USB Interface Connection
Plug the wiring of USB into the USB interface of PC directly.

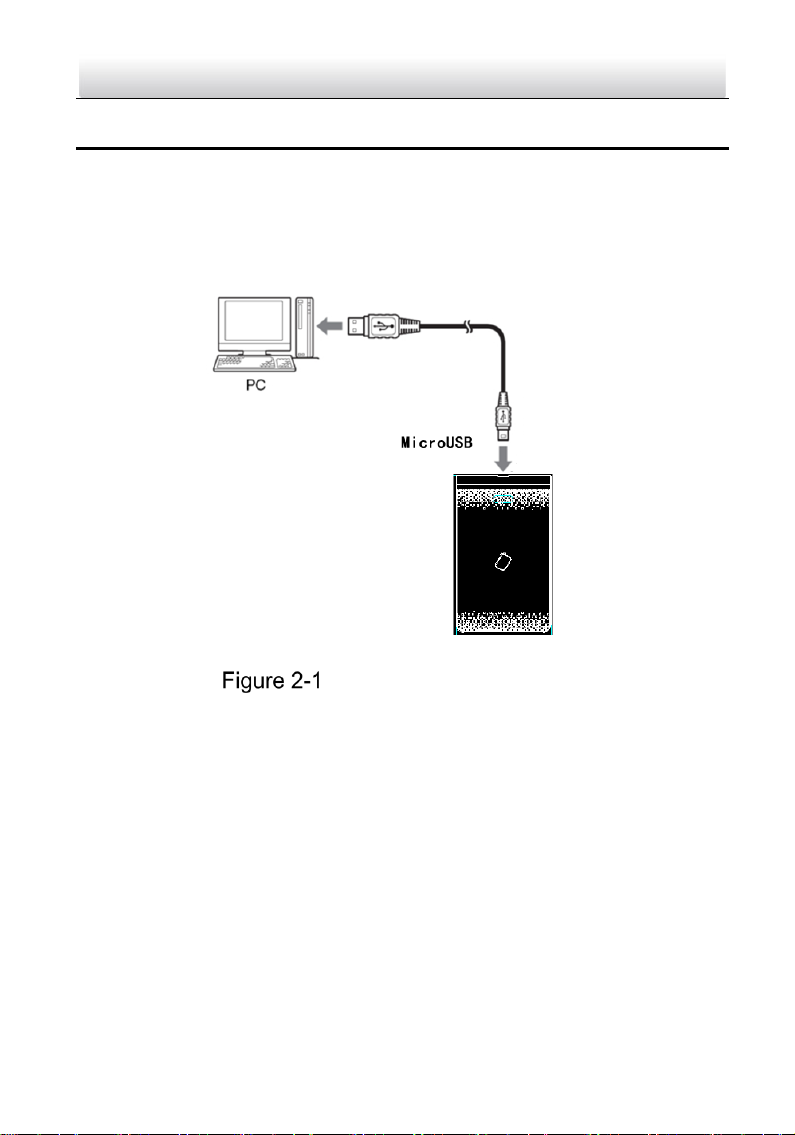

USB Interface Connection
The picture is only for reference. Please refer to the actual
products.
2.2 Communication
LED Indicator Red: The card issuer is powered on, but not ready
for card swiping.
LED Indicator Blue: When the card enrollment station is
identified by the PC, its indicator will turn blue, and item “HID-

Proximity Card Reader Enroller·User Manual
4
compliant device” or “USB Input Device” will display in the
computer control panel of PC. Means the card issuer is ready to
use.
Computer Control Panel
