VisionX DURAmini User manual

VISIONXLIGHTING.COM
PERFORMANCE LED
DRIVING LIGHT KIT
VISIONXLIGHTING.COM

VISION X DURA MINI LED DRIVING LIGHT KIT
About the Dura Mini LED Driving Light
XMITTER PRIME XTREME SPECIFICATIONS
1. Warranty : Extended
2. Amp Draw : 3.34A @ 12V DC
3. Input Voltage : 9-32V DC
4. Beam Patterns : 10° Top, 25° Bottom
5. LED Lifespan : 50,000 Hours
12
Qty: 2 Qty: 1
Harness
Light Harness
Dura Mini
MOUNTING INSTALLATION INSTRUCTION
1. Place the Light on the location where it will be mounted.
Remember that it must be within reach of the harness.
2. Determine where the [M6] bolt Part (B1) will be placed, and
mark where the bolt locations will be.
3. Drill a hole for the bolt (B1).
4. Place the Light over the hole, and slide the bolt (B1)
through. The washer Part (W1) is then applied on the other
end of the drilled hole followed by the nut Part (N1).
5. Tighten nut (N1) to desired tightness.
WARNING: Bolts, Nuts, and Washers are Stainless Steel.
DO NOT USE Pneumatic or Electric Tools to Tighten and
Loosen. The Hardware Will Permanently Lock Together.
TIP: For complete application guide see website
WIRING INSTALLATION INSTRUCTION
1. Find a suitable place to mount Relays Part (R1 & R2)
leaving enough room for Power & Ground wires Part
(W1,W2,W3,W4) to reach the battery & the Deutsch
connectors Part (C1 & C2) to reach the lights. Mount
Relays.
2. Run Power wires (W1, W3) & Ground wires (W2 , W4)
to the battery. Connect the Power wires (W1 , W3) to the
Positive (+) battery terminal and connect the Ground wire
(W2 , W4) to the Negative (-) Battery Terminal.
3. Run the Deutsch Connector wiring, (C1 & C2) to each light
and plug in. It doesn’t matter which Deutsch Connector
plugs into which light.
4. Disconnect the Switch Part (S1) at the white Plug Part (P1)
and run the wire through the vehicles fi re wall to desired
mounting location inside the Cab, [using a factory rubber
or plastic grommet is suggested].
5. Drill the hole to the required size for the Switch (S1) and
mount to desired position.
6. Reconnect the Switch (S1) to the Harness.
7. Test Light.
(B1)
(Mounting Bracket)
(W1)
(N1)

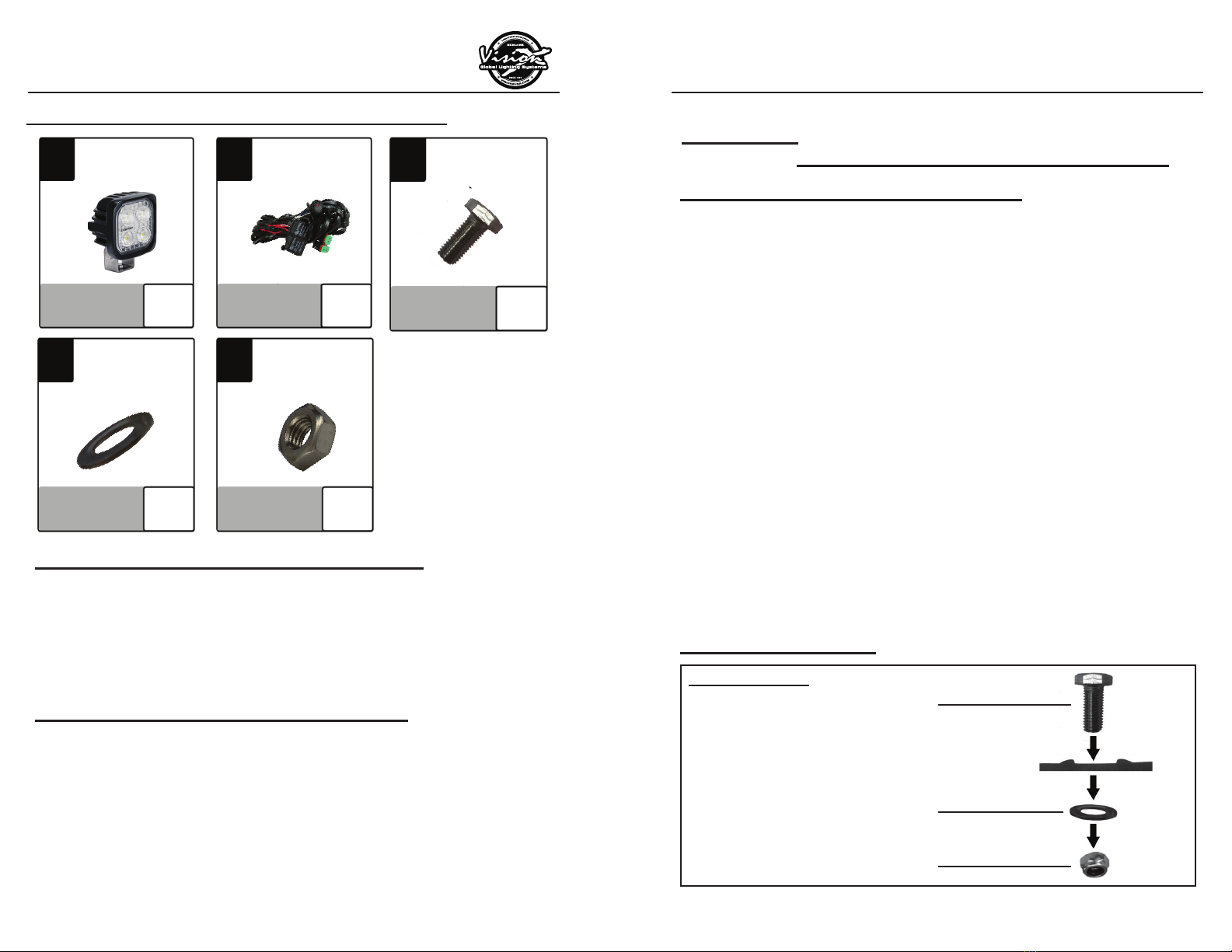

MOUNTING KEY
Part (B1) Bolt
Part (Mounting Bracket)
Part (W1) Washer
Part (N1) Nut
MOUNTING DIAGRAM
3Hex Head Bolt
[M6]
[M6]
Qty: 2
PART (B1)
4
Qty: 2
Washer
[M6]
PART (W1)
5
Qty: 2
Nylock Nut
[M6]
PART (N1)

VISIONXLIGHTING.COM
WIRING DIAGRAM
(R1)
(S1) (W3)
(W1)
(W2)
*To Light *To Light
(C2)(C1)
(R2)
(P1) (W4)
(-)
(-)
(+)
(+)
COMPONENTS KEY
Part (R1 & R2) Relay
Part (S1) Switch
Part (P1) Switch Plug
Part (W1 & W3) Power Wire for Relay Coil
a. 9-32V DC Positive (=) Input Wire
Part (W2 & W4) Ground Wire for Relay Coil
a. 9-32V DC Negative (-) Input Wire
Part (C1 & C2) Deutsch Connectors for Lights
a. Attached to 9-32V DC Positive (+) Power Wires
LIGHT ANGLE ADJUSTMENTS
1. Use a 10mm socket to loosen the 1 Hex head bolts Part (B2)
on the side of the light.
2. Adjust the light to your desired angle and tighten Bolt (B2).
ADJUSTMENT KEY
Part (B2) Bolt
a. 10mm Hex Head Bolt
(B2)
1.94”/49mm
