visplay Stage Operator's manual

Instructions for assembly and use
Stage
visplay
79576WeilamRhein,Germany
LEDConverter90W
70436118
SELV

Visplay GmbH, May 2022 Edition

Visplay GmbH, May 2022 Edition
Inhalt
1 General ................................................................................................. 4
1.1 Hazard levels indicated by warning notices.......................................................... 4
1.2 Explanation of symbols ........................................................................................... 4
1.3 Intended use............................................................................................................ 5
1.4 General safety ........................................................................................................ 5
2 Product description................................................................................ 6
2.1 Shelves and presentation table.............................................................................. 6
2.2 Modules for the construction of changing cubicles ............................................... 7
3 Operation.............................................................................................. 8
3.1 Unpacking ............................................................................................................... 8
3.2 Connecting .............................................................................................................. 9
4 Assembly ..............................................................................................10
4.1 Shelf ........................................................................................................................ 10
4.2 Changing cubicle ................................................................................................... 12
4.3 View window module ............................................................................................. 13
4.4 Presenting merchandise.........................................................................................16
5 Technical data.......................................................................................18
6 Weight loads.........................................................................................18
7 General information .............................................................................19
7.1 Cleaning .................................................................................................................19
7.2 Storage ...................................................................................................................19
7.3 Disposal ..................................................................................................................19

Stage | General
4Visplay GmbH, May 2022 Edition
1 General
This manual is provided to ensure the safe and eective use of the “Stage” product.
This manual is a component of the product and must be kept on hand in the vicinity of the product at all times.
All personnel who deal with the product must have read this manual. Compliance with all the safety instructions and handling
instructions specified in this manual is a prerequisite for safe work.
The illustrations in this manual are provided for the purposes of general understanding and may deviate from the actual
version.
All dimension information in this manual is specified inmm.
Quality assurance
All processes in our company are subject to a comprehensive management system, which conforms to the ISO9001 quality
standard.
and the ISO14001 environmental standard.
Zertifizierungs- und Umweltgutachter GmbH (BSI) audits this management system regularly and issues a certificate of
compliance with the standard.
Copyright
This manual is protected by copyright. Its use is permissible as part of the use of the product.
Any use other than this is not permitted without the written consent of the manufacturer.
Our General Terms and Conditions apply for all orders.
1.1 Hazard levels indicated by warning notices
The following hazard levels alert you to potentially dangerous situations:
DANGER
This warning notice indicates a dangerous situation that will result in death or serious injury if it is not avoided.
WARNING
A warning notice designated in this manner indicates a dangerous situation that could result in death or serious injury if it is not
avoided.
CAUTION
This warning notice indicates a dangerous situation that could result in minor or moderate injury if it is not avoided.
NOTE
A warning notice designated in this manner indicates a potentially dangerous situation that could result in material damage or
environmental damage if it is not avoided.
1.2 Explanation of symbols
Specific instructions for better understanding and operation.
fIndividual step
1. Numbered instruction
2. ...
3. ...
1Action number: defines the sequence of actions in illustrations and is marked in the text.
[1] Position number: Indicated by text in square brackets.

5
Stage | General
May 2022 Edition, Visplay GmbH
1.3 Intended use
Stage modules comply with the applicable safety regulations within the scope of their intended use.
The furniture only serves to hold merchandise and merchandise supports.
• The product may only be used in the commercial area.
• Stage modules may only be used in dry indoor areas.
• Stage modules may be used solely in compliance with the permissible load values (see page 18).
Any unintended use and unauthorised modification of the furniture shall be deemed as unauthorised misuse that does not fall
within the manufacturer’s statutory liability limits.
Misuse
Potential sources of danger:
• Unintended use
• Operation with improperly fitted or inoperative safety and protective devices
• Failure to observe the instructions in the documentation
• Unauthorised modification of the furniture
Residual risks
Furniture can pose residual risks to persons and property. Risk of death/injury can occur due to:
• Misuse
• Incorrect operation
• Missing safety devices (anti-roll device/brake)
1.4 General safety
Carefully read the following safety instructions and information for safe operation before starting work.
Familiarise yourself with all the functions of your furniture.
Parts of the furniture are made of wood; these can become warped due to changes in room temperature and air
humidity.
WARNING
Risk of injury from tipping furniture
Furniture can cause serious injuries if it tips over.

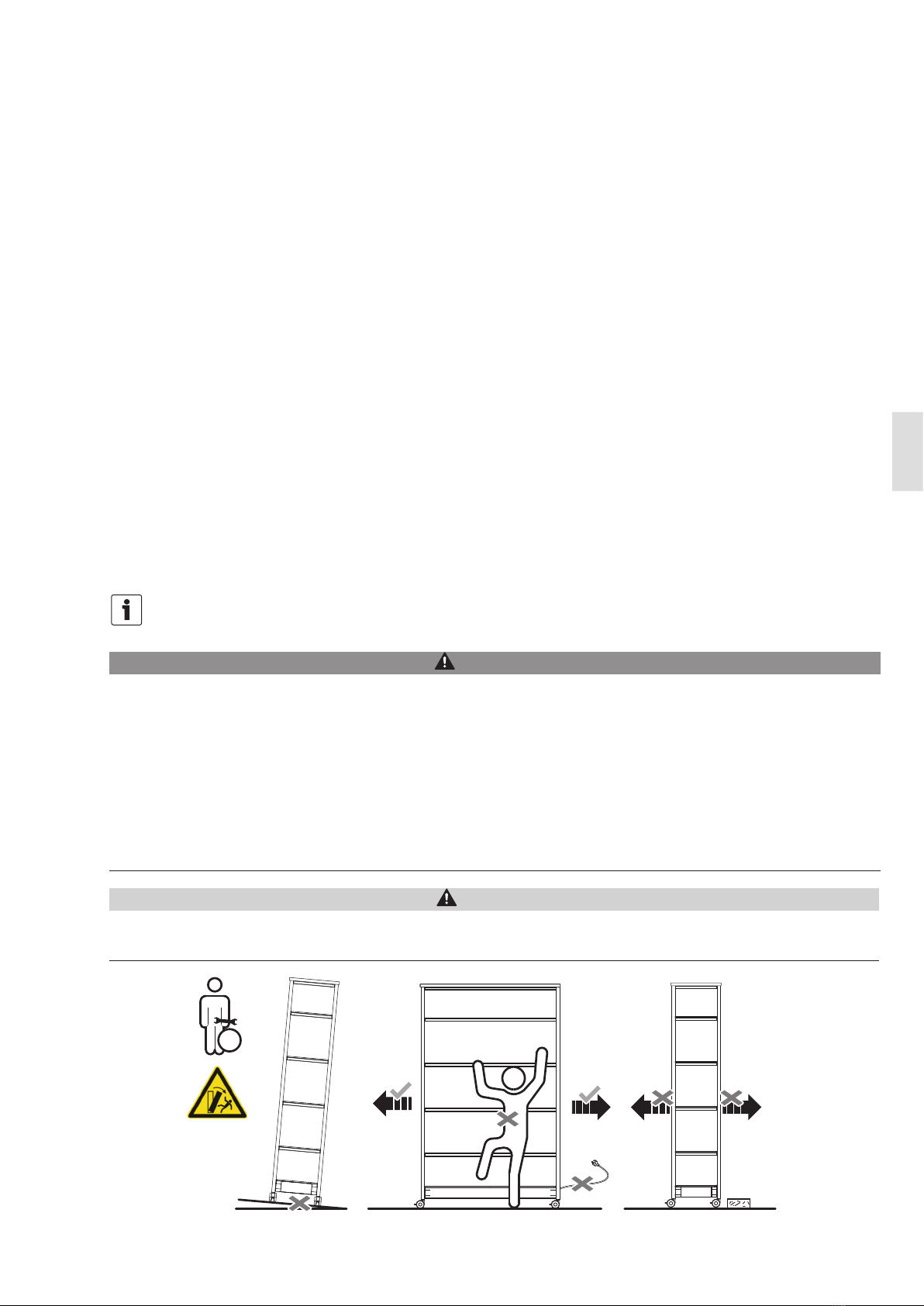

fAt least two people must be present when changing components and moving the furniture.
fThe power plug must be disconnected before changing components or moving the furniture.
fStow cables securely, close all doors and remove loose unsecured items when moving the furniture.
fRelease all brakes before moving the furniture. Always ensure the unit is positioned side-on to any obstacles it has to cross.
fThe specified loading values must be strictly adhered to (see Section„6 Weight loads“ on page 18).
fNever climb on the furniture.
CAUTION
Trip hazard
fDo not lay mains power leads and cables in thoroughfares.
2
EN

Stage | Product description
6Visplay GmbH, May 2022 Edition

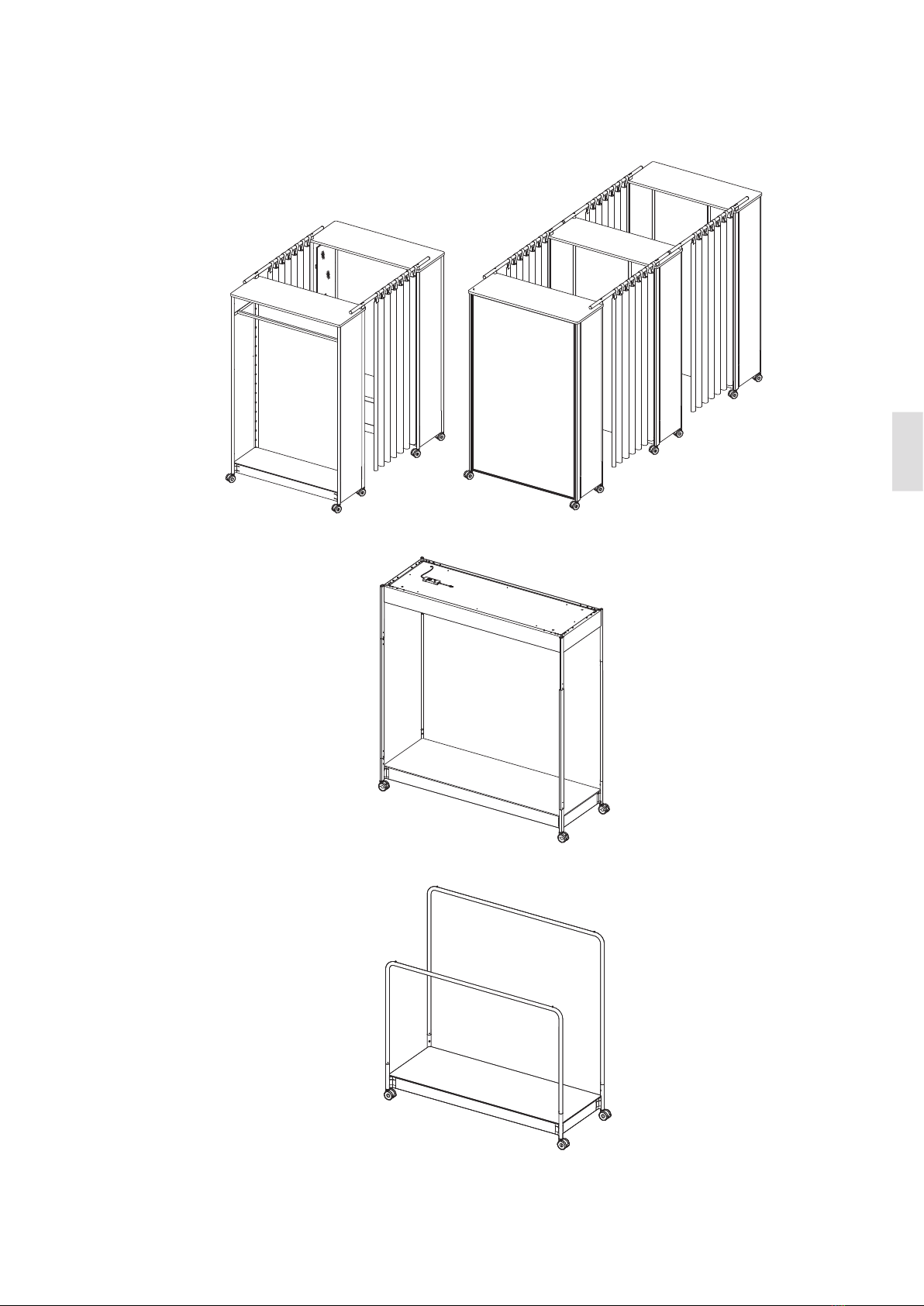

2 Product description
Stage is a structure system with configurable shelves at various heights, changing cubicles and illuminated view window
modules. All structures are on castors.
The lateral surfaces can be cladded with panels. It is possible to equip a functional wall on one shelf side. This can be an LED
illuminated frame or a wall with a mirror for the assembly of changing cubicles. The view window module is a platform with a
cover. This can be illuminated in two ways.
All furniture is, with the exception of the view window modules, delivered in an assembled state.
2.1 Shelves and presentation table
Presentation table: S
Shelves are available with the following types of structural design: M, L
L
M
S
S
M
L
830
400
400
830
830

7
Stage | Product description
May 2022 Edition, Visplay GmbH
2.2 Modules for the construction of changing cubicles
These are made of a cladded wardrobe module with a mirror attached to the back side and LED lights, a changing cubicle
module with a bench, a swivelling mirror and, optionally, an illuminated frame mounted on the back side, a back wall panel or a
mirror with lateral LED light for forming other changing cubicle units.
2.2.1 View window module
visplay
79576 Weil am Rhein, Germany
LED Converter 90W
70436118
SELV
2.2.2 Level bars
EN

Stage | Operation
8Visplay GmbH, May 2022 Edition
3 Operation
3.1 Unpacking
You must check the furniture for completeness before accepting delivery. Any damage must be documented with the
carrier in order to make a claim.
If necessary, retain the packaging for returns.
CAUTION
Risk of injury from falling or tipping furniture.
fThe unit must be unloaded by two people.
fCarefully roll the furniture o the pallet.
1. Remove the transport lock.
2. Fold down ramp 1.
3. Release brake on the castors 2.
4. Carefully push the furniture o the pallet 3.
2
4x
1
3
2
NOTE
Hazards to the environment can occur if product components are disposed of improperly.
fEnsure product components are disposed of in a proper environmental manner or through waste management specialists.
fSend components that can be recycled for recycling.

9
Stage | Operation
May 2022 Edition, Visplay GmbH

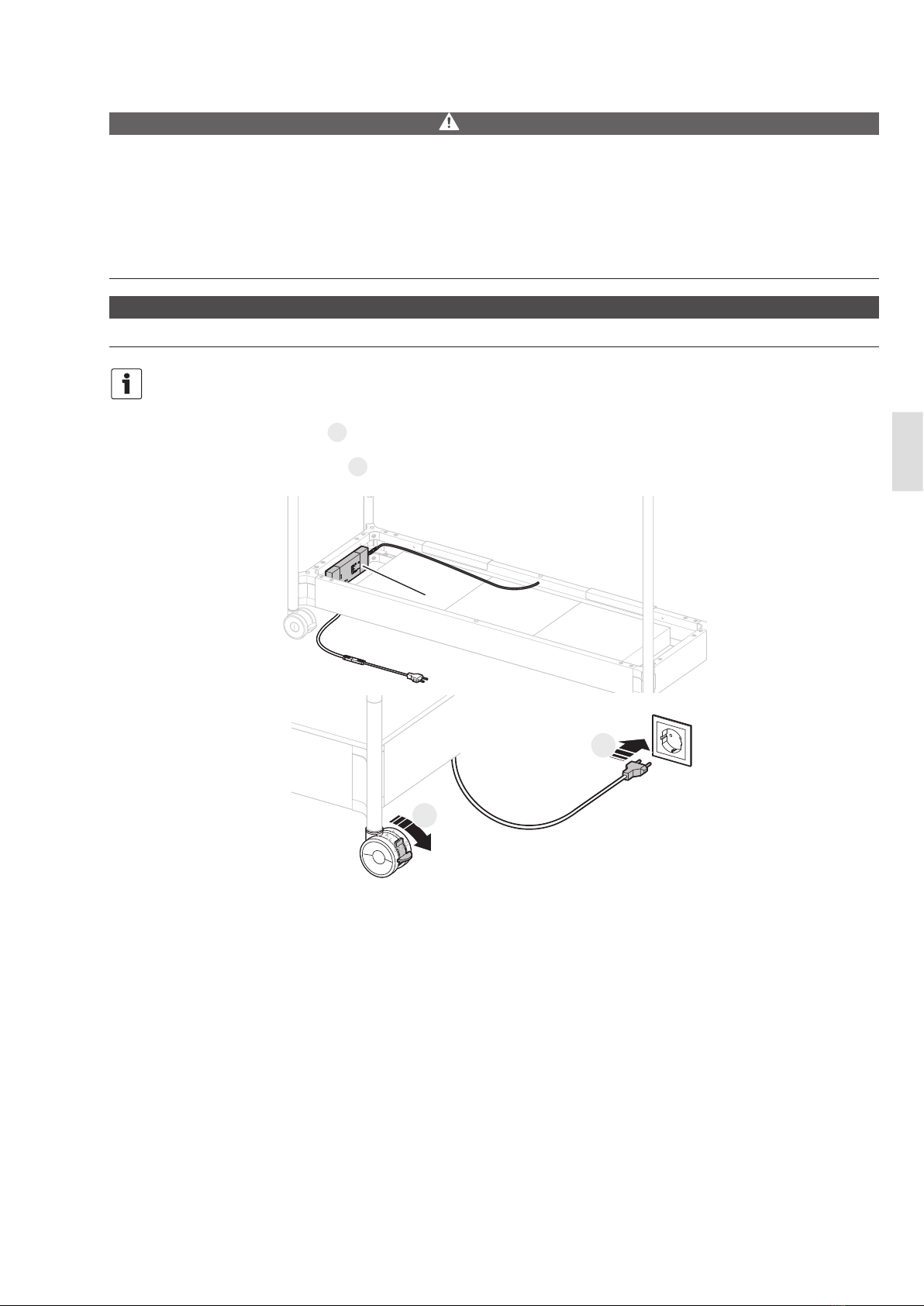

3.2 Connecting
DANGER
Danger from electric current
When opening a housing, a built-in electrical unit, or in the event of improper handling, there is the risk of injury due to electric
shock!
fElectrical installations must only be carried out by qualified specialists subject to the adherence of safety regulations.
fPrior to starting any work, switch the power o and ensure the fuse box against being switched on again.
NOTE
Amaximum of four converters per power plug or HV extension cable permitted.
A 90W LED converter [1] is built into the lower connection frame. When ordering, a choice can be made between an EU
or an UK connection line.
1. Fixing all brakes on the module 1.
2. Insert the power plug into a socket 2.
visplay
79576 Weil am Rhein, Germany
LED Converter 90W
70436118
1
1
2
EN

Stage | Assembly
10 Visplay GmbH, May 2022 Edition
4 Assembly

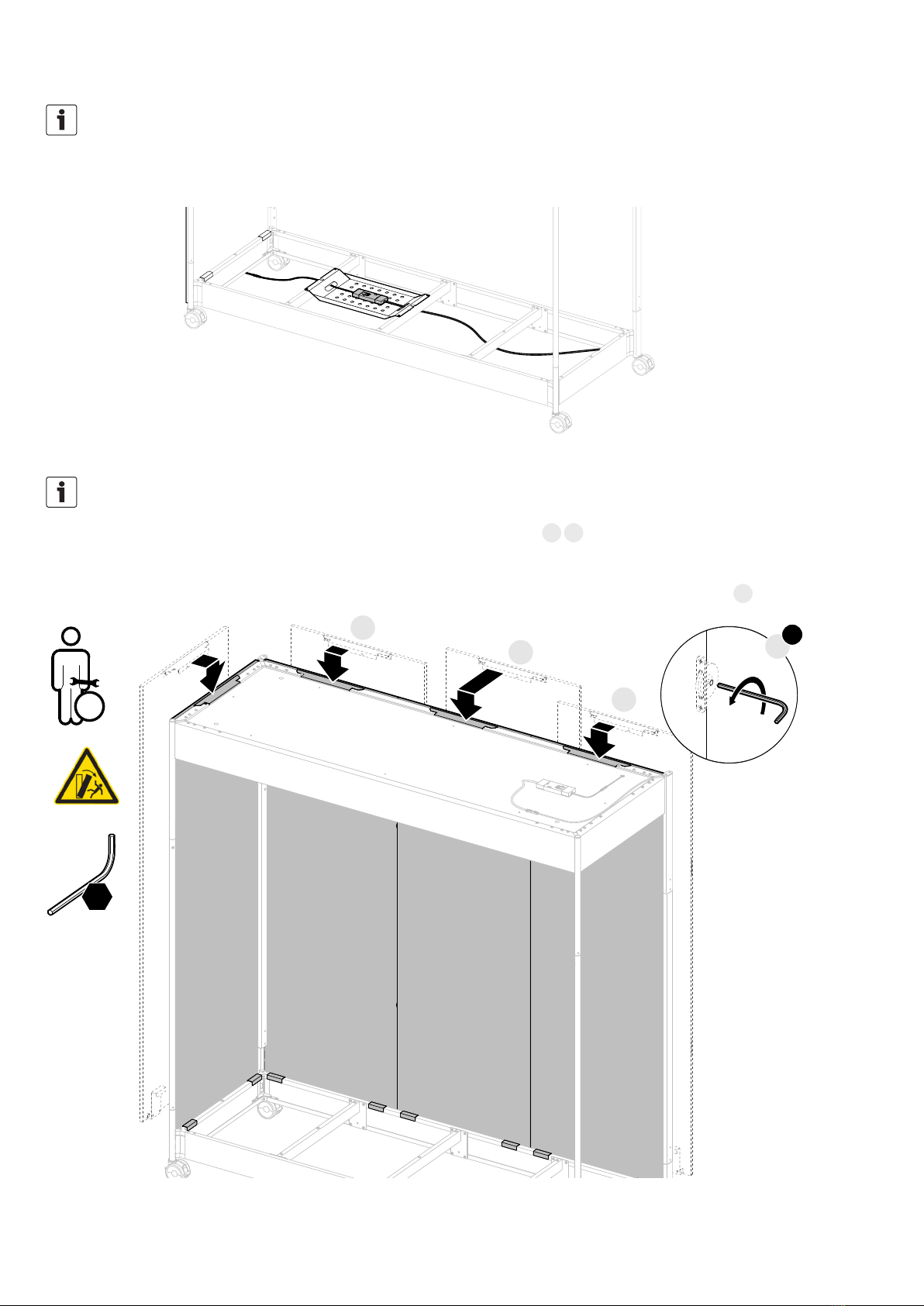

4.1 Shelf
4.1.1 Back and side walls on the shelf
1. Mount the walls over the upper connection frame 1.
2. Rotate laterally attached tables into the perforation of the uprights 2.
3. Screwing walls in place 3.
1
2
3
2

11
Stage | Assembly
May 2022 Edition, Visplay GmbH
4.1.2 LED illuminated wall on the shelf
Suitable shelf structures include L 993-930 and 993-932 with flat oval supports.
1. Mount the LED illuminated wall into the upper and lower connection frame.
2. Connect the system plug of the LED illuminated wall to the converter.
visplay
79576Weilam Rhein, Germany
LEDConverter90W
70436118
2
1
2
EN

Stage | Assembly
12 Visplay GmbH, May 2022 Edition
4.2 Changing cubicle
1. Thread loop curtains onto the rod.
2. Set the curtain rods onto the cover plate 2.
3. Screwing curtain rod in place 3.
1
2

13
Stage | Assembly
May 2022 Edition, Visplay GmbH

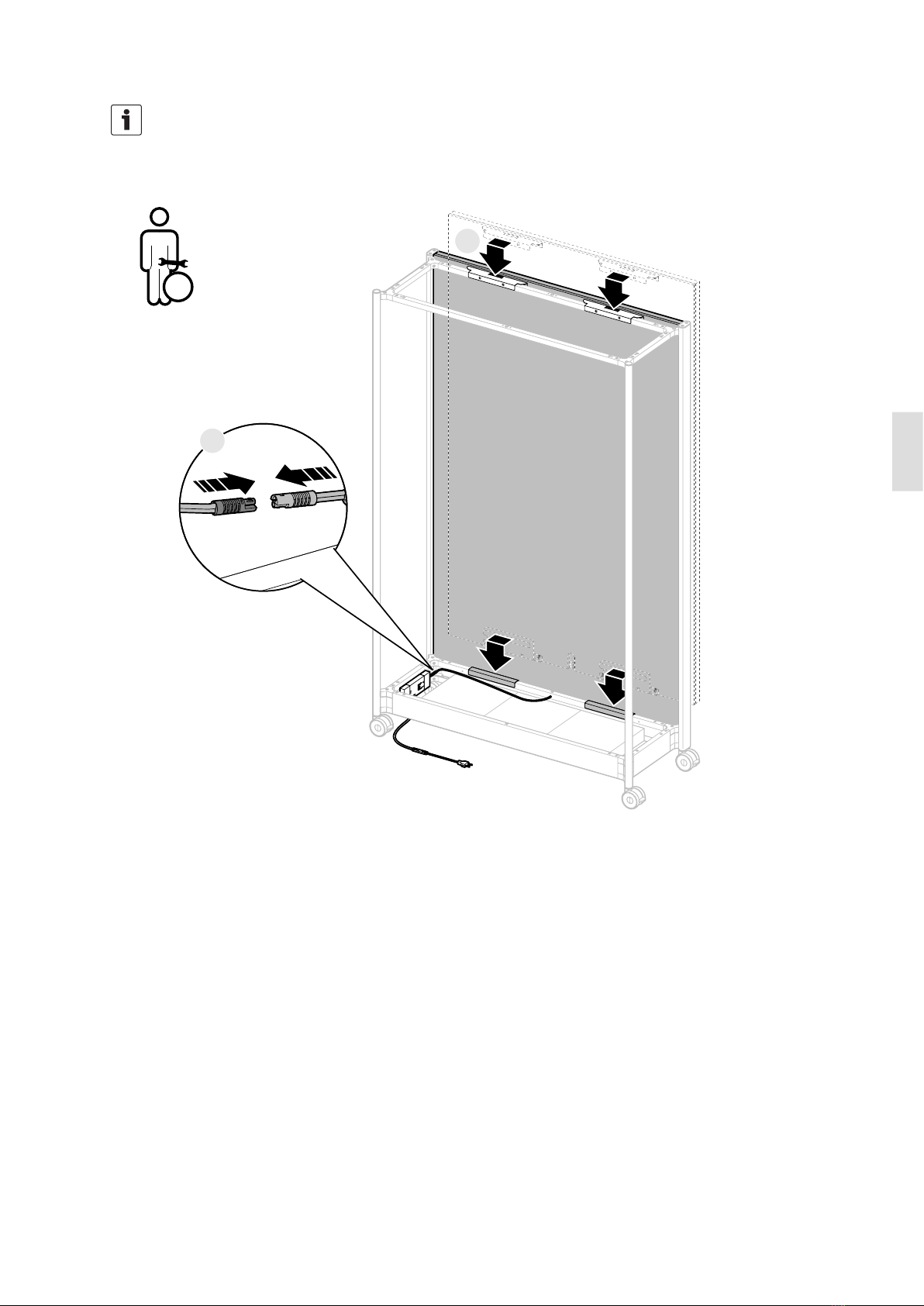

4.3 View window module
The electrical connection can be made in two directions. As pre-assembled, towards the ceiling or using the connection
lines (33225170) [1] that are laid through one of the corner supports towards the floor.
visplay
79576WeilamRhein,Germany
LEDConverter90W
70436118
SELV
1
2
3
4
5
6
7
4.3.1 Electrical connection for LED illuminated wall
The cable tray (298-854.26) must be ordered separately.
1. Connect the 24V line of the LED illuminated wall to the distributor.
2. Connect the distributor to the converter with 200W.
3. Lay the mains connection towards the ceiling or towards the floor.
EN

Stage | Assembly
14 Visplay GmbH, May 2022 Edition
4.3.2 Side wall electrical connection
The cable tray (298-854.26) must be ordered separately.
1. Connect the 24V line of the LED illuminated wall to the converter.
2. Lay the mains connection towards the ceiling or towards the floor.
visplay
79576WeilamRhein,Germany
LEDConverter90W
70436118
SELV

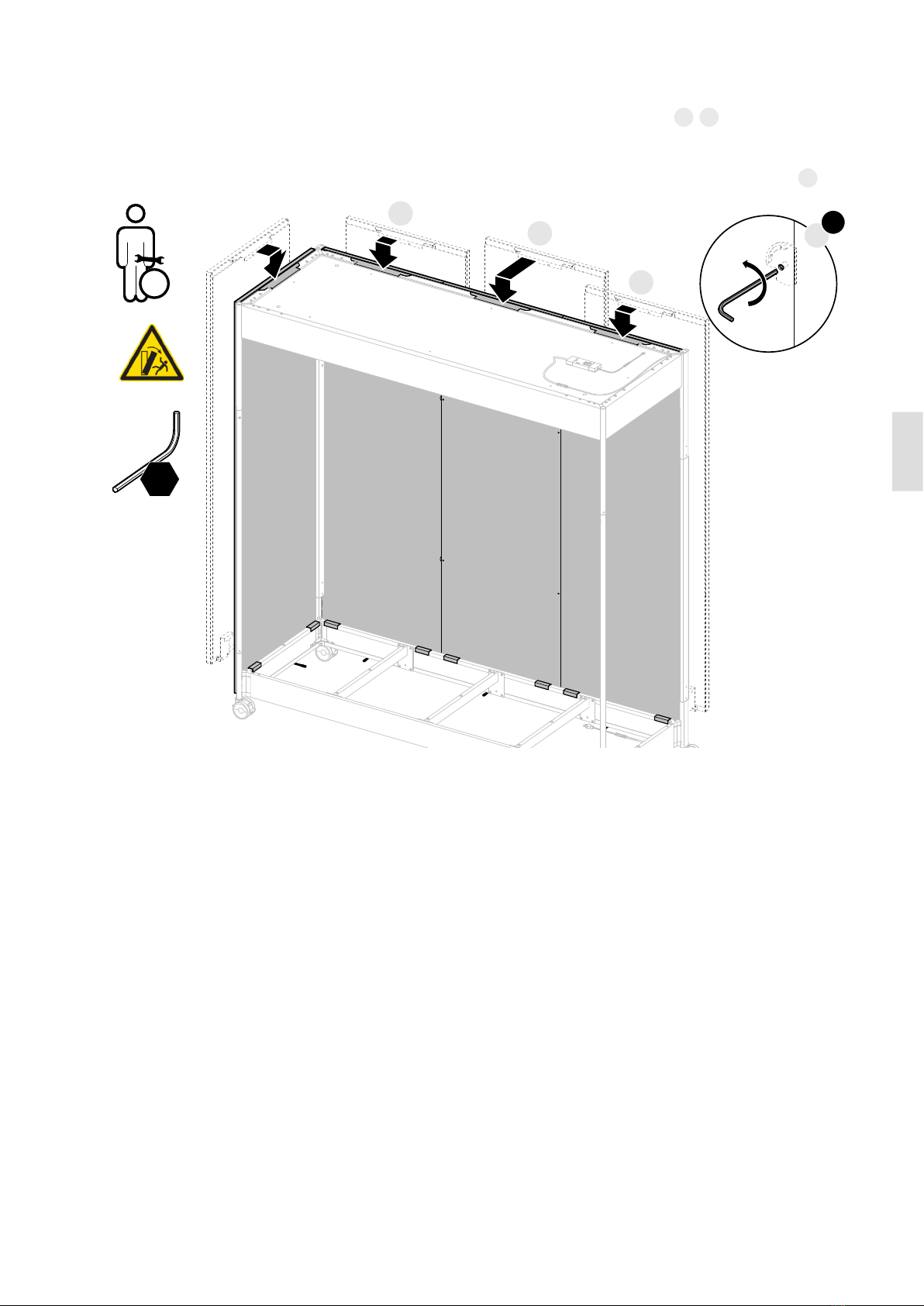

4.3.3 Back walls on the view window module
Suitable shelf structures include L 993-930 and 993-932 with flat oval supports.
1. Mount the back walls via the attachment and into the lower connection frame 1 2 .
2. Line the element with the four bore holes in the middle.
3. In order to connect the middle element to the outer one, unscrew the lateral twist lock using an SW7 Allen key 3.
visplay
79576 Weil am Rhein, Germany
LED Converter 90W
70436118
SELV
1
2
2
SW
7
2
4x
3

15
Stage | Assembly
May 2022 Edition, Visplay GmbH
4.3.4 LED illuminated wall on the view window module
1. Mount the LED illuminated wall over the attachment and into the lower connection frame 12
2. Line the element with the four bore holes in the middle.
3. In order to connect the middle element to the outer one, unscrew the lateral twist lock using an SW7 Allen key 3.
visplay
79576 Weil am Rhein, Germany
LED Converter 90W
70436118
SELV
1
2
2
2
SW
7
4x
3
EN

Stage | Assembly
16 Visplay GmbH, May 2022 Edition
4.4 Presenting merchandise
4.4.1 Mounting shelf frames and inserting the shelf
1. Hook the shelf supports into the slot 1.
2. Place the shelf frame on the shelf support 23.
3. Place the shelf onto the shelf frame 4.
3
4
2
1
5
2

17
Stage | Assembly
May 2022 Edition, Visplay GmbH

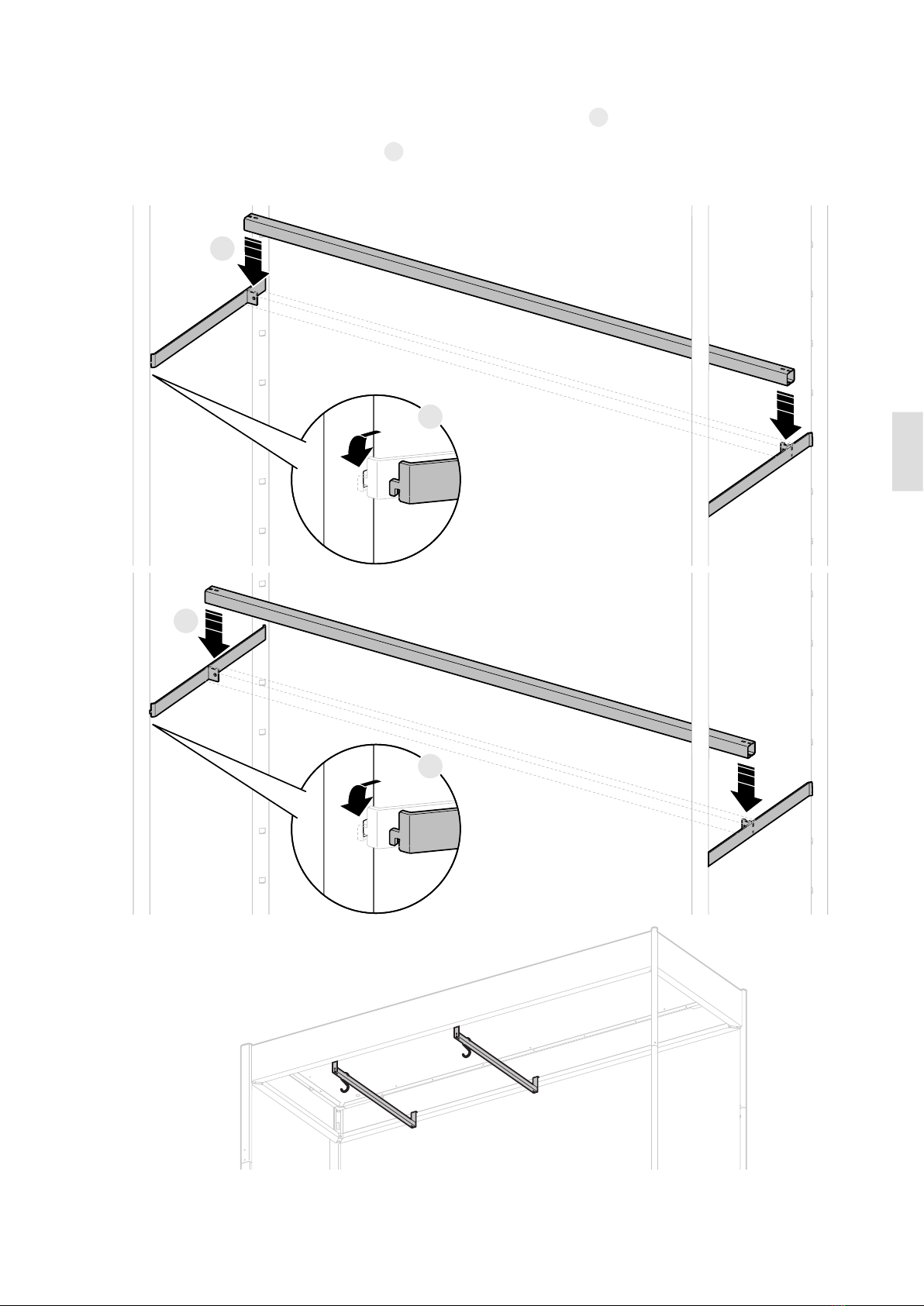

4.4.2 Installing the hanging rails
1. Mount the hanging rail (297-749) into the slot of the view window module 1.
2. Stick the rod into the holder from above 2.
3. In order to present merchandise individually in a suspended manner, hang the hooks onto the hanging rail.
1
2
1
2
EN

Stage | Technical data
18 Visplay GmbH, May 2022 Edition
5 Technical data
The system can be supplied via one or two 24V power supply units connected in parallel. All electrical furniture components are
operated using safety extra low voltage (SELV). The maximum power specifications must absolutely be adhered to.
Connected electrical loads
Connection / mains power 230/240 V AC
Frequency 50-60 Hz
Converter protection class II
System operating voltage 24 V DC
System components protection class III
Maximum power for each power-
feed point
7 A
168 W
90W converter
Operating voltage 230 - 240 V AC
50 - 60 Hz
Outlet tension 24VDC max. 90W
Ambient temperature max. 45°C
Life cycle min. 50,000h
max. number per circuit breaker 10x typeB; 18x typeC
Short-circuit, overload and thermal protection (automatic reset)
Secondary parallel operation possible
ENEC certified
Product safety IEC 62368 and EN61347
6 Weight loads
WARNING
Risk of injury from goods or merchandise supports falling down.
The system can fail if the maximum permissible load of the merchandise support is exceeded.
fObserve the maximum load values of the individual merchandise supports.
fDo not exceed the maximum load of 30kg per frame.
The specified weight loads refer to the components listed in the Visplay manual. The maximum weight loads apply with respect
to a uniform load distribution. In the event of visible warpage of the components, the load must be reduced immediately.
Maximum load
Connection frame with support insert + shelf frame 30kg
Platforms 20kg
Hanging rail 40kg
Merchandise support 20kg
Shelves 150 kg
View window 250 kg

19
Stage | General information
May 2022 Edition, Visplay GmbH
7 General information
7.1 Cleaning
During the course of time, dust and deposits from clothes hangers can settle on the merchandise supports. In order that the
goods on display do not become soiled, the merchandise supports must be regularly cleaned.
1. Pull the power plug out of the power outlet.
2. Remove goods from the merchandise support.
3. Remove dirt on the merchandise support carefully with a soft, dry cloth.
4. Remove stubborn dirt with a mild cleaning agent.
7.2 Storage
Store the product and its components under the following conditions:
• Do not store outdoors.
• Store in a dry and dust-free location.
• Protect from sunlight.
• Avoid mechanical shocks.
• Storage temperature: 23°C
• Relative humidity: 50%
7. 3 Disposal
NOTE
Disposing of product components incorrectly can harm the environment.
fEnsure product components are disposed of in a proper environmental manner or through waste management specialists.
fSend components that can be recycled for recycling.
fHave an approved specialized disposal company dispose of electrical and electronic components.
EN

Stage |
20 Visplay GmbH, May 2022 Edition
