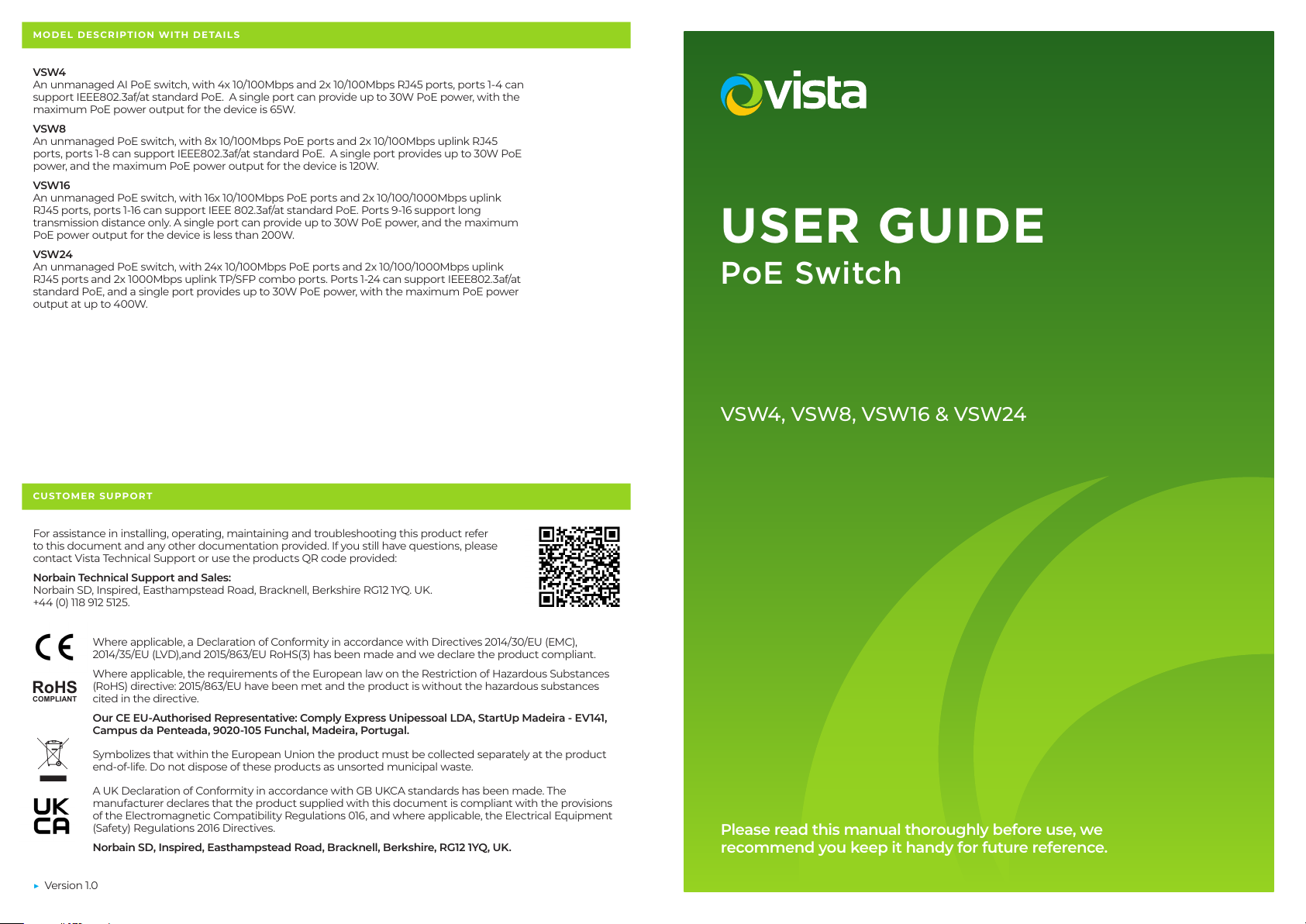

Vista VSW4 User manual

VSW4
An unmanaged AI PoE switch, with 4x 10/100Mbps and 2x 10/100Mbps RJ45 ports, ports 1-4 can
support IEEE802.3af/at standard PoE. A single port can provide up to 30W PoE power, with the
maximum PoE power output for the device is 65W.
VSW8
An unmanaged PoE switch, with 8x 10/100Mbps PoE ports and 2x 10/100Mbps uplink RJ45
ports, ports 1-8 can support IEEE802.3af/at standard PoE. A single port provides up to 30W PoE
power, and the maximum PoE power output for the device is 120W.
VSW16
An unmanaged PoE switch, with 16x 10/100Mbps PoE ports and 2x 10/100/1000Mbps uplink
RJ45 ports, ports 1-16 can support IEEE 802.3af/at standard PoE. Ports 9-16 support long
transmission distance only. A single port can provide up to 30W PoE power, and the maximum
PoE power output for the device is less than 200W.
VSW24
An unmanaged PoE switch, with 24x 10/100Mbps PoE ports and 2x 10/100/1000Mbps uplink
RJ45 ports and 2x 1000Mbps uplink TP/SFP combo ports. Ports 1-24 can support IEEE802.3af/at
standard PoE, and a single port provides up to 30W PoE power, with the maximum PoE power
output at up to 400W.
MODEL DESCRIPTION WITH DETAILS
USER GUIDE
PoE Switch
VSW4, VSW8, VSW16 & VSW24
Please read this manual thoroughly before use, we
recommend you keep it handy for future reference.
For assistance in installing, operating, maintaining and troubleshooting this product refer
to this document and any other documentation provided. If you still have questions, please
contact Vista Technical Support or use the products QR code provided:
Norbain Technical Support and Sales:
Norbain SD, Inspired, Easthampstead Road, Bracknell, Berkshire RG12 1YQ. UK.
[phone].
CUSTOMER SUPPORT
▶Version 1.0
Where applicable, a Declaration of Conformity in accordance with Directives 2014/30/EU (EMC),
2014/35/EU (LVD),and 2015/863/EU RoHS(3) has been made and we declare the product compliant.
Where applicable, the requirements of the European law on the Restriction of Hazardous Substances
(RoHS) directive: 2015/863/EU have been met and the product is without the hazardous substances
cited in the directive.
Our CE EU-Authorised Representative: Comply Express Unipessoal LDA, StartUp Madeira - EV141,
Campus da Penteada, 9020-105 Funchal, Madeira, Portugal.
Symbolizes that within the European Union the product must be collected separately at the product
end-of-life. Do not dispose of these products as unsorted municipal waste.
A UK Declaration of Conformity in accordance with GB UKCA standards has been made. The
manufacturer declares that the product supplied with this document is compliant with the provisions
of the Electromagnetic Compatibility Regulations 016, and where applicable, the Electrical Equipment
(Safety) Regulations 2016 Directives.
Norbain SD, Inspired, Easthampstead Road, Bracknell, Berkshire, RG12 1YQ, UK.
RoHS
COMPLIANT

Please check your box contents match the Whats in the box section before installation. If any are missing,
please contact your dealer.

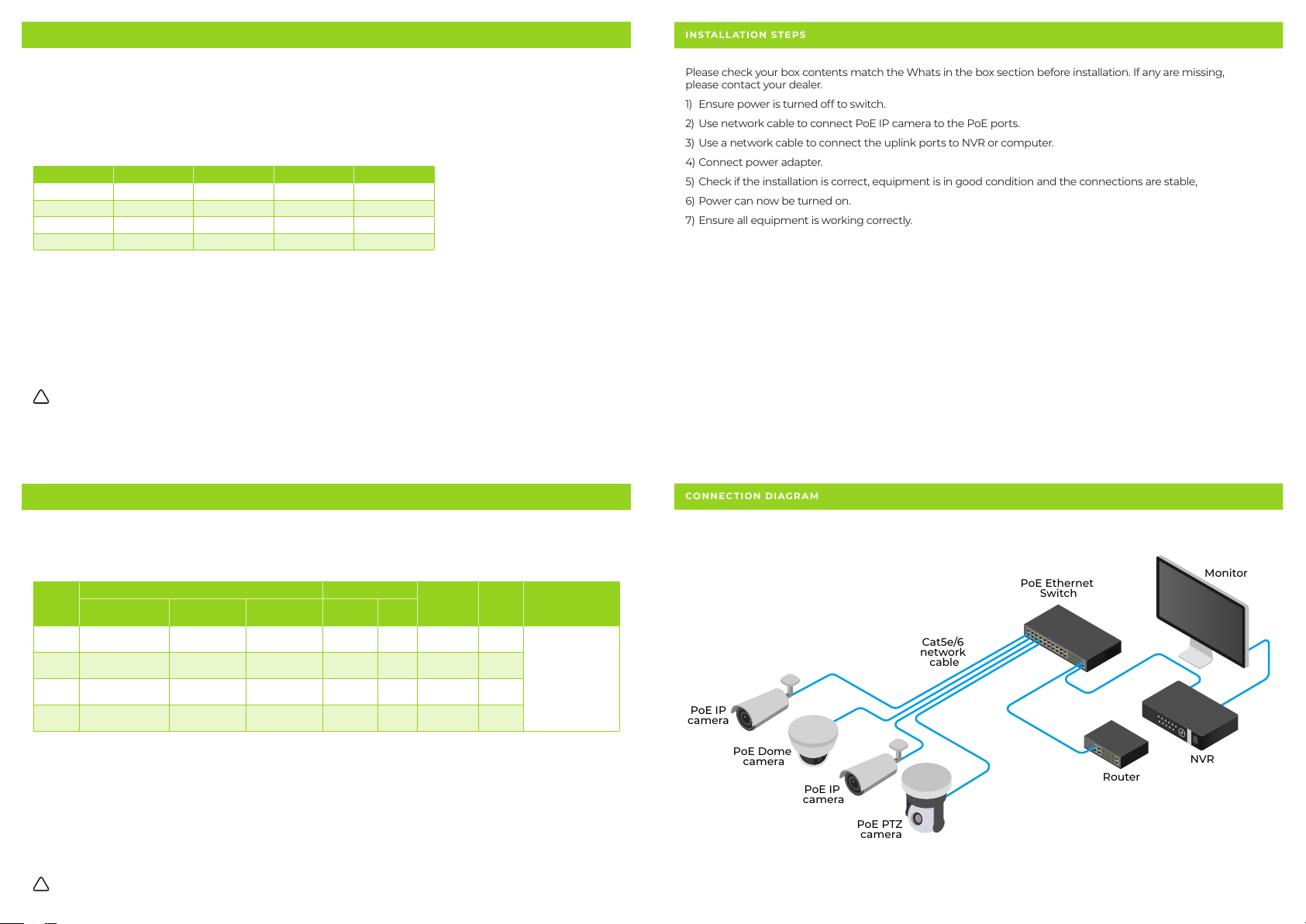

1) Ensure power is turned off to switch.
2) Use network cable to connect PoE IP camera to the PoE ports.
3) Use a network cable to connect the uplink ports to NVR or computer.
4) Connect power adapter.
5) Check if the installation is correct, equipment is in good condition and the connections are stable,
6) Power can now be turned on.
7) Ensure all equipment is working correctly.
INSTALLATION STEPS
! NOTE
For help please refer to the customer support section of the Quick Start Guide.
PRODUCT OVERVIEW
! NOTE
Transmission distances can be related to the cable used, Cat5e/6 cables are recommended.
The VSW PoE switches have been designed to operate primarily with CCTV surveillance cameras. The small
compact casing makes it ideal for use in distributed architecture type systems. Having dual Up-link ports they
can be connected to local NVRs, while the second port can be connected to the systems main back bone for
connection to VMS clients, or routers.
Model
Ports Max. PoE Power Switching
Capacity
Extend
Mode Features
PoE Ports Uplink Ports SFP Ports Max
Capacity
Single
Port
VSW4 4x 10/100 Mbps 2x 100Mbps #NA 60W 30W 1.6Gbps 250m ▶PoE Standard:
IEEE802.3 af/at
▶Port Lightning
protection:
4KV 8/20us
▶Protection
level: IP30
▶Plug & Play
VSW8 8x 10/100Mbps 2x 1000Mbps #NA 120W 30W 11.8Gbps 250m
VSW16 16x 10/100Mbps 2x 1000Mbps #NA 200W 30W 14.8Gbps 250m
VSW24 24x 10/100Mbps 2x 1000Mbps 2x 1000Mbps 400W 30W 14.8Gbps #NA
F E ATU RE S
▶Complies to IEEE802.3af/at, 10Based-T, 100Based-T,
1000Based-T
▶Ethernet Port Rate: self-adaptive 10/100Mbps and 2
self-adaptive 10/100/1000Mbps (excludes VSW4)
▶Plug and Play
▶Working mode: asynchronization, point to point,
full/half duplex self-negotiation
▶User-friendly panel, LED indicator of PWR, PoE, Link/
Act and Speed Rate
▶Functional switch, supporting the switching from
standard to long transmission mode (100m/250m
(excludes VSW24 - Range 100m))
▶Two SFP GBIC ports for Fibre connection. (VSW24 only)
▶19’ standard cabinet (Mounting brackets supplied
(8/16/24), doesn’t apply to VSW4)
Read all instructions and enclosed guides supplied before installing or operating this product.
We recommend you have a basic knowledge of CCTV & IT systems and electrical wiring and products.
WHATS IN THE BOX
Please kindly check the following items:
Contents VSW4 VSW8 VSW16 VSW24
PoE Switch ✓✓✓✓
Power Cable ✓✓✓✓
User Guide ✓✓✓✓
Mounting kit ✗ ✓ ✓ ✓
STATEMENT
! NOTE
If any product shortage or damage is found, please make contact with the company who supplied the goods
WARNING: Improper use can cause severe bodily injury or equipment damage.
Router
NVR
Monitor
PoE Ethernet
Switch
Cat5e/6
network
cable
PoE IP
camera
PoE IP
camera
PoE Dome
camera
PoE PTZ
camera
CONNECTION DIAGRAM
