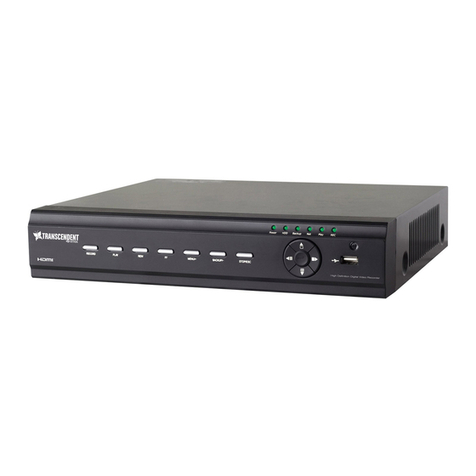

Vitek Transcendent VT-TTR SERIES User manual

VT-TTR SERIES QUICK START GUIDE
1. Notes
● Please read this instruction carefully for correct use of the product and preserve it for reference purposes.
● This manual is suitable for 4/8/16 CH HD TVI Hybrid DVR. All the examples and pictures used here are for
reference only.
● There may be several technically incorrect places or printing errors in this manual. The updates will be added into
the new version of this manual. The contents of this manual are subject to change without notice.
● To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source.
2. Check Package Contents
Please confirm that the device and all accessories are included in the package. If there is any damage, shortages
or defects, please contact your dealer immediately.
FEATURES:
● Full Tribrid Operation with 4 / 8/ 16 Channel HD-TVI/Analog BNC Inputs + IP Camera Support
● 1-Channel (VT-TTR410), 4-Channel (VT-TTR820) and 8-Channel (VT-TTR1620) IP Camera Support
● 120fps @ 720p / 60fps @ 1080p (VT-TTR410), 240fps @ 720p / 120fps @ 1080p (VT-TTR820) and 480fps @
720p / 240fps @ 1080p l (VT-TTR1620) Recording
● Simple plug and play, point-to-point connection from camera to DVR
● H.264 Compression
● HDMI & VGA Video Outputs
● 1 Internal SATA2/SATA3 HDD Slots supporting up to 4TB (1 x 4TB HDD) Internal Storage 2 Internal
(VT-TTR410), SATA2/SATA3 HDD Slots supporting up to 8TB (2 x 4TB HDD) Internal Storage (VT-TTR820 /
VT-TTR1620)
● Supports 4TB Hard Drives
● 2-Way Audio
● Pentaplex: Live Display / Record / Playback / Backup / Remote Access
● PTZ Control over RS-485
● Applications for iOS & Android
● Remote Viewing over the Internet via Web Browser or LAN
● Mac OS® Client & CMS Central Management Software Included
● Supports both Dynamic and Static IP Addresses
● Control locally via Front Panel Controls, USB Mouse, or with the Included IR Remote control
SETUP & CONFIGURATION:
1) Transcendent Series DVR
2) IR Remote Control
3) Quick Start Guide
4) CD Containing Detailed User Manual
5) Rack Ears (8 & 16 Channel Models)
6) HDD Screws
7) SATA Cables
8) USB Mouse

Name
DC12V
USB
LAN
HD TVI VIDEO IN
VGA
HDMI
AUDIO OUT
AUDIO IN
RS 485
Description
DC12V power input.
Connect USB mouse or USB storage devices.
Network port.
(HD-TVI signal) 1080P/720P, (analog signal) 960H/D1 video inputs.
VGA output; connect to monitor.
Connect to high-definition display device.
Audio output; connect to sound box.
1 CH audio input; connect to microphone.
Connect to keyboard or speed dome. A is TX+; B is TX-.
4. Startup & Shutdown
● Startup:
① Please read this instruction carefully for correct use of the product
and preserve it for reference purposes.
② The device will boot and the power indicator will display blue.
③ A wizzard window will pop up.
● Shutdown:
Go to “Main Menu” and then select “Shutdown” icon. This will bring up
a shutdown window. The device will shut down by clicking “OK” button.
Then disconnect the power.
5. Login
After the wizard setup, you can see a live image. Right click to pop up a
menu toolbar. Click Main Menu button. This will take you to see a login
box. The default username is admin; the default password is 123456.
Enter username and password and click “Login” button to go to the
main menu setup.
6. Network Configuration
You can add additional IP (up to 8 2mp depending on model) cameras
to this DVR, the following will explain network setup and adding IP
cameras
►LAN
① Set the network of the HD TVI Hybrid DVR. Go to Main Menu →
Setup → Network → Network as shown in Fig 1. Input HTTP port
(the default value is 80), server port (the default port is 6036), IP
address, subnet, gateway, etc. If using DHCP, please enable DHCP
in both the HD TVI Hybrid DVR and the router.
3. Rear Panel Connections

② Go to Main Menu→IP Camera tab as shown in Fig 2. Click “Search” button to search for IP cameras in the same
local network. If the IPC is not in the same network segment as the HD TVI Hybrid DVR, you can select the device
and click “Setup” as in Fig 3 to change the IP address. (The IPC which supports the Onvif protocol may be added
manually. )
③ Checkmark the device you want to add and then click “OK” button to return to the previous interface to apply the
settings. Status will display "Connected" if successful and will display live image. You may select the added device
and click “Setup” button to modify channel, IP address as shown in Fig 5.
►WAN
① Go to Main Menu→IP Camera tab as shown in Fig 7. Click “Add” button to add the IP cameras. Checkmark
“Enable” checkbox, select channel, manufacturer and enter IP address, server port, username and password of the
IP camera. Then save the settings. The network camera must be connected over WAN. And here the IP address of
the IP camera must be a WAN IP address.
7. NAT
► NAT Settings
① Please read this instruction carefully for correct use of the product and preserve it for reference purposes.The HD
TVI Hybrid DVR must be turned on and connected to the network.

8. NAT
► NAT Settings
① Please read this instruction carefully for correct use of the product
and preserve it for reference purposes.The HD TVI Hybrid DVR
must be turned on and connected to the network.
②GotoMainMenu→Setup→Network.RefertoFig1.Oncethe
DVRhasLANandWANnetworksetup.customercansetNAT
Feature.thisfeatureallowscustomertosetcustomconnection
with3rdpartyDNSsystem.
③SetthepreferredoralternativeDNSServer.Click“Apply”tosave
theparameters.
④ Go to Main Menu→Setup→Network→NAT tab. Refer to Fig 8.
⑤EnableNATandinputtheNATServer(ThedefaultNATServeris
www.autonat.com).
⑥ Click “Apply” to save the parameters.
► NAT Access
AfterfinishingtheNATsettings,youcanentertheNATServeron
thePC(Inputhttp://www.autonat.comtogototheIEclient).Ifthisis
thefirsttimetoaccessingtheNAT,thenetworkwilldownloadthe
ActiveXautomatically.AfterinstallingActiveXsuccessfully,itwill
popupthefollowingloginbox.
SerialNo:TheMACaddressoftheHDTVIHybridDVR(GotoMain
Menu→Information→NetworktochecktheMACaddressoftheHD
TVIHybridDVR).
UserName:EnterUserNameDefault:admin
Password:EnterPassword:Default:123456
10. Playback
Right click the mouse in the live interface to pop up the menu toolbar. Click the little triangle button beside button to
set playback time (eg. 5 minutes). Then click button to play the recording from the past 5 minutes. You may control
the video by clicking the corresponding buttons, such as, forward, play/pause, stop, etc. If you want to play the
recording by searching a specific time and date, event or file, you may refer to the HD TVI Hybrid DVR User Manual
for details.
9. Manual Recording
Before recording, please install and format a HDD. Right click the mouse in the live interface to pop up the following
menu toolbar. Recording is enabled by default. If necessary, click to start recording. (Factory default is set to
continuous recording)
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 1.0
June 2015
