Vitek Transcendent VTC-THB2RFS User manual

VITEK
VTC-THB2RFS
VTC-THT2RFS
Transcendent Series 2.0 Megapixel Indoor/Outdoor
4-in-1 Starlight Fixed Lens Bullet and Turret Cameras
• 1/2.8” 2.0 Megapixel Progressive Scan CMOS
Sensor
• Advanced Starlight Technology Offers Dramatically
Higher Sensitivity to Light Producing Color Images in
Very Dark & Night Scenes
• 2.0 MegaPixel High Definition Analog (HDA):
HD-TVI , AHD, CVI / 960H: CVBS: Output
• 3.6 or 2.8mm Fixed Lens Options
• Matrix IR w/ up to 165’ IR Range (VTC-THBRFS)
Matrix IR w/ up to 100’ IR Range (VTC-THT2RFS)
• True Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• Supports Up The COAX Control
• Over 1500’ HD Video Transmission (Depending on
cable characteristics and integrity)
• VTC-THB2RFS: Optional J Box VT-TJB08,
• VTC-THT2RFS: Optional J Boxes VT-TJB01, VT-TJB08,
Wall Mounts VT-TWMT-3, VT-TWMT-A1
(reqs. VT-TJB08), Pendant Mounts VT-TPDMT-A1
(reqs. VT-TJB08), VT-TPDM-2 (with VT-TJB01)
* Both models work with VT-TPLMT (Pole Adapter, reqs.
VT-TJB08), VT-TCNMT (Corner Adapter, reqs. VT-TJB08)
• 12VDC Operation
• 3 Year Warranty
FEATURES
• IP67
• VTC-THT2RFS available in Ivory or Charcoal
(VTC-THT2RFSB / VTC-THT2RFSB-2)

2
Safety Precautions
CAUTION: TO REDUCE THE RISK OF ELECTICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
To prevent electrical shock and risk of fire hazards, do not expose this unit
to rain or moisture and only use specified power source..
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Main power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power interruptions, it is
recommended that the device be powered from an uninterruptible power supply
(UPS).
The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.

3
VTC-THB2RFS - Components
Overview
34
57
6
Lens
Sun Shield
Mount Lock
Mount Base
BNC Video Output
Output Mode Switch
Power Cable
1
2
3
4
5
6
7
2
1
Video Connection
Connect the BNC video connector to a BNC cable, then to a DVR.
Power
12VDC
Power Connection
Connect the power connector to a regulated 12 VDC power adaptor.
Monitor
Video
Camera
Manual
Drill Template
Screws
Allen Key
This series supports TVI/AHD/CVI/CVBS video output. Before switching
video outputs, please remove the cover of the video switch cable.
The video output can be changed by pressing and holding the button in
the video switch cable for 5 seconds (TVI is the default video output).
Video Output Mode Switch:
Video Switch Cable

4
Installation
Before beginning installation, make
sure that the wall or ceiling is strong
enough to withstand 3 times the weight
of the camera. The mounting steps are:
2. Route the cables and connect the power & video cables, use the
rubber plug to fill the gap of the mounting base, then secure the
mounting base to the ceiling or wall with screws.
Rubber plug
3. Loosen the mount lock to adjust the pan and tilt, then tighten the
mount lock to secure the viewing angle adjustments.
4. Carefully remove the protective film from the lens to complete the
installation.
90° T ILT
360° ROTATION
360° PAN
FIXED RING
1. Attach the drill template to
the place where you want to
install the camera, then drill
4 screw holes and 1 cable
hole (if routing the cables
through the mounting base)
according to the drill
template

5
VTC-THT2RFS Components
Overview
2
1
3
4
Camera
Manual
Screws
Mounting Plate
Rubber Plug
Lens
Lock Screws
BNC Video Output
Output Mode Switch
Power Cable
1
2
3
4
5
5
Monitor
Video
Video Connection
Connect the BNC video connector to a BNC cable, then to a DVR.
Power Connection
Connect the power connector to a regulated 12 VDC power adaptor.
Power
12VDC
Allen Key
This series supports TVI/AHD/CVI/CVBS video output. Before switching
video outputs, please remove the cover of the video switch cable. The video
output can be changed by pressing and holding the button in the video
switch cable for 5 seconds (TVI is the default video output).
Video Output Mode Switch:
Video Switch Cable

6
Installation
Before you begin, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:
1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
.
2. Route the cables and
connect the power & video
cables, then secure the
mounting base to the ceiling
or wall with screws.
3. Loosen the lock screws, then
adjust the camera to obtain
the optimium viewing angle.
Confirm the correct viewing
angle with a monitor. Next
insert the rubber plug.
4. Tighten the lock screws to secure the viewing angle adjustments.
Rubber Plug

7
Camera OSD Menu
The Transcendent 4-in1 camera series must be connected to a DVR
which supports HD-TVI/AHD video signal input and COC protocol to
access the OSD setup menu. Different DVRs manufacturers may have
different modes of menu operation.
You can select the menu by clicking (U) or (D) key on the
direction area. Click (L) or (R) key to select the menu on the
left. The menu with arrow icon which means it has sub-menu. You
can select the menu and click the Enter Button to enter the
sub-menu. to return to previous screen, arrow down to Return and
click Enter Button. To Exit menu arrow down to Exit and click Enter
Button.
You will see the following interface by clicking the PTZ button.
The Following image will pop-up when you left click once on the
image when using Transcendent HDA DVR's.
Click on the OSD tab and then click on the camera menu
button.

8
VTC-THB2RFS, VTC-THB2RFS-2 Detailed Specifications
Image Sensor
Signal System
Effective Pixels
Resolution
Video Output
Frame Rate
Lens
Day/Night
Min. IIIumination
IR LEDs
IR Distance
S/N Ratio
WDR
Other Features
Digital Noise Reduction (DNR)
White Balance
BLC, LSC, HLC
Control over COAX (COC)
Transmission Distance
Power Input
Power Consumption (12VDC)
Weather Resistance
Operation Conditions
Weight
Dimensions L × W × H
1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology
PAL / NTSC
1920 x 1080
2.0 MegaPixel
HD-TVI / AHD / CVI / CVBS (Selectable)
30fps
2.8 or 3.6mm Fixed Lens Options
True Day / Night by ICR
Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON)
2 Matrix IRs
Up to 165’
≥52dB (AGC Off)
True WDR (120dB)
AGC, Freeze, Mirror, Sharpness, Smart IR, Motion Detection, Privacy Mask, Auto Defect Correction
3D-DNR
Auto (AWB)
YES
YES
Up to 1500’ (Depending on cable characteristics & integrity)
12VDC
IR Off: 120mA / IR On: 500mA // < 1.5W / < 6W
IP67
-22° F~140° F / < 95% Humidity
21.17 oz. / 1.33 lbs. / 600g
8.68 × 3.15 × 2.78” (220.5 × 80.1 × 70.5mm)
Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1

9
Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1
VT-TWMT3
Optional Wall Mount for use
VTC-THT2RFS, VTC-THT2RFS-2, VTC-THT2RFSB, VTC-THT2RFSB-2 Detailed Specifications
Image Sensor
Signal System
Effective Pixels
Resolution
Video Output
Frame Rate
Lens
Day/Night
Min. IIIumination
IR LEDs
IR Distance
S/N Ratio
WDR
Other Features
Digital Noise Reduction (DNR)
White Balance
BLC, LSC, HLC
Control over COAX (COC)
Transmission Distance
Power Input
Power Consumption (12VDC)
Weather Resistance
Operation Conditions
Weight
Dimensions D × H
1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology
PAL / NTSC
1920 x 1080
2.0 MegaPixel
HD-TVI / AHD / CVI / CVBS (Selectable)
30fps
2.8 or 3.6mm Fixed Lens Options
True Day / Night by ICR
Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON)
2 Matrix IRs
Up to 100’
≥52dB (AGC Off)
True WDR (120dB)
AGC, Freeze, Mirror, Sharpness, Smart IR, Motion Detection, Privacy Mask, Auto Defect Correction
3D-DNR
Auto (AWB)
YES
YES
Up to 1500’ (Depending on cable characteristics & integrity)
12VDC
IP67
-22° F~140° F / 10%~90% Humidity
14.46 oz / .90 lbs / 410g
3.77” × 4.25” (95.7 × 108mm)
VTC-THT24R2F Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1
HDA Turret Camera w/24 IR LED Illumination
IR Off: 120mA / IR On: 360mA // < 1.5W / < 4W

10
Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1
Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1

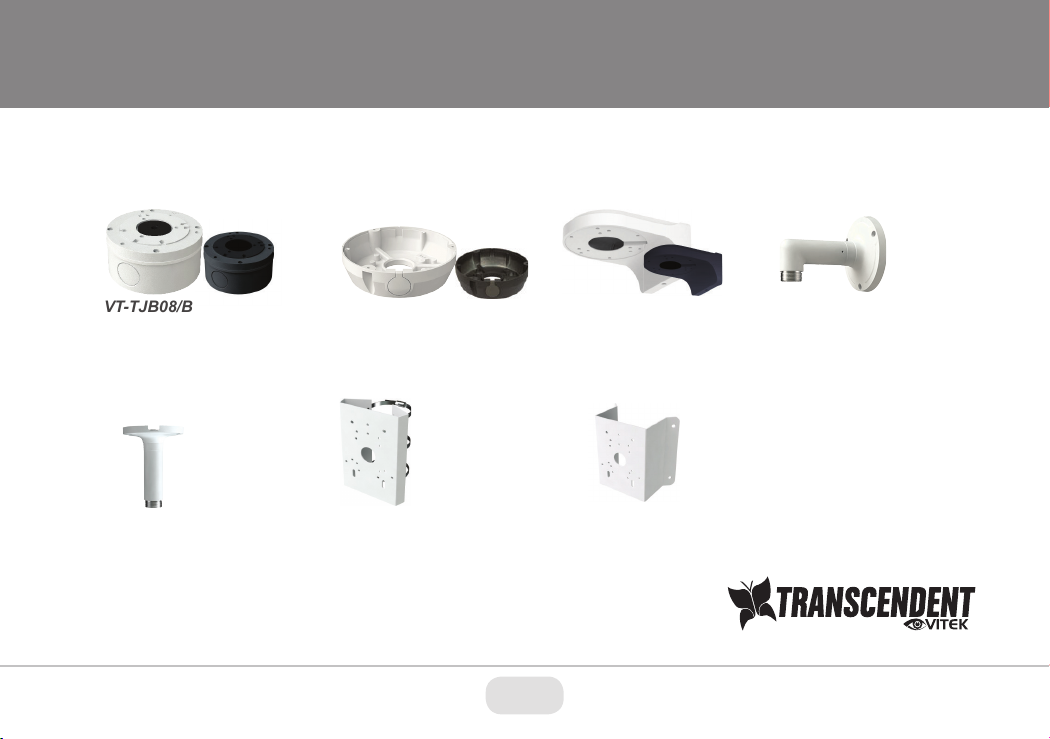

OPTIONAL MOUNTS FOR FIXED TRANSCENDENT CAMERAS,
VTC-THB2RFS, VTC-THT2RFS
VT-TJB08/B
Optional Junction Box
for Use with Select
Transcendent Bullet
and Fixed Lens Turret
Cameras
VT-TPLMT
Transcendent Universal Pole
Adapter (Requires
VT-TJB08 /
VT-TJB08 + VT-TWMT-A1
for VTC-THT2RFS)
VT-TCNMT
Transcendent Universal
Corner Adapter (Requires
VT-TJB08 /
VT-TJB08 +
VT-TWMT-A1
for VTC-THT2RFS)
VT-TWMT3/B
Optional Wall Mount for
use with select
Transcendent Dome
and Turret Cameras
VT-TJB01/B
Optional Junction Box
for Use with Select
Transcendent Bullet
and Turret Cameras
VT-TWMT-A1
Optional Wall
Mount for use
with Transcendent
Domes and Turrets
(Requires VT-TJB08)
VT-TPDMT-A1
Universal 10”
Pendant Mount
Post Adapter -
requires
VT-TJB08

Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1
11
CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS
Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1
Pair with VITEK Transcendent
Series 5-in-1 Digital Video Recorders
Supporting HD-TVI / AHD / CVI / IP /
960H Cameras!
VT-TR4VPK
Video and
Power Balun
Transmitter / Reciver
Pair for HD-TVI / AHD
/ CVI for Distances
Up to 1000’
VT-TR4K
Passive
Video Balun
Transmitter /
Receiver Pair
for HD-TVI /
AHD / CVI for
Distances Up
to 1440’
... AND MOTORIZED LENS 2MP STARLIGHT CAMERAS!
VTC-THB2RMS
Transcedent 2MP
Motorized Starlight
Bullet Camera with
Matrix IR (Up to
165’ IR Range)
VTC-THT2RMS/B VTD-THD2RMS
Transcendent 2MP
Motorized Starlight
Turret Camera with
Matrix IR (Up to
165’ IR Range),
Available in Ivory
/ Charcoal
Transcendent 2MP
Motorized Starlight
Vandal Dome Camera
with Matrix IR ( Up to
100’ IR Range),
Available in Ivory
/ Charcoal

Limited Product Warranty
VITEK products carry a three (3) year limited warranty. VITEK warrants to
the purchaser that products manufactured by VITEK are free of any rightful
claim of infringement or the like, and when used in the manner intended,
will be free of defects in materials and workmanship for a period of three
(3) years, or as otherwise stated above, from the date of purchase by the
end user. This warranty is nontransferable and extends only to the original
buyer or end user customer of a VITEK Authorized Reseller.
The product must have been used only for its intended purpose, and not
been subjected to damage by misuse, willful or accidental damage, caused
by excessive voltage or lightning.
The product must not have been tampered with in any way or the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact your local VITEK Reseller should servicing become necessary.
VITEK makes no warranty or guarantee whatsoever with respect to
products sold or purchased through unauthorized sales channels. Warranty
support is available only if product is purchased through a VITEK
Authorized Reseller.
12
(888) VITEK-70|WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
Optional Junction Box for
Cable Management for use
with all Transcendent Bullet
and Turret Style Cameras
Preliminary Specifications:
Preliminary Specifications:
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 1.0
October, 2020
