VITEK
• Audio Control Station with internal 3” Speaker for
monitoring live audio and playback
• Omni-directional Brushed Aluminum Button Style
Condenser Microphone designed to pick up sounds within
a 50’ diameter
• High Sensitivity of -30dB
• Microphone can be installed up to 2000’ from base station
using 22awg shielded microphone wire (not included)
• 12VDC power supply, 3’ Dual RCA Audio Cable, and
Audio Warning Decal are also included
VT-ACS01/KT
Audio Surveillance System

2
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
1. Unit contains uninsulated dangerous
voltage within the enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons
2. Only use DC Power Supply
3. Read & Keep these instructions.
4. Heed to all warnings and follow all
instructions carefully.
5. Do not use near water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. install in accordance with
the instructions.
8. Do not install near any heat source
such as radiators, heat resisters,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has to blades with
one wider the other. A grounding
type plug has to blades and a third
grounding plug. The wide blade
or the third prong are provided for
safety. if the provided plug dose not
fit into your into your outlet, consult
an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being
walked on a pinched particularly at
plugs, convenience receptacle, and
the point where they exit from the
apparatus.
11. Only use attachment/accessories
specified by VITEK.
12. Use only with cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the Unit,
13. Unplug this unit during lightning
storms or when unused for long
periods of time.
14. Refer all servicing to qualified
service personnel, Servicing is
required when the unit has been
damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the unit,
the unit has been exposed to rain or
moisture, does not operate normally
or has been dropped.
15. Do not attempt to service this
product yourself as opening or
removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified
service personal.
CAUTION - To reduce the risk of
electric shock, do not perform any
servicing other than contained in these
operating instructions unless you are
qualified to do so.

blackblackblack
3
The VT-ACS01/KT Audio Monitoring System enables audio monitoring and external
recording to a DVR or other audio recorder accepting a line input .
This product incorporates a 3” speaker for Live and Playback audio along with a spe-
cial Filter circuit to reduce noise and enhance clarity of sound. An RCA type Audio In/
Out is located on the rear of the attractive desk top Control Station for simple installa-
tion.
The included Condenser type microphone VT-BT/MIC is designed to pick up sounds
from a distance within a 50’ diameter and can be installed discretely in any decor with
a simple nut/bolt configuration . It is also Weather Resistant for indoor/outdoor applica-
tions.
Maximum cable distance between microphone and control station is 2000’ using
22awg shielded microphone wire (not included).
Output Power
Output Impedance
Input Impedance
Frequency Response
Power Supply
Dimensions
5W @ 8 Ohms
600 Ohm Unbalanced
10K Ohm Unbalanced
20Hz - 20kHz
12VDC - 1 Amp
1 - 3/4”H x 5 - 7/16” W x 6 - 3/8” L
VT-ACS01
Output
Sensitivity
Power Consumption
Supply Voltage
Dimensions
Line Level (0dB @1K Ohm) Unbalanced
-30dB
5ma
12VDC
1 3/8” Diameter x 1 7/8” L
VT-BT/MIC

4

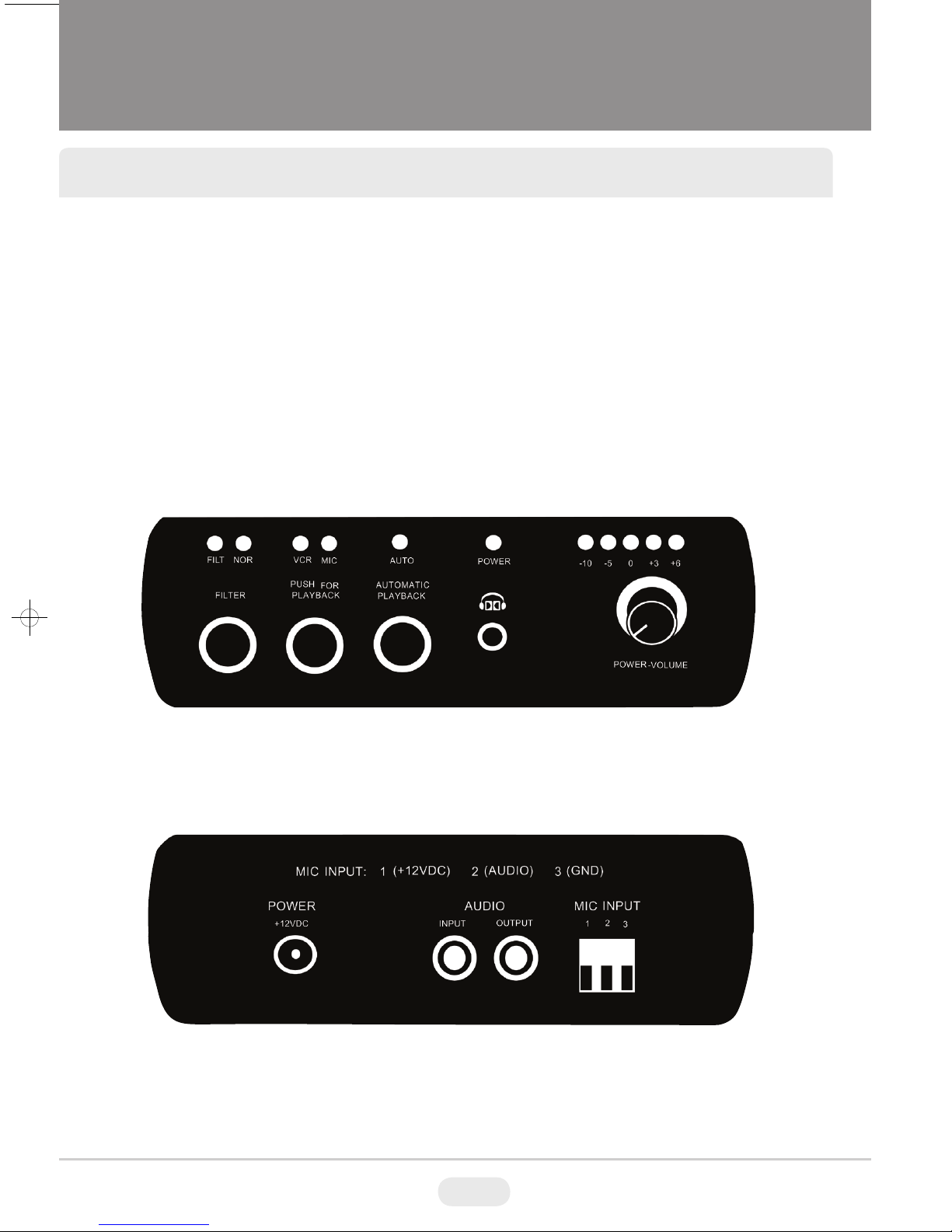

Front Controls
Rear Connections
FILTER BUTTON: Use to reduce audio noise and enhance clarity (options are filter
or normal)
PUSH FOR PLAYBACK:
MIC - to listen live.
VCR - to listen to recorded audio on playback.
AUTOMATIC PLAYBACK: Set for automatic live and playback audio without using
push for playback
ADDITIONAL FEATURES

black
1) Always use shielded wire for audio. Unshielded cable is result in noise and
hum.
2) Always install Microphone as close to the subject being recorded as pos-
sible. Other external noise such as motors and bells may overwhelm the
microphone.
3) Never install the microphone too close to the Control Station as it may
cause feedback. Recommended minimum distance is 30’.
ImPORTANT NOTES
blackblack
5
VT-ACS01: Audio Control Station with internal 3” Speaker
VT-BT/MIC: Button Style Condenser Microphone
VT-12VDC-1000S: 12VDC-1AMP Power Adapter
VT-RCA-3: 3’ Dual RCA to RCA Audio Cable
VT-A-Decal: Audio Warning Decal
VT-ACSO1-KT KIT INCLUDES

6
VT-EH Series
4, 8, and 16 Channel Digital Video Recorders with H.264
Compression
Vitek industrial Video Products, Inc. understands the challenge that
you, the Security Dealer, face everyday to continually provide the most
powerful and cost effective solutions to your customers. You need
products that deliver the very best performance without being overly
complicated or difficult to manage. Our new “EH” series DVR does just
that at a fraction of the price of our competitors, while still delivering
state-of-the-art features like:
• Intuitive graphical user interface that will guide you quickly through all
menu functions.
• Compatible with virtually any web- based browser, eliminating the
need for a dedicated viewer.
• Expanded list of remote connectivity including: iPhone, Google
Android, Palm based PDAs and Mac based computers.
• Increased recording speed up to 240 PPS for smooth, fluid
movement.
• Available in 4, 8 and 16 channels with up to 4 Terabytes of internal
storage.
H.264
Compression
Mac and PC Web Browser
based Remote Viewing and
Control.
Remote viewing with many
popular phones including:
Apple iPhone, Windows
Mobile, Palm, Google,
Blackberry, and Android
based devices.
Mighty Dome Series
The Ultra Versatile Dome Camera Series
The VITEK Mighty Dome incorporates an industry
leading combination of a Sony SuperHAD II Image
Sensor with a Sony Digital Signal Processor to deliver
the best possible performance. As a result, the
Mighty Dome provides the truest colors with crisp,
clean images in every lighting condition.
• Indoor and outdoor versions available
• High Resolution 480 or Super High Resolution 550
TV Line Cameras
• WDR Version Available with PIXIM Image Sensor
• True Mechanical Day/Night function available
• Flush or Surface Mount
• UTP Interface & Heater / Blower Options Available
• Dual Voltage 12VDC & 24VAC
• Infinity Ball Mount for Any Viewing Angle
• Gasketed IP68 Rated Weatherproof Design
• Lens options: 2.9-10mm, 9-22mm, and 18-50mm
• Available in Ivory or Black
Mighty Dome Inside
(Shown in Black) UTP Interface and
Heater & Blower
Options Available
OTHER gREAT VITEK PRODUCTS

blackblackblack
7
VTC-IRV30-2810
Mid Range 100’ Day/Night IR Bullet Camera
with 550 TV Lines & 2.8-10mm Varifocal
Lens
• 1/3” Sony Super HAD II High Resolution
Color CCD with 550 TVL
• 2.8~10mmm / F1.2 Varifocal Auto Iris
Lens
• 30 Infrared LEDs with up to 100 Foot
Range
• 0 Lux Operation (IR LEDs On)
• IP-66 Rated Water Resistance
• Heavy Duty Mount with Cable Feed
Through
• 12VDC/24VAC Dual Voltage Operation
VTC-IRH70-650
Long Range Weatherproof IR Bullet Camera
• Simultaneous Day & Night focus
adjustment eliminating the need to come
back for focus shift
• Automatic brightness adjustment of IR
LEDs
• 6-50mm zoom with 300’ IR Range.
• Fully adjustable 3 axis wire feed-through
mount
• Dual cover for IR and Lens
VTD-MD5CH
Vandal Resistant Mini Dome Camera
• 1/3” Sony Super Had CCD w/550 TVL
• 3.6mm Fixed Lens Included
• Minimum Illumination of 0.3 Lux
• IP-66 Rated Vandal Resistant Aluminum
Enclosure with Polished Chrome Finish
• Can be Semi-Flush or Surface Mounted
• 12VDC Operation
VTM-LCD174P
VTM-LCD174P
VTM-LCD174P
15”, 17“, and 19” Professional LCD Monitors
with Looping BNC Inputs
• 15”, 17“, and 19” Professional LCD Display
Panels
• Designed for continuous 24/7 operation
• VGA, Looping BNC Composite, and S-Video
Video Inputs. DVI & HDMI Inputs on 17“ &
19” Versions
• Resolution up to 1280 X 1024 (17” & 19”)
• Stereo Audio Input/Output
• VESA Standard Mounting
• Swivel Rack Mountable with optional
VI-LCD17SRM Rack Kit

LImITED LIABILITY WARRANTY
Your new VITEK product is guaranteed to be free from defects in
materials and workmanship for a period of three years from the date
of purchase.
The product must have been used only for its intended purpose,
and not been subjected to damage by misuse, willful or accidental
damage, caused by excessive voltage or lightning.
The product must not have been tampered with in any way then the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact an Authorized VITEK Reseller for all servicing needs.
