Vitrifrigo VF51 Manual

17148PP –rev. 00 12/18
for
VF51 - VF62
INSTALLATION, USE AND MAINTENANCE
ORIGINAL INSTRUCTIONS
EN
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

1 Introduction
Dear customer, thank you for choosing one of our products.
Vitrifrigo hopes that you can be completely satisfied with the purchase you have
made.
This manual is considered an integral part of the refrigerator and must follow
the sales path to the user.
Each refrigerator, before being shipped, is thoroughly checked and tested to
ensure it operates correctly.
For more information or for any clarification, please contact one of our service
centres or any of our offices directly.
Vitri Alceste
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

2 General advisory information
-The manual refers to the models VF51 and VF62.
-For a full list of the models and their sizes refer to "Attachment 1".
-Read this manual carefully before using the refrigerator.
-IMPORTANT: Keep ventilation openings in the equipment’s casing or in
the recess free from obstruction.
-IMPORTANT: Do not use mechanical devices or other means other than
those recommended by the manufacturer to accelerate the defrosting
process.
-IMPORTANT: Do not damage the refrigerant circuit.
-IMPORTANT: Do not use electrical appliances or devices inside the food
storage compartments if these appliances or devices are not of the type(s)
recommended by the manufacturer.
2.1 Product uses
-This appliance is designed for use in applications such as:
oLorries, camper vans, caravans and pleasure boats.
-This appliance may only be used with a built-in (recessed) installation.
-This appliance is not designed for direct contact with food.
-Follow the installation instructions given in this manual carefully.
-It is absolutely prohibited to use the refrigerator for any use other than
those intended.
-The appliance may be used by children aged 8 and older and by people
with reduced physical, sensory or mental abilities, and by people lacking
experience or the necessary knowledge, provided that use is supervised
or done after suitable instruction has been given regarding the safe use of
the appliance and once there is an understanding of the danger inherent in
the product and its use.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

-Children must not play with the appliance.
-Cleaning and maintenance by the user must not be done by children
without the proper supervision.
2.2 Upon receiving the product
-Check that the packaging is intact. If not, report it to the courier. Remove
the refrigerator from the packaging, working with maximum care; in order
to prevent accidental injury the use of safety gloves is advised.
-Check that the product has not been damaged. Any damage must be
reported to the reseller within 24 hours of taking delivery of the appliance.
2.3 Installation
-Proceed with installation, working with maximum care; in order to prevent
accidental injury the use of safety gloves is advised.
-Before connecting the refrigerator, check that the network voltage
corresponds with that displayed on the equipment’s identification label, or
with that indicated on the label on the compressor.
-Once installation has been completed, check that the refrigerator is not
resting on a power cable.
If the power supply cable is damaged it must immediately be replaced by
the technical assistance service or by qualified personnel.
Place the refrigerator away from heat sources, making sure that there is
sufficient ventilation.
-We recommend that you wait at least one hour before switching the
refrigerator on, in order to allow the refrigeration circuit to be completely
efficient.
-We recommend leaving sufficient space to be able to disconnect the
appliance from the power supply, should the need arise.
-Series C refrigerators must be used with recessed installation.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

-IMPORTANT: To avoid any hazard caused by the appliance being
unstable, it must be fixed according to the instructions.
2.4 Maintenance and safety
-Before carrying out any maintenance or cleaning operation, disconnect the
power plug.
-Keep ventilation openings free from obstructions.
-Always carry out the inspections, checks, and scheduled maintenance
described in this manual.
-Never try to open or repair the refrigerator.
-For any operating problems, contact the nearest service centre; in any
case, use qualified personnel.
-Do not store explosive substances in this appliance such as aerosol cans
with flammable propellant.
-The appliance must not be cleaned with a jet of water.
-For appliances intended to be used at altitudes higher than 2000 m (6500
ft), contact the manufacturer.
-The environment in which the appliance is installed must be adequately
ventilated if possible.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

2.5 Disposal
-Do not throw the packaging used for your appliance away. Separate the
materials according to local waste disposal regulations.
-This product must not be disposed of with municipal waste but must be
disposed of separately.
Contact your nearest Waste Electrical and Electronic Equipment (WEEE)
collection centre or take it to a retailer when purchasing a new, equivalent
appliance.
-The symbol to the side indicates that the refrigerator must not be
disposed of as urban waste.
-Improper disposal or incorrect use of the refrigerator is subject to
administrative and/or penalties imposed by current legislation.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

3 Aim of the manual
This manual, related to VF51 and VF62 refrigerators, aims to provide a guide
for correct use and maintenance.
In order to learn how to operate and use the refrigerator, you must read this
manual carefully.
In this manual the operations related to the following are provided:
installation, operation, maintenance.
The refrigerator has been manufactured to comply with all the safety
requirements given by legislation and regulations. Nevertheless, the user’s
utmost safety depends on carefully reading this manual and on regular and
careful cleaning and maintenance.
Some information or diagrams in this manual may show details or particular
aspects that might differ slightly from the refrigerator that you have purchased.
The essential information, however, remains the same. Depending on the
constant improvement of models, this refrigerator may show variations that are
not covered in this manual.
Any modifications will appear, depending on the need, in future versions of the
manual.
3.1 The manufacturer
The refrigerator is designed and manufactured exclusively at:
Vitrifrigo s.r.l
Via Giuseppe Mazzini 75 –Frazione Montecchio
61022 VALLEFOGLIA(PU) - Italy
Tel. [phone]
Fax + 39 0721 497739
Mail [email protected]
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

4 Appliance description
Figure 1- Refrigerator components description
A) Ventilation system
B) Freezer Compartment
C) Thermostat
D) Condensation collecting drip pan
E) Removable internal shelf
F) Removable door shelf
G) Bottle stop bar
H) "Airlock" handle
I) Compressor driver
L) "Load Dump" circuit
M) Speed variation circuit
N) Power supply wiring
O) Door panel
P) Compressor
Q) Condenser
R) Fan
S) Rear spacers
The label showing the serial number and the technical data is placed inside
the refrigerator.
The first four digits of the serial number identify the year and the week of
manufacture.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

5 Installation
Ensure that the refrigerator is not damaged when opening the packaging after
receiving the product.
Any transportation damage must be reported promptly to the reseller and, in
any case, within 24 hours of taking delivery of the appliance.
Handle the product with the utmost care and attention.
Always place the refrigerator on a horizontal surface adequate to support its
weight.
Place the refrigerator away from heat sources ensuring that it has enough
ventilation as in the following installation examples.
5.1 Recess for the appliance
The size of the front opening to be prepared for the recess for the appliance
must respect the dimensions of the refrigerator (see attachment 1).
The recess must allow for the minimum distances between the appliance and
the surrounding structure and must have suitable ventilation openings
connecting directly with the open environment of the room, to obtain the
correct air circulation through forced ventilation, as shown in fig. 3a, 3b and
3c.
The recess must ensure that all possible live parts of the appliance are not
directly accessible as well as the ventilation openings, by fitting them with
suitable grilles.
The grilles must have openings with a maximum size of 5mm (0,2 in).
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

The ventilation openings to be prepared are shown below, there are three
main options, depending on the side of the recess structure that is available:
1REAR WALL AVAILABLE FOR CREATING VENTILATION OPENINGS.
The first opening must have a minimum height of 120mm (4,7 in) and
must extend to the whole width of the refrigerator.
The second must have the same dimensions as the first but must be
positioned at the top of the structure in order to allow for the hot air
generated by the unit to be eliminated. The minimum distance between
the back of the refrigerator and the recess must be at least 75mm (2,9
in) (figure 3a).

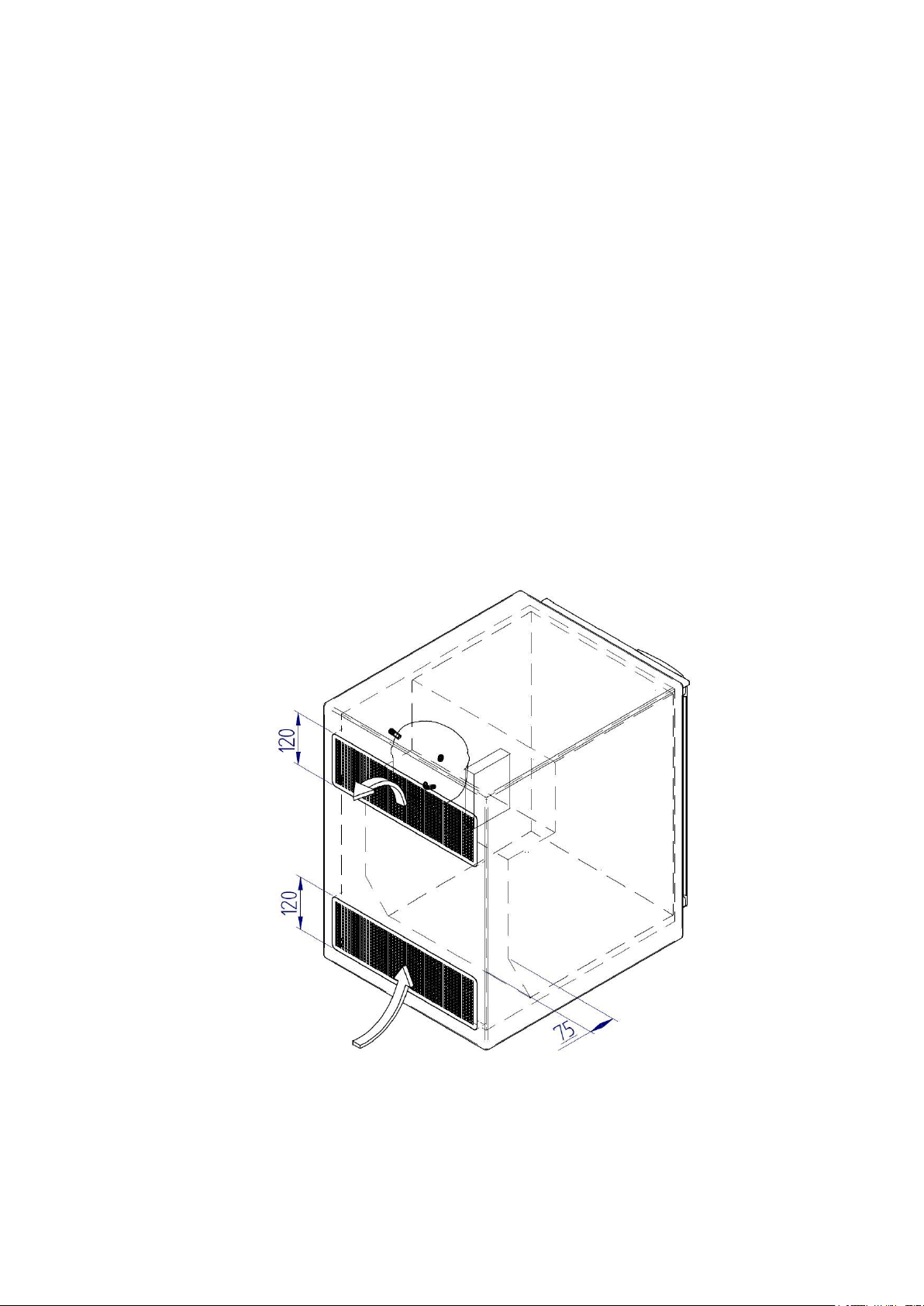

Figure 3a
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

In case the two openings in the rear wall wouldn’t be feasible, act as shown in
point 2 (Fig. 3b) or point 3 (Fig. 3c).
2REAR AND SIDE WALLS AVAILABLE FOR CREATING VENTILATION
OPENINGS.
The first opening must have a minimum height of 120mm (4,7in) and
must extend to the whole width of the refrigerator.
The second must be positioned opposite the condenser and must have
a minimum size of 120 x 120mm (4,7x4,7in). The minimum distance
between the back of the refrigerator and the recess must be at least
75mm (2,9 in) (Figure 3b).
Figure 3b
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

3SIDE WALLS AVAILABLE FOR CREATING VENTILATION
OPENINGS.
The first opening must be positioned opposite the condenser and must
be a minimum size of 120 x 120mm (4,7x4,7in). The second must have
the same dimensions as the first and must be positioned on the opposite
side. The minimum distance between the back of the refrigerator and
the recess must be at least 75mm (2,9in) (Figure 3c).
Figure 3c
The minimum distances between the various parts of the appliance and the
recess structure must not be less than 75mm (2,9in).
In all the situations of the described ventilation openings, only the minimum
distance of 75mm (2,9 in) from the sides of the appliance may not be
observed.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

5.1.1 Appliance recess for camper vans, caravans and motor homes.
To install the refrigerator or fridge units in a caravan, camper van, motor home
etc. make the recess space in the vehicle with ventilation vents directly on the
outside, fitted with suitable grilles to ensure that all possible live parts of the
appliance are not directly accessible (thermostat, control unit and fan). The
grilles must have openings with a maximum size of 5mm (0,2in) and must be
present on at least one side (fig. 3a, 3b and 3c).
IMPORTANT
Keep the ventilation openings in the recess structure free from
obstructions.
Do not place anything over the ventilation grilles, nor cover them.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

6 Electrical connection
It is recommended to connect the 12Vdc or 24Vdc power supply line directly to
the battery by following the corresponding instructions of the supplied control
unit (see Attachment 2).
Prepare the power supply line in AC (in case of a two-way system) using a
three-core cable with a minimum cross-section for a 1 mmq (17AWG)
conductor and insulation suitable for the modes of use and the environment
and compliant with the regulations in force.
Make the connection to the AC power line by means of a plug connection with
an adequate flow rate compliant with current regulations or prepare an
omnipolar magnetothermal differential switch with a capacity of 6 amps and
with contact opening of at least 3 mm (0,12 in) or nevertheless in compliance
with current regulations.
Once installation has been completed, check the continuity of the earth circuit
and carry out all the electrical safety tests provided for by current regulations.
Protect and lock the cables in order to prevent accidental pulling of the cable
from disconnecting it from the connections or coming into contact with hot parts
with a temperature above 50°C (122°F)or with sharp parts.
It is recommended that the installation of the power supply lines is carried out
by qualified personnel who will check the compliance of the unit with the
regulations in force and issue the relative certifications of conformity.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

STANDARD BATTERY PROTECTION SETTINGS
12 V cut-out V
12 V cut-in V
24 V cut-out V
24 V cut-in V
12 V cut-out V
12 V cut-in V
24 V cut-out V
12 V cut-in V
10.4
11.7
22.8
24.2
CABLE DIMENSIONS: CONNECTION BETWEEN THE BATTERY AND ELECTRONIC
UNIT
Section mm2
Max. length m line at 12V
Max. length m line at 24V
2.5 (13AWG)
2.5 (0,10in)
5 (0,20 in)
4 (11AWG)
4 (0,16in)
8 (0,32in)
6 (9AWG)
6 (0,24in)
12 (0,48in)
10 (7AWG)
10 (0,40in)
20 (0,80in)
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

7 Start up
Once connected to the supply source, the fridge will start up automatically in
thermostatic mode and it will not be necessary to carry out any further
operations for it to work properly.
For a reasonable arrangement and storage of food follow the table below:
Food
Storage
time
Position in fridge
Washed fish and meat (*)
2 or 3 days
On the shelf below the freezer
compartment.
Eggs (*)
1 month
Use the door compartments.
Butter and margarine (*)
1 week
Use the door compartments.
Cooked foods, tarts/pies
and
soups (close in
hermetic seal containers
and
put in after
cooling).
3 or 4 days
On the shelf in the lowest part of
the refrigerator.
Uncooked cold cuts of
meat, fresh
pasta, creams, puddings,
chocolate, pastries
bacon (* all)
3 or 4 days
On any shelf.
Bottles. (hermetically
sealed)
In the designated compartments
in the door.
Fruit and vegetables (*)
In the vegetable tray (where
present); at the bottom of the
fridge.
(*) = wrapped or closed in hermetically sealed containers.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

8 Functionalities and temperature regulation
This refrigerator (all models) is equipped with a mechanical thermostat for
automatic temperature maintenance and for defrosting.
To regulate the temperature, turn the knob positioned inside the fridge, in a
clockwise direction (towards "MAX") in order to lower the temperature, and in
an anti-clockwise direction (towards "MIN") to increase it.
9 Maintenance
9.1 External
Wash the outside of the refrigerator with lukewarm water, rinse with cold
water and dry with a soft cloth. Avoid the use of abrasive products.
Since they are recessed fixtures with exposed live parts, they require cleaning
of the condenser to be referred to the personnel for assistance.
9.2 Internal
Remove the grilles (or the rack), the containers and the ice trays and proceed
with cleaning using lukewarm water with bicarbonate of sodium or vinegar.
Rinse and dry carefully with a soft cloth.
Completely avoid the use of abrasive products, detergents or soaps. in order
to avoid the formation of mould or unpleasant smells, unplug the appliance,
empty it and clean the inside and leave the door half open.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

9.3 Appliance defrosting
It will be necessary to defrost the refrigerator every so often when the frost
builds up to a thickness of more than three millimetres.
This operation is necessary in order to guarantee that the fridge works
efficiently and to avoid increasing the electricity consumption.
In order to achieve complete defrosting of the refrigerator turn the thermostat
control to the stop position. Keep the door open so that the defrosting time is
quicker.
IMPORTANT: Do not use mechanical devices or other means other than
those recommended by the manufacturer to accelerate the defrosting
process.
IMPORTANT: DO NOT REMOVE THE LAYER OF FROST USING POINTED
OR SHARP METAL TOOLS THAT MAY CAUSE A PUNCTURE IN THE
COOLING PLATE WITH IRREPARABLE CONSEQUENCES FOR THE
APPLIANCE.
It is recommended to empty the drip tray daily.
Once defrosting has finished start up the refrigerator by returning the
thermostat knob to the desired position.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

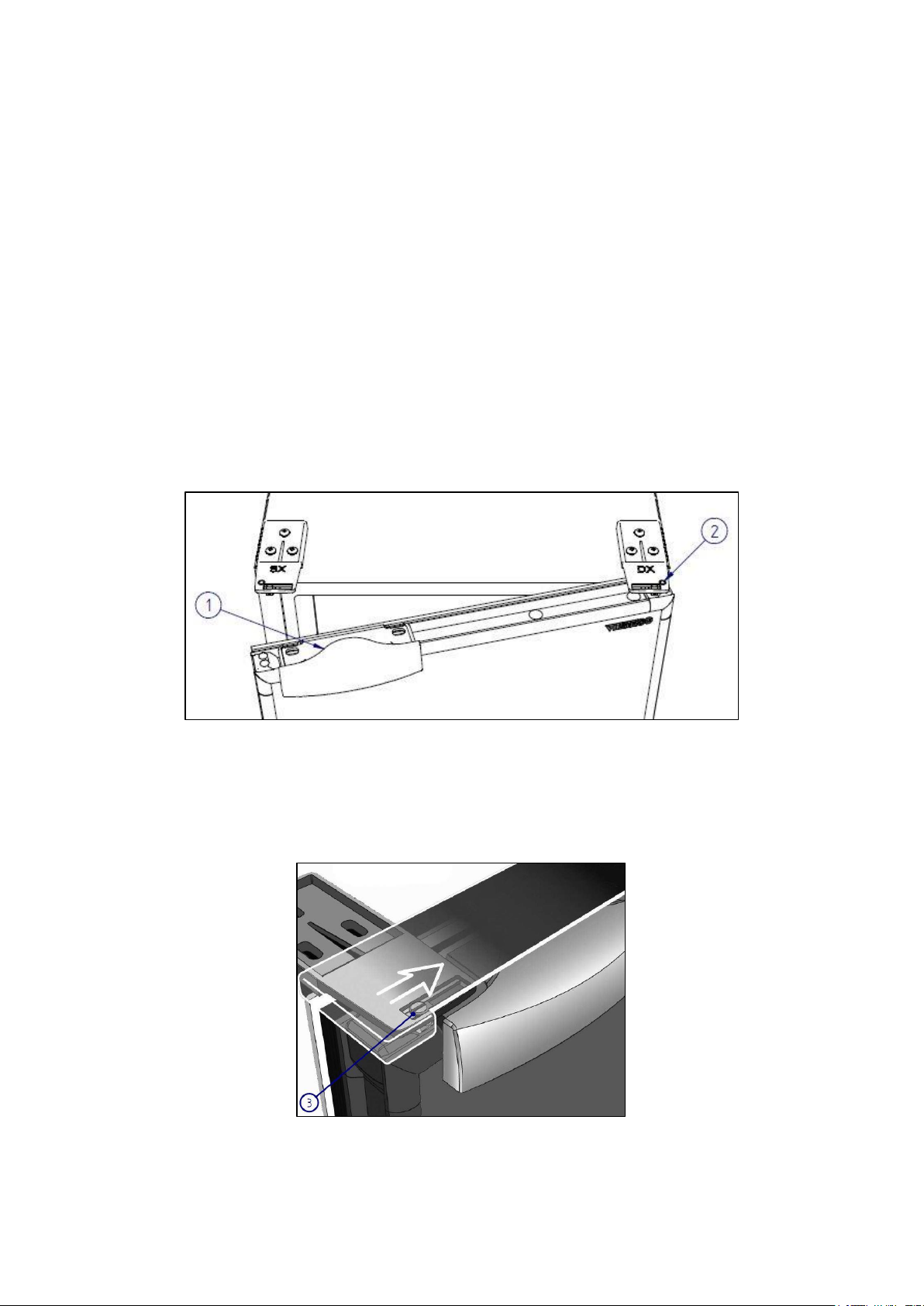

9.4 Reversibility of door opening direction
1Remove the lower hinge and pull the door downwards to remove.
2Remove the Airlock handle (1) and reposition it on the opposite side of
the door, paying attention to the hole centre distances (see tops).
3Unscrew the hinge pin (2) from the fridge hinge and screw it in on the
opposite side.
4Re-position the door being careful to ensure that the closure works
efficiently.
5Re-assemble the lower hinge on the opposite side of the fridge.
Figure 4
To position the door in Vent Position, move the door hinge pin inwards (3). Only
carry out this operation when the refrigerator is switched off.
Figure 5
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

9.5 Replacing the door panel
1Remove the door by following the indications shown in points 1, 2, 3 of
the previous paragraph.
2Remove the door base profile by unscrewing the 2 screws fixing it to the
door.
3Take off the supplied panel and replace it.
4Re-position the door base profile.
5Re-position the door on the refrigerator.
9.6 Replacing the LED light profile
IMPORTANT: Before replacing the light, make sure that the refrigerator is not
connected to any electrical supply. If connected, unplug the appliance from the
electrical supply. Replacing the LED light must be done by a suitably qualified
person who is able to adopt all the appropriate safety measures.
To replace the LED light profile:
1Extract the safety cover perpendicular to the base, taking care not to
damage the fixing pins.
2Disconnect the light’s power cables.
3Replace the LED light profile.
4Connect the power source.
5Replace the cover.
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]
